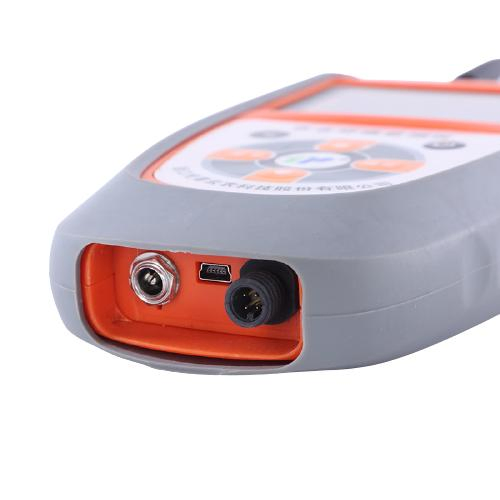

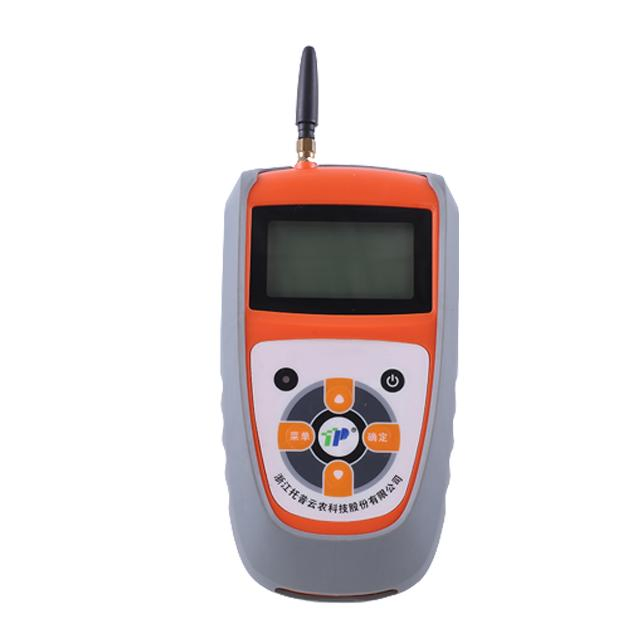

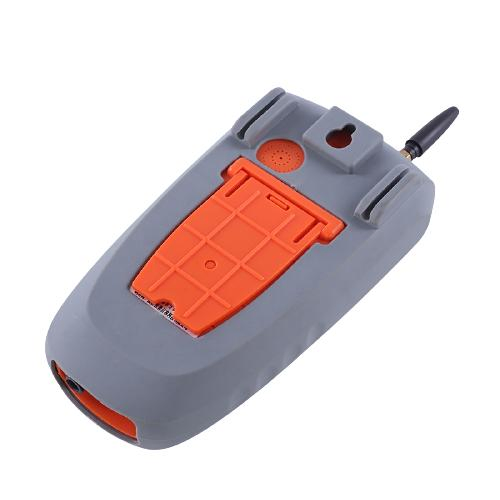

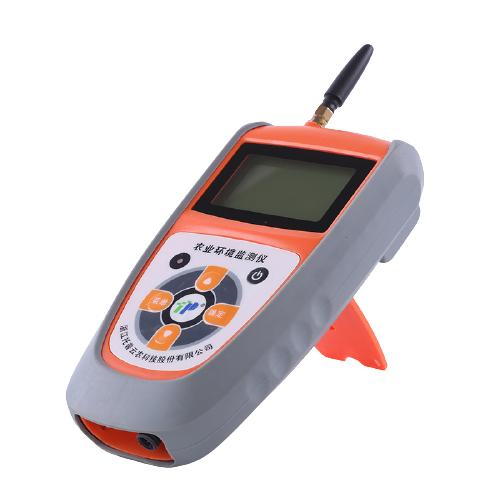

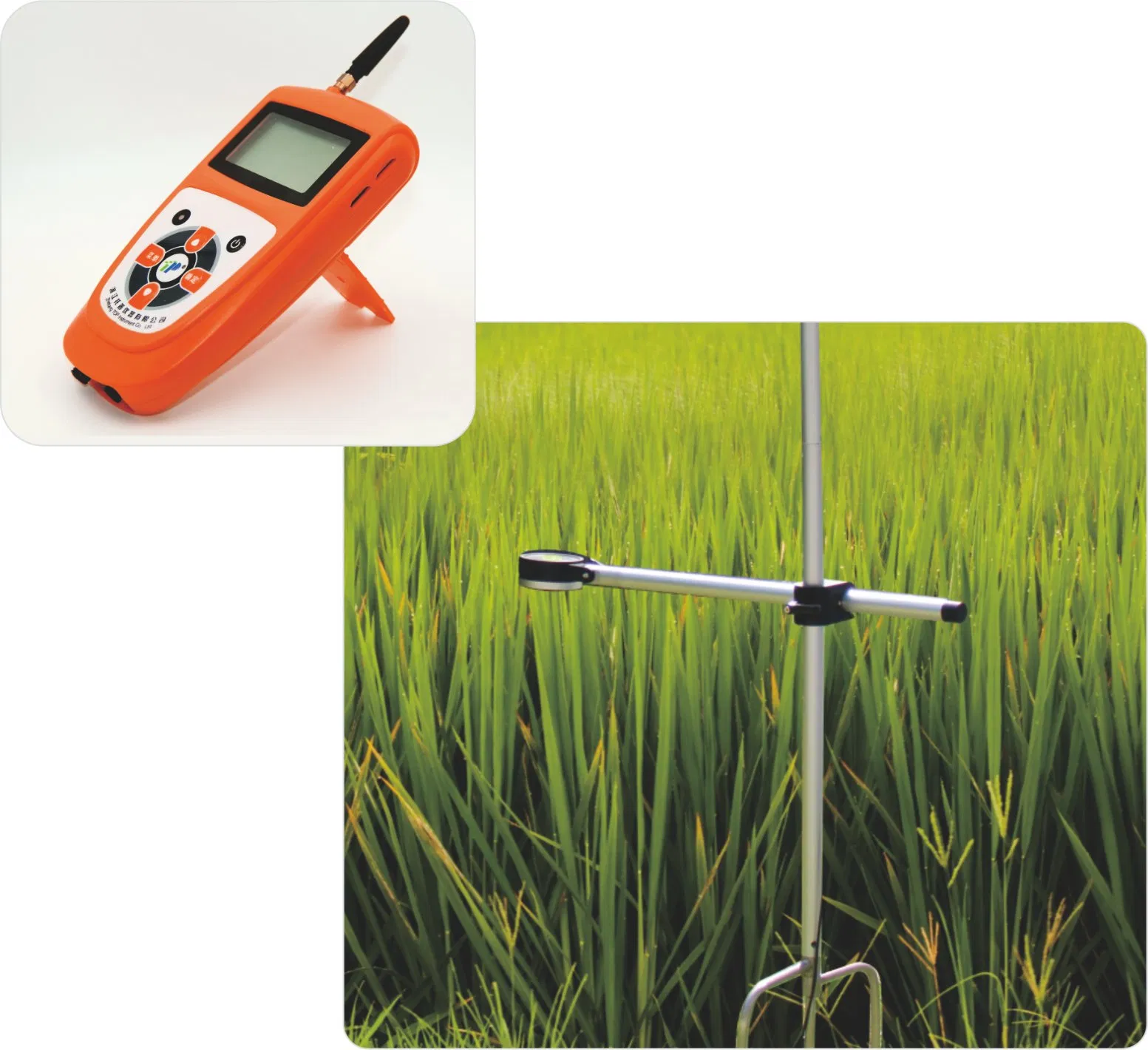

Small Professional Weather Monitor Sensor

Customization: Available
After-sales Service: Support
Warranty: 1 Year

Product Description

📋 Basic Information
Model NO.TNHYStandardCelsius/Fahrenheit
DisplayDigitalSensorHigh-Quality Material
Delivery TimeWithin 30 DaysTemperature Range-40 to 100
Humidity Range0-99.9%Light Intensity0-100000 Lx
CO2 Range0-2000 PpmOriginChina
Capacity1000 Sets Per MonthHS Code9031809090
🔍 Product Description

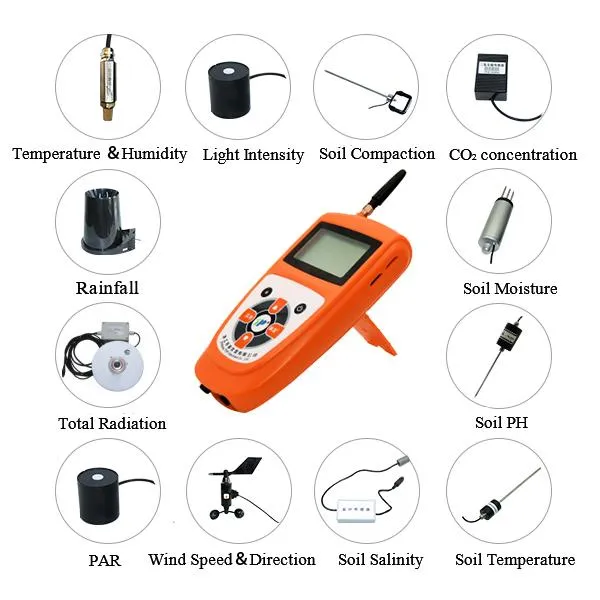

Weather Monitor

The Handheld Agricultural Weather Monitor is a professional-grade device designed to acquire critical environmental data in real-time. It monitors air temperature, humidity, light intensity, PAR radiation, wind direction/speed, rainfall, CO2 concentration, soil temperature, moisture, PH, and salinity.

This versatile tool is widely utilized in facility agriculture, forestry, horticulture, and animal husbandry to enable automatic monitoring and intelligent facility management for comprehensive agricultural ecological information.

✔ Key Features

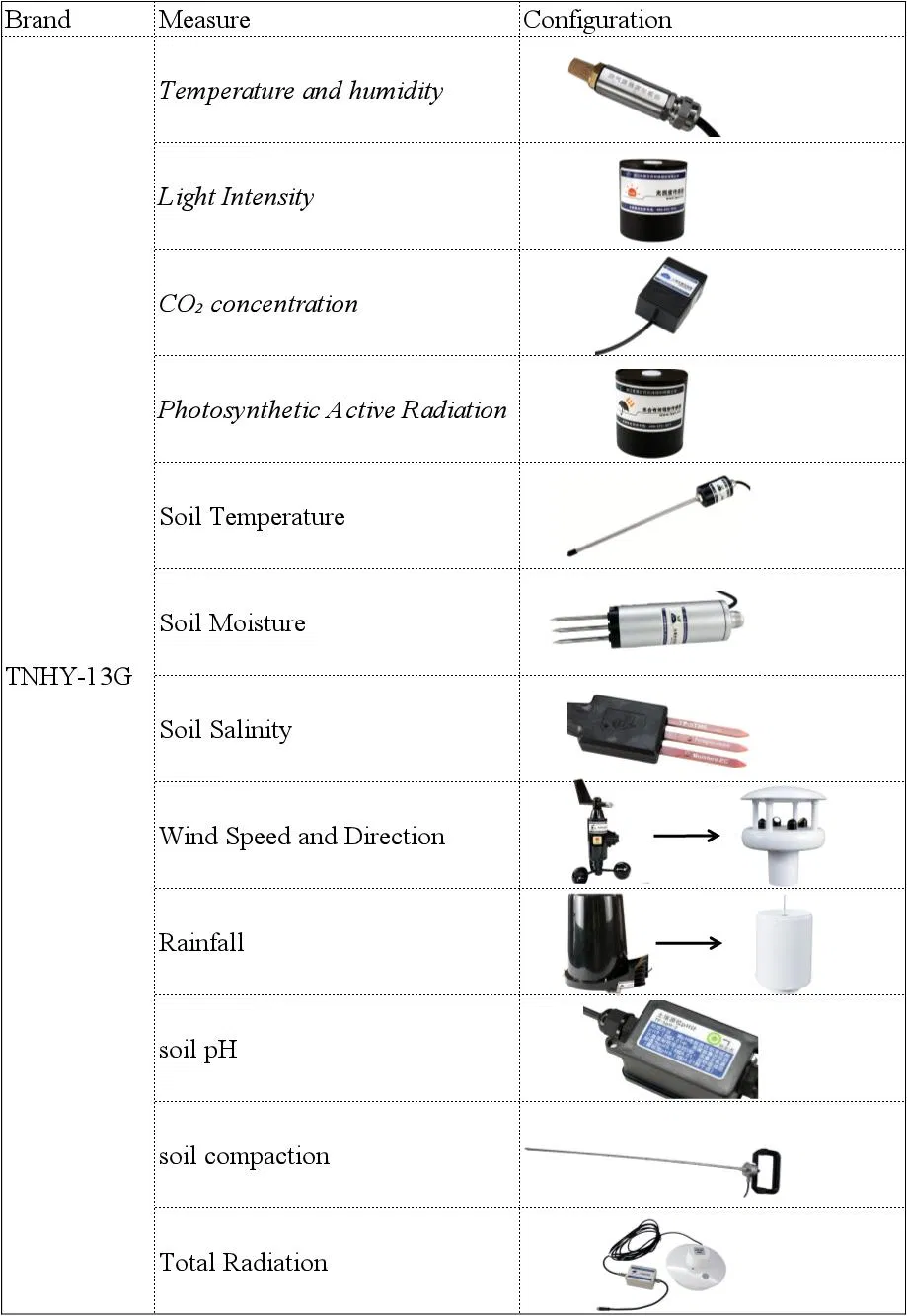

Features Diagram
Large LCD display with touch keys, smart, portable, and easy to operate.
One-button switch for both manual and automatic recording.
PC connectivity for data upload, processing, and backup.
Dual AC/DC power; 8.4v Li-ion battery with charging and low voltage protection.
Massive storage: up to 30,000 records plus a standard 4G SD card.
Multi-channel support: up to 32 channels for simultaneous testing.
RS485 communication supporting cables up to 100 meters.
⚙ Technical Specifications
Testing Index Parameter Range & Accuracy
TemperatureRange: -40ºC - 120ºC; Accuracy: ±0.3ºC
HumidityRange: 0-100%RH; Accuracy: ±3%RH
Soil SalinityRange: 0-23mS/cm; Accuracy: ±2%FS
Light IntensityRange: 0-200000Lux; Accuracy: ±2%FS
Wind SpeedRange: 0-45m/s; Accuracy: ±(0.5+0.03xV)m/s
RainfallRange: 0-4mm/min; Accuracy: ±0.1mm
CO2 ConcentrationRange: 0-2000PPM; Accuracy: ±(50PPM + 3%)
Soil MoistureRange: 0-100%; Accuracy: ±2.5% (Indoor)
pH ValueRange: 0-14; Accuracy: ±0.5
📦 Packing & Logistics
Packing 1 Logistics
💬 After-Sales Service
Service Team

We provide a professional after-sales team with global service coverage and 24-hour support to provide you with immediate solutions.

🏭 Profile & Certificates

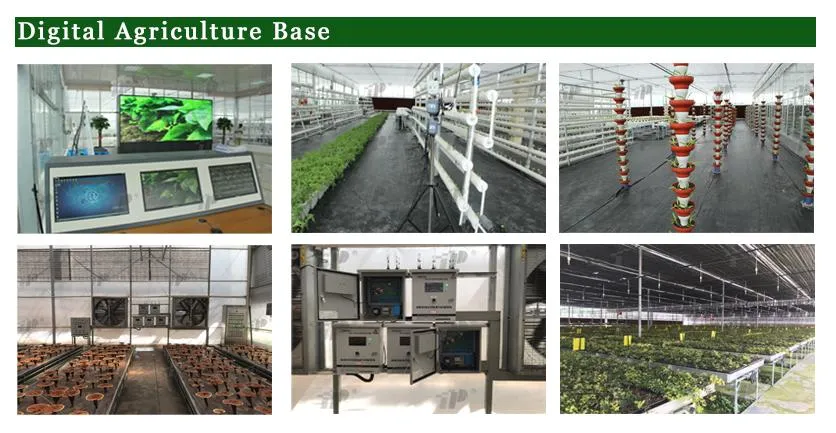

Production Base

Founded in 2008, our enterprise specializes in the design, development, and manufacture of agricultural testing instruments and smart agriculture solutions. We hold numerous national patents and software copyrights, focusing on seed breeding, plant physiology, and weather monitoring.

Our facilities have passed ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications, ensuring the highest standards of production and quality control.

Cert 1 Cert 2 Cert 3
Main Certificate
👥 Customer Feedback
Customer Response
❓ Frequently Asked Questions
1. Are you a manufacturer?
Yes, we are. We have a production base of over 26,680 square meters and employ more than 300 workers. You are welcome to visit our factory.
2. How do you guarantee product quality?
We have passed ISO9001 / 14001 / 45001 certifications. Our professional quality inspection team of over 30 inspectors ensures strict control from raw materials to final packaging.
3. What is your after-sales service policy?
We offer a full 1-year warranty and lifelong maintenance support for all our testing instruments.
4. How long is the delivery lead time?
Generally, it takes 3-5 days, though this may vary depending on the specific product type and order quantity.
5. Is OEM service available?
Yes, OEM is acceptable. Please contact our team with your specific requirements for detailed information.
6. Do you provide technical support for international clients?
Absolutely. Our professional team provides 24-hour support to bridge any time difference and ensure your technical issues are resolved promptly.
