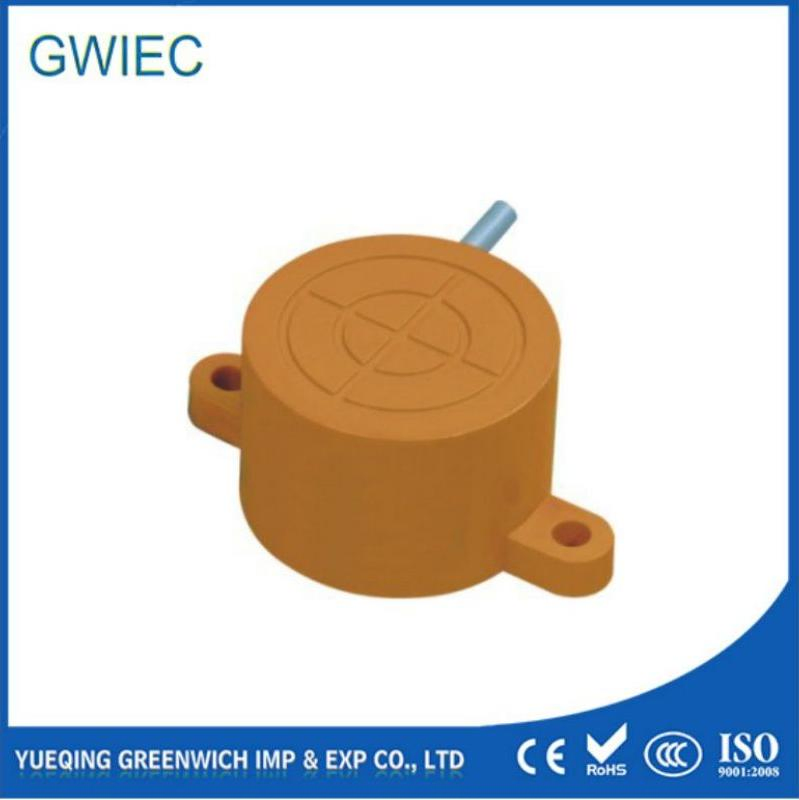

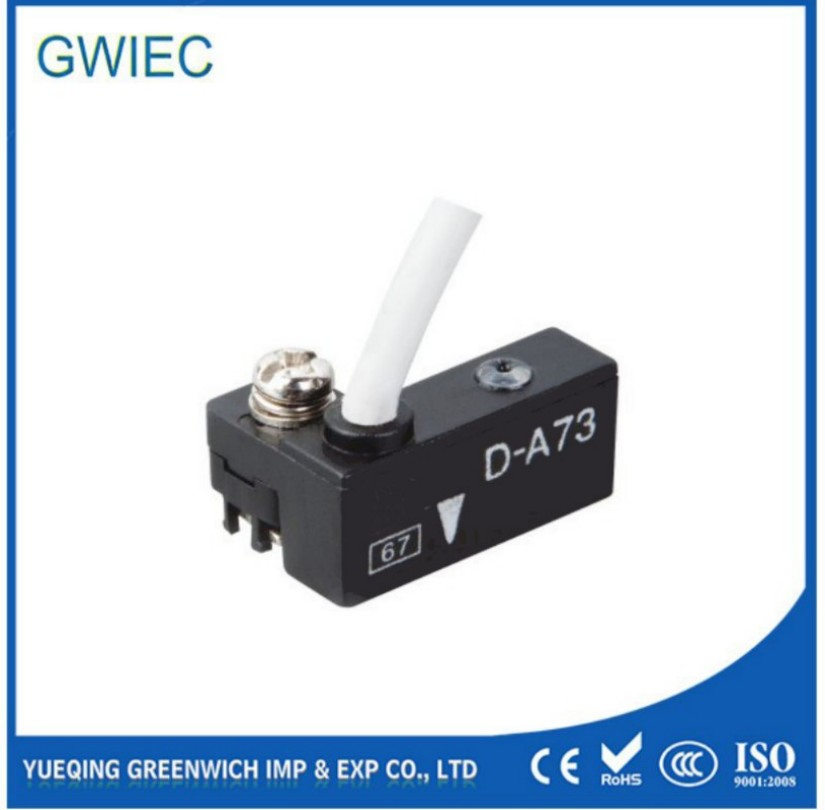

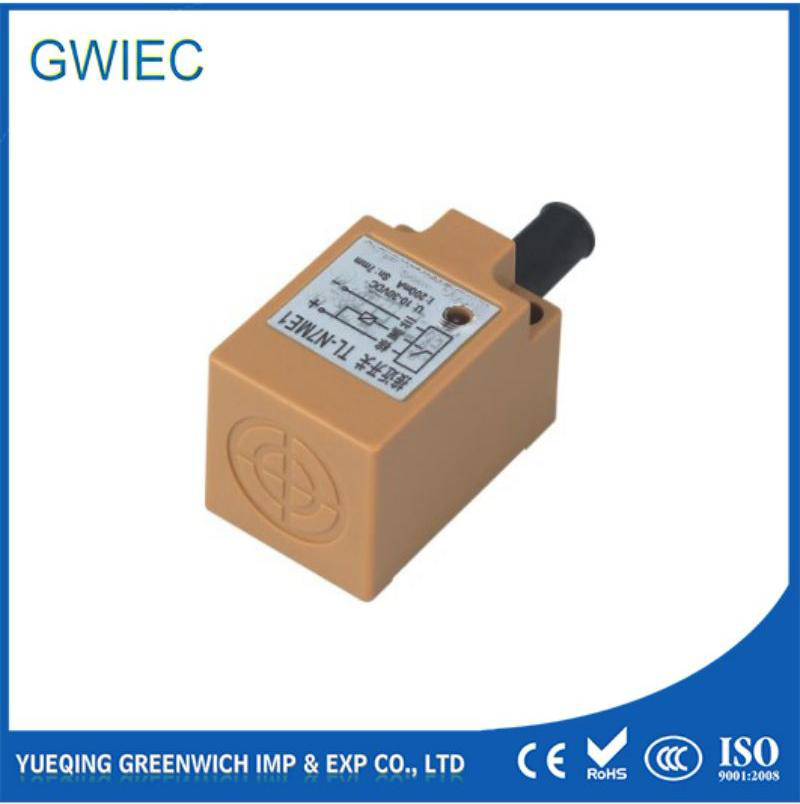

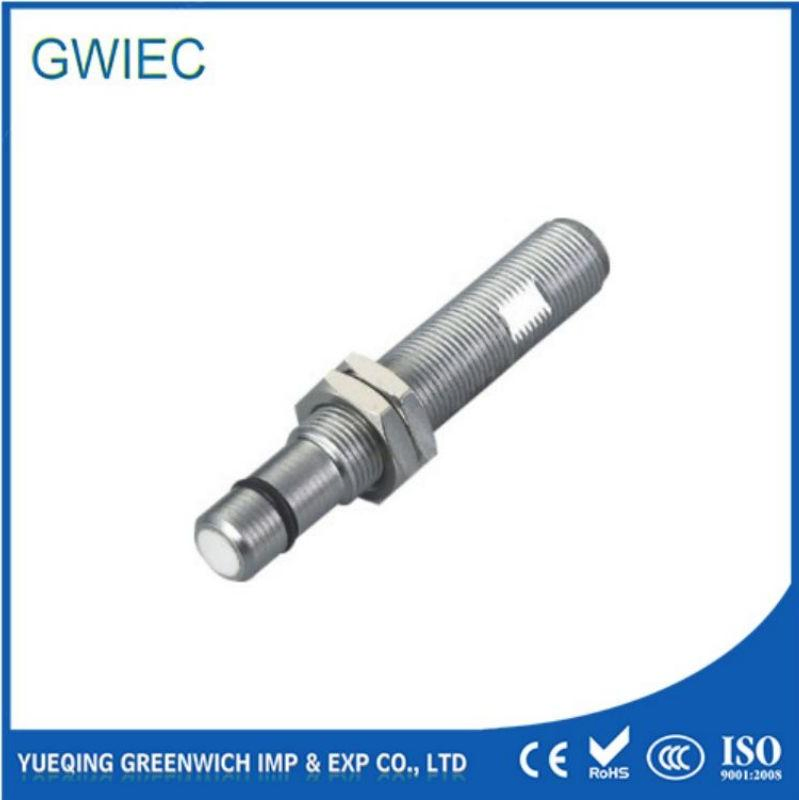

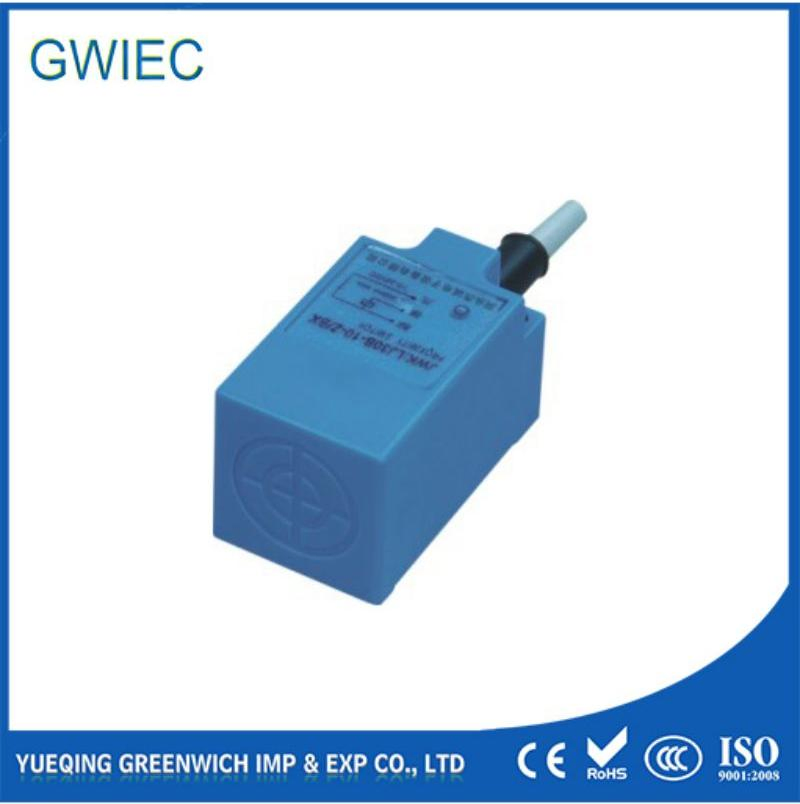

Proximity sensor switch is a displacement sensor with switching output. It can detect metal (iron, steel, copper), plastic, glass, wooden, water, paper, magnetic, and other transparent or opaque objects.
Widely used in machinery, textile, light industry, papermaking, printing, and packing industries. Compatible with PLC, servo controllers, frequency inverters, and counters for automatic signal input control.
| Parameter | Details / Ratings |
|---|---|
| Mounting Type | Flush / Non-flush |
| Rated Distance [Sn] | 2mm / 4mm |
| Supply Voltage | 10…30 VDC |
| Switching Frequency | 1000 Hz - 1500 Hz |
| Output Current | ≤200mA |
| Protection Rating | IP67 / IP44 |
| Ambient Temperature | -25ºC to 70ºC |
| Housing Material | Nickel-copper alloy |
| Circuit Protection | Short-circuit, overload, and reverse polarity |
| Connection Type | 2m PVC cable |

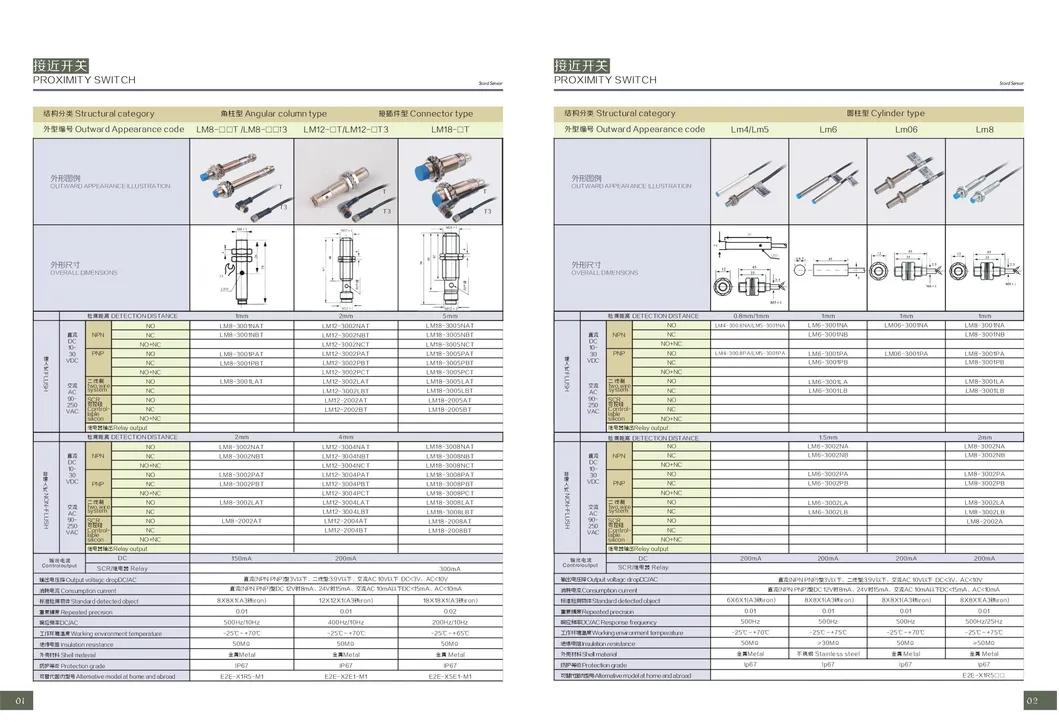

Our product range includes over 30 series and 3000 specifications: inductive sensors, capacitive sensors, photoelectric sensors, light curtains, and encoders.
