| Technology | Microwave doppler radar |
| Transmitter frequency | 24.150 GHz |
| Transmitter radiated power | < 20 dBm EIRP |
| Detection mode | Motion |
| Detection zone | FALCON: 4 x 5 m ; FALCON XL: 4 x 2 m |
| Min. detection speed | 5 cm/s |
| Supply voltage | 12 V to 24 V AC/DC |
| Weight | 400 g |
| Materials | ABS and polycarbonate |

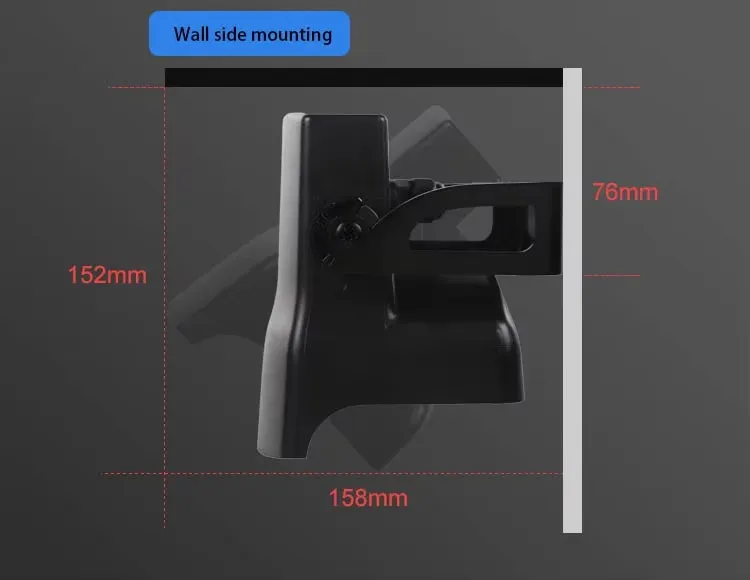

| Dimensions | 127 mm (L) x 102 mm (H) x 96 mm (W) |
| Degree of protection | IP65 |

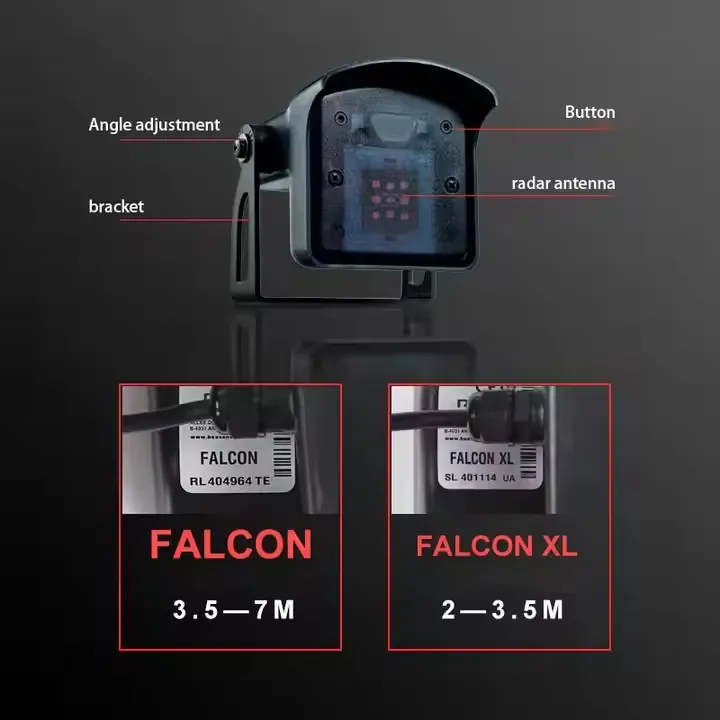

| Mounting Height | 3.5 m - 7m; FALCON XL: 2 m - 3.5 m |

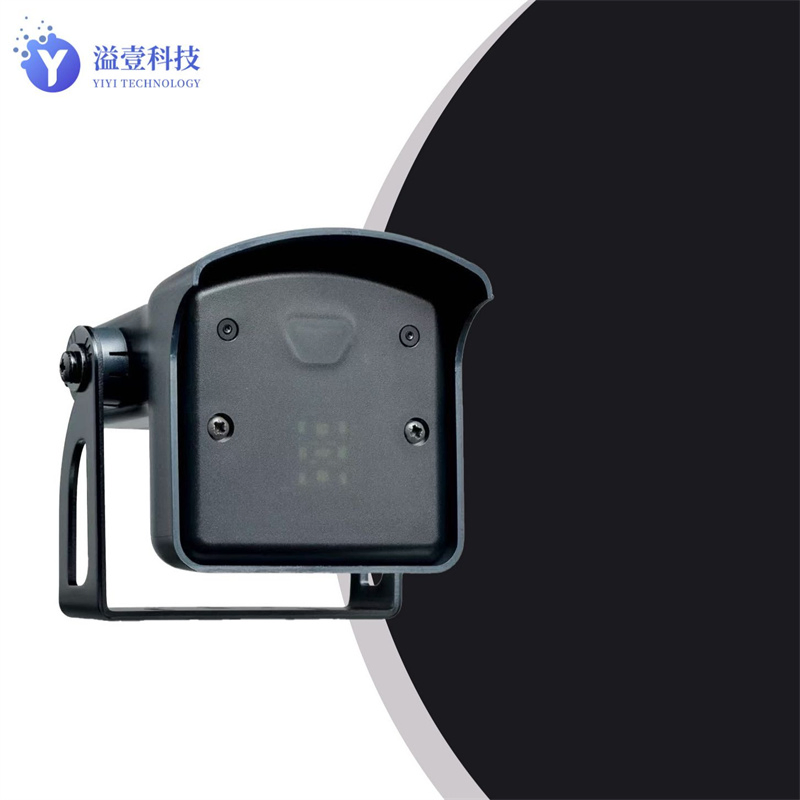

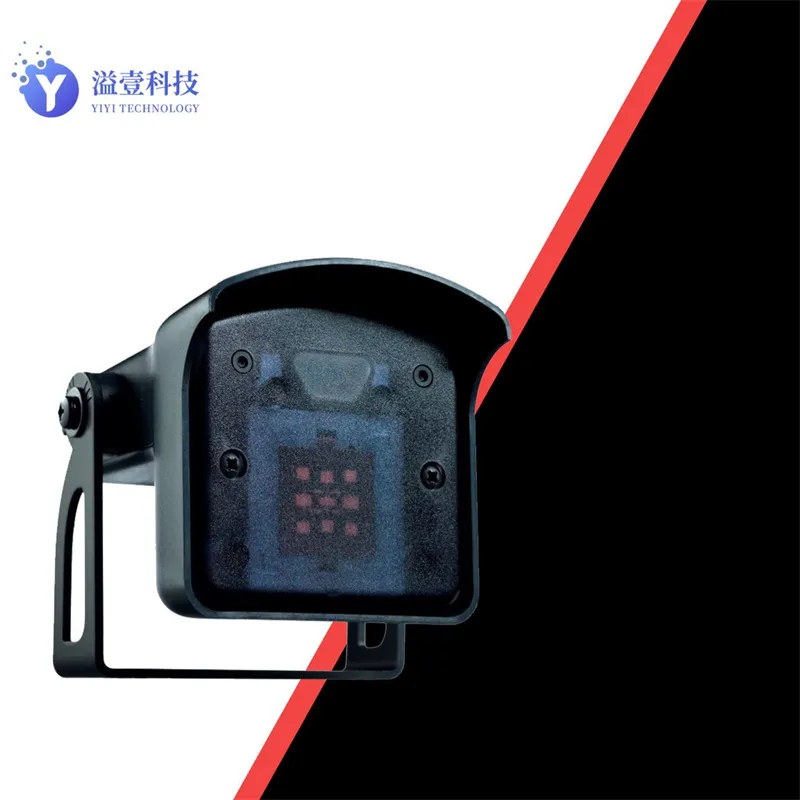

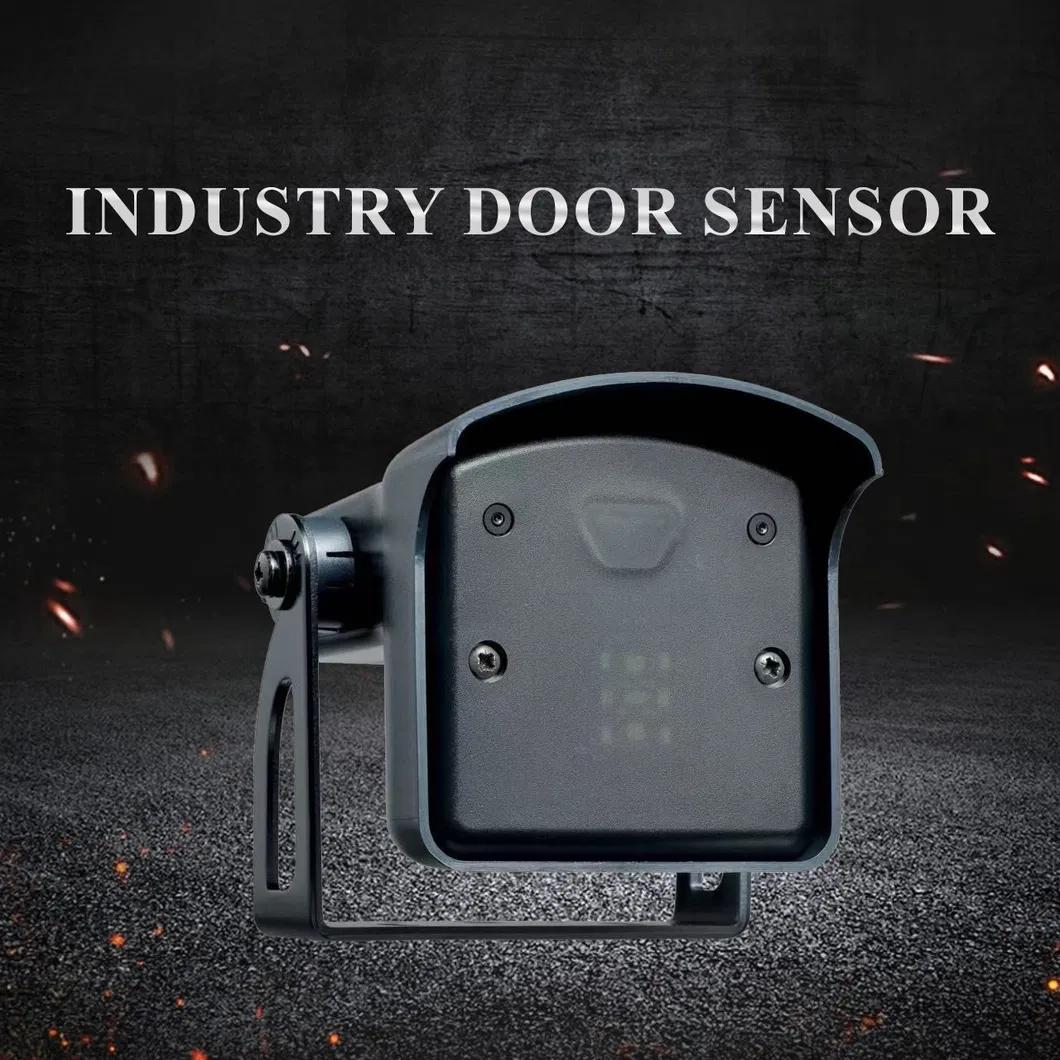

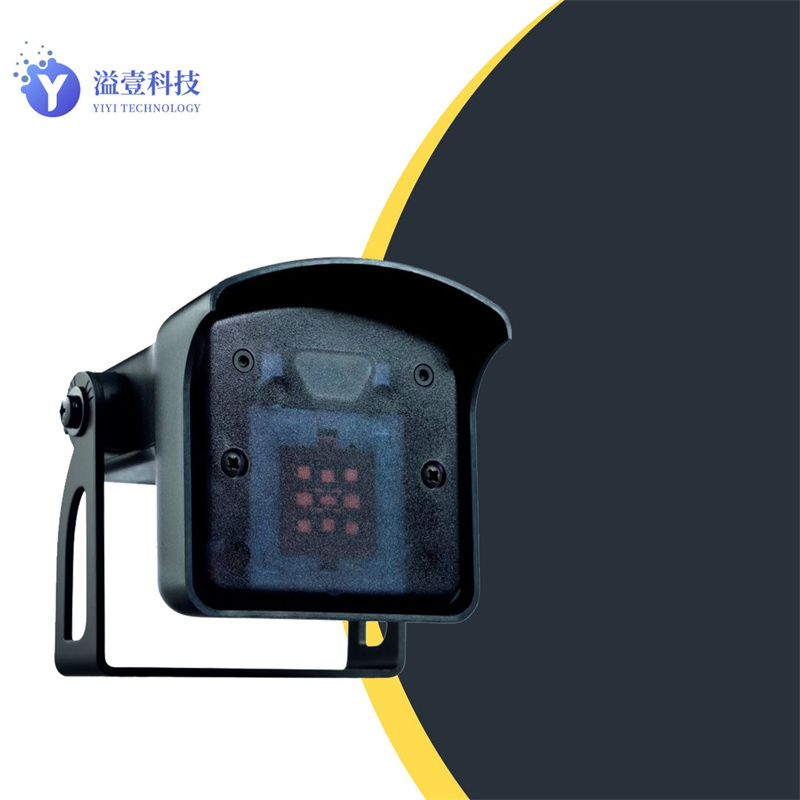

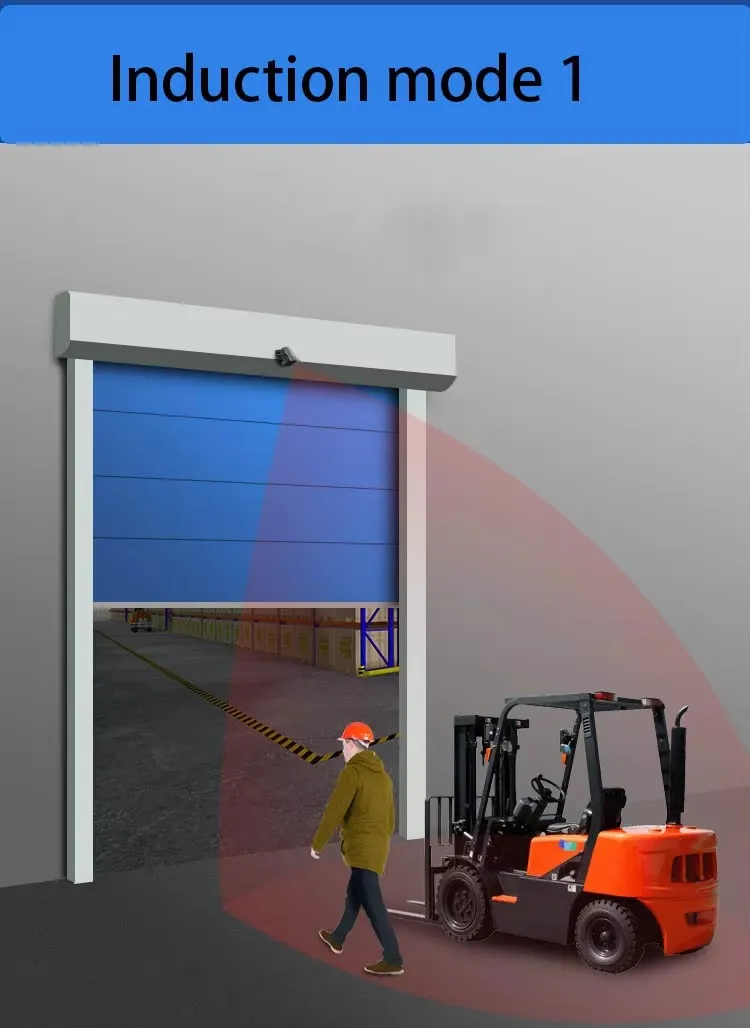

The Falcon is an industrial automatic door sensor designed to detect vehicles and pedestrians, facilitating the separation of people and vehicles. It employs microwave radar technology for high-precision detection in factory and garage environments.
