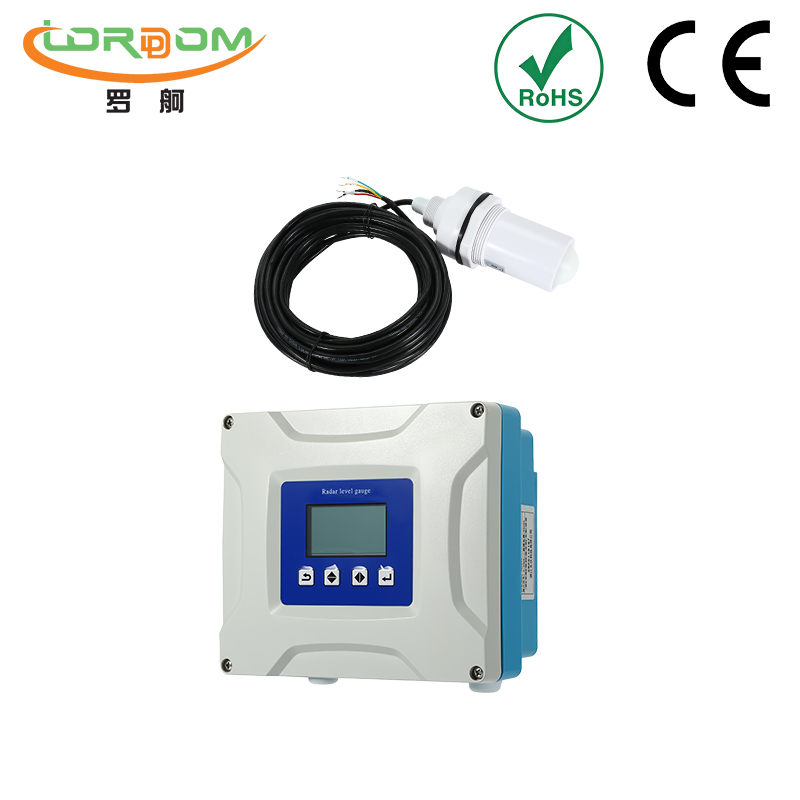

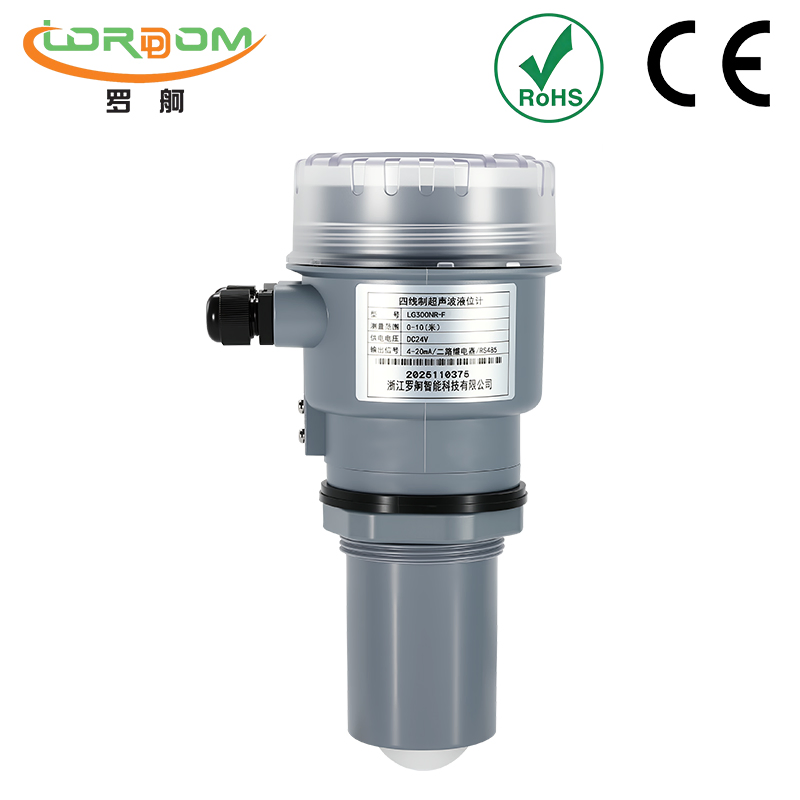

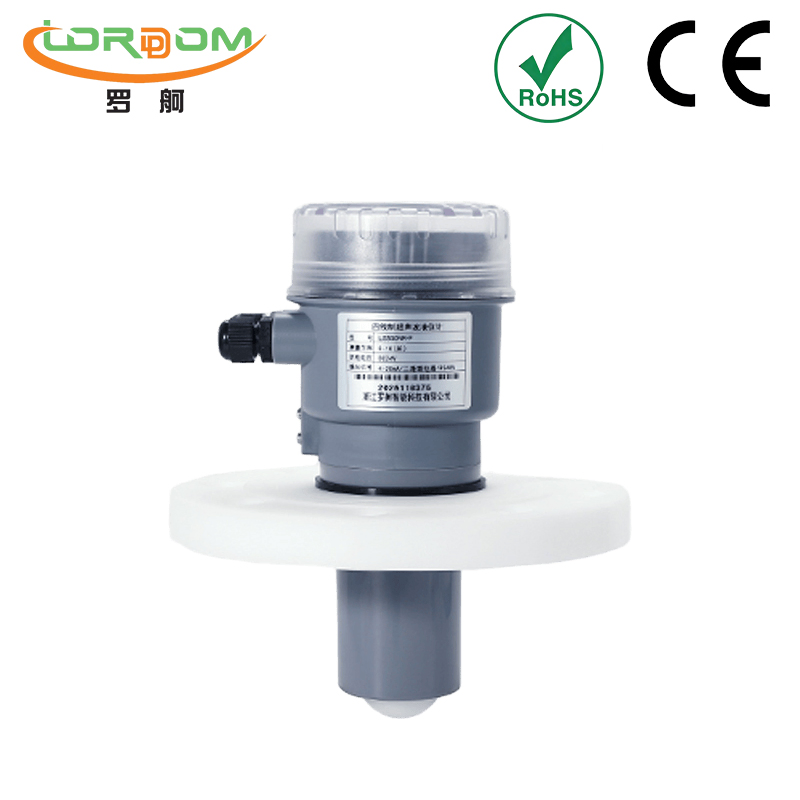

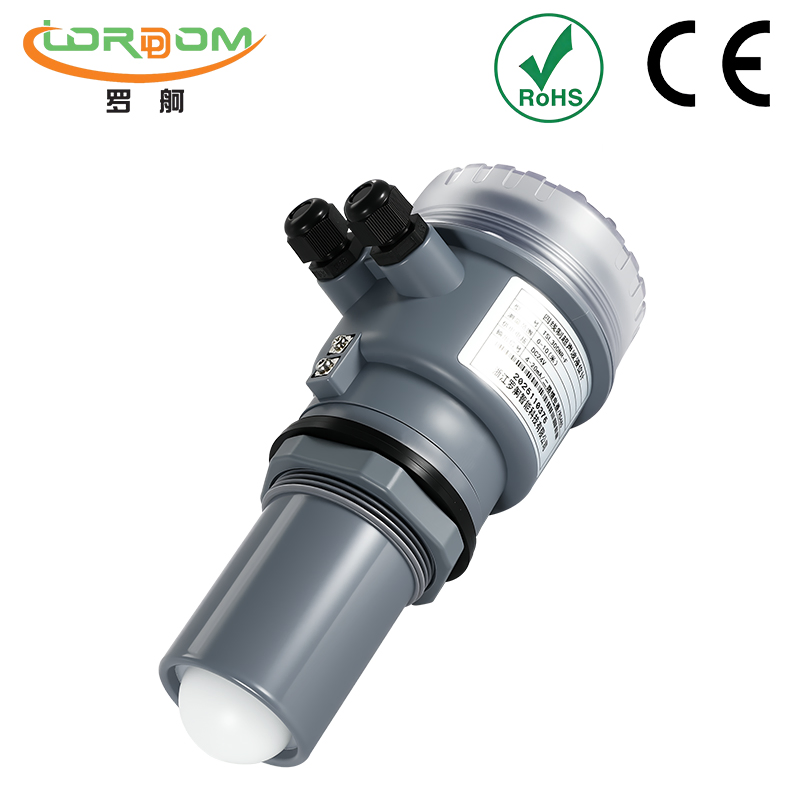

Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications
Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications
Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications
Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications
Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications
1 / 5
Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications
Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications
Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications
Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications
Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications

Industrial Grade Ultrasonic Radar Water Level Sensor with High Precision Detection for Various Liquid Applications

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
LGUDB300NR-T
Production Process
Integration
Sensitivity
High
Probe Type
Straight Probe
Measuring Medium
Liquid
Detection Mode
Direct Reflection Type
IP Rating
IP67
Certification
CE
Detection Distance
0-10m
Resolution
0.17mm
Response Time
52ms
Specification
Nickel-plated brass
🔍 Product Description
Industrial Grade Ultrasonic Radar Water Level Sensor

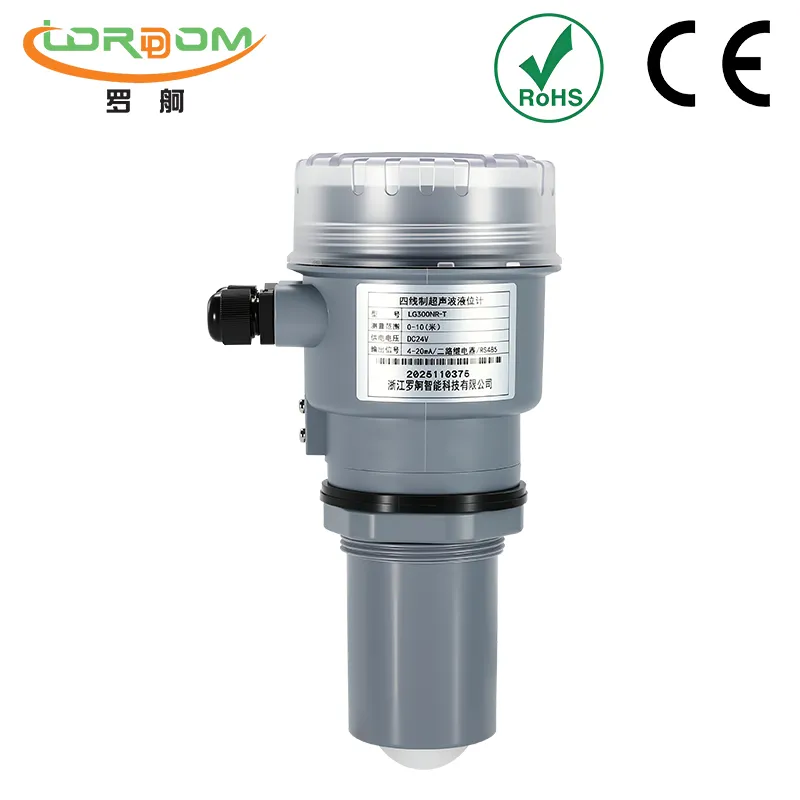

Sensor Detail 1
Sensor Detail 2
Parameter Value
Measurement Frequency80GHz
Sampling Frequency160ms/configurable
Distance Measurement Accuracy±2mm
Measuring Range0.4-80m / 0.25-40m / 0.25-20m
Antenna Beam Width±3°
Power Supply VoltageDC9-36V wide power supply, AC100-265V
Working Temperature-20-70℃
Current Output4-20mA current
Communication OutputRS485 communication
Protection GradeIP67
Resolution0.001m
Installation MethodG2 thread, flange, bracket
🛠️ Technical Capabilities
Manufacturing Process
Quality Control
❓ Frequently Asked Questions
What is the measurement accuracy of this ultrasonic radar sensor?
The sensor provides high-precision distance measurement with an accuracy of ±2mm.
What types of output signals are supported?
It supports 4-20mA current output and RS485 communication. An optional upper and lower limit two-way relay is also available.
Can this sensor be used in harsh outdoor environments?
Yes, the sensor features an IP67 protection rating, making it resistant to dust and water immersion, suitable for various industrial applications.
What is the maximum detection range for liquid levels?
The measuring range is configurable, with options covering distances from 0.25m up to 80m depending on the specific model requirements.
What power supply options are available?
The device supports a wide DC power supply range of 9-36V, as well as standard AC100-265V power inputs.
What are the primary applications for this device?
It is designed for high-precision detection in various liquid applications, including water level monitoring, chemical storage tanks, and industrial process control.
