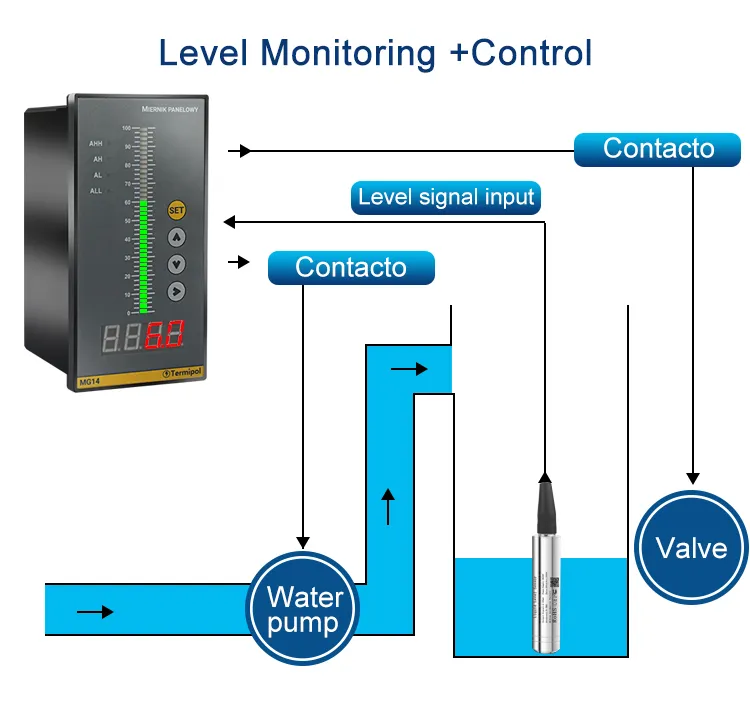

Submersible level sensors provide continuous liquid level measurement by sensing the hydrostatic pressure produced by the height of liquid above the sensor.

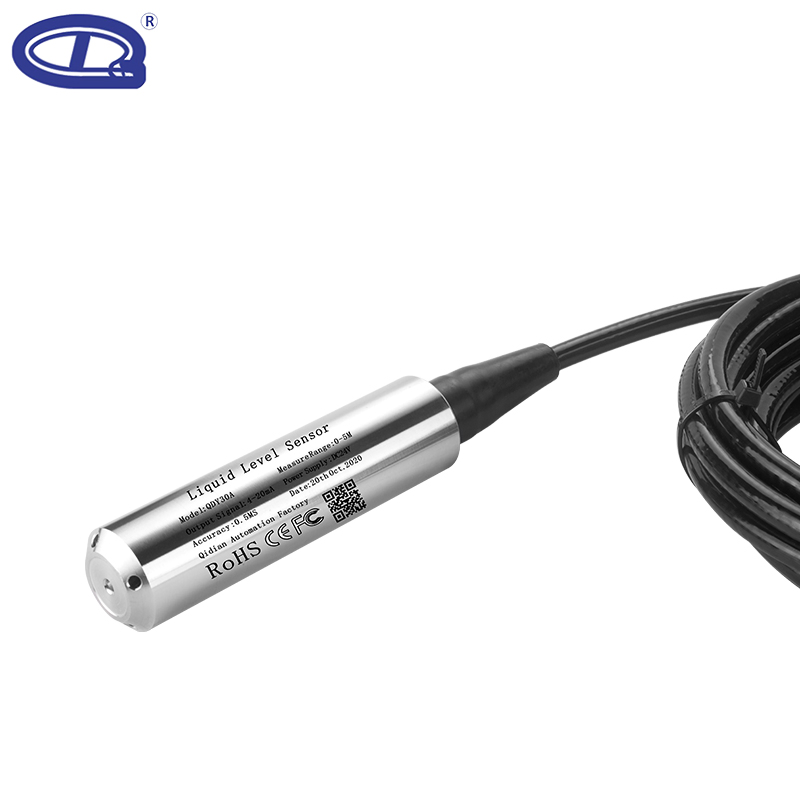

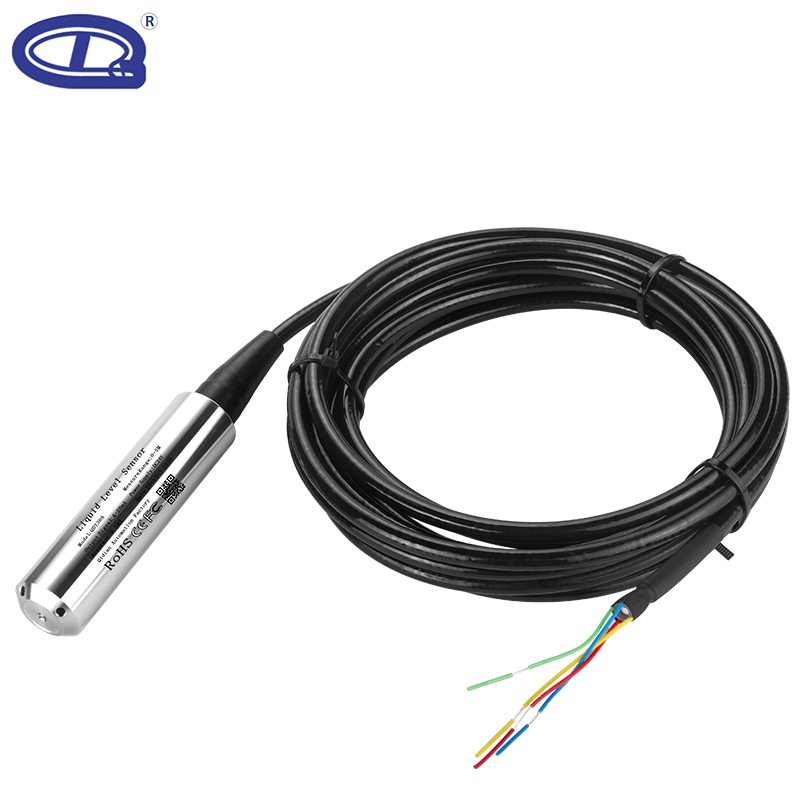

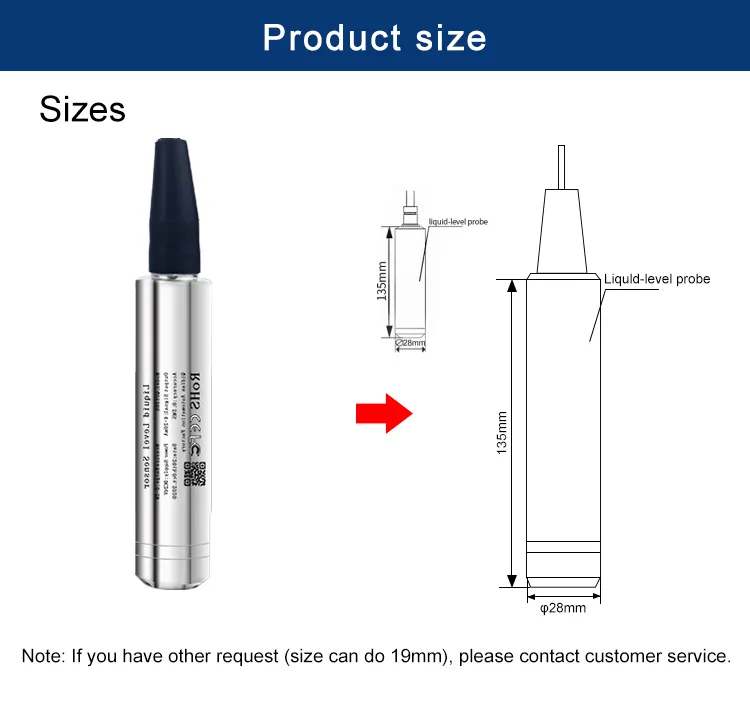

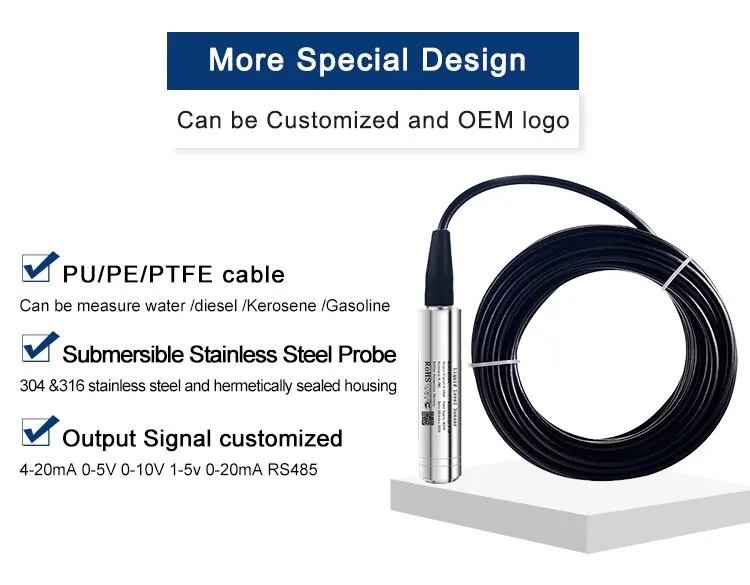

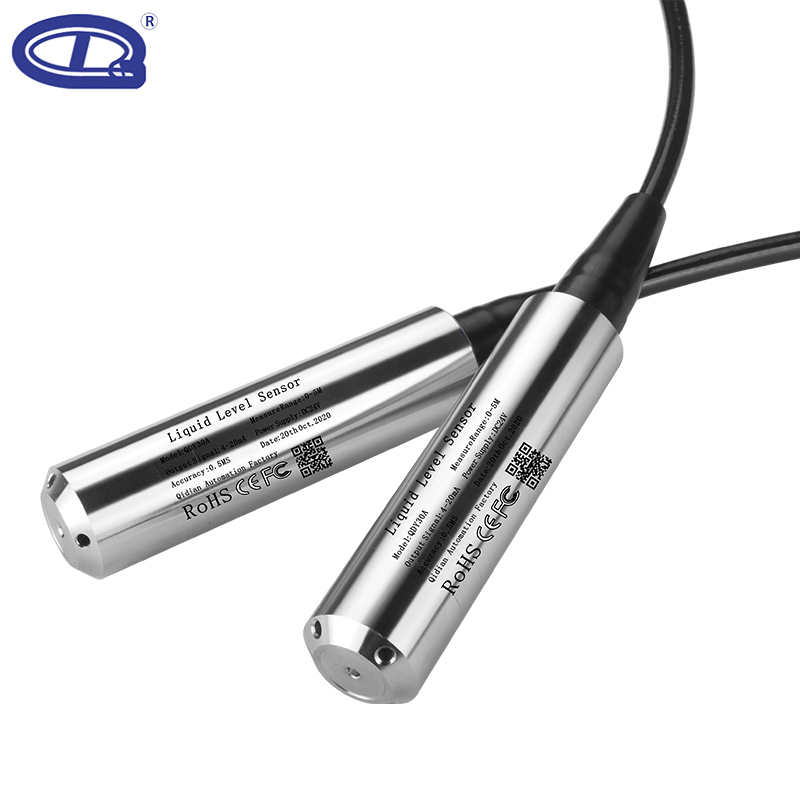

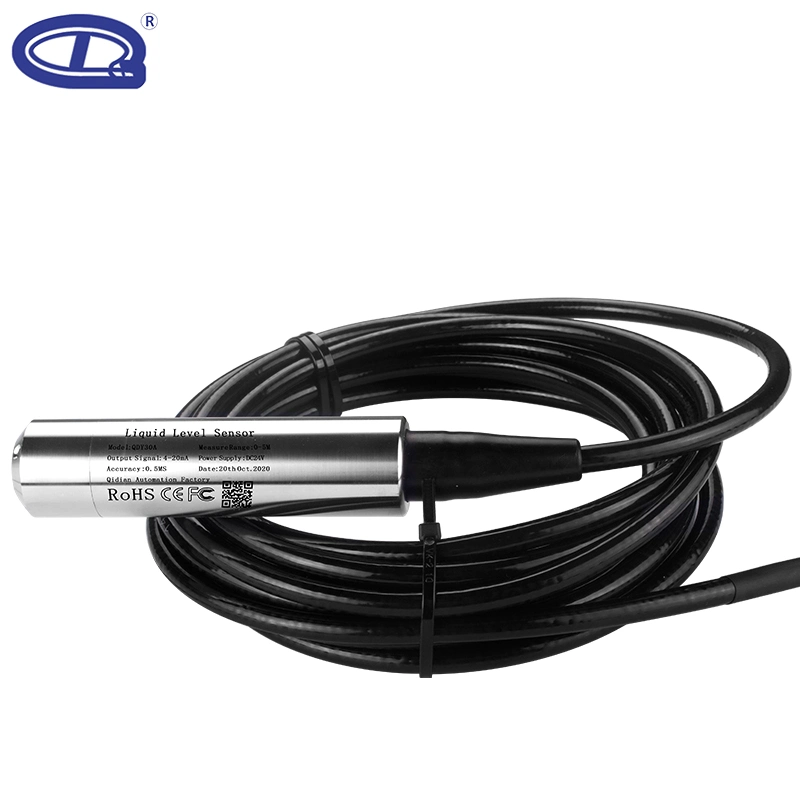

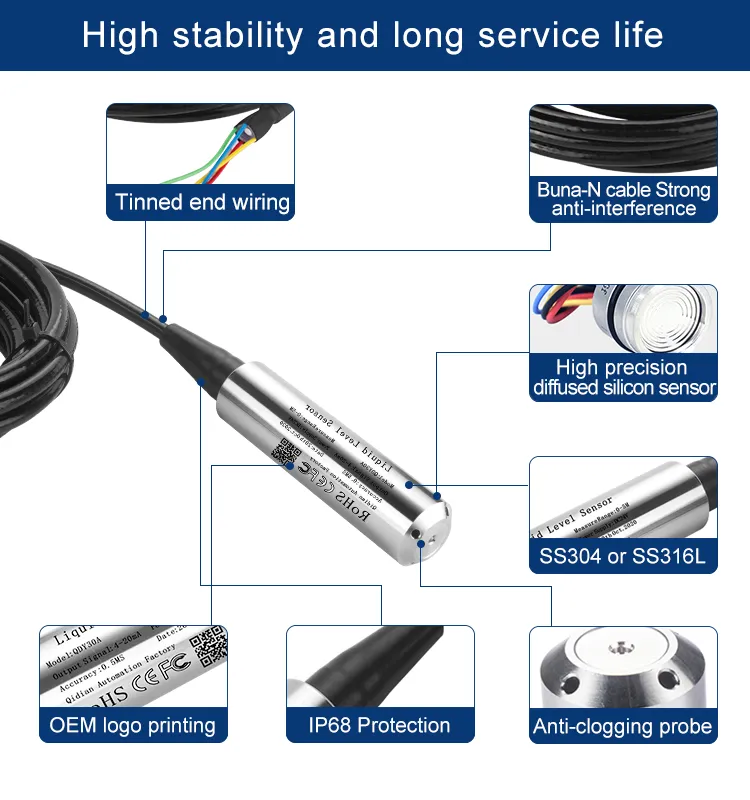

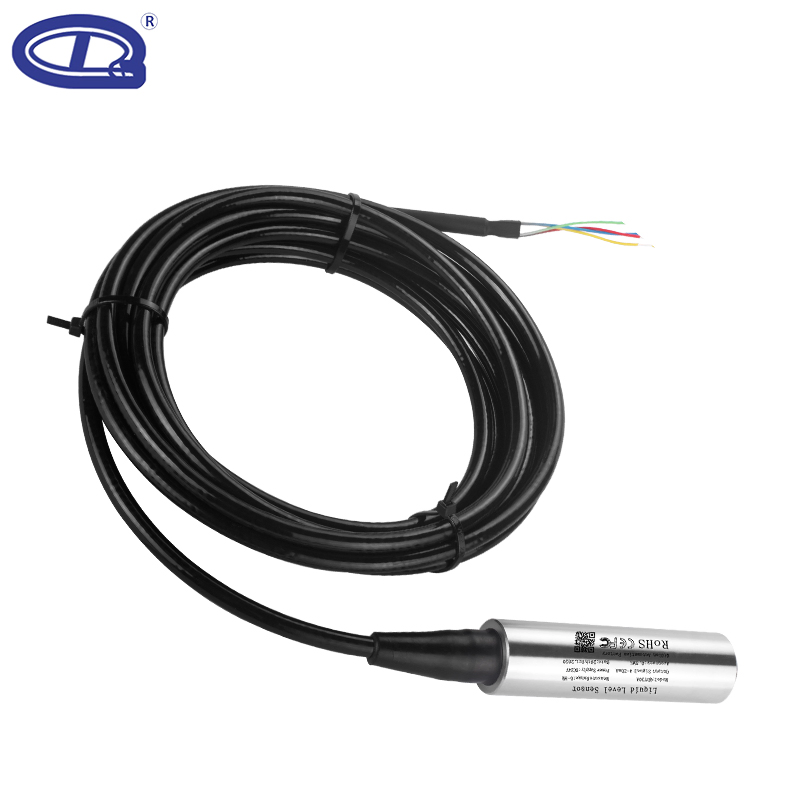

The QDY30A features a 28mm diameter (customizable to 19mm) 304/316 stainless steel protective housing and a nose cap for diaphragm protection. The shielded cable includes an atmospheric vent tube, providing various output signals such as 4-20 mA, RS485, and 0-5V. The IP68 waterproof rating ensures reliable long-term operation in liquid environments.
| Parameter | Specifications |
|---|---|
| Measuring Range | 0~0.5~500m H2O (Optional) |
| Power Supply | 24VDC |

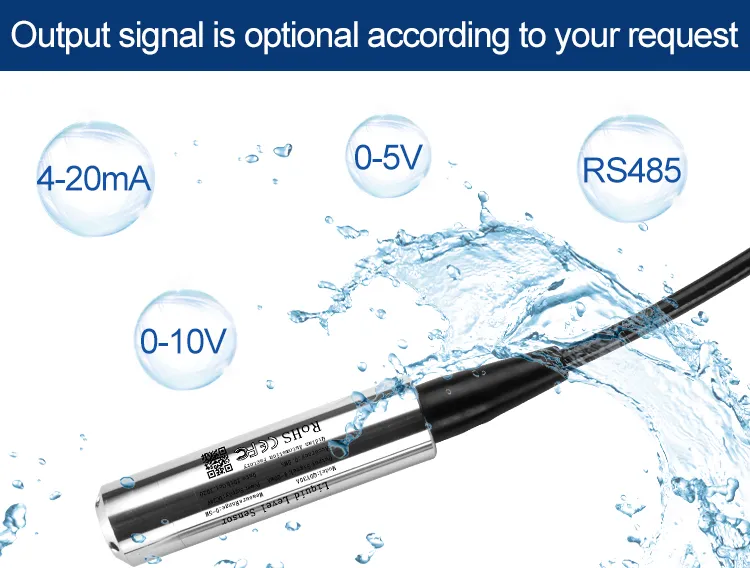

| Output Signal | 4~20mA, RS485, 0-5V |

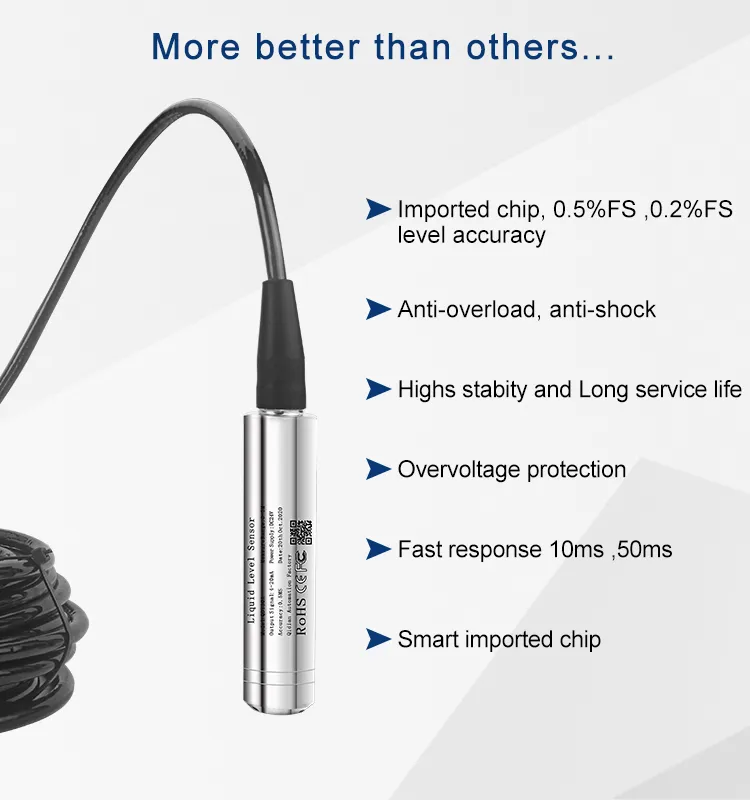

| Accuracy | 0.5%FS, 0.2%FS |
| Response Time | ≤1ms (up to 90%FS) |
| Medium Temperature | -20~85ºC |
| Protection Class | IP68 |
| Material | Probe: Stainless steel; Cable: Polyurethane |
