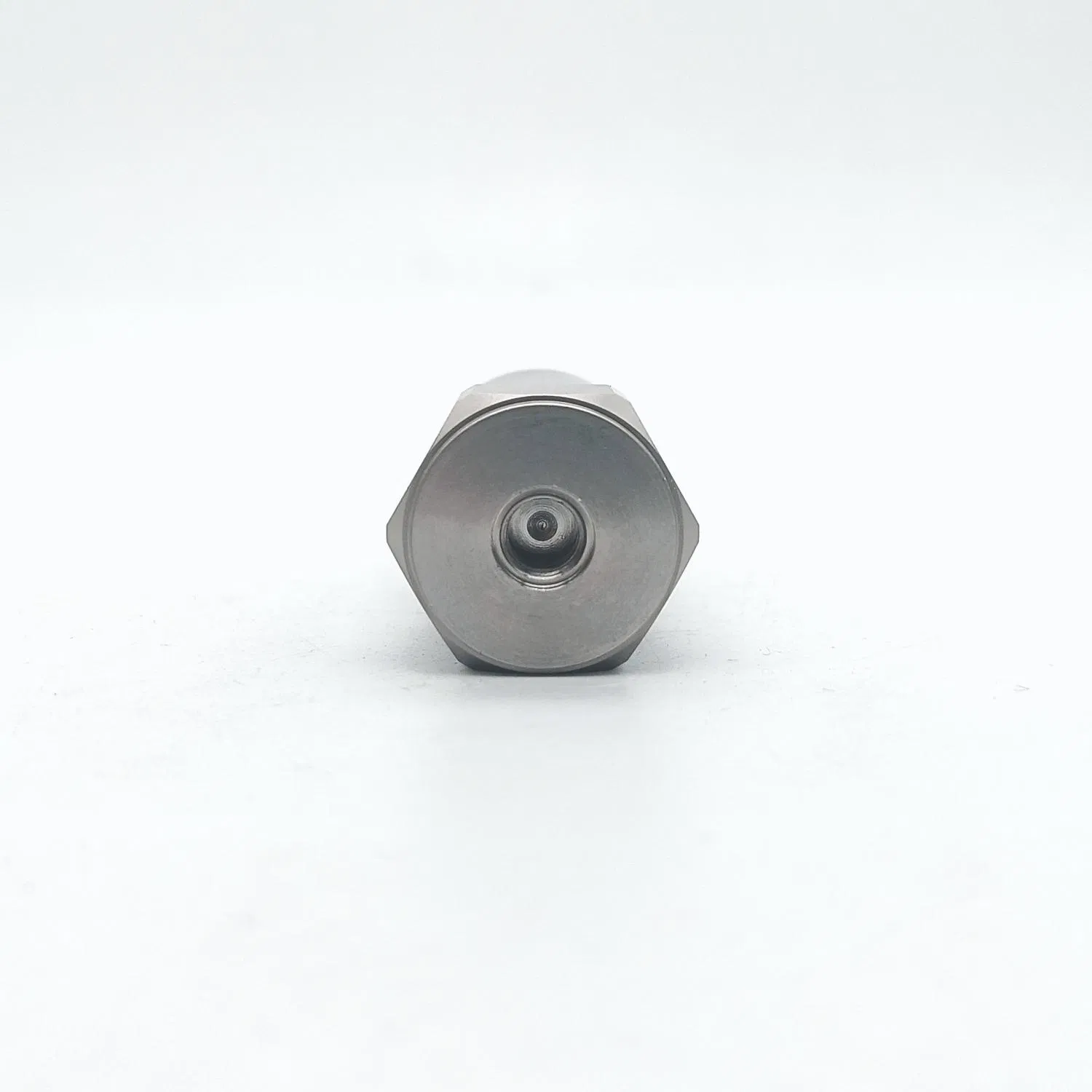

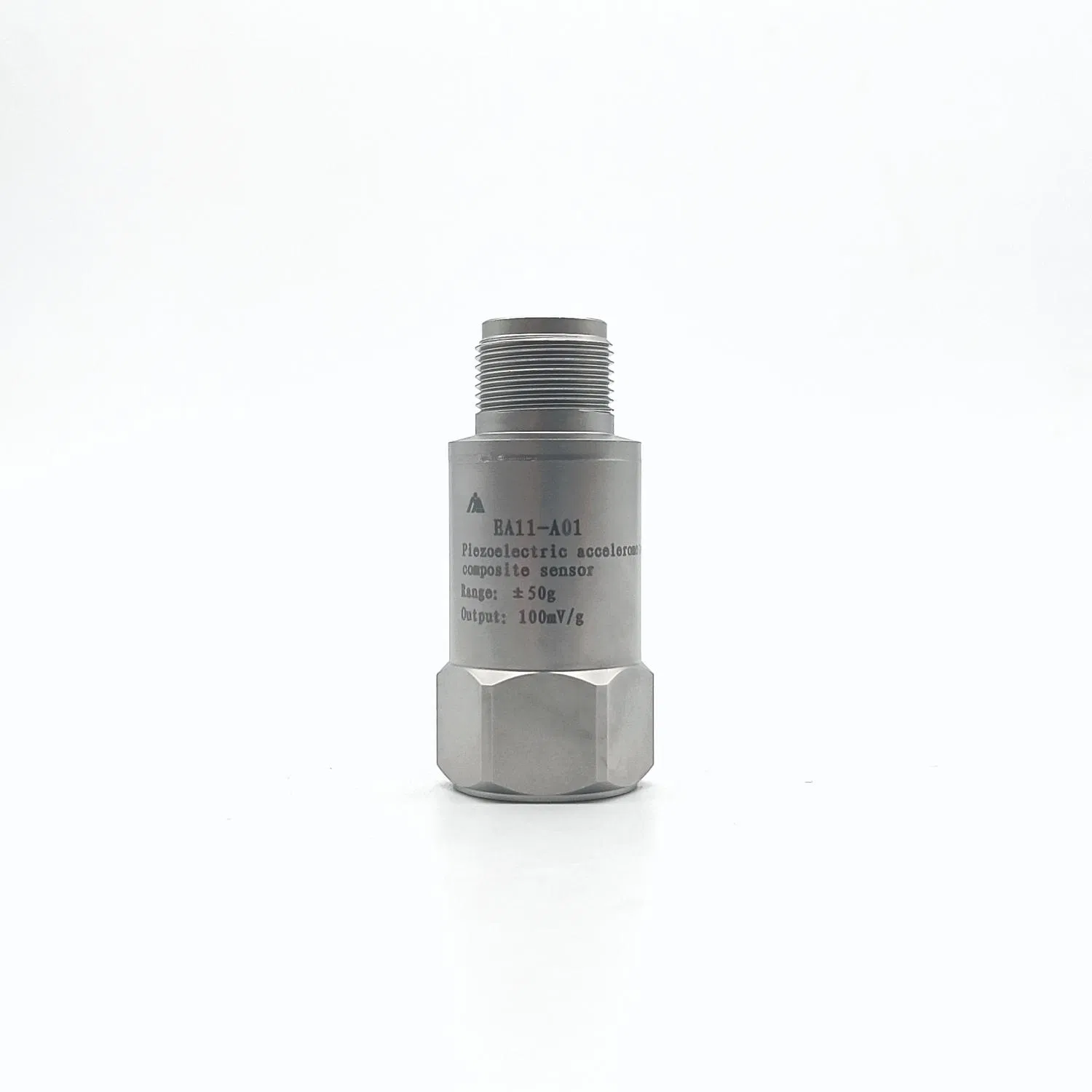

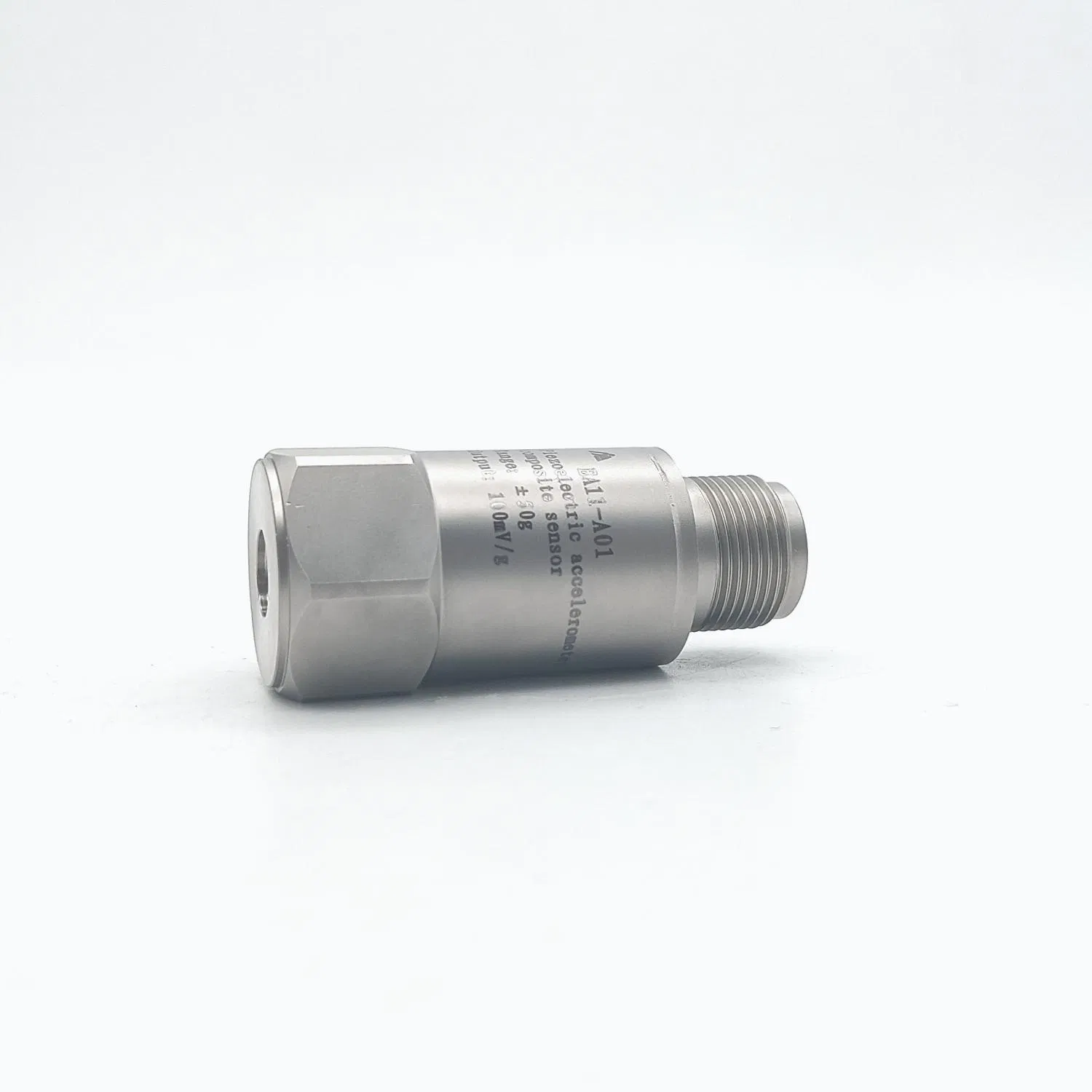

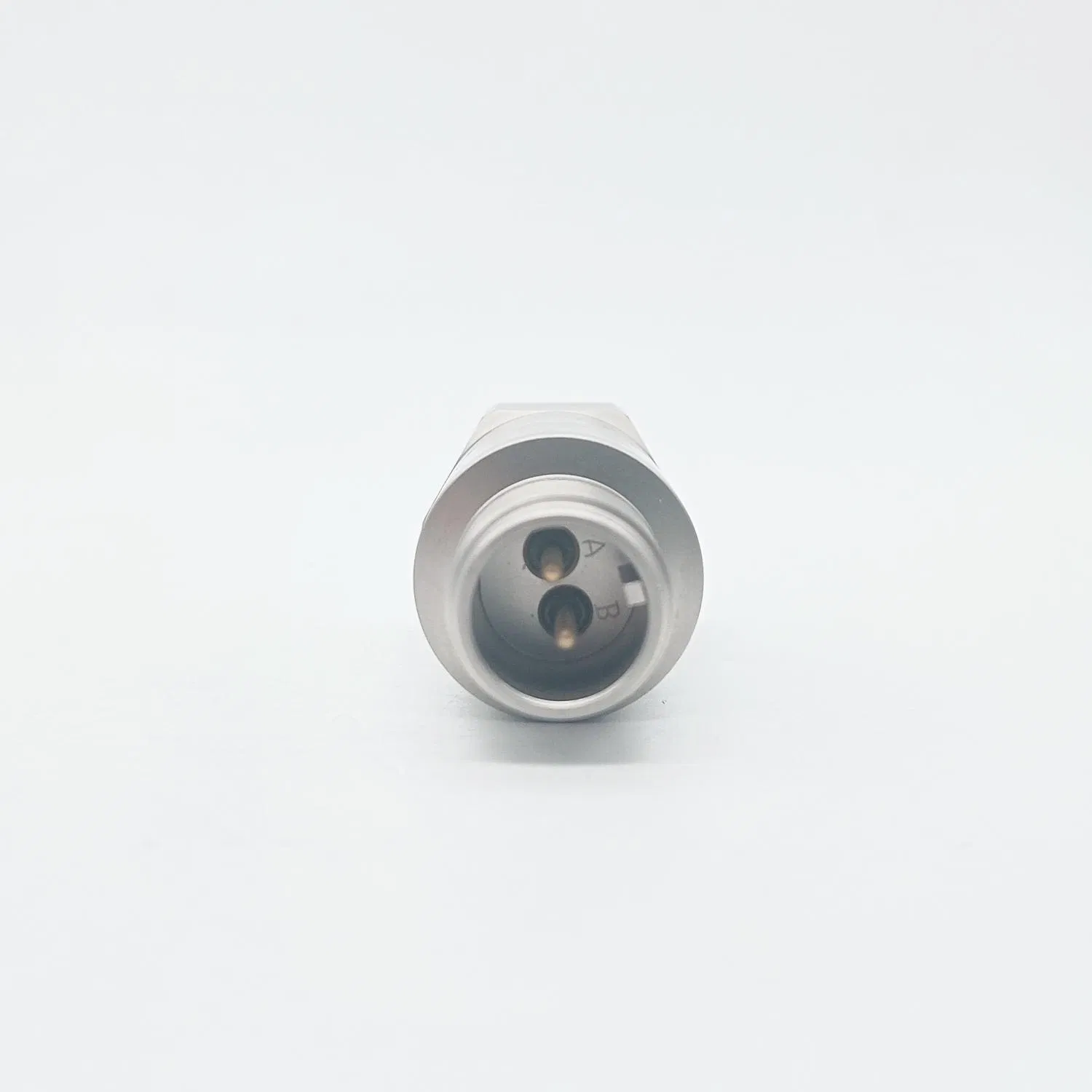

High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor
High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor
High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor
High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor
High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor
1 / 5
High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor
High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor
High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor
High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor
High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor

High Stability IP65 100mv/G 500mv/G Intrinsically Safe Piezoelectric Accelerometer Acceleration Composite Sensor

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.
EA11-01
Measuring Shaft
Single
IP Rating
IP65
Certification
ISO
Operating Temp
-40 to +85℃
Frequency
0.5-15000Hz(±3dB)
Temp Signal
PT100 A Level(±0.15%)
Sensitivity
100mv/G, 500mv/G Choosable
HS Code
9031809090
Production Capacity
10000 Pieces/Year
📦

Packaging & Delivery

Package Size
15.00cm * 10.00cm * 3.70cm
Gross Weight
1.000kg
📝

Product Description

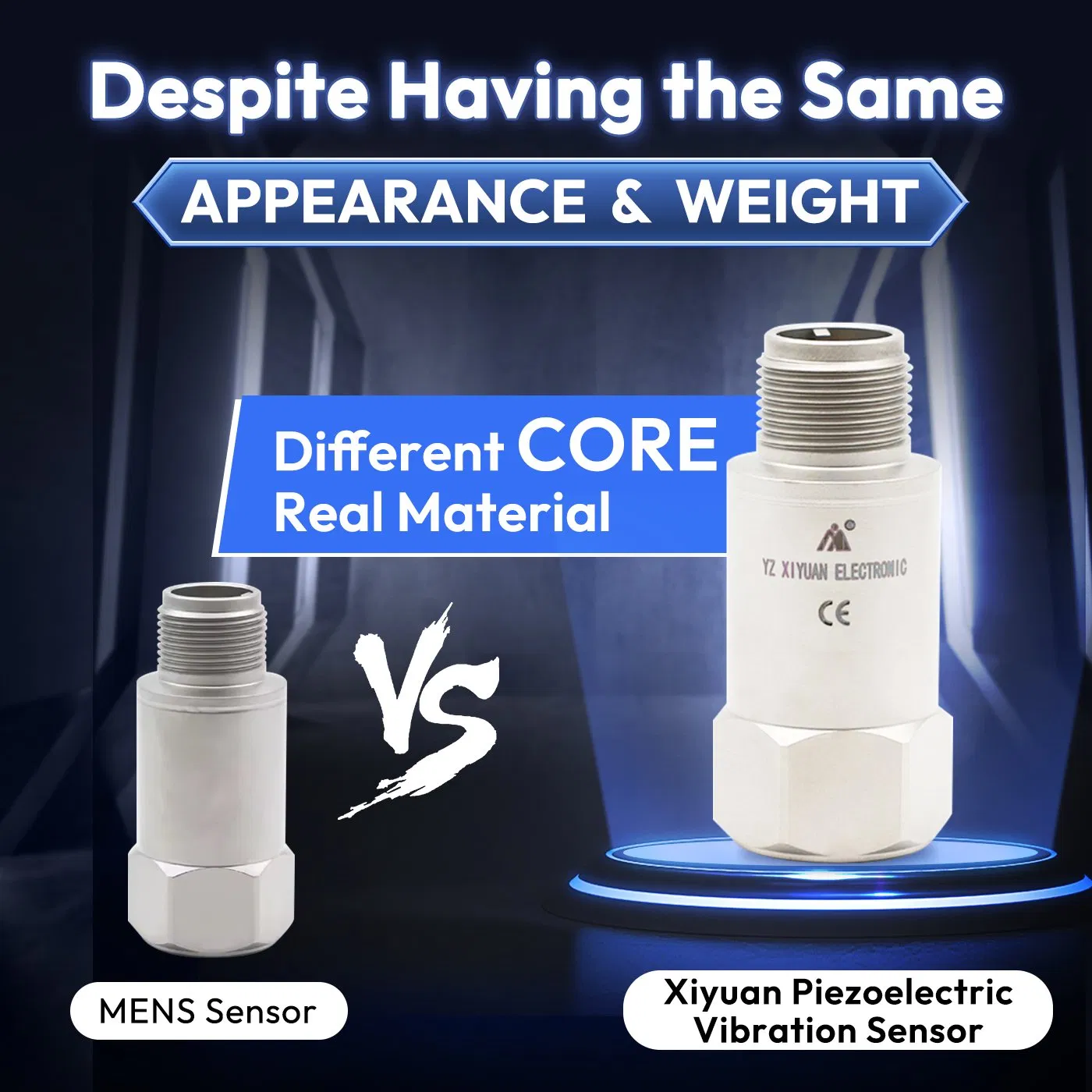

Piezoelectric Accelerometer

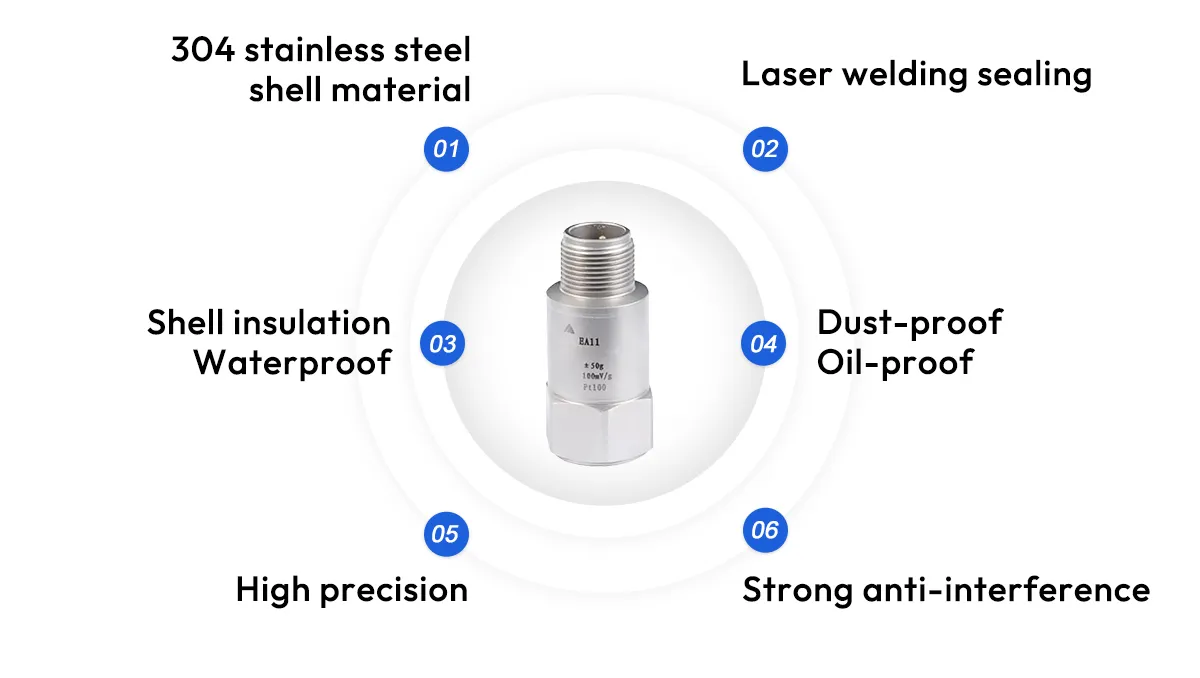

Acceleration Composite Sensor
Intrinsically Safe Sensor
Supply Voltage18-24VDC (current source)
Excitation Current2-10mA (typical: 4mA)
RangeAccelerated: ±10g, ±50g; Temp: -40 to +85℃(Pt100)
Acceleration Signal Output100mV/g, 500mV/g choosable
Temperature SignalPt100 A level(±0.15%)
Frequency Response0.5-15000Hz(±3dB)
Operation Temp-40 to +85℃
Storage EnvironmentTemp: -40℃~+85℃, RH: ≤80%RH
Normal Working EnvNo strong magnetic field, no corrosive vapor liquid
Hazardous EnvironmentZone 0, 1, and 2 explosive gas mixtures Class ⅱ A ~ ⅱ C and T6
🚀

Product Application

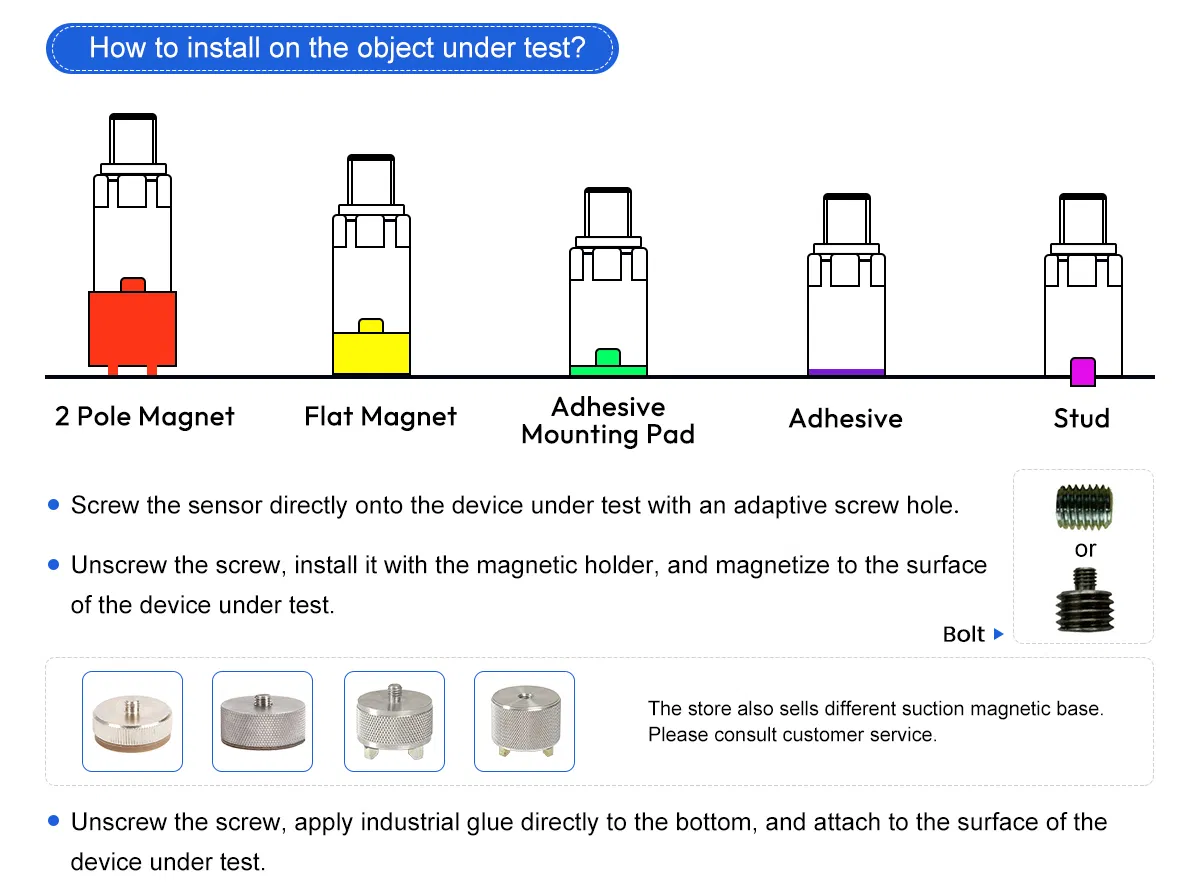

Application 1

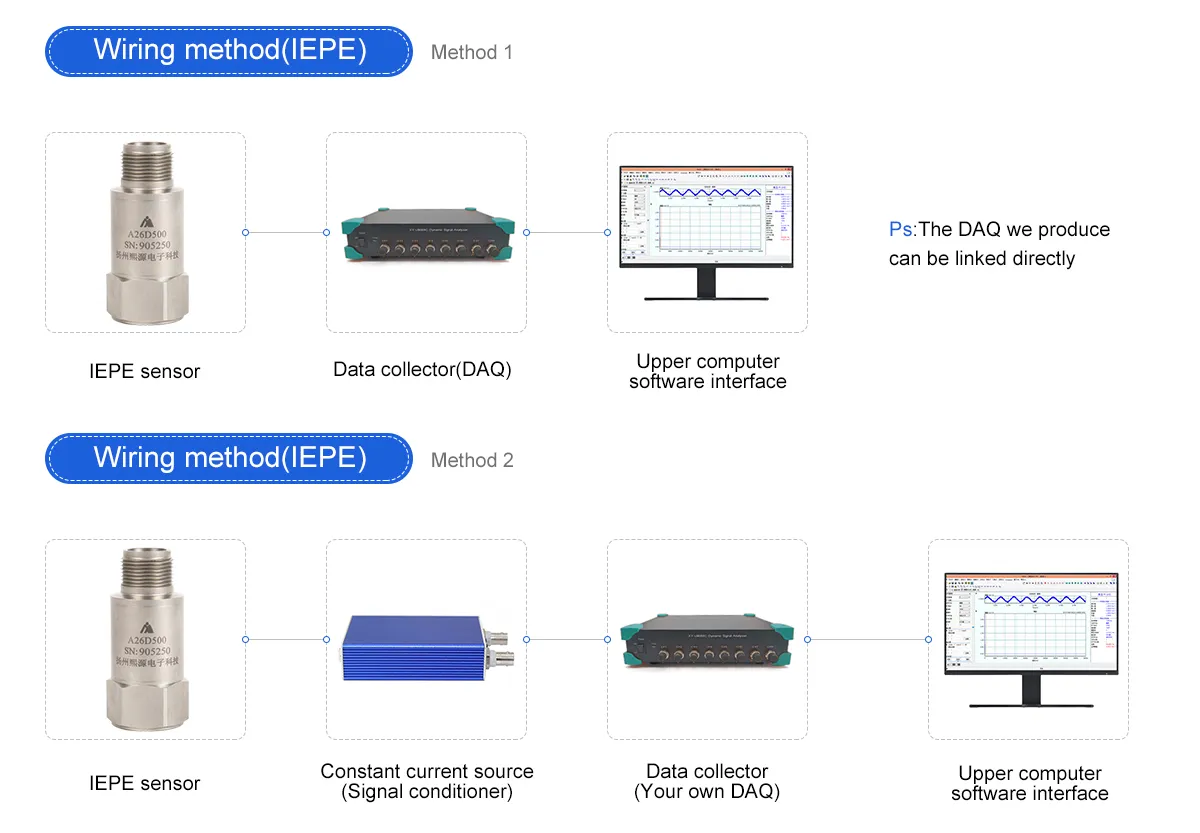

Application 2

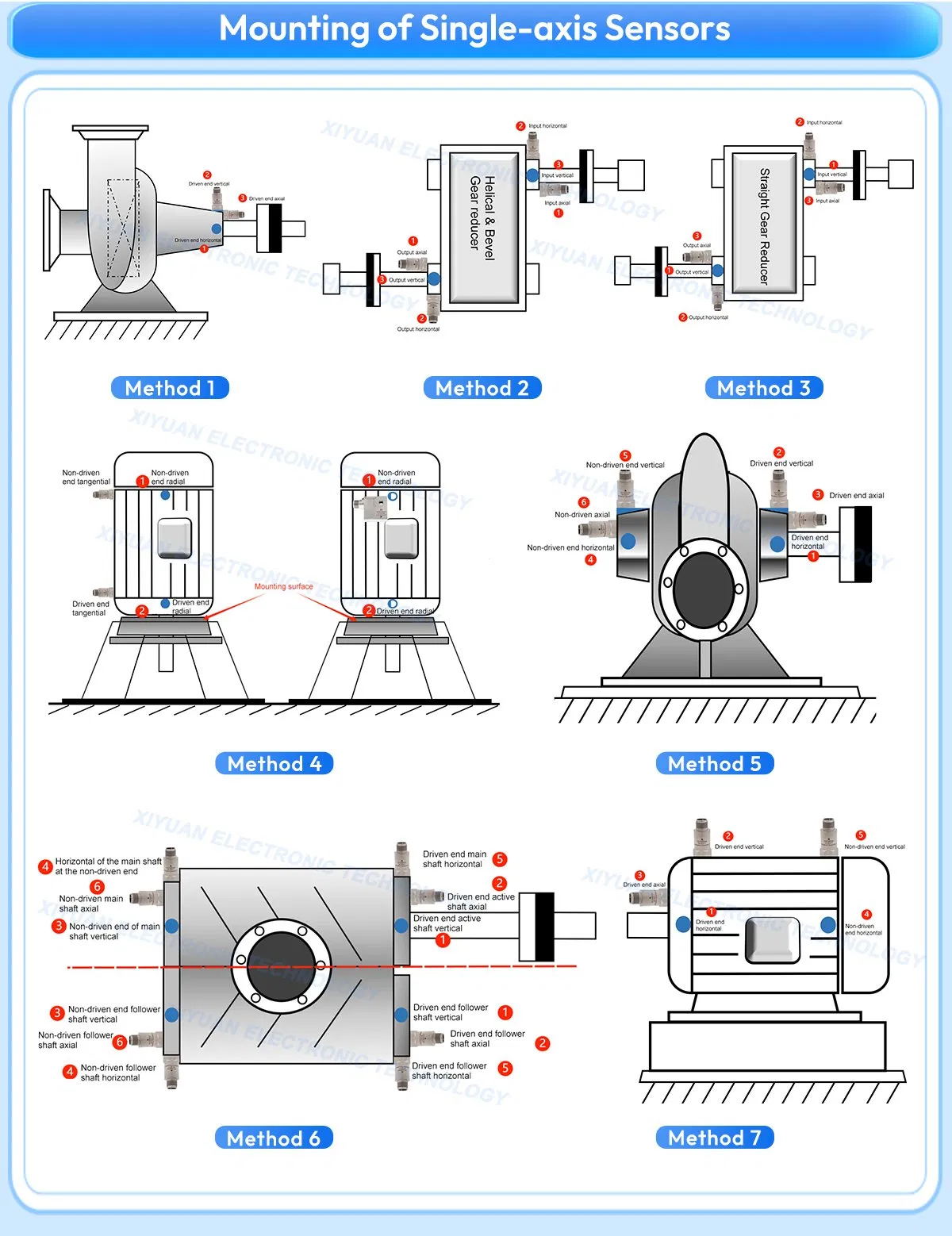

Application Detail 1

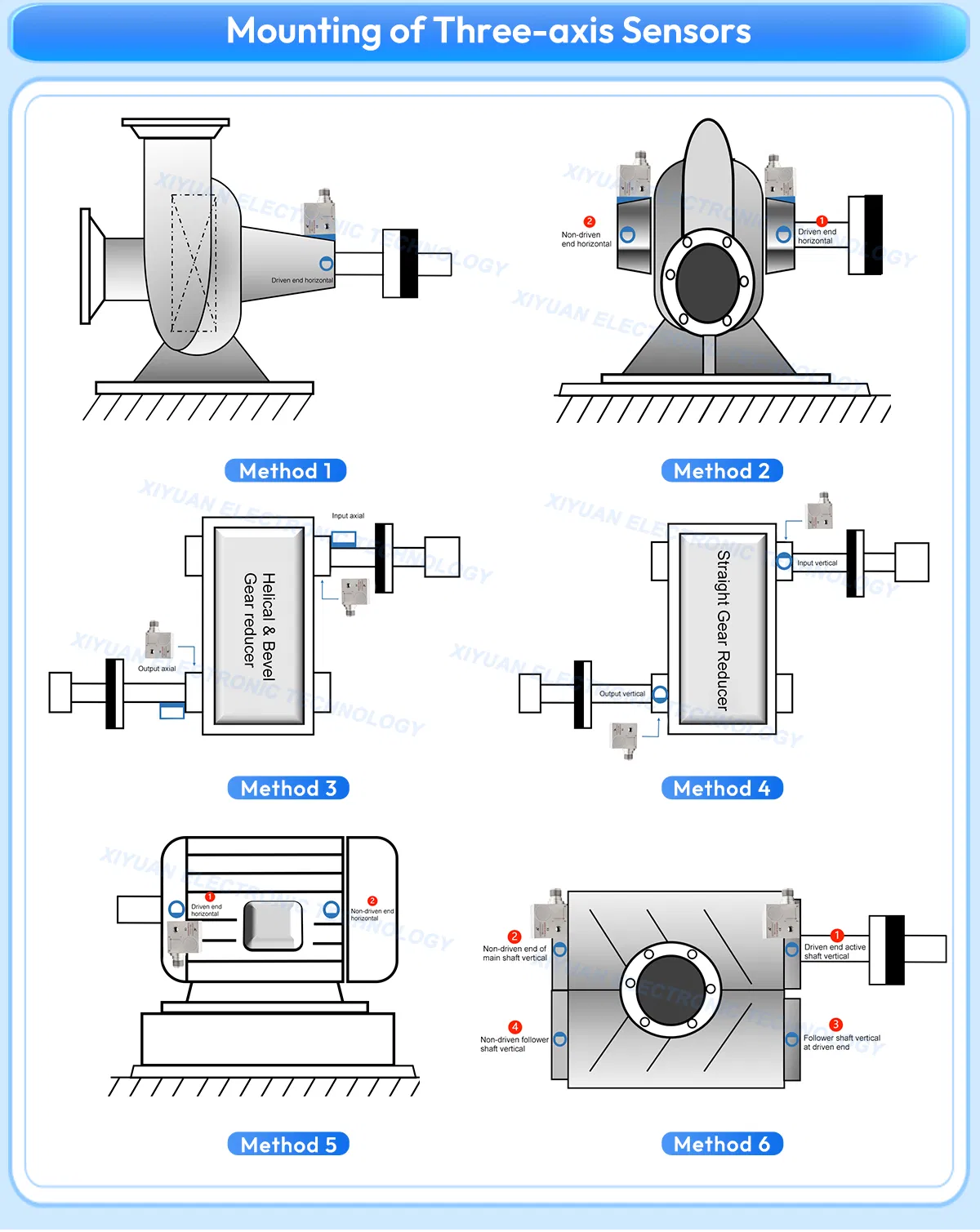

Application Detail 2

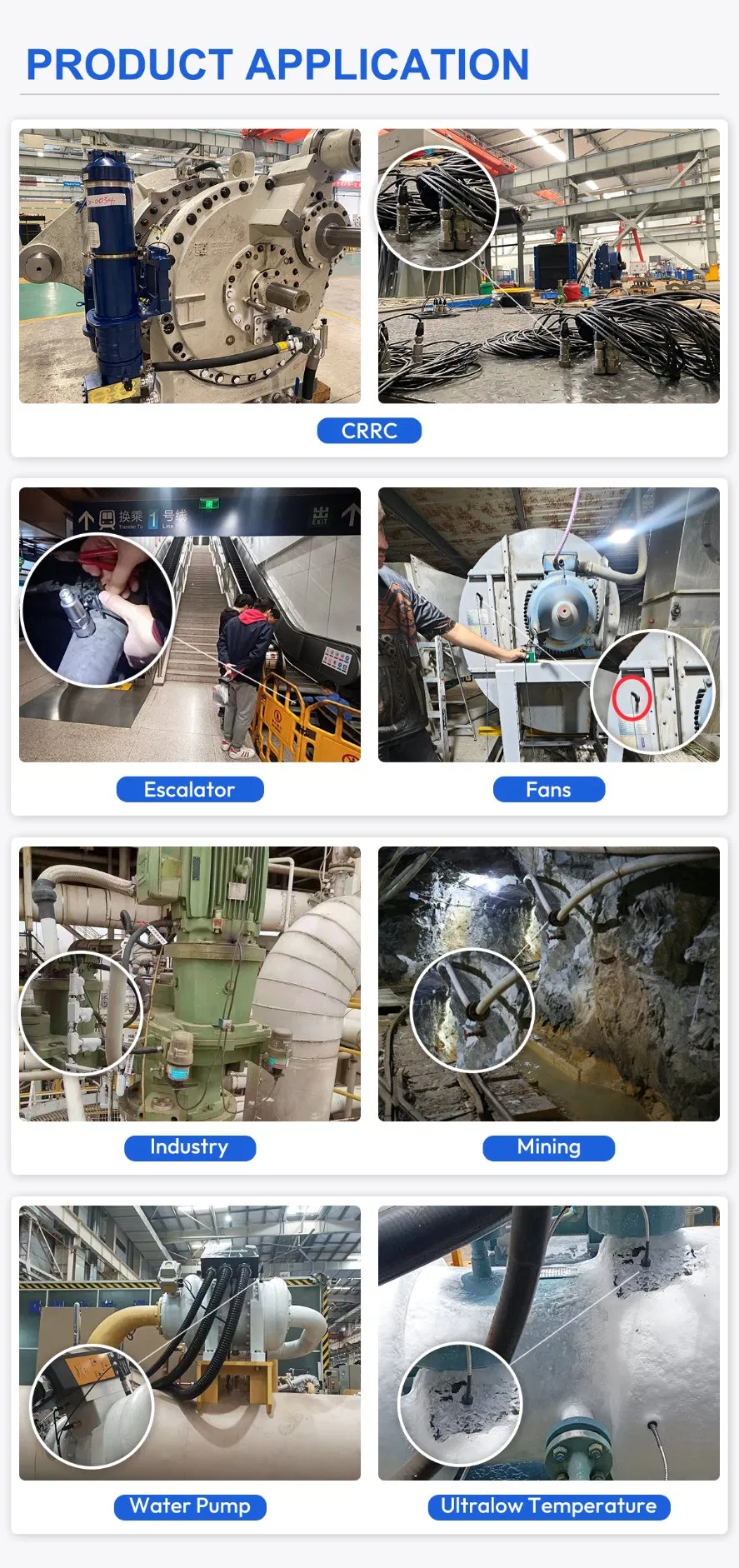

Application Detail 3
🏭

Technical Environment

Technical Layout
Sensor Dimensions

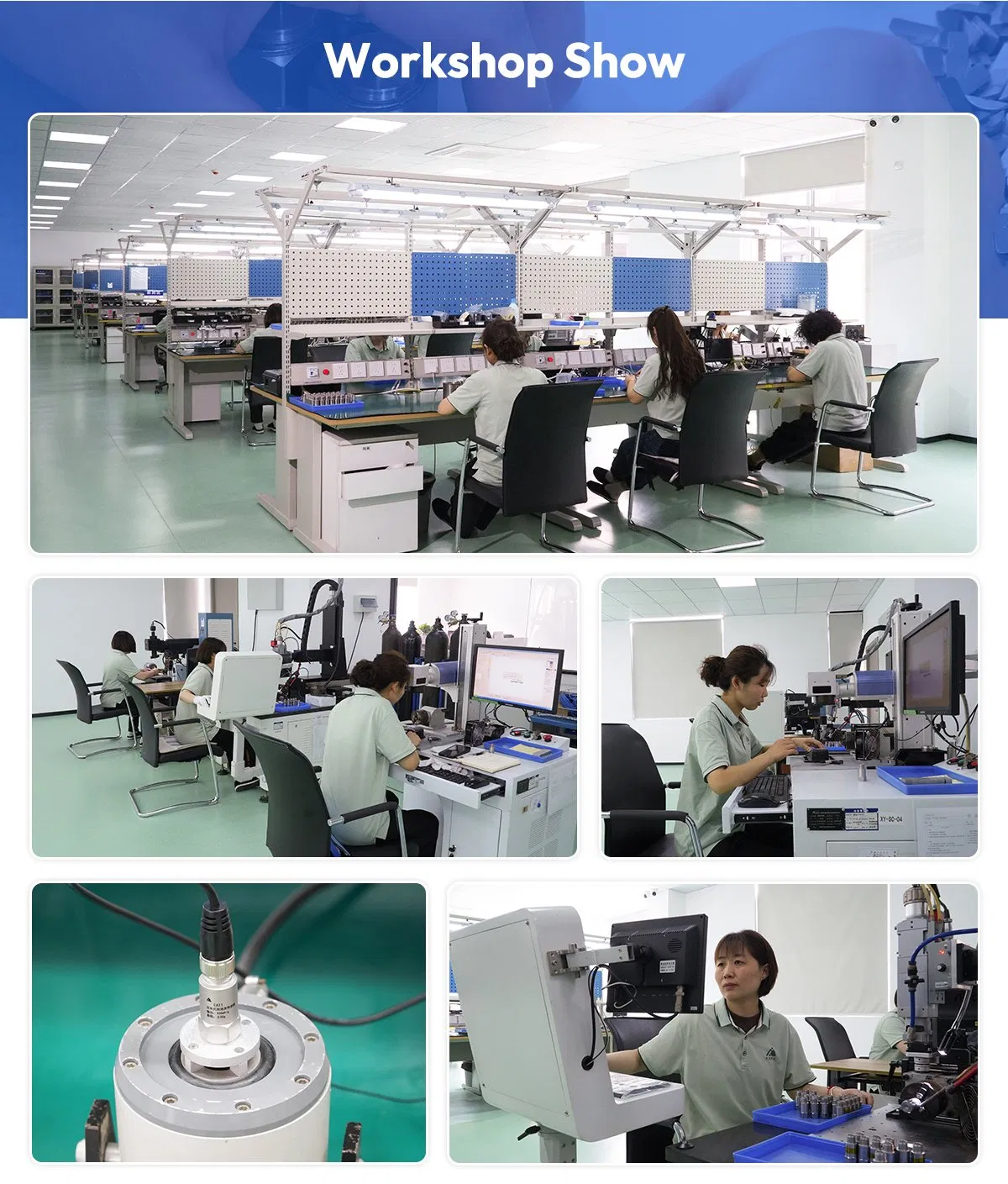

Factory Testing
Quality Control
Certifications
❓

Frequently Asked Questions

What are the primary measurement capabilities of the EA11-01?
The EA11-01 is a composite sensor designed to measure both acceleration (vibration) and temperature simultaneously, providing a high-stability signal for industrial monitoring.
Is this sensor suitable for explosive or hazardous environments?
Yes, it is intrinsically safe and certified for use in Zone 0, Zone 1, and Zone 2 hazardous areas involving explosive gas mixtures (Class ⅱ A to ⅱ C, T6).
What sensitivity options are available for the acceleration signal?
The sensor offers two sensitivity options: 100mv/G and 500mv/G, which can be chosen based on your specific application requirements.
What is the frequency response range of the device?
The frequency response range is 0.5Hz to 15000Hz (±3dB), making it suitable for a wide variety of vibration monitoring tasks.
How accurate is the temperature measurement?
The temperature signal utilizes a PT100 A level element, which provides an accuracy of ±0.15% across its operating range.
What is the IP rating for environmental protection?
The sensor is rated IP65, offering excellent protection against dust ingress and low-pressure water jets.
