| Range | -100kPa...0~35kPa...100MPa |
| Pressure type | Gauge, Absolute, Sealed pressure |
| Accuracy | 0.5%FS (default), 0.25, 0.1 |
| Temperature drift | 35kPa: ±2%FS (0ºC~60ºC); Other: ±1.5%FS (20ºC~80ºC) |
| Respond time | ≤1ms |
| Lifespan | ≥1*10 pressure cycle |
| Environment temp | -20ºC~85ºC |
| Medium temp | -30ºC~105ºC |
| EMC | IEC-61000-6-2 & IEC-61000-6-3 |
| Insulation resistance | ≥100MΩ/500VDC |
| Vibration features | Sinusoidal: 20grms 25Hz~2KHz; Random: 7.5grms 5Hz~1KHz |
| Impact resistance | Current: AC 500V 1 min / Voltage: AC 250V 1 min |
| Explosion proof | Exia IICT6 (only for 4~20mA) |

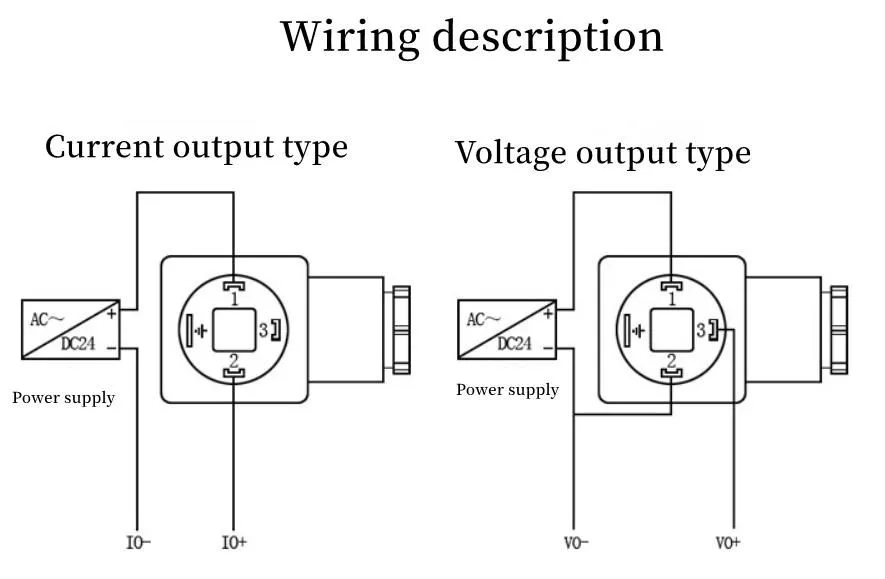

| Number | B1 | B3 | B2 | B7 | B12 | B6 |

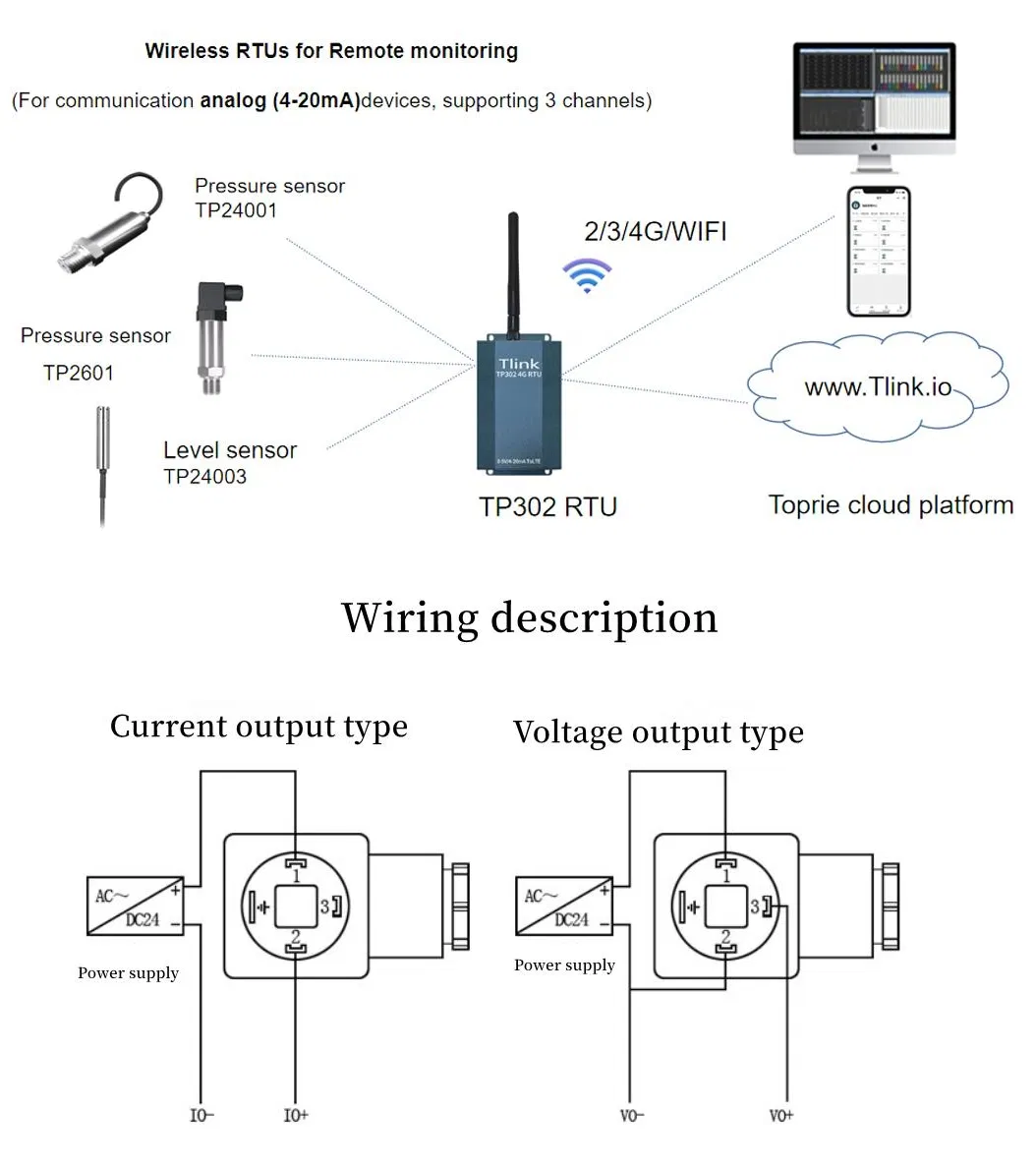

| Output | 4~20mA | 0~5V | 1~5V | 0~10V | 1~10V | 0.5~4.5V |
| Power Supply | DC 12V-30V | DC 12V-30V | DC 12V-30V | DC 12V-30V | DC 12V-30V | DC 5V |
| Range Code | Type | Range | Overload | Burst |
| 35K | G/A | 0~35KPa | 300% FS | 600% FS |
| 100K | G/A | 0~100KPa | 200% FS | 500% FS |
| 1M | G/A/S | 0~1MPa | 200% FS | 500% FS |
| 10M | S | 0~10MPa | 200% FS | 400% FS |
| 100M | S | 0~100MPa | 150% FS | 300% FS |
Remark: G: Gauge pressure; S: Sealed pressure; A: Absolute pressure

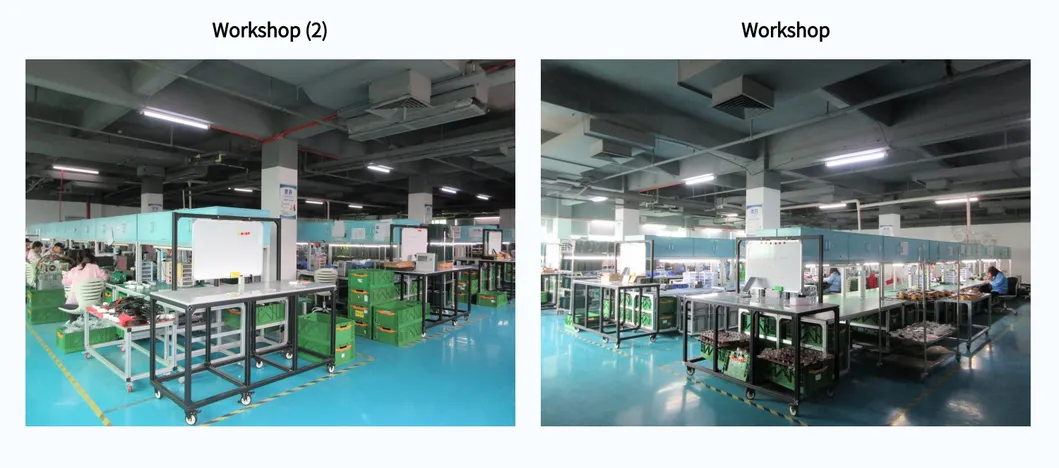

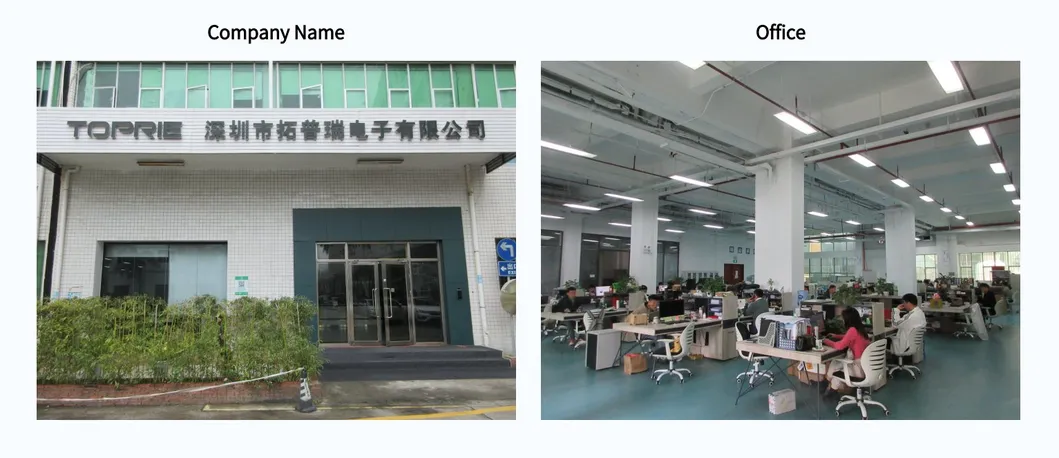

Our organization is a leading high-tech enterprise specializing in the development and manufacturing of environmental monitoring and data acquisition solutions. Established in 2009, our state-of-the-art facility spans over 3,000 square meters, supported by a highly skilled team committed to research, design, and precision manufacturing.
Core Portfolio: Multi-Channel Data Loggers, Humidity & Temperature Sensors, Gas Detectors, Smart Wireless Pressure Sensors, IoT Gateways, and SCADA Systems.
We provide OEM and ODM services, offering customized solutions tailored to specific industrial requirements. With advanced testing technologies and a rigorous quality assurance system, we ensure every product meets global industry standards.
