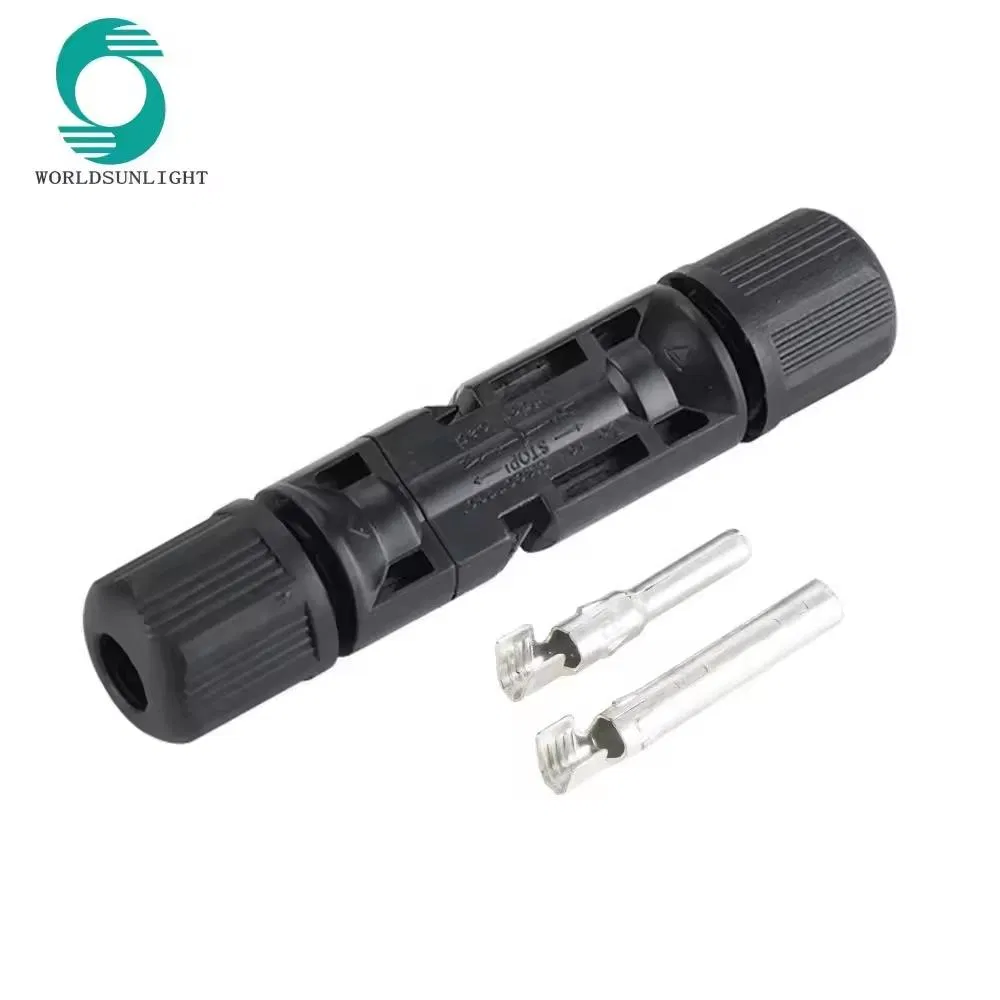

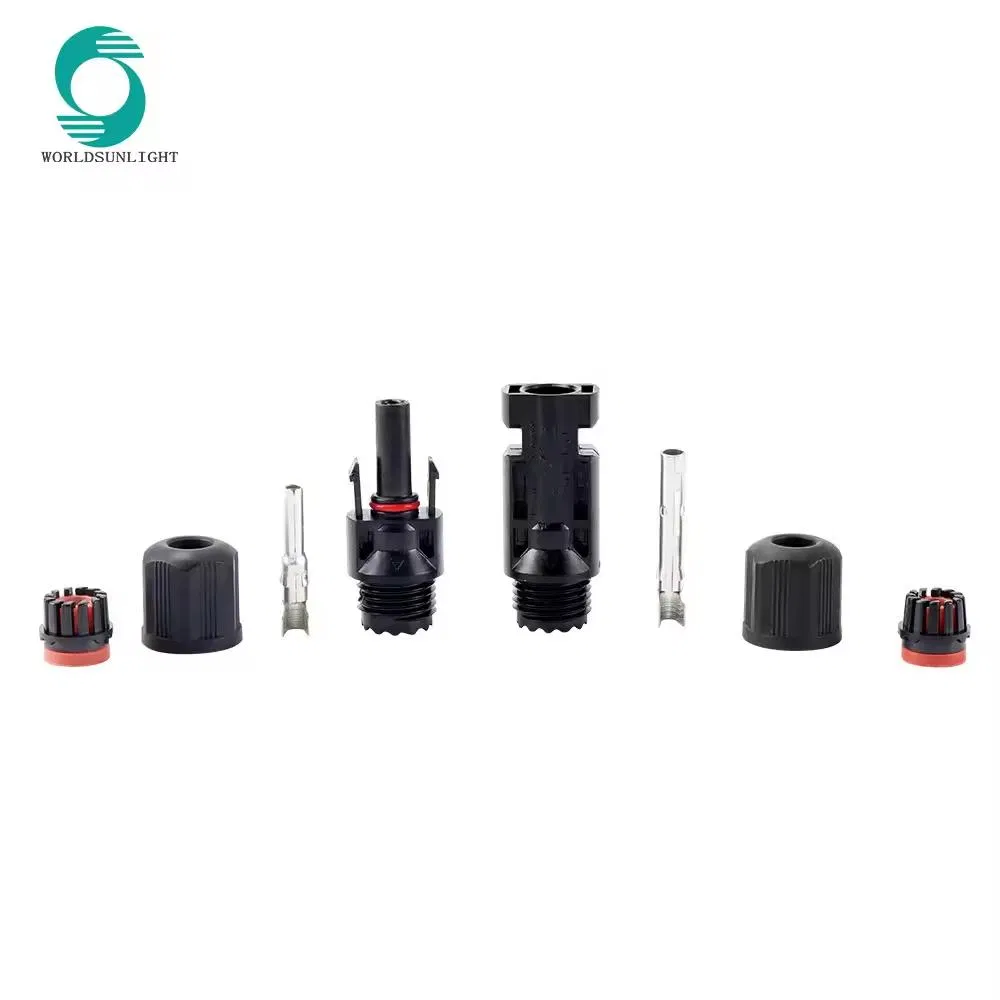

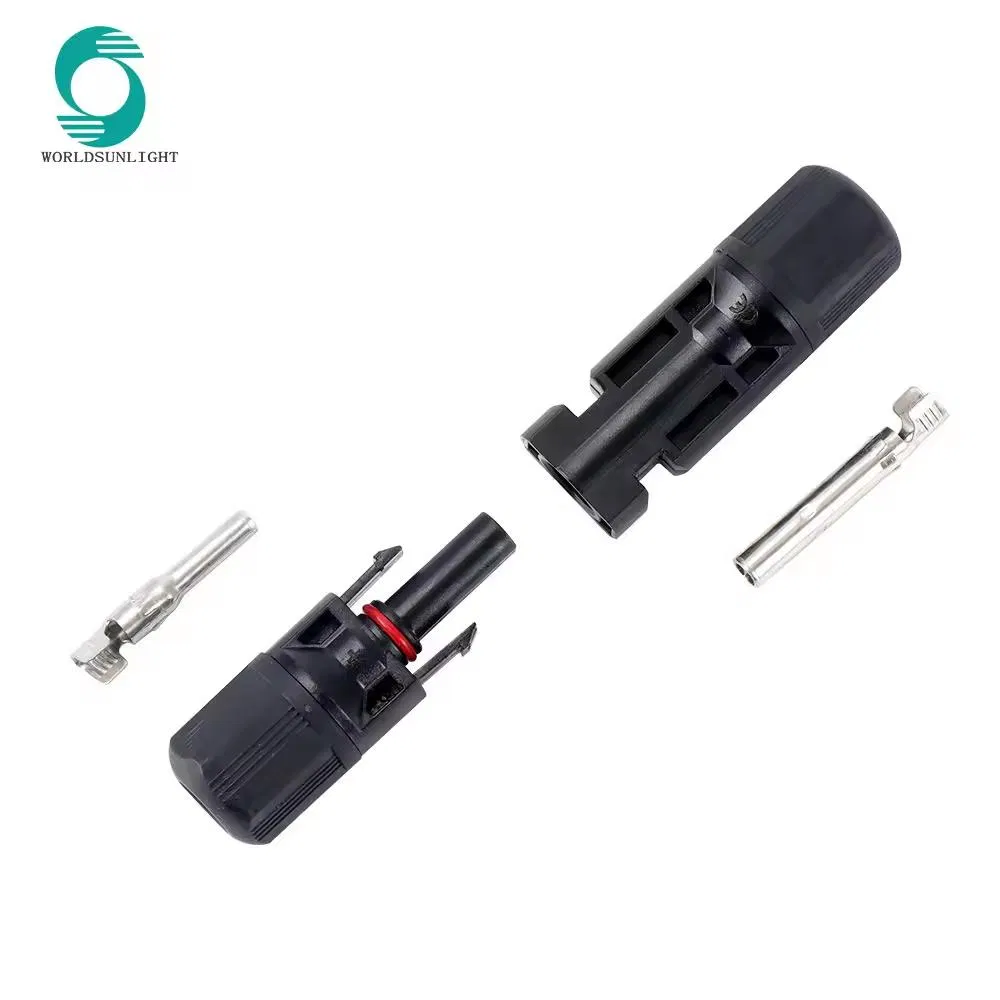

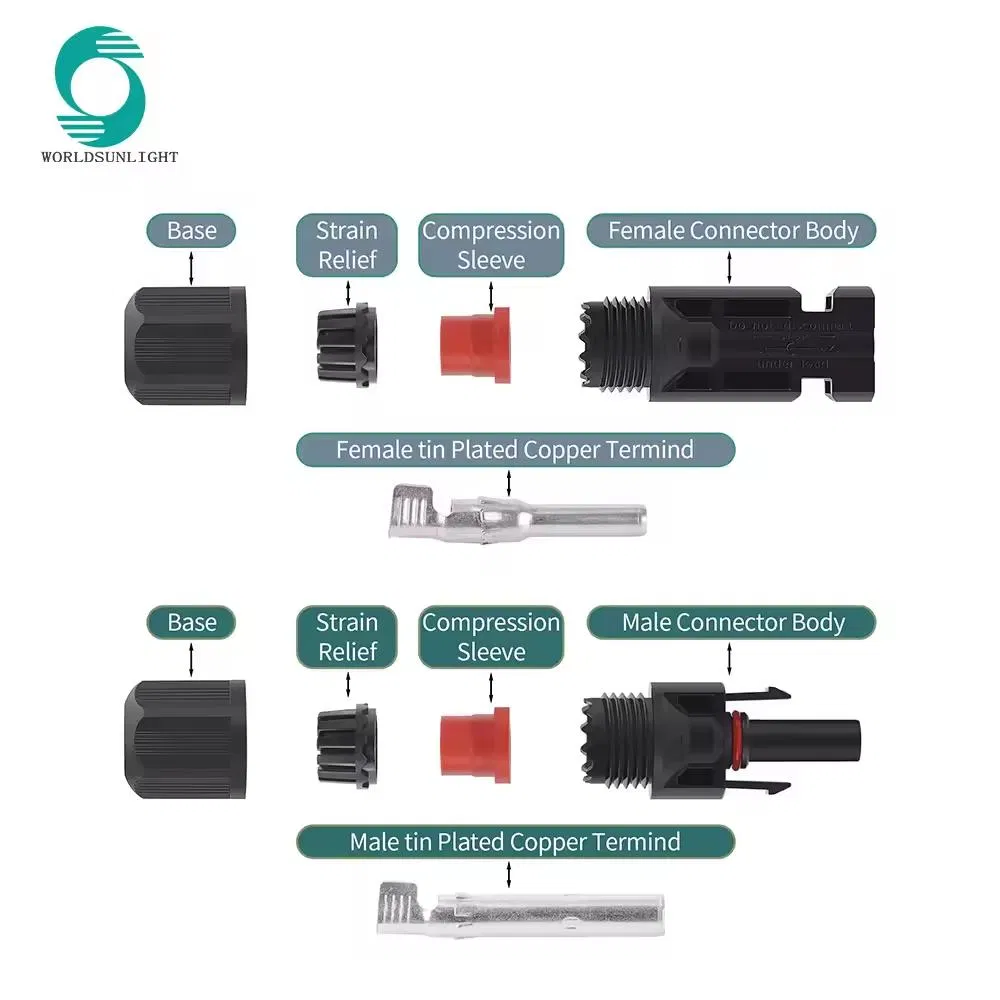

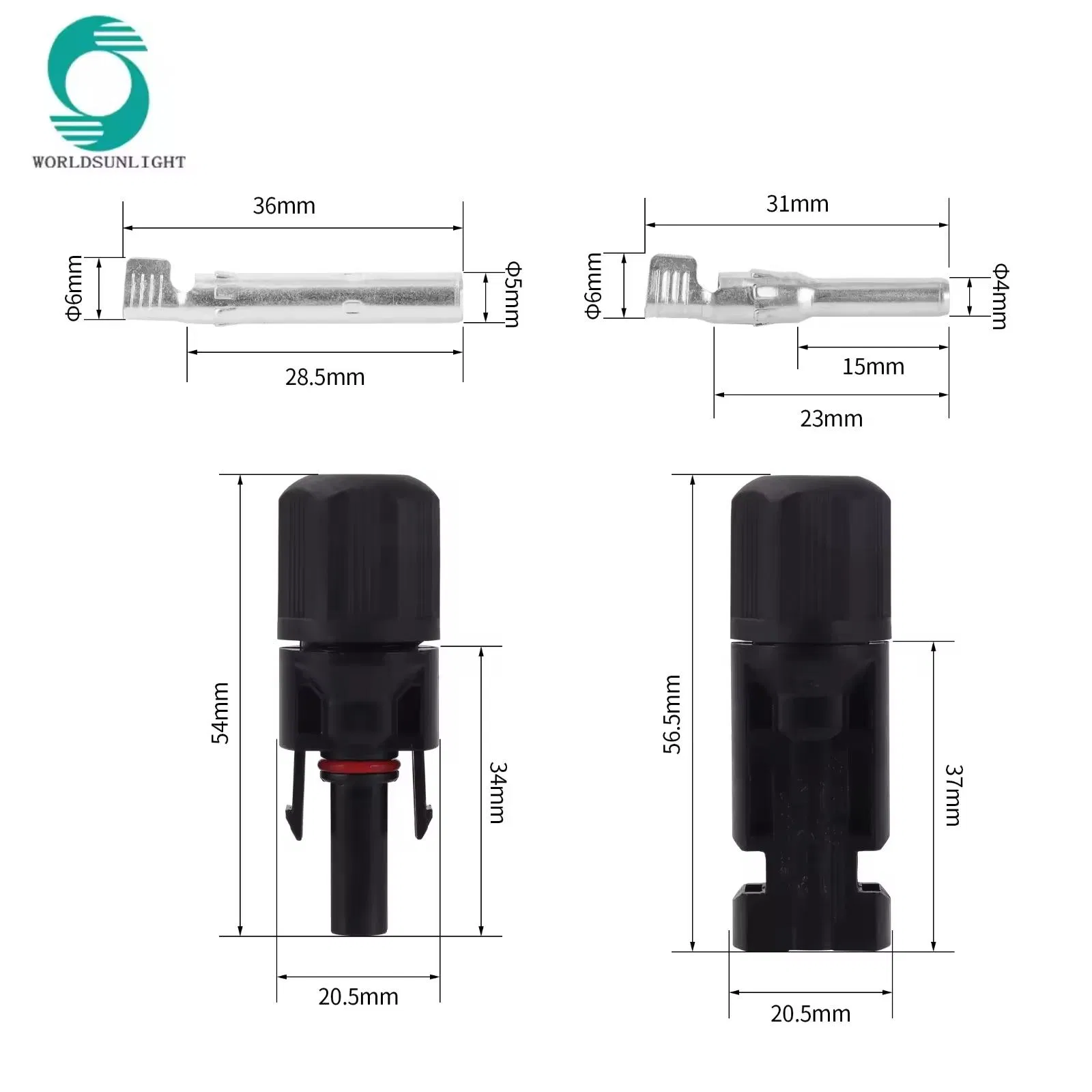

Simple on-site processing. Accommodates PV cable with different insulation diameters. Mating safety provided by keyed housings. Multiple plugging and unplugging cycles. High current carrying capacity. TUV and UL approved.
| Item | Specification Details |
|---|---|
| Model Number | WSPVCC |
| Test Voltage | 1000V DC |
| Rated Impulse Voltage | 6000V (50Hz, 1min) |
| Contact Material | Copper, Tin-plated |

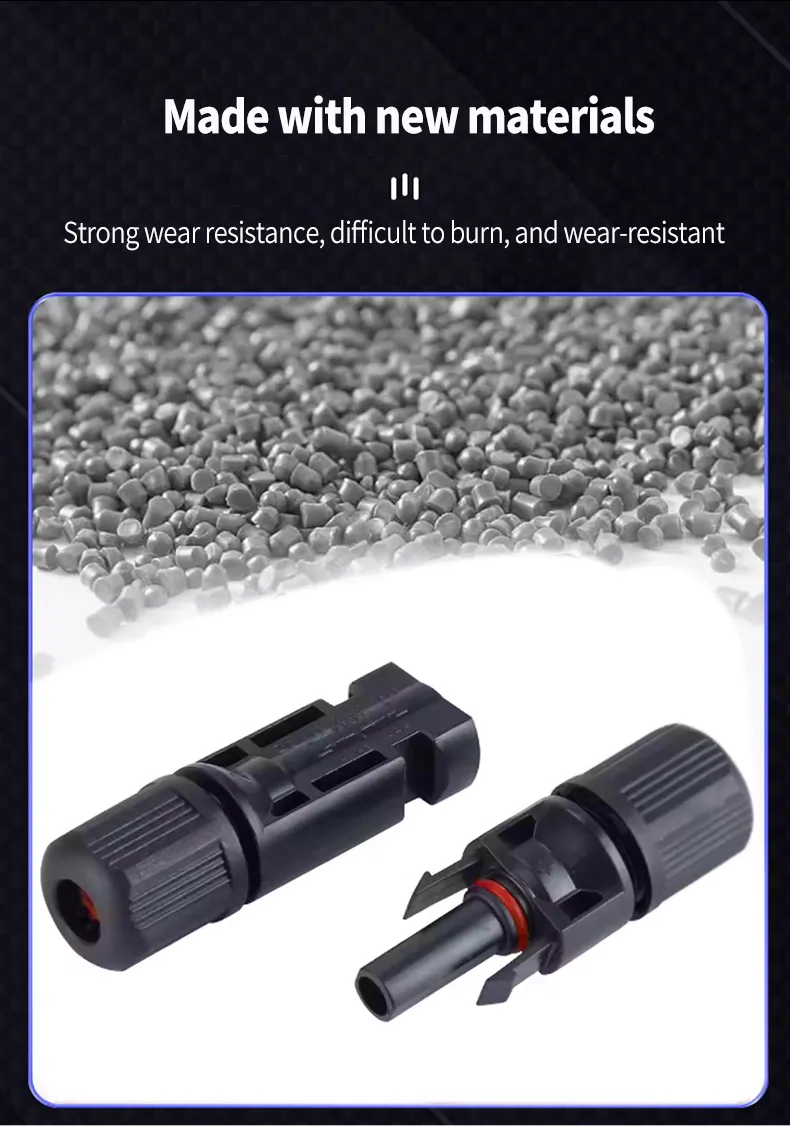

| Insulation Material | PPO / PC V0 flame retardant |

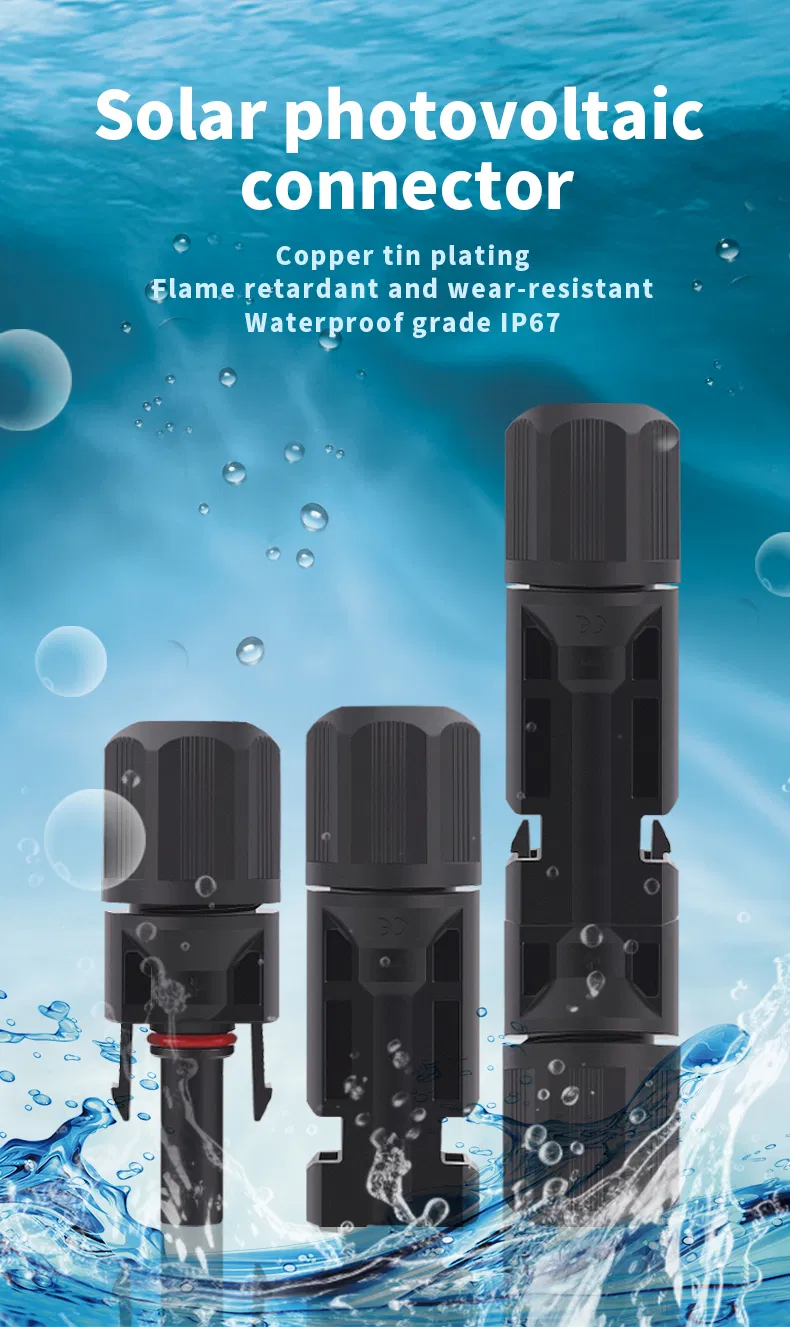

| Degree of Protection | IP67 / IP2X |
| Flame Class | UL94-V0 |
| Safety Class | II |
| Suitable Cable | OD 4.5-8.5 (2.5-6.0mm²) |
| Insertion/Withdrawal Force | ≤ 50N / ≥ 50N |

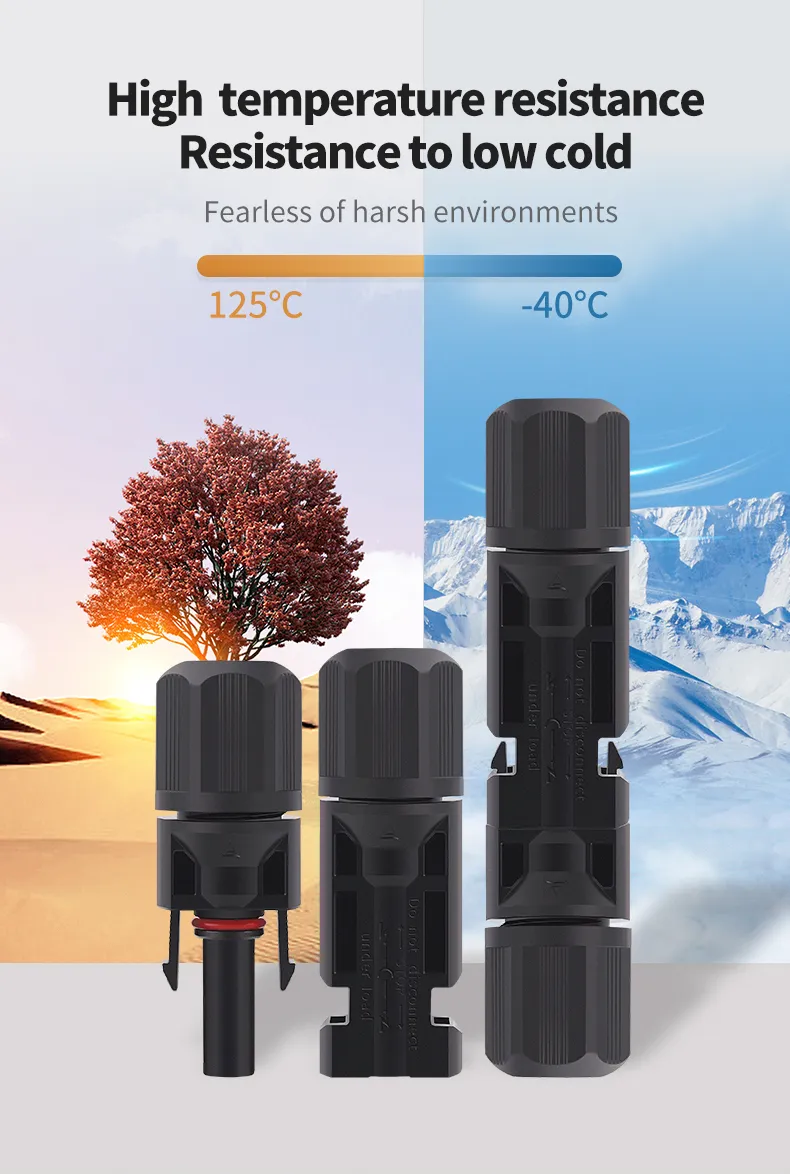

| Temperature Range | -40ºC ~ +125ºC |
Average response time 2.75 hours
1000 PCS in less than 7 days
Free photos and videos of your products
Synchronize product progress for you
English Major Level 8 efficiency
Two-year warranty & timely support

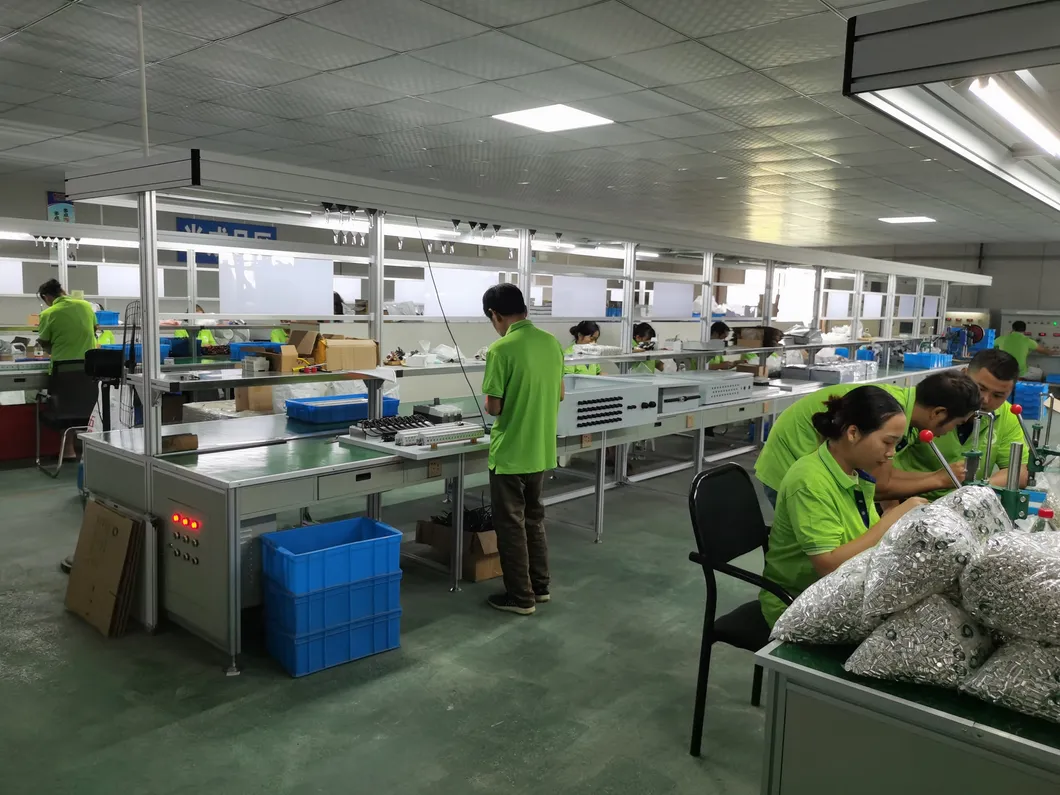

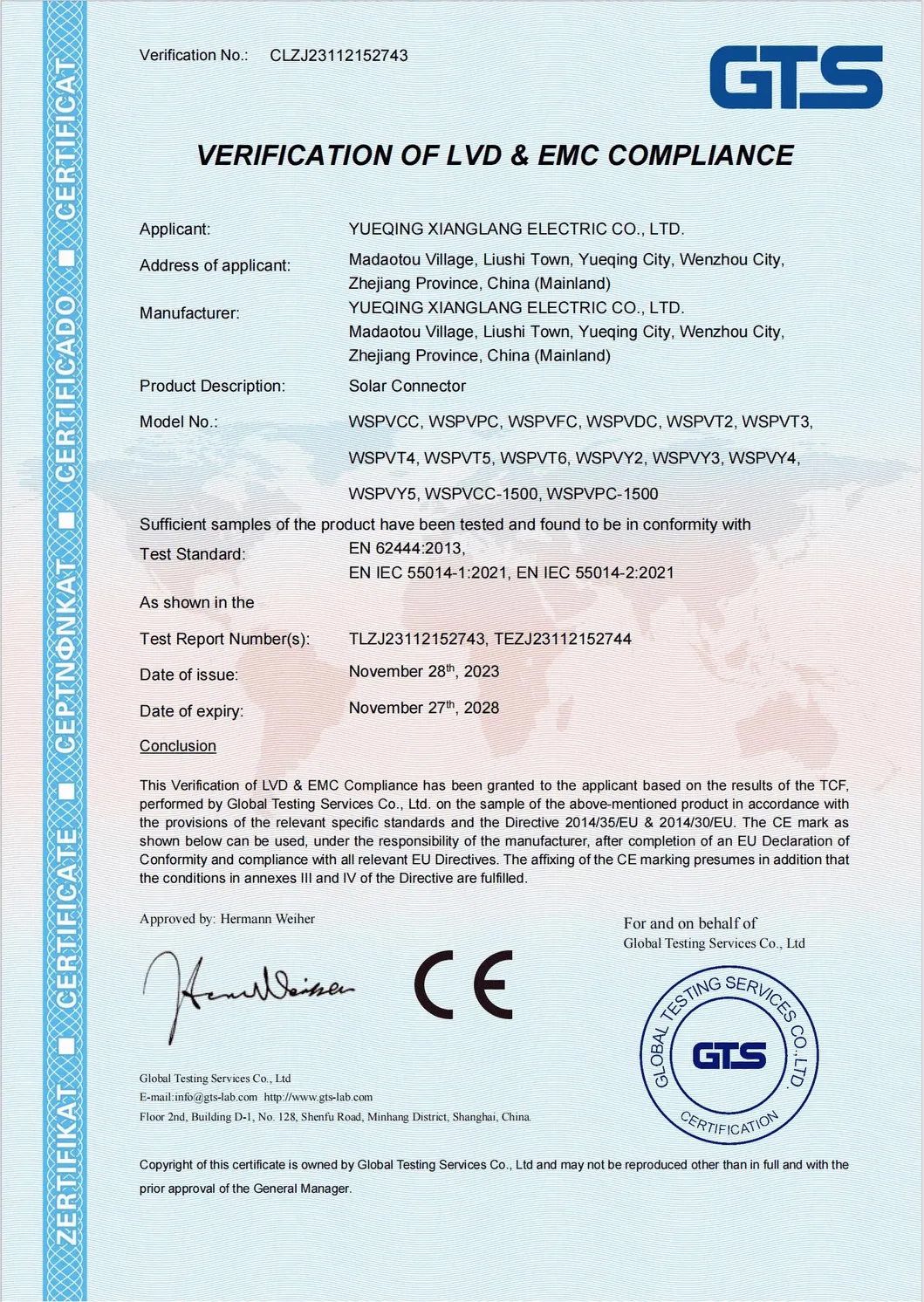

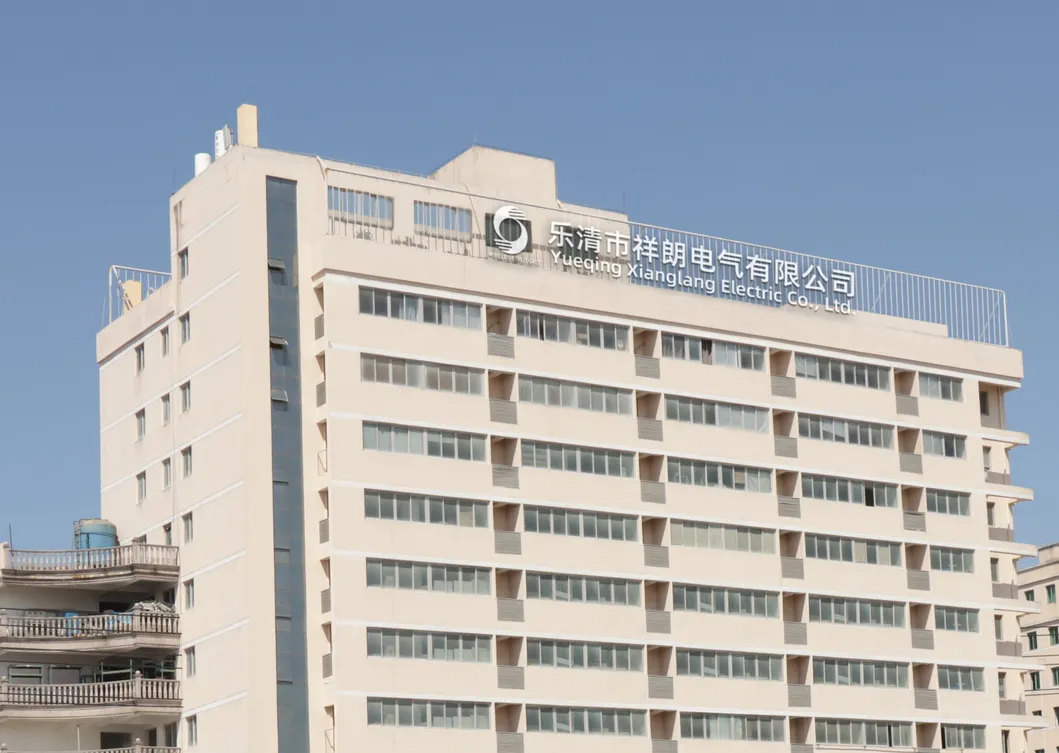

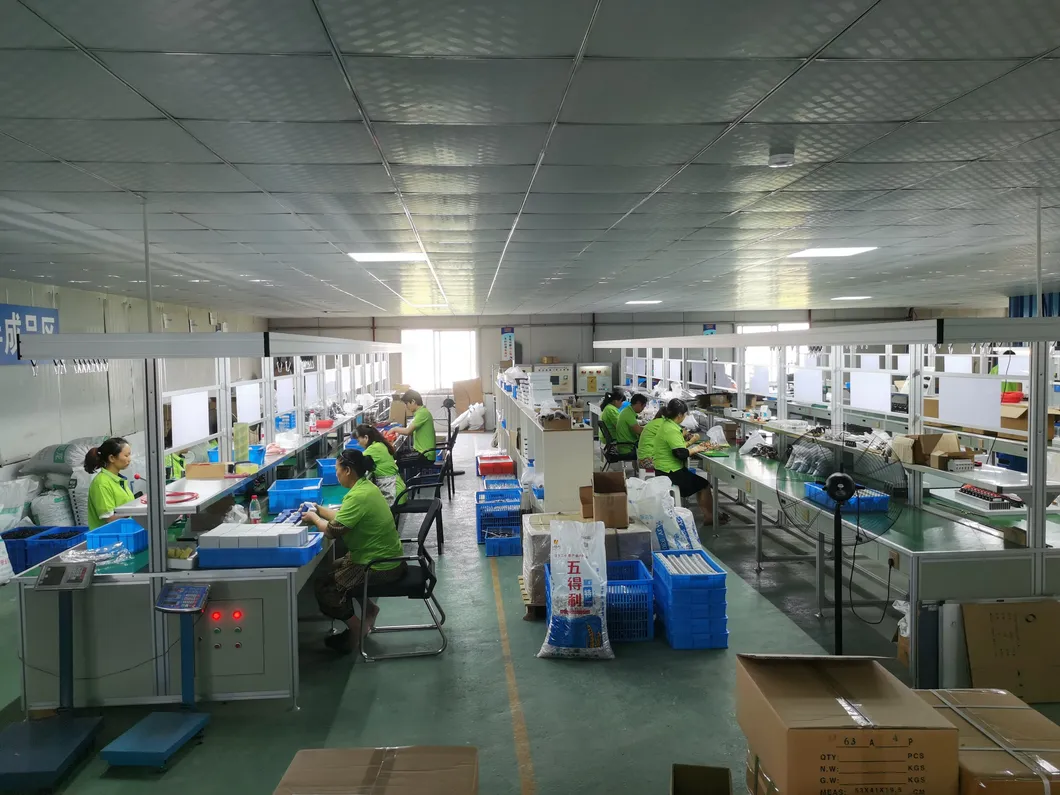

With over a decade of experience in the solar accessories industry, we are dedicated to manufacturing and R&D. Our factory spans 10,700 square meters with an annual output exceeding US$20 million. Specializing in miniature circuit breakers, SPDs, fuses, and solar connectors, we hold CE, TUV, IEC, and ISO9001 certifications. Each product undergoes stringent quality control and testing based on over 10,000 project experiences.
