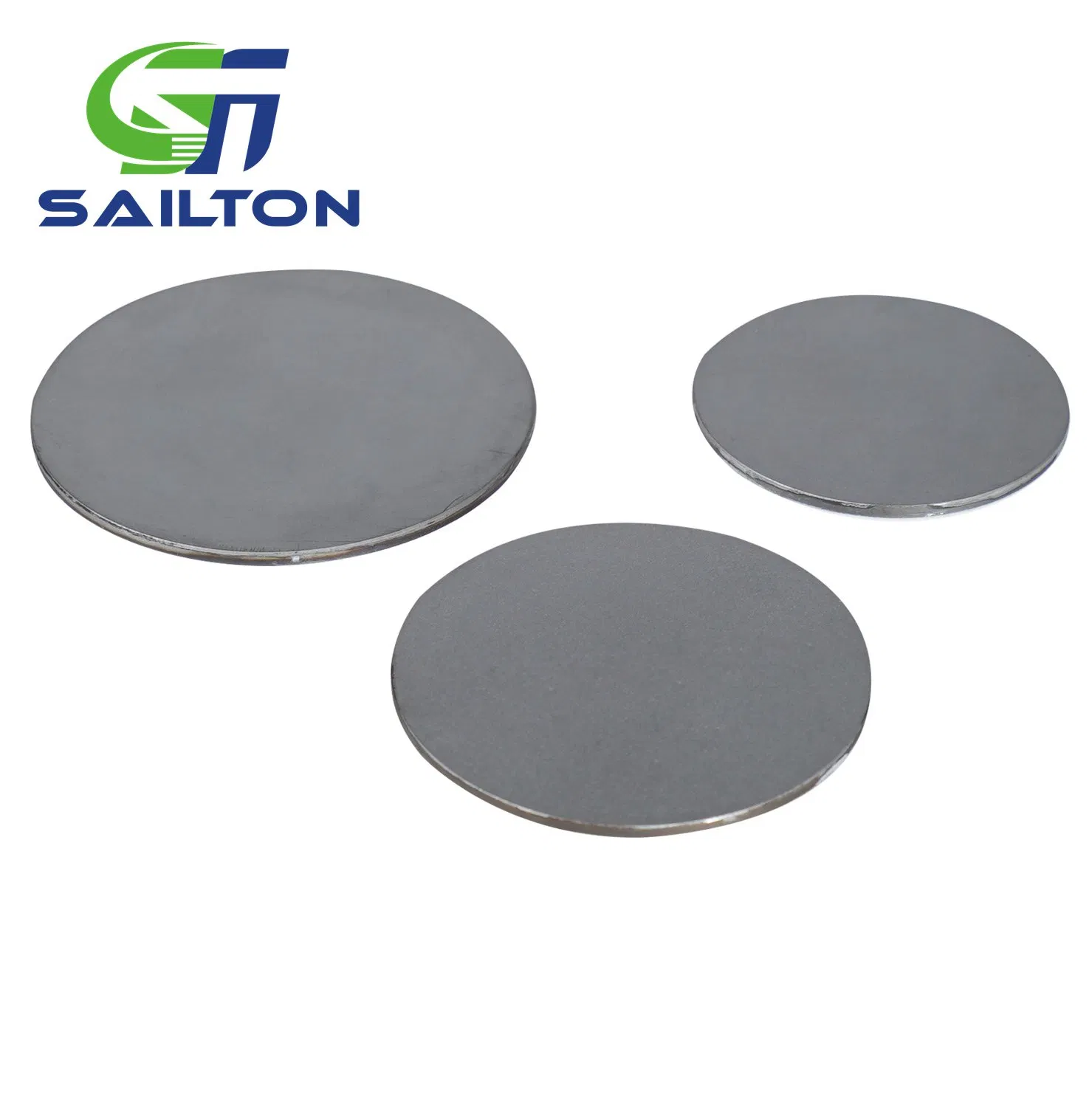

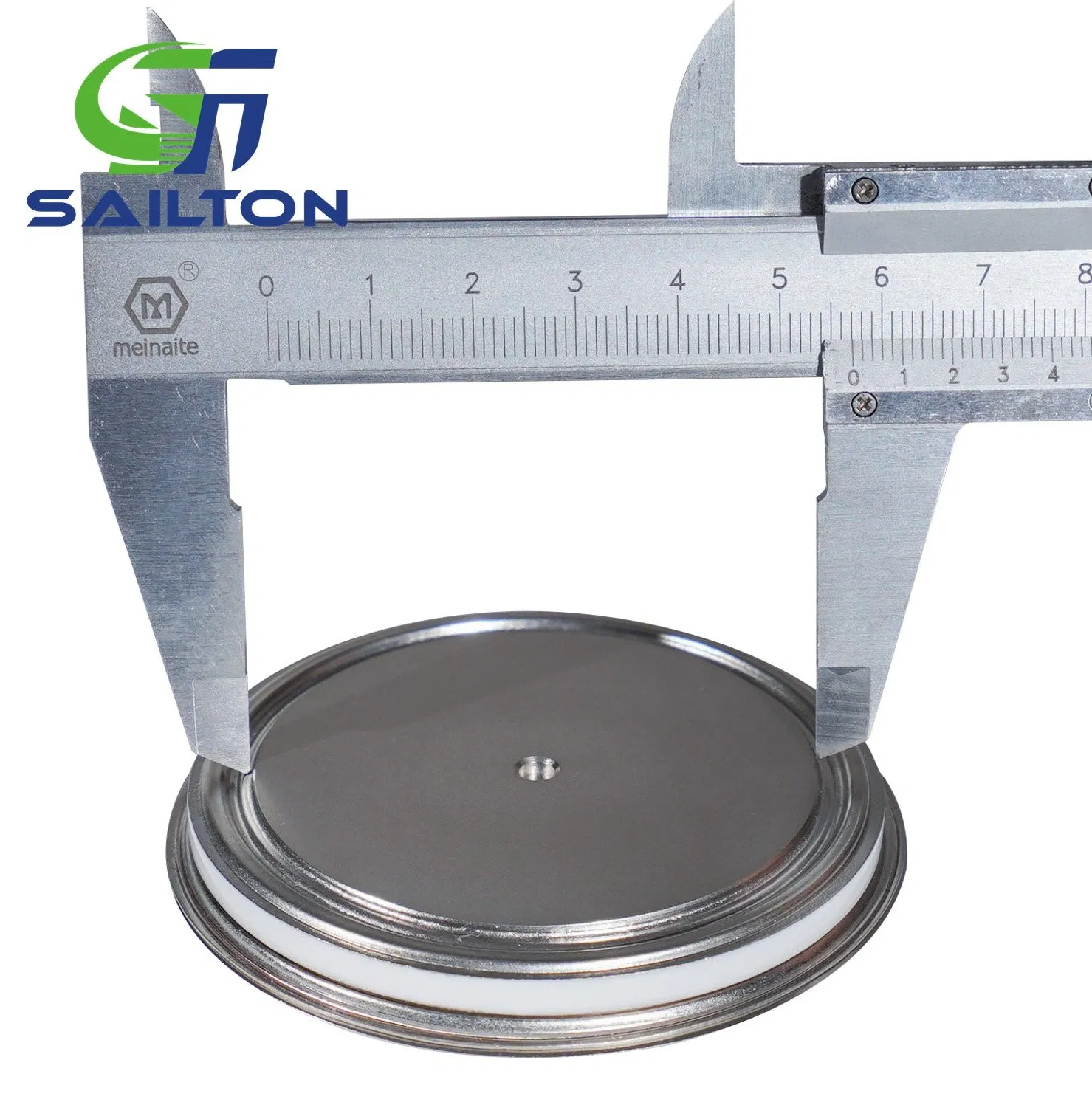

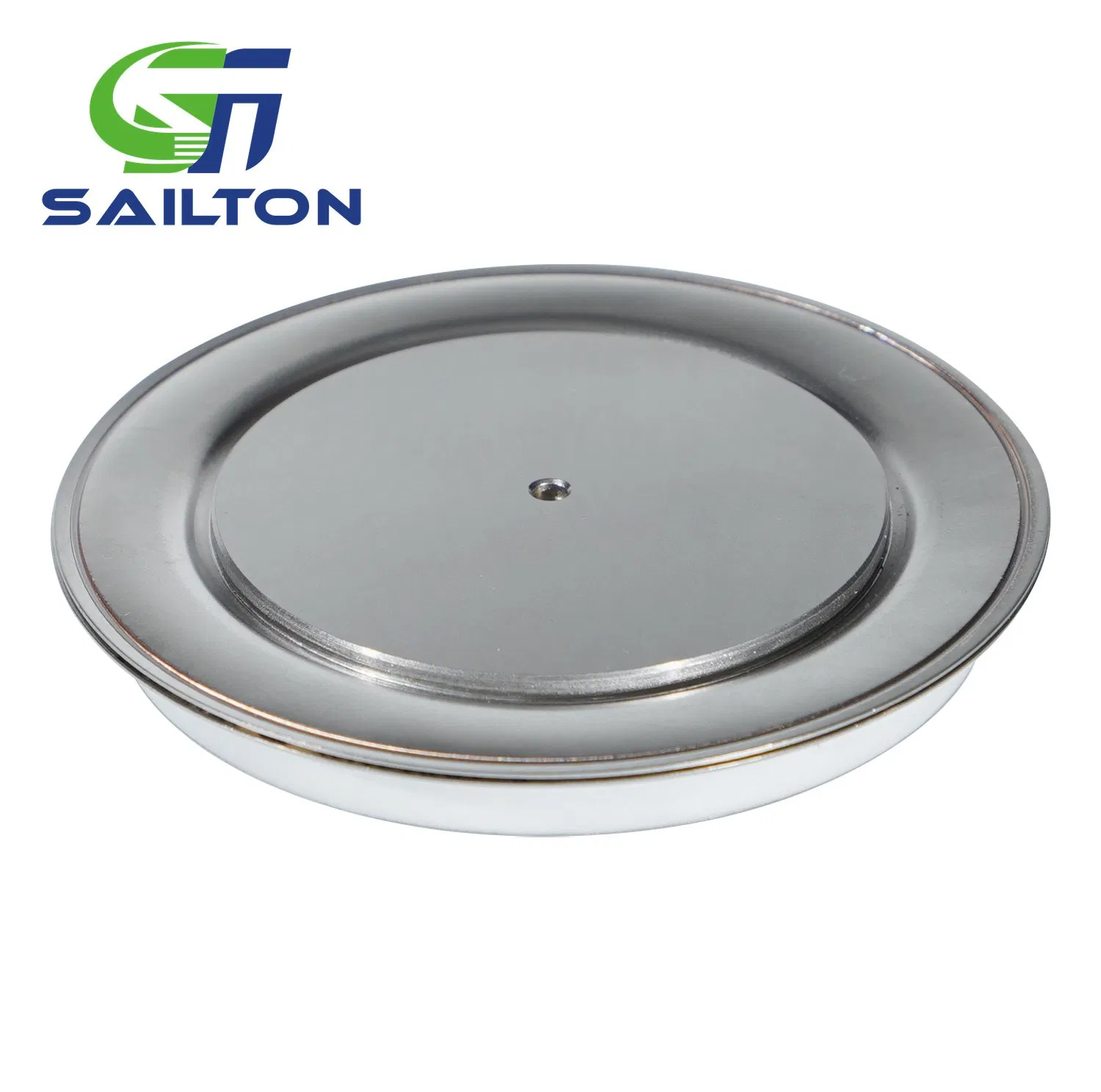

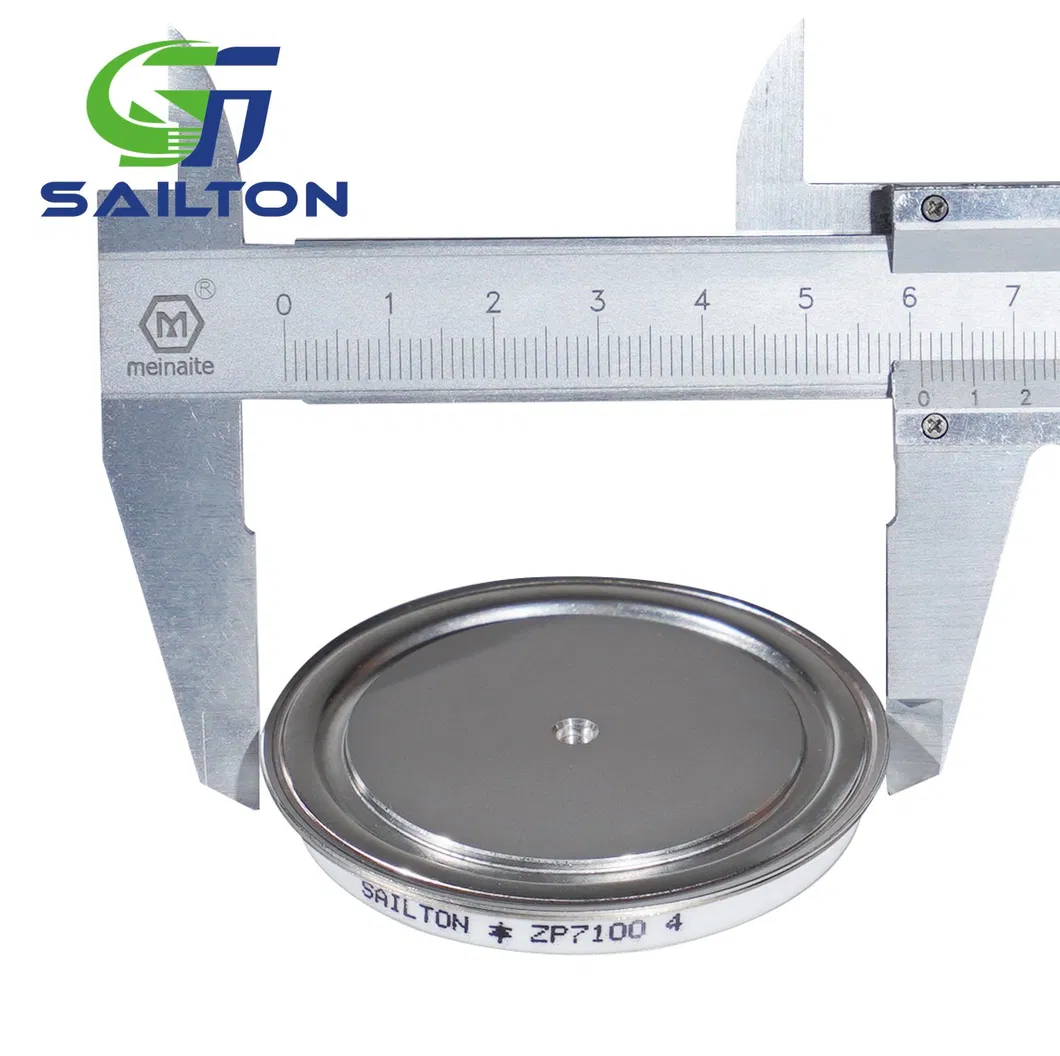

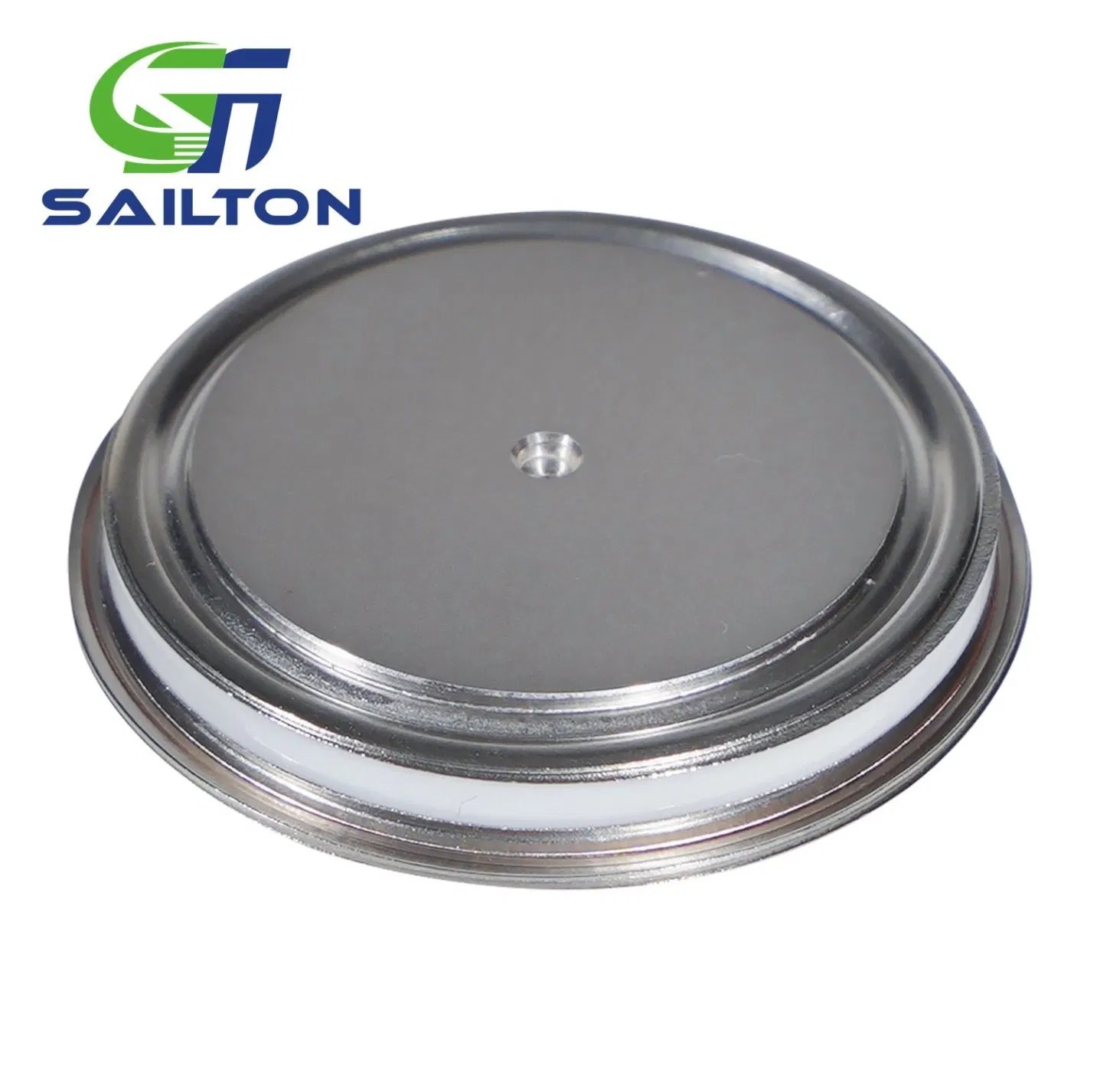

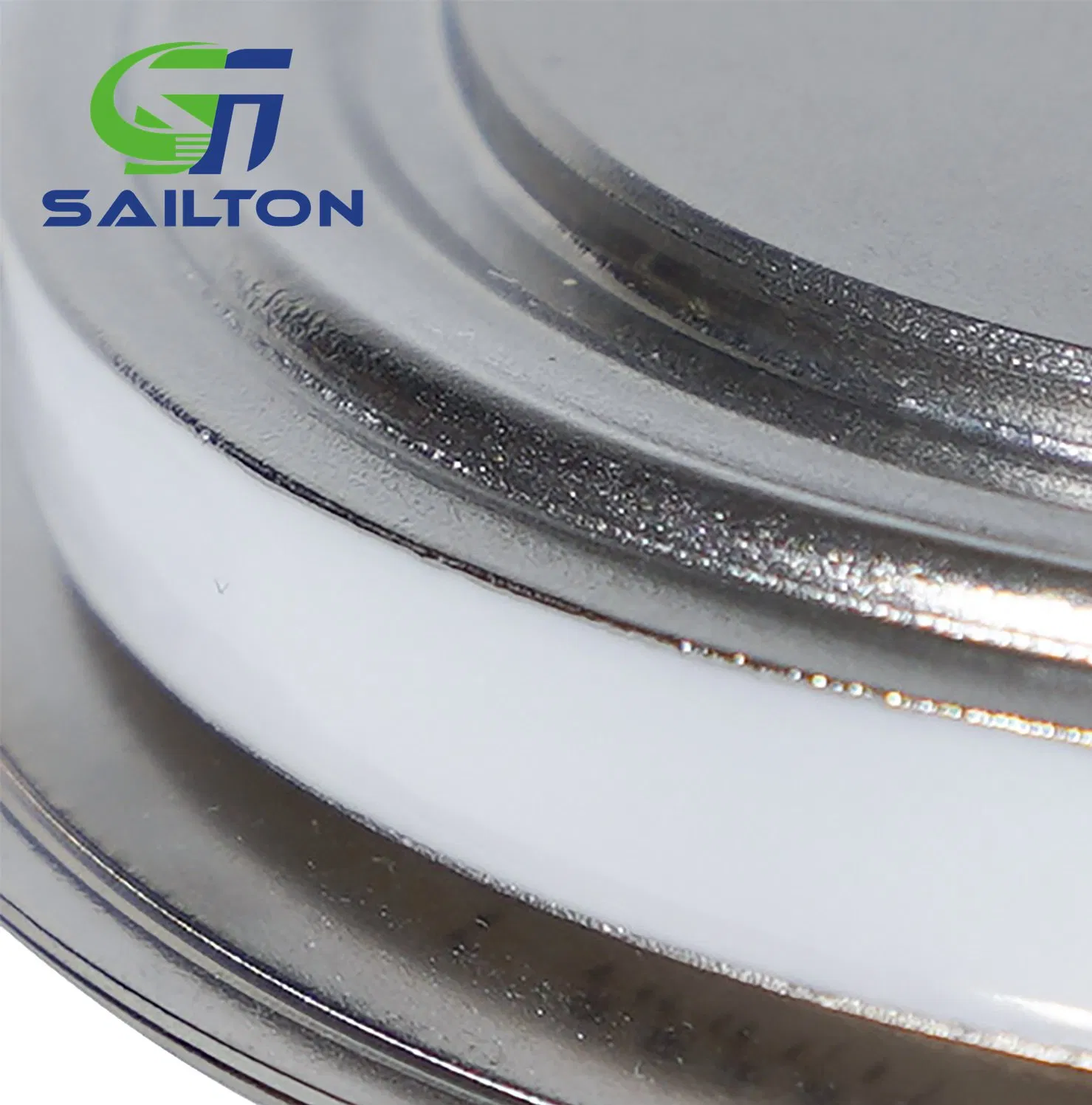

Welding diode is a high current low voltage semiconductor device used on medium frequency spot welding machines, MFDC spot welders, and seam welders. Its current range spans from 7100A to 13500A with voltage ratings of 200V or 400V. These components, also known as "Welder Diodes" or "Welder Rectifier Diodes", serve as the core rectifier components for resistance welding outputs.

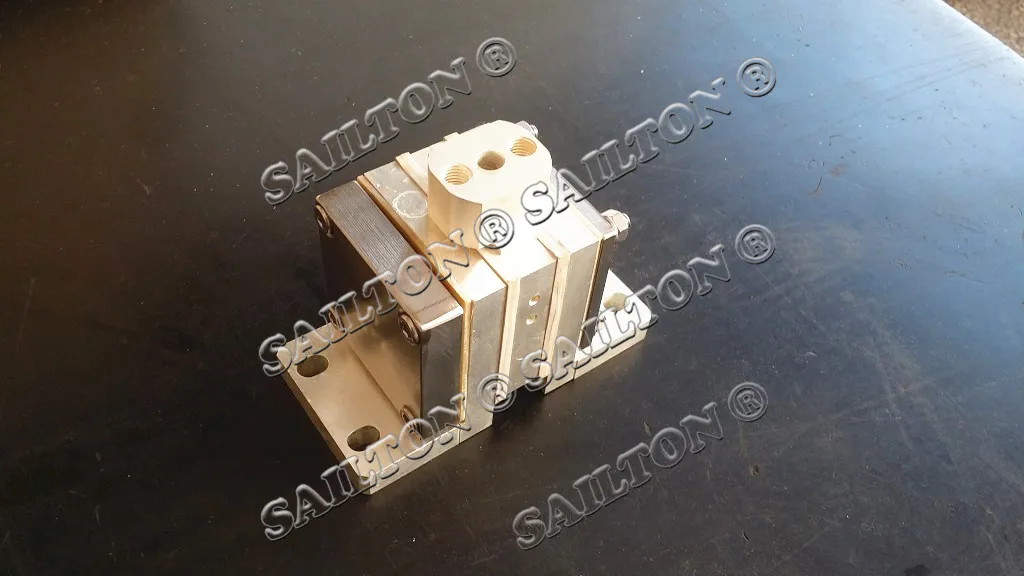

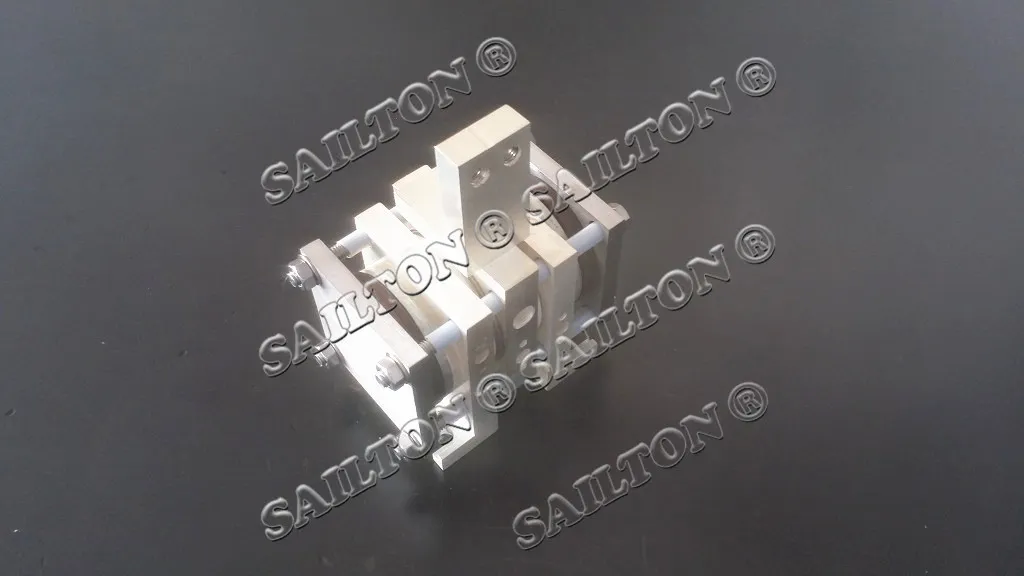

Ideal for all types of intermediate and power frequency resistance welding machines, including:

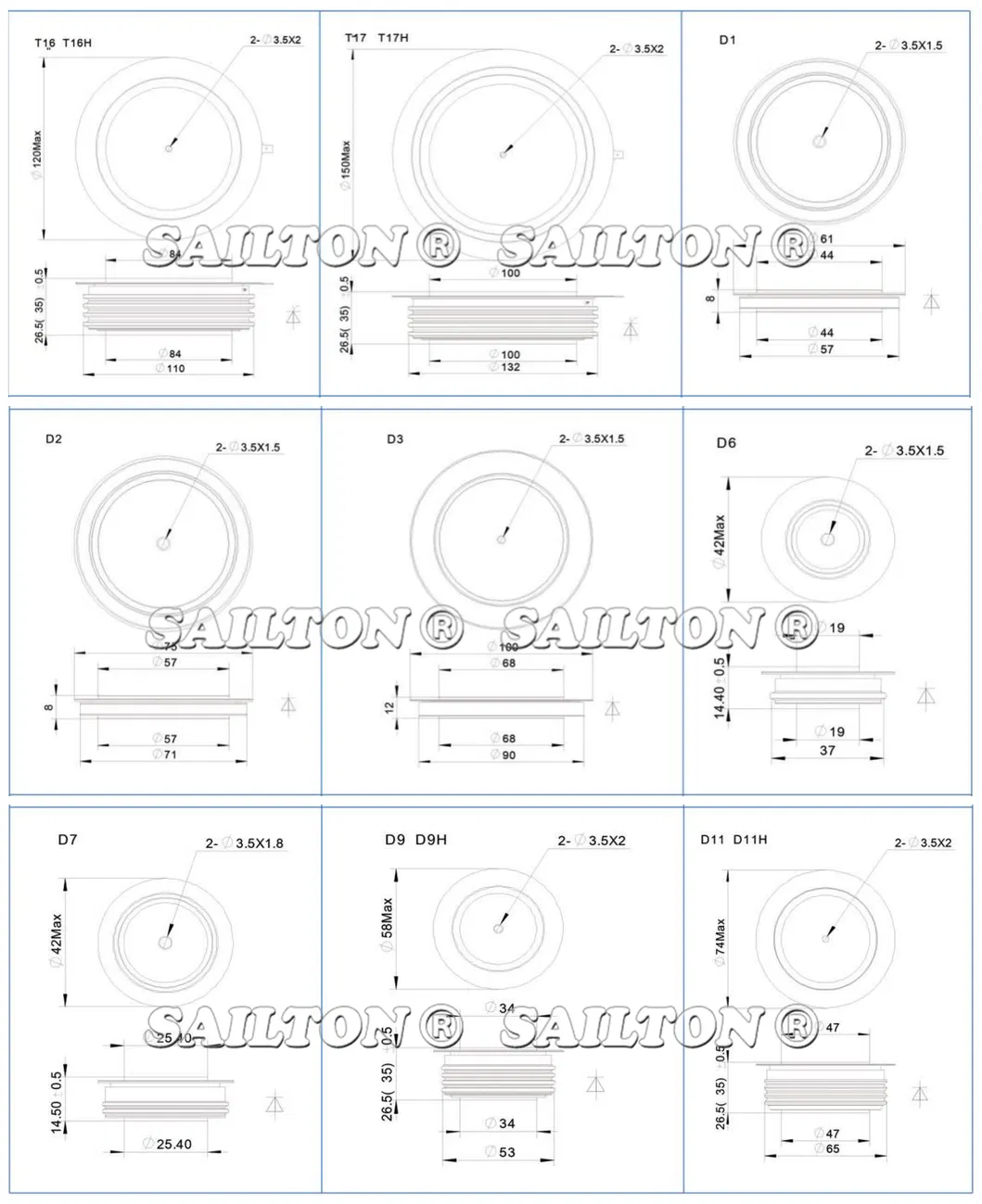

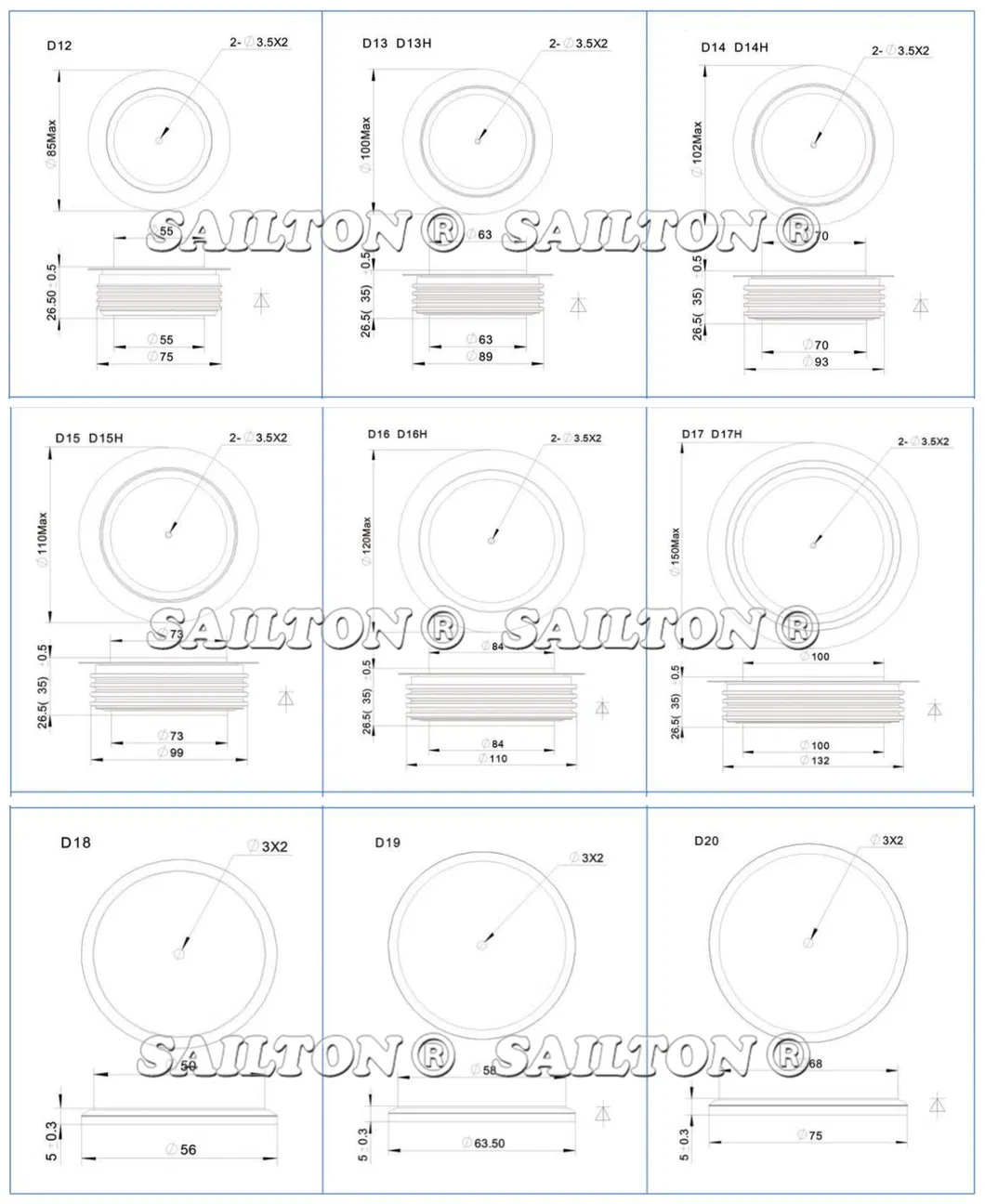

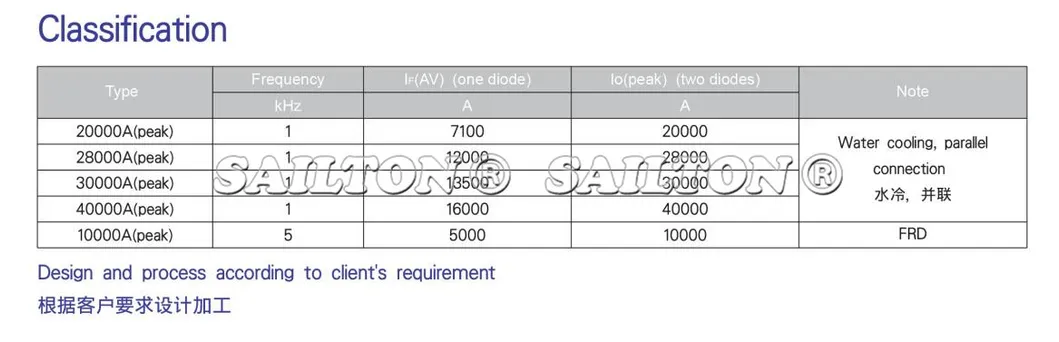

| Part No. | IF(AV) (A) | VRRM (V) | IFSM (KA) | I²t (A²S.10³) | VTO (V) | rT (mΩ) | TVJM (ºC) | F (KN) | Outline |
|---|---|---|---|---|---|---|---|---|---|
| ZP4000/02-06 | 5000 | 200-600 | 45 | 10 | 0.80 | 0.030 | 170 | 20-25 | D1 |
| ZP7100/02-06 | 7100 | 200-600 | 55 | 15 | 0.75 | 0.025 | 170 | 20-25 | D1 |
| ZP12000/02-06 | 11000 | 200-600 | 85 | 36 | 0.75 | 0.020 | 170 | 35-40 | D2 |
| ZP16000/02-06 | 16000 | 200-600 | 120 | 72 | 0.80 | 0.019 | 190 | 50-60 | D3 |
| Part No. | IF(AV) (A) | VRRM (V) | IFSM (KA) | I²t (A²S.10³) | VTO (V) | rT (mΩ) | TVJM (ºC) | F (KN) | Outline |
|---|---|---|---|---|---|---|---|---|---|
| ZP10500/02-06 | 10500 | 200-600 | 70 | 25 | 0.80 | 0.03 | 170 | 30-50 | D18 |
| ZP13500/02-06 | 13500 | 200-600 | 85 | 36 | 0.75 | 0.02 | 170 | 35-70 | D19 |
| ZP18000/02-06 | 18000 | 200-600 | 120 | 72 | 0.80 | 0.02 | 190 | 70-80 | D20 |
