Plastic package has Underwriters Laboratory Flammability Classification 94V-O
For surface mounted applications with low profile package
Easy pick and place with built-in strain relief
Ultrafast recovery times for high efficiency
High temperature soldering: 250°C / 10 seconds at terminals

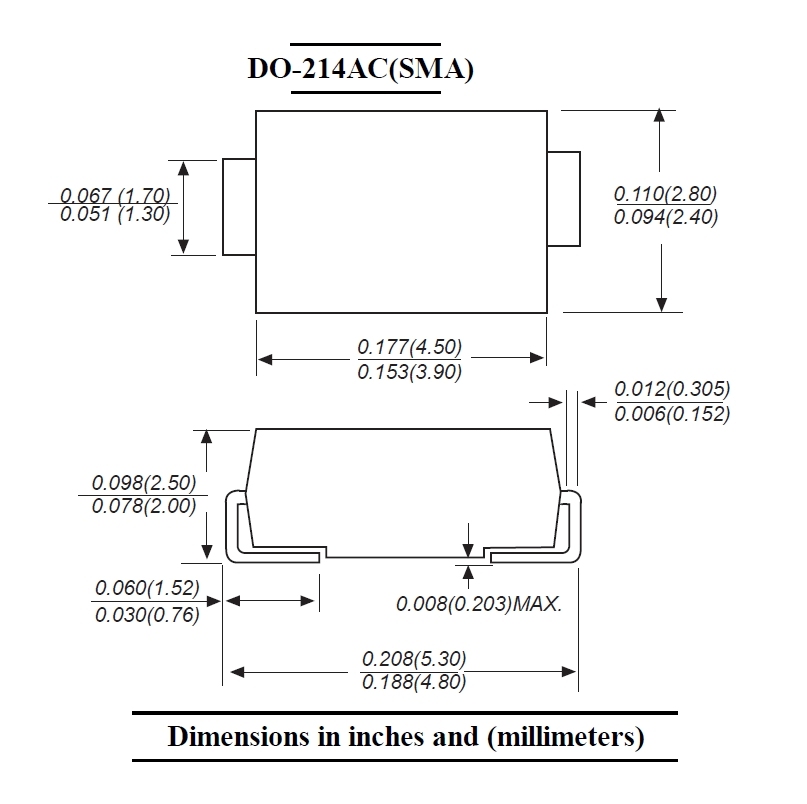

Molded plastic case DO-214AC(SMA)
?
Frequently Asked Questions
Can products be customized based on special requirements?

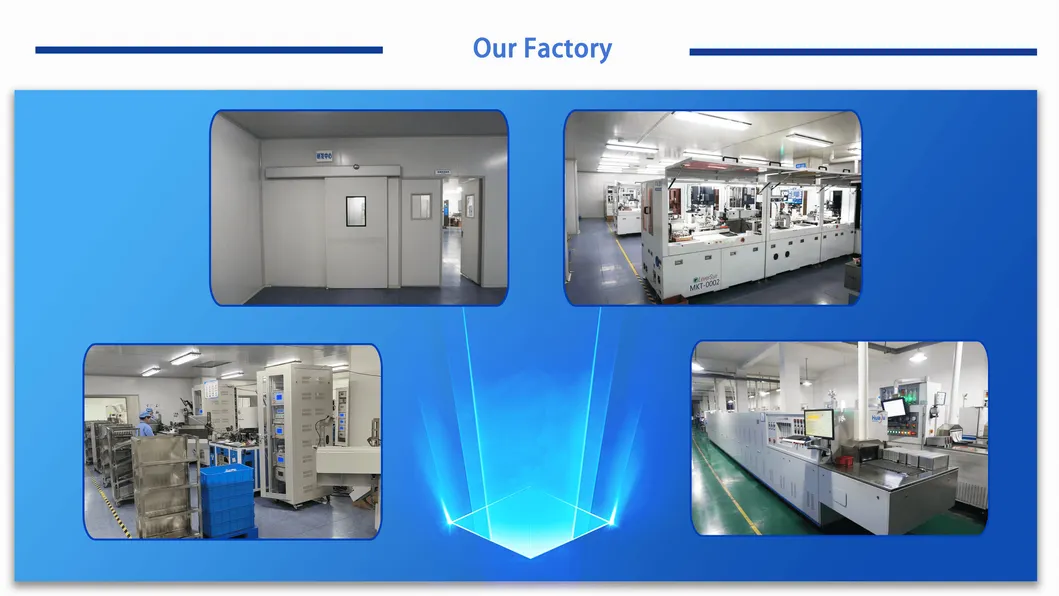

Yes, we can customize products regarding packaging, chips, leads, and solders. We have an independent R&D team and factory to handle special requirements.
What should I do if I can't find a specific part number?
We display our most popular products online. If you need a specific diode not listed, please contact our sales team for assistance.
How can I ensure the products are authentic?
We recommend purchasing products directly from us or through authorized distributors to avoid quality risks associated with unauthorized sellers.
What is the operating temperature range for the US1M?
The operating junction temperature for this model ranges from -55 to +150 ºC.
What are the primary applications for this rectifier?

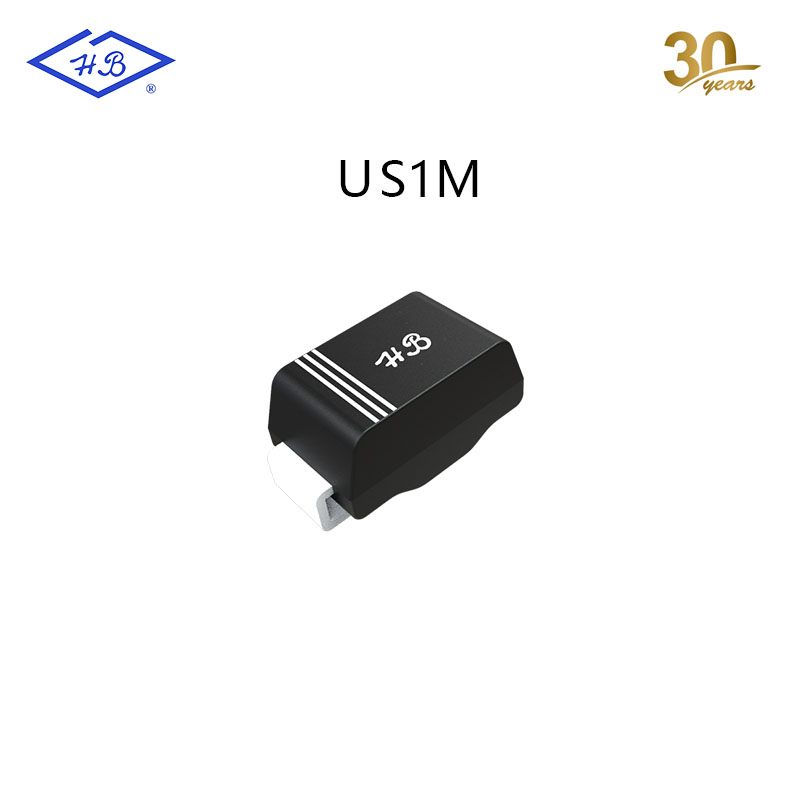

The US1M is designed for surface mounted applications, offering ultrafast recovery times for high-efficiency circuits.
What is the peak reverse voltage of the US1M?

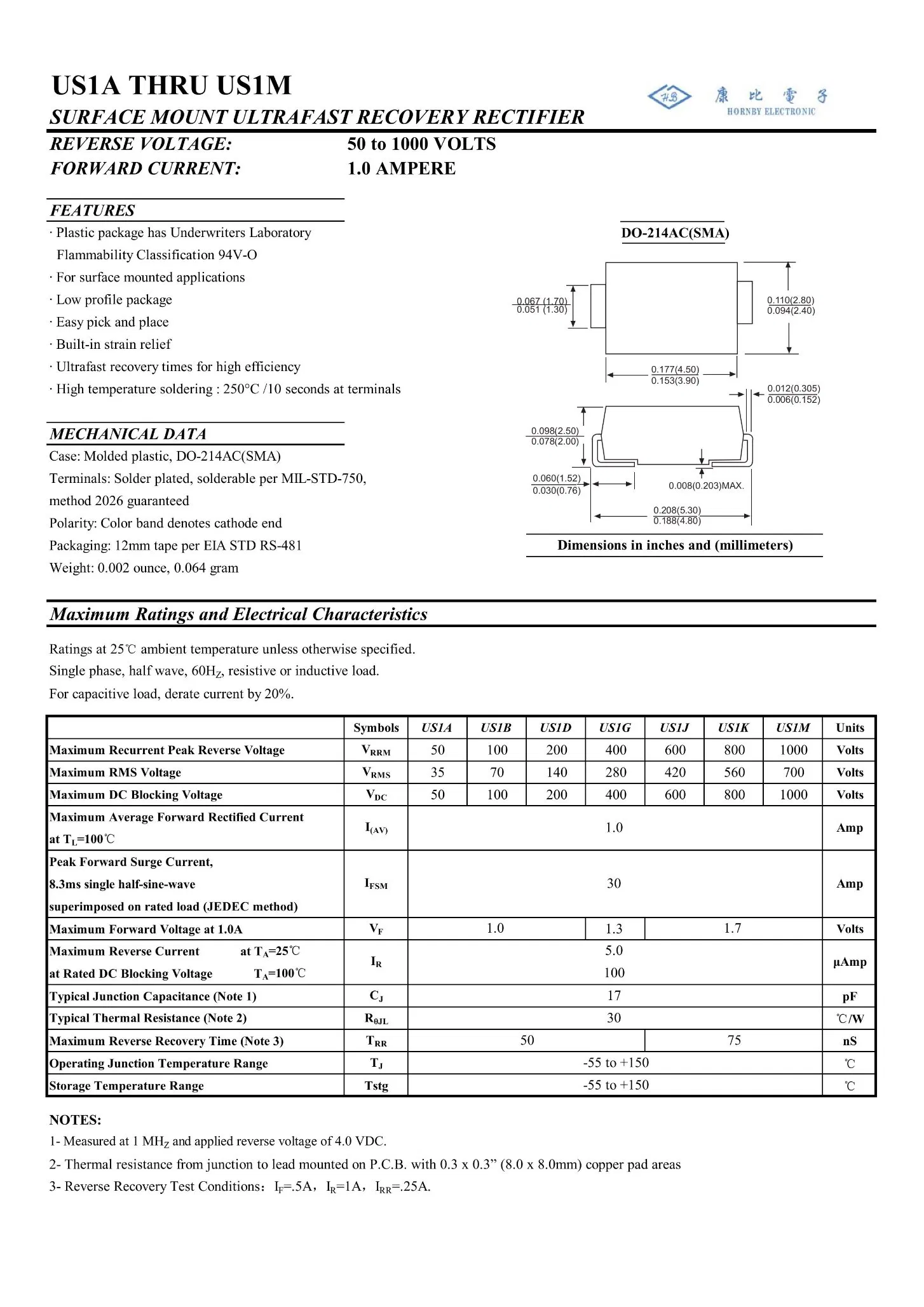

The US1M features a maximum peak reverse voltage (VRRM) of 1000V and a maximum average forward rectified current of 1.0A.
