6-24VAC/DC 6A 250V Ultra-Thin Relays 24V Module DIN Rail Slim Relay Set

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
UR21-1Z
Application
Conduct Electricity
Character
Environmental Protection
Species
Plug
Production Process
Injection Molding
Shape
Rectangular
Interface Type
HDR
Certification
UL
Material
PA66
Origin
Zhejiang, China
HS Code
8536900000
Capacity
50,000,000 PCS/Month

Product Description

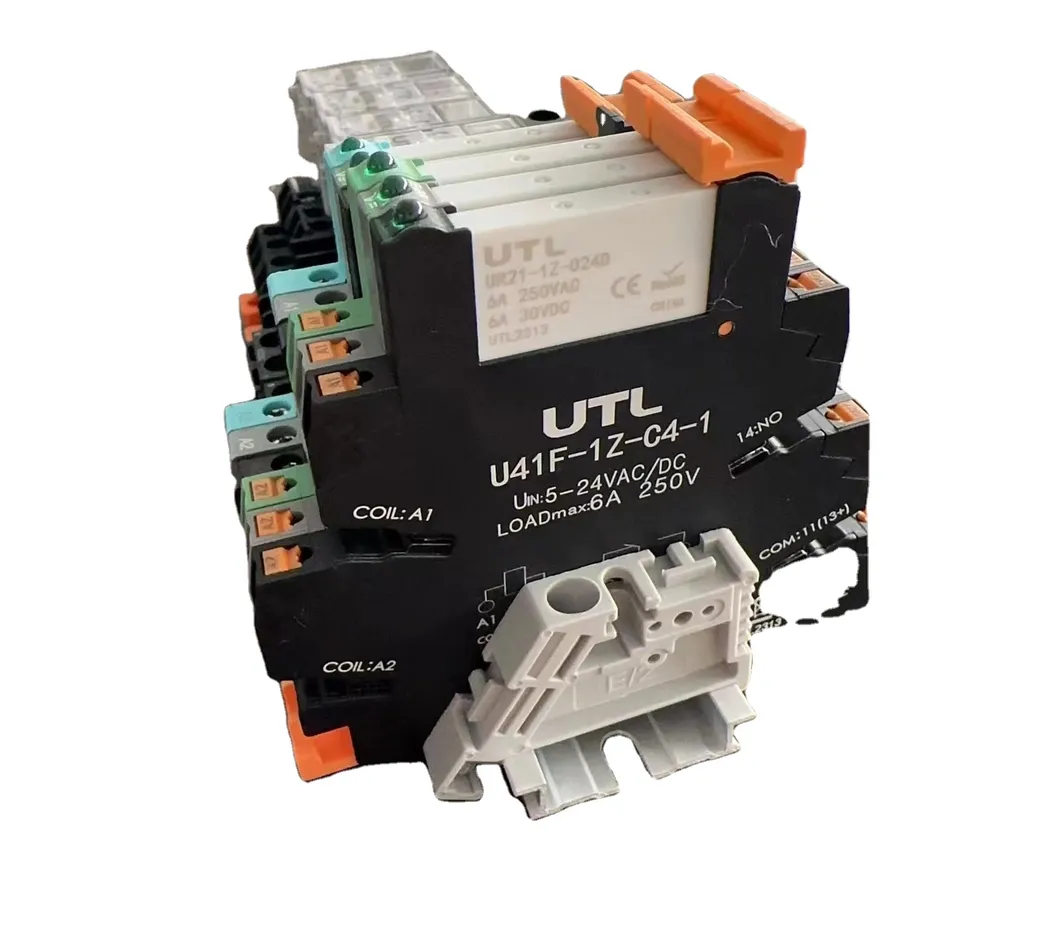

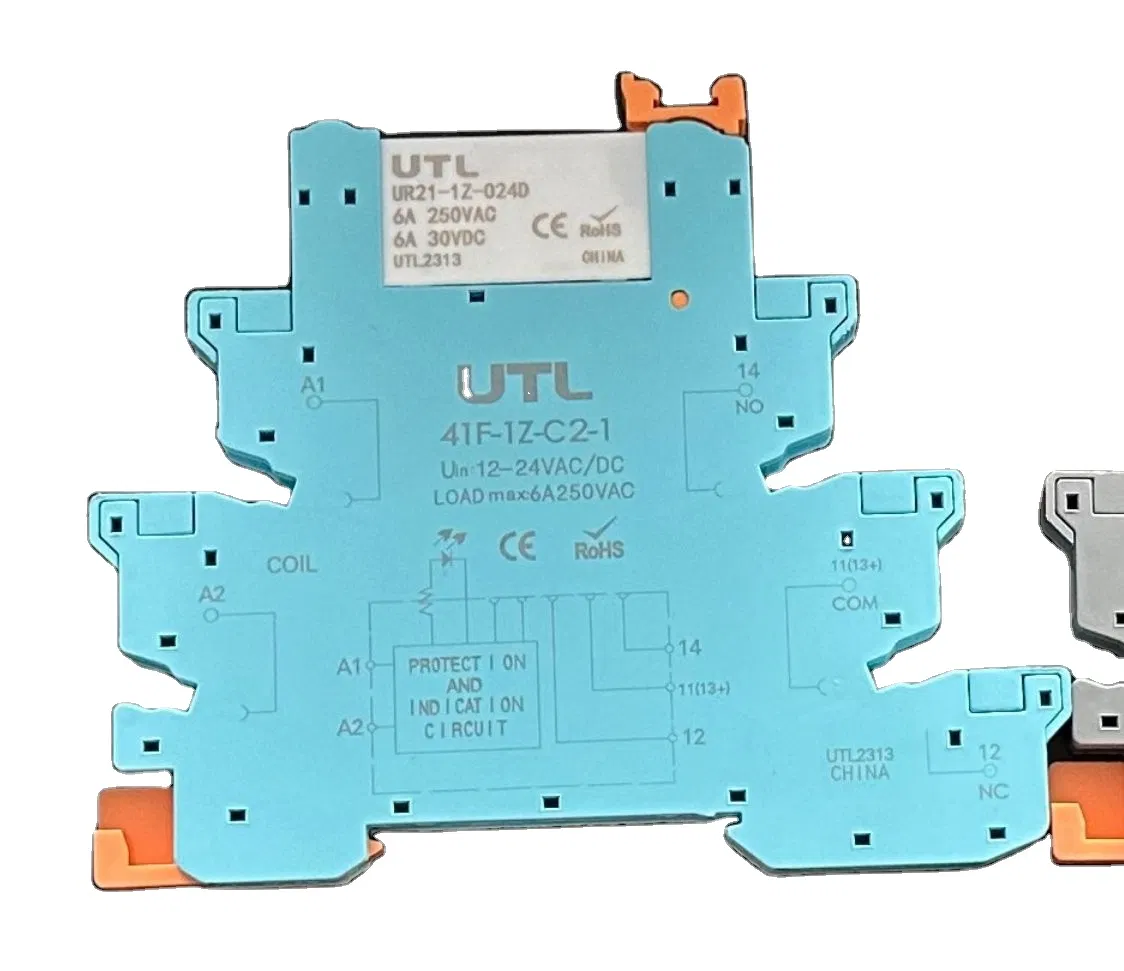

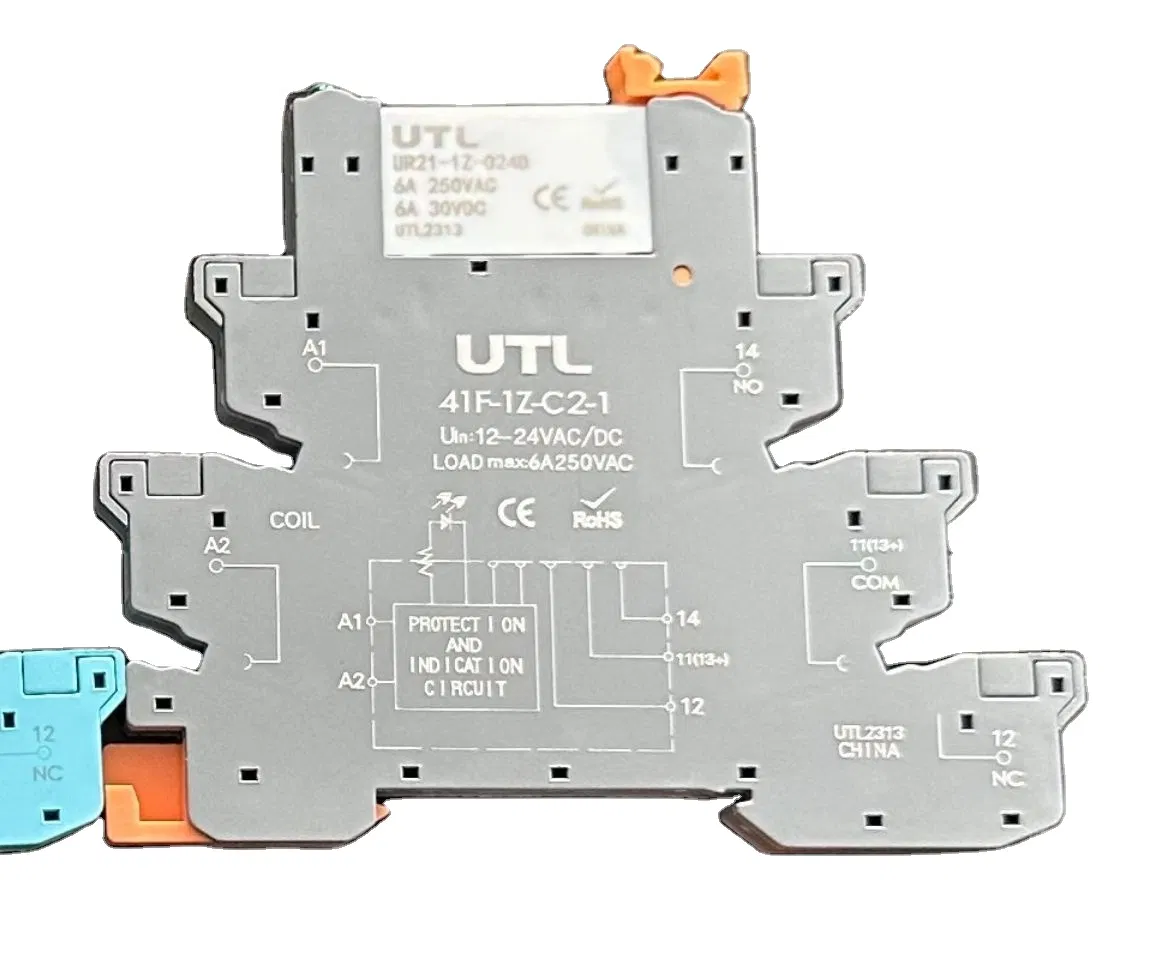

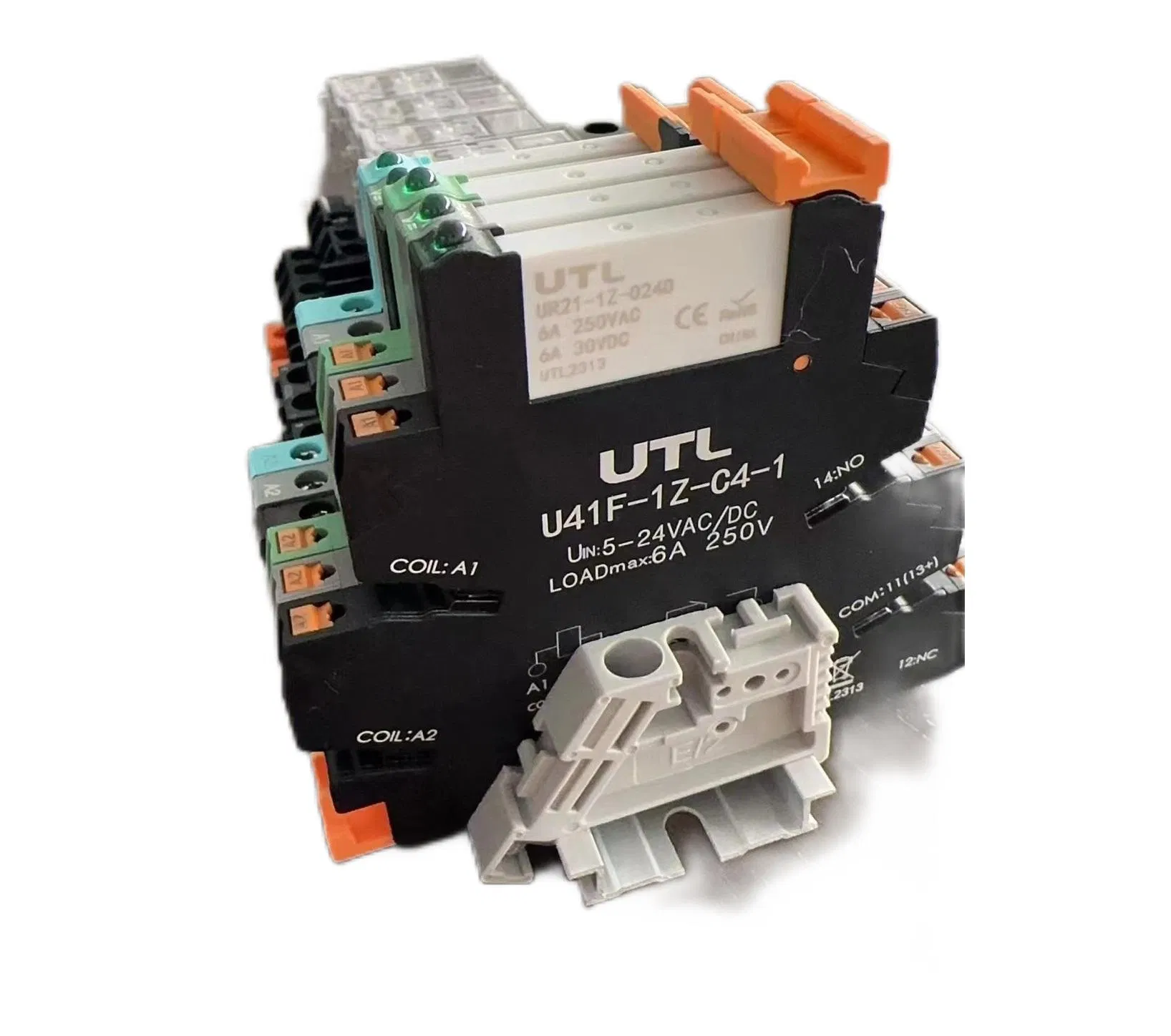

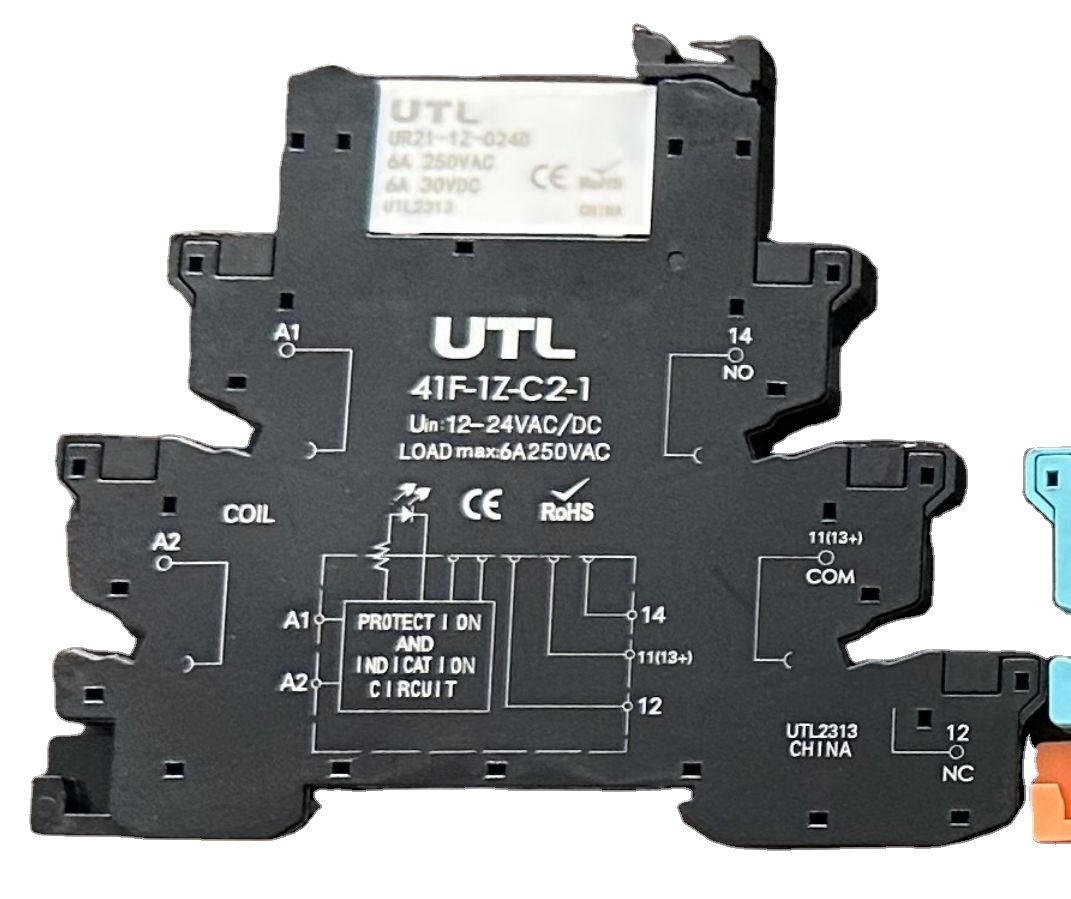

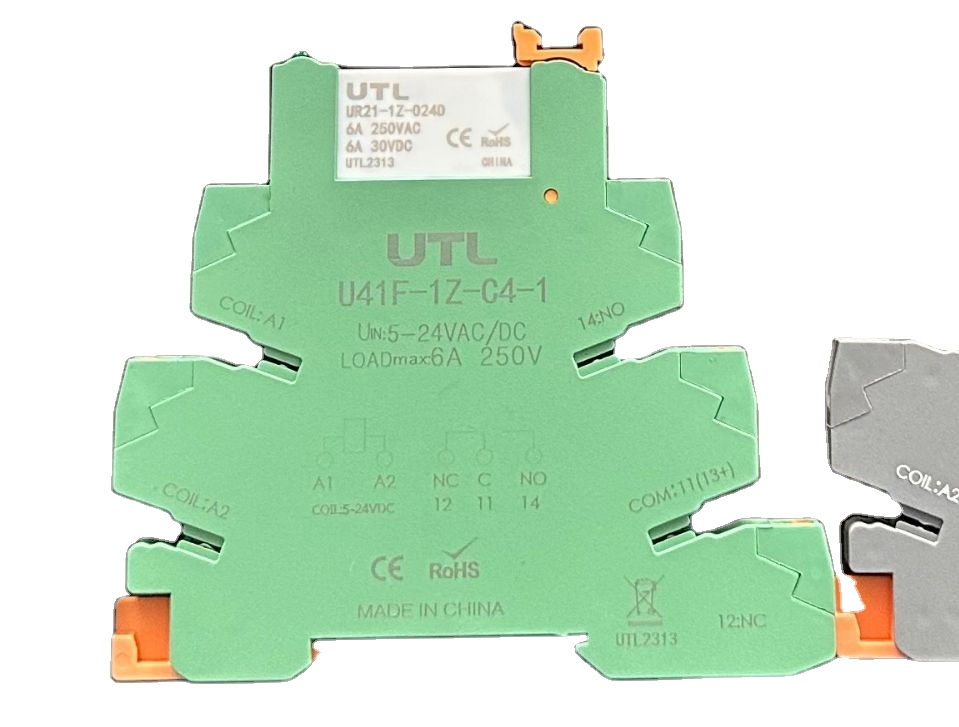

6-24VAC/DC 6A 250V Ultra-thin Relays 24v Module DIN Rail Slim Relay Set

Product nameUltra Thin Relay
SizeMiniature
TheoryElectromagnetic Relay
Contact Load40a/30a
Shell PlasticPA6+G30F
Voltage240 V
SampleAvailable
CustomizationAccepted

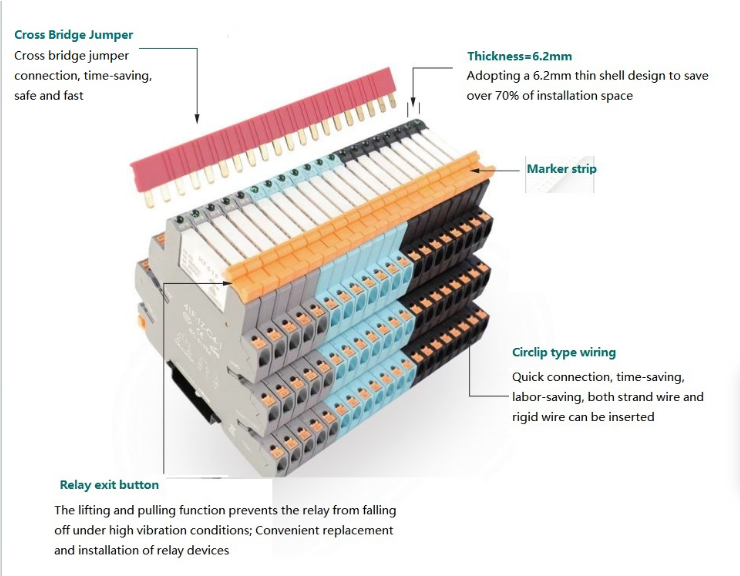

Ultra thin 6.2mm body, high sensitivity and low power consumption, with a maximum power of 6A Circlip type connection, sharp, meets warranty requirements. Industrial control relay is widely used for output signals and safety operations in control systems such as PLC, CNC machine tool distribution boxes, robots, intelligent manufacturing, etc. It is the best choice for automated assembly of various products such as transportation control, production processing, packaging, transportation, testing, storage, etc.

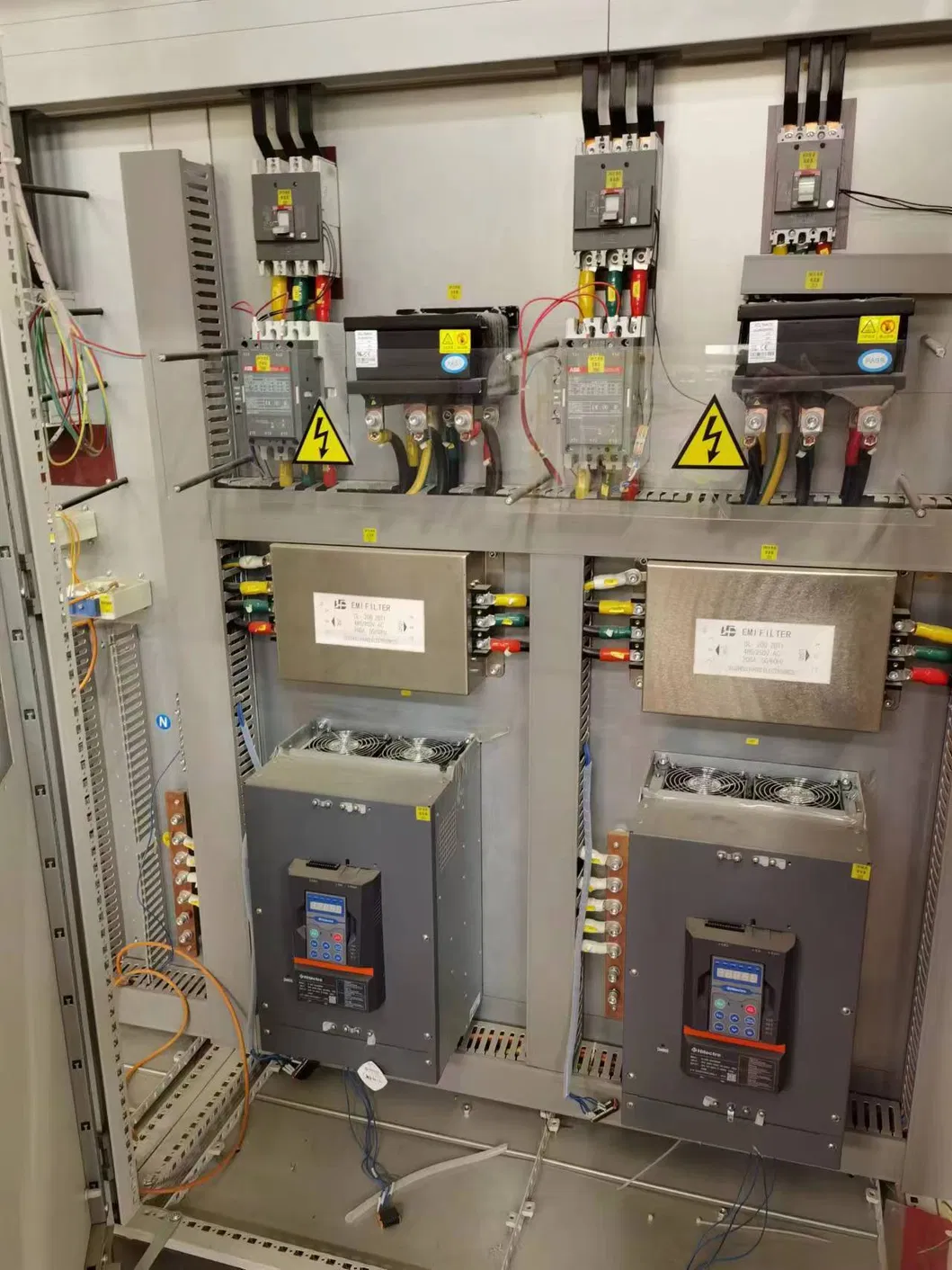

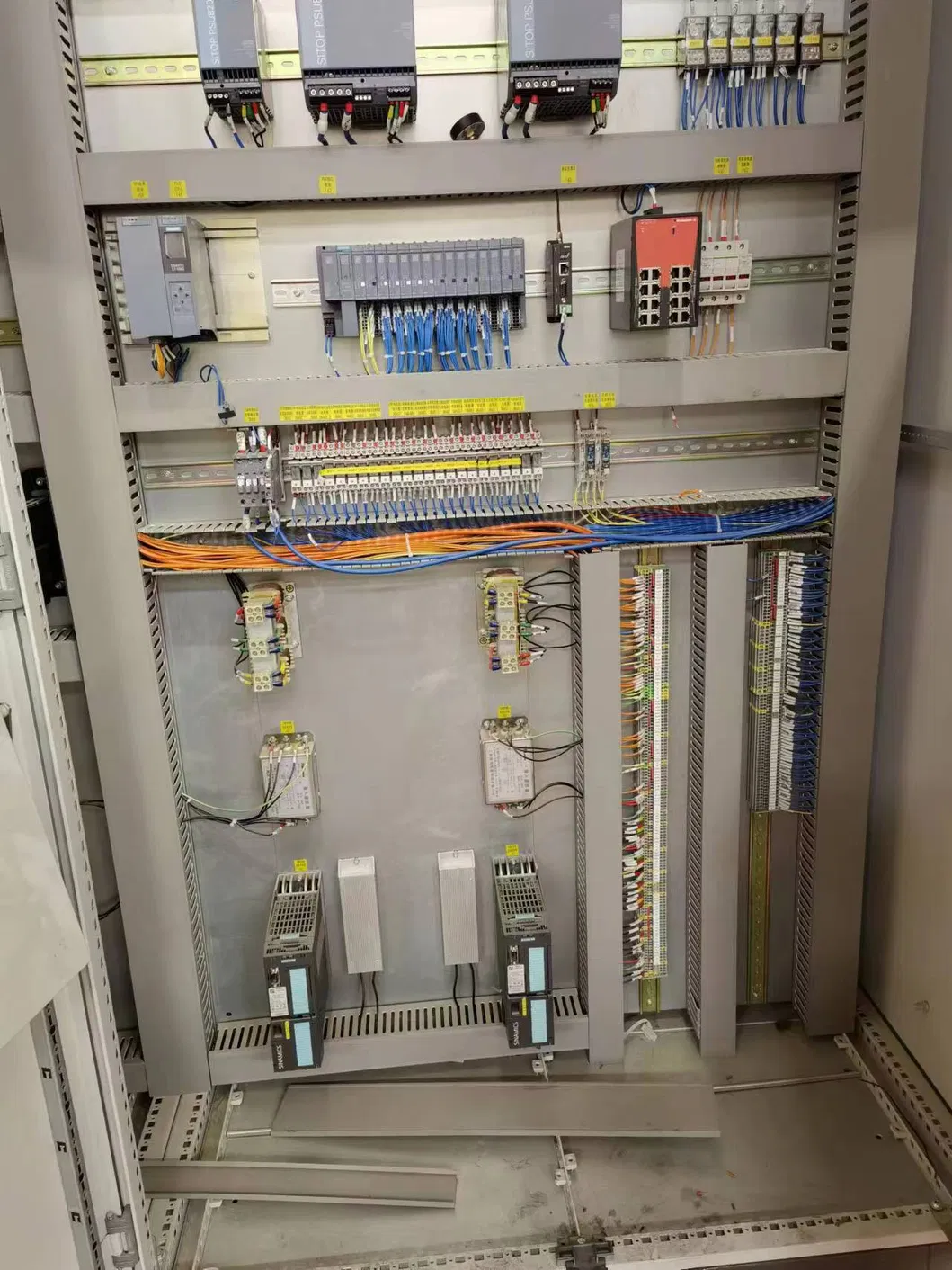

Applications

Professional Manufacturing

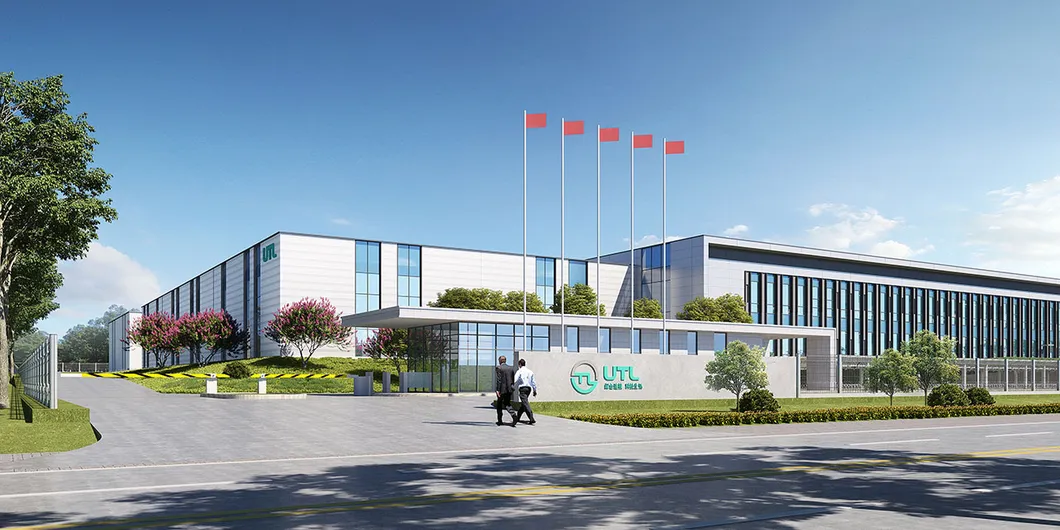

Production Facility Overview
A professional manufacturer of all kinds of wire connectors and terminal blocks, established in 1990. The company operates multiple production facilities equipped with advanced machinery. Main production includes DIN rail terminal blocks, PCB terminal blocks, wire connectors, waterproof cable glands, and other electrical relative products. As a leading manufacturer with strong R&D strength, the factory has passed TUV Rheinland ISO9001 quality management system certification. The vast majority of products have achieved UL, CE, CCC, CSA, and CCS certifications, with specific products holding VDE certification. All products comply with environmental requirements.
Workshop

Global Exhibition

Exhibition 1

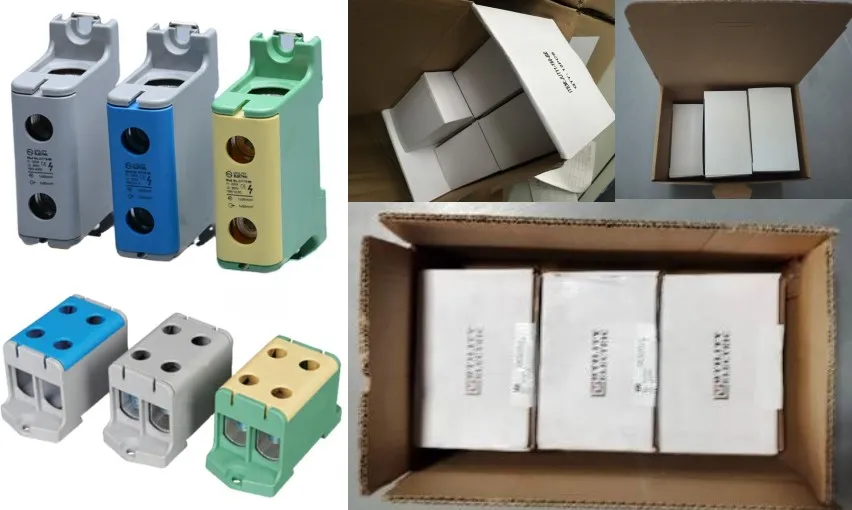

Product Packaging

Frequently Asked Questions

What is the advantage of the ultra-thin design?
The 6.2mm body allows for significant space savings in DIN rail installations, making it ideal for compact control cabinets and high-density wiring environments.
What control systems are compatible with these relays?
These relays are widely compatible with PLC systems, CNC machine tools, robotics, and various automated manufacturing interfaces.
Do the relays meet international safety standards?
Yes, our relays have obtained certifications including UL, CE, and CCC, ensuring they meet rigorous global safety and quality standards.
What is the maximum contact load for this model?
The relay is designed with a high sensitivity module supporting a maximum contact load of 6A at 250V.
Is it possible to request customized solutions?
Yes, we accept custom requirements to meet specific industrial application needs regarding voltage, configuration, or specialized housing materials.
What are the environmental features of the shell?
The shell is constructed from high-quality PA6+G30F plastic, which provides excellent insulation and environmental protection in accordance with RoHS standards.
