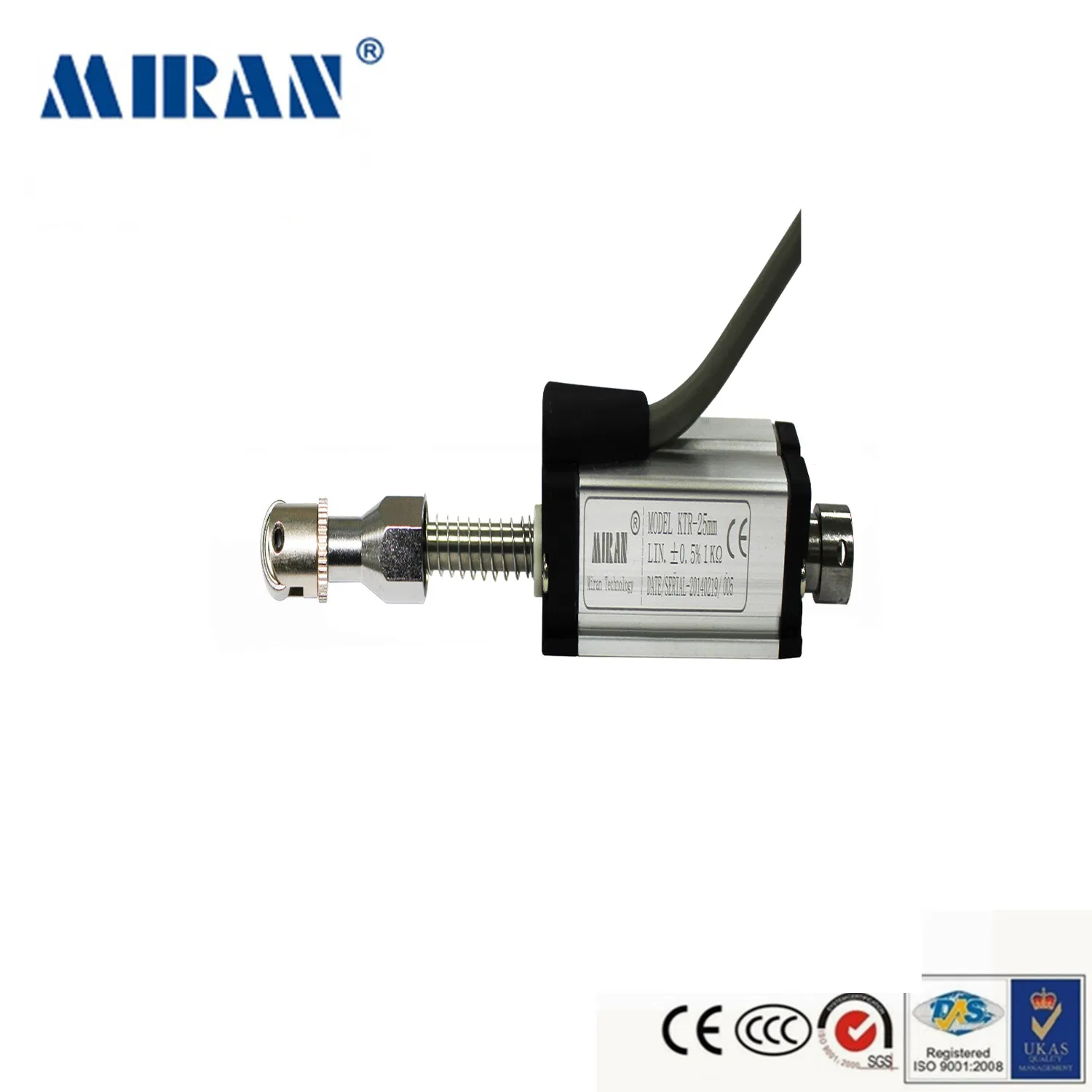

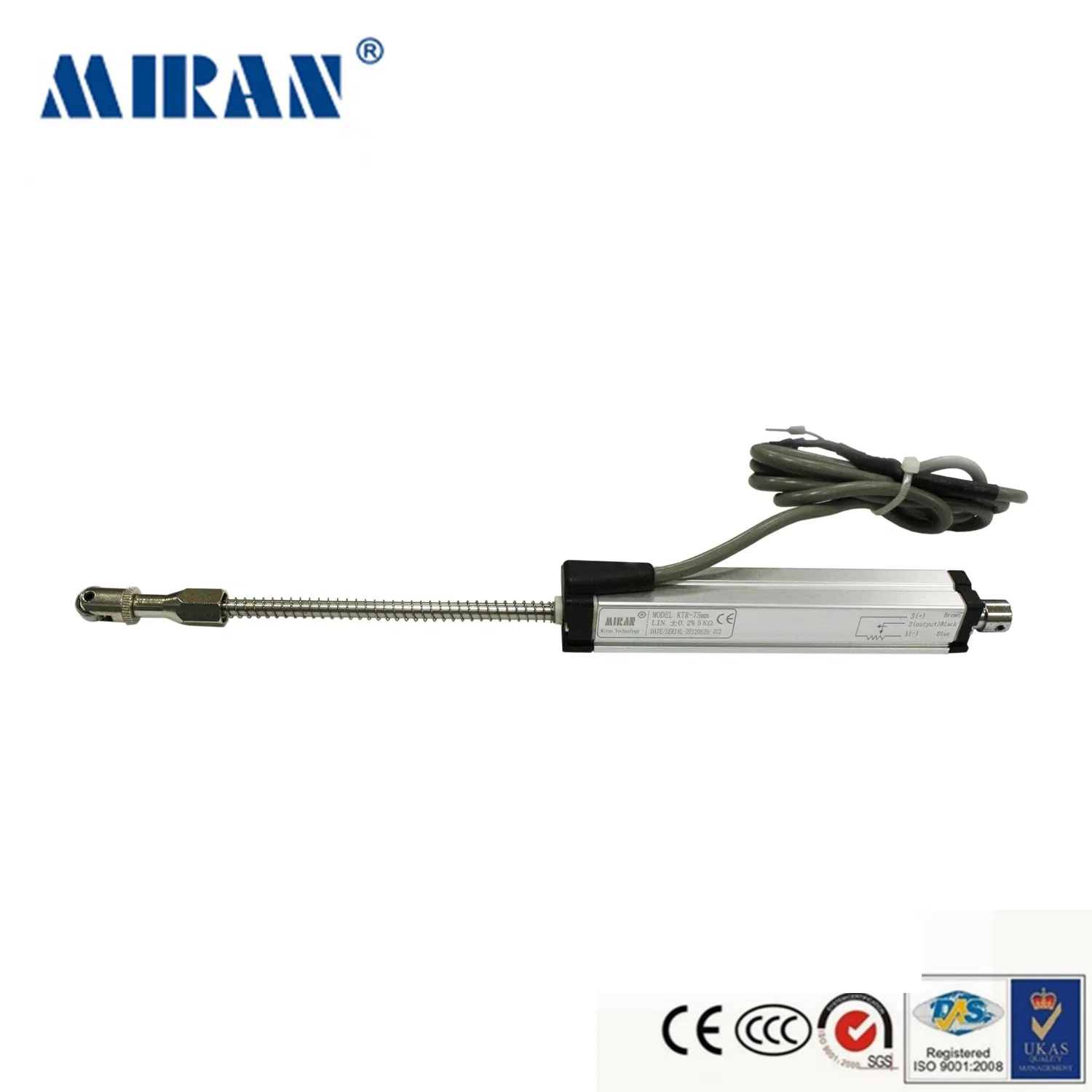

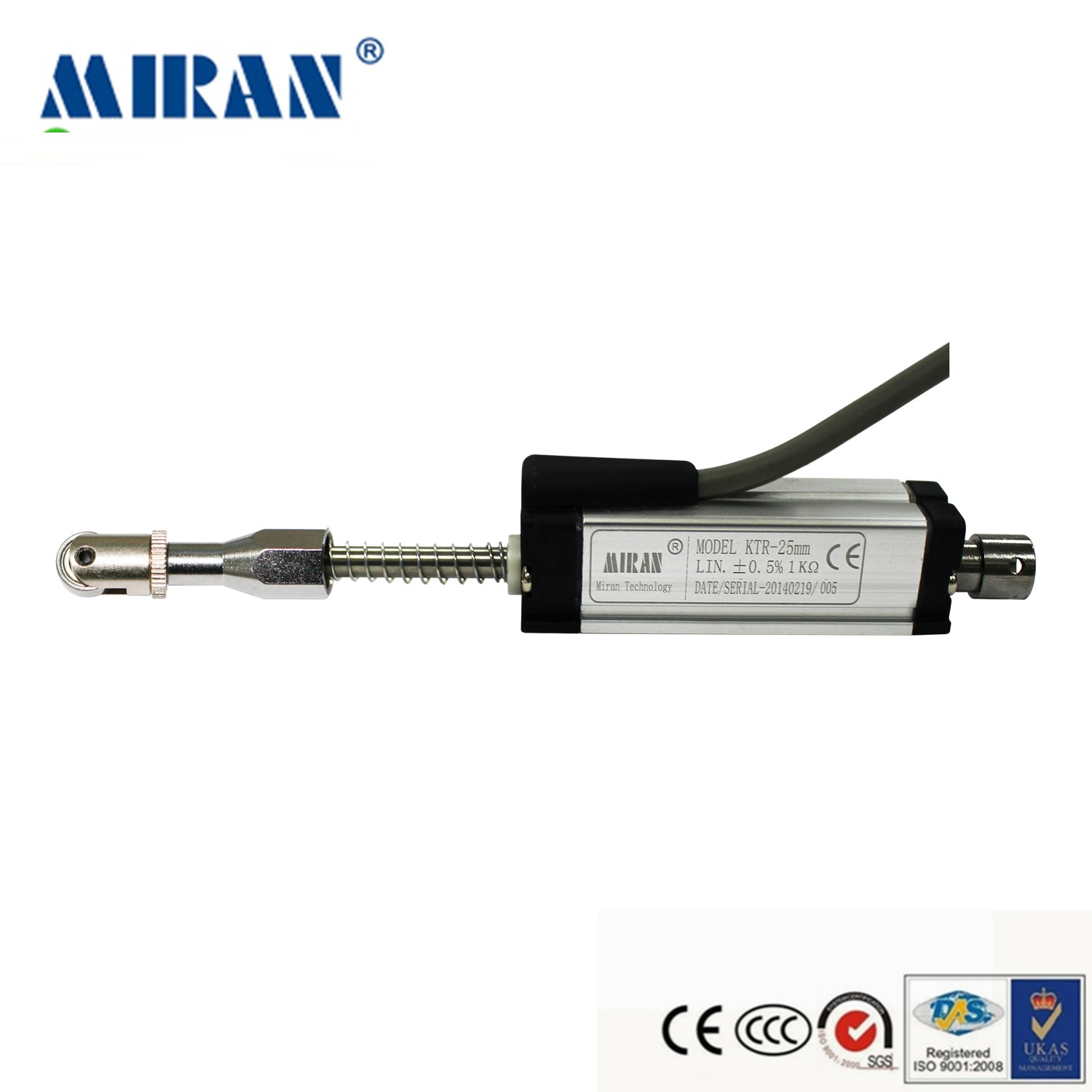

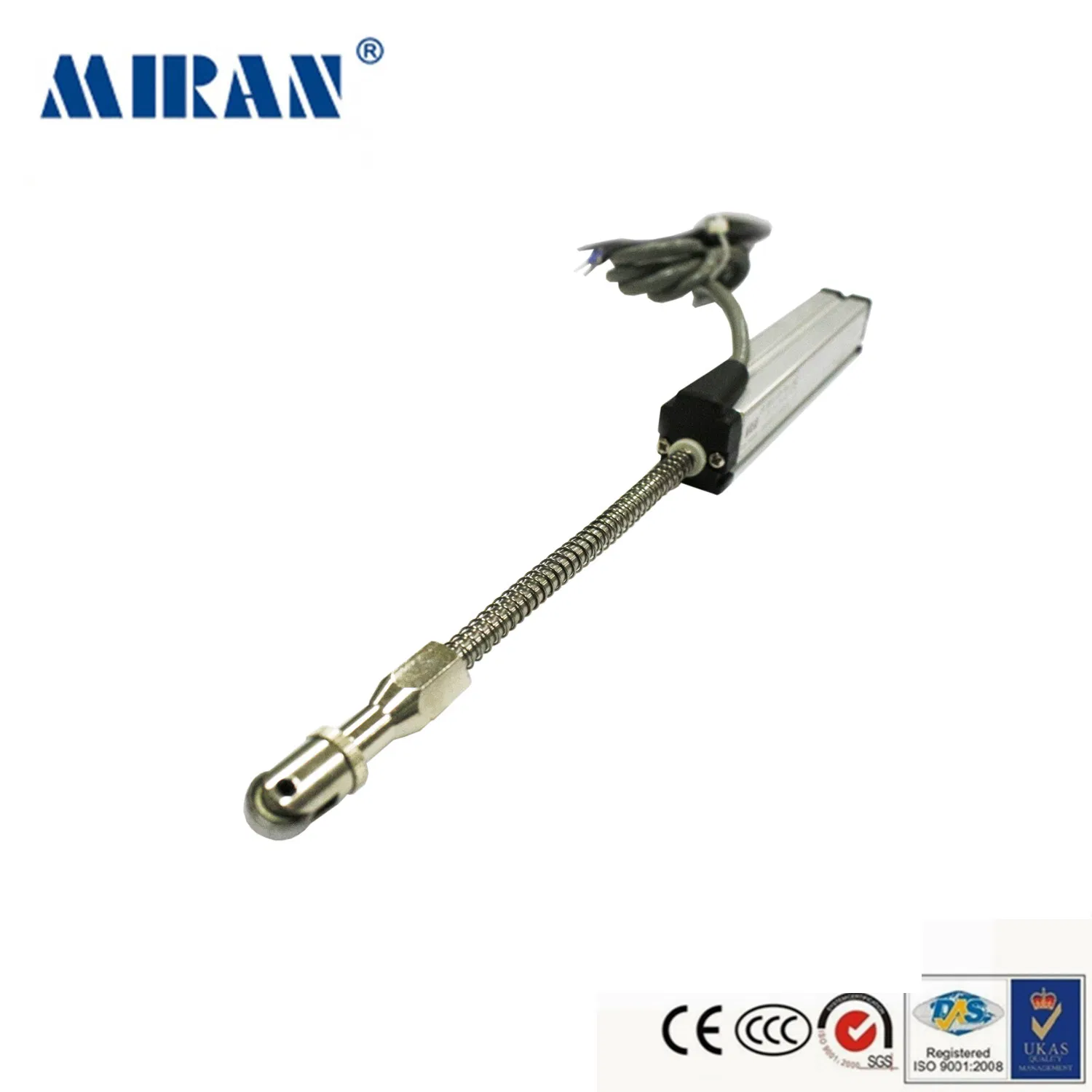

Spring Self Return Linear Potentiometer
Spring Self Return Linear Potentiometer
Spring Self Return Linear Potentiometer
Spring Self Return Linear Potentiometer
1 / 4
Spring Self Return Linear Potentiometer
Spring Self Return Linear Potentiometer
Spring Self Return Linear Potentiometer
Spring Self Return Linear Potentiometer

Spring Self Return Linear Potentiometer

Customization: Available
Type: Linear Position Sensor
Output Signal Type: Analog Type
Send Inquiry

Product Description

Basic Information
Model NO.
KTR12-10mm
Movement
Linear Displacement
Process
Injection
Material
Aluminum
Accuracy
0.1%
IP Rating
IP67
Certification
ISO
Measurement
10mm-200mm
Linearity
0.05%Fs
Resistance
5kohm
Resolution
Infinite
Repeatability
0.01mm
Temperature
-60℃~+150℃
Service Life
>100 Million Cycles
Power Supply
3V~36V
Max Speed
5m/S
HS Code
8543709990
Origin
China
Product Description

Spring Self Return Linear Potentiometer

Attention: The stroke length is 10mm. The stroke is optional from 10mm-200mm. The default signal output is 0-100% of the power supply voltage value (resistance output). Other signal outputs such as 4-20mA, 0-5V, 0-10V, and RS485 are available with a transmission module.

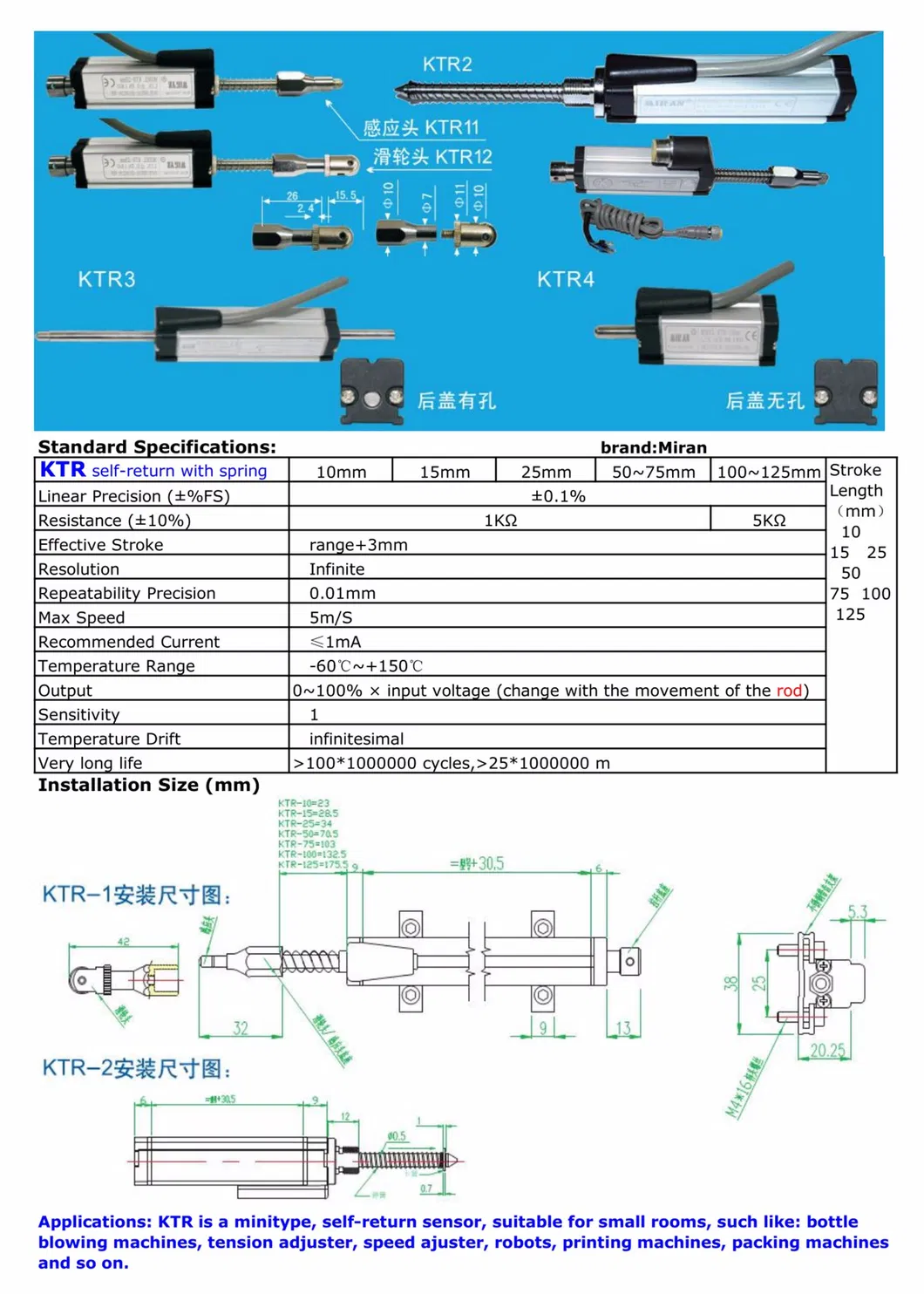

Linear Potentiometer View 1

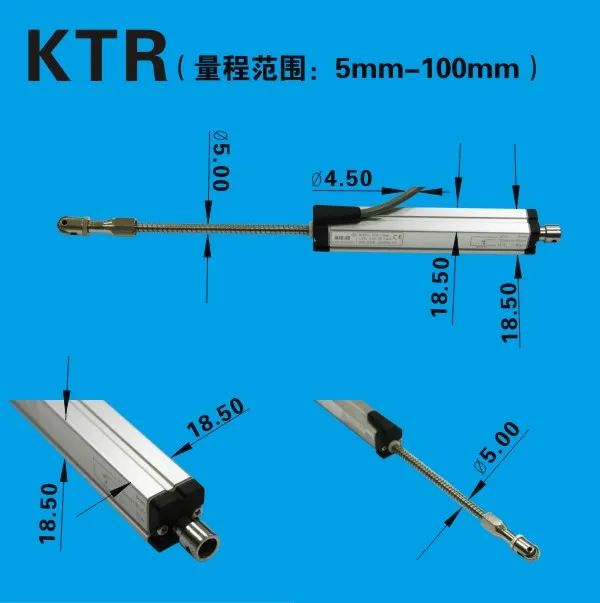

Linear Potentiometer View 2
Key Applications
⚙️ Industrial Machinery
Injection molding, die casting, and rubber machines.
🤖 Automation
Industrial robots and motion control systems.
🏗️ Heavy Duty
Construction machinery and seaport equipment.
💧 Hydraulics
Level control and suspension stroke control.
Technical Excellence

Our products support a wide range of motion control needs, including Linear Position Sensors, Wire Rope Potentiometers, Magnetostrictive Liquid Level Sensors, Angle Sensors, Lubricating Pumps, LVDT, and Eddy Current Sensors.

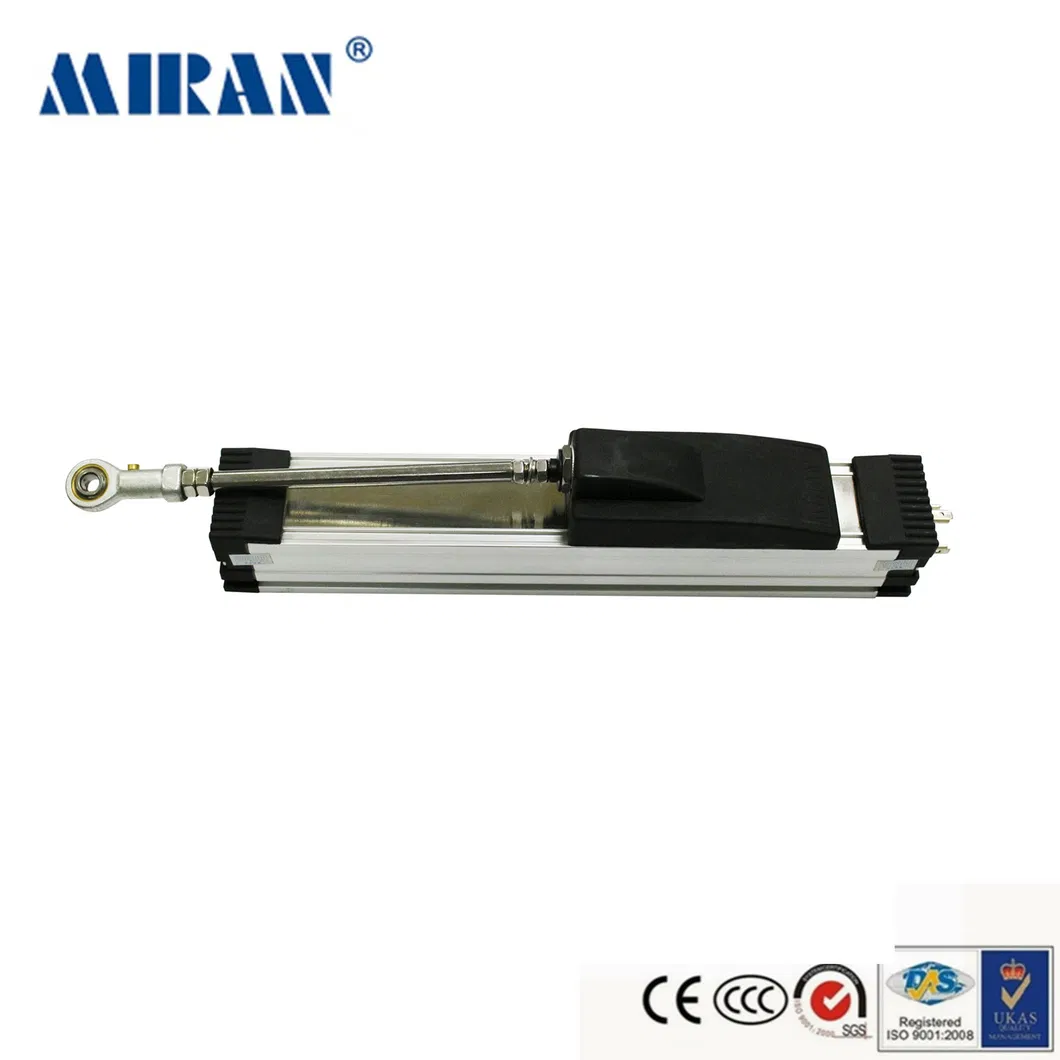

Transducer Series

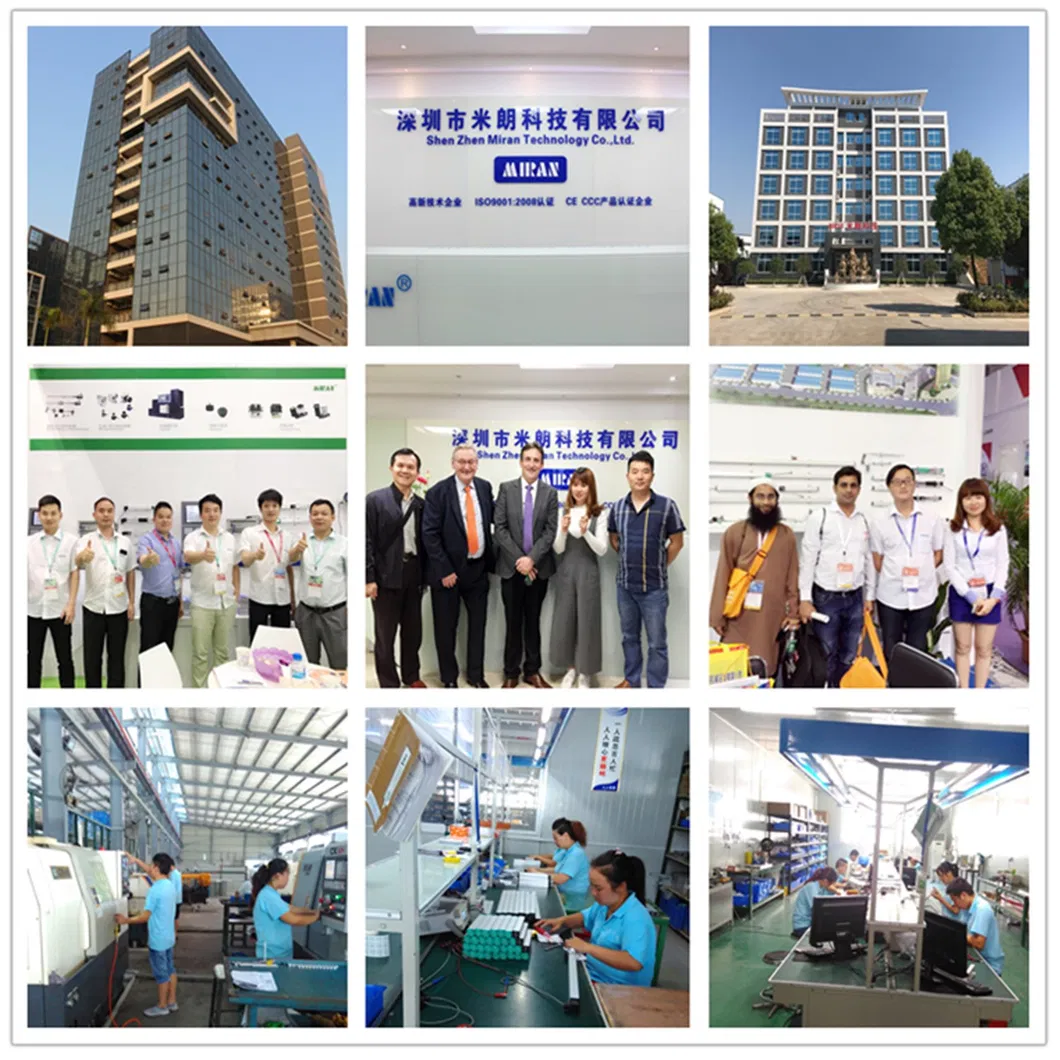

Factory Overview
Quality Control

We offer competitive advantage products and support customized logo placement to meet your specific branding requirements. Our sensors provide high precision and durability for long-term industrial use.

Frequently Asked Questions
What is the available stroke range for this sensor?
The measurement stroke is optional ranging from 10mm up to 200mm to suit various industrial requirements.
What types of output signals can I choose from?
The standard output is resistance (0-100% voltage). Optional outputs include 4-20mA, 0-5V, 0-10V, and RS485 through additional transmission modules.
How durable is the Spring Self Return Linear Potentiometer?
It is designed for a very long service life, capable of exceeding 100 million cycles, ensuring reliability in high-frequency applications.
What is the environmental protection rating?
The sensor has an IP67 rating, making it highly resistant to dust and water ingress, suitable for harsh industrial environments.
Can it operate in extreme temperature conditions?
Yes, the sensor is rated for operation in a wide temperature range from -60℃ to +150℃.
What is the resolution and repeatability of this model?
The sensor offers infinite resolution and a high repeatability precision of 0.01mm.
