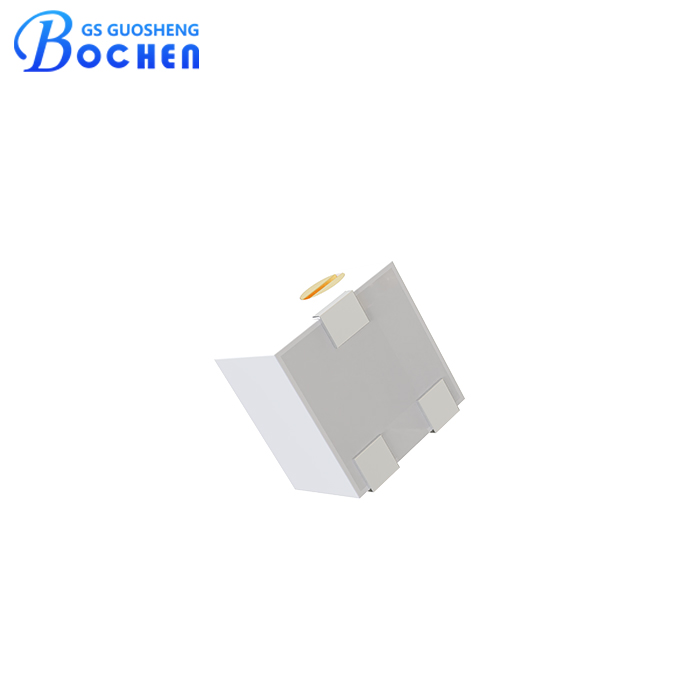

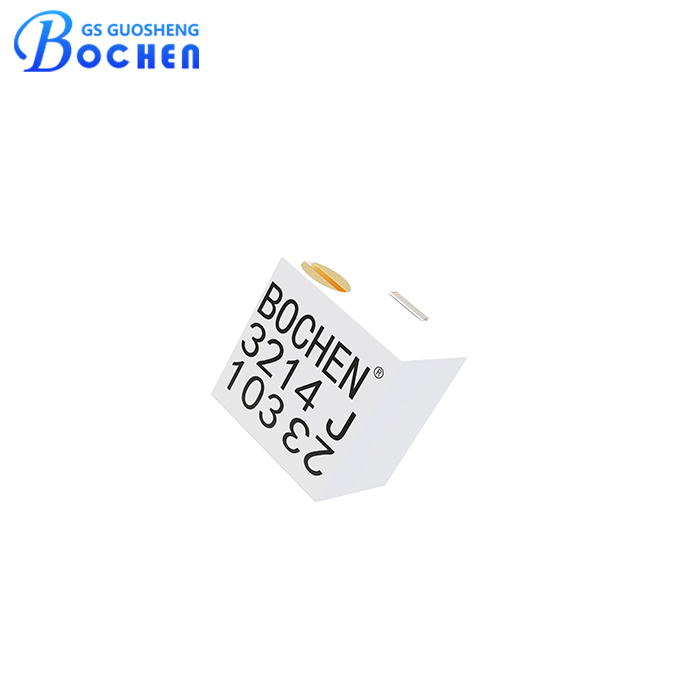

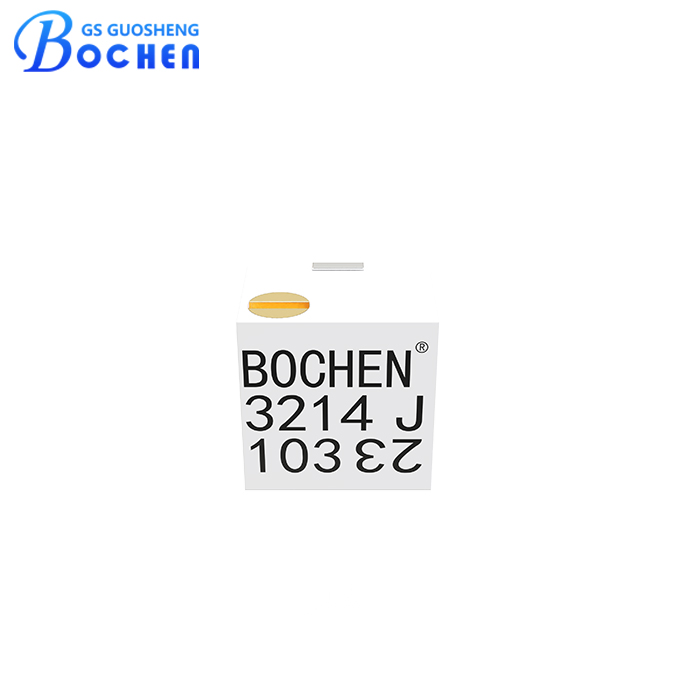

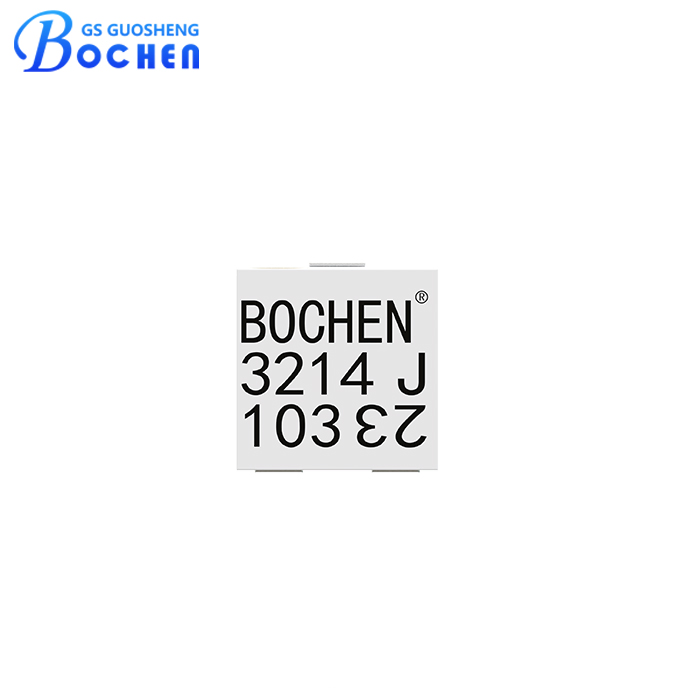

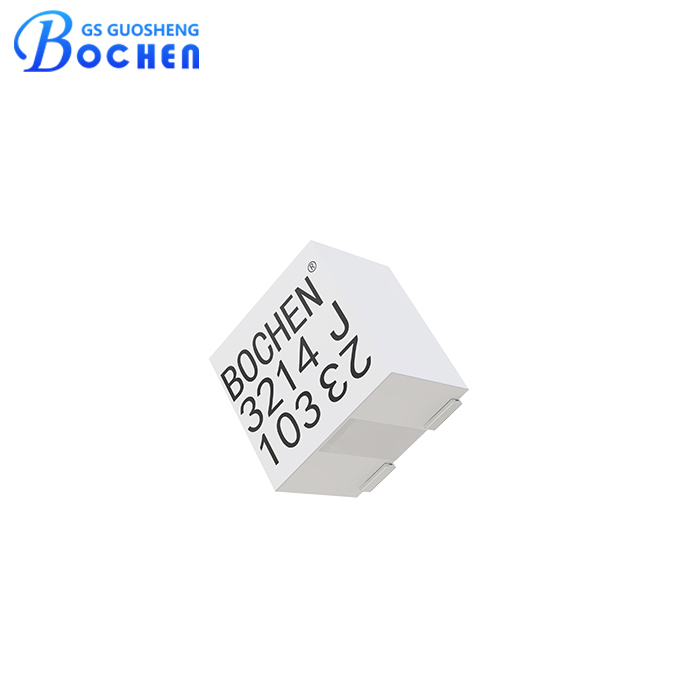

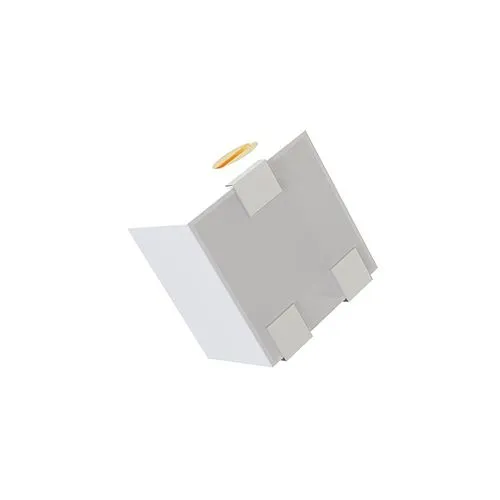

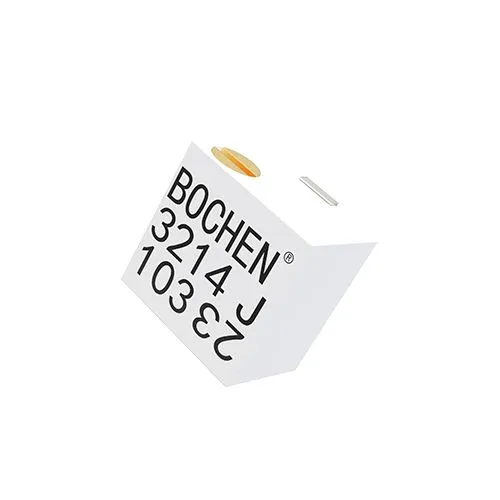

3214 1k 2k 5k SMD Trimpot 3214J-1-102e 202e 502e Cermet Trimmer Potentiometer
The 3214J trimmer potentiometer is a highly regarded component in electronic engineering. Renowned for its compact design and precision, it enables fine adjustments within electronic circuits. Widely utilized in applications such as audio equipment, instrumentation, and electronic prototyping, the 3214J trimmer potentiometer stands as a testament to quality and innovation in the field of electronic components.
| Electrical Characteristics |
Nominal Resistance Range: 50Ω~2MΩ Resistance Tolerance: ±10% Terminal Resistance: ≤±1% R or 3Ω Contact Resistance Variation (CRV): ≤3%R or 3Ω Insulation Resistance: 500 Vdc. R1≥1GΩ Withstand Voltage: 101.3KPa, 500 Vac; 8.5KPa, 250 Vac Effective Travel: 4±2 Turns |
| Environment Characteristics |
Rated Power: 70ºC, 0.25W; 125ºC, 0W Temperature Range: -55°C ~ + 125°C Temperature Coefficient: ±250, ±100 ppm /°C Vibration: 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2% Electrical Endurance: 1000 hours @ 70ºC Rated Power Mechanical Endurance: 200 cycles |

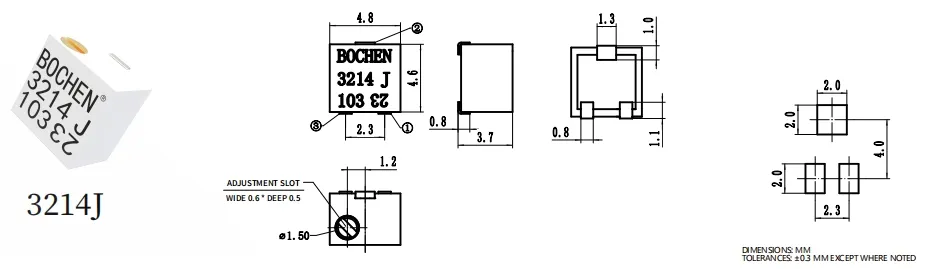

| Physical Characteristics |
Total Mechanical Travel: 5±2 Turns Starting Torque: ≤25 mN.m Clutch Torque: ≤35 mN.m |
Packaging Specification: 500 Pieces/Tray (7") , 1500 Pieces/Tray (13").
The 3214 cermet trimmer potentiometer is a versatile component used across various industries:
