Product Description
Ceramic Disc Capacitor
Capacitance: 100nF
Voltage: 50V
Pitch: 5.08mm
Characteristics:
Low dissipation factor, high reliability factor, small volume, low remnant inductance, and various temperature characteristics.
Key Specifications
- Operating temperature range: -25 to +85 degrees Celsius
- Working voltage: 50 to 500V DC
- Withstanding voltage: 3 times of working voltage
- Capacitance measurement: at 20± 2C, with 1±0.1MHz and 5 Vrms maximum
- Capacitance tolerance: 1 to 9PF ±0.25PF(C) and ±0.5PF(D); 10PF and above ±5%(J) and ±10%(K)
- Insulation resistance (IR): at working voltage ±3%, Test 60±5 second IR >= 10,000MQ
- Temperature characteristics: NPO, N150, N220, N470, N750, SL (+300 to -1000PPM/degrees Celsius)
Product Certifications & Packing
- Certificate Standard: SGS (GZSCR041248032/LP)
- Certificate Standard: RoHS (CQC06130017473)
- Packing Way: Bulk, Ammo Packing

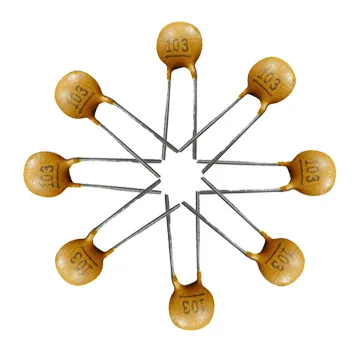

Product Gallery
Frequently Asked Questions
What is the operating temperature range for these capacitors?
The operating temperature range is -25 to +85 degrees Celsius, making them suitable for a wide range of general-purpose environments.
What are the primary applications for the TMCC01 model?
These ceramic disc capacitors are designed for general purpose use, specifically in transmitters, low frequency coupling, tuning, and filtering applications.
What is the insulation resistance of this ceramic capacitor?
The insulation resistance (IR) is measured at working voltage ±3% with a test time of 60±5 seconds, yielding an IR of greater than or equal to 10,000MQ.
What standards and certifications do these products comply with?
Our ceramic disc capacitors are compliant with SGS and RoHS standards, ensuring high reliability and environmental safety.
What packaging options are available for shipping?
We offer flexible packaging options including Bulk and Ammo Packing, as well as Taped & Reel for automated assembly processes.
What is the withstanding voltage rating?
The withstanding voltage for these capacitors is rated at 3 times the specified working voltage.
