Product Description

Basic Specification
Model NO.
S3924-512N
Package
DIP(Dual In-line Package)
Material
Standard
Batch Number
2023
Brand
Original
Model
S3924-512n
Transport Package
Bag
Specification
Original
Trademark
Original
Origin
Original
HS Code
8536411000
Production Capacity
50000PCS/Month
Product Description

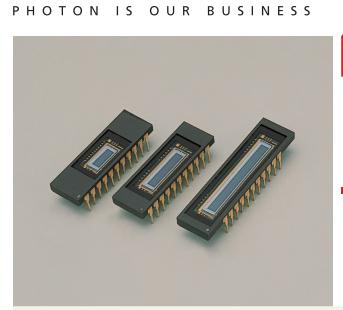

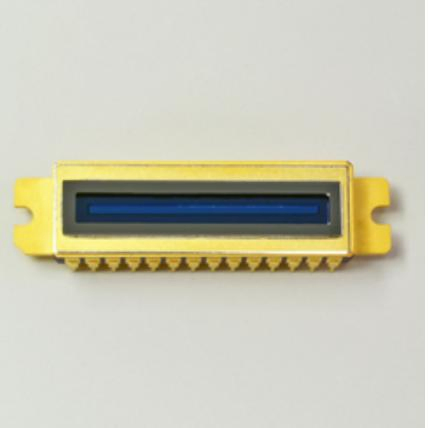

Electronic components of Hamamatsu image sensors S3924-512Q S3924-512N S3921

Voltage output type with current-integration readout circuit and impedance conversion circuit. NMOS linear image sensors are self-scanning photodiode arrays designed specifically as detectors for multichannel spectroscopy. The scanning circuit is made up of N-channel MOS transistors, operates at low power consumption and is easy to handle.

Each photodiode has a large active area, high UV sensitivity yet very low noise, delivering a high S/N even at low light levels. NMOS linear image sensors also offer excellent output linearity and wide dynamic range. S3924-512Q has a current-integration readout circuit utilizing the video line and an impedance conversion circuit. The output is available in boxcar waveform allowing signal readout with a simple external circuit. The photodiode of S3924-512Q has a height of 2.5 mm and is arrayed in a row at a spacing of 25 μm. Quartz glass is the standard window material.

Key Features
  • Built-in current-integration readout circuit utilizing video line capacitance and impedance conversion circuit (boxcar waveform output)
  • Wide active area
  • High UV sensitivity with good stability
  • Low dark current and high saturation charge allow a long integration time and a wide dynamic range at room temperature
  • Excellent output linearity and sensitivity spatial uniformity
  • Low voltage, single power supply operation
  • Start pulse, clock pulse and video line reset pulse are CMOS logic compatible
ManufacturerHamamatsu
NameImage Sensor
Package1PCS/BAG
HS Code8536.90.4000
Specialized Electronic Component Services

Providing comprehensive solutions for active and passive components, focusing on automotive, aerospace, medical, AI, and robotics industries.

  • One Spot buy service sourcing globally
  • PPV projects cost down service
  • Inventory Asset Management Service
  • BOM Kitting service
  • EOL & Obsolete Sourcing Service
Electronic Components S3924-512n
Hamamatsu Image Sensors
S3924-512n Details
Image Sensor Components
Available Related Items
R6231-01
H10721-01
H10721-20
H14601-20
H14601-100
C13890-55
L9030-50
C15927-15
S16011-1106
S10142-1107S-01
R928
H14768
H7260-200
H12386-210
H10682-210
H11901-20
H16201-50
H10722-110
G11478-256WB
C11860
S13488
S15729-01

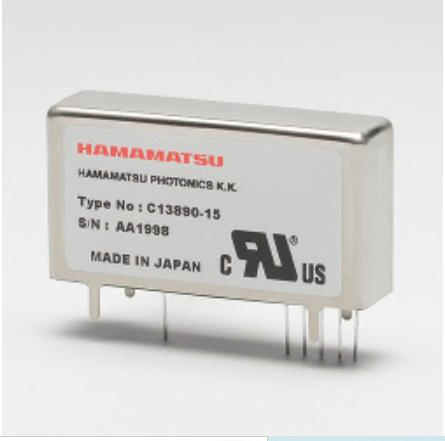

C13890-15
CC228-09Y
CC228-10Y
CC228-02Y
CC238
C8855-01
E678-14W
S3924-512Q
Large Inventory & Quality Control
Short lead time, Offer test report before shipping.
Inventory 1
Inventory 2
Inventory 3
Frequently Asked Questions
1. What are the primary applications for the S3924-512N image sensor?
The S3924-512N is an NMOS linear image sensor specifically designed as a detector for multichannel spectroscopy, offering low power consumption and high UV sensitivity.
2. Is the S3924-512N compatible with CMOS logic?
Yes, the start pulse, clock pulse, and video line reset pulse are all compatible with standard CMOS logic, making it easy to integrate into existing systems.
3. What kind of readout circuit does this sensor use?
It features a built-in current-integration readout circuit that utilizes video line capacitance and an impedance conversion circuit, resulting in a boxcar waveform output.
4. Do you provide quality assurance for these electronic components?
Yes, we maintain a large inventory and can provide professional test reports for all components before shipping to ensure authenticity and performance.
5. What is the typical production capacity for this model?
The production capacity for this original model is approximately 50,000 PCS per month, ensuring stable supply for both large and small projects.
6. Can you source obsolete or hard-to-find IC chips?
Yes, we specialize in sourcing specialty products, EOL (End of Life), and hard-to-find IC chips for industries like aerospace, medical, and robotics.
