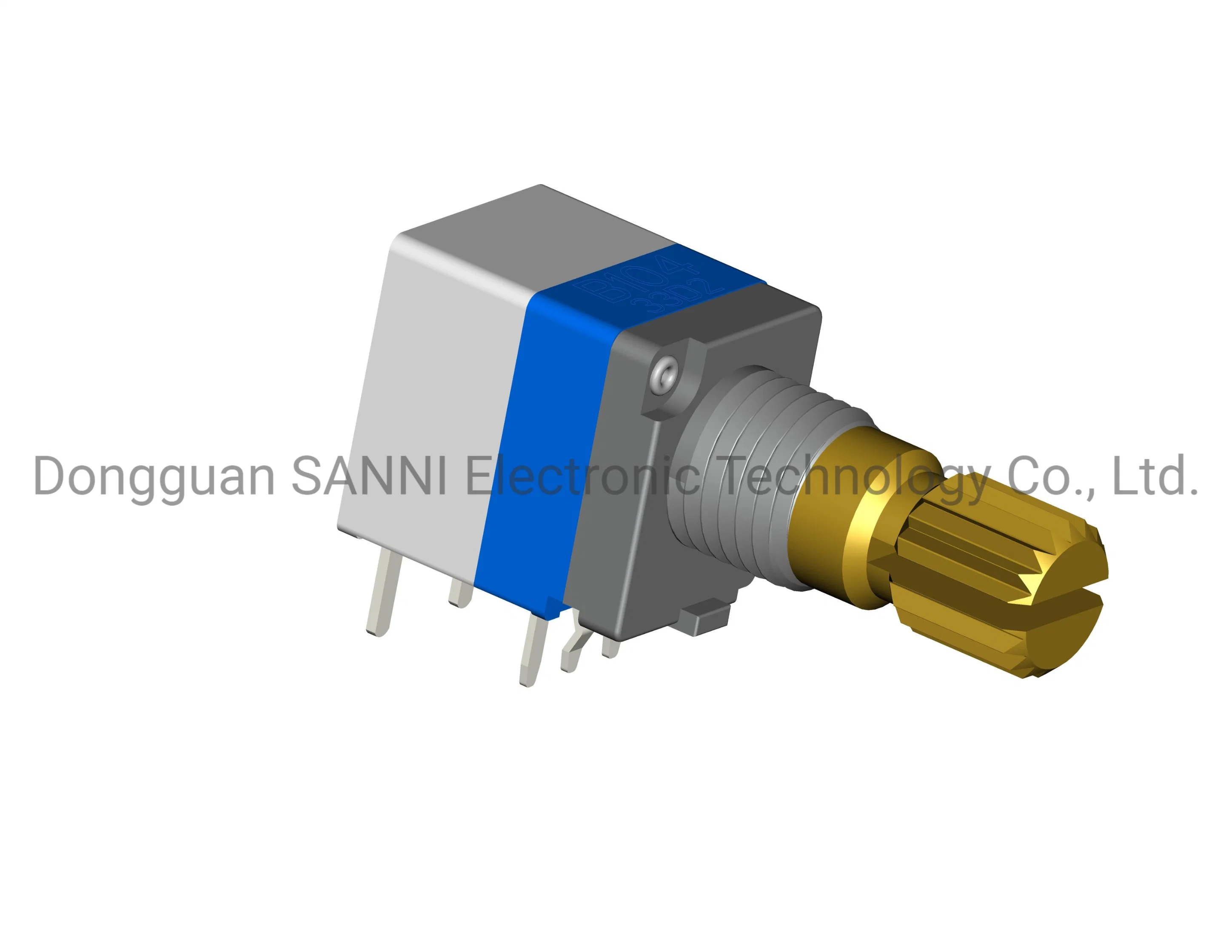

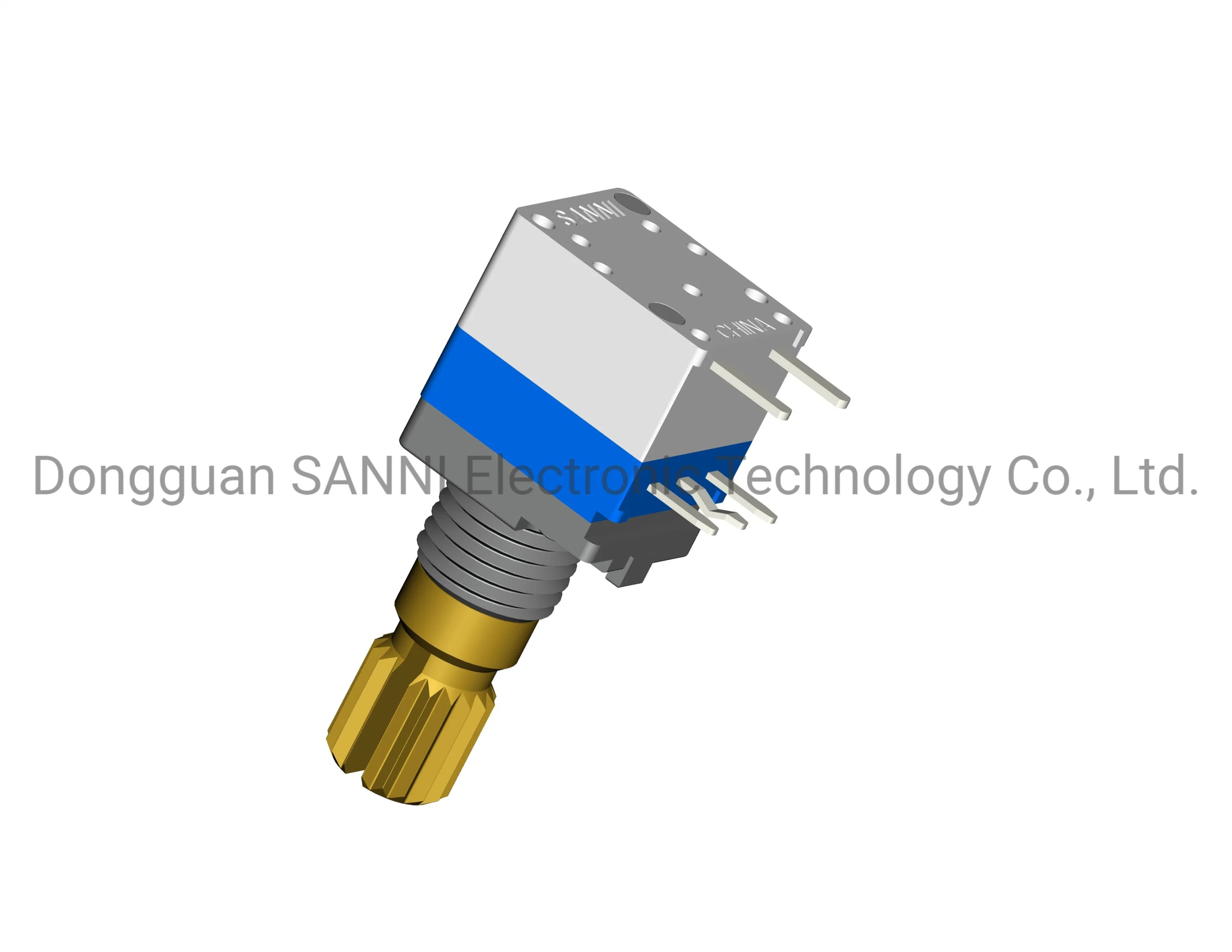

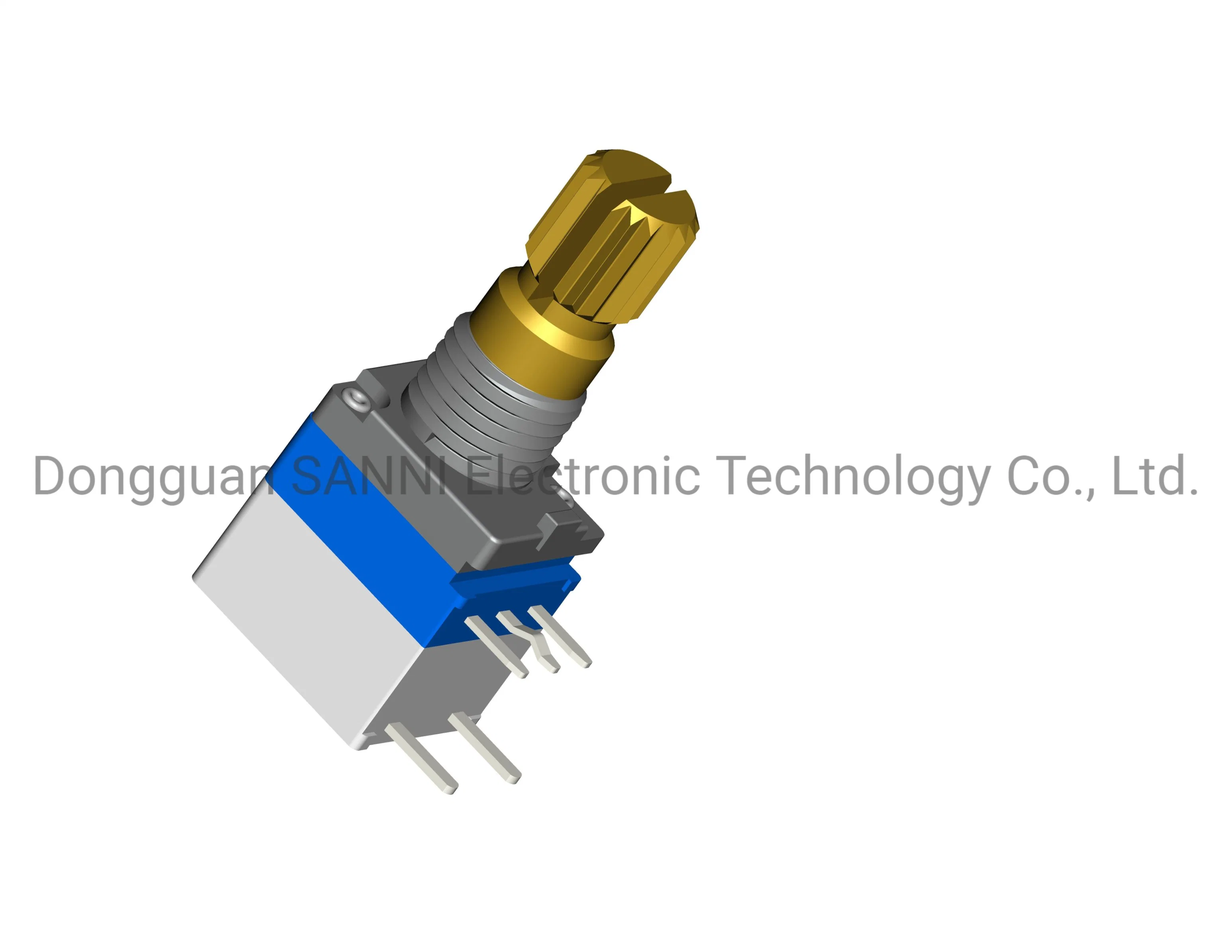

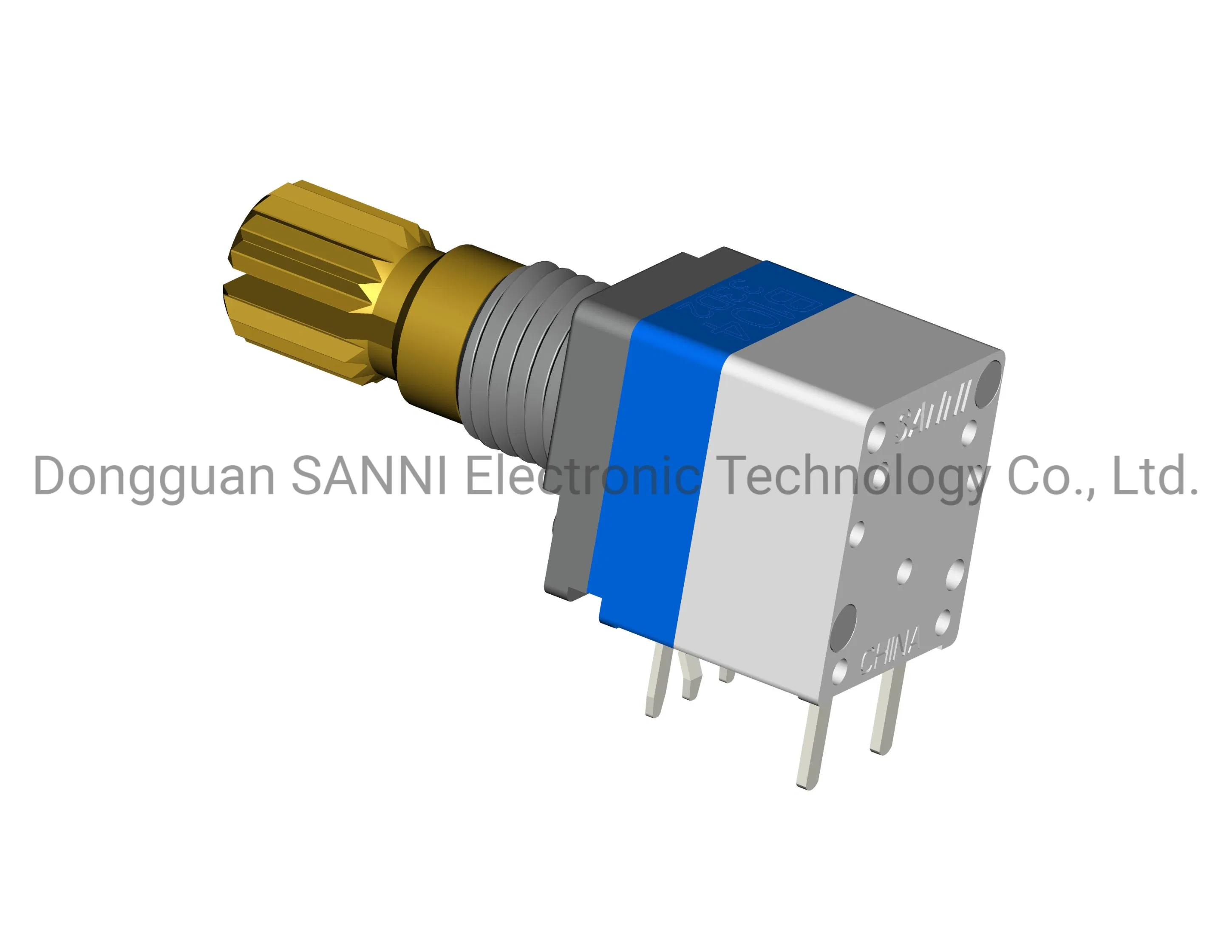

RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch
RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch
RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch
RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch
RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch
1 / 5
RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch
RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch
RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch
RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch
RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch

RV9110NSKQ 9mm Metal Shaft Sealed Potentiometer with Rotary Switch

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ

Basic Information

Model NO.
RV9110NSKQ
Installation
SMD Resistor
Material
Carbon Film Resistor
Packaging
Throught Hole
Type
Rotary Potentiometer
Quantity
Duplex
Shape
Square
Resistance change scale
Log or Linear
Application
Audio
Shaft Material
Metal
Shaft Type
Knurled/D Type/Solid/Customize
Switch
Rotary Type
Transport Package
Carton Boxes
Specification
9mm
Origin
China
Production Capacity
10000PCS Per Month
📋

Product Description

Key Features
9mm Insulated shaft sealed potentiometer
Shaft material: Metal (AL/ Iron with plating/Stainless steel or others)
Width: 9.5mm
Rohs compliant & Seal type
Small volume & Structural diversification
High Quality Performance
Applications

Used for player, instrument equipment, sound, meter, sound console, navigation/auto AV, walkie-talkie, white goods, medical equipment, Auto.

Switch Performance
Circuit Type
SPST
Rated Power
1A 16V DC
Switching Torque
500gf.cm max
Switching Angle
40° max
Operating Life
30,000 cycles
Mechanical Characteristics
Total Rotational Angle
300°±5°
Rotational Torque
20-200gf.cm
Push-pull Strength
8Kgf max
Terminal Strength
5N for 1 minute
Electrical Characteristics
Total Resistance
100Ω-3MΩ
Max Operating Voltage
50V AC / 10V DC
Rated Power
0.05W
Voltage Proof
300V AC for 1 minute
🖼

Product Gallery

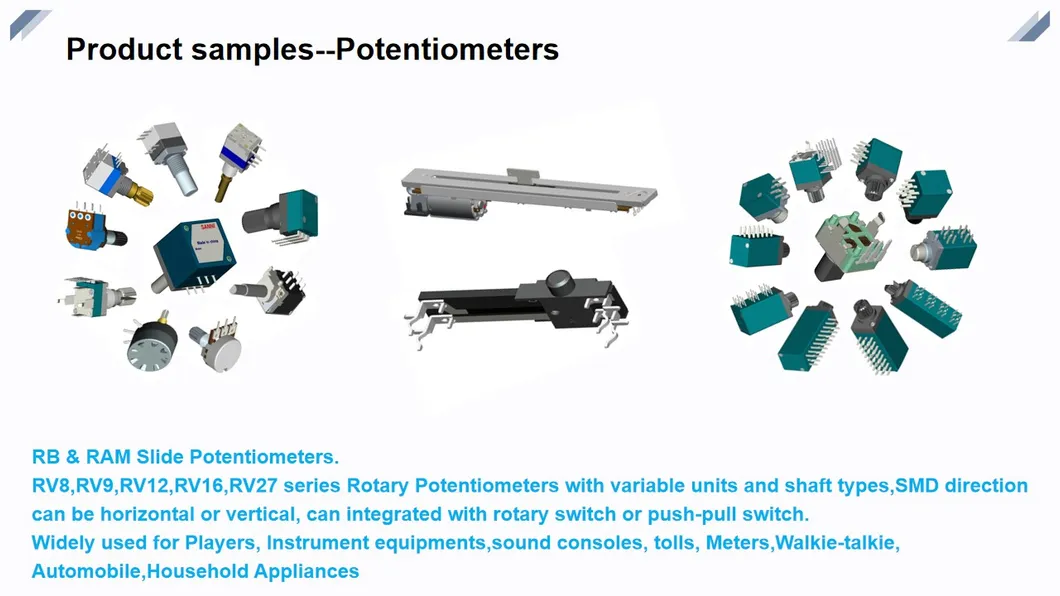

RV9110NSKQ Potentiometer View 1

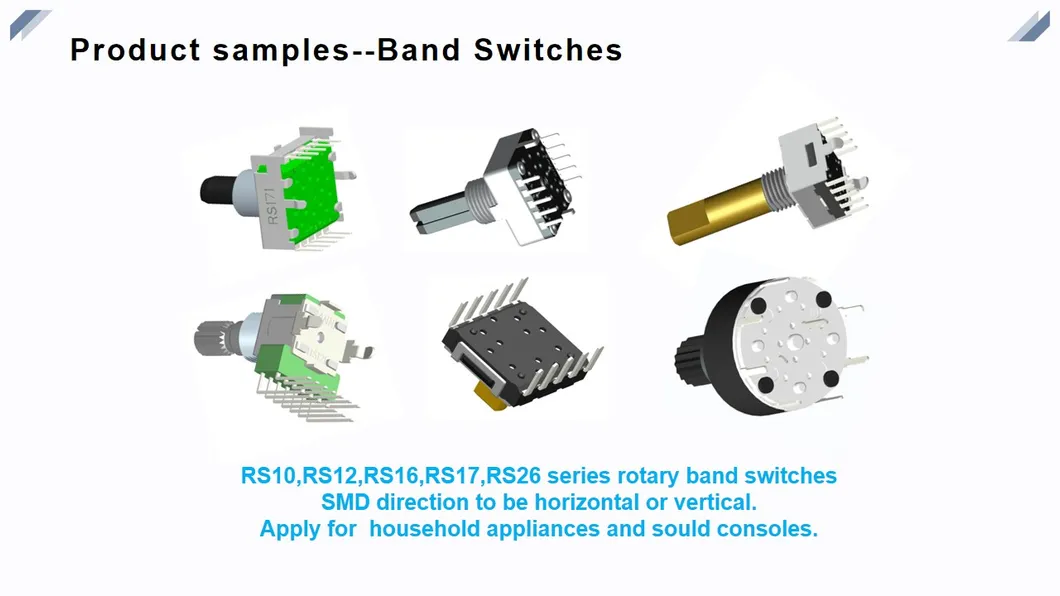

RV9110NSKQ Potentiometer View 2

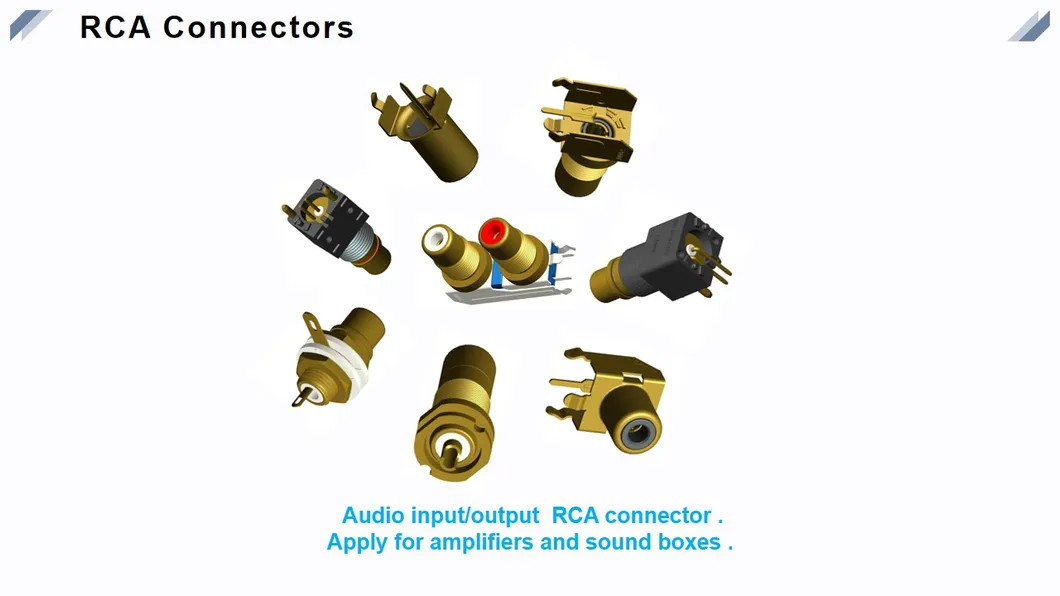

RV9110NSKQ Potentiometer View 3

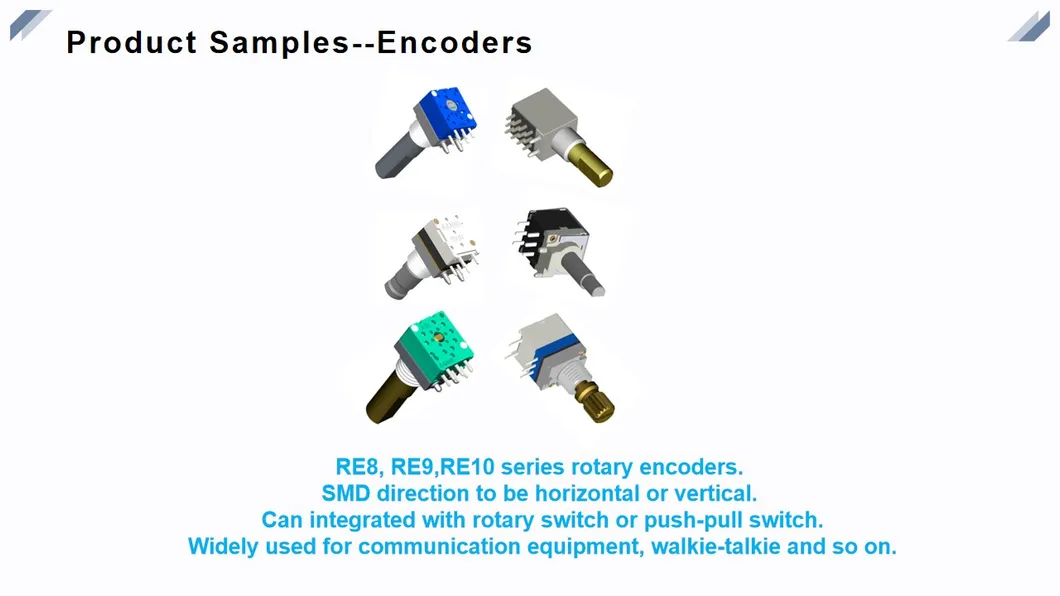

RV9110NSKQ Potentiometer View 4

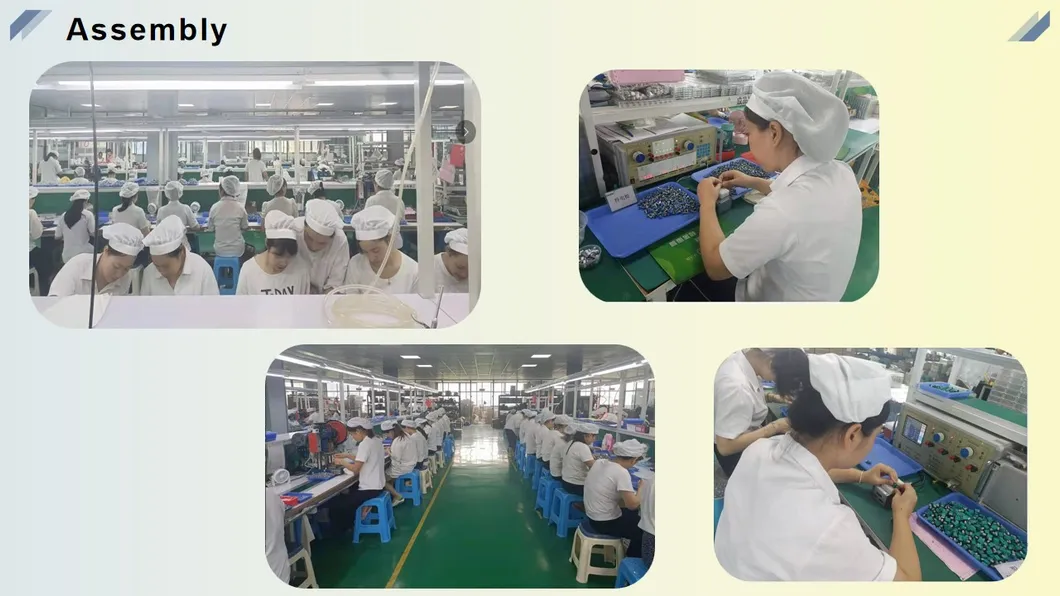

RV9110NSKQ Potentiometer View 5

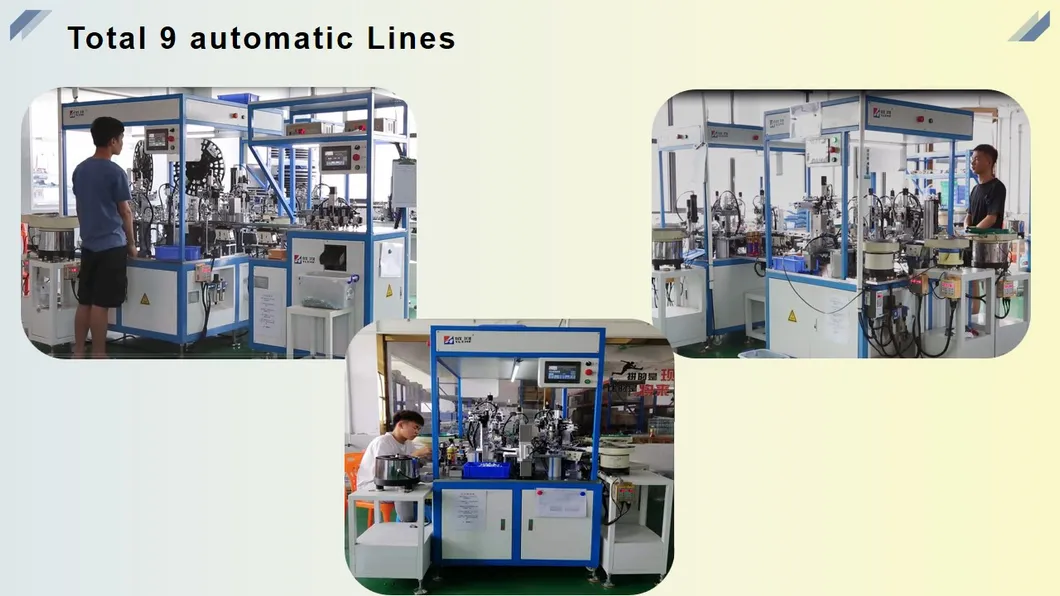

RV9110NSKQ Potentiometer View 6

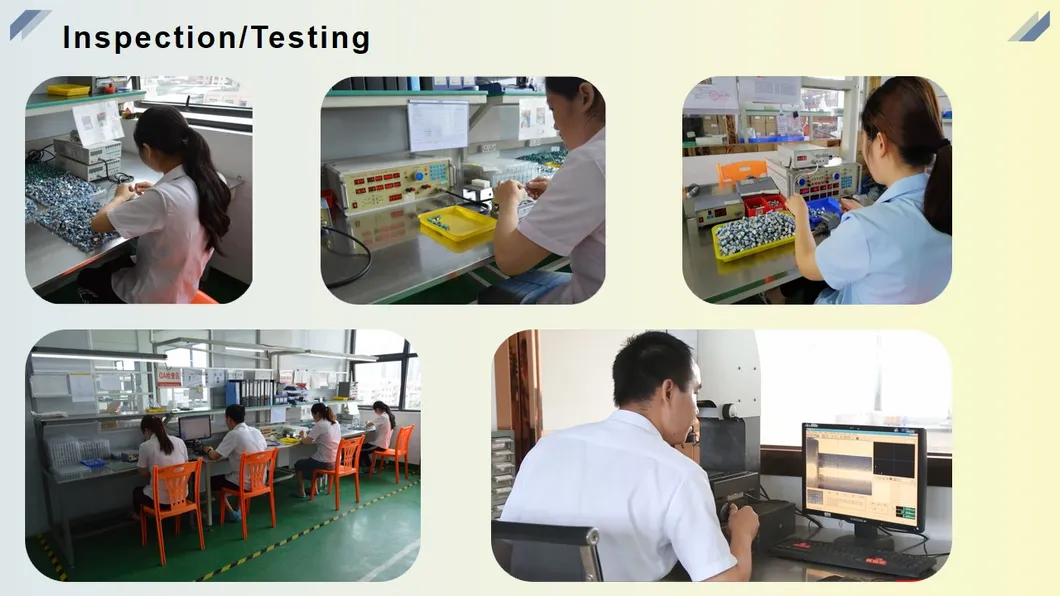

RV9110NSKQ Potentiometer View 7
RV9110NSKQ Potentiometer View 8

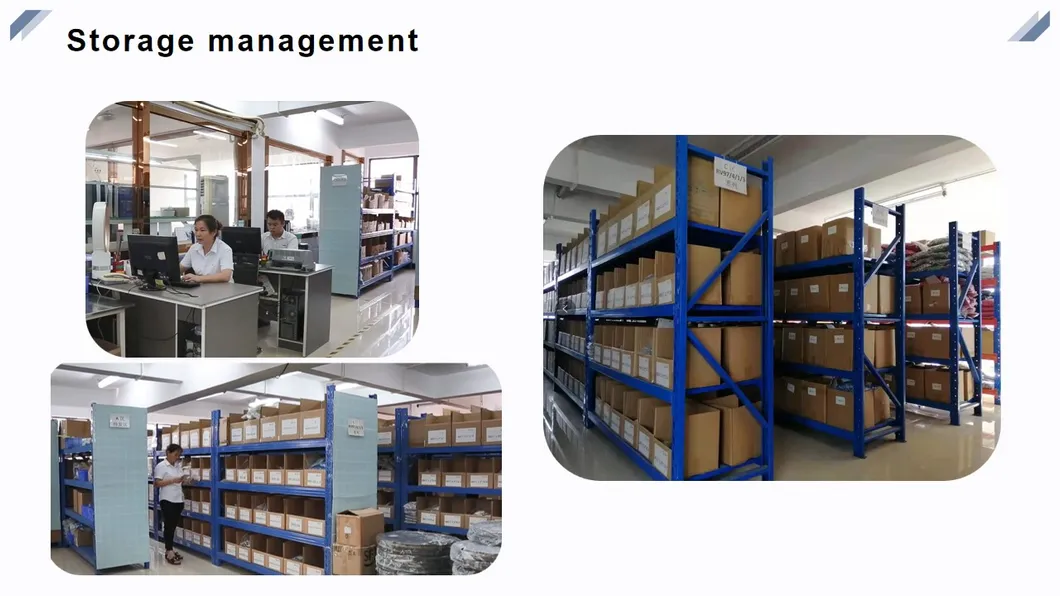

RV9110NSKQ Potentiometer View 9

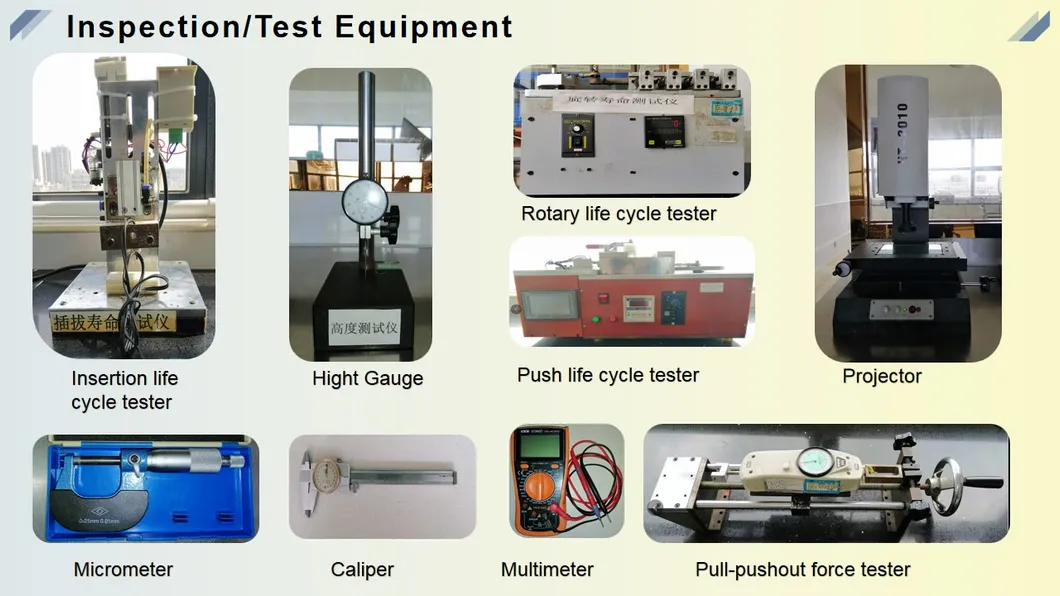

RV9110NSKQ Potentiometer View 10

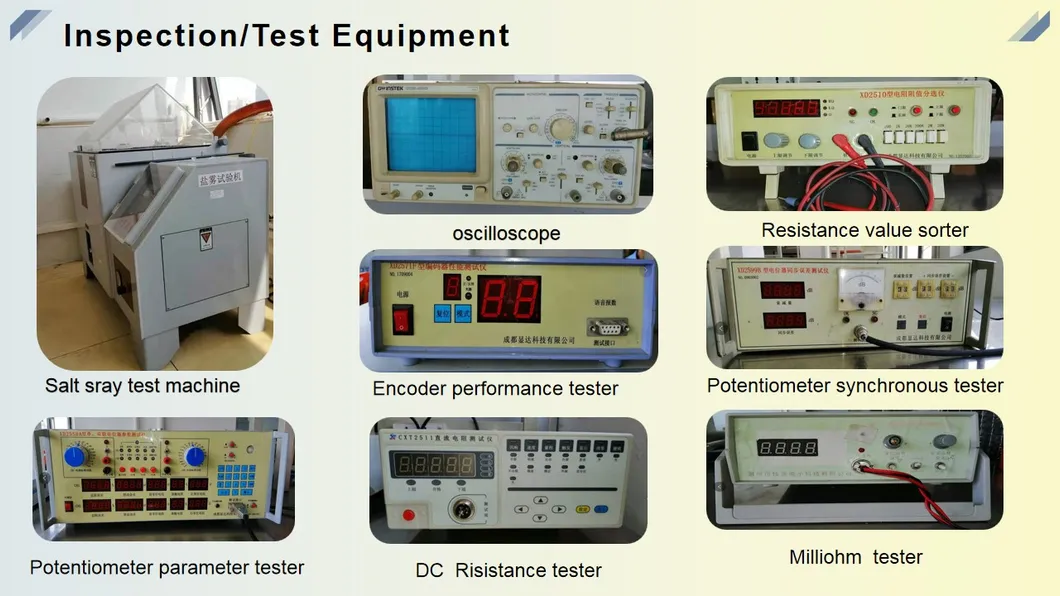

RV9110NSKQ Potentiometer View 11
RV9110NSKQ Potentiometer View 12
❓

Frequently Asked Questions

What is the operating temperature range for this potentiometer?
The operating temperature range is from -40°C to 85°C, making it suitable for various industrial and consumer environments.
What are the primary applications for the RV9110NSKQ model?
It is widely used in audio equipment (sound consoles, players), medical equipment, automotive AV systems, walkie-talkies, and white goods.
What is the rotational life expectancy of this product?
The potentiometer is designed for an operating life of 15,000 cycles, while the switch component can last up to 30,000 cycles.
Is this product compliant with environmental standards?
Yes, the product is RoHS compliant and features a sealed design for enhanced durability against environmental factors.
What shaft materials and types are available?
The shaft is made of metal (Aluminum, Iron with plating, or Stainless Steel). Available types include Knurled, D-Type, Solid, or customized options per requirement.
What are the electrical ratings for the integrated switch?
The switch is an SPST type with a rated power of 1A at 16V DC and an initial contact resistance of 100mΩ max.
