General Features

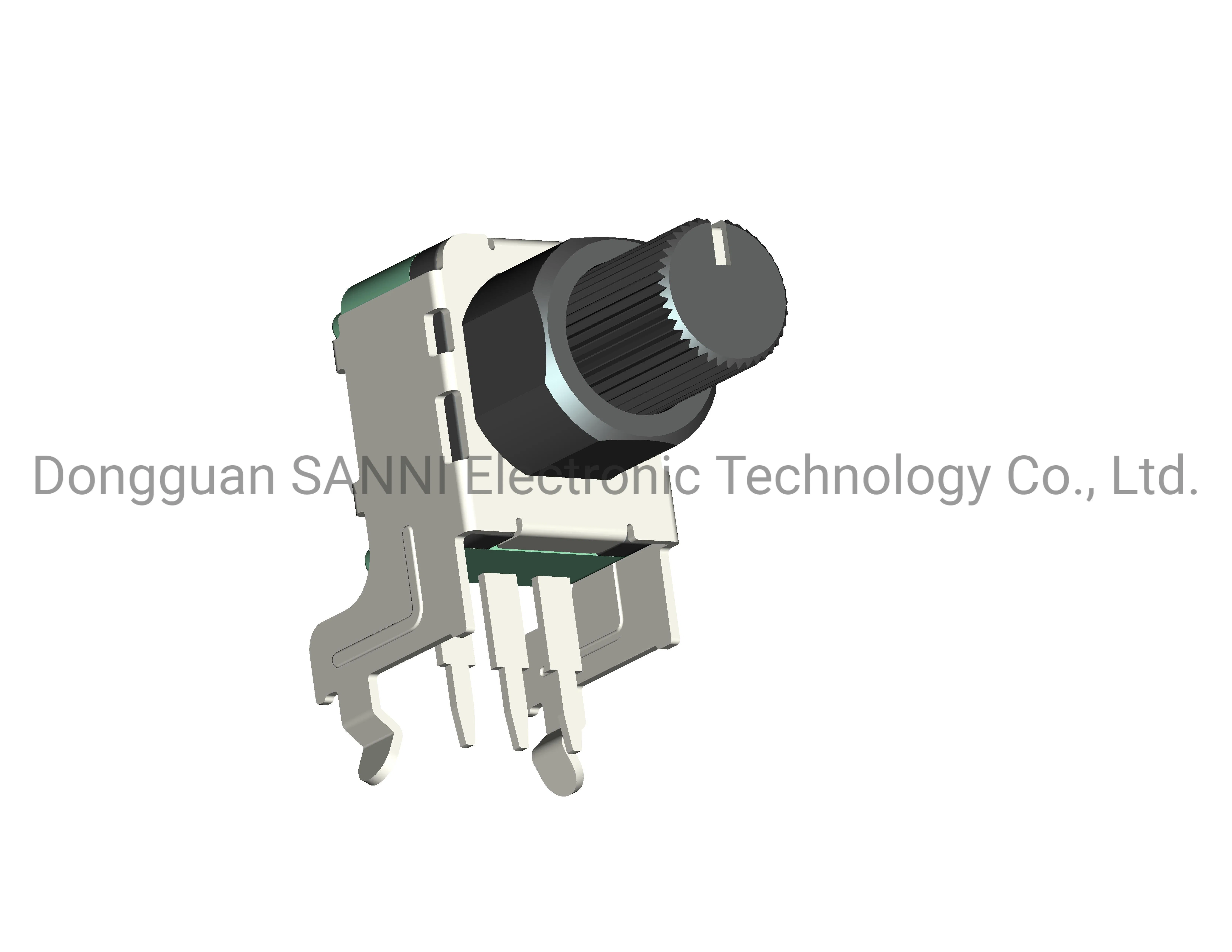

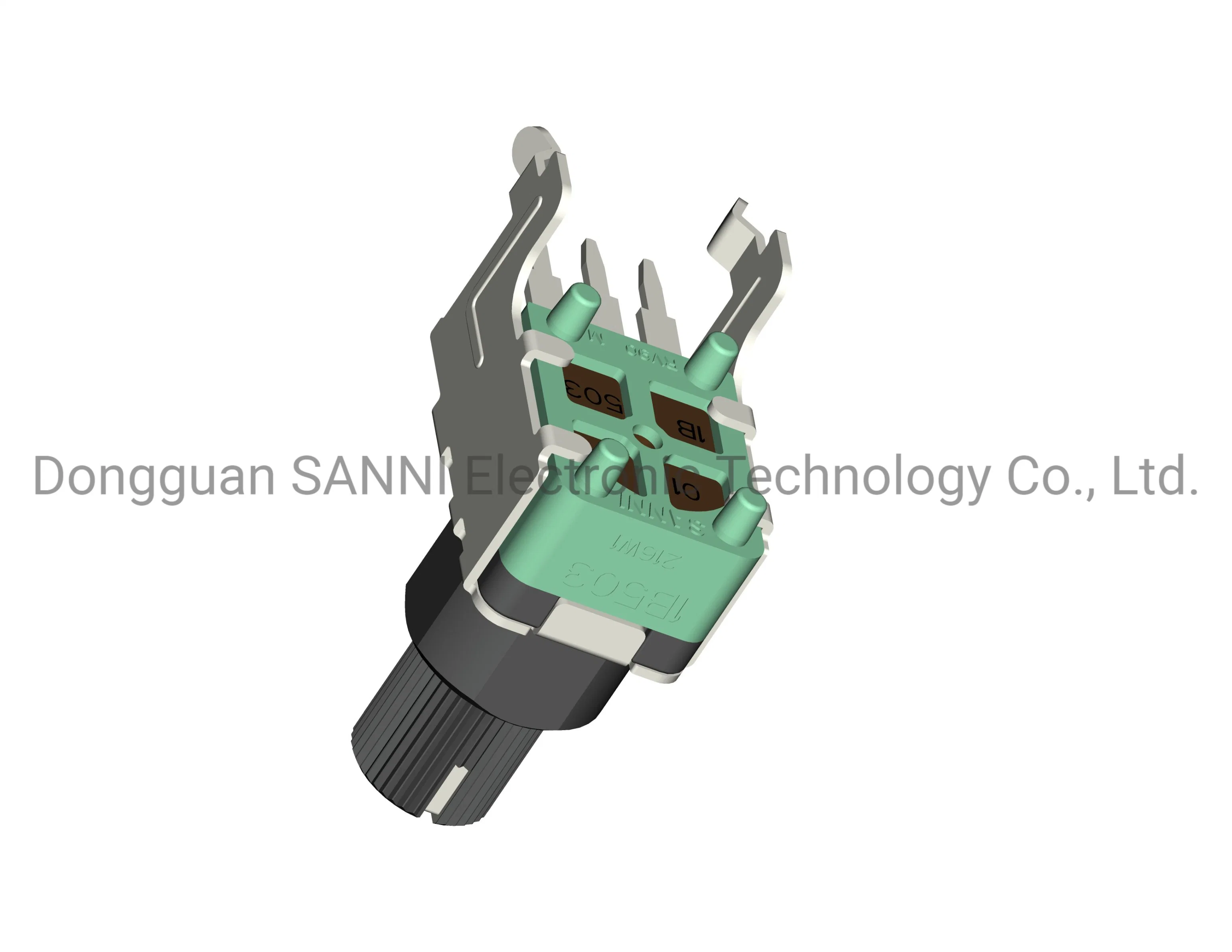

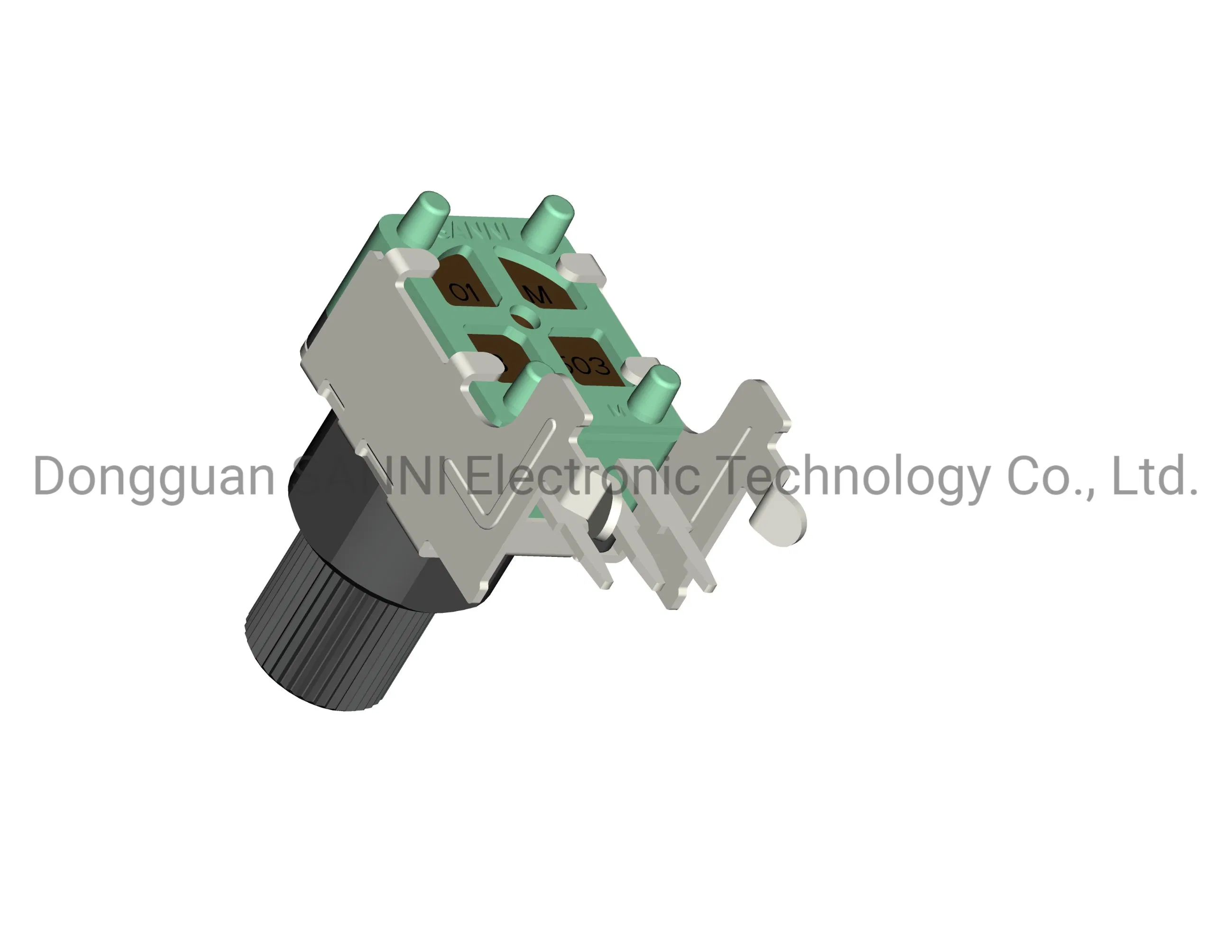

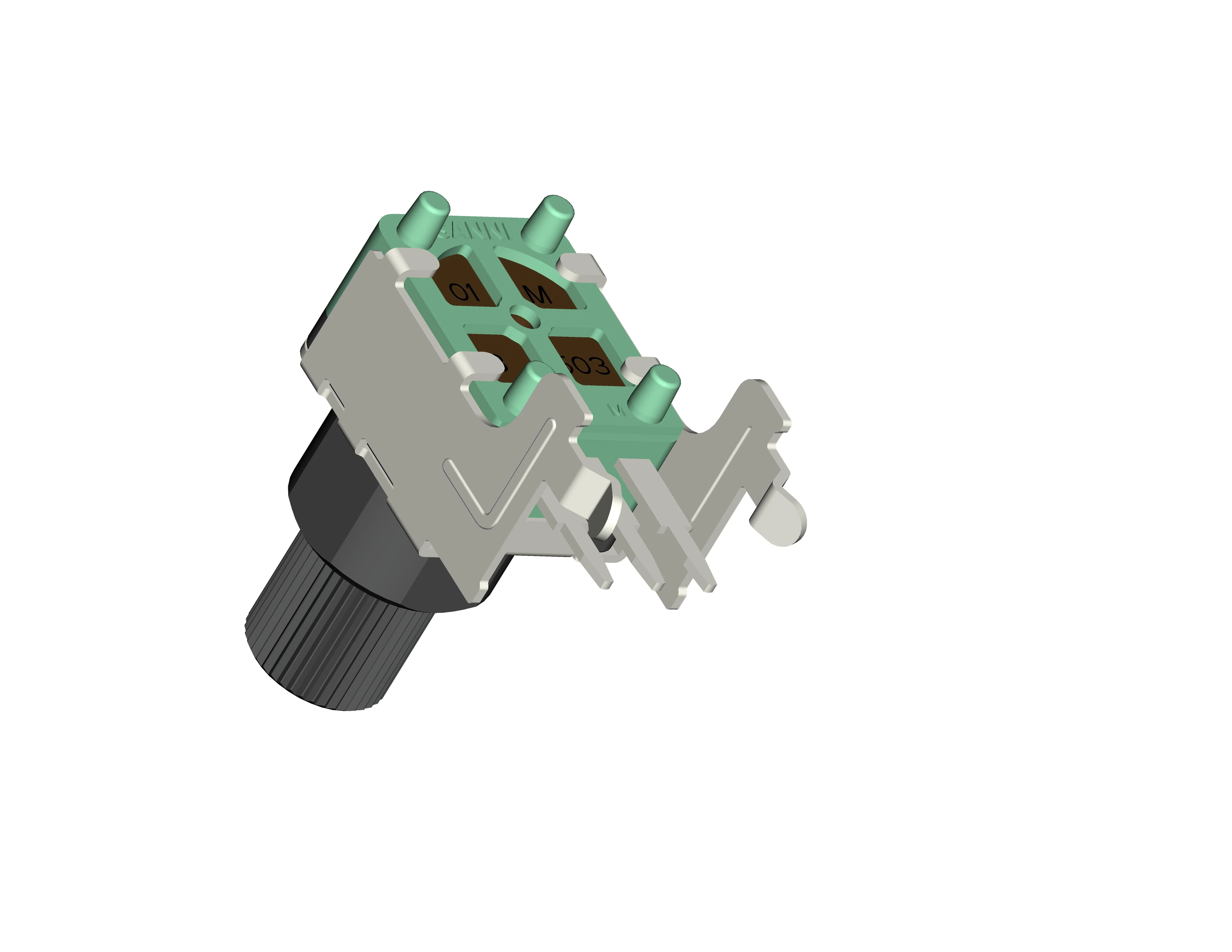

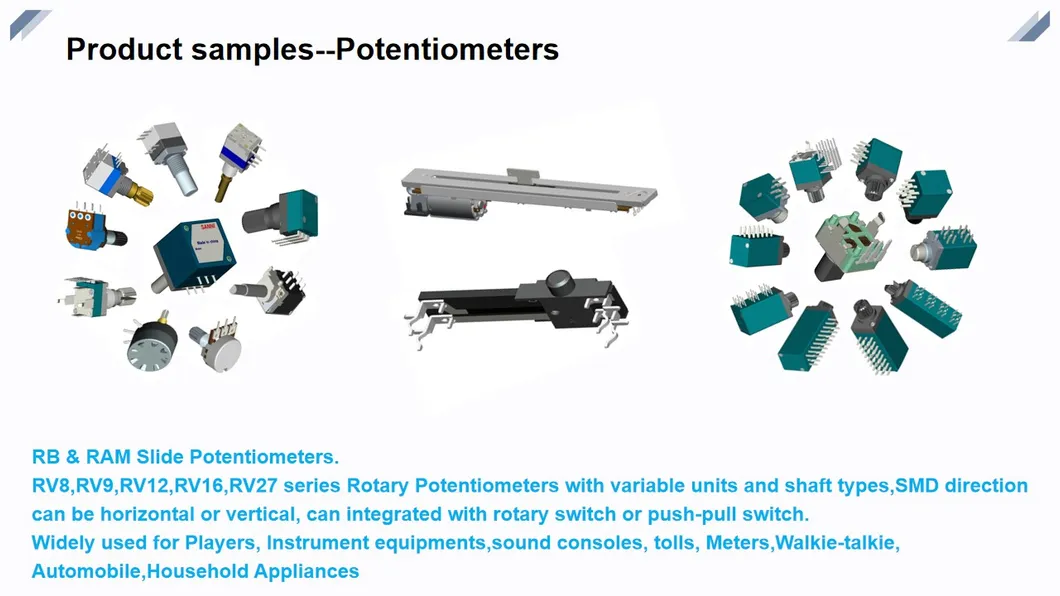

9mm Insulated shaft sealed potentiometer
Shaft material: Metal (AL/ Iron with plating/Stainless steel or others per requirement)
Width: 9.5mm
Usage: Player, instrument equipment, sound, meter, sound console, navigation/auto AV, walkie-talkie, white goods, medical equipment
Rohs compliant, Small volume, Structural diversification, High Quality
Operation temperature range: -40°C to 85°C
Mechanical Characteristics
Total rotational angle: 300°±5°
Rotational torque: 20-200gf.cm (Click torque: 40-400gf.cm)
Rotational stopper strength: Zinc alloy: 3Kgf max / Stainless Steel: 5.0Kgf max
Key Push-pull strength: 8Kgf max
Terminal strength: 5N for 1 minute
Vibration: 10 to 55 to 10Hz/min, Amplitude 1.5mm (X, Y, Z directions for 2 hours)
Electrical Characteristics
Total resistance: 100Ω-3MΩ
Total resistance tolerance: ±20% (1KΩ-500KΩ), ±30% (other ranges)
Insulation resistance: 100KΩ min. 205V DC
Voltage proof: 300V AC for 1 minute
Maximum operating voltage: 50V AC, 10V DC
Rated Power: 0.05W
Operating life: 15,000 cycles

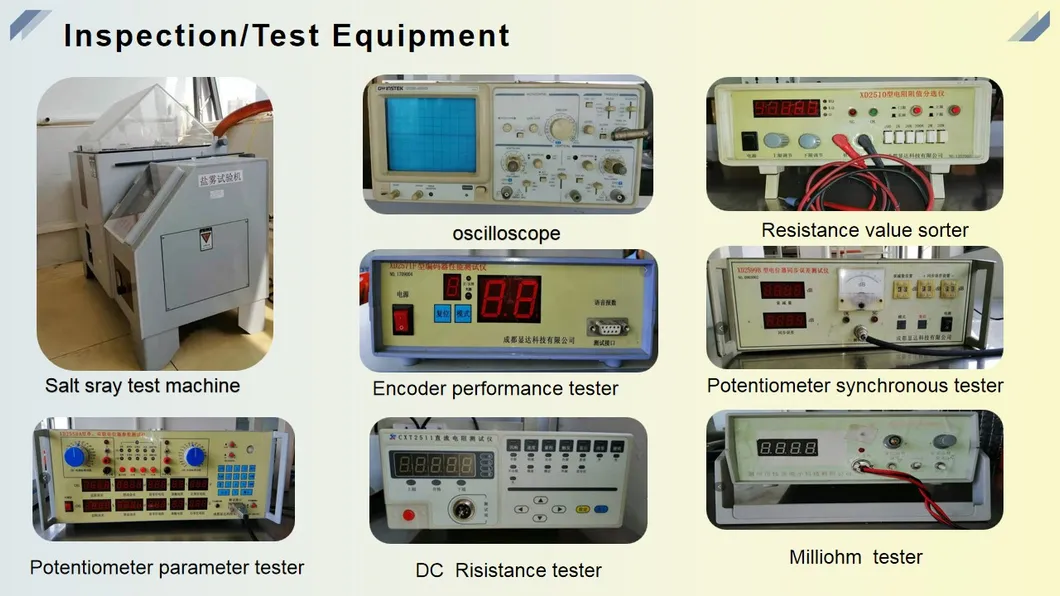

Environmental & Welding Performance
Cold Resistance: -40°C±2°C for 96h
Dry Heat: 85°C±2°C for 96h
Damp Heat: +40°C±2°C, 90 to 95%RH for 96h
Hand soldering: 350°C±10°C / 3s
Dip soldering: 260°C±5°C / 10s
Frequently Asked Questions
What is the operating temperature range for the RV90XB3N0PB model?
The operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions.
What are the primary applications for this rotary potentiometer?
It is widely used in audio equipment, players, instruments, meters, sound consoles, medical equipment, and automotive AV systems.
Is this product RoHS compliant?
Yes, this potentiometer is fully RoHS compliant and designed with environmental safety standards in mind.
What is the mechanical lifespan of this device?
The RV90XB3N0PB has an operating life of 15,000 cycles, ensuring long-term durability for user-controlled interfaces.
What shaft materials and types are available?
Shaft materials include plastic and various metals (Aluminum, Iron with plating, Stainless steel). Available types include Knurled, D-Type, and Solid designs.
Can the resistance scale be customized?
Yes, the resistance change scale is available in both Logarithmic and Linear tapers to meet different application requirements.
