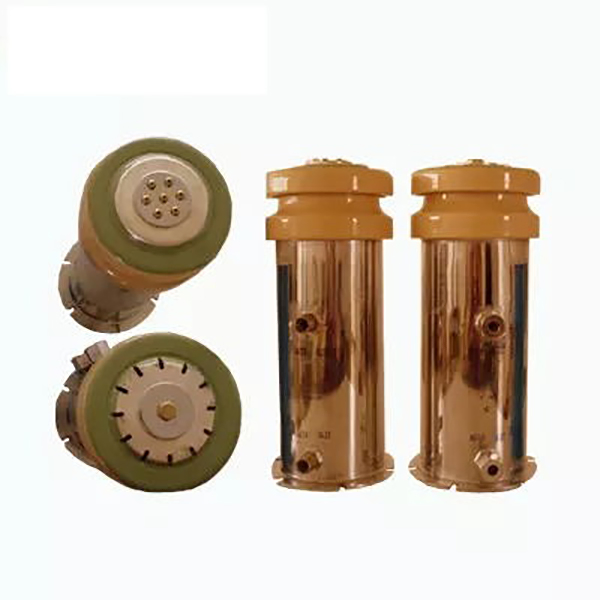

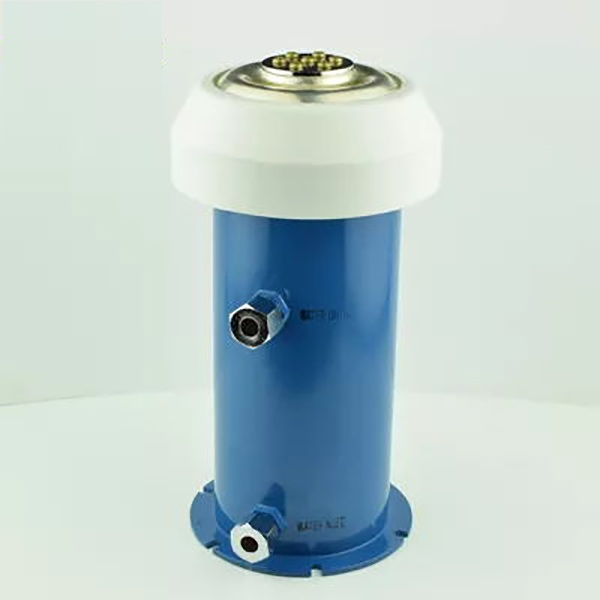

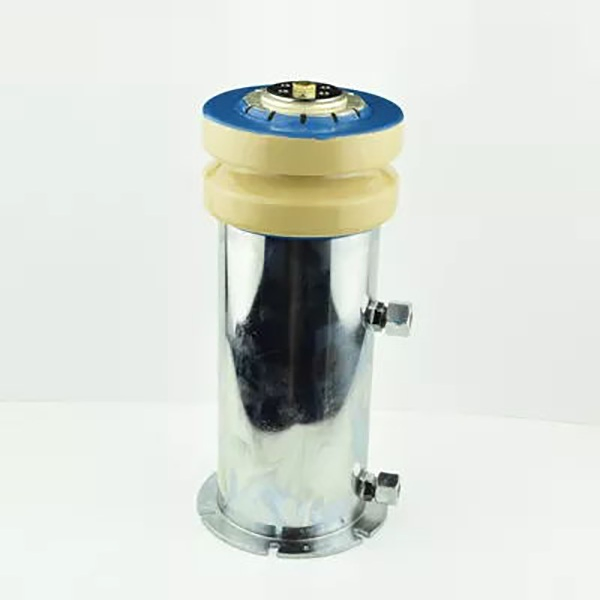

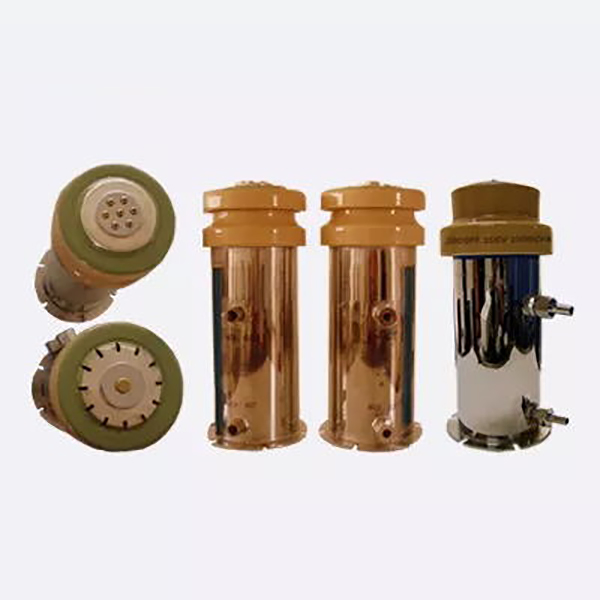

Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor
Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor
Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor
Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor
Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor
1 / 5
Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor
Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor
Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor
Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor
Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor

Twxf125300 14kv 7600PF 2500kVA RF Heating High Power Ceramic Water Cooled Capacitor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications
Model NO. TWXF125300 14KV 7600PF 2500KVA
Type Ccgsf Water Cooled / Ceramic Trimming Capacitor
Capacitance 50-100uf / 7600PF
Release Heat Water/Ceramic
Temperature Characteristics -750ppm/°c
Application General Purpose, High Voltage, Power, RF Heating
Manufacturing Material Polypropylene / Class 1 Ceramic
Usage Low Frequency Bypass, Filter, Tuning, Induction Heating
Specification CE ROHS
Production Capacity 100000PCS/ Month
Product Overview
TWXF125300 14KV 7600PF 2500KVA RF Heating high power ceramic water cooled capacitor

This range of complex electronic ceramic components and assemblies is used in a wide range of applications and cutting edge technologies. Fabricated from very low loss CLASS 1 ceramic dielectric materials, these high voltage RF discs capacitors are designed to carry very high electrical loads over a wide frequency range.

RF Heating High Power Ceramic Water Cooled Capacitor
Specification Data & Dimensions

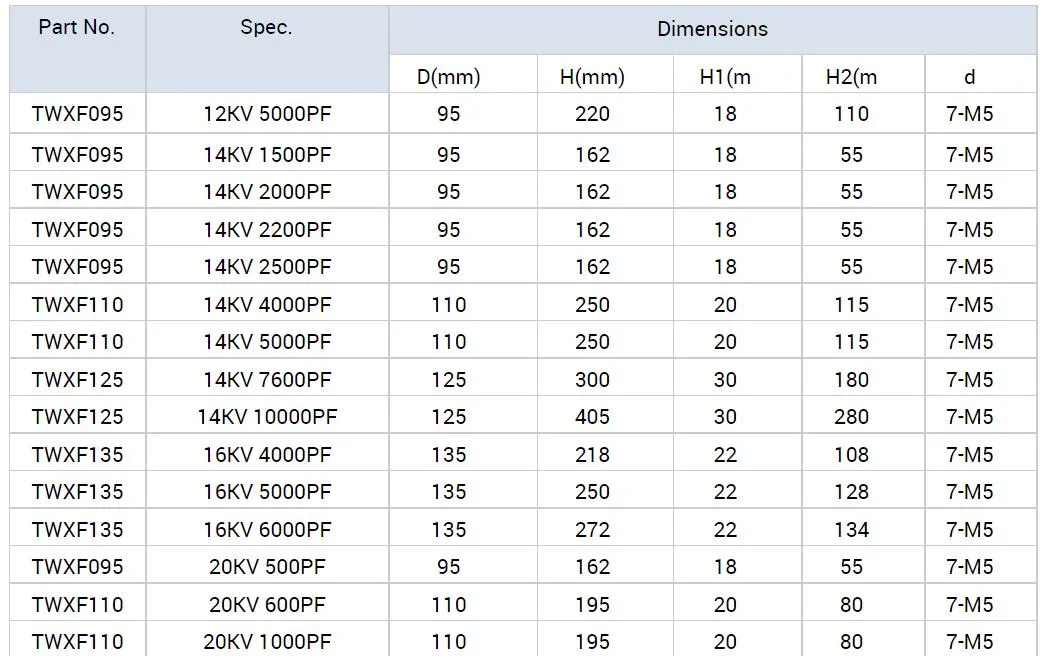

Specification data

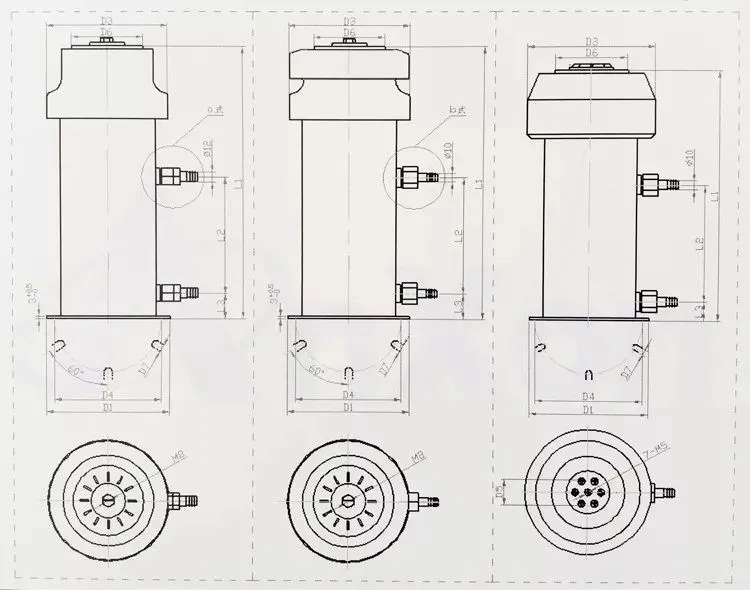

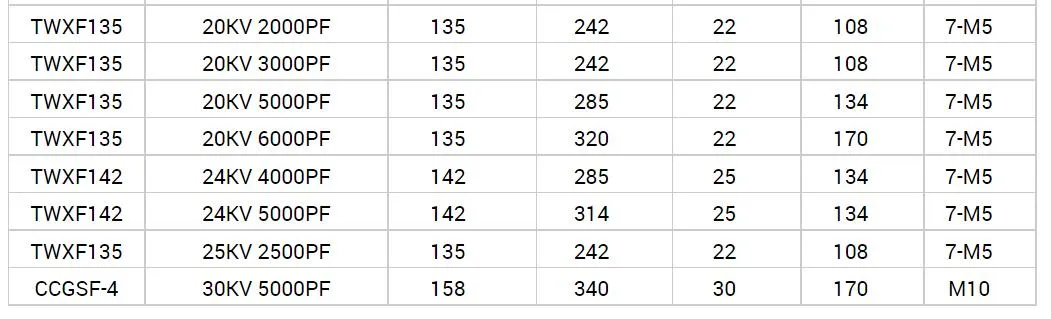

Dimension parameters
Key Features
✔
Low loss Class 1 ceramic dielectric materials with noble metal electrodes.
✔
Very low capacitance-temperature characteristics & low tuned frequency drift.
✔
Low Inductance construction for higher frequency utilization.
✔
High voltage and high Reactive Power Ratings (2500KVA).
✔
Low magnetic susceptibility suitable for sensitive environments.

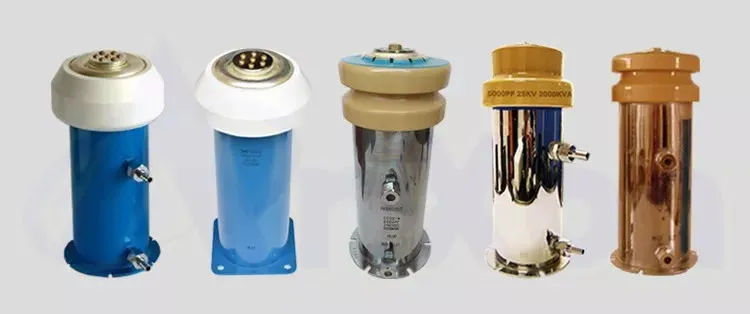

High power RF watercooled ceramic capacitors
Applications
📡Radio broadcast transmitters
⚙️HF filter, By-Pass & Coupling Circuits
⚡High power matching networks & Plasma Generators
🏥High quality medical imaging systems (MRI)
🔥Induction and Dielectric Heating Equipment
🏭Various Industrial High Frequency Applications

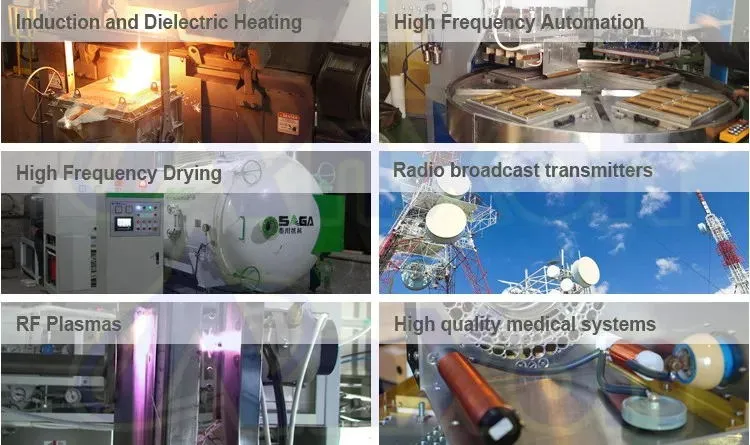

Application scenarios

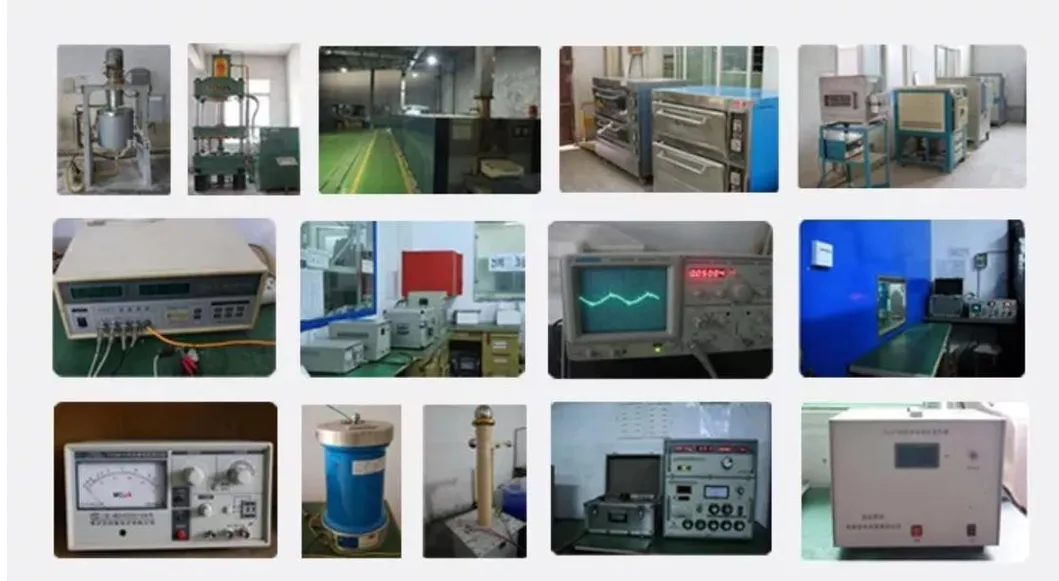

Quality Testing & Inspection

All high frequency high power RF plate ceramic capacitors are 100% tested for the following parameters to ensure maximum reliability:

● Capacitance & Tolerance
● Dielectric withstanding voltage
● Dissipation Factor
● Insulation Resistance

Process and inspection data are maintained on file and available upon special request.

Inspection and testing data
Frequently Asked Questions
What is the primary cooling method for the TWXF125300 capacitor?
The capacitor utilizes a water-cooled system integrated with ceramic materials to manage the high heat release generated during high-power RF operations.
Which dielectric materials are used in its construction?
It is fabricated using very low loss CLASS 1 ceramic dielectric materials, which are ideal for high electrical loads and stable frequency performance.
What are the main applications for this high-power capacitor?
Common applications include induction heating equipment, radio broadcast transmitters, MRI medical imaging systems, and plasma generators.
Does the capacitor support high-frequency usage?
Yes, its low inductance construction and Class 1 ceramic material allow it to function efficiently across a wide frequency range with minimal drift.
What quality standards does the product meet?
The product is CE and ROHS compliant. Every unit undergoes 100% testing for capacitance, voltage withstanding, and insulation resistance.
What is the reactive power rating of this model?
The TWXF125300 model features a high reactive power rating of 2500KVA with a voltage rating of 14KV.
