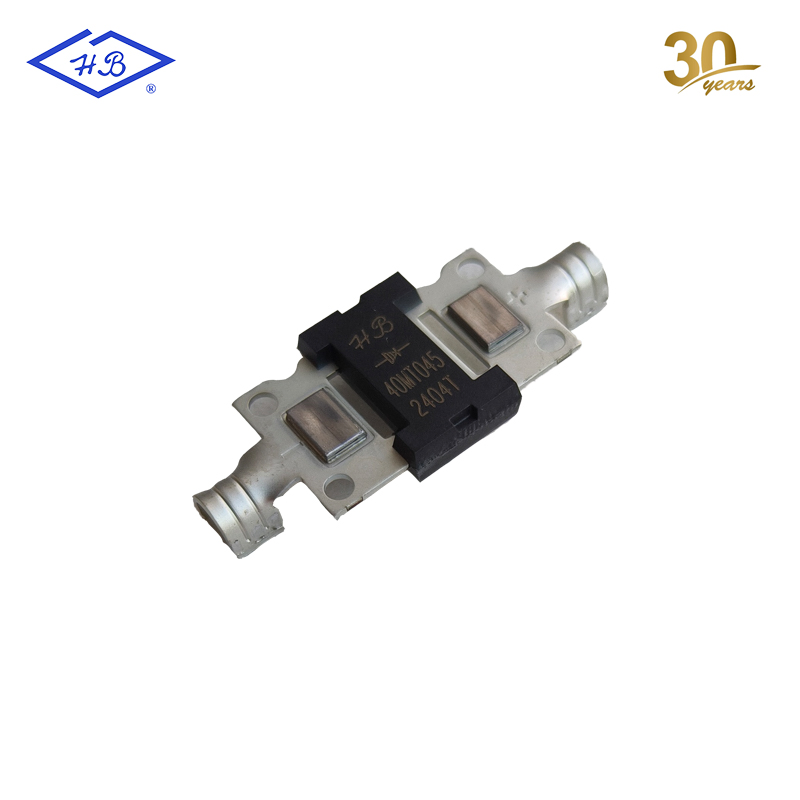

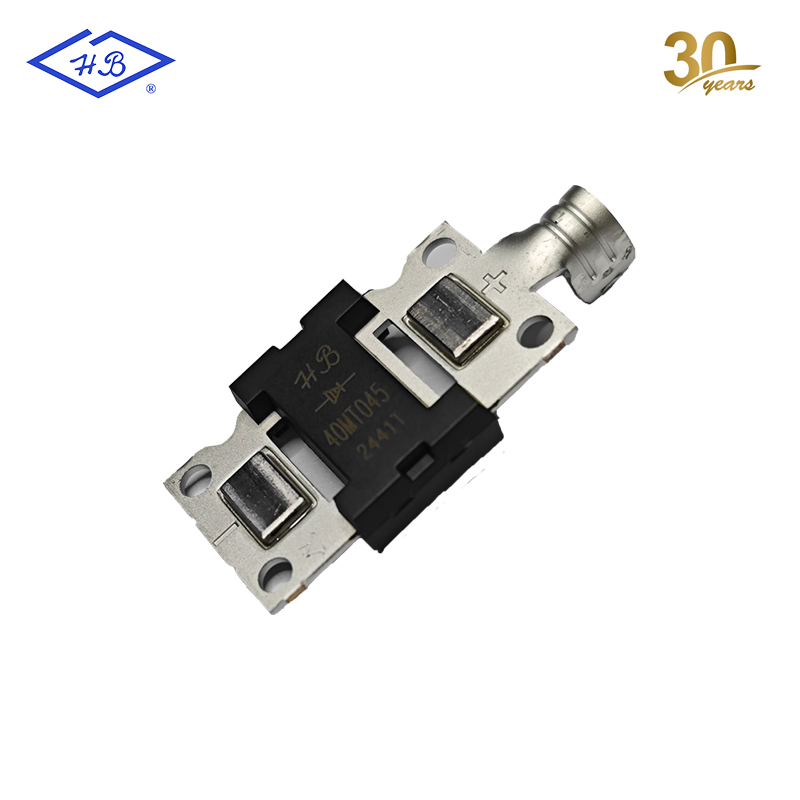

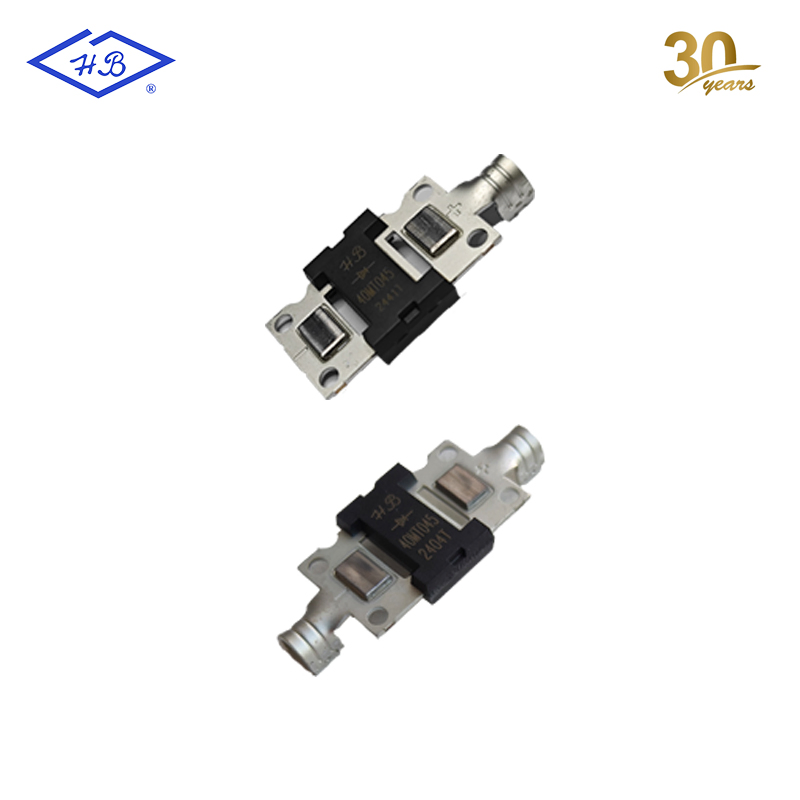

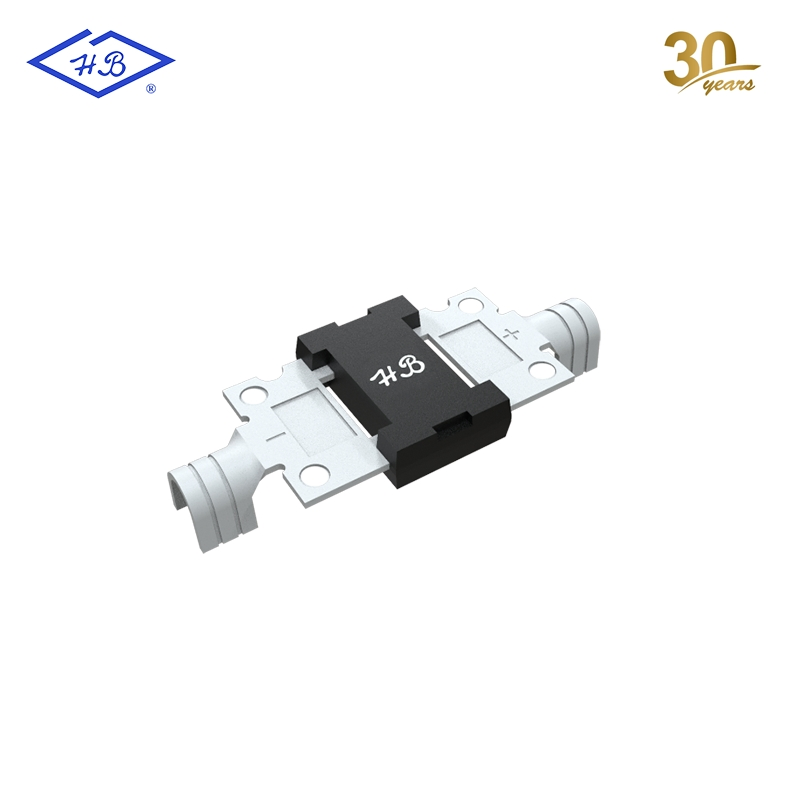

40MT045 PV Photovoltaic Schottky Bypass Solar Diode
40MT045 PV Photovoltaic Schottky Bypass Solar Diode
40MT045 PV Photovoltaic Schottky Bypass Solar Diode
40MT045 PV Photovoltaic Schottky Bypass Solar Diode
40MT045 PV Photovoltaic Schottky Bypass Solar Diode
1 / 5
40MT045 PV Photovoltaic Schottky Bypass Solar Diode
40MT045 PV Photovoltaic Schottky Bypass Solar Diode
40MT045 PV Photovoltaic Schottky Bypass Solar Diode
40MT045 PV Photovoltaic Schottky Bypass Solar Diode
40MT045 PV Photovoltaic Schottky Bypass Solar Diode

40MT045 PV Photovoltaic Schottky Bypass Solar Diode

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
40MT045
Certification
RoHS, UL
Structure
Module
Material
Silicon / Copper / Epoxy
Technique
Trench
Production Type
Automation
Storage Temp
-55 to 150 ℃
Case
Molded Plastic
Package
Plastic Tube / Carton Box
Specification
MT09E
Origin
China
HS Code
854110

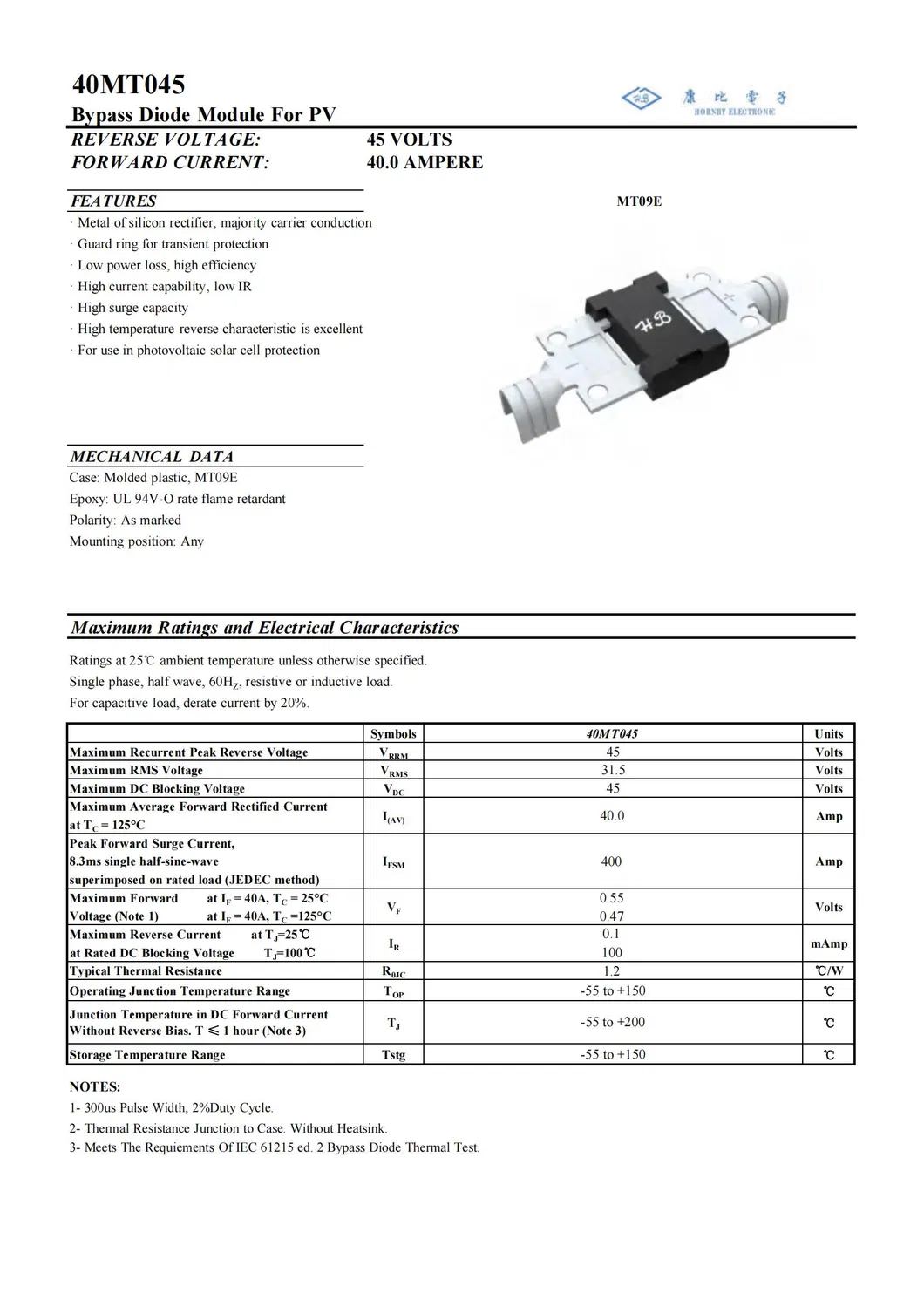

⚙️ Product Parameters

Model: 40MT045

Type Peak Reverse Voltage (Vpk) Max Avg Rectified Current (Io) Temp (°C) Forward Peak Surge Current (Apk) Reverse Current (mAdc) Forward Current (Apk) Forward Voltage (Vpk) Package
40MT045 45 40.0 25 400 0.1 40.0 0.55 MT09E
📝 Product Features
  • Metal of silicon rectifier, majority carrier conduction
  • Guard ring for transient protection
  • Low power loss, high efficiency
  • High current capability, low IR
  • High surge capacity
  • High temperature reverse characteristic is excellent
  • For use in photovoltaic solar cell protection
40MT045 PV Photovoltaic Schottky Bypass Solar Diode
40MT045 PV Photovoltaic Schottky Bypass Solar Diode
40MT045 PV Photovoltaic Schottky Bypass Solar Diode

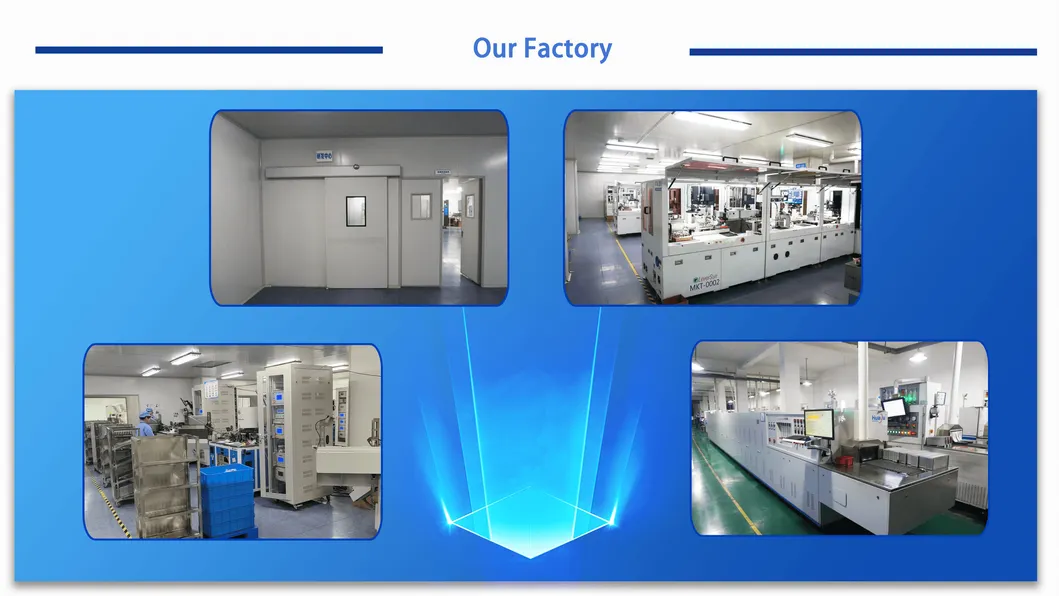

🏭 Factory & Production

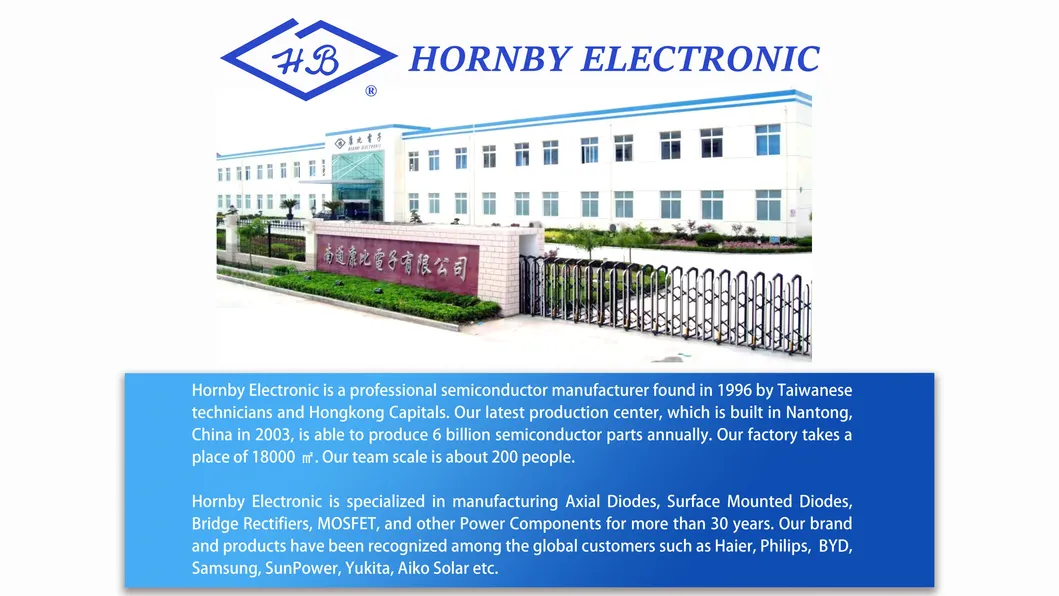

Production Facility
Production Line

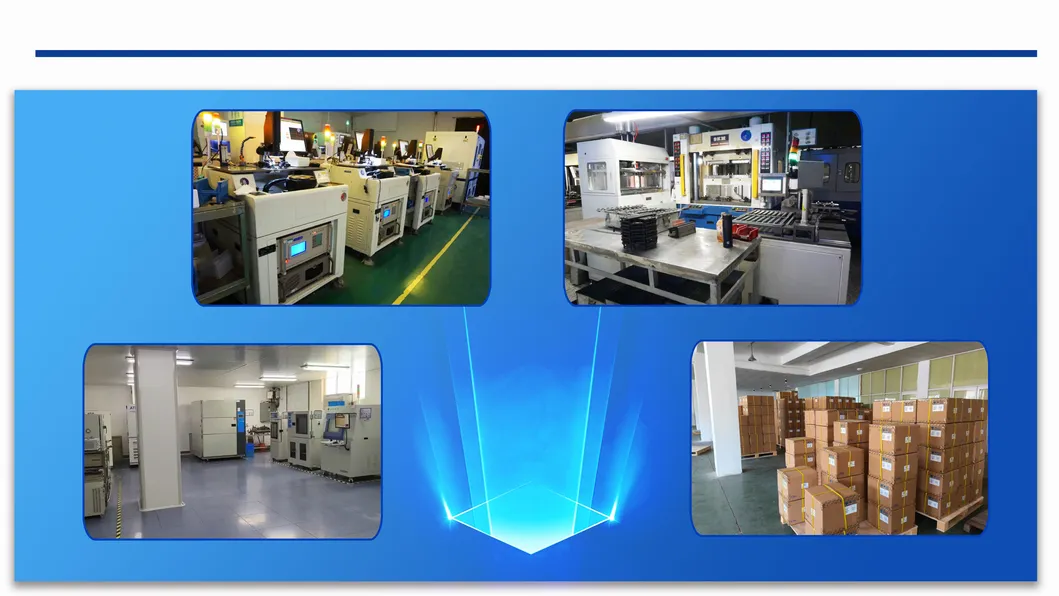

Quality Control
Testing Equipment
Warehouse

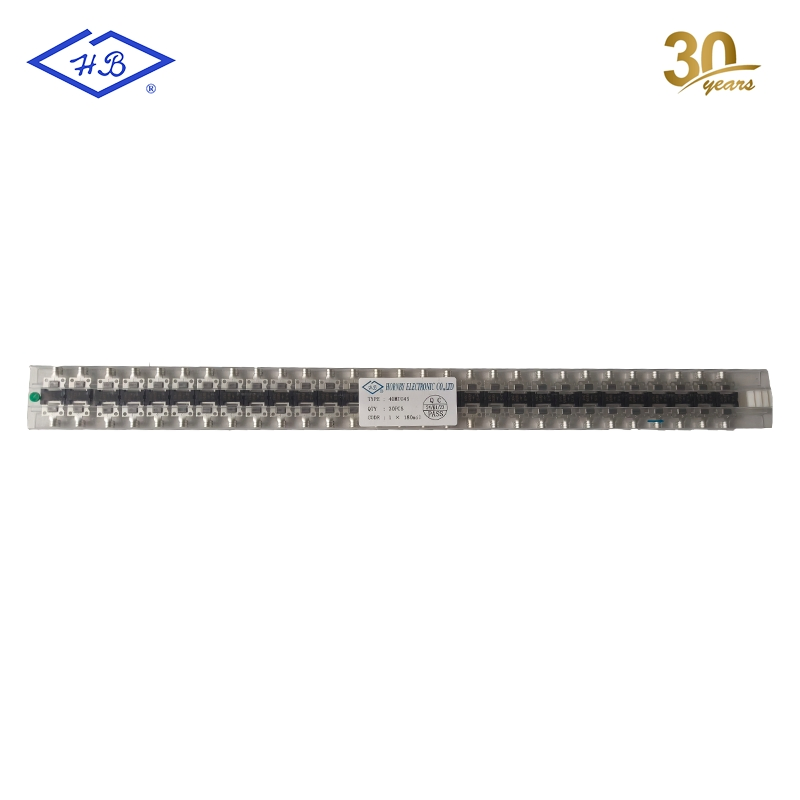

Packaging
❓ Frequently Asked Questions
Do you offer customized products based on special requirements?
Yes, we can customize products regarding packaging, chips, leads, and solders. We have an independent R&D team and factory to handle specialized technical requirements.
I can't find the specific part number I need. Do you provide other models?
We only list the most popular products online. We provide a wide range of other diodes and components. Please contact our sales team for the specific parts you require.
How can I ensure the authenticity of the products?
We recommend purchasing directly from us or through authorized distributors. Products from unauthorized sellers may carry quality risks. You can verify authorized partners with our sales team.
What is the typical lead time for an order?
Lead times vary depending on the order volume and customization requirements. Standard products are typically processed within 2-4 weeks.
Are samples available for testing before bulk orders?
Yes, we provide samples for quality evaluation and technical testing to ensure the product meets your application needs.
What are the primary applications for the 40MT045 diode?
This model is specifically designed for photovoltaic solar cell protection, bypass applications, and high-efficiency rectification in power systems.
