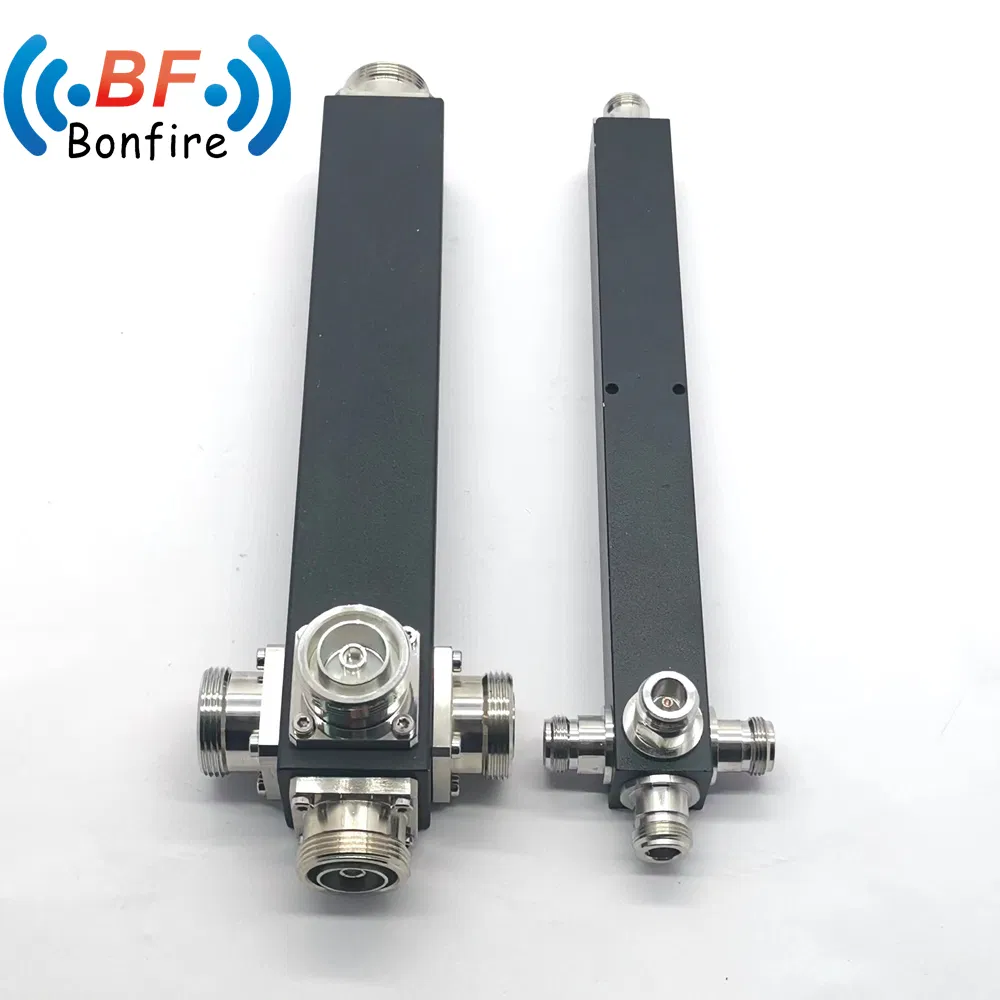

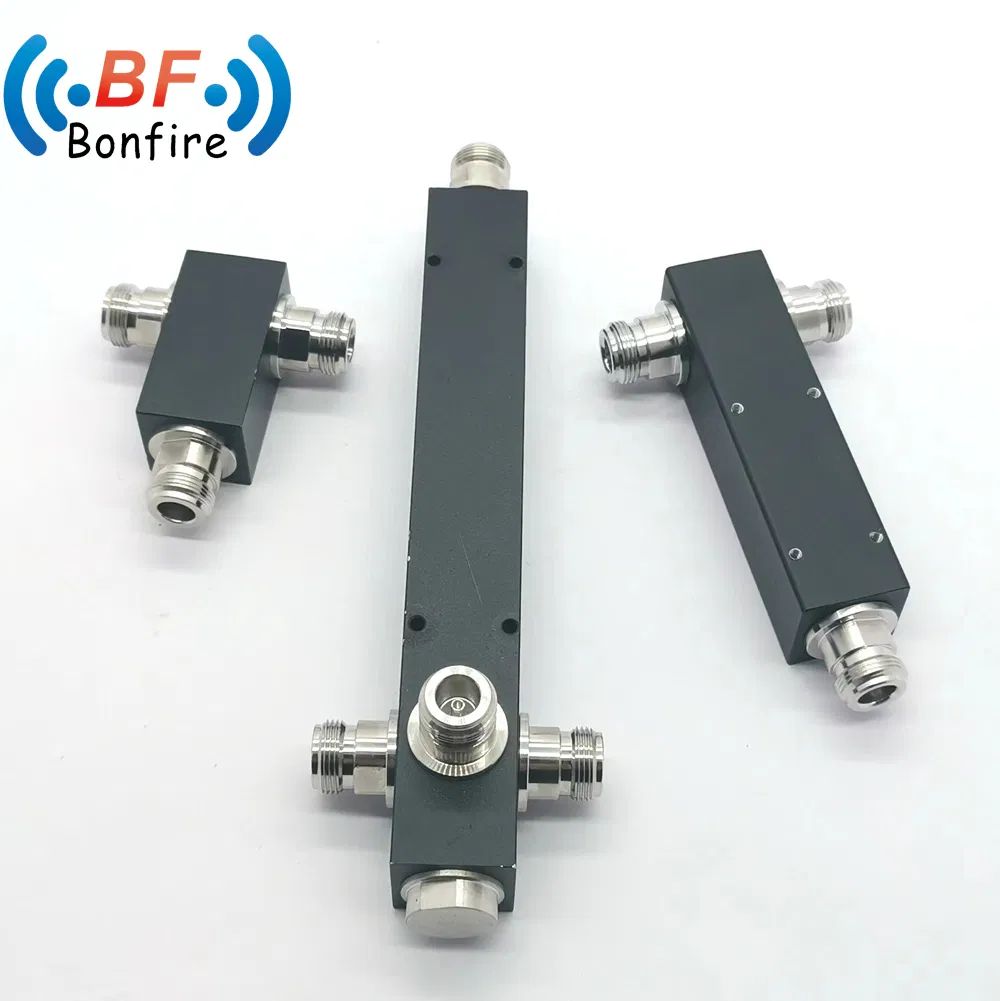

Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components
Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components
Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components
Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components
Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components
1 / 5
Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components
Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components
Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components
Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components
Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components

Public Safety Using VHF UHF 350-3800MHz Series RF Passive Components

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

RF Passive Components
📊 Basic Information
Model NO.
GFQ-XXXXXX
Usage
Ibs/Das/Pdas
Color
Grey/Red/Black/Customized
Interface
DIN-F/4.3-10-F/DIN-F
Application
Indoor/Outdoor(IP65)
Origin
China
Package Size
22.00cm * 7.00cm * 4.00cm
Gross Weight
0.510kg
🌟 Product Features
✔ Wide frequency band & wide coverage
✔ PIM optimized design
✔ Ideal for all kind of DAS applications
✔ Low insertion loss & High power handling
✔ Small size & Low weight
✔ Excellent Stability
📐 Technical Specifications
Parameter 350-3800 MHz
Type 2 - Way 3 - Way 4 - Way
Insertion Loss (dB) ≤ 3.4 ≤ 5.5 ≤ 6.8
VSWR ≤ 1.3
PIM3 (dBc@2*43dBm) ≤ -160
Input Power (W) 500
RF Connector DIN-F / 4.3-10-F
Operating Temp -35°C ~ +75°C
Protection Class IP65 (Indoor/Outdoor)
🖼️ Product Showcase
Separator

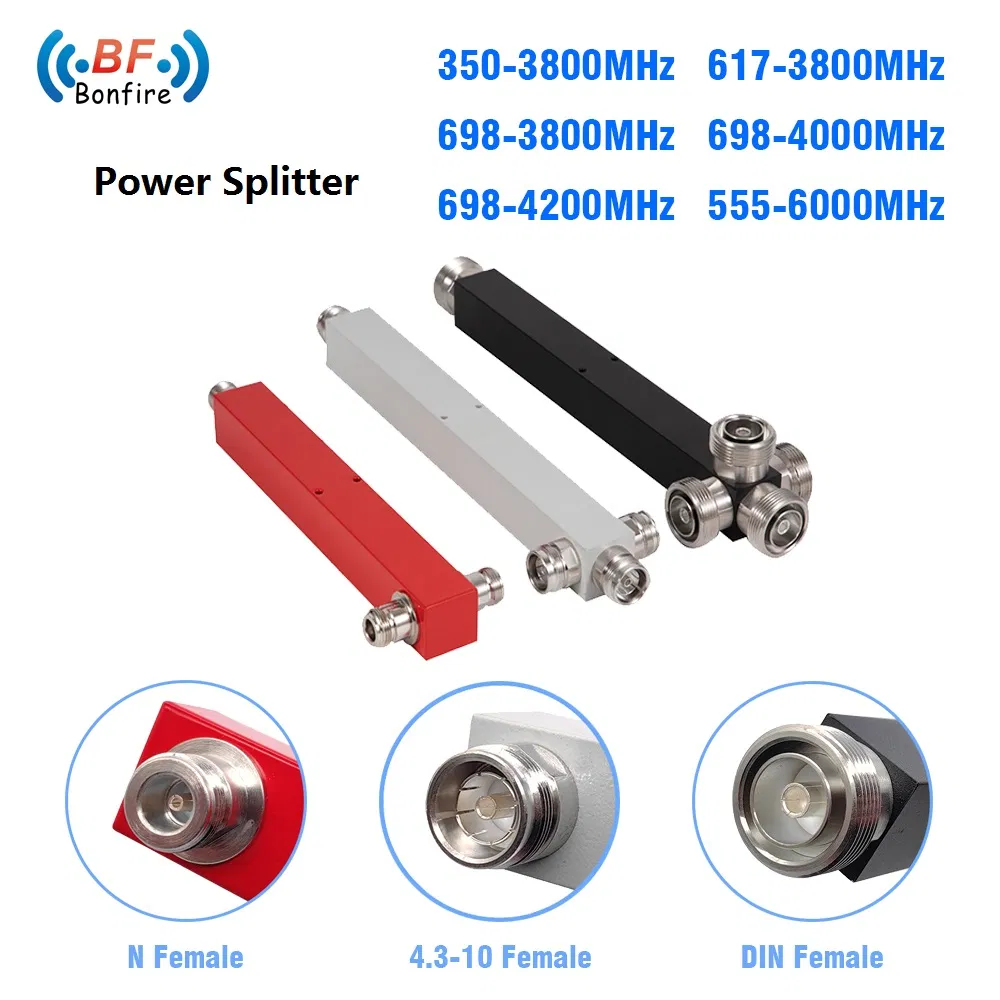

Product View 1

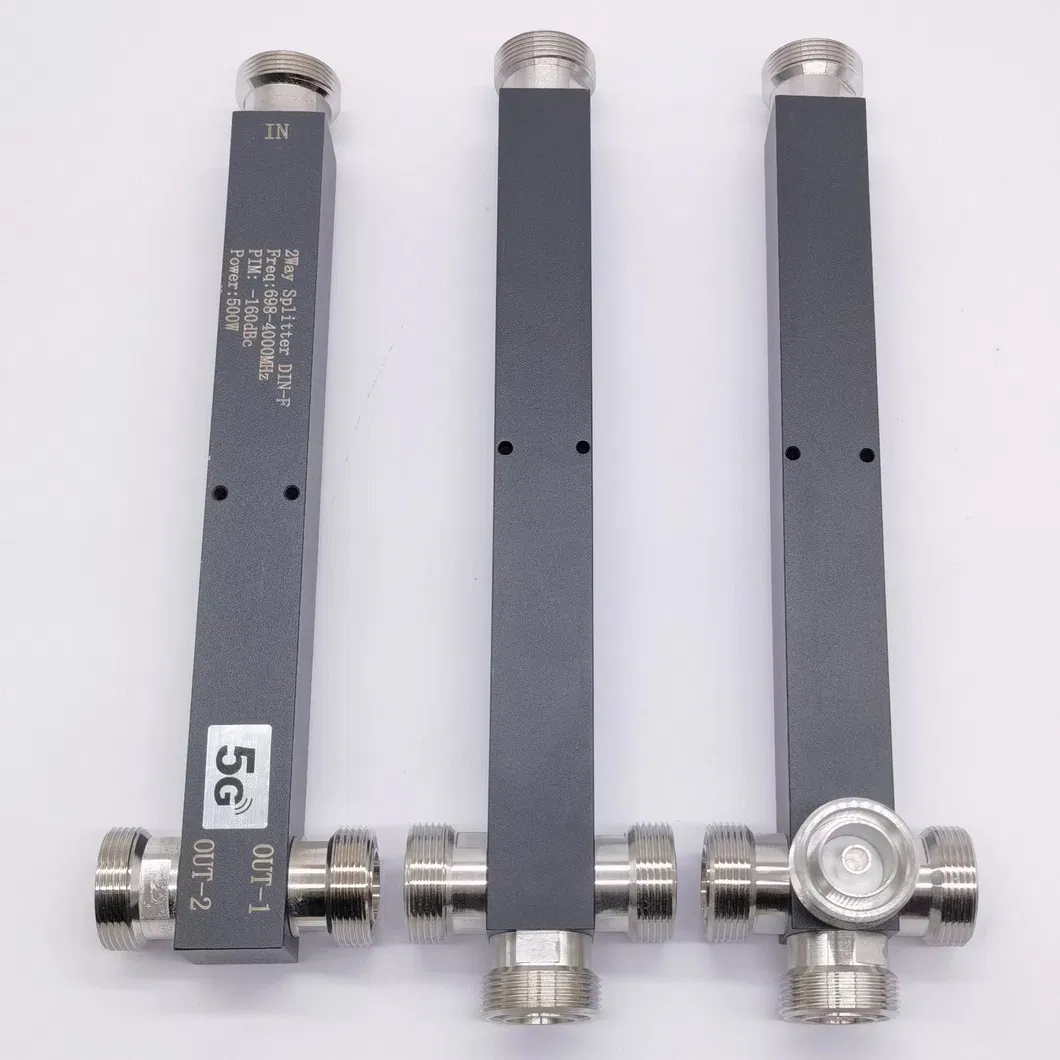

Product View 2

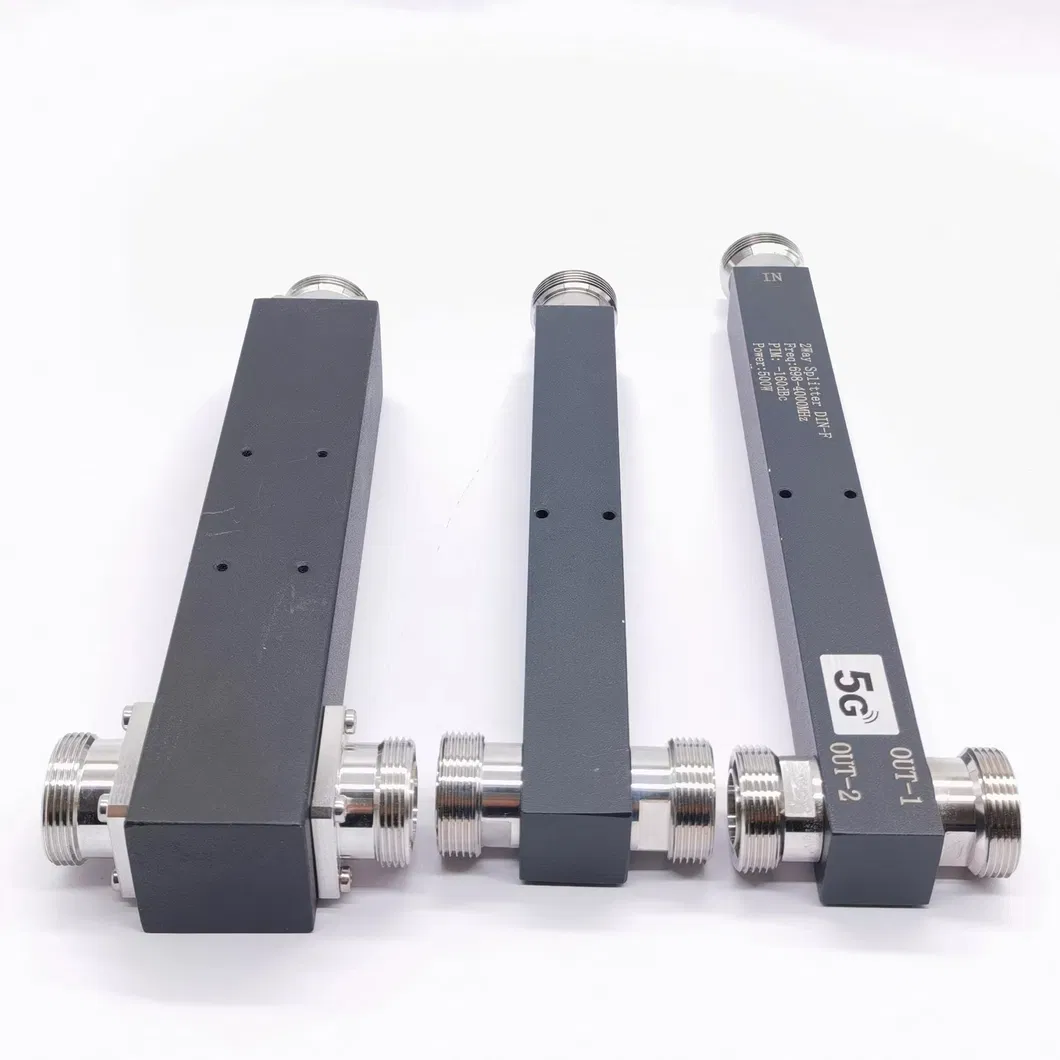

Product View 3

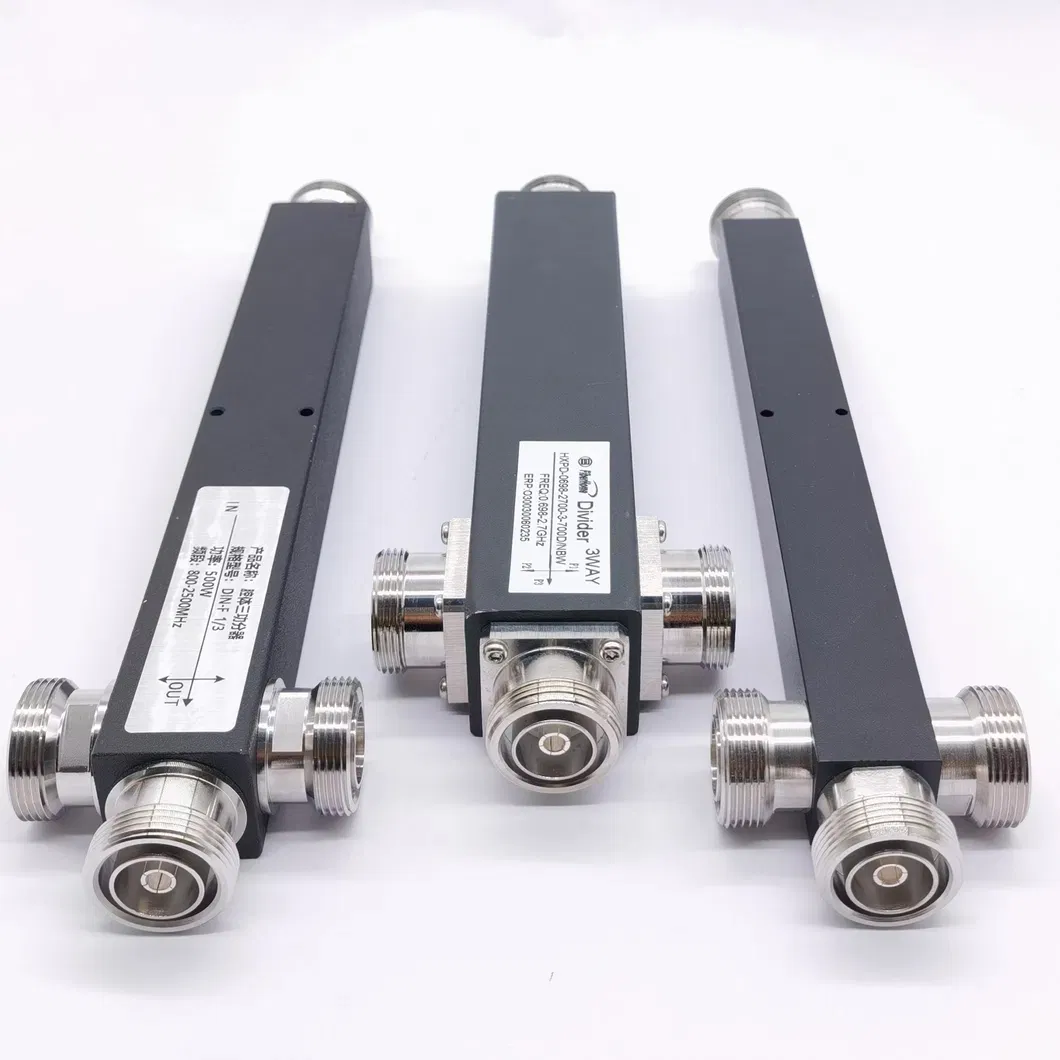

Product View 4

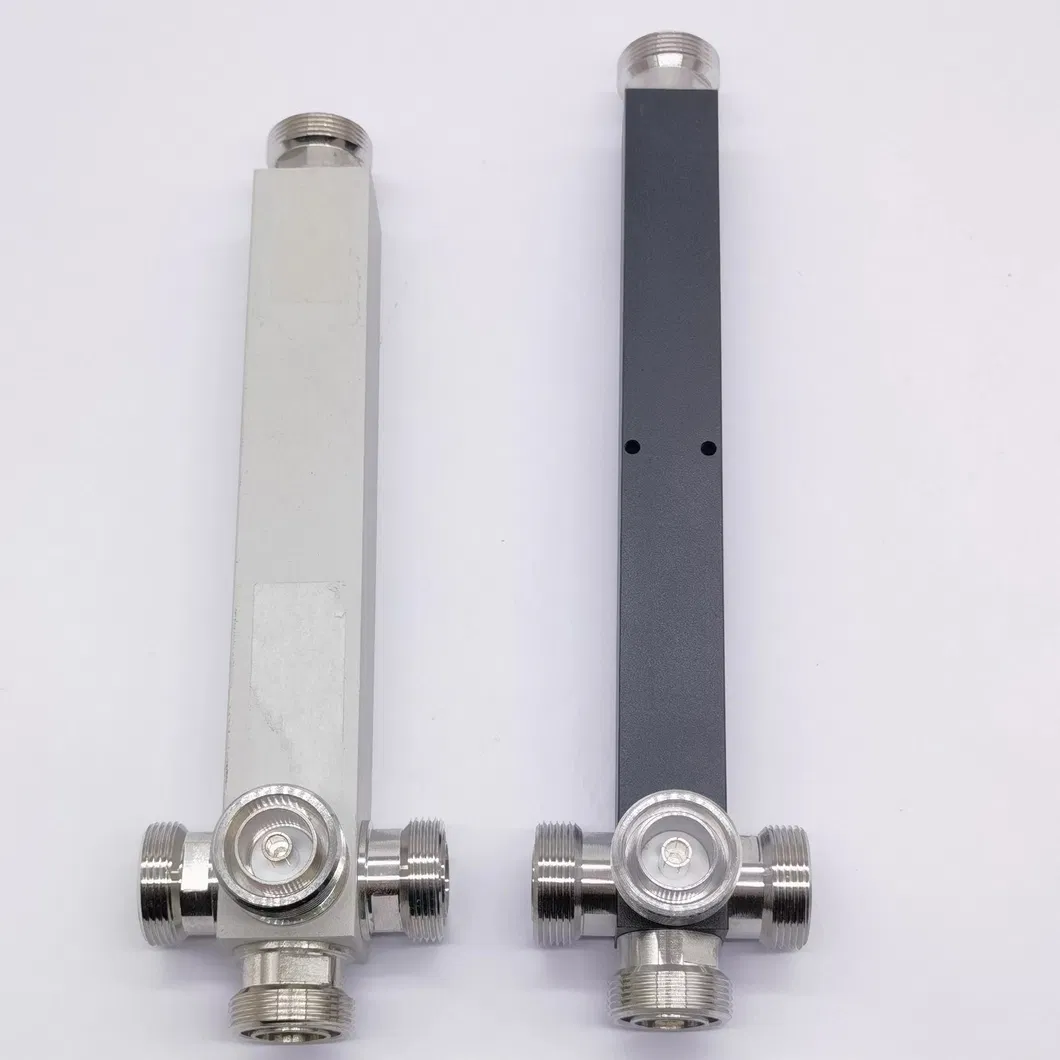

Product View 5

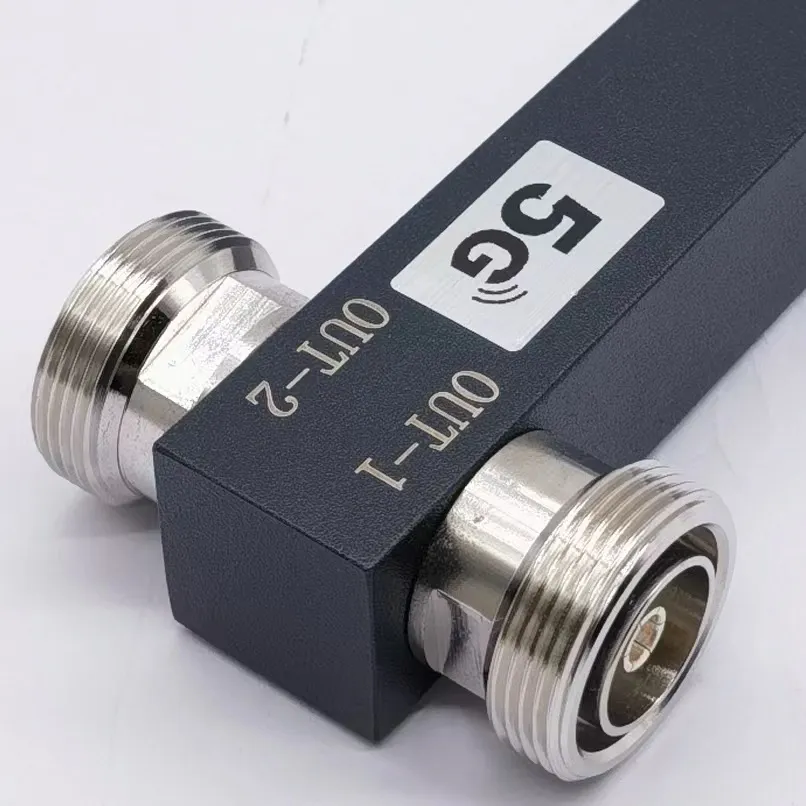

Detail 1

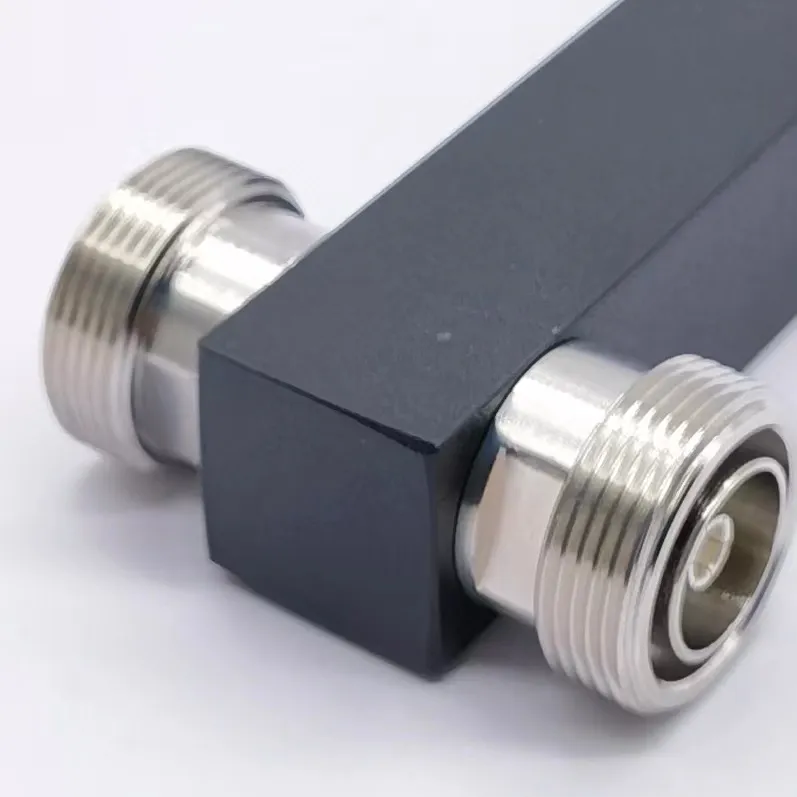

Detail 2

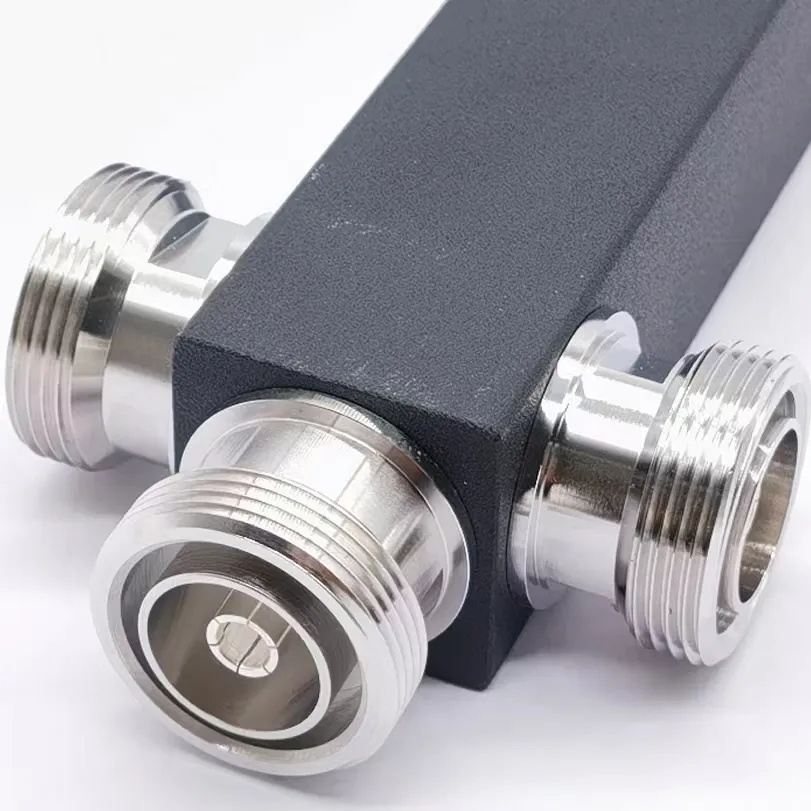

Application 1

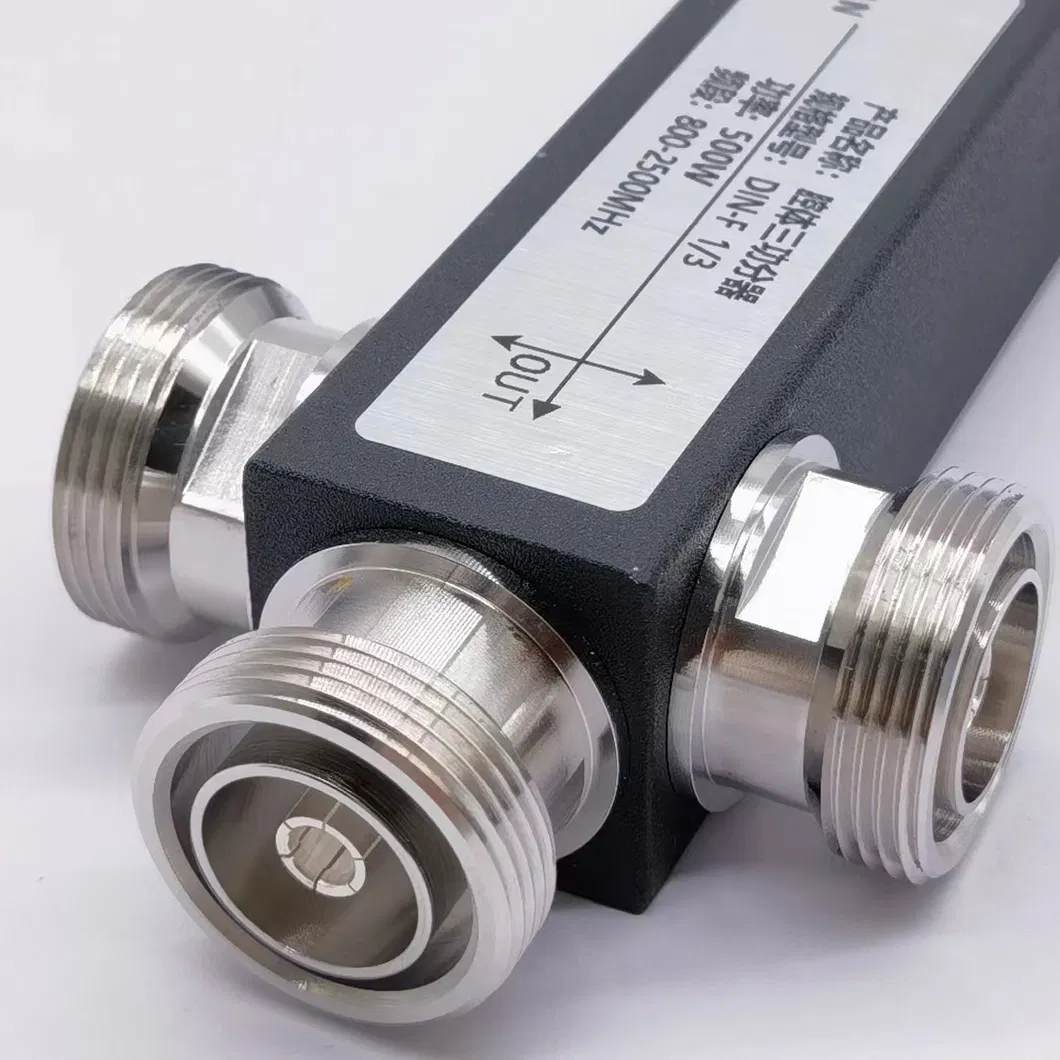

Application 2

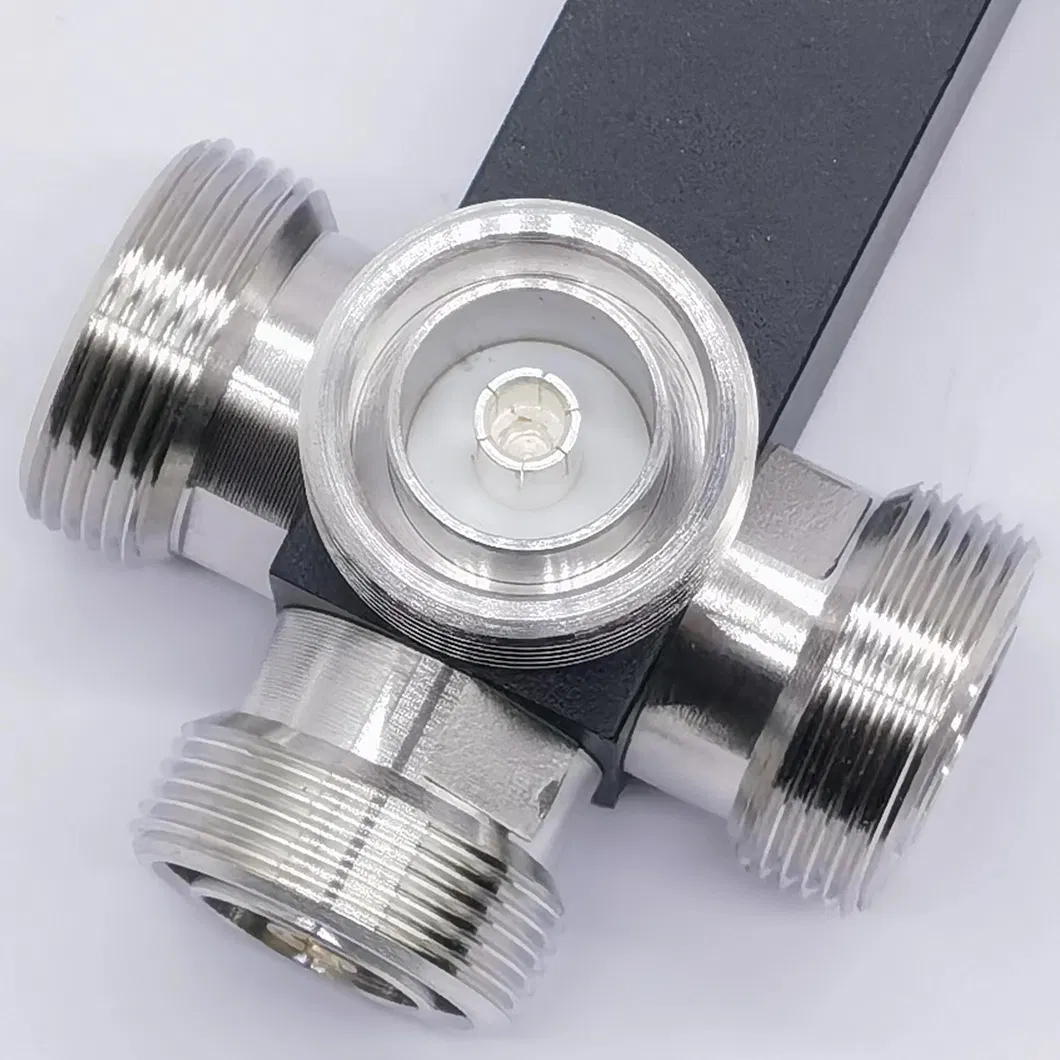

Quality Test 1

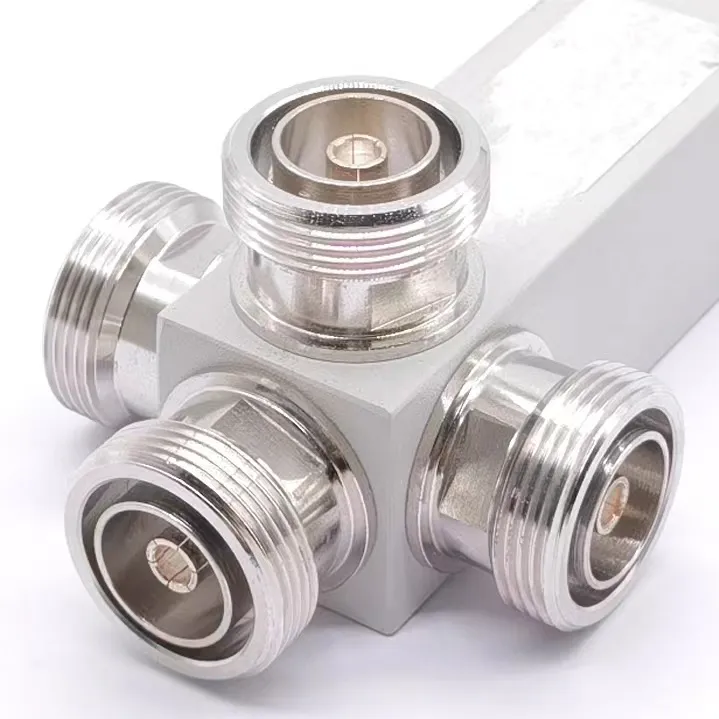

Quality Test 2
Drawing 1
Drawing 2
Why Choose Our RF Solutions?

• Full Customization: Available in multiple colors including Black, Red, Grey, and Gold.

• Versatile Application: Perfect for IBS, DAS, Public Safety, Small Cell, and Private Networks.

• Global Standards: OEM/ODM available with mass production delivery within 4 weeks.

• Complete Range: One-stop supply for RF Antennas, Combiners, Splitters, Couplers, and more.

Technical Chart Production Process Packaging Detail
Warehouse 1
Warehouse 2
❓ Frequently Asked Questions
1. What frequency range does this power divider cover?
The device covers a wide frequency range from 350MHz to 3800MHz, making it ideal for VHF, UHF, and 5G DAS applications.
2. Can this product be used outdoors?
Yes, it is designed with an IP65 rating, making it suitable for both indoor and outdoor environments.
3. What are the available connector types?
We offer multiple interface options including DIN-Female and 4.3-10-Female to meet different system requirements.
4. What is the typical PIM performance?
Our power dividers feature PIM optimized design with PIM3 levels ≤ -160 dBc @ 2*43dBm.
5. Do you support OEM or custom colors?
Yes, we provide full OEM/ODM services and can customize the product color (Black, Grey, Red, etc.) based on your needs.
6. What is the lead time for mass production orders?
Generally, mass production orders are delivered within 4 weeks through our efficient one-stop supply chain.
