Premium Ceramic Capacitors for Electronic Devices - Various Sizes

1 / 5

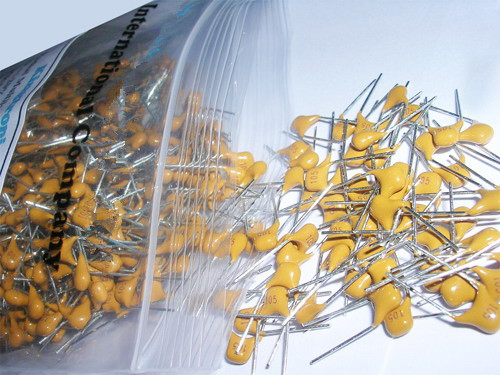

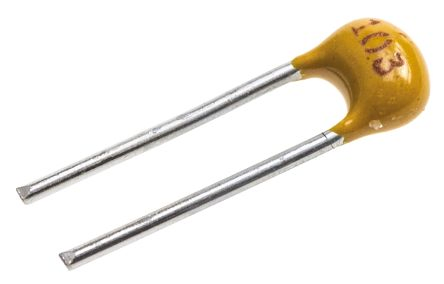

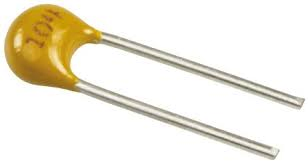

Premium Ceramic Capacitors for Electronic Devices - Various Sizes

Customization:	Available
Capacitance Range:	0r 5 to 104
Type:	Multi-Layer Ceramic Capacitor

Send Inquiry

Product Description

📋 Basic Information

Model NO.

TMCC03

Application

Fan, Automobile, General Purpose, Air Conditioner, Lighting, Power

Packaging Type

Through Hole

Capacitance

or 5-104

Structure

Fixed Capacitor

Manufacturing Material

Ceramic

Electrolyte

Ceramic Disc Capacitor

Usage

Low Frequency Coupling

Tuning

Ceramic Capacitor

Filter

Ceramic Disc Capacitor

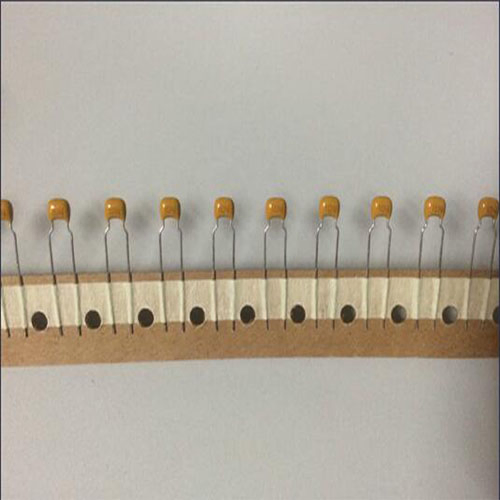

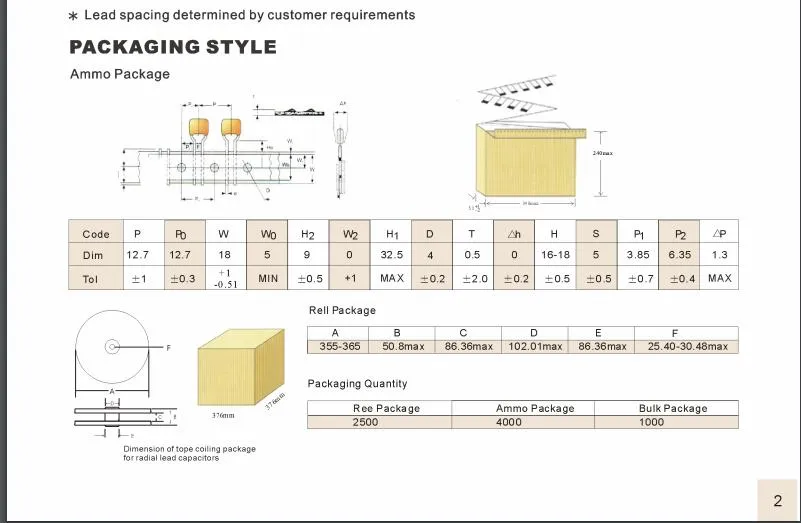

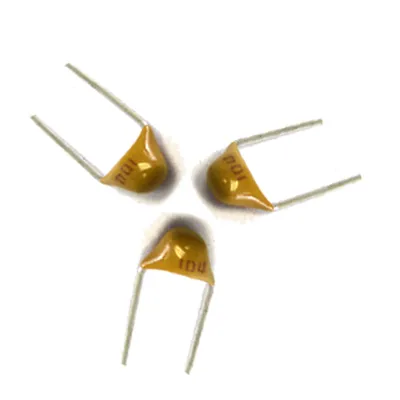

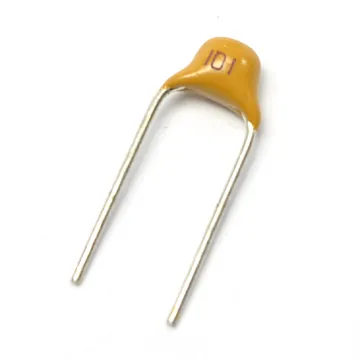

Transport Package

Bulk or Tape

Specification

CE RoHS UL SGS

Origin

China

HS Code

85322410

Production Capacity

500,000,000PCS/Year

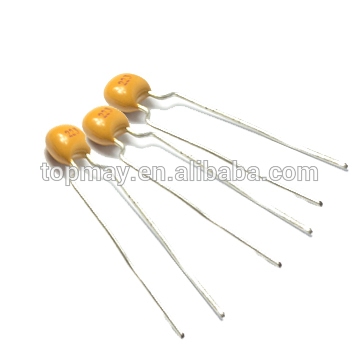

🚀 Radial Multilayer Ceramic Capacitor MLC TMCC03

1. Features and Uses:

Radial direction lead monolithic ceramic capacitor is a product that assembles the radial direction leads on the multilayers ceramic capacitor (MLCC). It features large capacitance (10pf~10uf), small size, high reliability, stable capacitance, high temperature withstanding, good insulation, and low cost compared with normal disc ceramic capacitors.

2. Core Advantages:

Excellent temperature and frequency characteristics.
Stable and smaller drop of capacitance while frequency rising.
Can replace mica capacitors, paper capacitors, and some tantalum capacitors.

3. Application Areas:

Small and micro electronic devices (liquid crystal watches, micro-equipment).
Electronic precision instruments.
Mainly used in bypass, filter, and coupling circuits.

📊 Technical Specifications

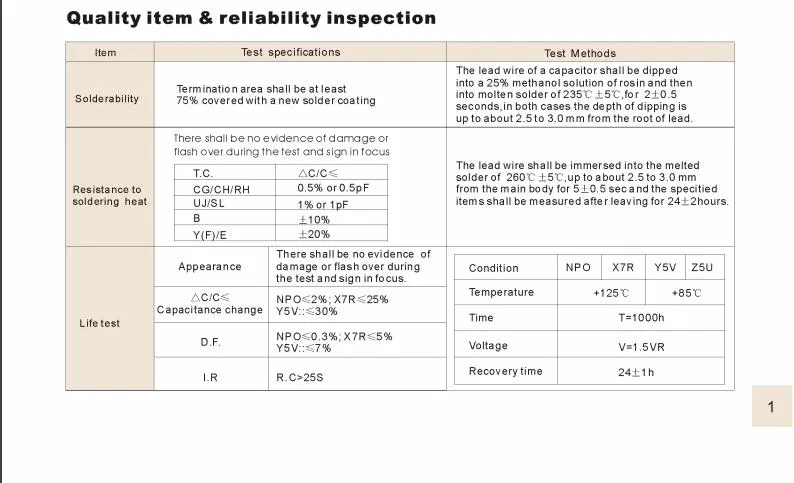

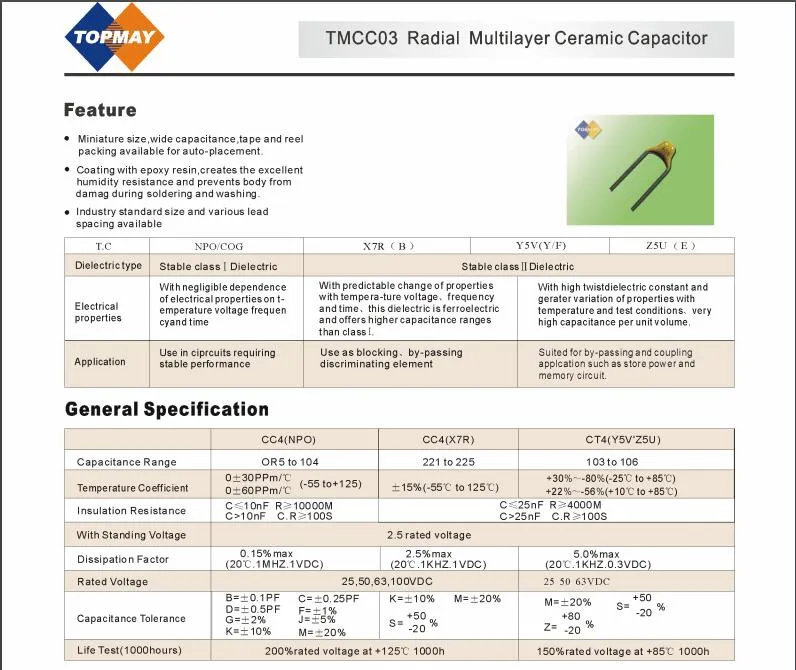

Item	NP0(CH)	X7R(B)	Z5U(E)	Y5V(F)
Capacitance(C)	25ºC, 1MHz, 1.0Vrms	25ºC, 1KHz, 1.0Vrms (C≥10uF, 120Hz, 0.5Vrms)
Dissipation Factor(DF)	C≥30P, Q≥1000; C<30P, Q≥400+20*C	C<0.033uF, DF≤3.5%; C≥0.033uF, DF≤5.0%	≤5%	C≥220NF <7.0%; C<220NF, ≤5.0%
Insulation Resistance(IR)	C≤10nF, IR≥10000MΩ; C>10nF, R*C≥100S	C≤25nF, IR≥4000MΩ; C>25nF, R*C≥100S
Withstanding Voltage	Ur≤100V, TV=2.5Ur; 200V≤Ur≤1000V, TV=1.5Ur; Ur>1000V, TV=1.2Ur

📏 Dimensions & Range

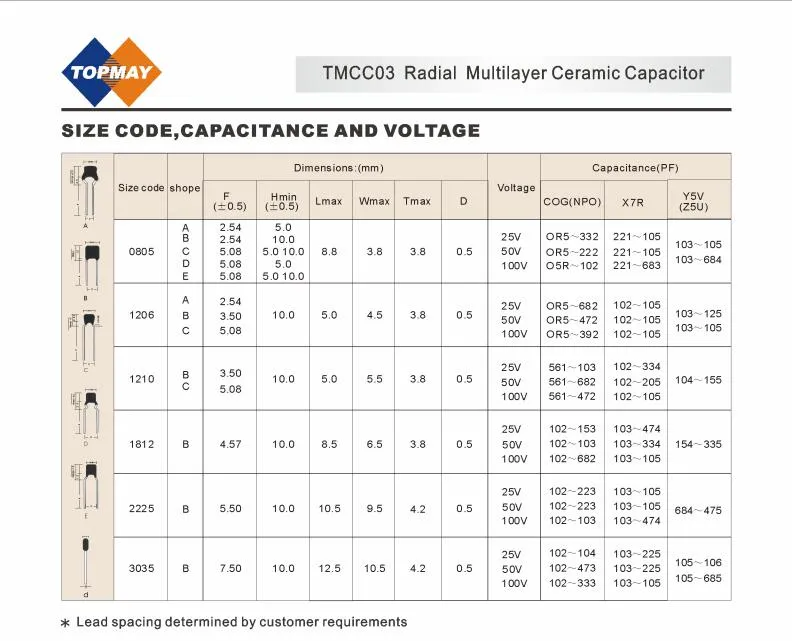

Spec	Dimensions (mm)				Voltage	Capacitance Range (pf)
Spec	F(±0.5)	L MAX	W MAX	T MAX	Voltage	NP0	X7R	Z5U/Y5V
0603	2.54 / 5.08	4.2	3.8	3.2	16V-50V	0.5~511	221~473	102~105
0805	2.54 / 5.08	4.2	3.8	3.8	25V-100V	0.5~332	221~105	103~105
1206	2.54 / 5.08	4.5	4.5	3.8	25V-100V	0.5~682	102~105	103~125
1210	2.54 / 5.08	5.0	5.5	3.8	25V-100V	561~103	102~334	104~155

❓ Frequently Asked Questions

What is the main advantage of the TMCC03 Radial MLC Capacitor?

The TMCC03 offers a combination of large capacitance (up to 10uf), small physical size, and high reliability, making it more cost-effective than standard disc ceramic capacitors.

Which applications are best suited for these capacitors?

They are ideal for small electronic devices like liquid crystal watches, precision instruments, and are commonly used for bypass, filtering, and coupling in various circuits.

Can the TMCC03 replace other types of capacitors?

Yes, due to its excellent frequency characteristics, it can replace mica capacitors, paper capacitors, and certain tantalum capacitors.

What is the production capacity for this model?

We maintain a high production capacity of approximately 500,000,000 pieces per year to ensure stable supply for global demands.

What quality standards does the TMCC03 meet?

The TMCC03 radial multilayer ceramic capacitors are compliant with CE, RoHS, UL, and SGS specifications.

What are the available packaging options?

The capacitors are available in both Bulk and Tape packaging to suit different assembly requirements.
