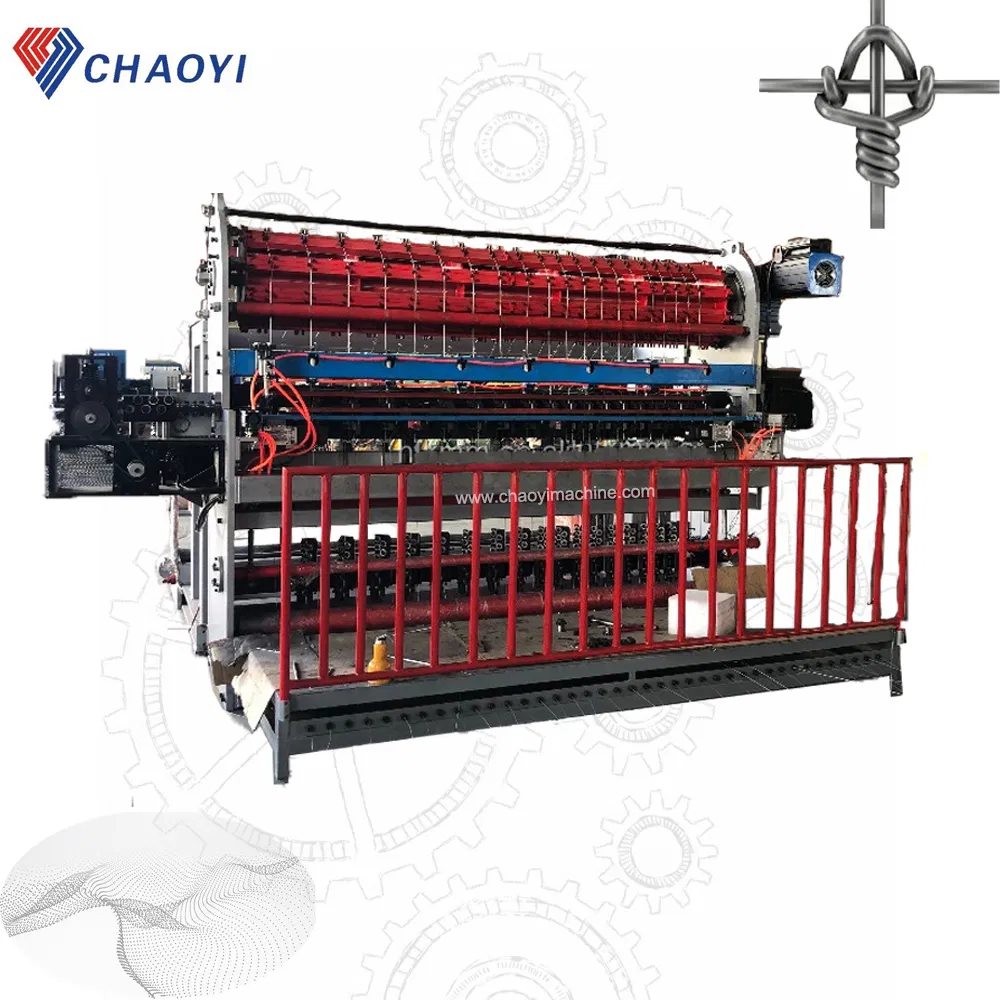

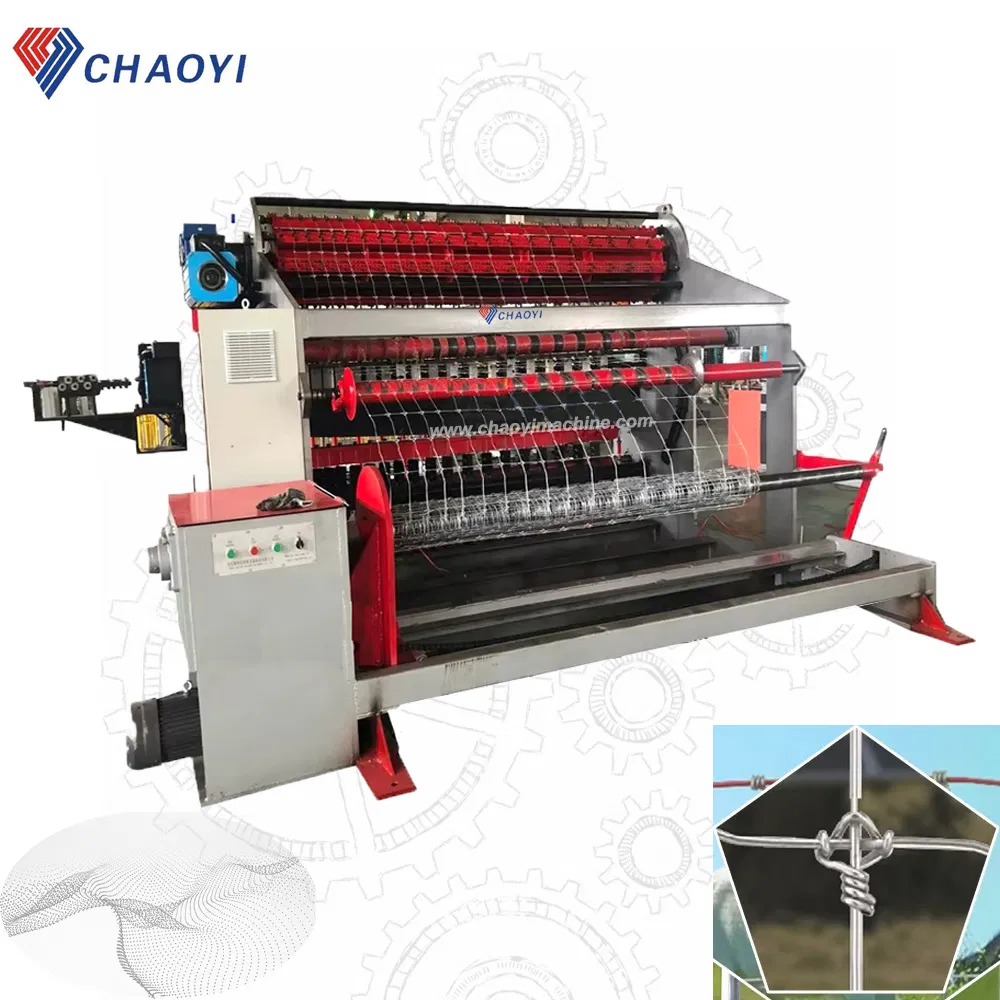

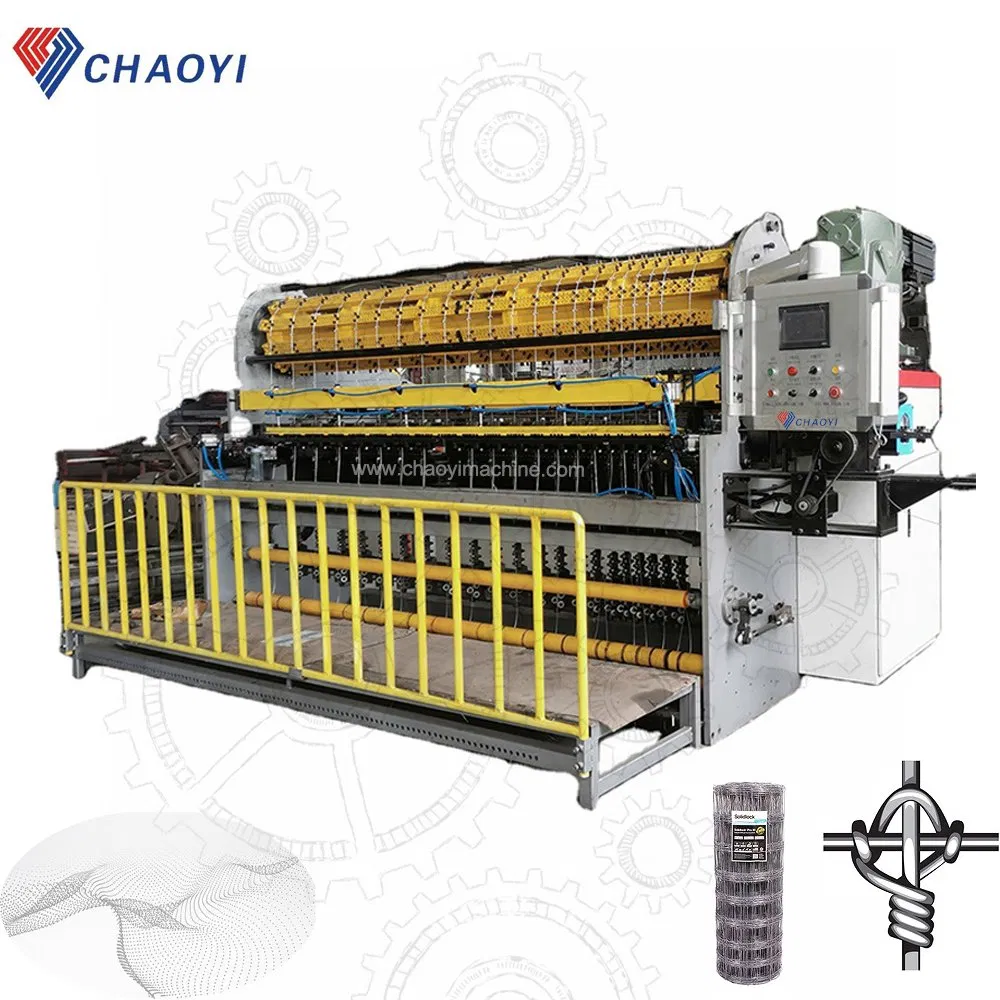

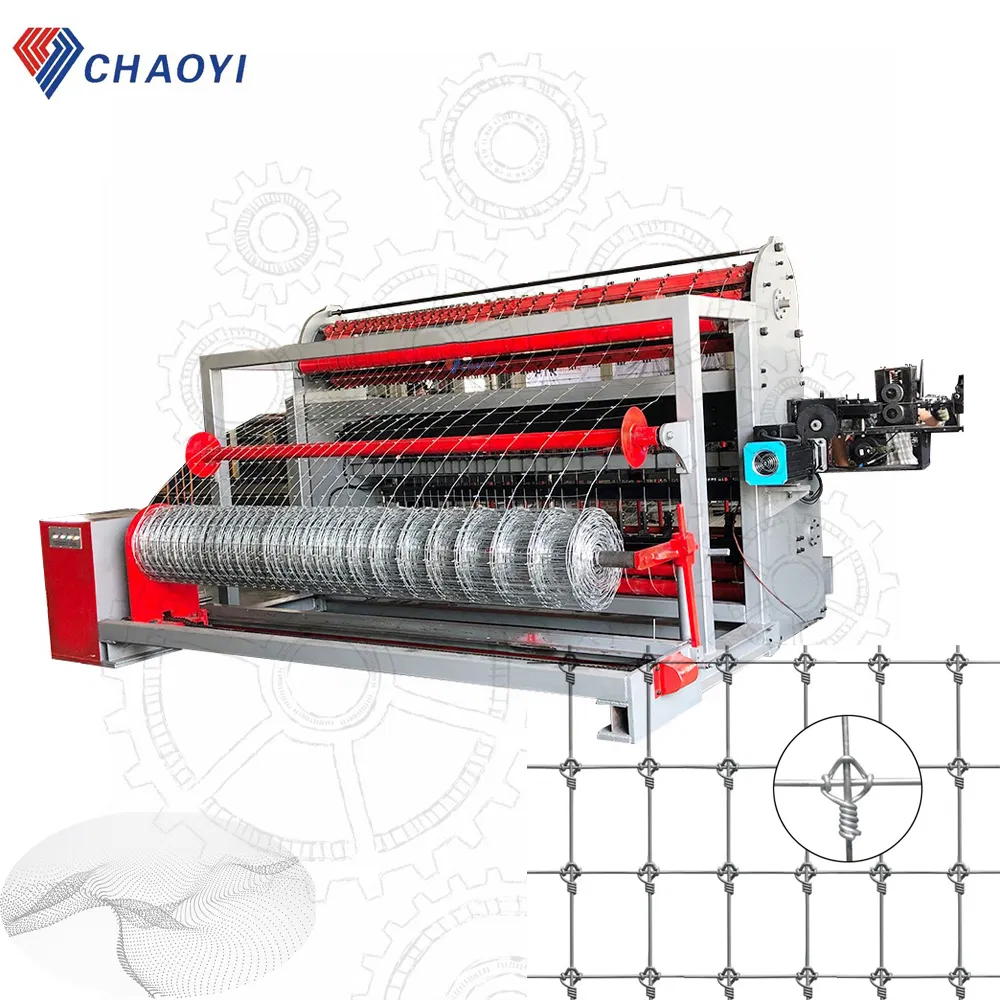

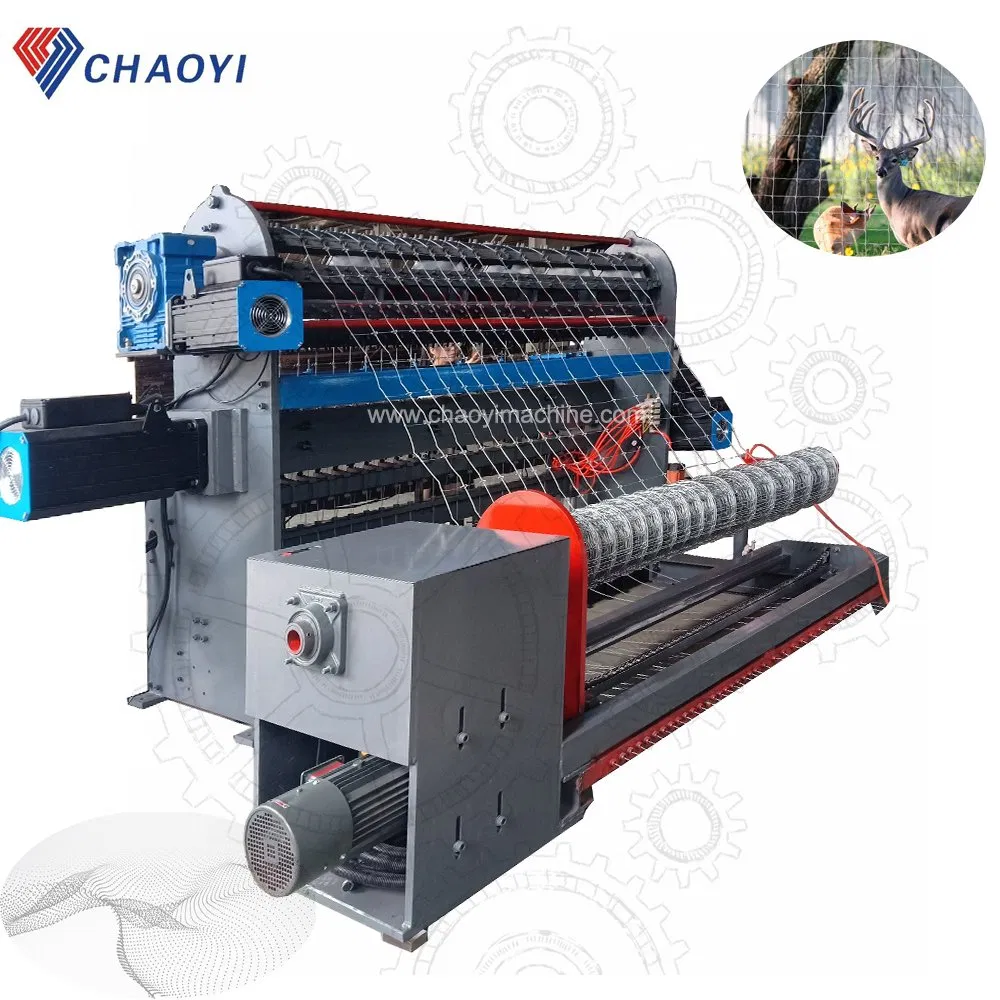

New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine
New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine
New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine
New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine
New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine
1 / 5
New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine
New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine
New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine
New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine
New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine

New Style PLC Control Steel Wire Drawing Machine Fixed Knot Wire Mesh Knitting Fence Making Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO. LW3 18-2080
Voltage 380V
Style Vertical
Warranty 1 Year
Machine Type Weaving Fence Making Machine
Certification ISO9001:2008
Control System Servo Motor, PLC
Edge Wire Size 2.5mm-3.0mm
Line Wire Tensile Range 850-1350n/mm2
Max Length of Roll 100m/Roll
No.Strokes Per Minute 25row/Min
Package Size 1700.00cm * 1800.00cm * 2000.00cm
Product Description

New style PLC Control Fixed Knot Wire Mesh Knitting Fence Making Machine

Fence Making Machine
Fixed Knot field Fence Machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. It uses sophisticated computer control and advanced production technology with a high degree of automation, operational safety, and reliability.
Model Parameters 18-2080 20-2438
Maximum Fence width 2080mm(82") 2438mm(96")
Maximum number of Line Wires 18 20
Line Wire Spacing Min. 76mm (3''). It can be increased by a multiple of 25mm (1'')
Control system servo motor, PLC servo motor, PLC
Total Machine weight 8T 10T
  • Solid steel plate and gear boxes ensure levels of vibration are kept to a minimum in operation.
  • Precision running gear in all critical areas maintains reliability and quiet operation.
  • Comprehensive level of sensing equipment in the tie feed and through-process sensors to pick up faults.
  • Auto Wire-Stripping-Table releases finished rolls for easy removal.
  • Automated Crimp Drum and Dual Stay Wire feed allows for rapid changeovers.
Product Detail

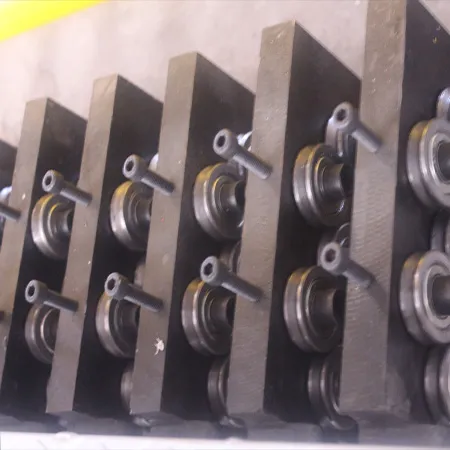

Automatic feeding
Automatic feeding tie wire system

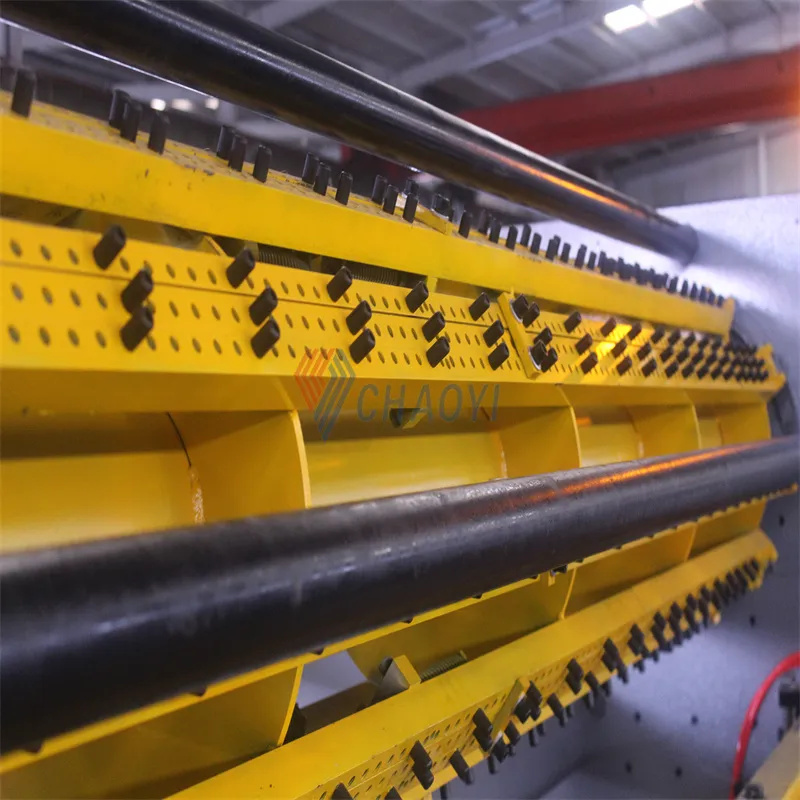

Advanced bending fence parts
Bending part

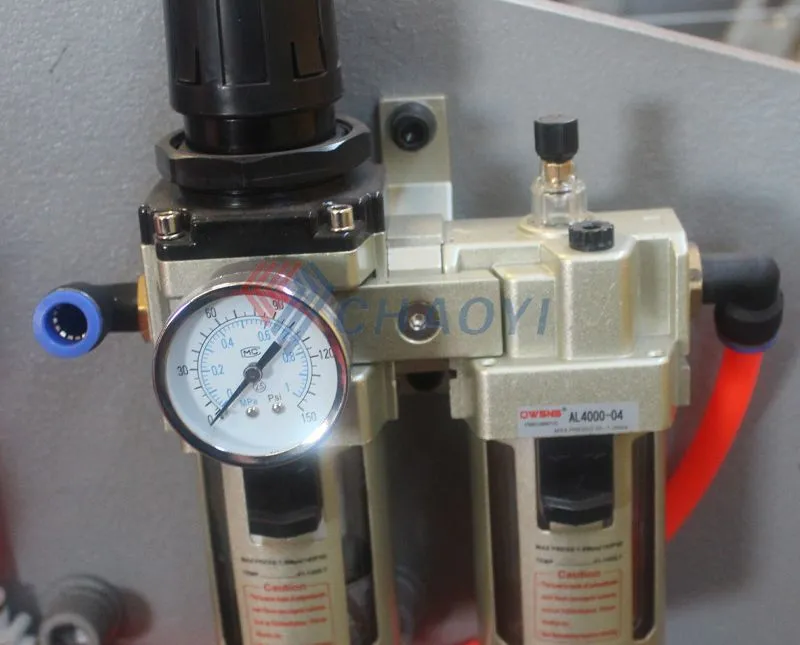

Cylinder
High-precision Cylinder components

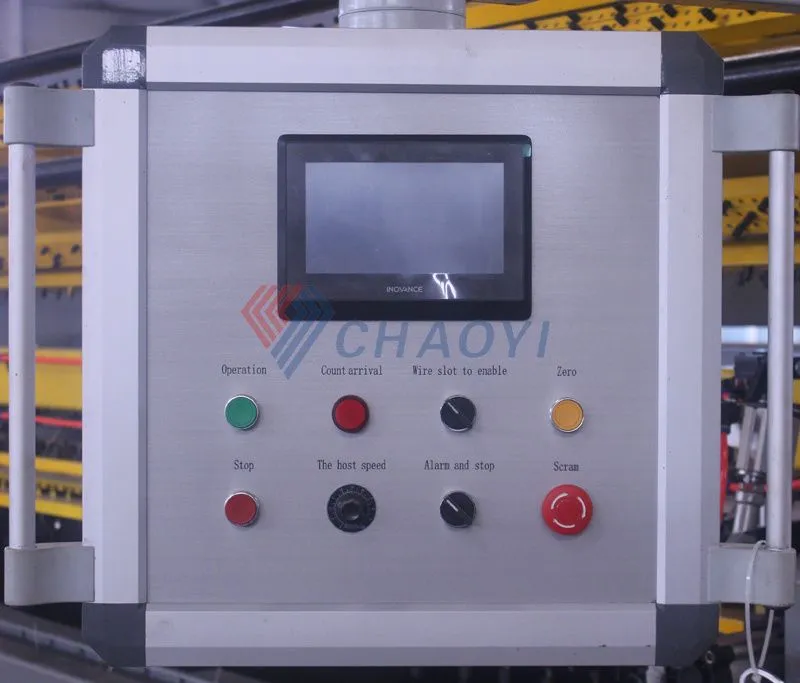

Intuitive PLC CONTROL System
PLC Control
Application

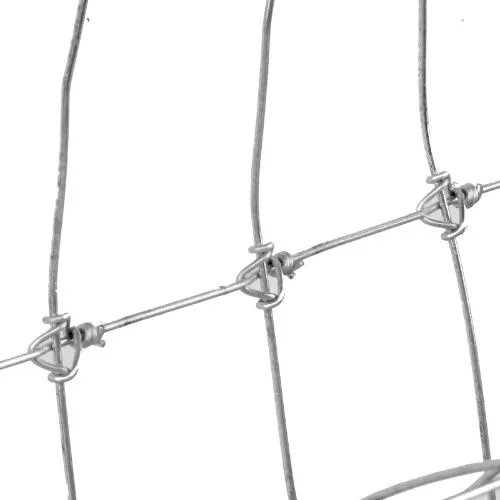

Application 1
Application 2

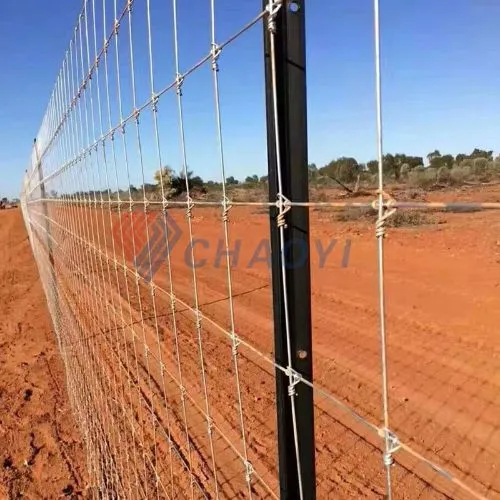

Application 3
Application 4
Application 5
Application 6

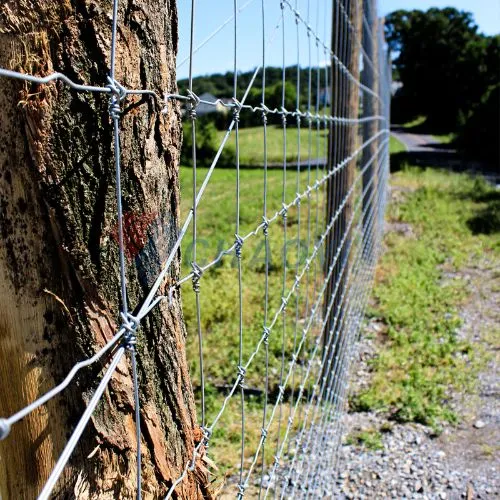

  • Agricultural fencing: Used for cattle, sheep, deer, and horses.
  • Road protection: Roadside protection for provincial and rural areas.
  • Environmental isolation: Protection of wildlife in natural conservation areas.

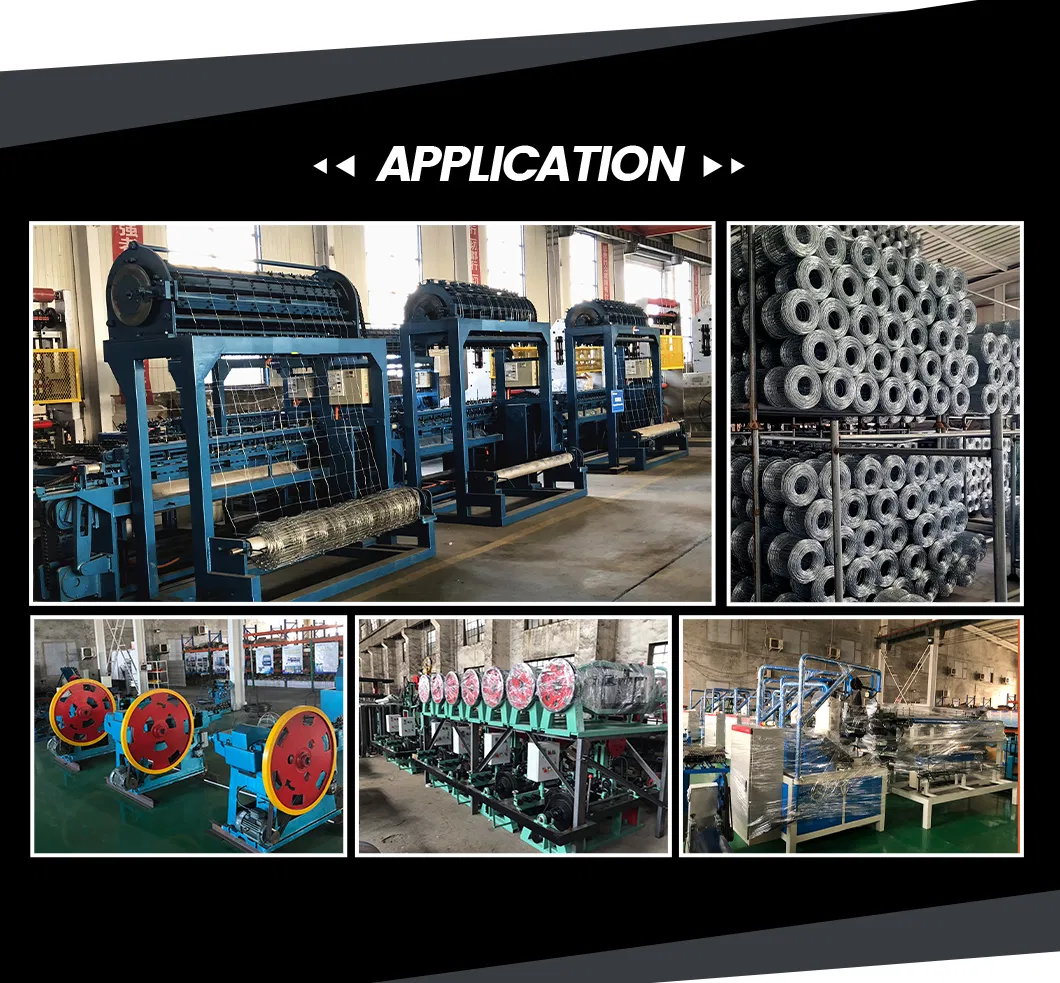

Factory Display & Certifications

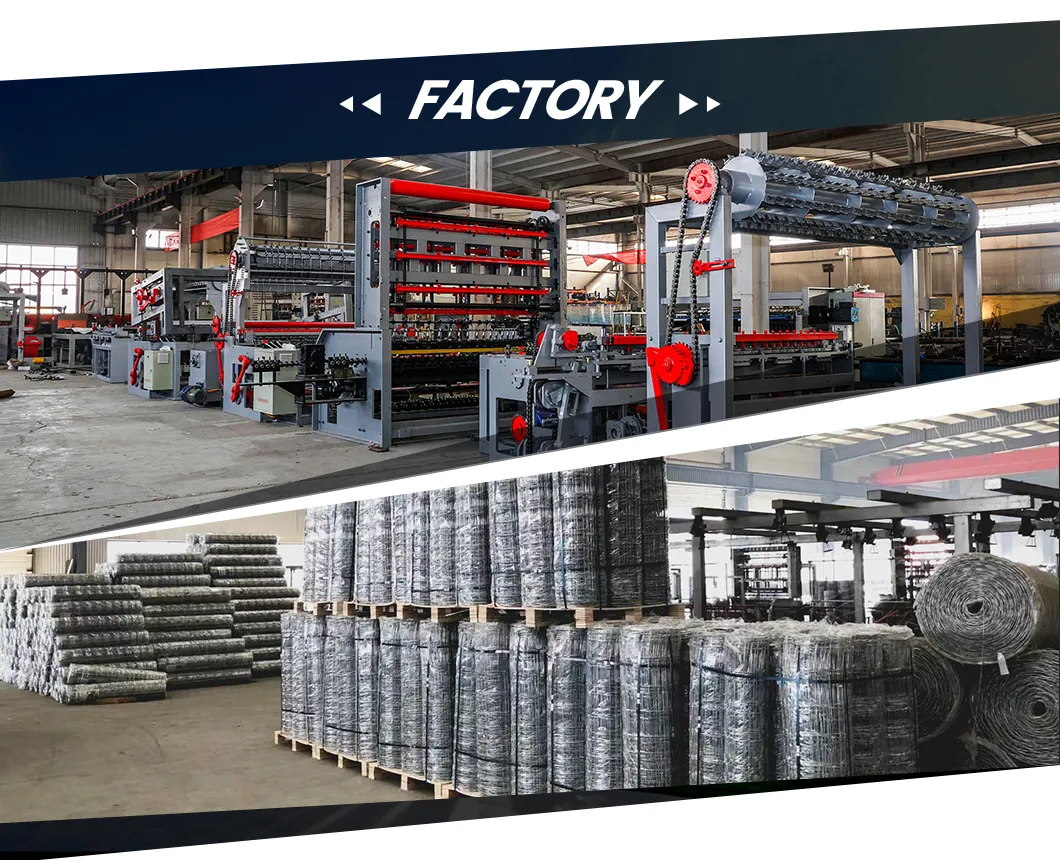

Factory 1

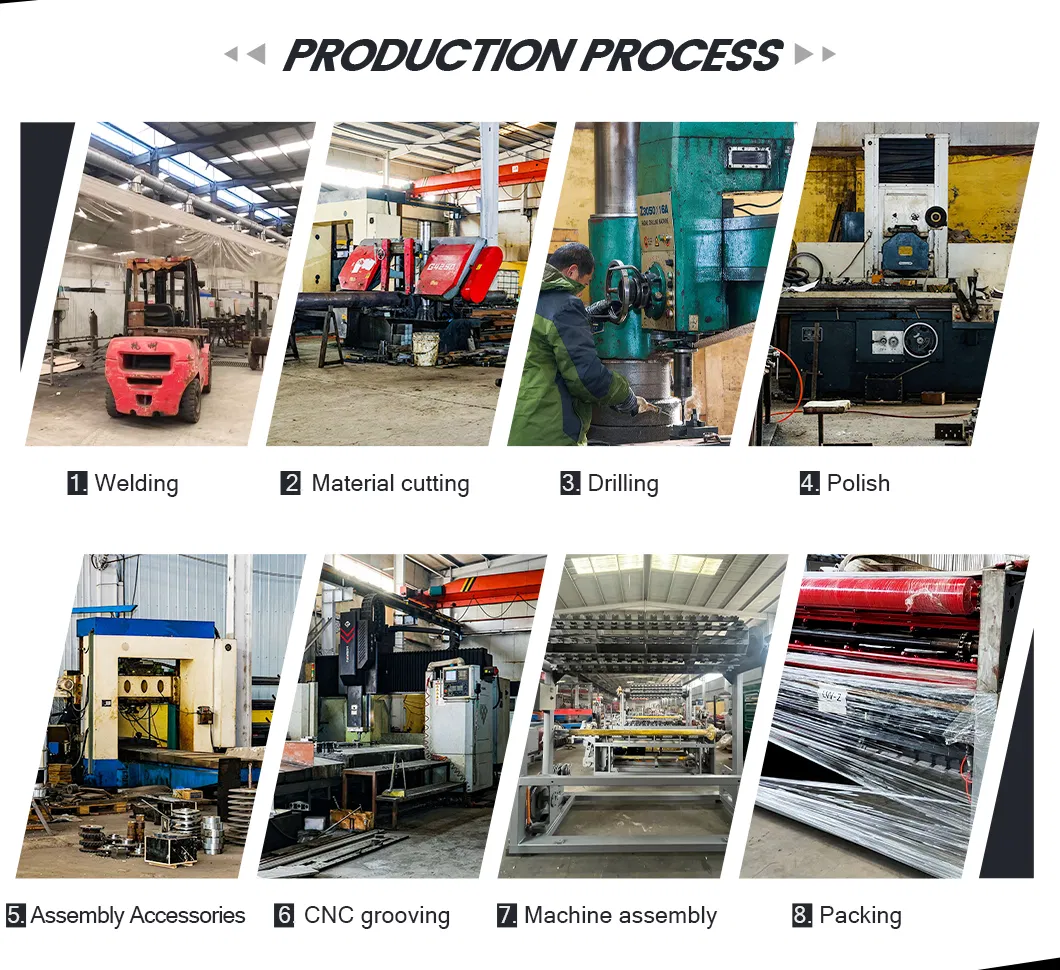

Factory 2
Factory 3
Cert 1
Cert 2
Packaging & Shipping
Packaging
FAQ
Where is your factory located?
Our factory is located in an industrial zone specializing in wire mesh machinery. We provide pickup services from the nearest major airports for visiting clients.
How many years of experience do you have with Fence Machines?
We have more than 25 years of experience, with dedicated technology development and testing departments.
Do you provide international installation and training services?
Yes, our experienced engineers have worked in over 100 countries to assist with machine installation and worker training.
What is the guarantee period for the Fence Machine?
The guarantee time is 2 years starting from the date the machine is installed at your facility.
Can you provide the necessary customs clearance documents?
Yes, we provide full support for exporting, including CE certificates, Form E, SGS reports, and other required documentation.
How are faults handled during operation?
The machine is equipped with a comprehensive level of sensing equipment that automatically identifies faults or missing wire, allowing for safe operation with minimal supervision.
