Our products include: integrated circuit chips, electronic connectors, capacitors, resistors, diodes, transistors, modules, microcontrollers (MCUs), and field-programmable gate arrays (FPGAs). As a long-term distributor for leading international brands such as ST, TI, NXP, Toshiba, Microchip, and Infineon, we provide customers with one-stop component supply solutions.

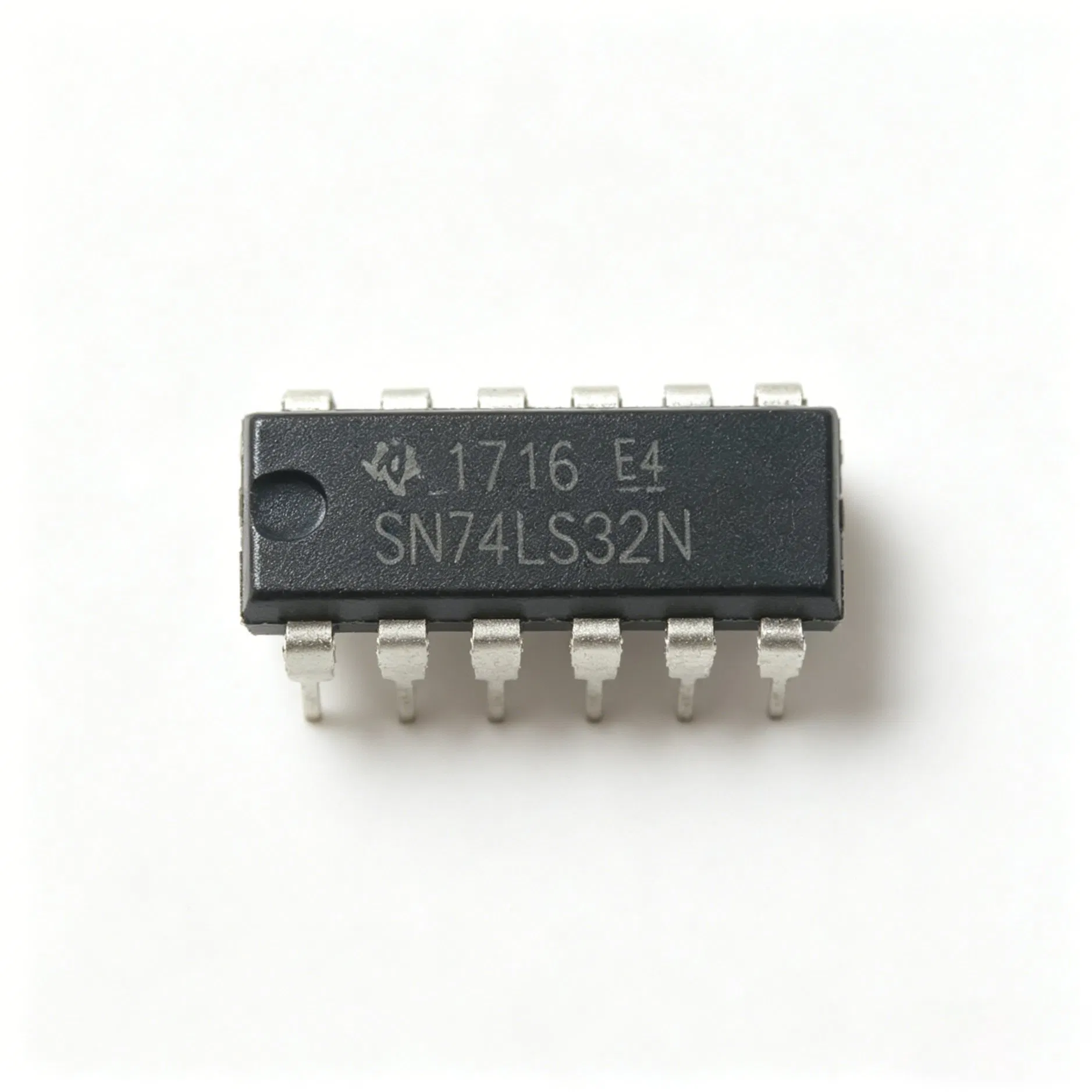

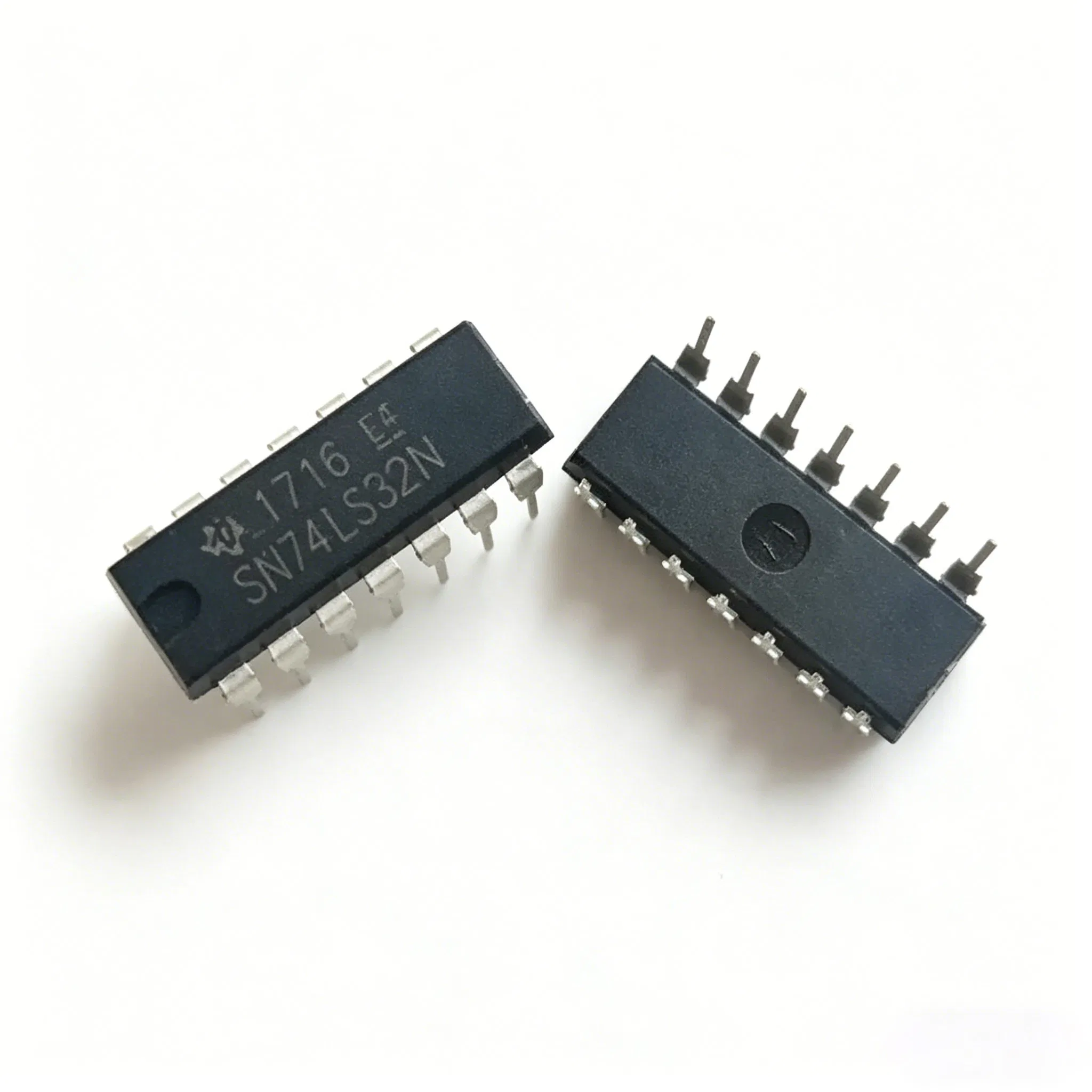

SN74LS32N Overview: The SN74LS32N is a classic digital logic integrated circuit from the 74LS (Low-power Schottky) family. It contains four independent 2-input positive-OR gates within a single 14-pin DIP package. This device performs the Boolean function Y=A+B in positive logic.

Designed for high-speed operation with low power consumption, the SN74LS32N utilizes Schottky barrier diodes to prevent transistor saturation, resulting in faster switching times compared to standard TTL. It operates at a nominal supply voltage of 5V and features a typical propagation delay of 9.5 ns.

Key Applications:

• Digital Logic Circuits: Implementing Boolean functions in educational and industrial projects.
• Signal Combination: Merging multiple signal lines into a single active-high output.
• Control Systems: Logic decision-making in microcontroller peripheral circuits.
• Data Processing: Used in arithmetic logic units (ALUs) and data routing.
• Industrial Automation: Simple logic control for relays and sensors.
