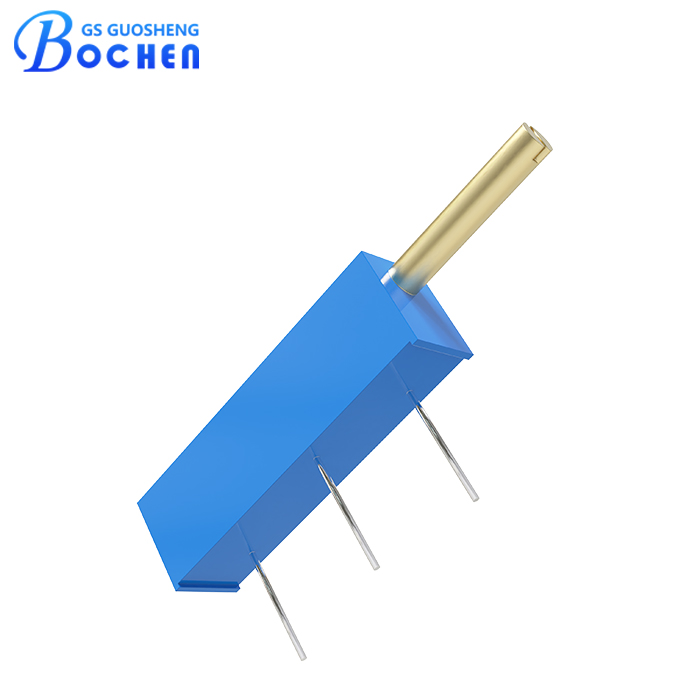

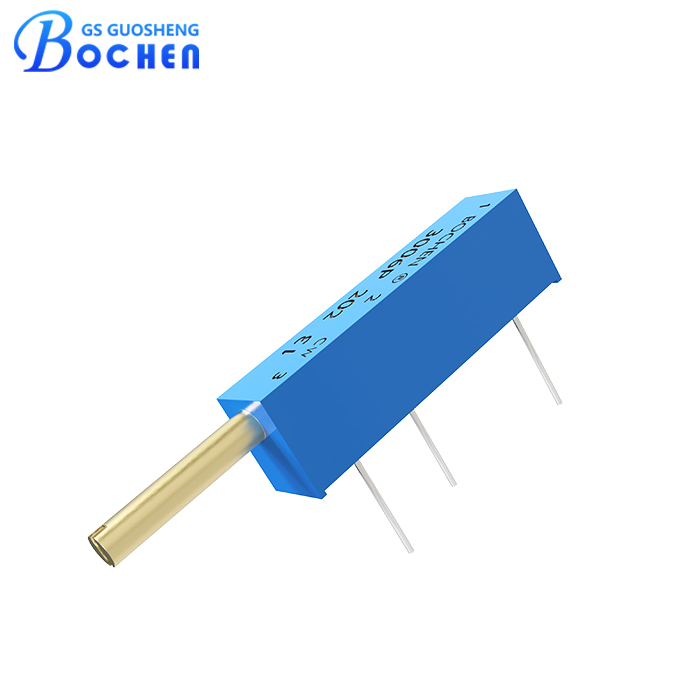

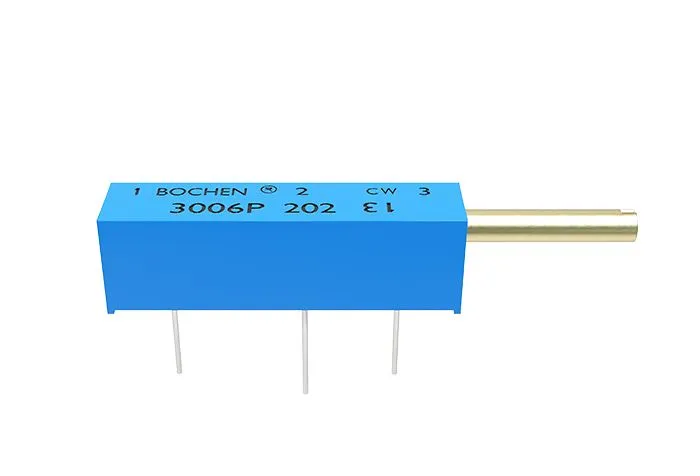

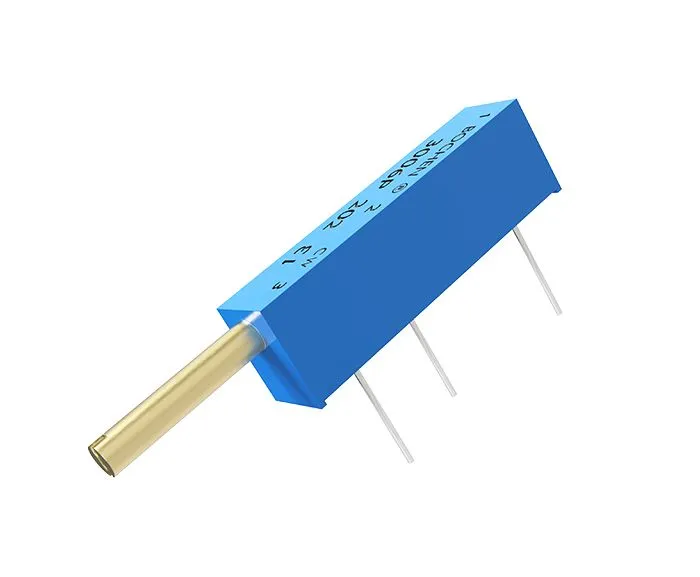

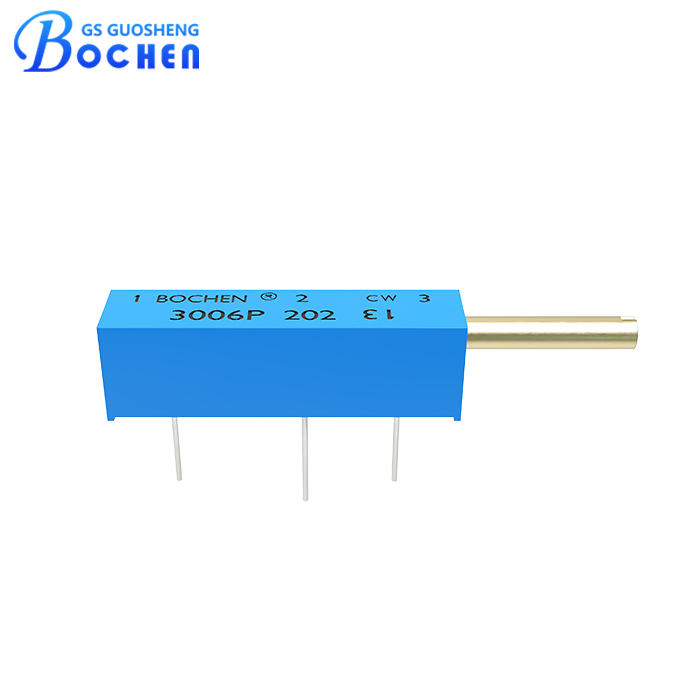

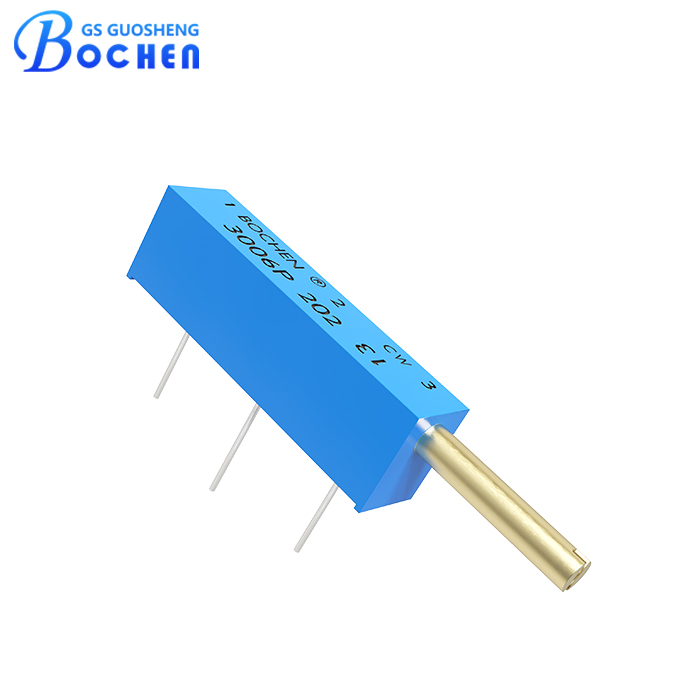

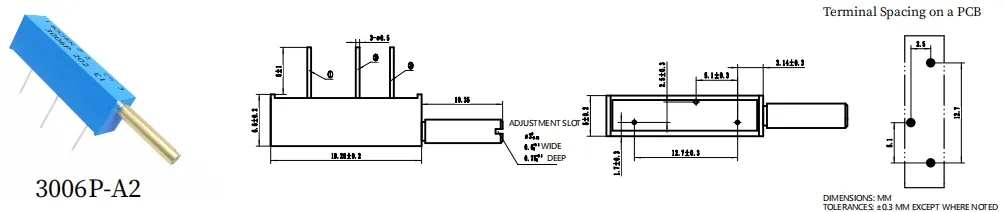

Multiturn Rectangular Cermet Trimpot 3006P 104 502 Potentiometer With 10mm Shaft
The 3006 series cermet trimming potentiometers offer a 0.75W power rating, 200 cycles of rotational life, and a resistance range of 10Ω to 5MΩ. These potentiometers feature a low PC board profile of only 1/4" high and include a panel-mount option, ensuring greater application flexibility. Transparent housing is also available so that the 3006 series can be set visually without hook-up and instrumentation.
The 3006 series is made of multi-turn potentiometers that have 20(±2) turns, sealed construction, and are suitable for industrial environments. The 3006 series cermet trimming Potentiometers have an operating temperature range of -55°C to +125°C, 500VDC insulation resistance, and ±250, ±100 ppm/°C temperature coefficient.
| Category | Parameter | Detail |
|---|---|---|
| Electrical Characteristics | Nominal Resistance Range | 10Ω~5MΩ |
| Resistance Tolerance | ±10% | |
| Contact Resistance Variation (CRV) | ≤3%R or 3Ω | |
| Insulation Resistance | 500 Vdc. R1≥1GΩ | |
| Withstand Voltage | 101.3KPa, 500 Vac; 8.5KPa, 250 Vac | |
| Electrical Travel | 20±2 Turns | |
| Environment Characteristics | Rated Power | 70ºC, 0.75W; 125ºC, 0W |
| Temperature Range | -55°C ~ + 125°C | |
| Temperature Coefficient | ±250, ±100 ppm /°C | |
| Electrical Endurance | 1000 hours @ 70ºC; ΔR≤±3%R | |
| Rotational Life | 200 Cycles, ΔR≤±3%R | |
| Physical Characteristics | Total Mechanical Travel | 22±2 Turns |
| Starting Torque | ≤25 mN.m |
Packaging specification: 1. 25 pieces/tube, 4000 pieces/carton. 2. Customization package is available.
