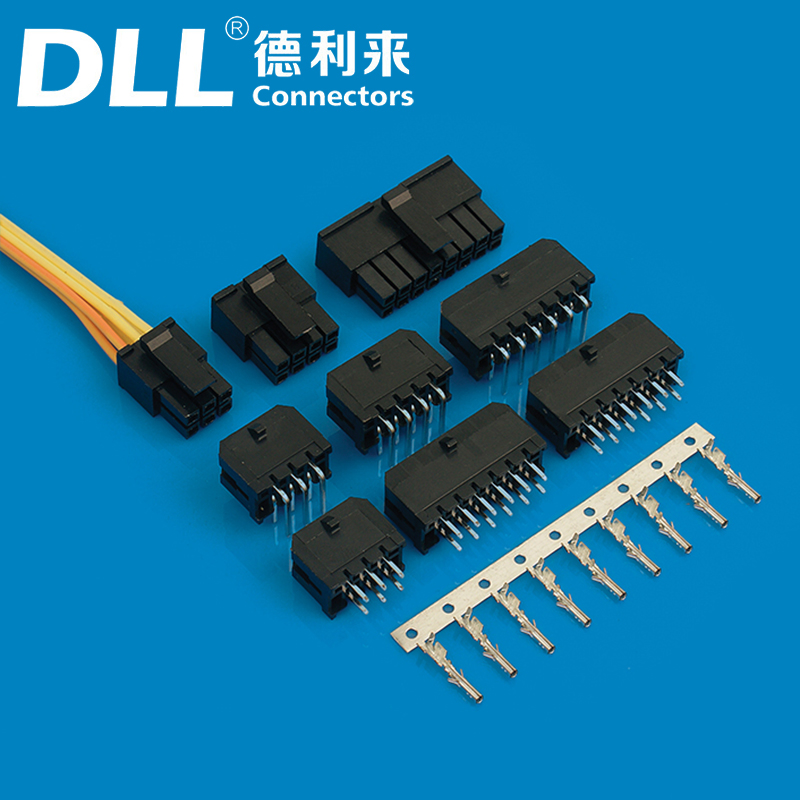

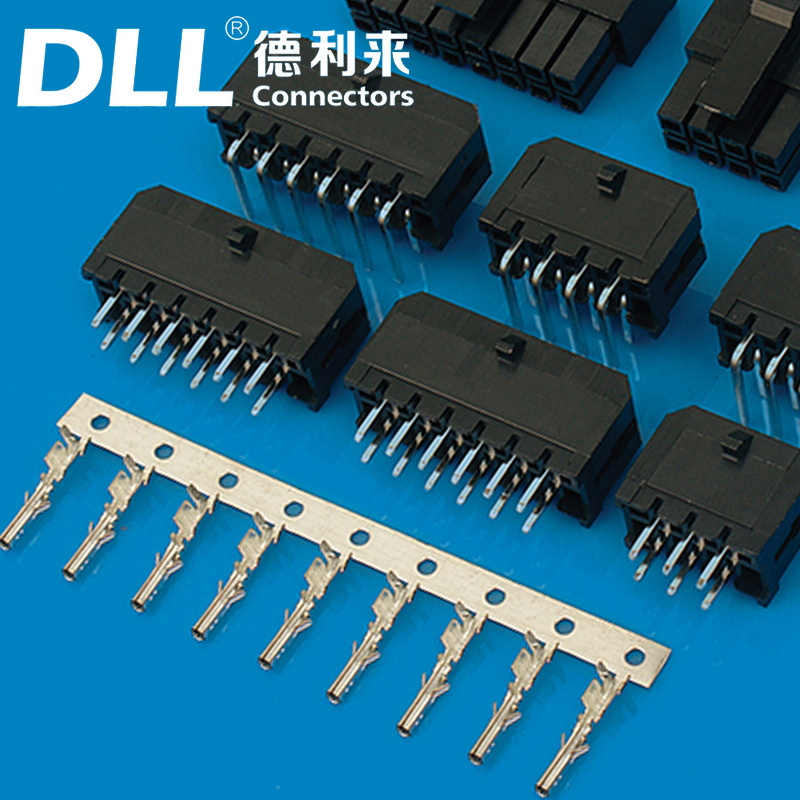

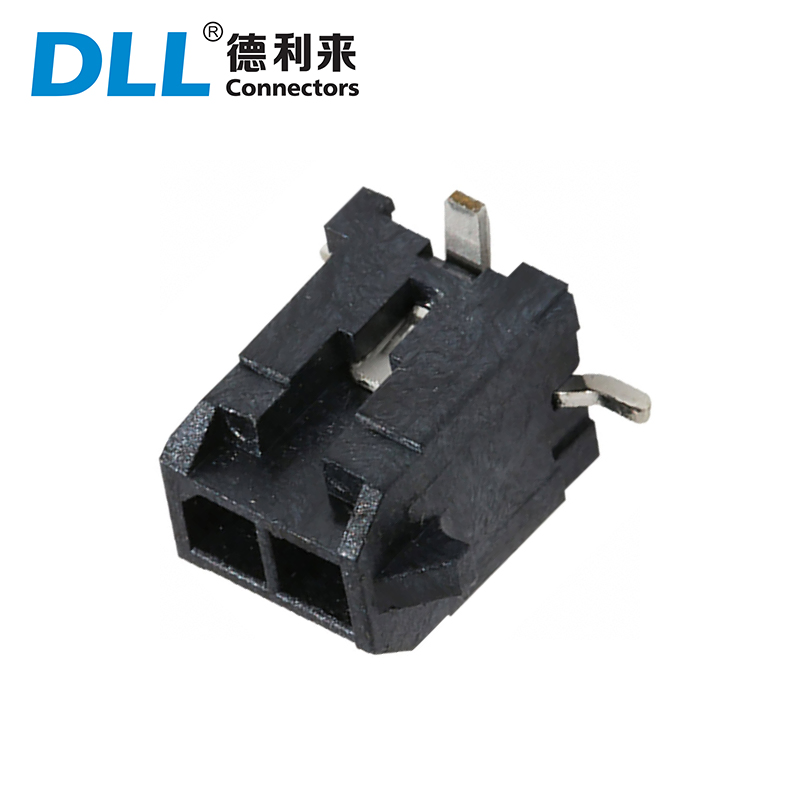

| Model NO. | Molex 43045-0220 |
| Certification | RoHS |
| Terminal Material | Phosphor Bronze with Tin Plating |
| Interface Type | BNC |
| Operating Frequency | Low Frequency |
| Housing | Nylon |
| Classification | Wired Broadband Connection |
| Support Card Number | ISO9001, ISO14001, UL, RoHS, Reach, SGS |
| Material | Nylon, Phosphor Bronze, Tin Plated |
| Rated Current | 5A AC, DC |
| Insulation Resistance | 1000 MΩ Min |
| Ambient Temperature | -25℃~+85℃ |
| Withstand Voltage | 1500V AC/Minute |
| Specification | 3.0mm Pitch |
| Package Size | 20.00cm * 10.00cm * 10.00cm |
| Package Gross Weight | 2.000kg |
| Transport Package | Polybag/Tape/Plastic, Then Carton |
| Connector Type | Molex, JST, TE, Yeonho, AMP, KET, HRS, KSS etc original or equivalent |
| Housing Pitch | 1.0, 2.0, 2.54, 3.0, 3.96, 6.35mm or under request |
| Application | Automotive/Electronic wire harness |
| Cable preparation | Trimmings, Stripping, Tin coating, Shielding, Twisting |
| Engineering service | OEM and ODM service, 2D drawing |
| Quality Control | 100% inspected before dispatching |
| Delivery Time | 10-15 days, base on projects details |

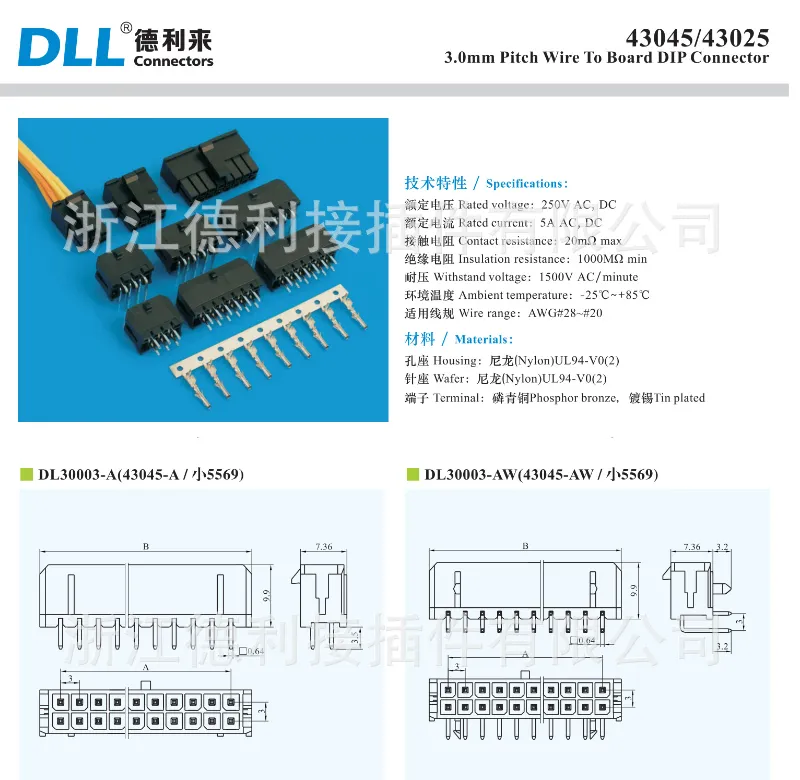

| Rated Voltage | 250V AC, DC |
| Rated Current | 5A AC, DC |
| Contact Resistance | 20MΩ max |
| Insulation Resistance | 1000MΩ min |
| Withstand Voltage | 1500V AC/minute |
| Temperature Range | -25~+85℃ |
| Receptacle Housing | (Nylon)UL94-V0(2) |
| Plug Housing | (Nylon)UL94-V0(2) |
| Terminal | Phosphor Bronze, Tin Plated (43020 43025) |
