| Model NO. | XHMS-5Y |
| Support Card Number | Single Cassette |
| Material | PA / PBT |
| Gender | Female |
| Certification | CE, ISO9001, RoHS Reach, CQC, PAHs, Tsca, Paes |
| Application | Home Appliances |
| Poles | 2-16p |
| Pin | Phosphor Bronze |
| Housing | Nylon |
| Classification | Wired Broadband Connection |
| Market | Asia, America, Europe, MID-East, Africa |
| Services | ODM/OEM |
| Color | White/Beige |
| Sample | Free |
| Terms of Trade | EXW, FOB, CIF, CPT |
| Main Products | Connector, Terminal, PCB Connector |
| Delivery Time | Stock Goods Within 1 Day, Customized 7 Days |

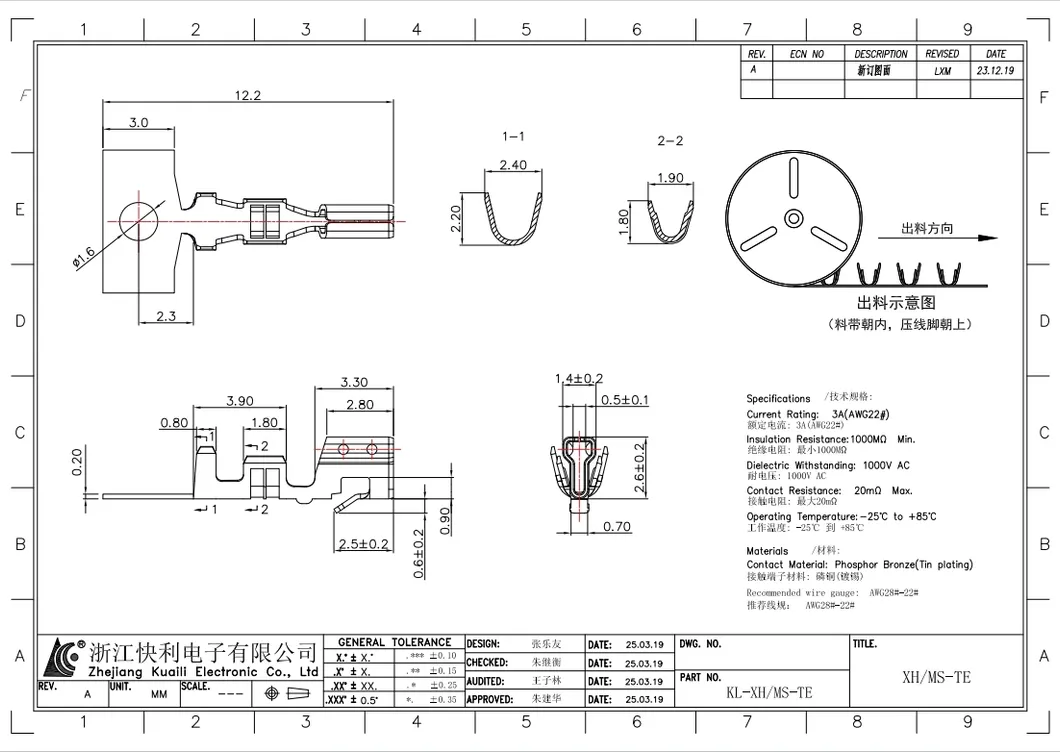

| Terminal Material | Phosphor Bronze with Tin Plating |
| Origin | Zhejiang, China |
| HS Code | 8736909000 |
| Production Capacity | 50,000,000/Month |
| Package Size | 22.00cm * 18.00cm * 8.00cm |
| Package Gross Weight | 1.000kg |
| Transport Package | Box |
| Product Category | PCB |
| Pitch (mm) | 2.5 |
| Pin | 2-16P |
| Current Rating | 3A |
| Voltage Rating | 250V AC, DC |
| Withstanding Voltage | 1000V AC 1 Min |
| Contact Resistance | 20mΩ Max |
| Operating Temperature | -25°C ~ 85°C |
| Pin Material | Phosphor Bronze (Tin/Nickel Plating) |
| Housing Material | PA or PBT UL94V-0 Black |

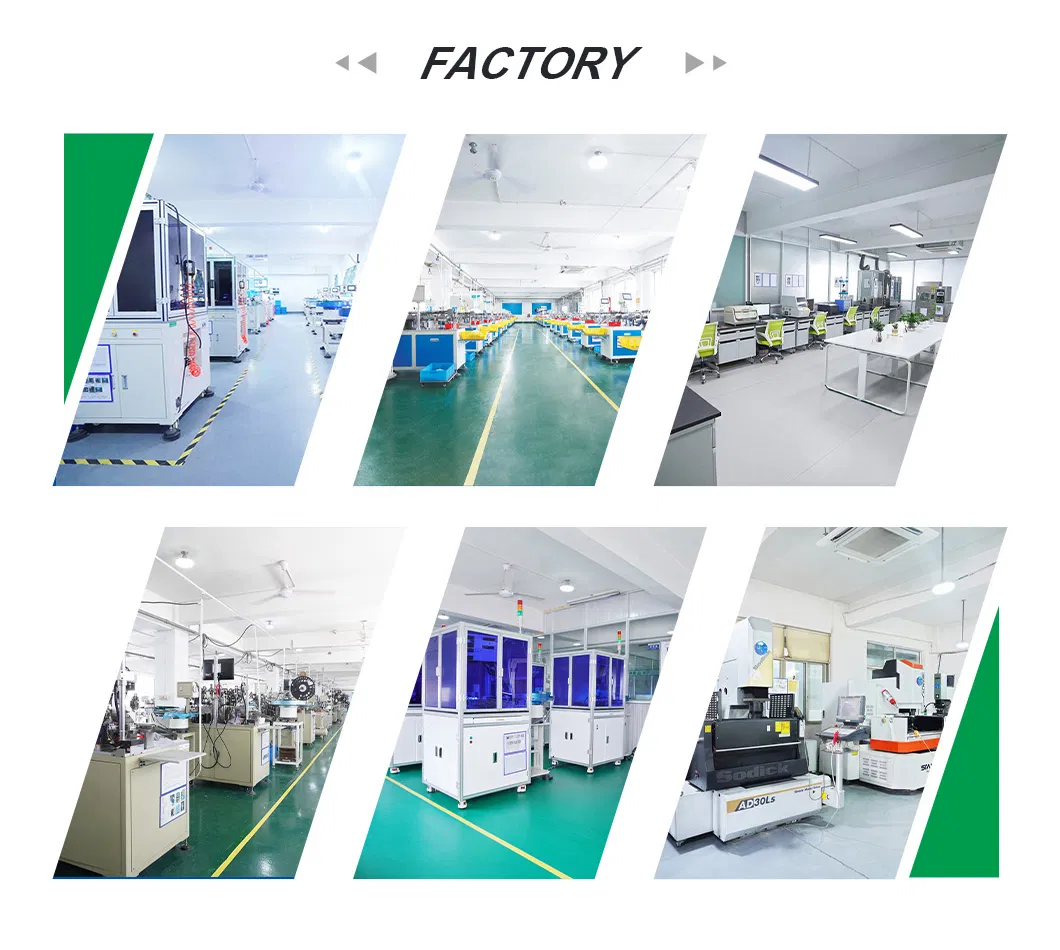

| Equipment Name | QTY | Origin |
|---|---|---|
| Injection Molding Machine | 64 | China |
| High-speed Stamping Press Machine | 37 | Taiwan & Japan |
| Automated Press-Fit Production Line | 103 | China |
| SMT Patch Packing Inspection Machine | 128 | China |
| Automated Tape-and-Reel Packaging | 20 | China |
| Fully Automatic Optical Counting Packing machine | 1 | China |
| Y-axis Inspection Machine | 8 | Germany |
| Sodick EDM Machine | 3 | China |
| Sodick Wire EDM Machine | 3 | China |
