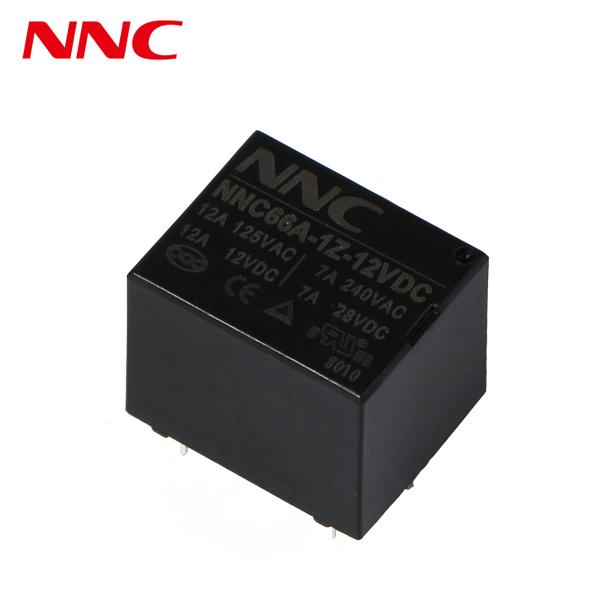

Miniature Relay NNC66A 4 or 5 Pins spdt PCB relay

1 / 5

Miniature Relay NNC66A 4 or 5 Pins spdt PCB relay

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

PCB relay

Phase

coil voltage

Electricity Type

AC/DC

Number of Pole

Load

Low Load

Protective Characteristics

Sealed Relay

Action Principle

Electromagnetic Type

Size

Miniature

Type

Electric Parameter Relay

Max.Switching Voltage

277VAC/30VDC

Contact Rating

7A, 10A, 15A, 30A, 40A

Contact Material

AG Alloy(Agsno2; Agcdo)

Certificate

CE; UL; RoHS; TUV; CCC; CQC

Contact Form

1z(Spdt); 1h(Spst-No); 1d(Spst-Nc)

Transport Package

Carton

Specification

32.5(50.2)mm*27.5mm*28.2mm

Origin

China

HS Code

8536490000

Production Capacity

500,000 PCS/Week

Product Description

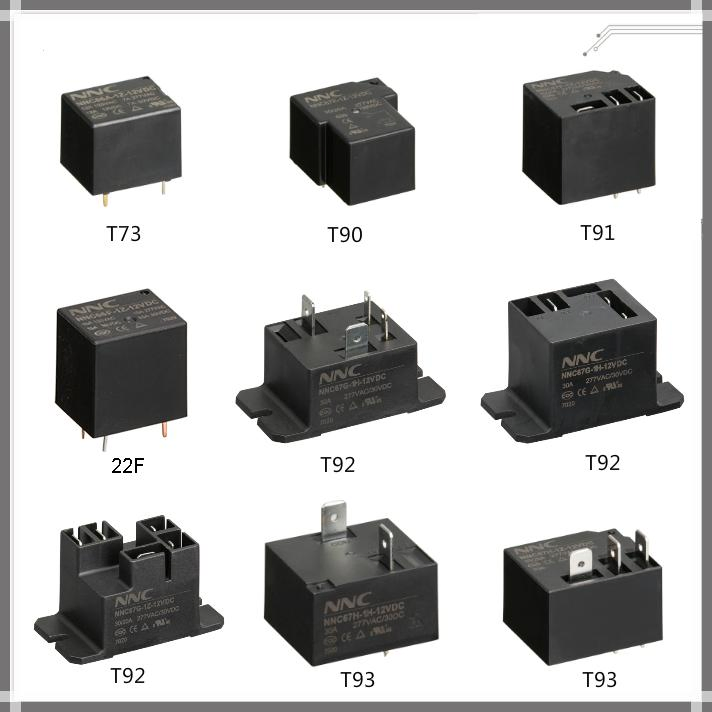

Model Variant	Product Image	Specifications Reference
NNC66A(T73)		Subminiature PCB Relay with 4 or 5 Pins
NNC66F(22F)		Used in Household Appliances

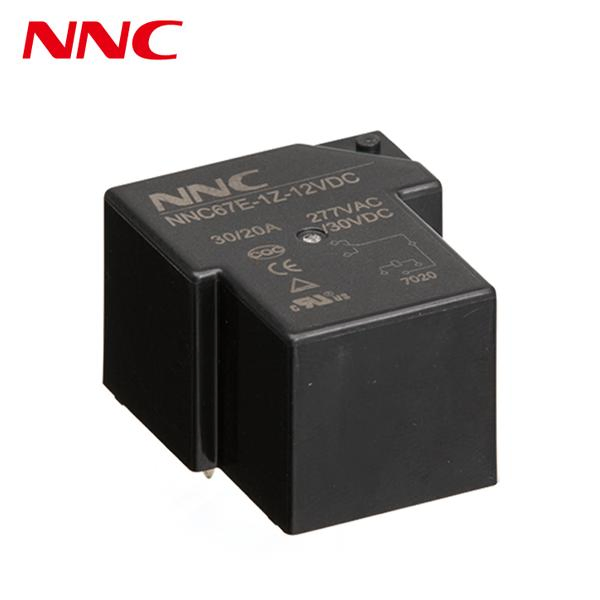

NNC67E(T90)		30A 40A Power Relay

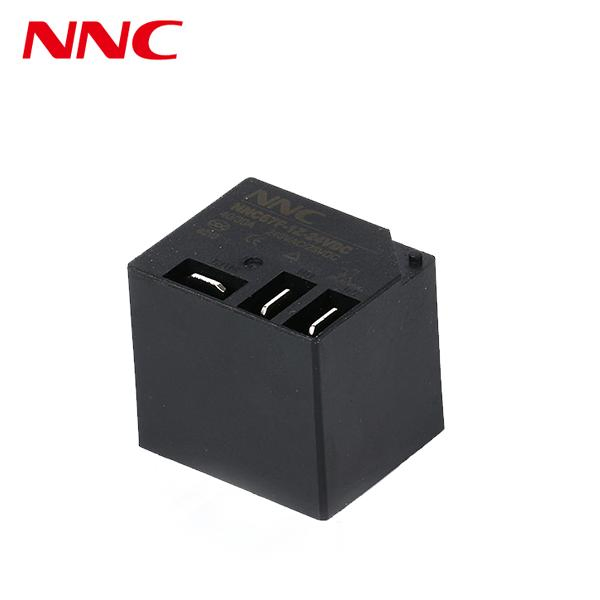

NNC67F(T91)		For Air Conditioning Panels

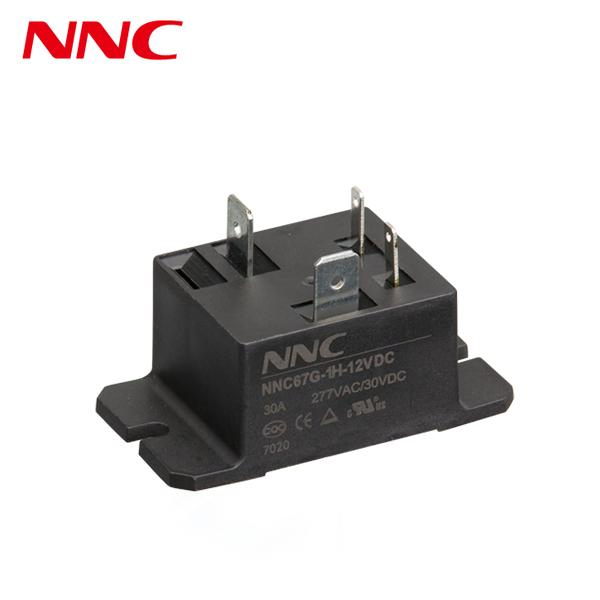

NNC67G(T92)		For Welding Machines & Car Charging Piles

Frequently Asked Questions

What are the primary applications for these PCB relays?

These electromagnetic miniature PCB relays are widely used in household appliances, air conditioning panels, welding machines, and car charging piles.

What contact ratings are available for these models?

The relays support multiple contact ratings including 7A, 10A, 15A, 30A, and 40A to meet different power load requirements.

Which international safety certifications do these relays hold?

Our relays are fully certified with CE, UL, RoHS, TUV, CCC, and CQC standards, ensuring global compatibility and safety.

What are the available contact forms?

We offer 1z (SPDT), 1h (SPST-NO), and 1d (SPST-NC) contact forms to suit various circuit design needs.

Are these relays protected against harsh environments?

Yes, these are sealed relays, providing excellent protective characteristics for stable operation in various environments.

What is the maximum switching voltage?

The maximum switching voltage for these miniature relays is 277VAC or 30VDC.
