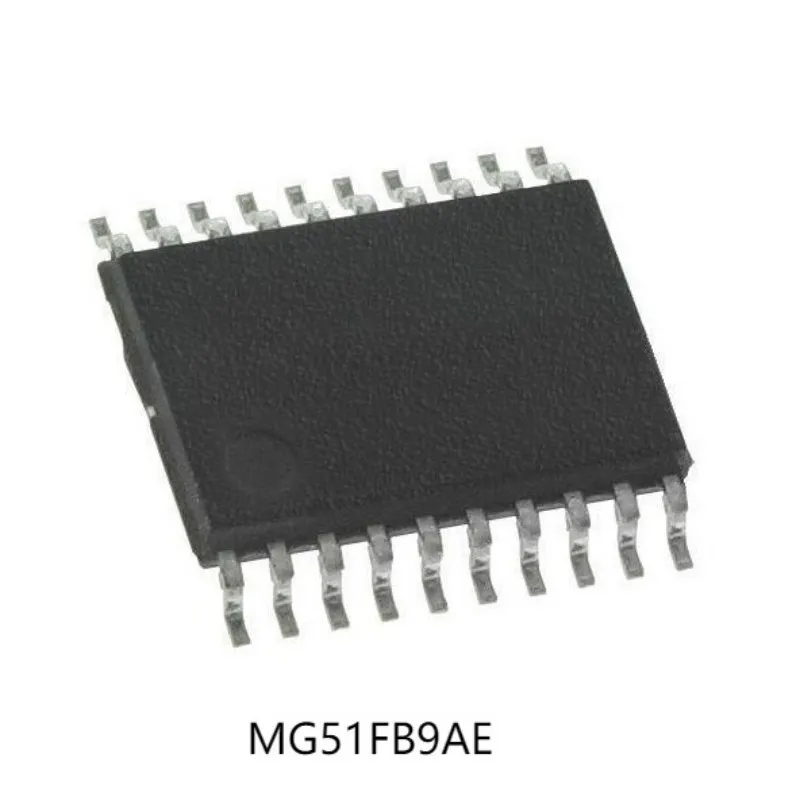

| Model NO. | MG51FB9AE |
| Operating Temp. | -55℃ - 125℃ |
| Shape | Flat / DIP |
| Technics | Semiconductor IC |
| Manufacturer | Nuvoton |
| D/C | 23+ |
| Package | Box / Standard |
| Package Size | 20.00cm * 20.00cm * 5.00cm |
The NuMicro MG51 series is an embedded Flash type 1T 8051-based microcontroller. The instruction set is fully compatible with the standard 80C51 and performance enhanced. It supports 16/24 MHz core speed and features up to 32 Kbytes Flash memory, 256 Bytes of RAM and 1 Kbyte of auxiliary RAM (XRAM), 4 Kbytes of Flash loader memory (LDROM), 2.4V to 5.5V operating voltage, and -40°C to 105°C operating temperature.
| Attribute | Details |
| Product Category | Audio Amplifiers / Microcontrollers |
| Switching Frequency | 380 kHz |
| Description/Function | 8-bit Microcontroller MCU 16KB Flash |
| Series | MG51 Series |
| Operating Voltage | 2.4V to 5.5V |
| Trademark | STMicroelectronics / Nuvoton |
We are a professional distributor specializing in Computer Hardware & Electronic Components globally. Our focus remains on transparency, quality, and traceability, maintaining high standards across the industry.
