Product Description

Basic Information
Model NO.
LMR16006XDDCR
Package
Sot-23-6 Thin, Tsot-23-6
Specification
DIP/SMD
Origin
Original
Capacity
5000
Package Size
1.00cm * 1.00cm * 1.00cm
Product Description

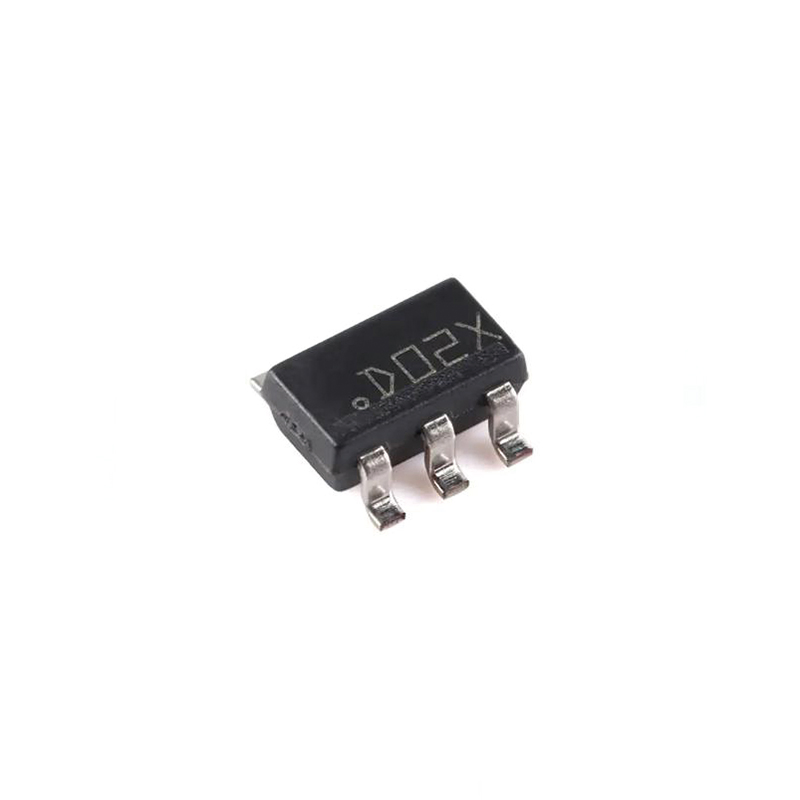

LMR16006XDDCR Integrated Circuits (ICs) PMIC - Voltage Regulators - DC DC Switching Regulators TSOT-23-6

Part StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4V
Voltage - Input (Max)60V
Voltage - Output (Min/Fixed)0.765V
Voltage - Output (Max)55V
Current - Output600mA
Frequency - Switching700kHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6 Thin, TSOT-23-6
Base Product NumberLMR16006
Visual Display
LMR16006XDDCR
Integrated Circuits Spec
Voltage Regulators
Switching Regulators
