Winwon Chips
Winwon Chips
Our LED diodes offer high intensity and excellent readability with wide viewing angles, ensuring outdoor applications remain legible even under direct sunlight. They provide extremely stable light output over long periods of time.
These lamps are manufactured with advanced optical-grade epoxy, offering superior high-temperature and moisture resistance. The encapsulation resin includes anti-UV materials to mitigate the effects of long-term exposure to sunlight.

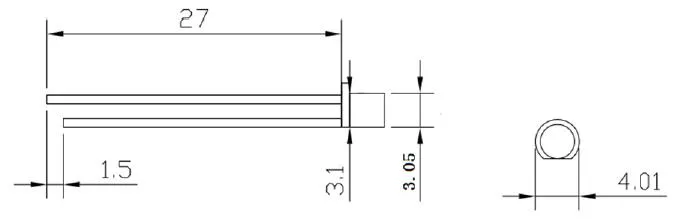

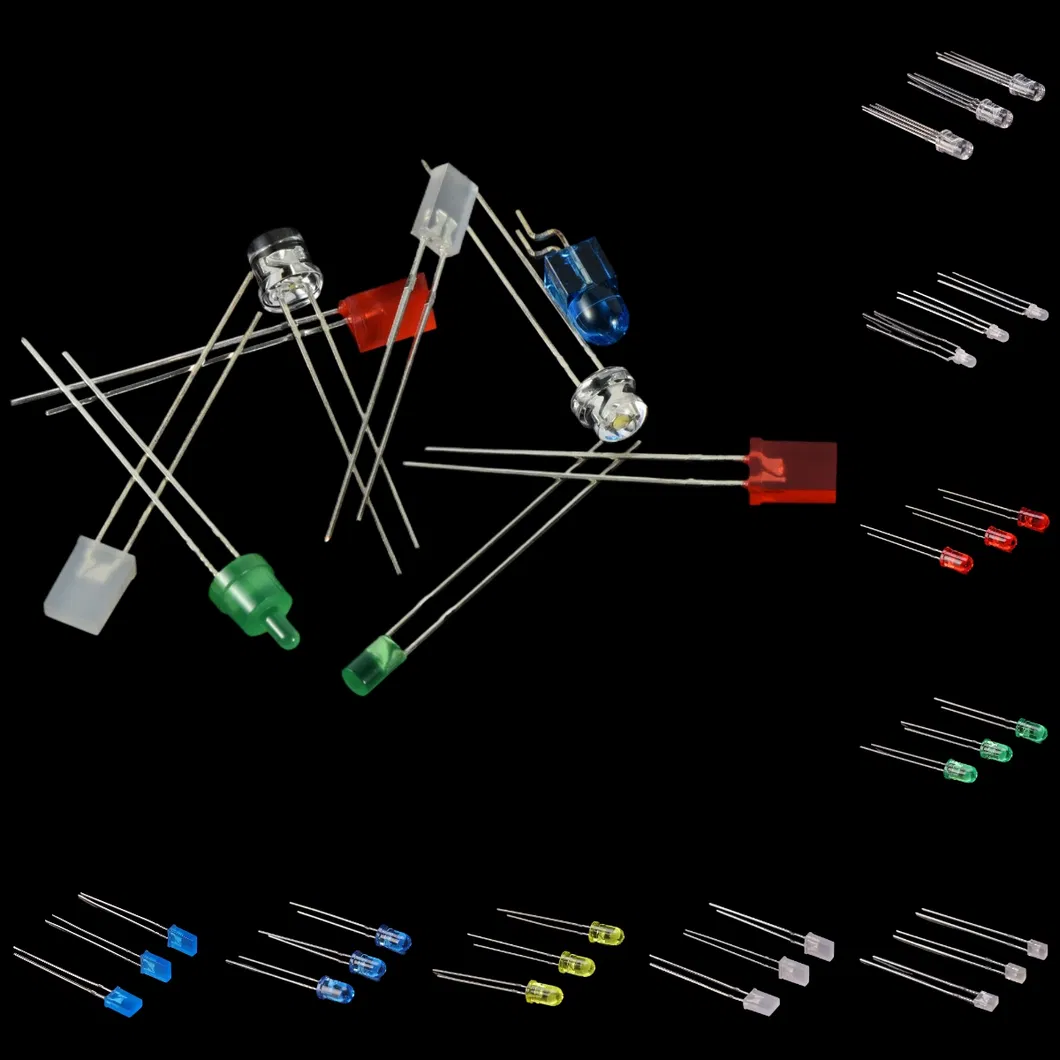

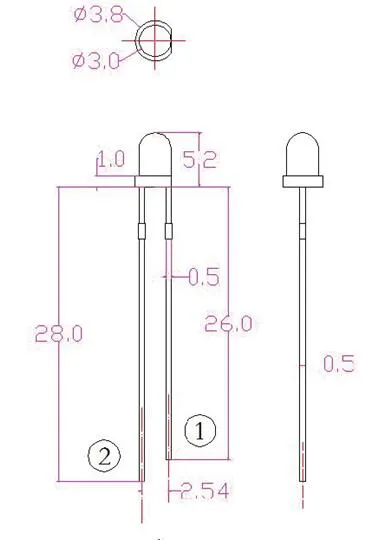

3mm Round & Flat Top

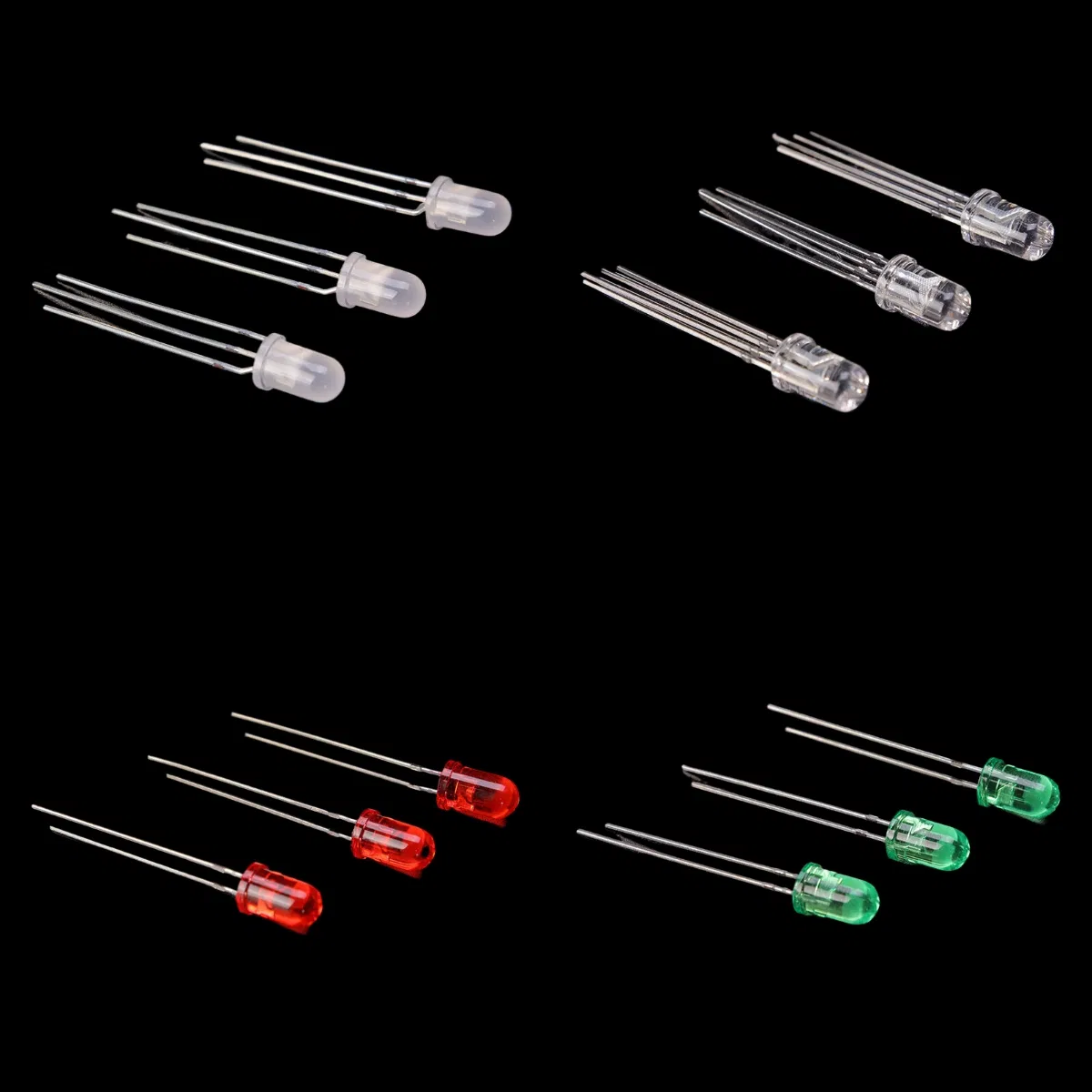

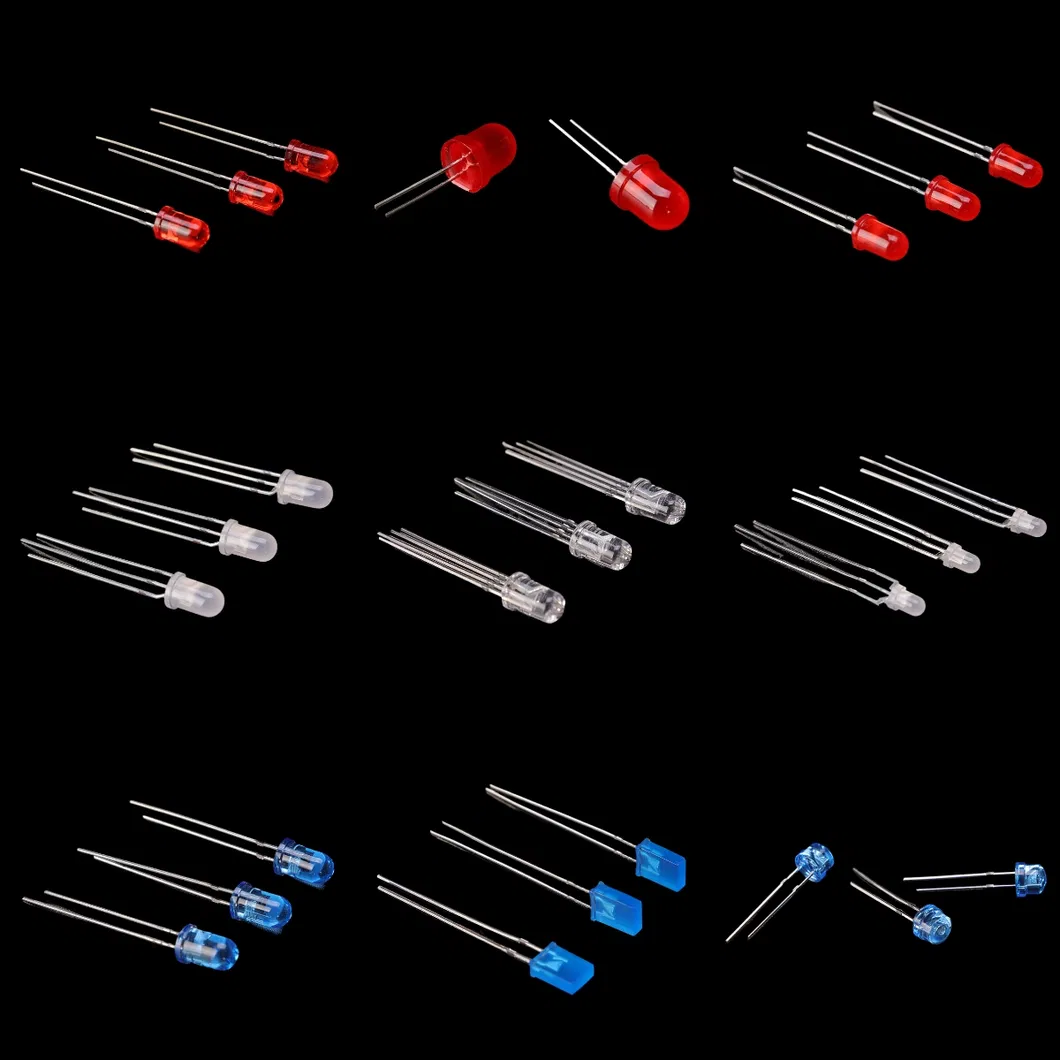

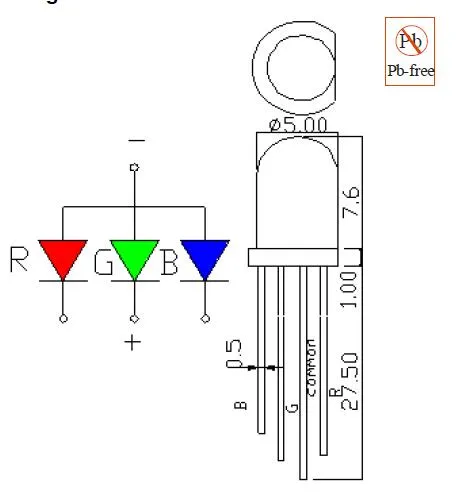

5mm Flat Top & Round RGB

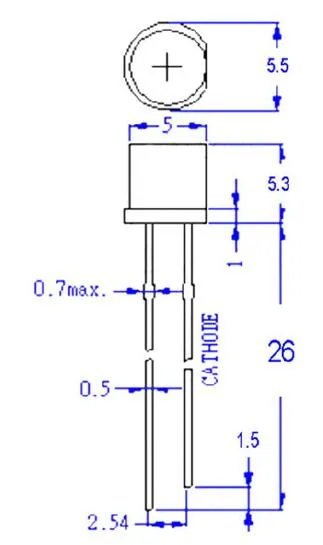

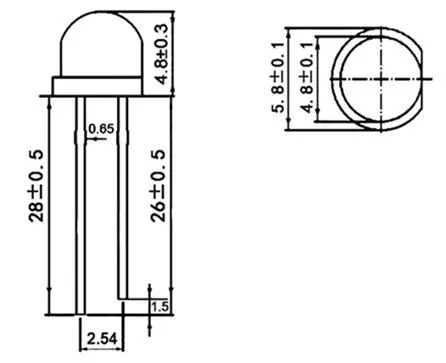

5mm Helmet Type| Material | Emitting Color | Wavelength (WLD nm) |
|---|---|---|
| AlGaInP | Ultra Red | 640 |
| AlGaInP | Orange-Red | 625 |
| AlGaInP | Ultra Orange | 605 |
| AlGaInP | Ultra Yellow | 595 |
| AlGaInP | Ultra Green | 573 |
| InGaN | Pure Green | 525 |
| InGaN | Ultra Blue | 470 |
| InGaN | Ultra White | - |

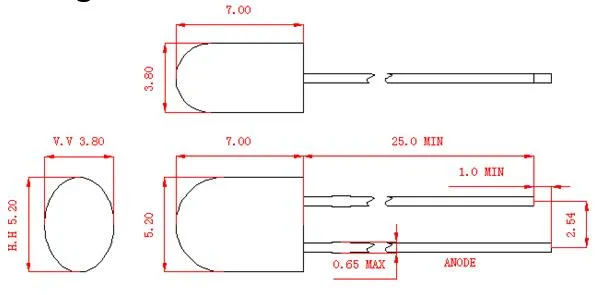

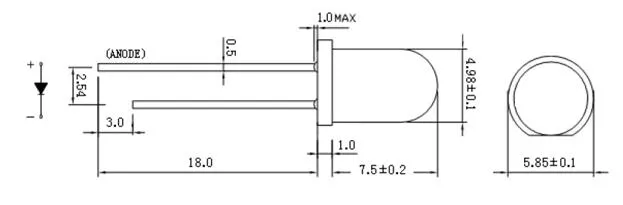

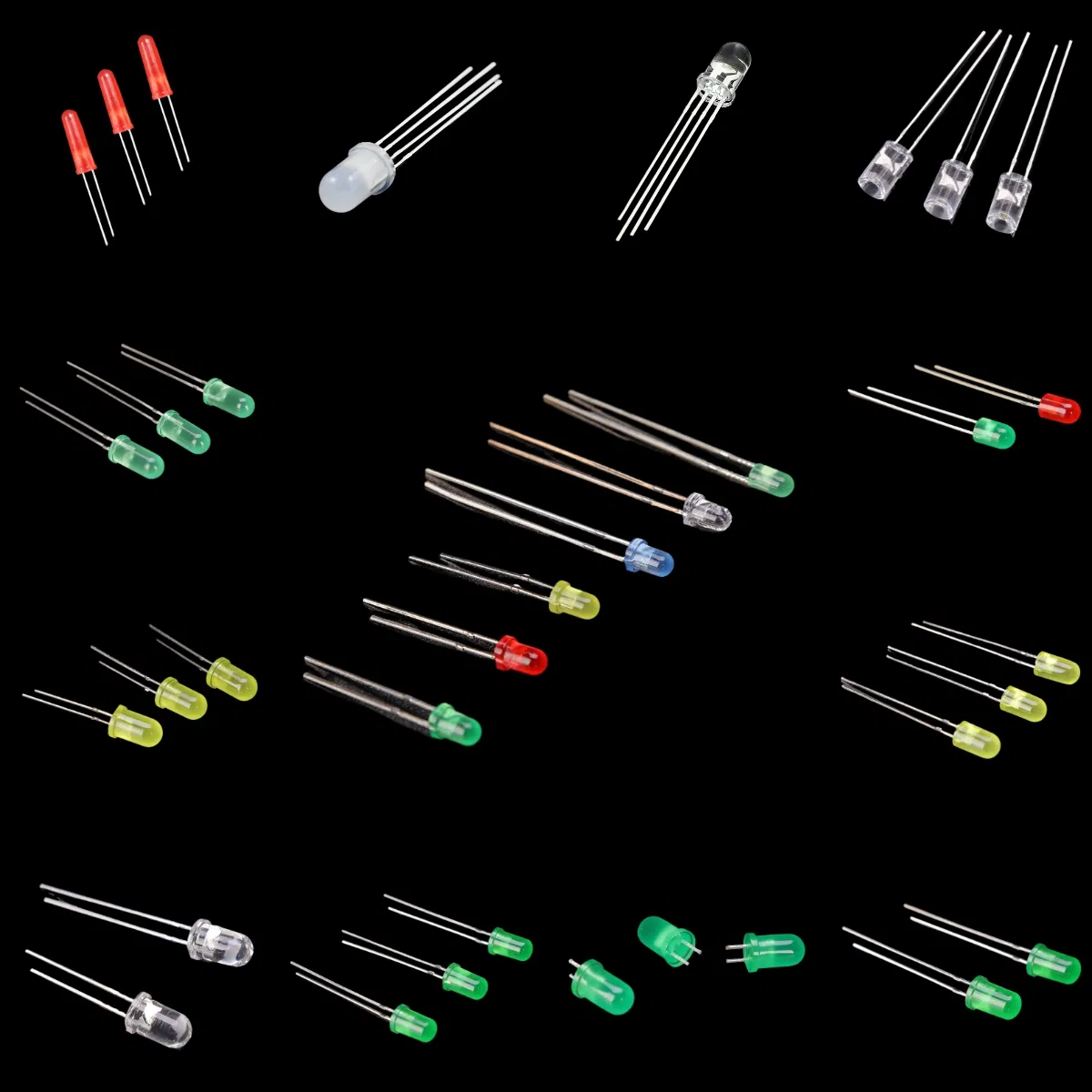

5mm Oval & Round

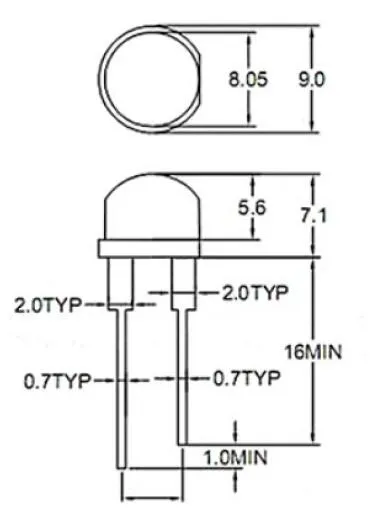

8mm High Power Helmet

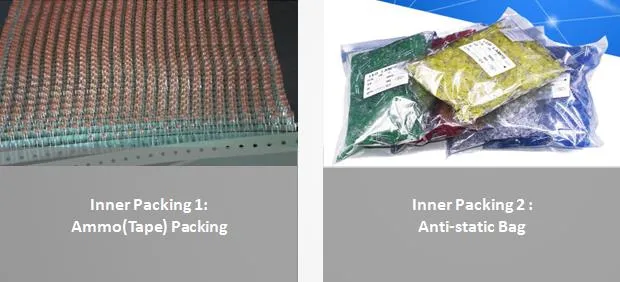

Outer Package: Standard Cartons.

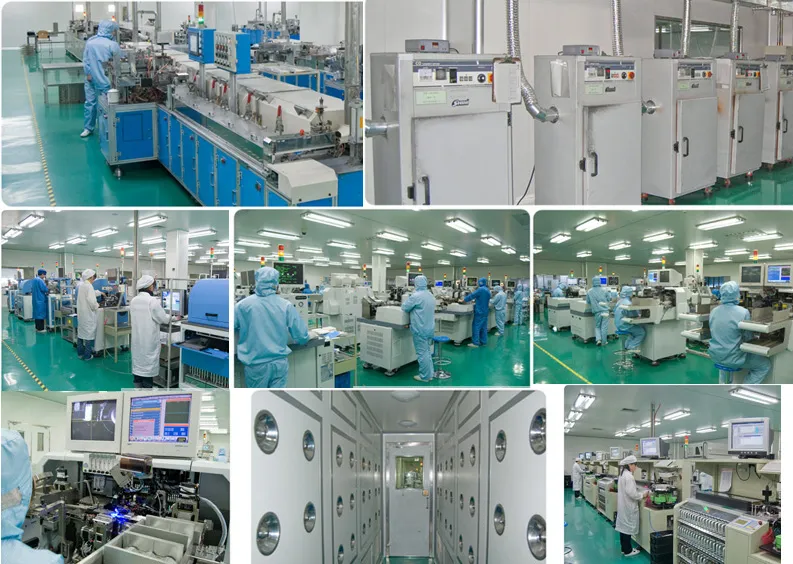

Quality Control: 100% inspection by QC before shipment using automatic testing and bin code selection machinery.
