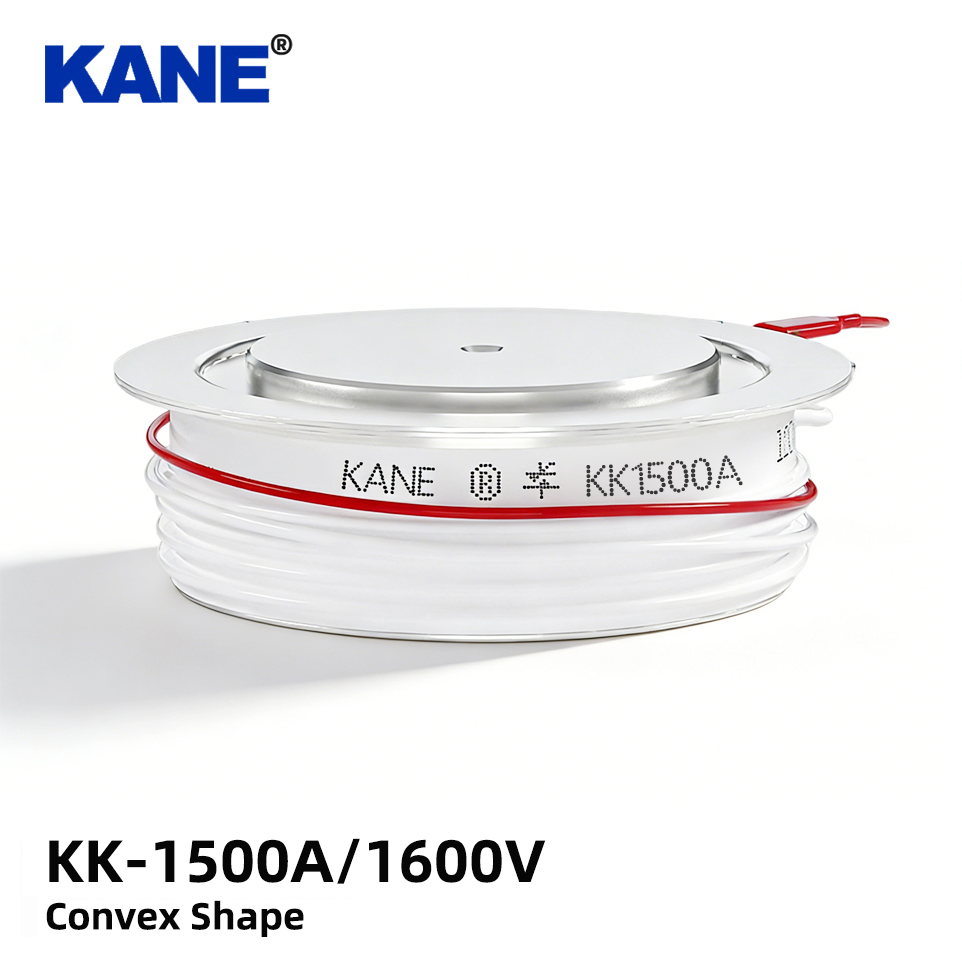

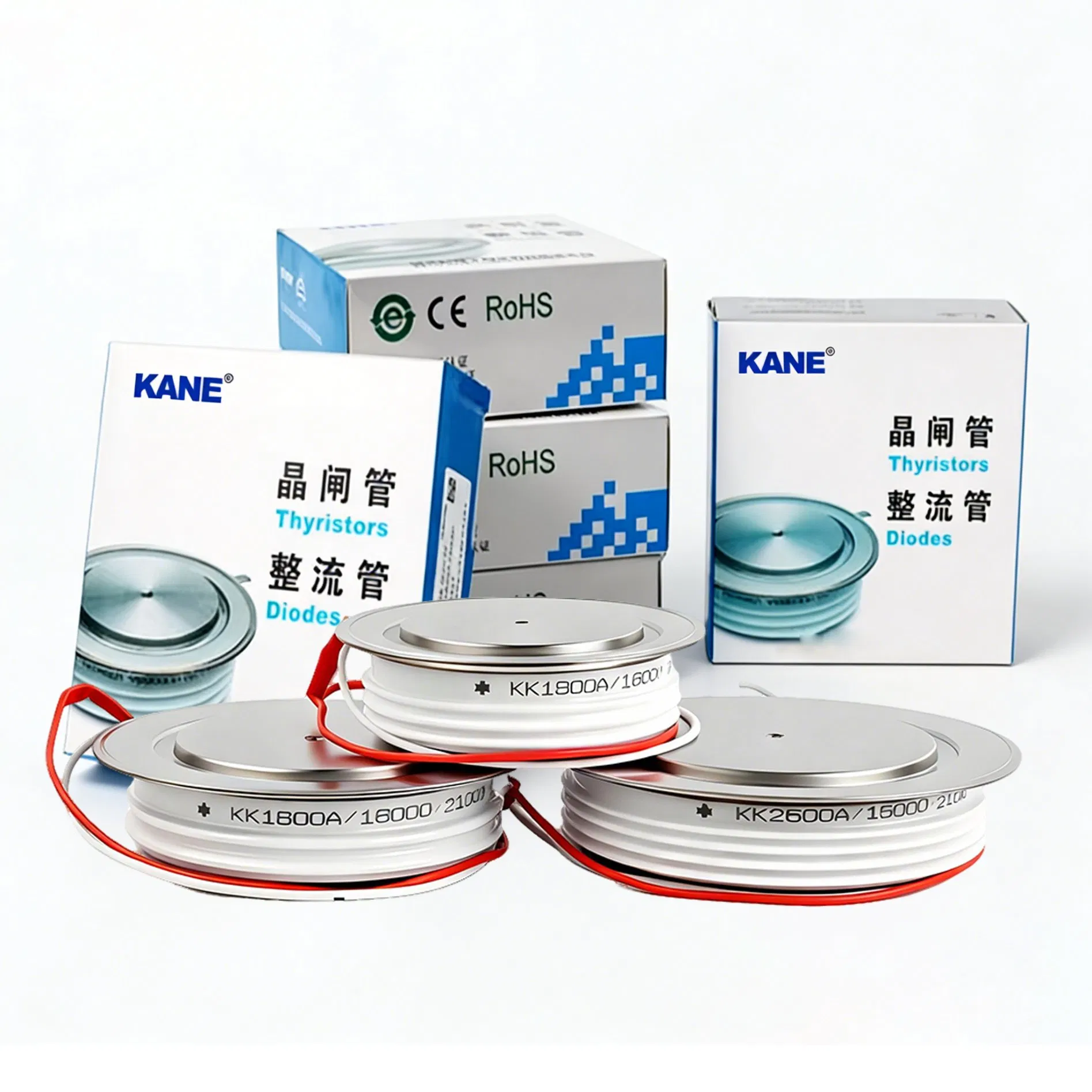

Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component
Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component
Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component
Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component
Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component
1 / 5
Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component
Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component
Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component
Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component
Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component

Kk 1500A 1600V Fast SCR Thyristors Rectifier Module Convex Shape Spiral Bolt Mount Medium Frequency Furnace Soft Start Component

Customization: Available
Application: Artificial Intelligence, Automotive Electronics, Consumer Electronics, Industry, Integrated Circuit, Solar Cell
Conductivity Type: P-Type
Send Inquiry

Product Description

Basic Info.
Model NO. KK 1500A 1600V
Purity SoG-Si
Type Monocrystalline Silicon
Category Thyristor Module
Encapsulation Vacuum Packaging with Nitrogen Protection
Working Environment ≤65 ℃
Origin China
Production Capacity 50000PCS/Month
Packaging & Delivery
Package Size 10.00cm * 8.00cm * 5.00cm
Package Gross Weight 0.600kg
Fast SCR Thyristors Rectifier Module
Thyristor Module Details
TECHNICAL SPECIFICATIONS
Typical Applications:
✓ Inverter
✓ Chopper induction heating
✓ Forced converters

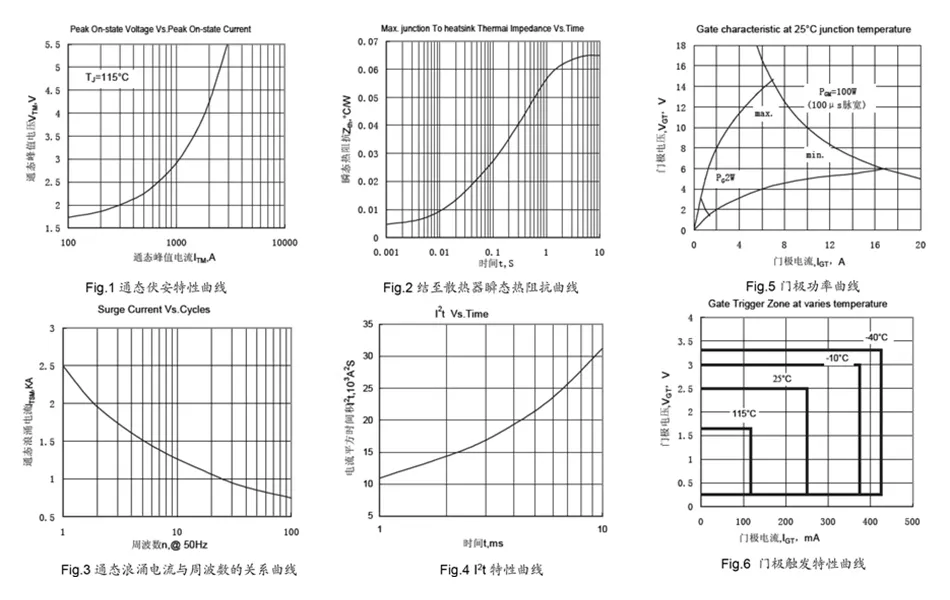

Technical Specs Diagram

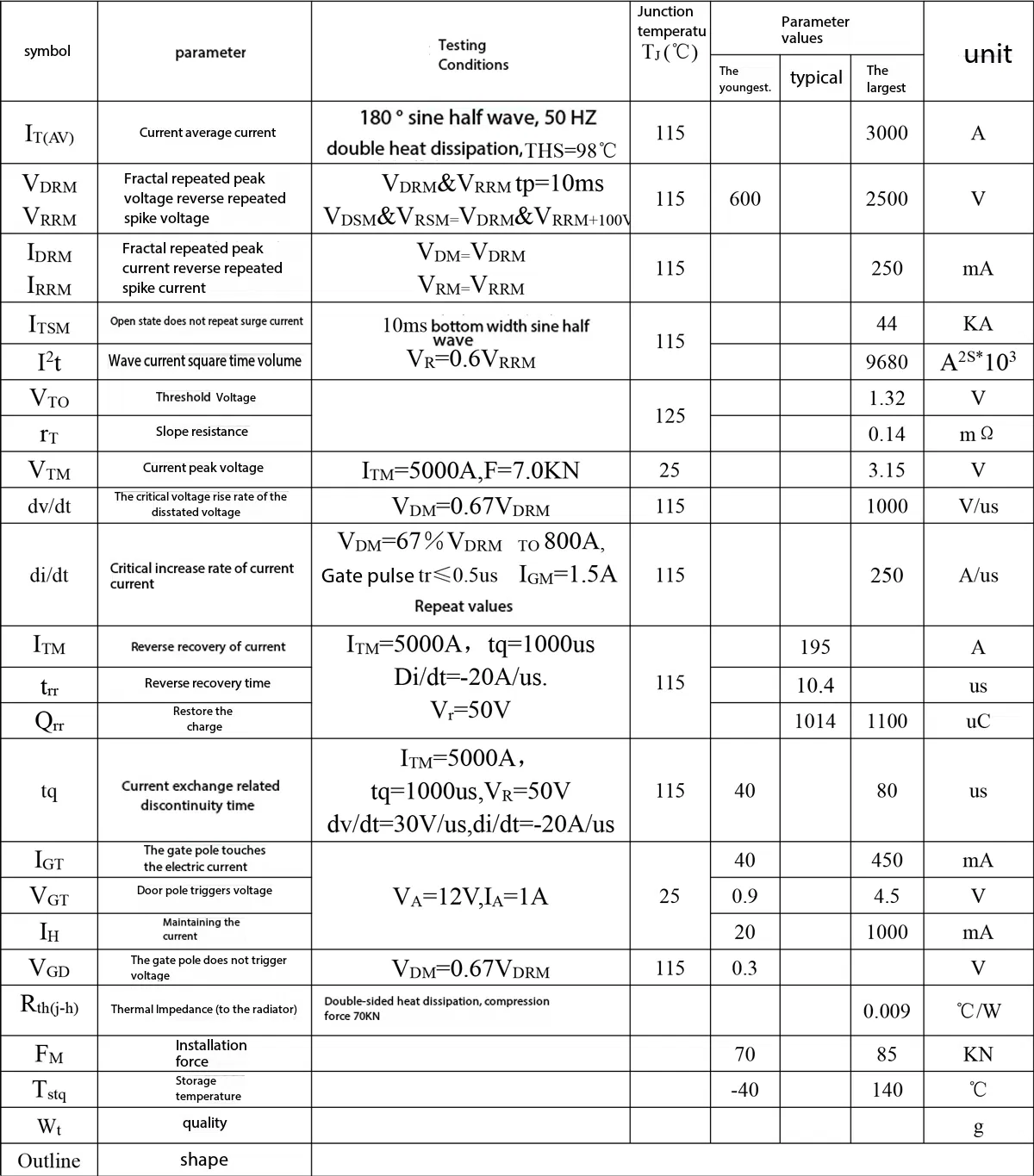

Technical Specs Details
PRODUCT USAGE & FEATURES
⚙️ Full diffusion process

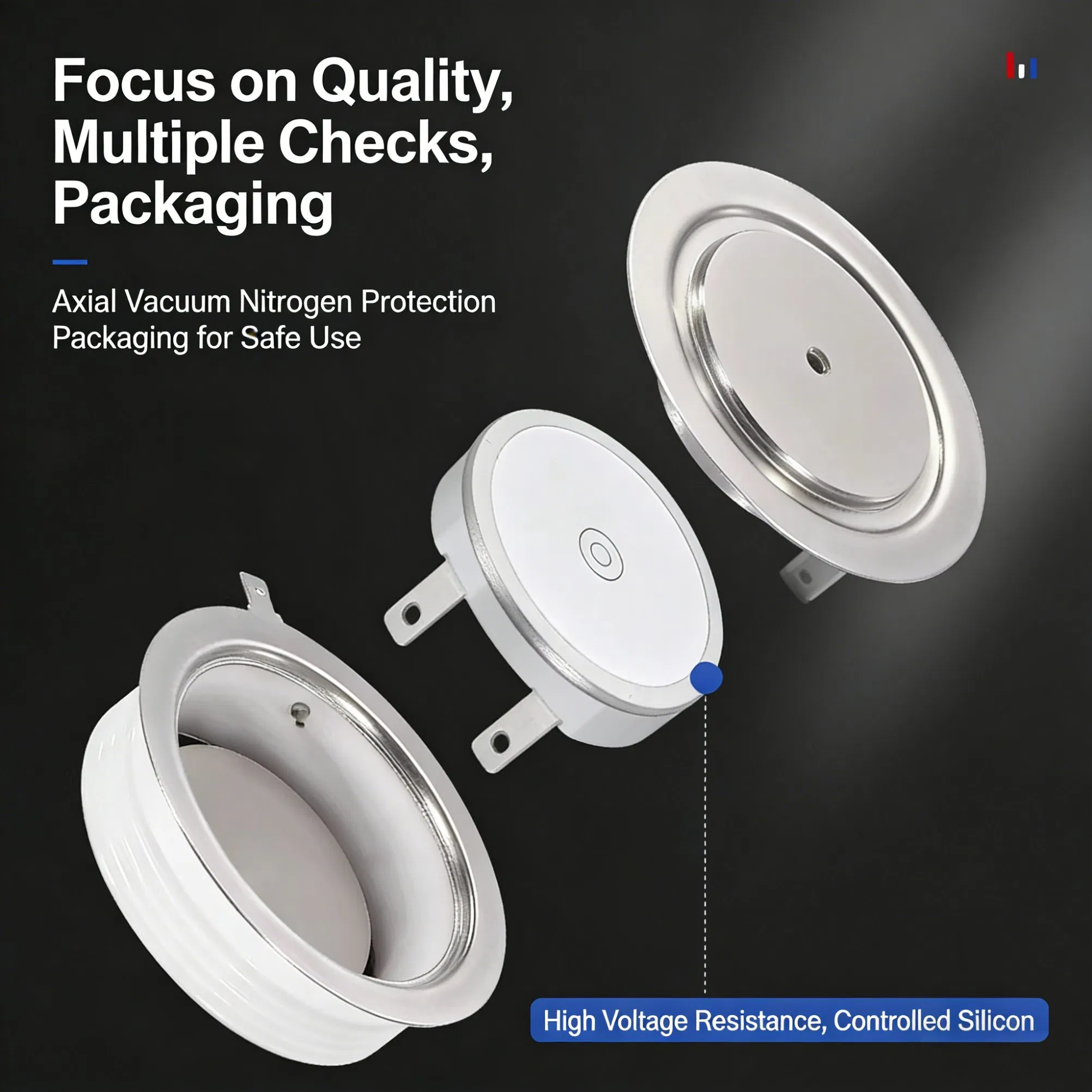

⚙️ Flat ceramic tube packaging
⚙️ Distributed amplification gate structure
⚙️ Excellent dynamic characteristics
⚙️ Low switching loss
⚙️ Dual-sided cooling
⚙️ Fast switching performance

Using advanced monocrystalline silicon wafers, combined with high-performance welding equipment, it features high conductivity, high thermal conductivity, strong overcurrent capability, low voltage drop, and stable trigger current.

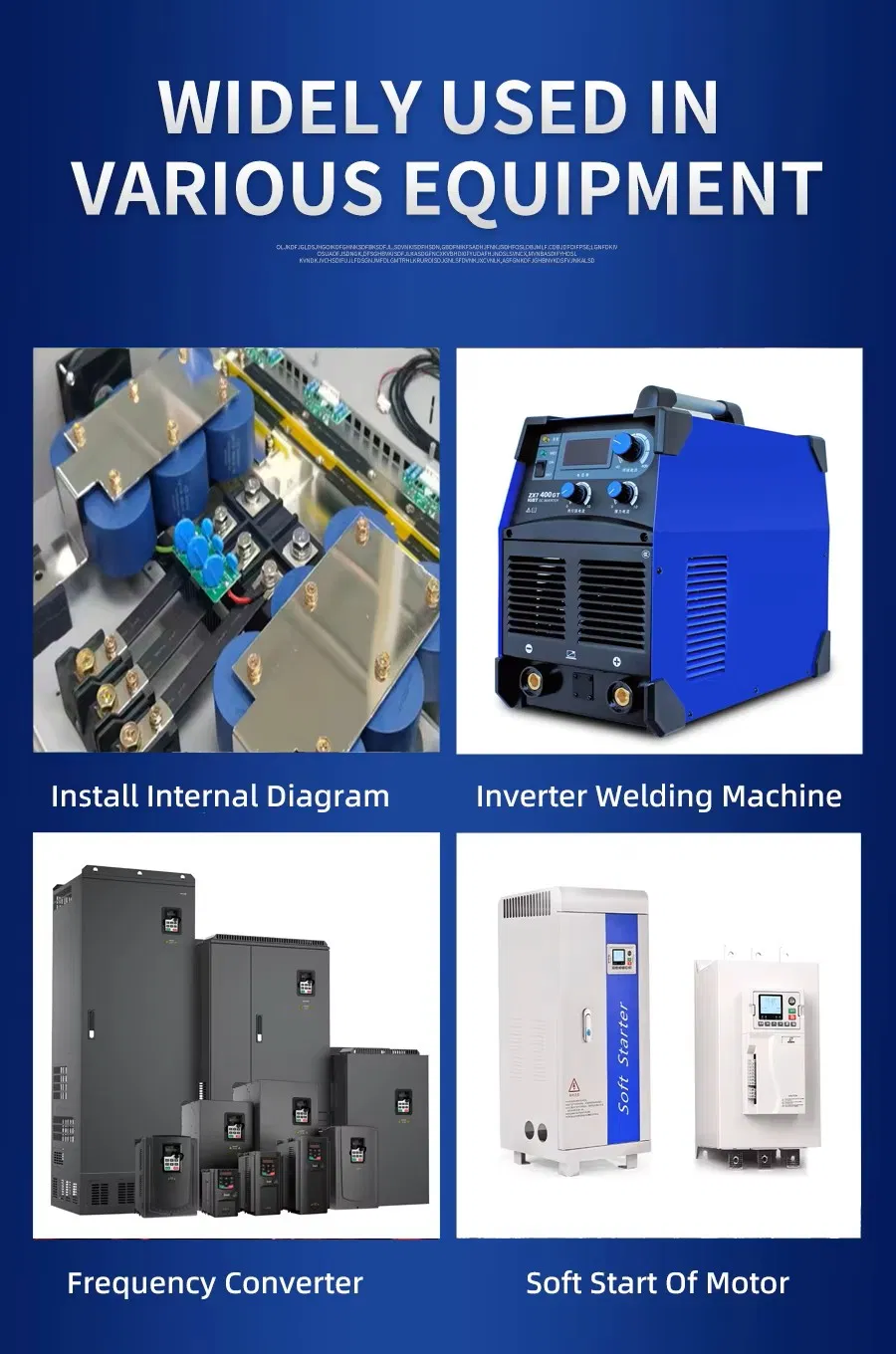

Product Application
KEY FEATURES

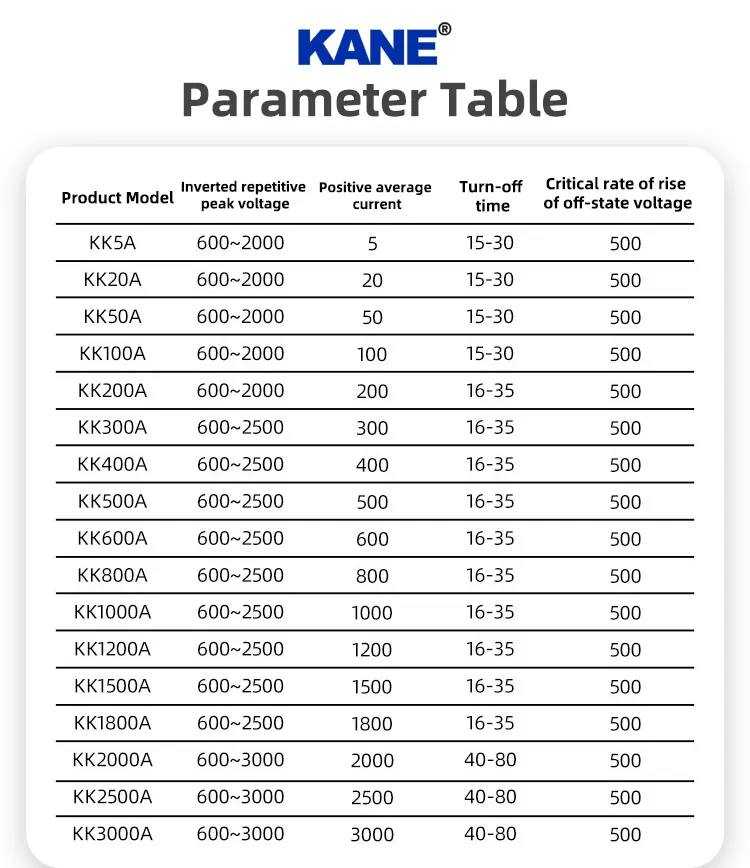

Feature 1

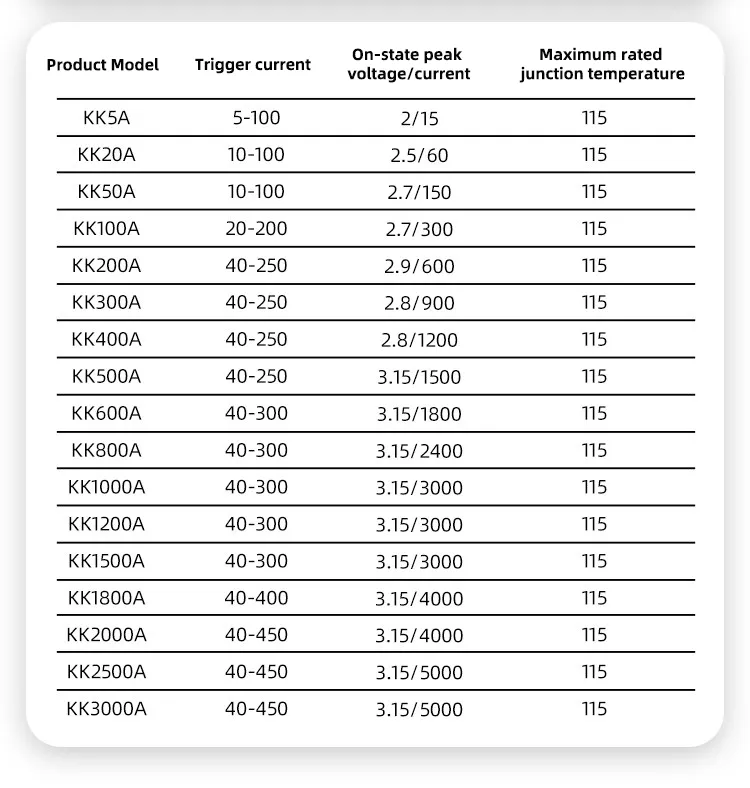

Feature 2

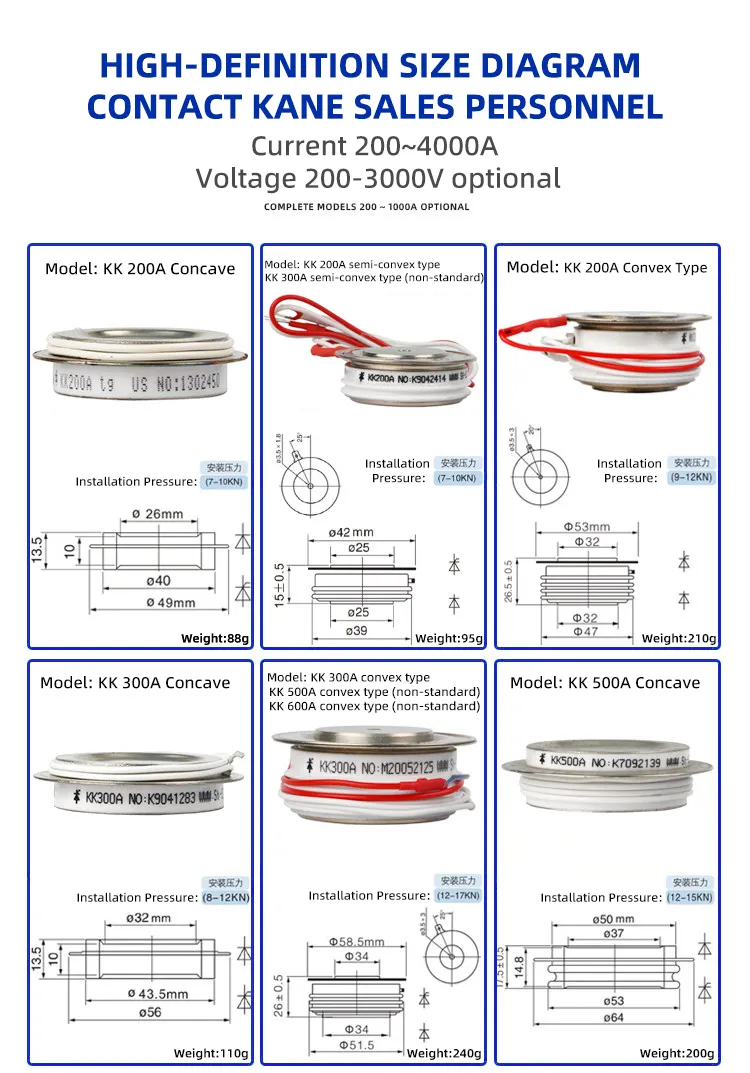

Feature 3

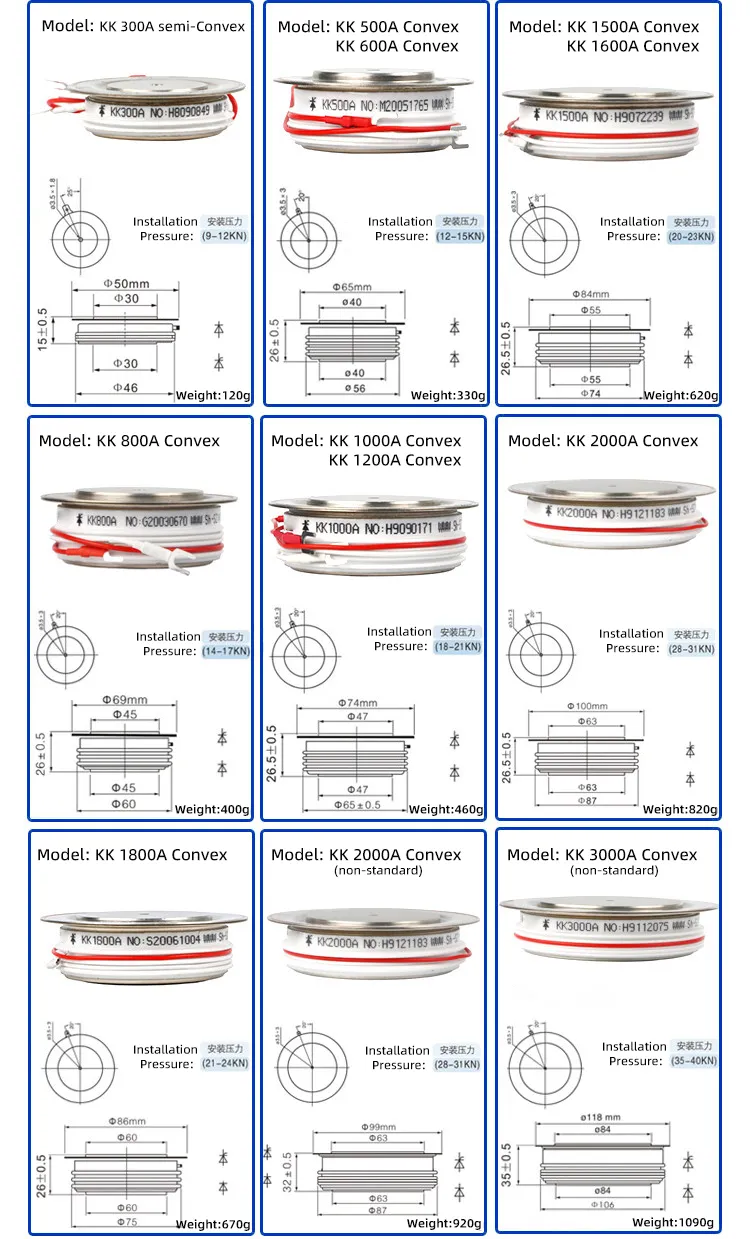

Feature 4
Product Description
Overview Display

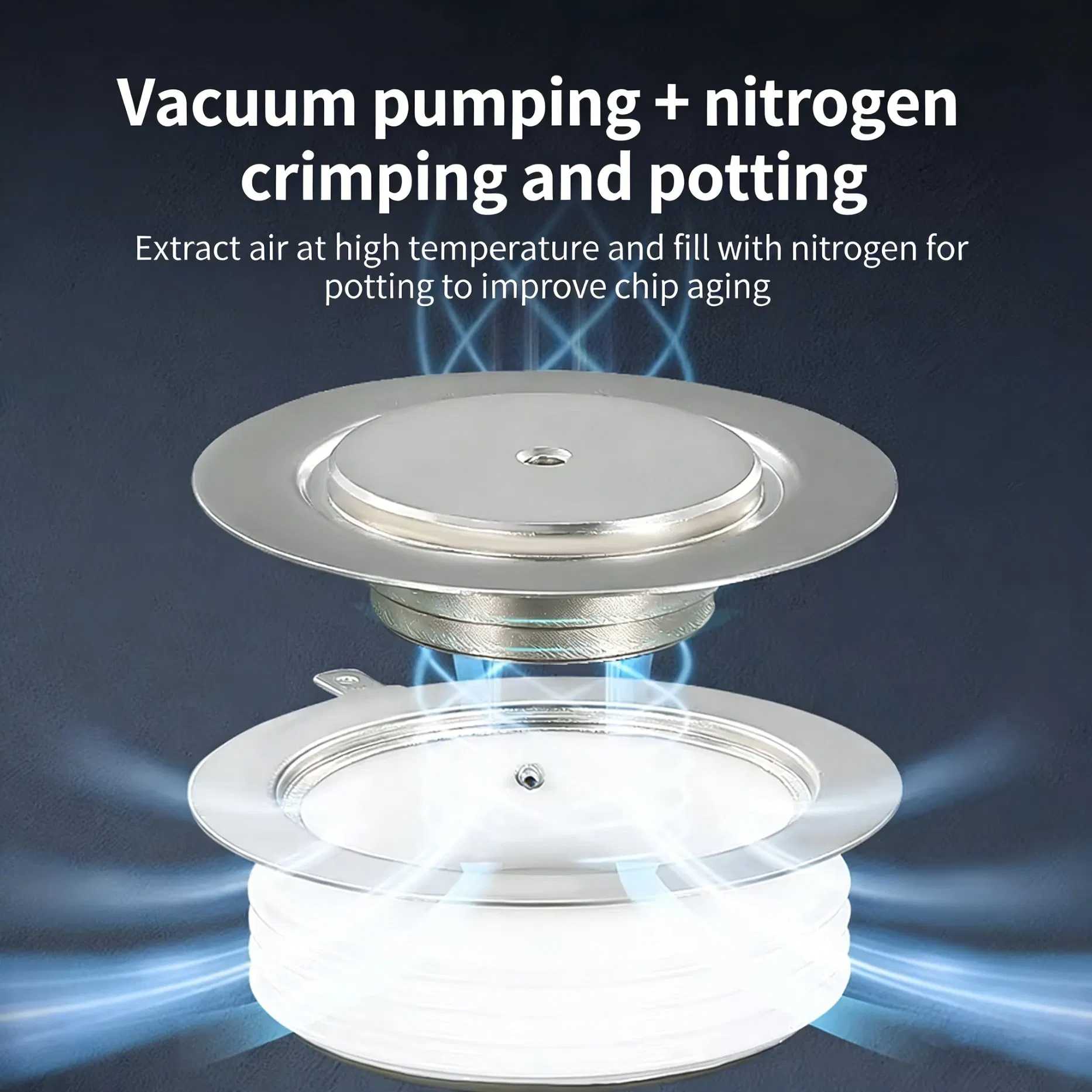

Module View 1
Module View 2

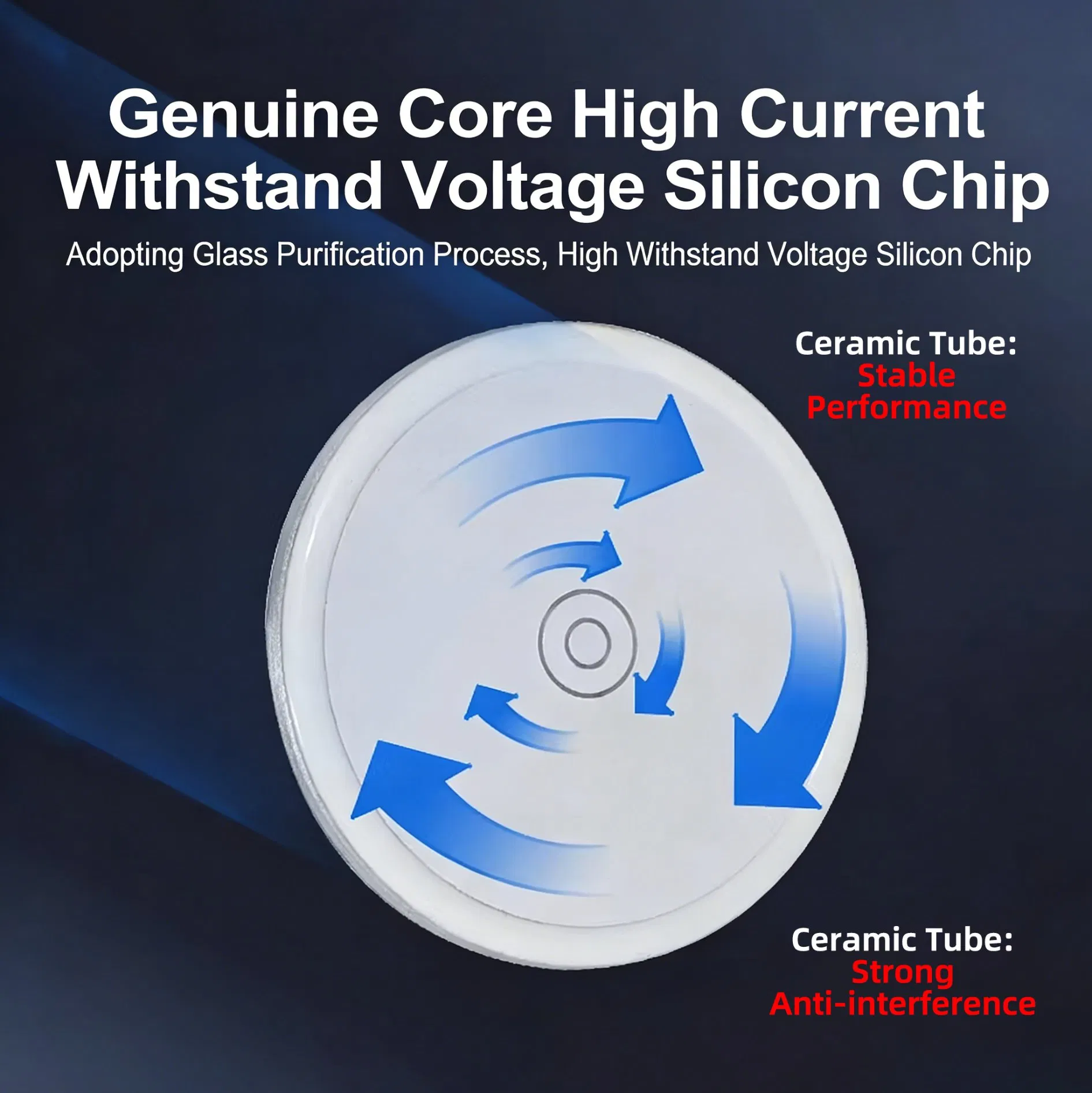

Module View 3

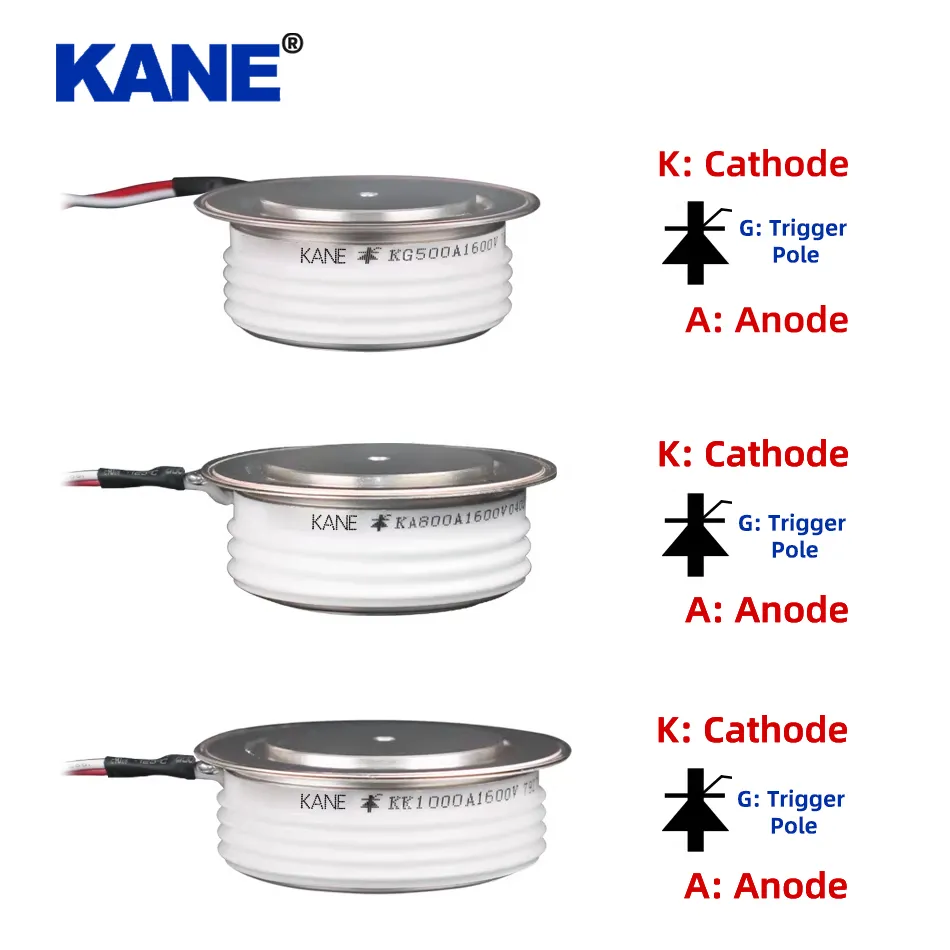

WIRING DIAGRAM
Wiring Diagram
Quality & Service

Quality Control Process:

  • Material check before production process starts.
  • Full check after every individual process finished.
  • Full check after production is half-done.
  • Spot check after production is packed before shipping.

Service Guarantee:

Every defective product or quality problem can be replaced in the next order. All products are 100% tested before leaving the factory.

Factory Info 1
Factory Info 2
FAQ
Q1: What advantages do you have?
We are a direct manufacturer, offering competitive pricing. Our products are 100% tested before leaving the factory and carry international certificates such as ISO, CE, ROHS, SGS, CB, TUV, etc.
Q2: Can you print our own logo?
Yes, we provide services for Retail, Wholesale, OEM, and ODM.
Q3: How long is the delivery time?
Typically, it takes 3 - 5 working days for sample orders and 10 - 25 days for large volume orders.
Q4: What are the accepted payment methods?
We accept T/T, Western Union, PayPal, Trade Assurance, L/C, Cash, and more.
Q5: What is the policy for products not working properly?
If there is a quality issue within the warranty period, we provide free replacements in the next order. For other issues, we assist in finding the best technical solution.
Q6: Do you offer samples?
Samples can be provided with freight charges to be collected. All models undergo general inspection before packing.
