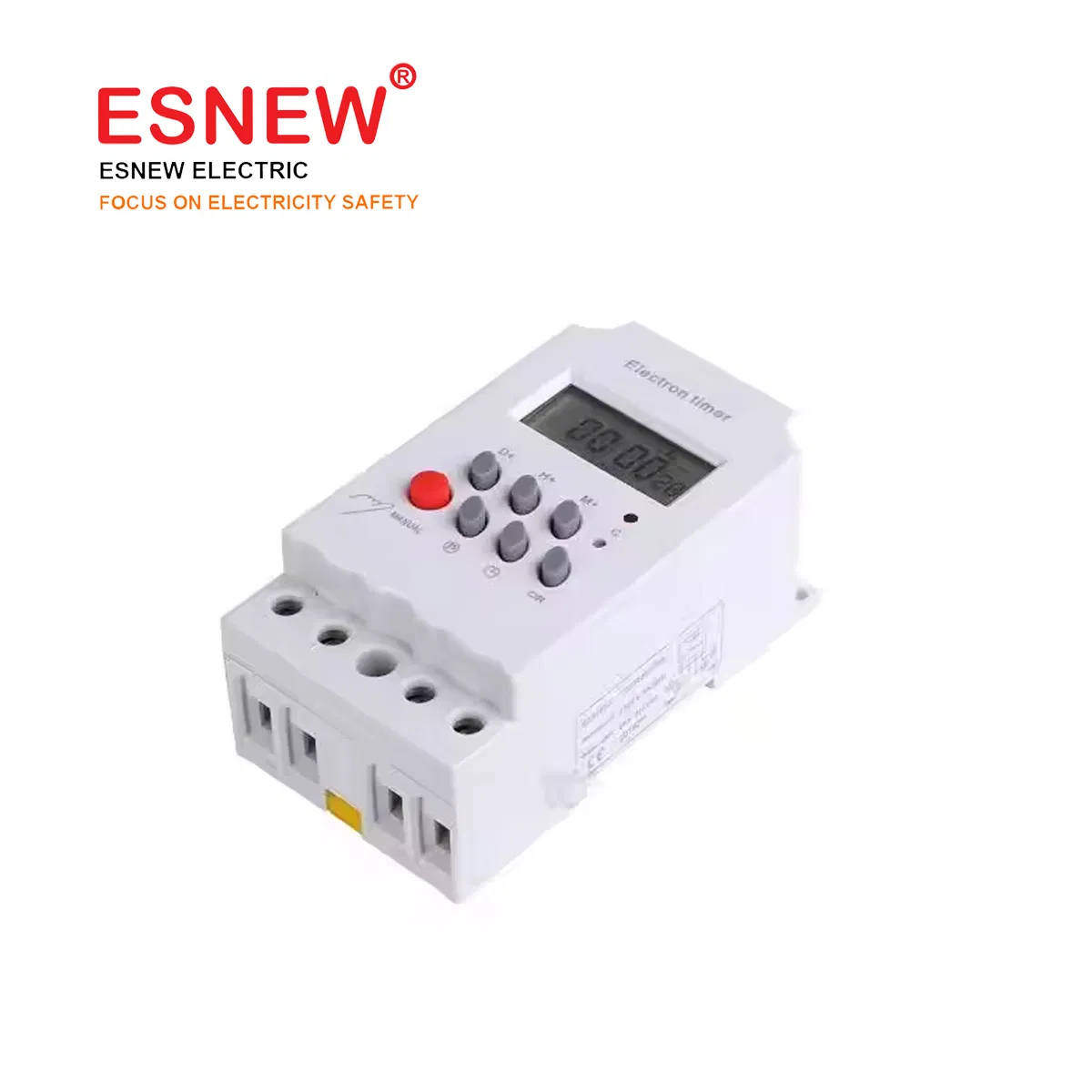

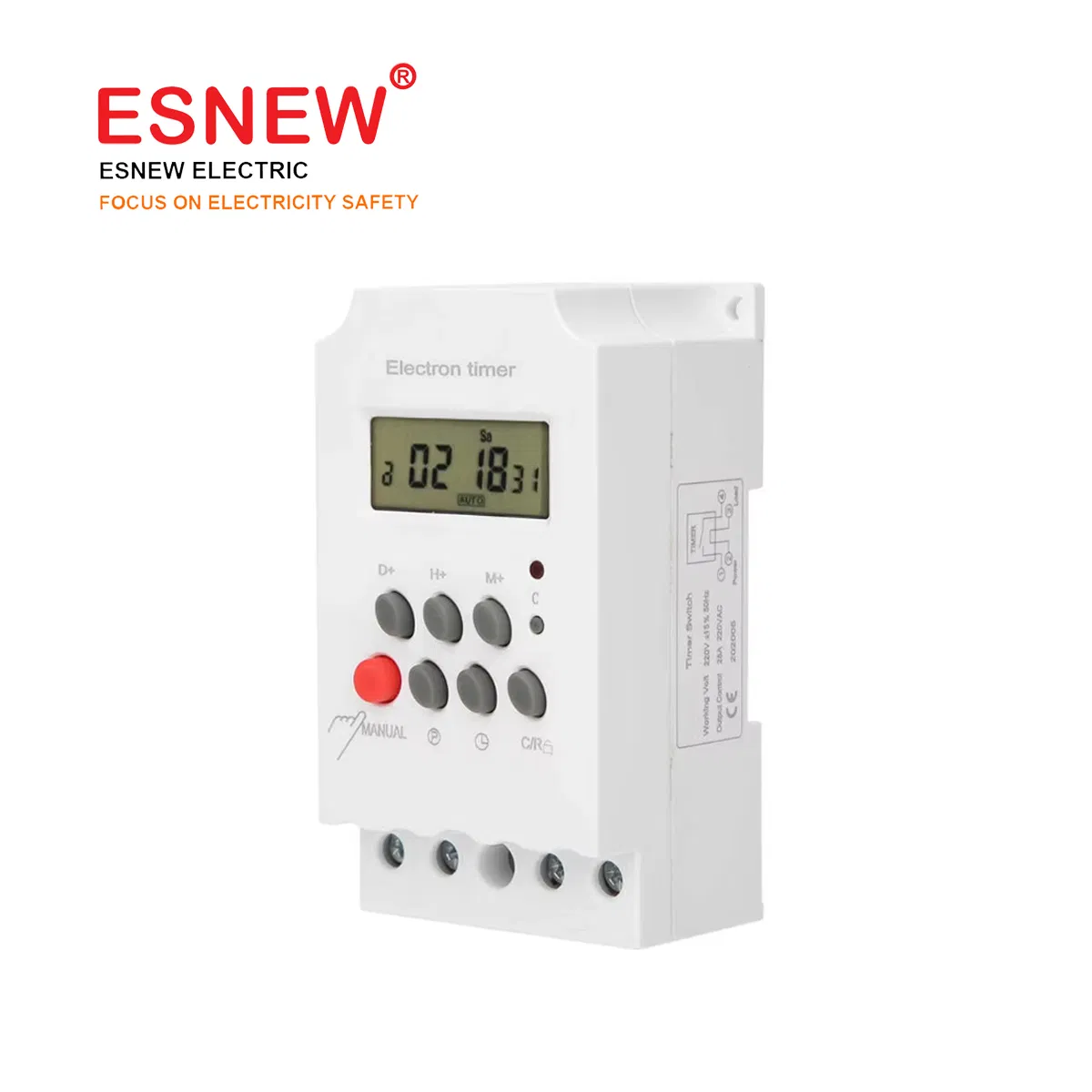

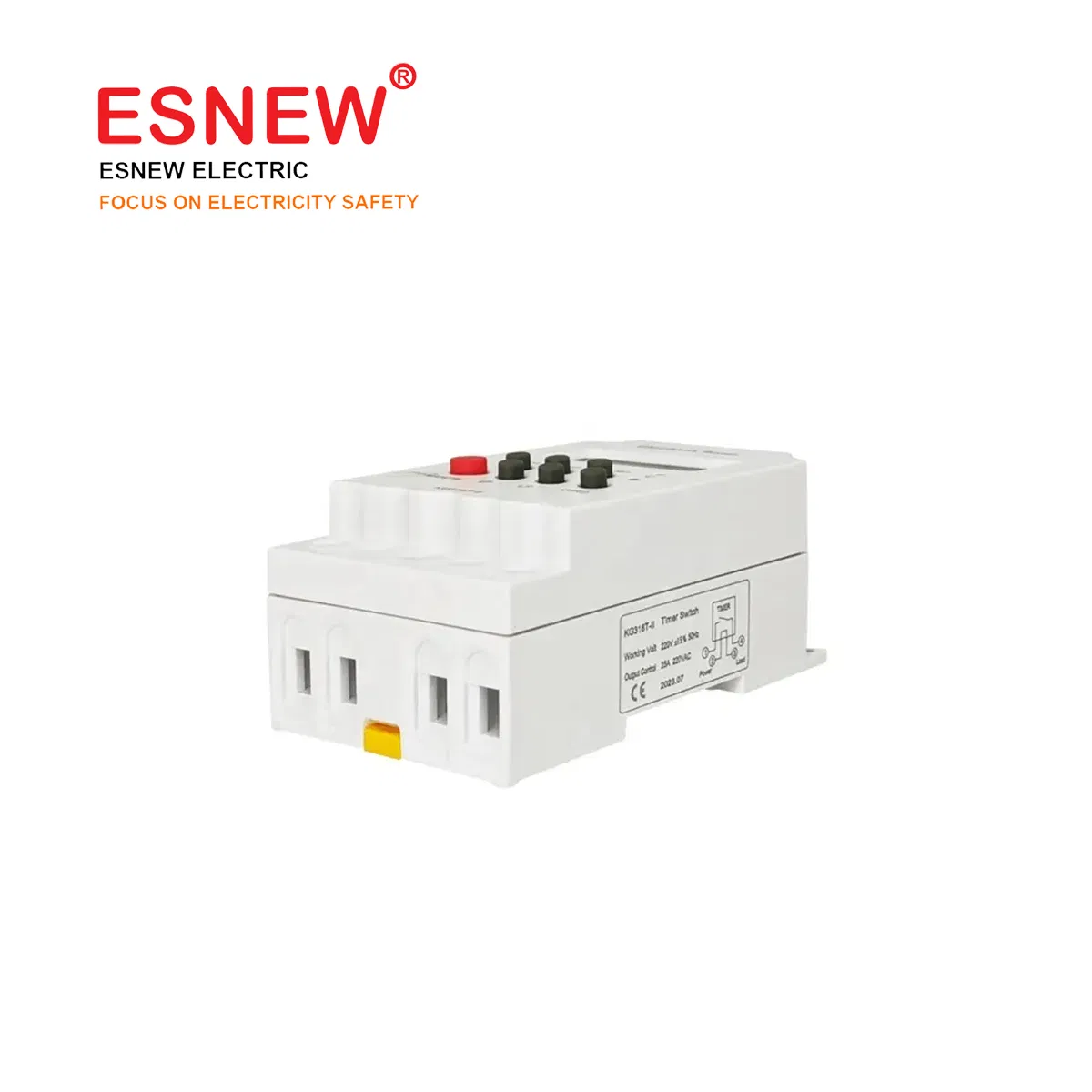

| BASIC FEATURES | |
|---|---|

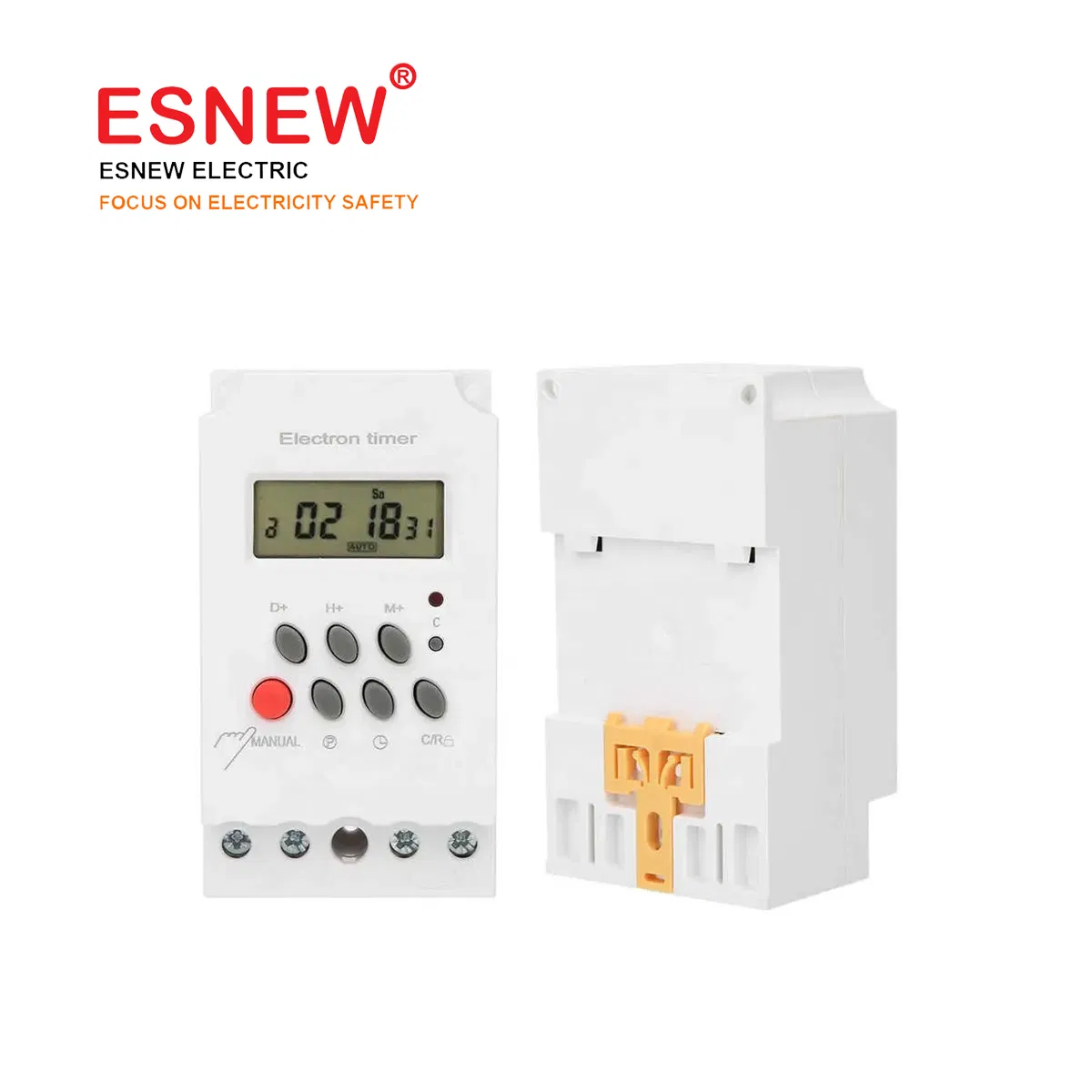

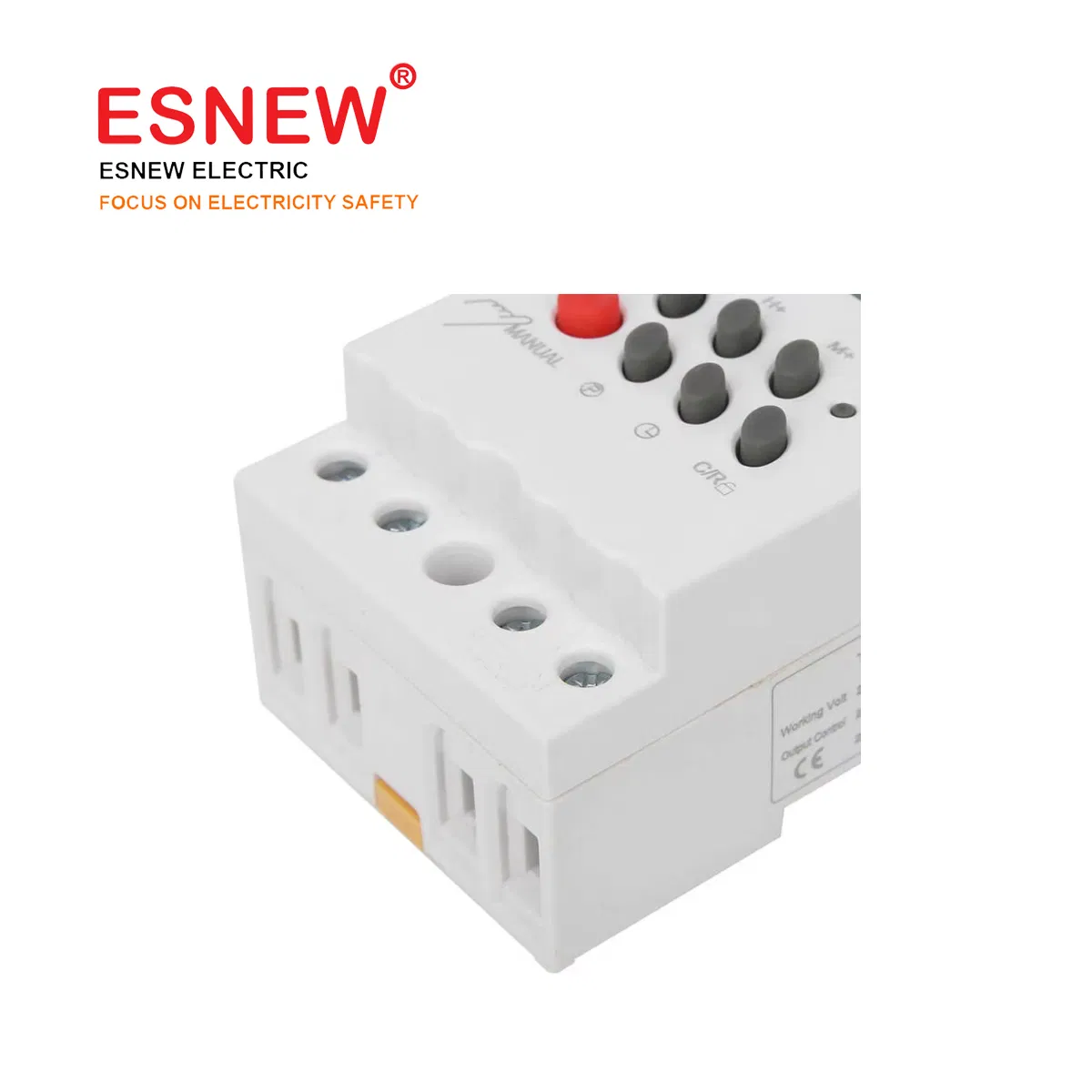

| 1. Din Rail Mounted | 2. Advanced pre-setting one week before |
| 3. Digital electronic timer switch | 4. 18 ON/OFF settings & manual override |

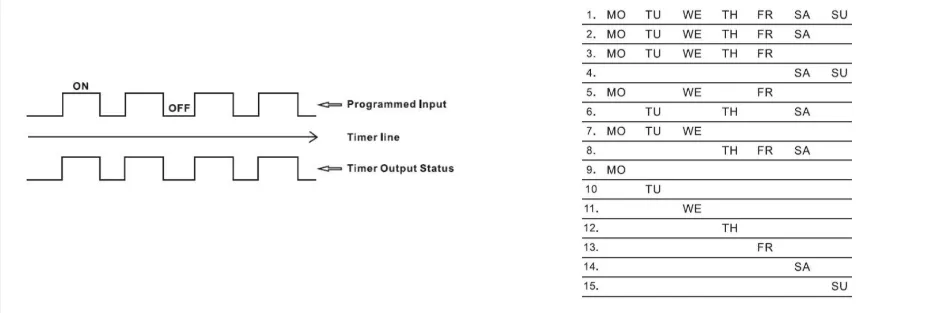

| 5. Lithium battery power reserve | 6. 15-combination of daily programs |

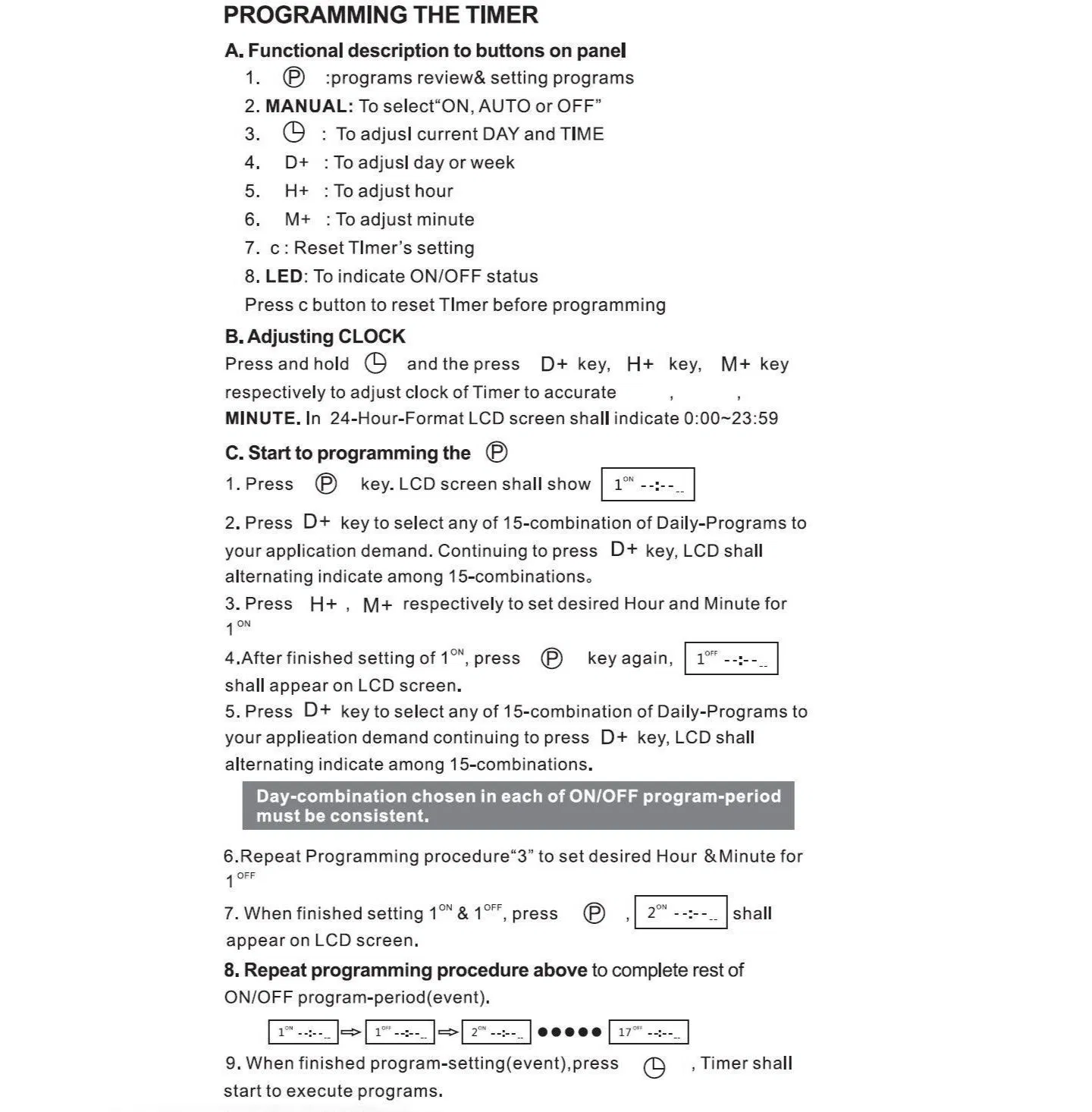

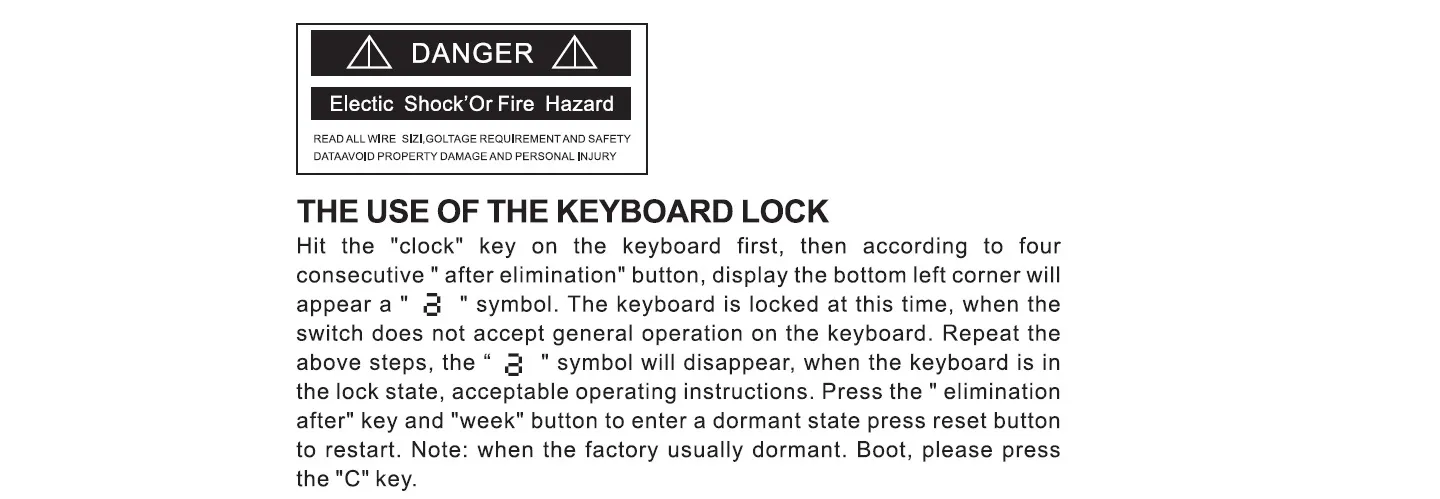

| KEYBOARD LOCK OPERATION | |
|---|---|
| Step 1 | Hit the "clock" key, then press "elimination" four times. |
| Step 2 | Check for "a" symbol in bottom left corner (Locked). |
| Step 3 | Repeat steps to unlock ("a" symbol disappears). |
| Voltage rating | 12VDC/AC, 24VDC/AC, 48VDC/AC, 110VAC, 220VAC |
| Correction | ±1sec/day (25℃) |
| Power consumption | ≤2W |
| Display | LCD |
| Power reserve | 60 days |
| Battery life | 3 years (Lithium battery) |
| Ambient temperature | -10~+40℃ |

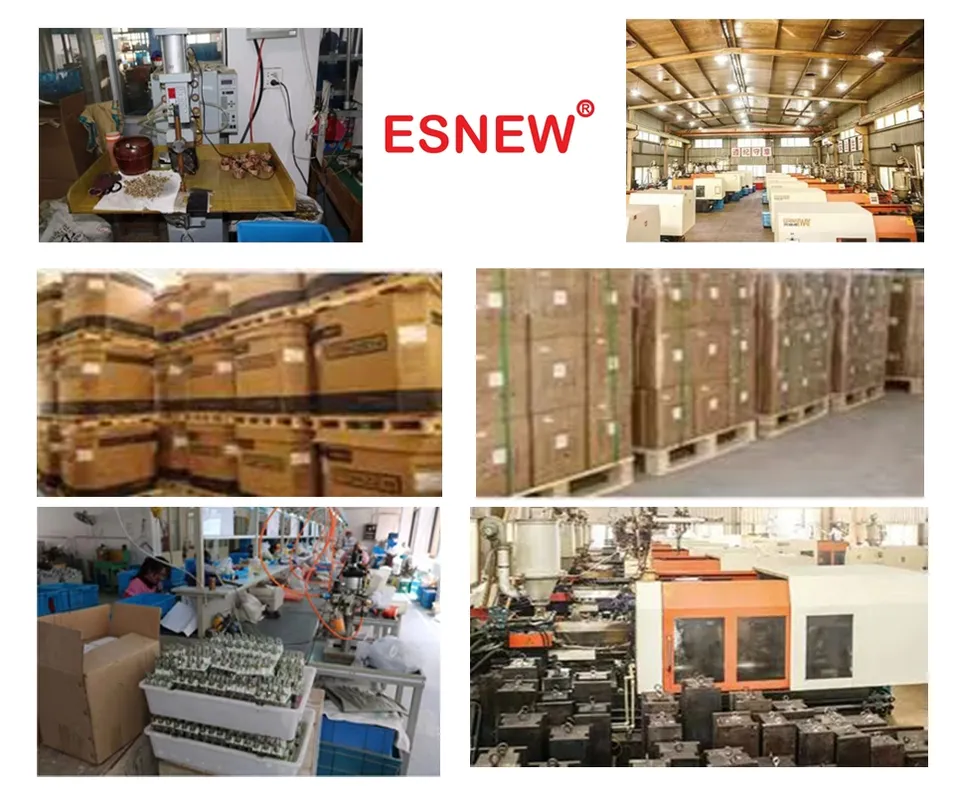

We are a professional manufacturer of cabinet accessories, electrical automation components, high-voltage electrical components, and new energy photovoltaic system products. Our range includes circuit breakers, fuses, contactors, timers, relays, and more. Our products are extensively used in industrial automation, home applications, and gardening sectors.
With 12 years of development, we focus on international markets and maintain strong connections globally. Our products are recognized and trusted by users to meet changing economic and social needs.
