Insulated Gate Bipolar Transistor IGBT G40n60d to-247 **%off

Customization:	Available
Manufacturing Technology:	Discrete Device
Type:	N-type Semiconductor

Send Inquiry

Product Description

Basic Specifications

Model NO.

G40N60D

Material

Silicon

Package

TO-247

Application

Inverter Welding Machine, UPS

Batch Number

2021

Transport Package

Tube

HS Code

8541290000

Production Capacity

50,000,000 Pieces/Year

Packaging & Delivery

Package Size

50.00cm * 20.00cm * 30.00cm

Gross Weight

15.000kg

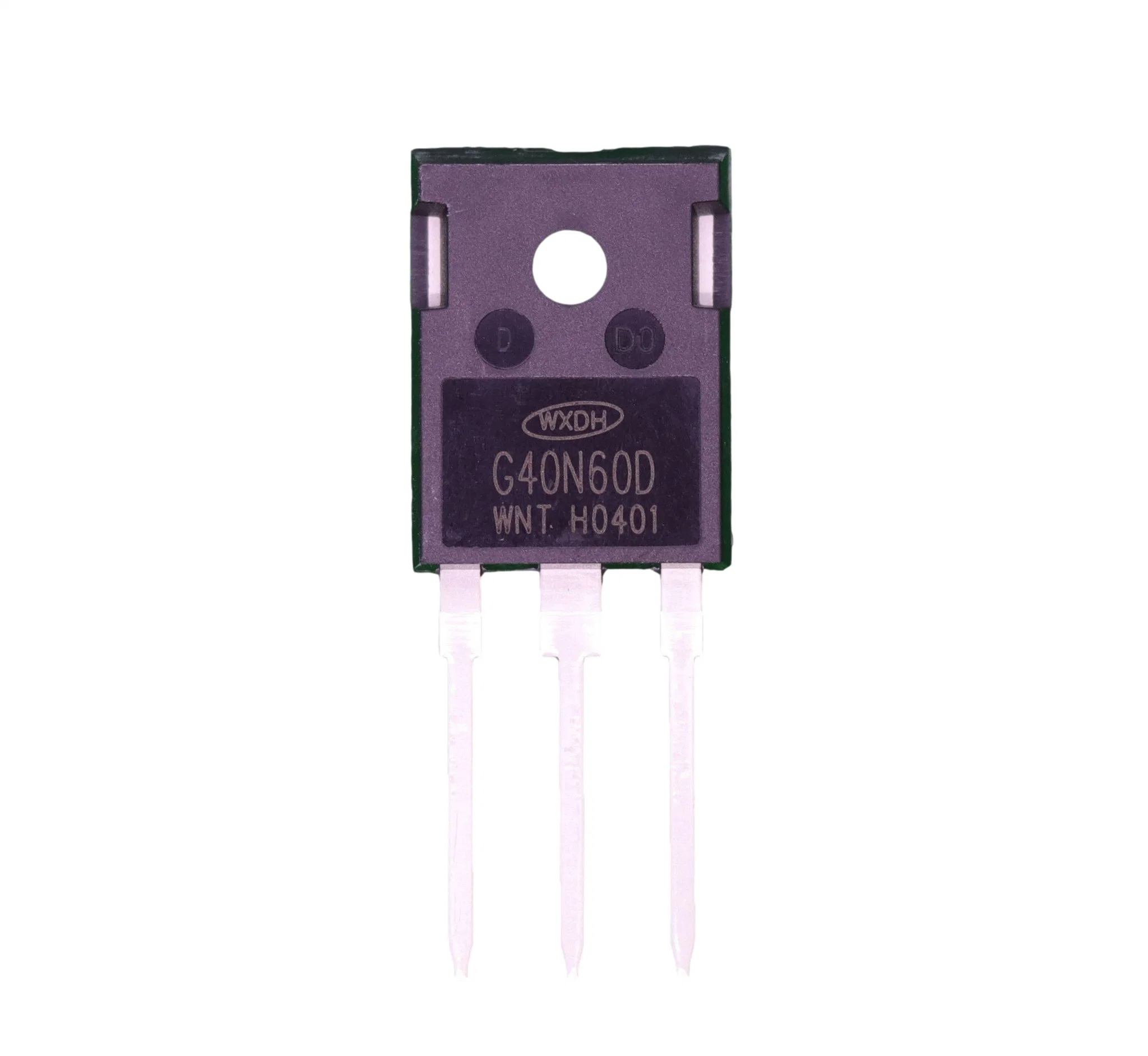

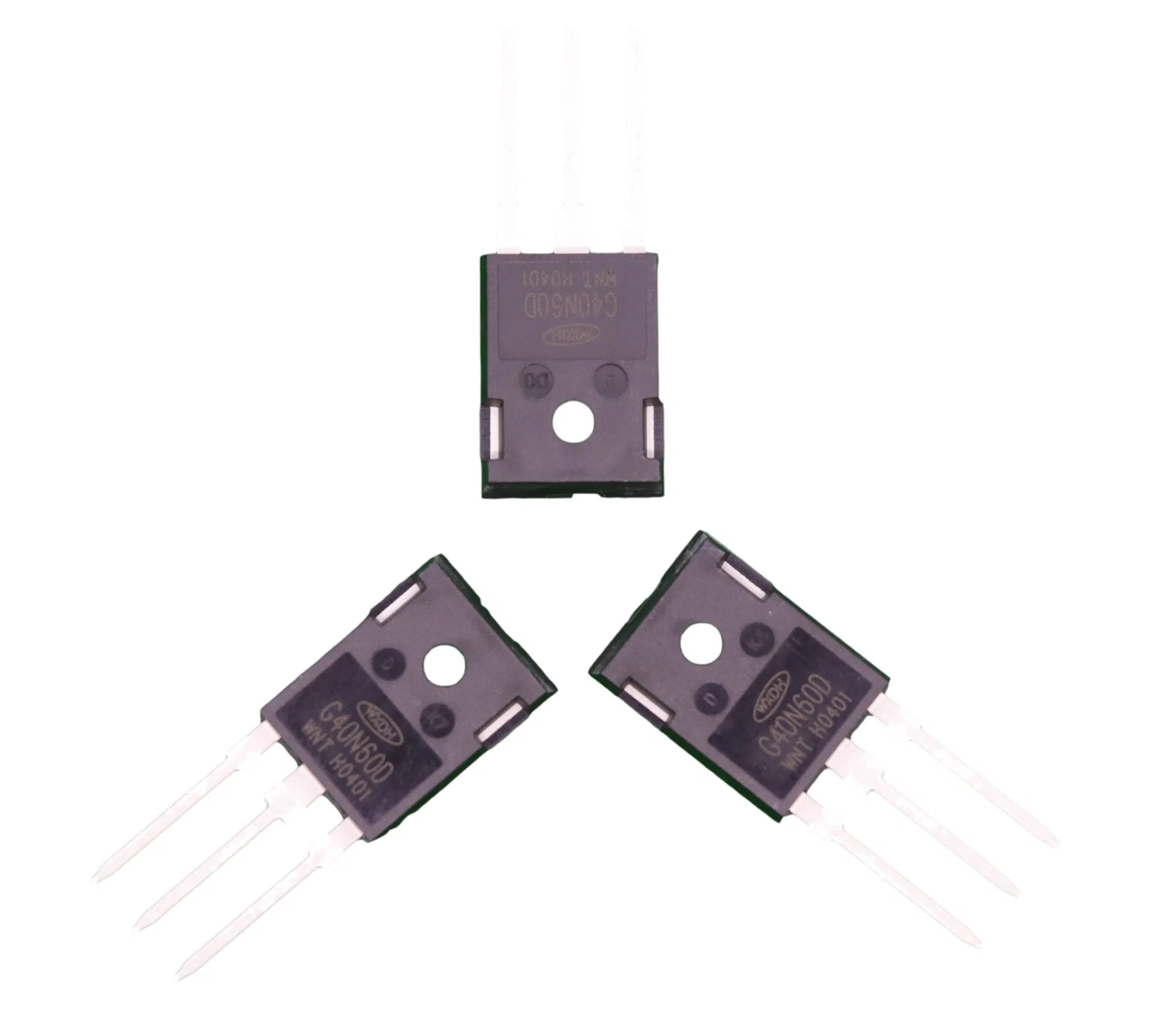

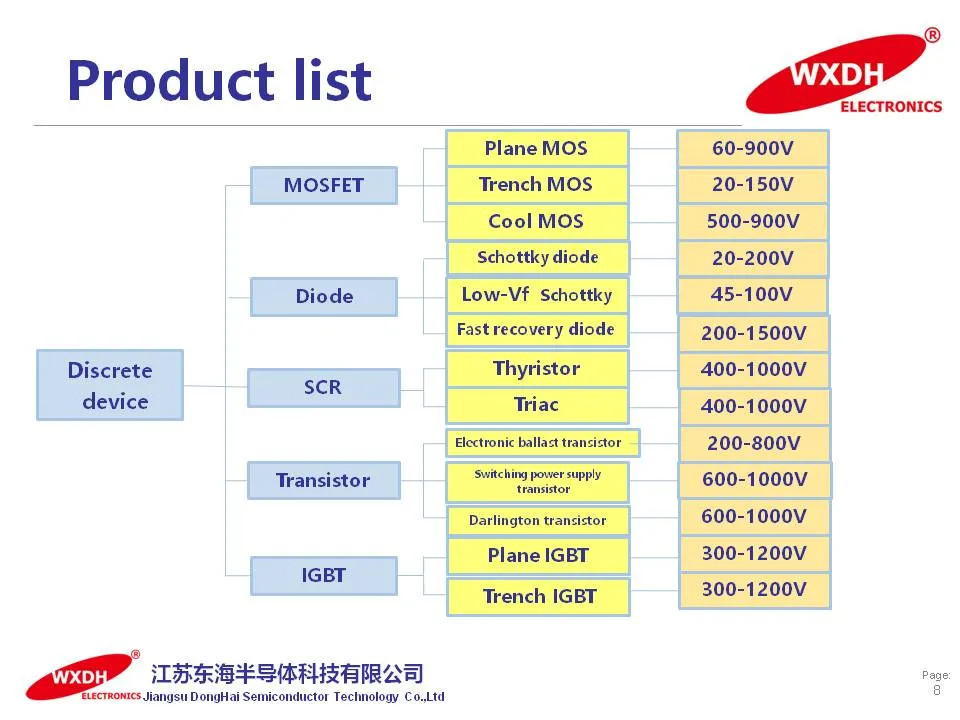

Product Display

Technical Parameters

PARAMETER	SYMBOL	RATING	UNIT
Collector-Emitter Voltage	VCES	600	V
Gate- Emitter Voltage	VGES	±20	V
Collector Current (T=25ºC)	IC	80	A
Collector Current (Tc=100ºC)	IC	40	A
Pulsed Collector Current	ICM	120	A
Diode Continuous Forward Current (@TC=100°C)	IF	20	A
Diode Maximum Forward Current	IFM	100	A
Total Dissipation (TC=25ºC)	PD	280	W
Total Dissipation (TC=100ºC)	PD	110	W
Junction Temperature	Tj	150	ºC
Storage Temperature	Tstg	-55~150	ºC

Features & Applications

Key Features

FS Trench Technology, Positive temperature coefficient
Low saturation voltage: VCE(sat), typ = 2.2V @ IC=40A and VGE=15V
Optimized for switching frequency < 70kHz
Pb-free and RoHS compliant

Applications

Inverter welding machine
Solar inverter
Uninterruptible Power Supplies (UPS)
Medium and high switching frequency inverter

Models & Packaging Specs

Product Model	Package Type	Mark Name	RoHS	Package	Quantity
G40N60D	TO-247	G40N60D	Pb-free	Tube	300/box

Frequently Asked Questions

1. What are the primary applications for the G40N60D IGBT? The G40N60D is specifically designed for high-efficiency power conversion, making it ideal for inverter welding machines, solar inverters, UPS systems, and various medium-to-high frequency inverters.

2. What is the maximum current rating of this device? It features a continuous collector current (Ic) of 80A at a case temperature of 25ºC and 40A at 100ºC. The pulsed collector current can reach up to 120A.

3. What technology is used in the G40N60D? This device utilizes FS (Field Stop) Trench Technology, which provides a positive temperature coefficient and low saturation voltage (VCE(sat) typ = 2.2V), enhancing reliability in parallel operations.

4. What is the recommended switching frequency for this IGBT? The G40N60D is optimized for working frequencies below 70kHz, balancing switching losses and conduction efficiency.

5. What is the package type and how is it shipped? It is housed in a standard TO-247 package. The standard transport packaging is in tubes, with 300 pieces per box.

6. Is the G40N60D environmentally compliant? Yes, this model is Pb-free (lead-free) and fully compliant with RoHS standards for environmental safety.
