IGBT Ipm R-Series 1200V 50A Discrete Semiconductors for Global B2B Buyers

1 Basic Information

Model NO.

7MBP50RJ120

Cooling Method

Naturally Cooled Tube

Function

Medium and High Voltage Frequency Conversion

Working Frequency

High Frequency

Structure

Ipm

Encapsulation

Plastic Sealed Transistor

Power Level

High Power

Material

Silicon

Specification

1200V 50A

Origin

China

Production Capacity

500 Pieces/Day

2 Product Description

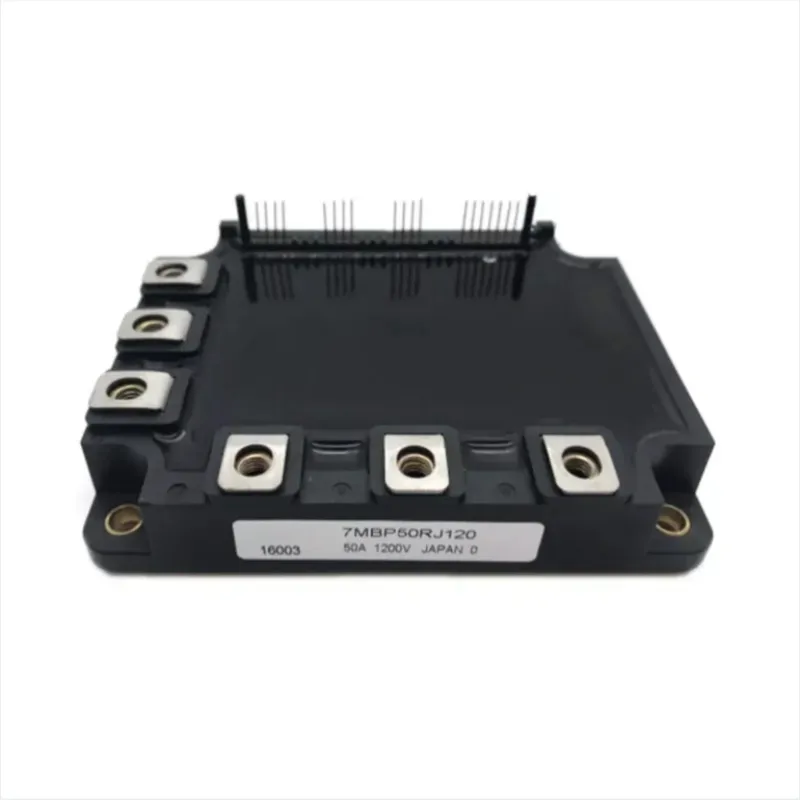

7MBP50RJ120 IGBT IPM R-series 1200V 50A Class Discrete Semiconductors

This high-performance Integrated Power Module (IPM) is designed for efficient power conversion and motor control applications. It combines advanced IGBT technology with built-in control circuits for superior reliability.

Temperature Protection: Directly detects the junction temperature of the IGBTs for enhanced safety.

Efficiency: Optimized for low power loss and soft switching performance.

Alarm Outputs: Features both P-side and N-side alarm output availability.

Reliability: Significant decrease in the number of parts in the built-in control circuit ensures higher long-term reliability.

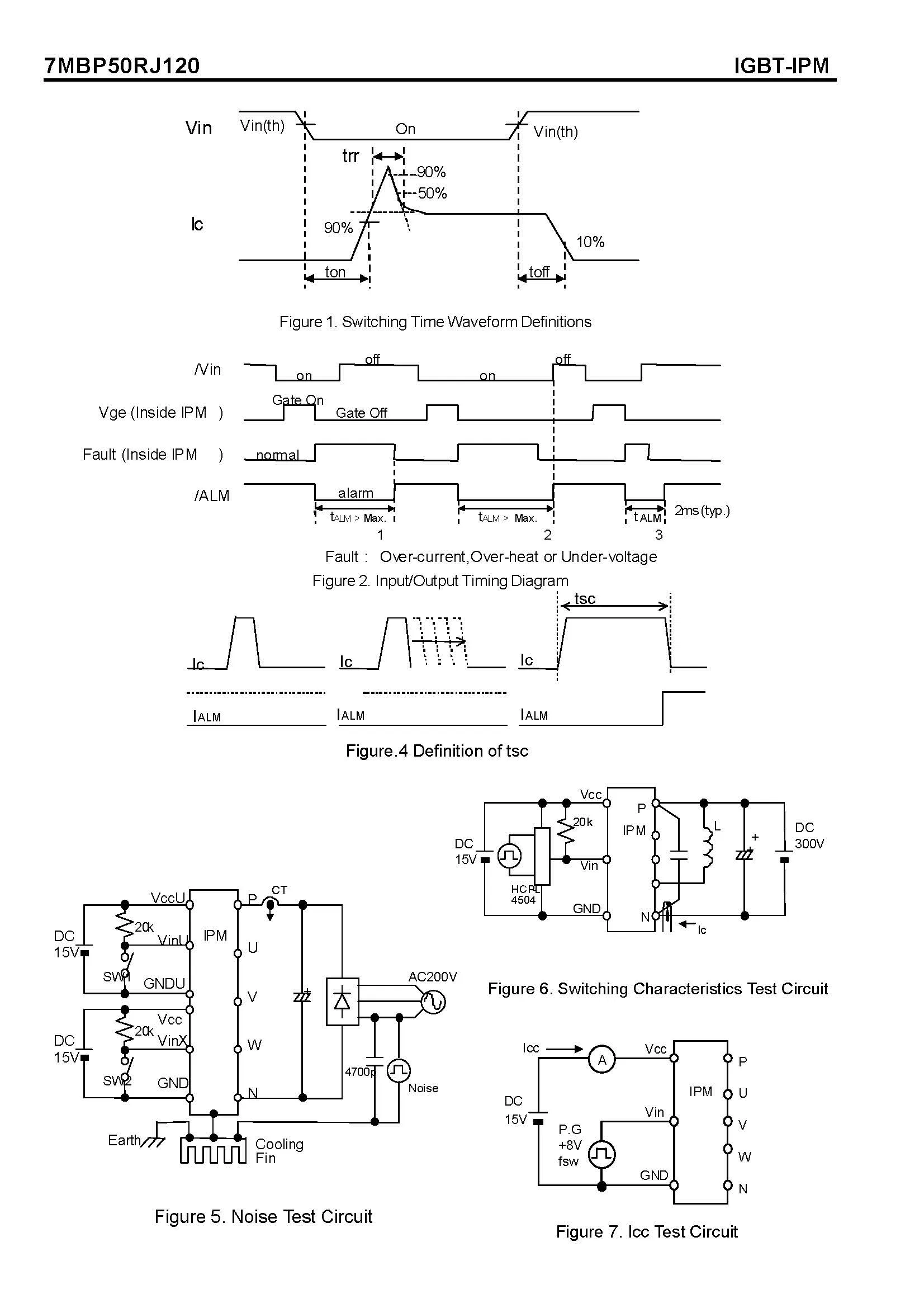

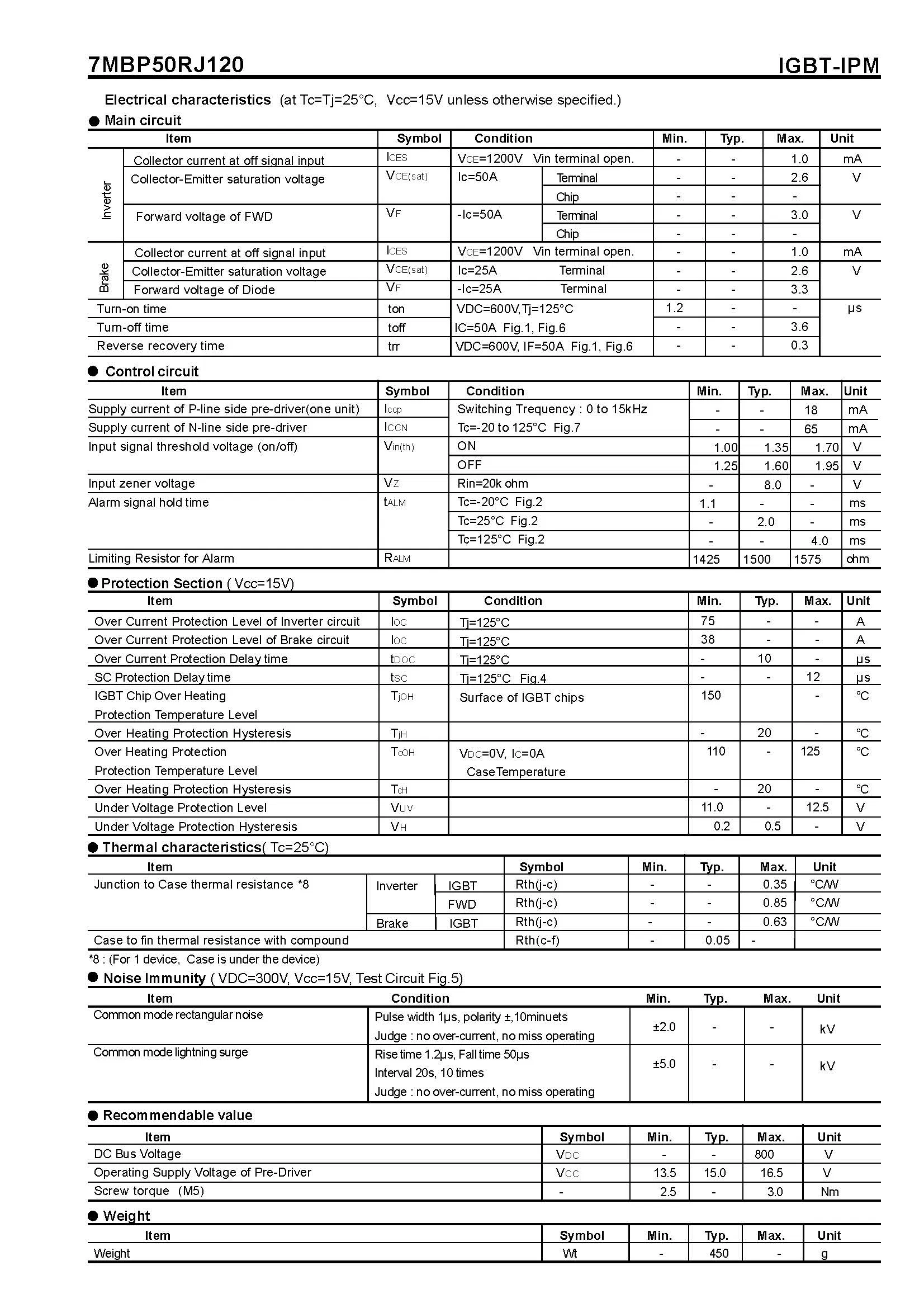

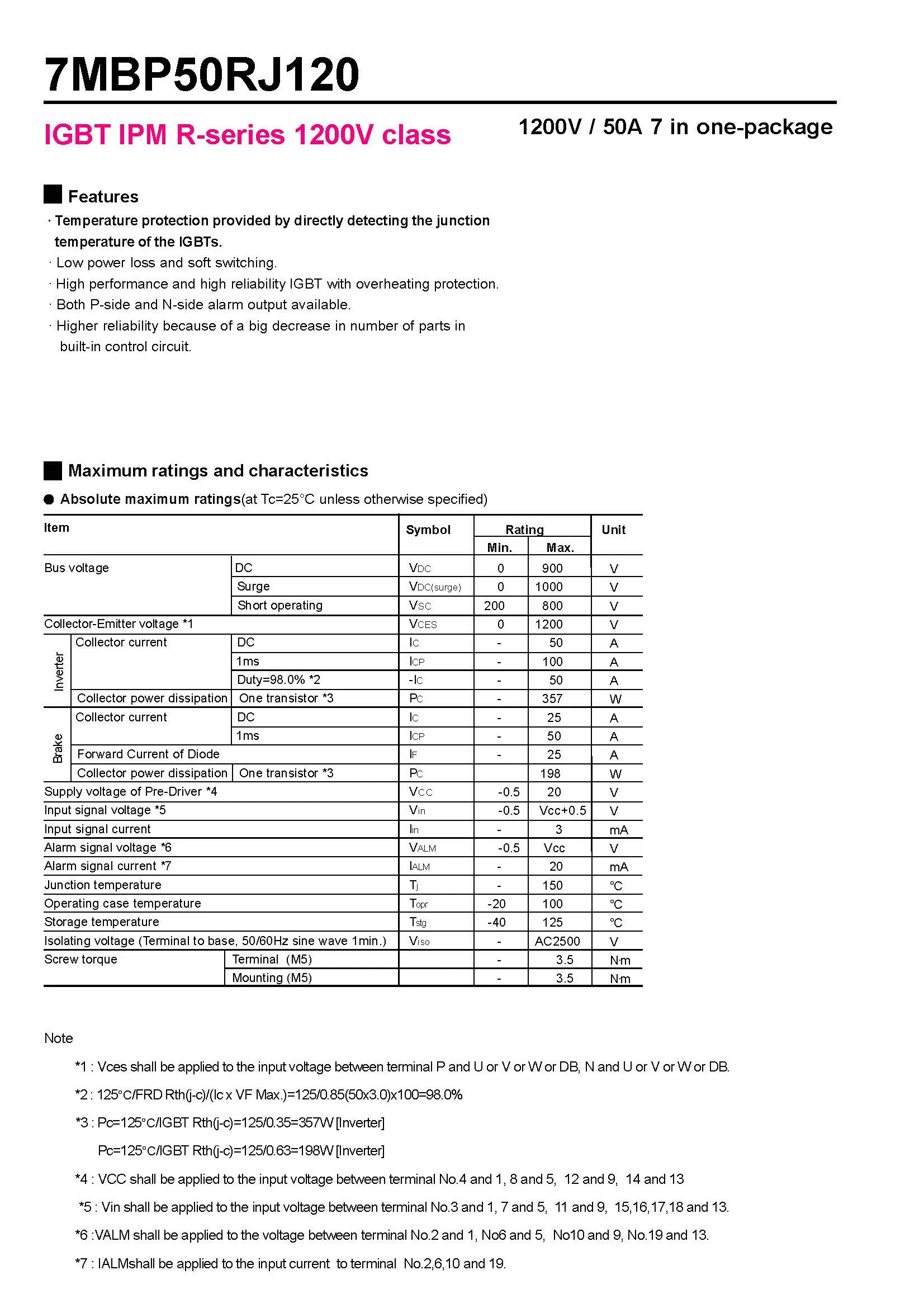

3 Technical Specifications

4 Packaging & Delivery

Package Size

10.00cm * 8.00cm * 10.00cm

Gross Weight

0.235kg

Package Type

Plastic Package

5 Professional Semiconductor Supplier

Established as a professional supplier of semiconductor discrete device sales and technical services. Our team brings years of industry expertise, maintaining a complete mechanism to ensure continuous improvement in competitiveness.

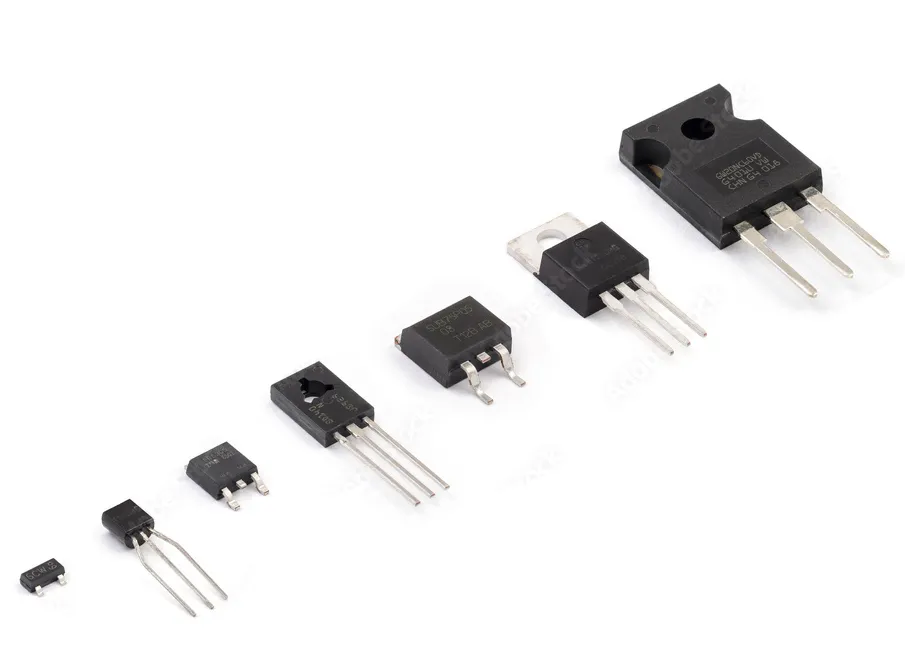

Core Product Lines:

Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier

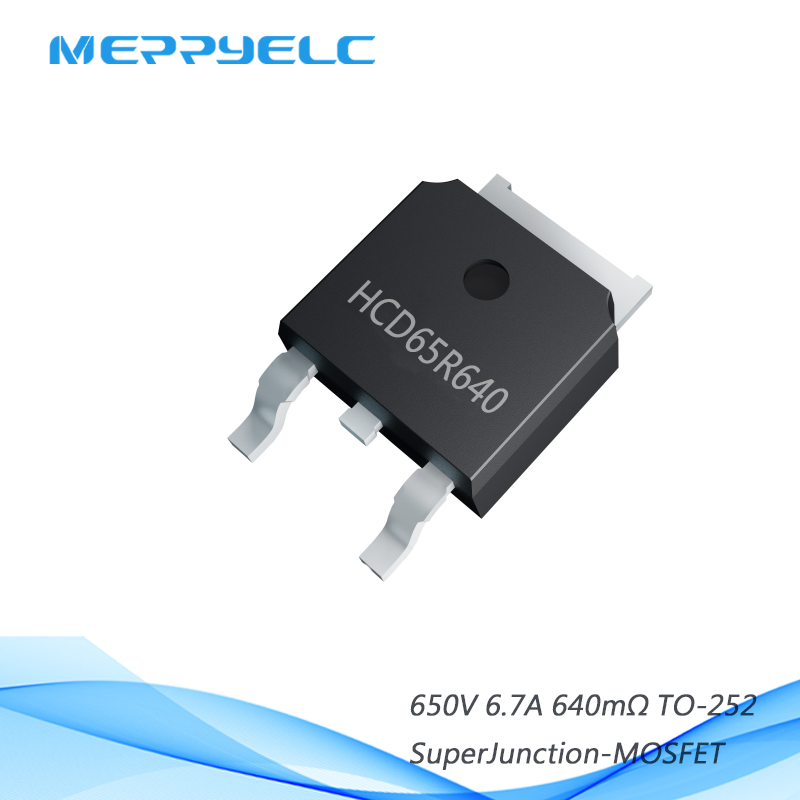

Low voltage MOS; super junction MOS
SIC diode; SIC MOSFET

Our solutions cover Switched Mode Power Supplies (SMPS), computing, motor control, consumer electronics, lighting, and automotive applications.

6 Frequently Asked Questions

What services do you provide?

We provide turnkey solutions including R&D, PCB fabrication, SMT, testing, and other value-added services.

What are the main industries for your PCB/PCBA services?

Our services mainly cater to industries including Medical, Automotive, Energy, Metering/Measurements, and Consumer Electronics.

Can we inspect quality during production?

Yes, we are open and transparent on each production process. Customers are welcome to inspect our production process and check in-house.

How do you ensure our design information remains confidential?

We are willing to sign NDAs governed by the customer's local law, promising to keep all data at a high confidentiality level.

What files are required to get a quotation?

For PCB, please provide Gerber files and technical requirements. For PCBA, please provide Gerber files, a BOM (Bill of Materials), and test instructions if functional testing is required.

Do you have a Minimum Order Quantity (MOQ)?

No, we do not have an MOQ requirement. We support projects starting from prototypes through to mass production.
