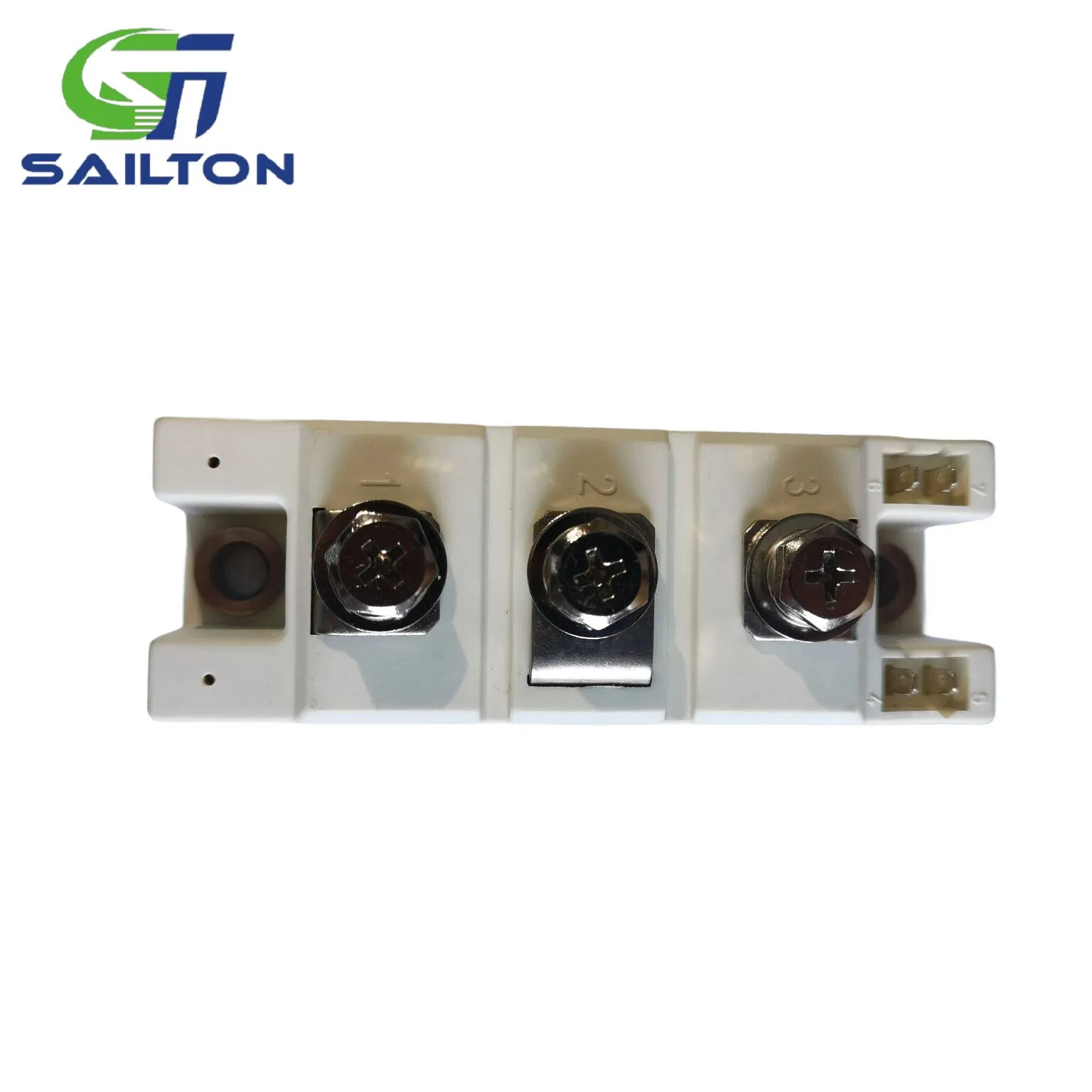

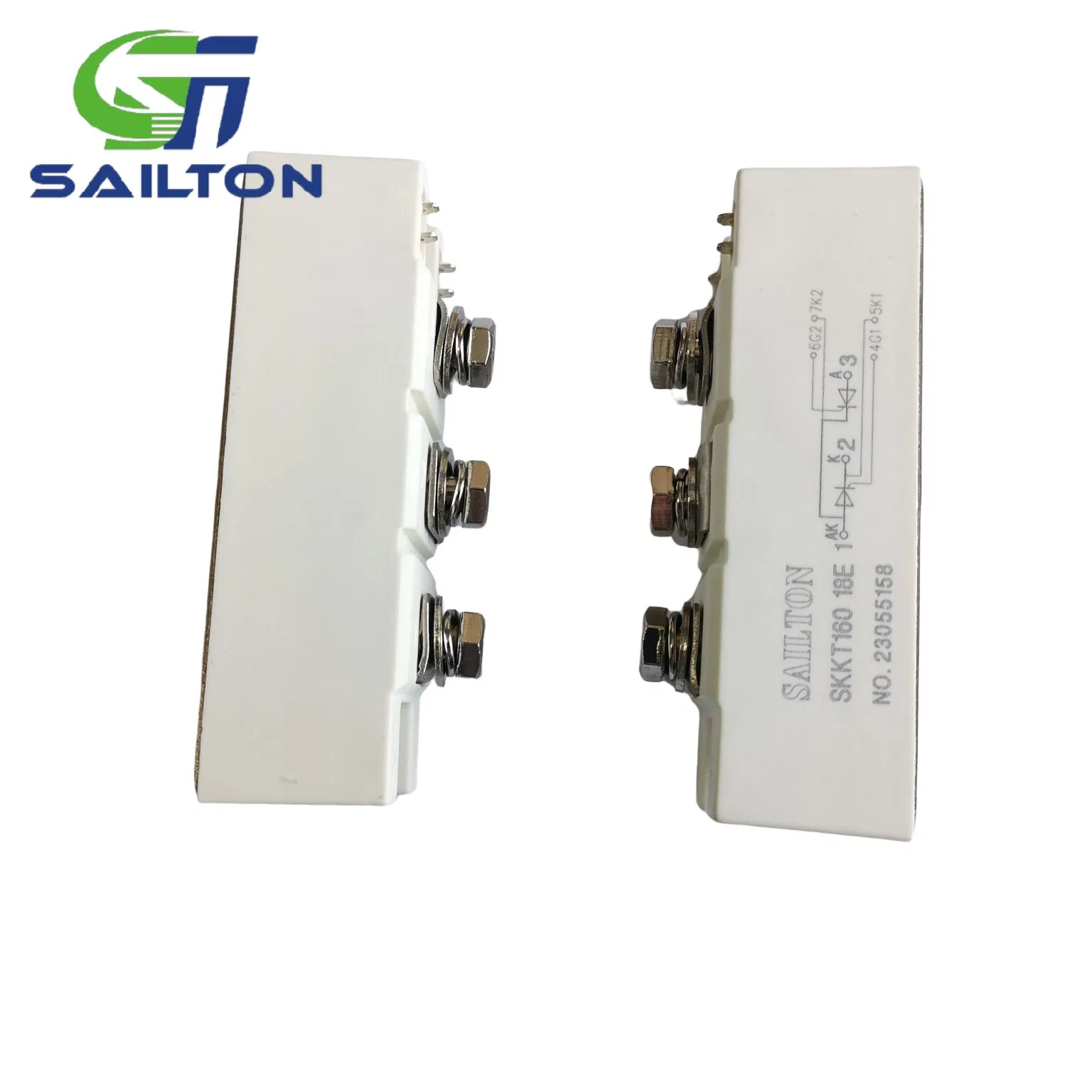

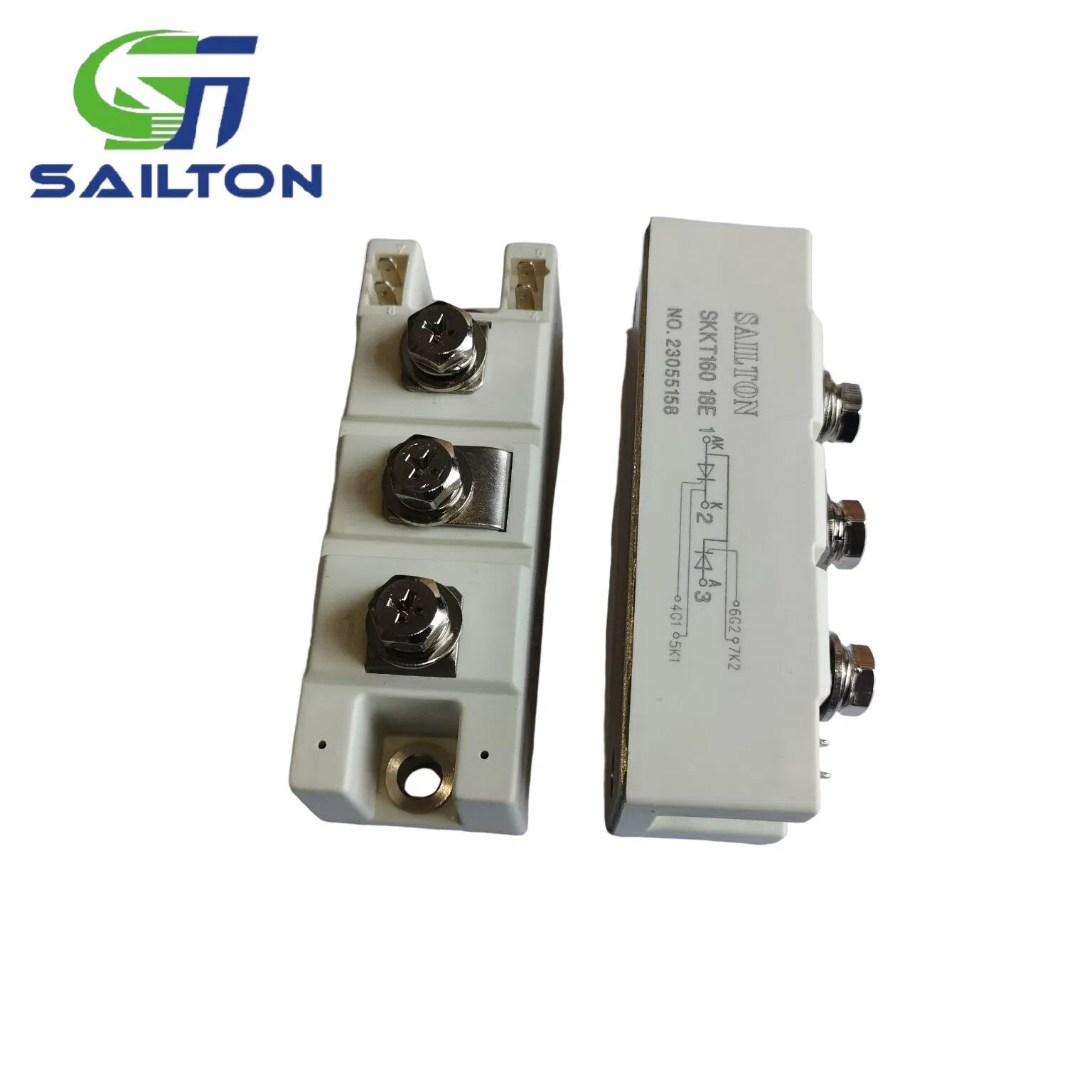

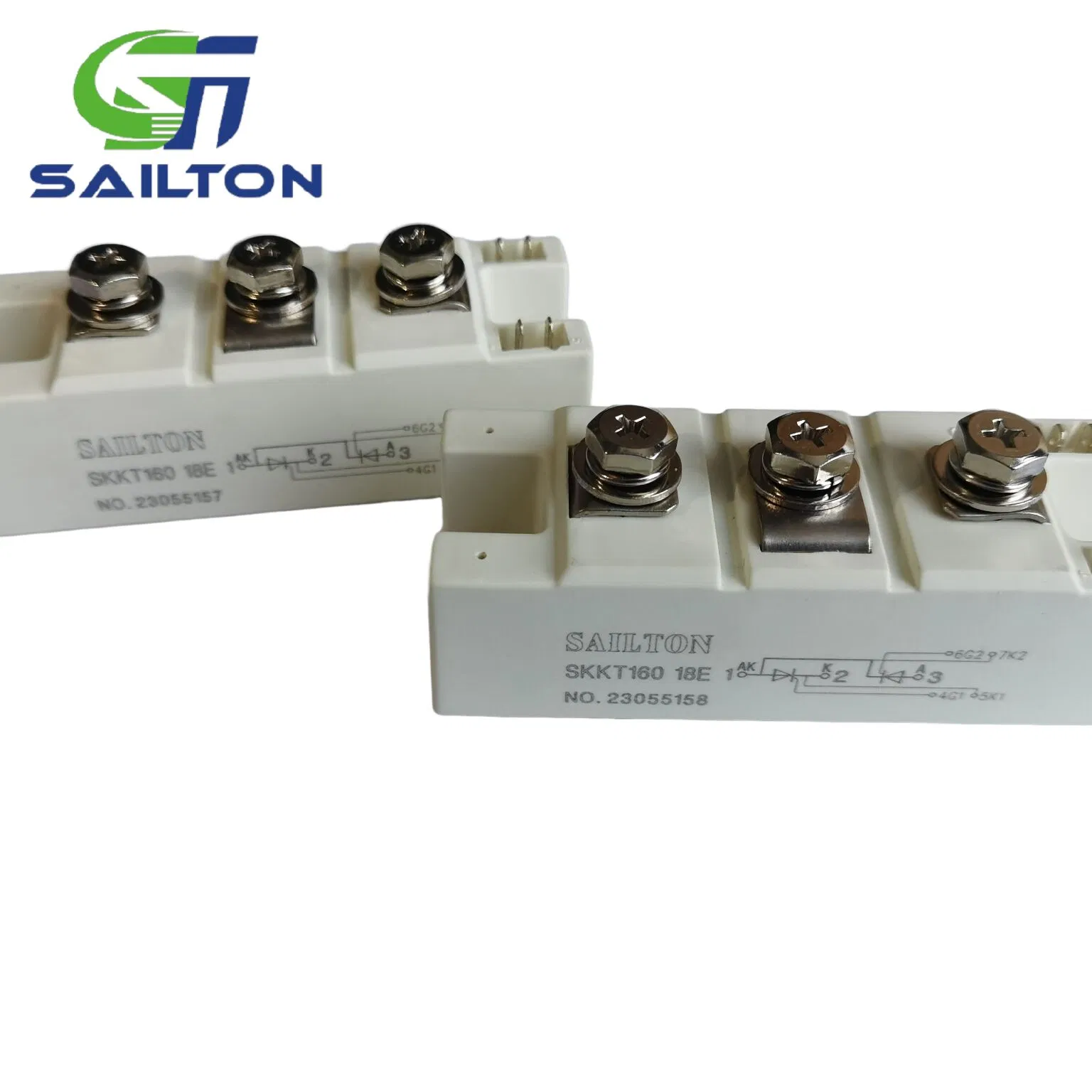

Rectifier Modules High Quality Semiconductor Devices Electronic Component
We supply a wide range of thyristor module, diode module, scr module, power module, fast diode module, fast thyristor module, bridge rectifier, single phase bridge rectifier, and 3 phase bridge rectifier.
Ideal for motor drives, power supply, power transmission and distribution, railway transportation, metal smelting, machinery manufacturing, welding machines, chemical industry, and renewable energy.
| Type | IT(AV) (A) | VDRM/VRRM (V) | ITSM (Ax10³) | IDRM/IRRM (mA) | di/dt | dv/dt | IGT (mA) | VGT (v) | IH (mA) | VTO (V) | rT (mΩ) | Rth(j-c) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MTx25 | 25 | 600-1800 | 0.55 | 10 | >50 | >800 | <50 | <2 | <50 | 0.90 | 9.80 | 0.95 |
| MTx40 | 40 | 600-1800 | 1.00 | 10 | >50 | >800 | <150 | <2 | <150 | 0.86 | 5.60 | 0.68 |
| MTx110 | 110 | 600-1800 | 2.40 | 20 | >100 | >800 | <150 | <2 | <150 | 0.80 | 2.34 | 0.26 |
| MTx200 | 200 | 600-1800 | 7.20 | 30 | >100 | >800 | <200 | <3 | <200 | 0.85 | 1.34 | 0.13 |
| MTx500 | 500 | 600-1800 | 14.5 | 50 | >100 | >800 | <200 | <3 | <200 | 0.85 | 0.40 | 0.08 |
| MTx1000 | 1000 | 600-1800 | 28.0 | 50 | >100 | >800 | <200 | <3 | <200 | 0.87 | 0.45 | 0.06 |
