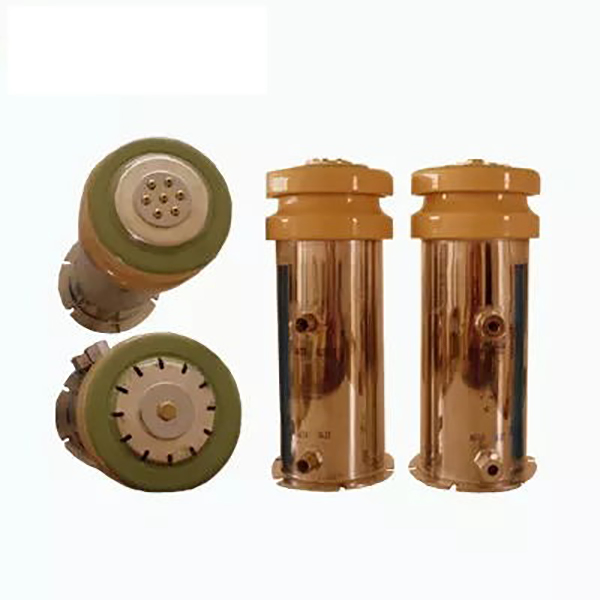

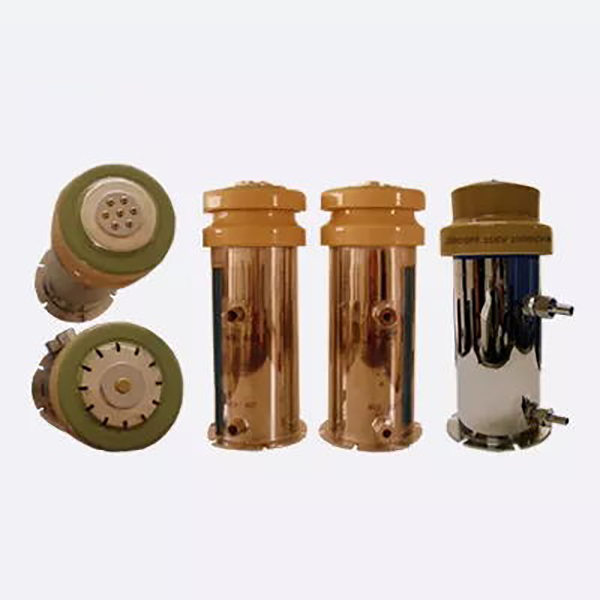

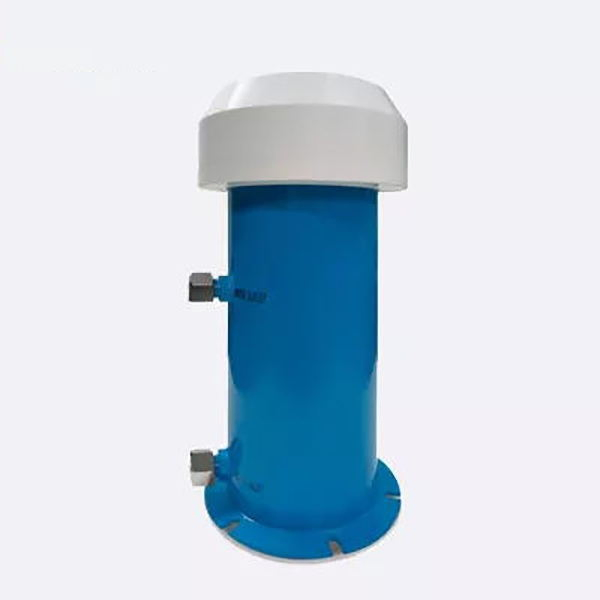

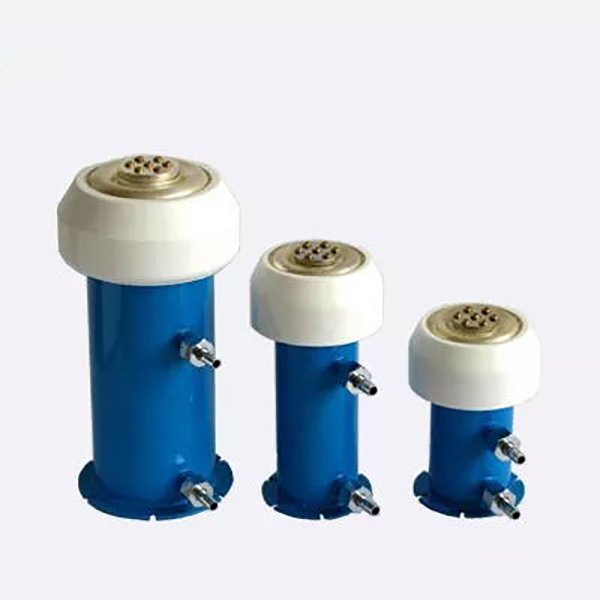

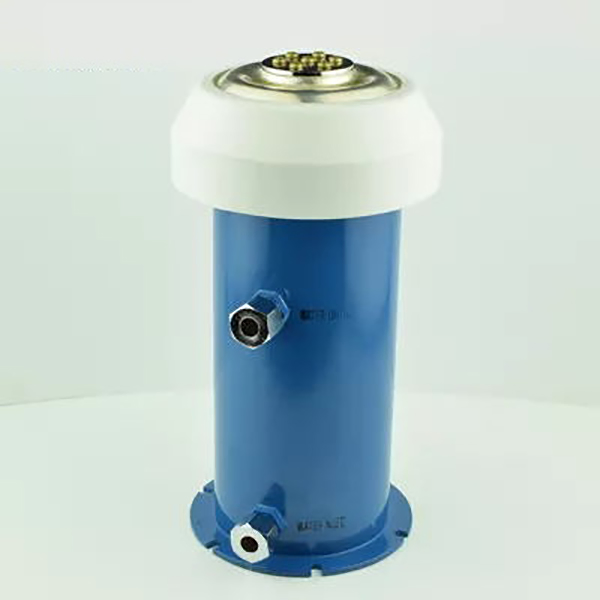

TWXF142314 24KV 5000PF 3000KVA High Power R85 Ceramic Watercooled Capacitor
Specializes in complex electronic ceramic components and assemblies used in a wide range of applications and cutting edge technologies. This range of high voltage RF discs capacitors is fabricated from very low loss CLASS 1 ceramic dielectric materials which permit them to carry very high electrical loads over a wide frequency range.
Key Features
Low loss Class 1 ceramic dielectric materials
Noble metal electrodes with low self heating
Very low capacitance-temperature characteristics
Low Inductance construction for high frequency
High voltage & High Reactive Power Ratings
Low magnetic susceptibility

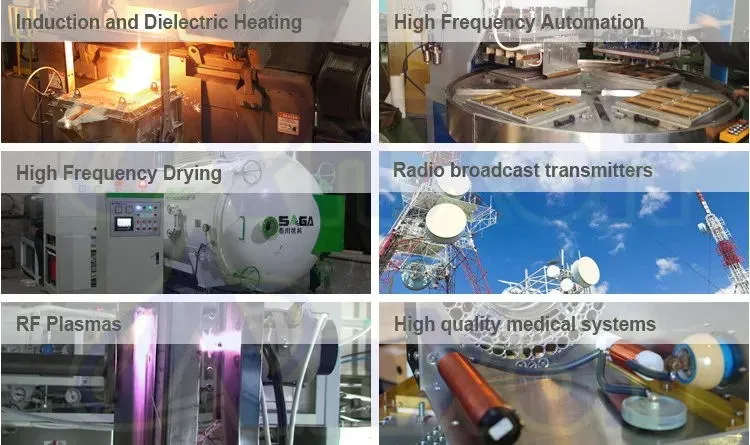

Typical Applications
Radio broadcast transmitters
HF filter, By-Pass & Coupling Circuits
High power matching tuned circuits
Plasma Generators & MRI systems
Induction and Dielectric Heating Equipment
Frequently Asked Questions
1. What is the primary cooling method for this capacitor?
The TWXF142314 model utilizes a water-cooled ceramic structure to efficiently manage heat dissipation during high-power operations.
2. What are the key power ratings for this model?
This capacitor is rated for a working voltage of 24KV, a capacitance of 5000PF, and a power capacity of up to 3000KVA.
3. What type of dielectric material is used in manufacturing?
It is fabricated using very low loss Class 1 ceramic dielectric materials, which ensure stability across a wide frequency range.
4. Which industries commonly use these high-power capacitors?
They are widely used in radio broadcasting, medical imaging (MRI), industrial induction heating, and plasma generators.
5. Does the product comply with international quality standards?
Yes, the specifications for this model meet CE and ROHS requirements for safety and environmental protection.
6. What is the monthly production capacity for this item?
We maintain a stable production capacity of approximately 100,000 pieces per month to meet high-volume industrial demands.
