📊 Basic Information
Model NO.
808nm 10W LD Series
Operating Temp.
-20 ~ 80°C
Production Capacity
200,000 PCS/Year
🔍 Product Description

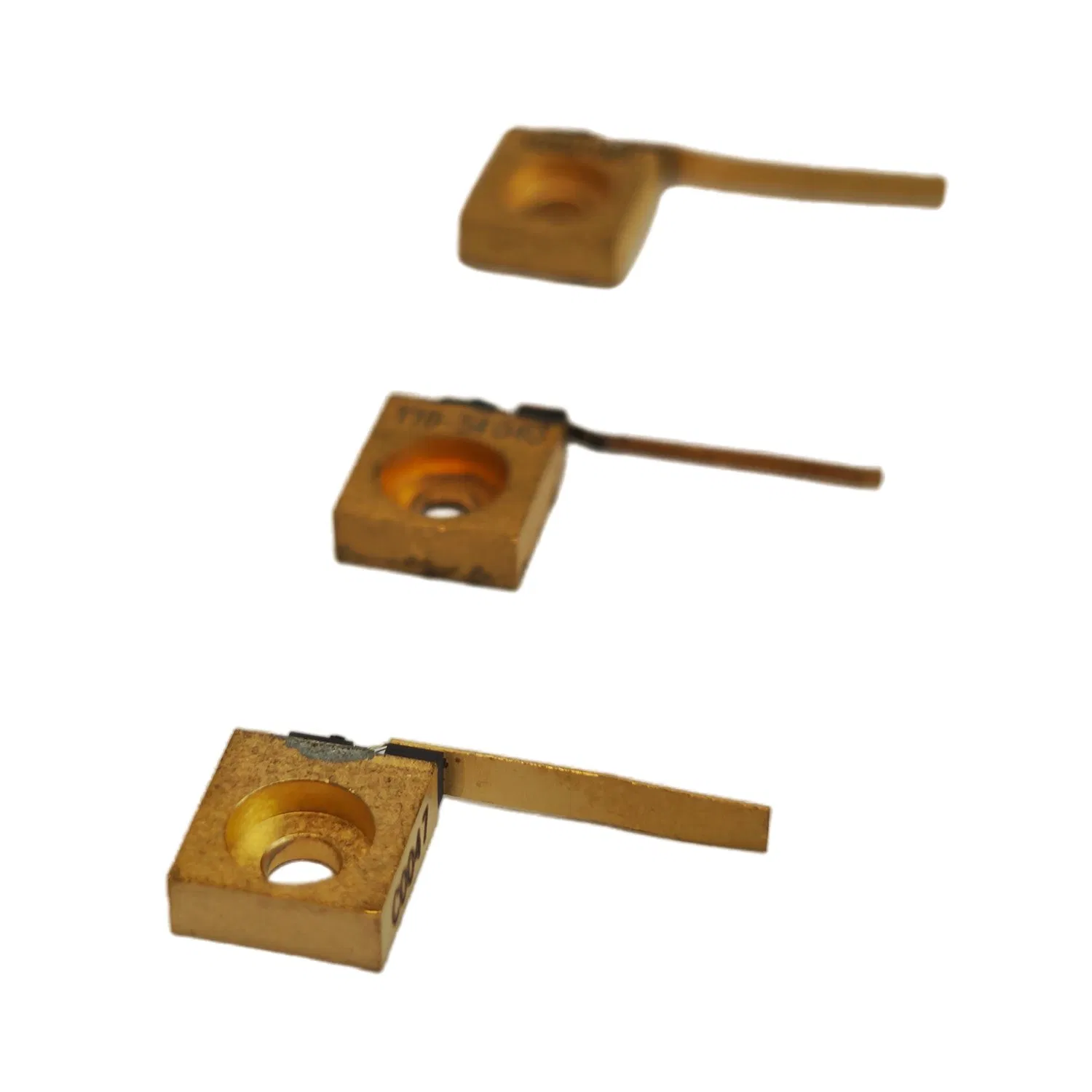

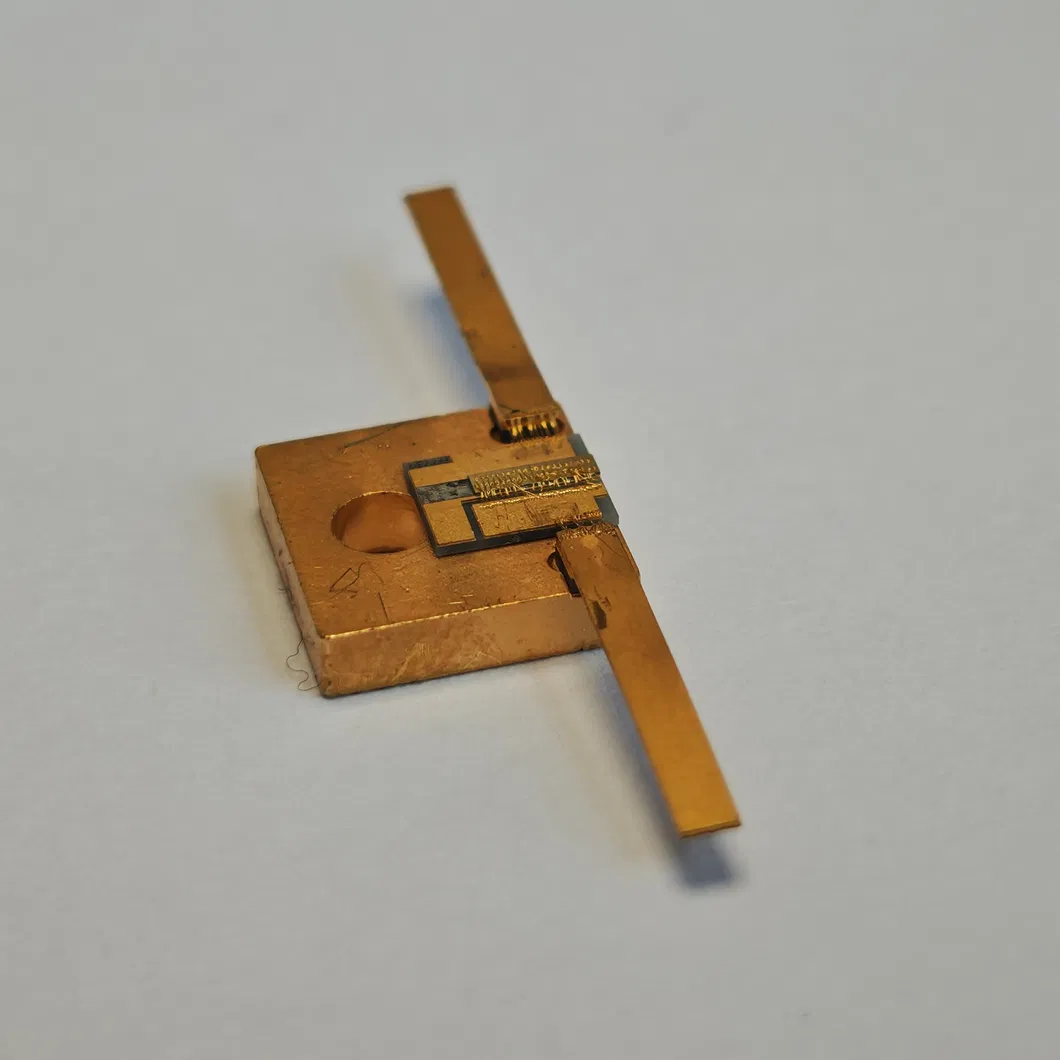

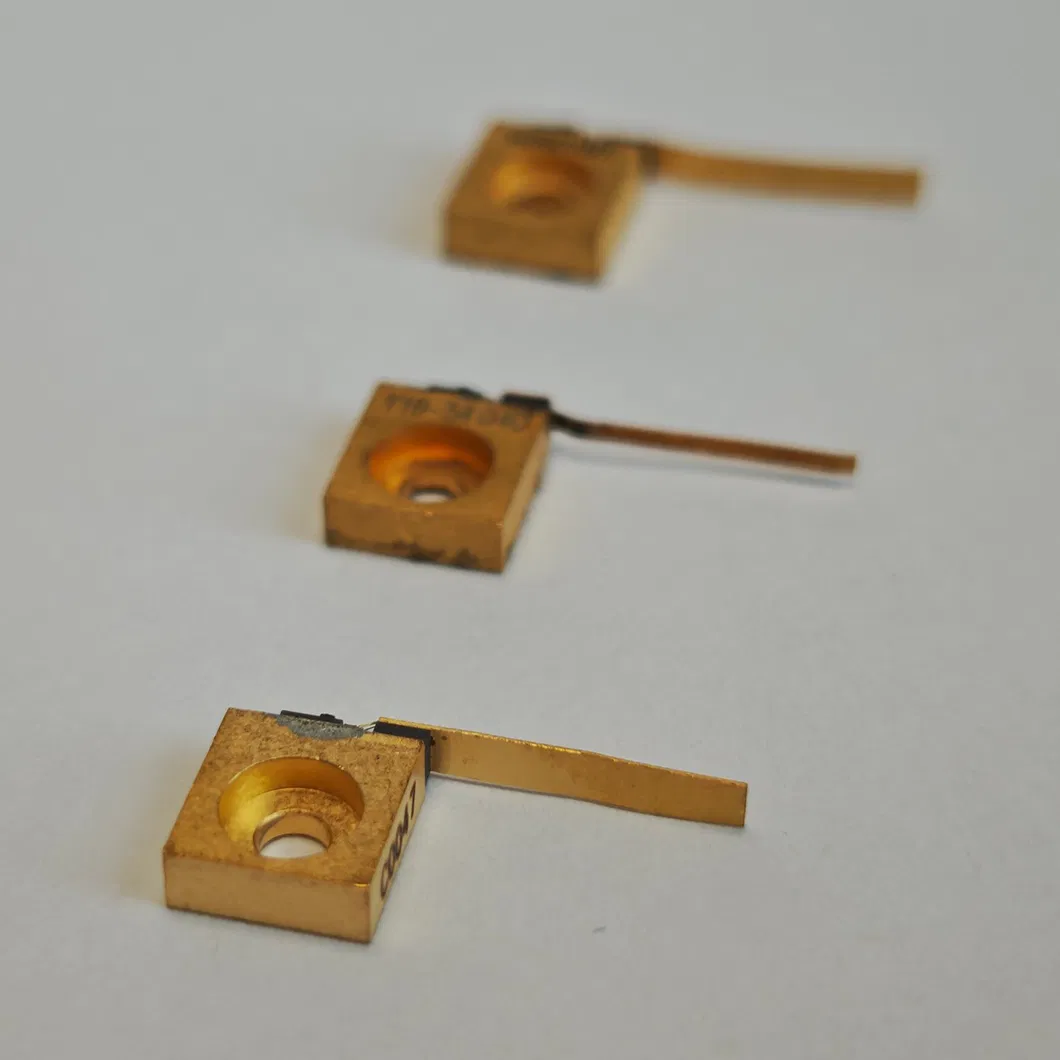

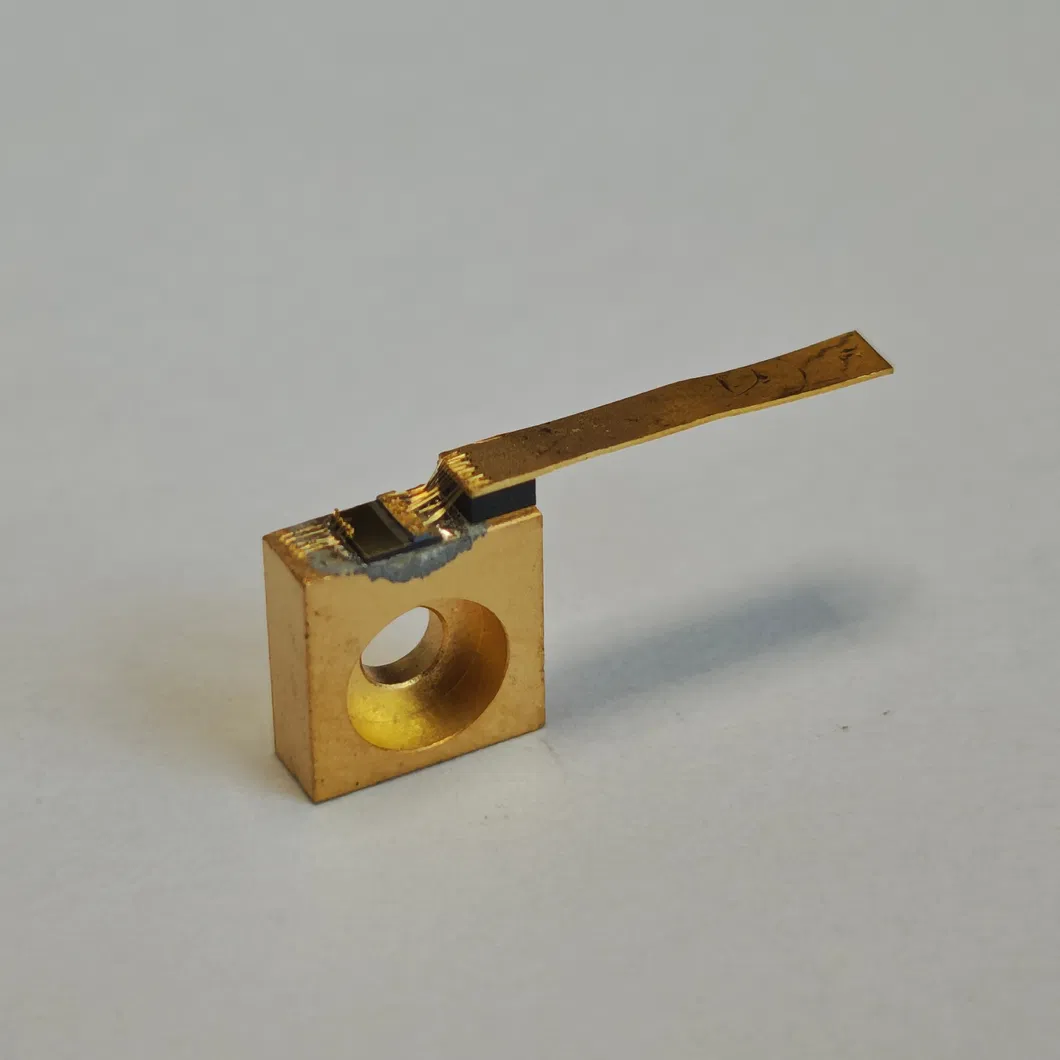

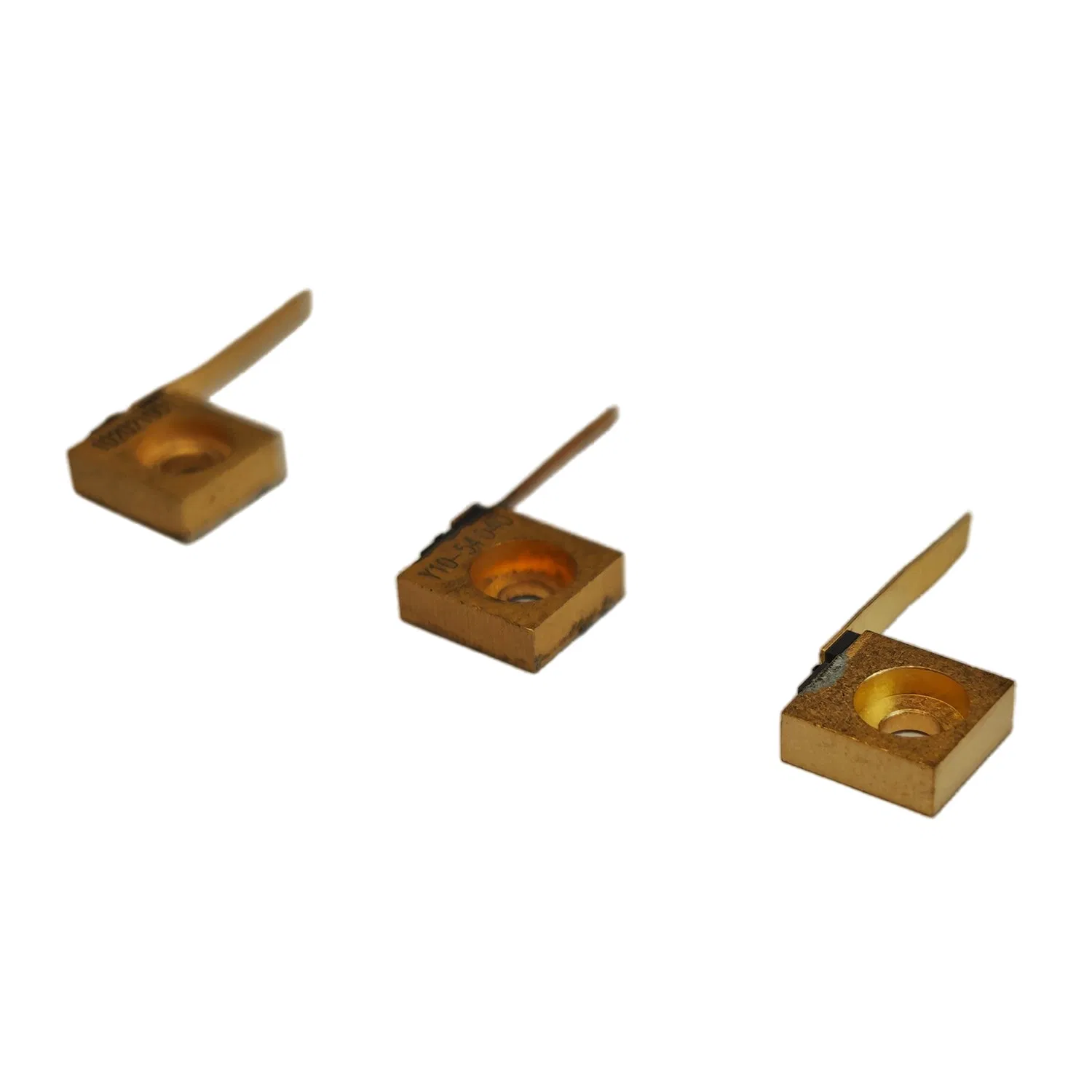

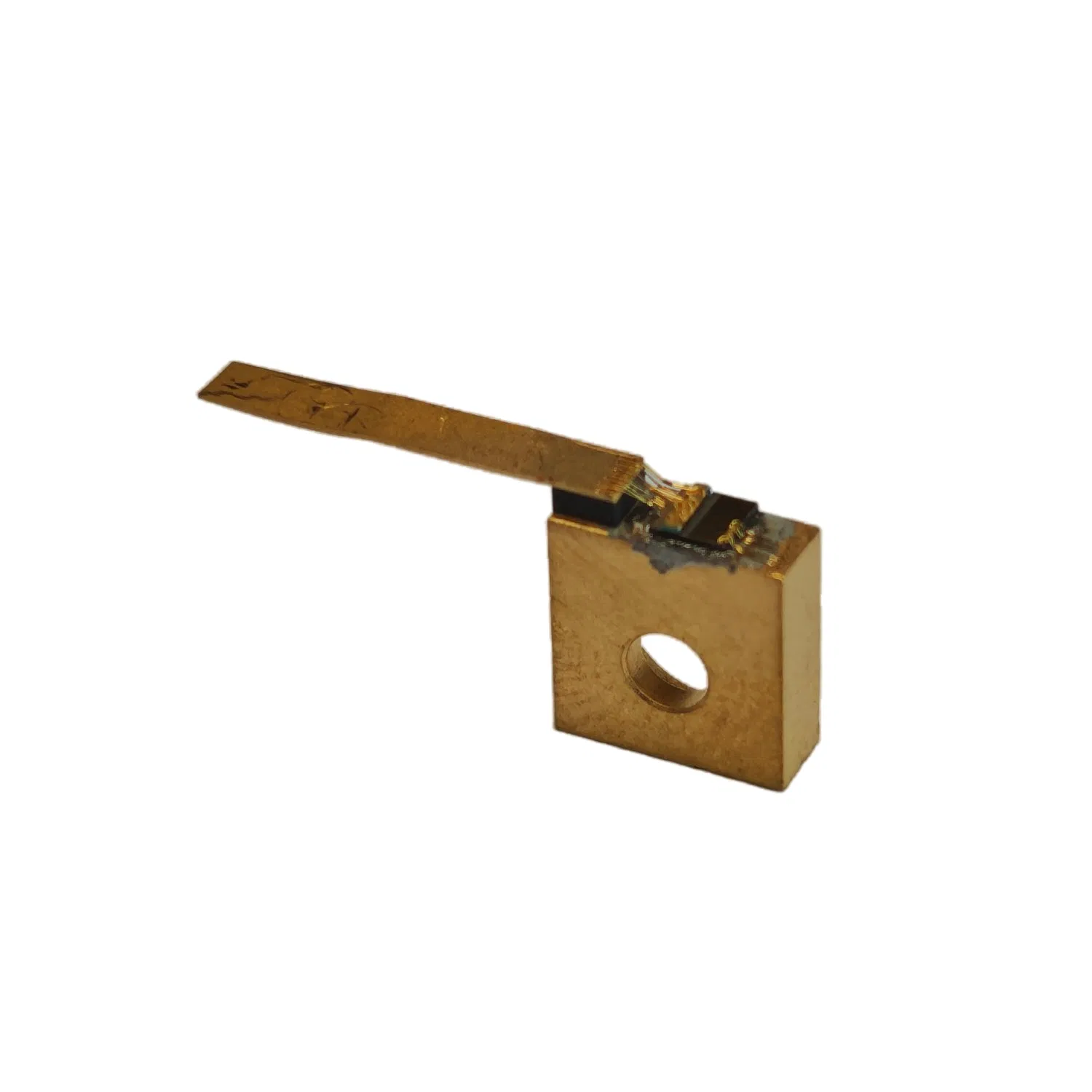

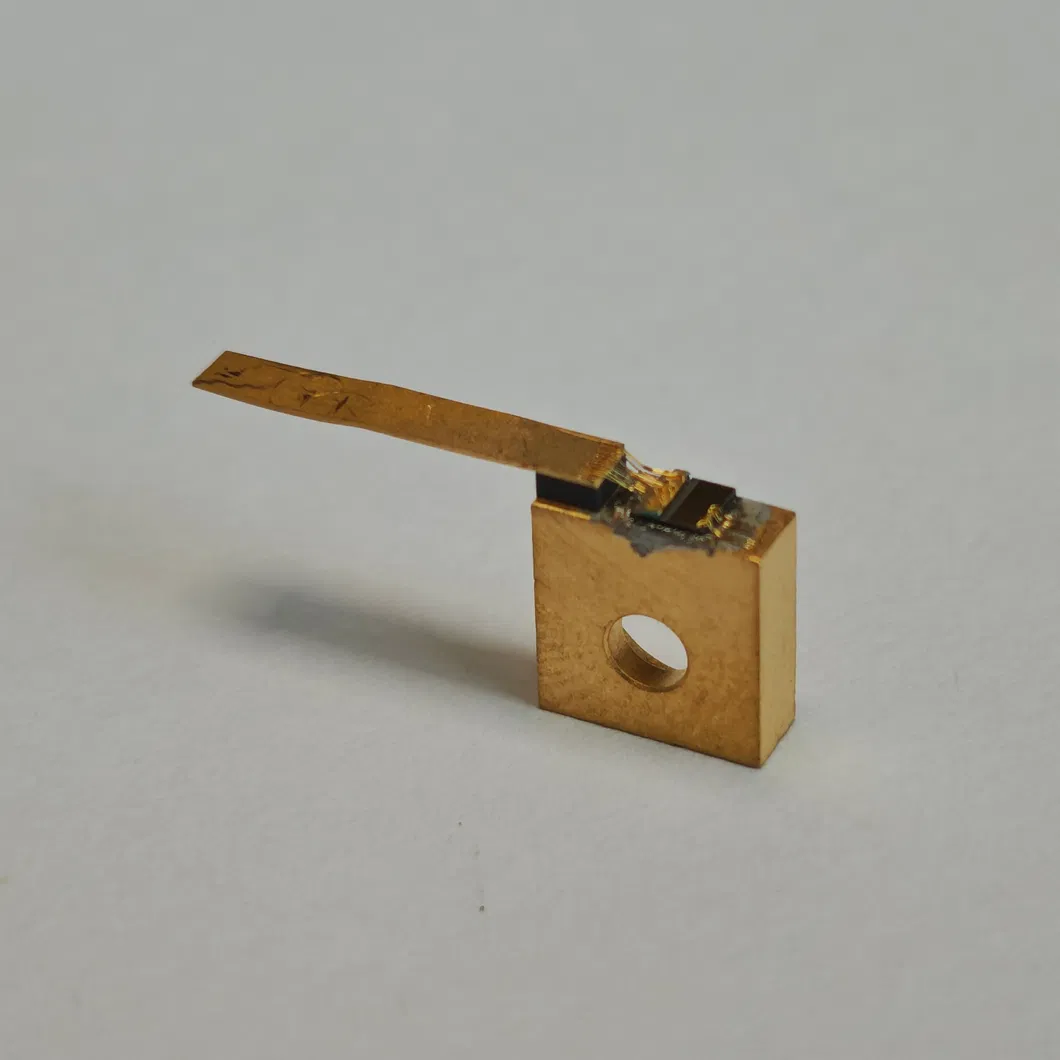

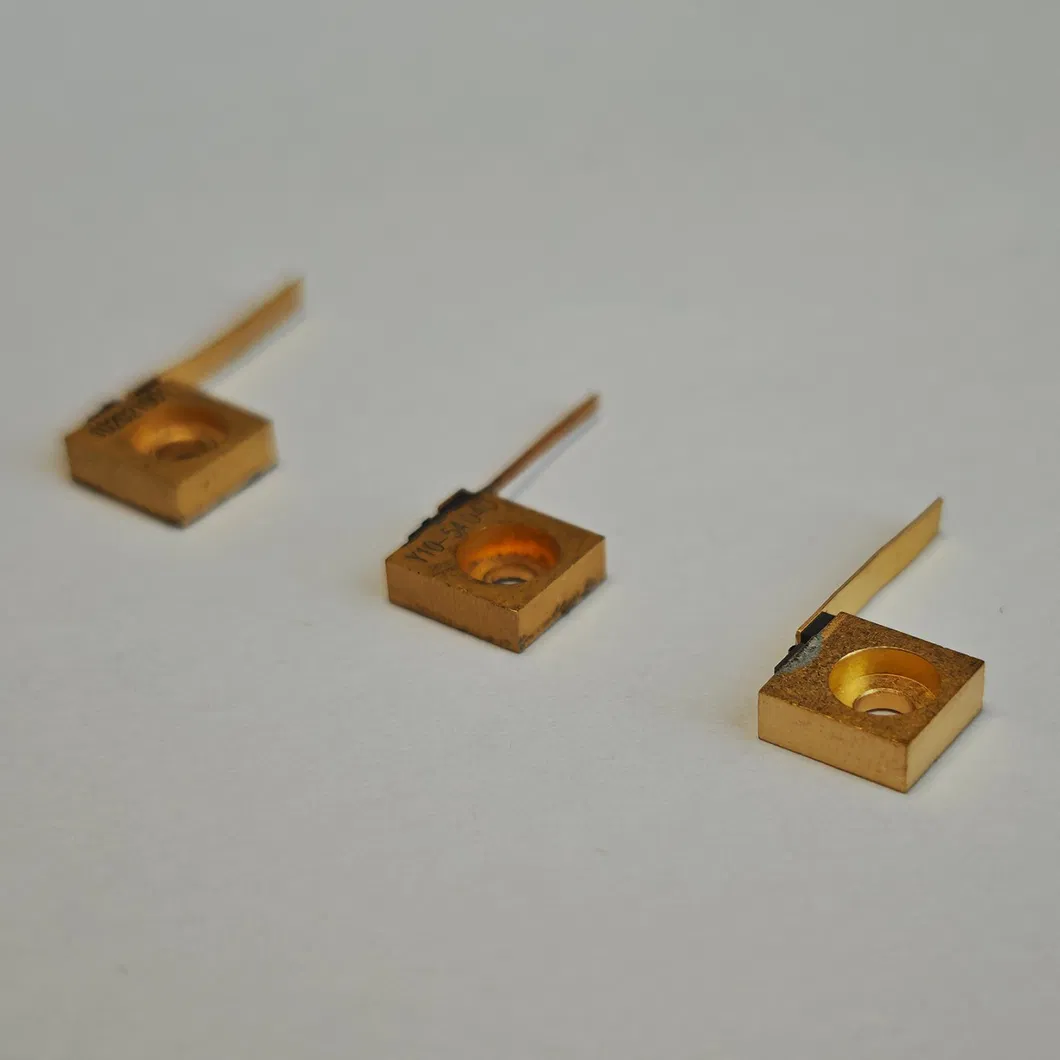

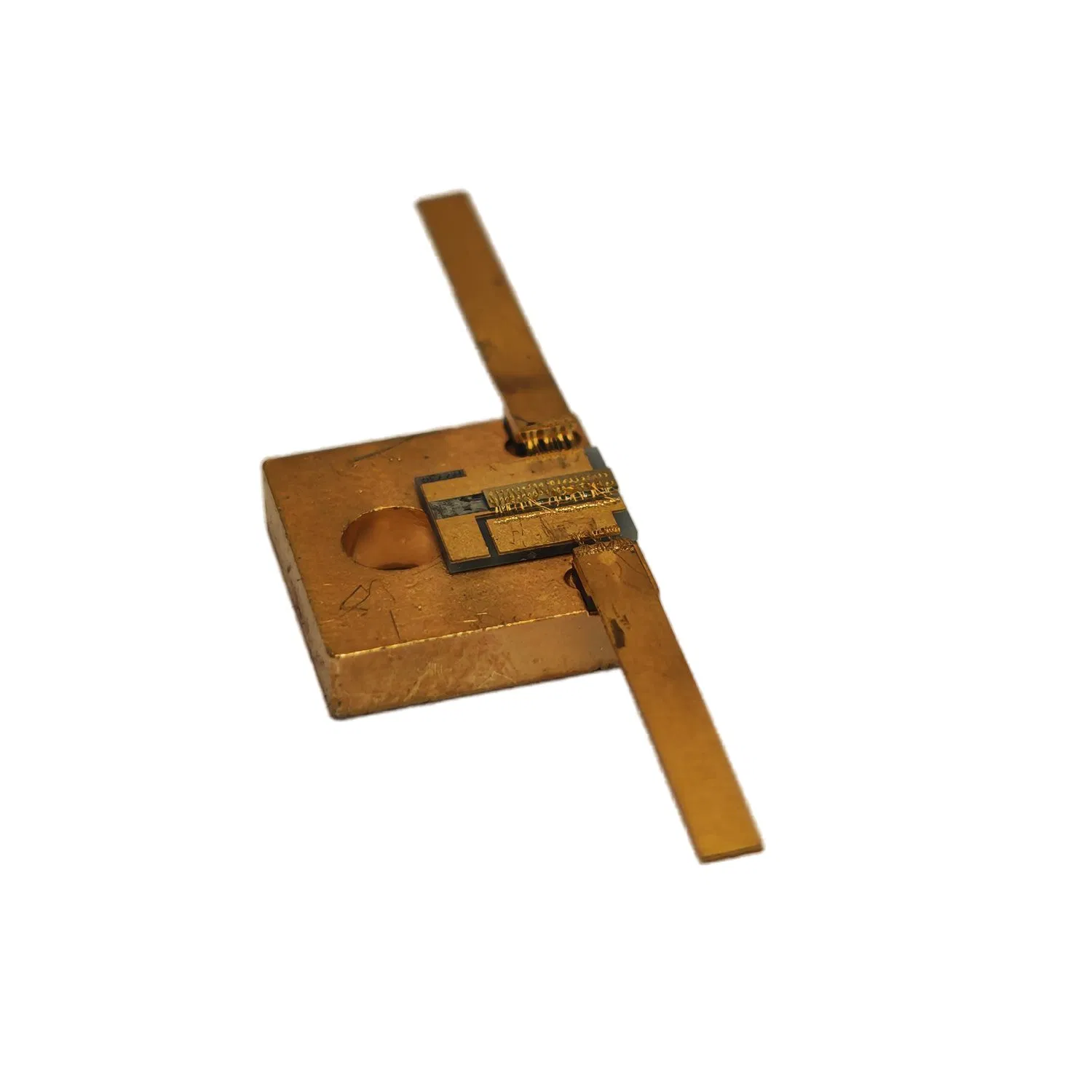

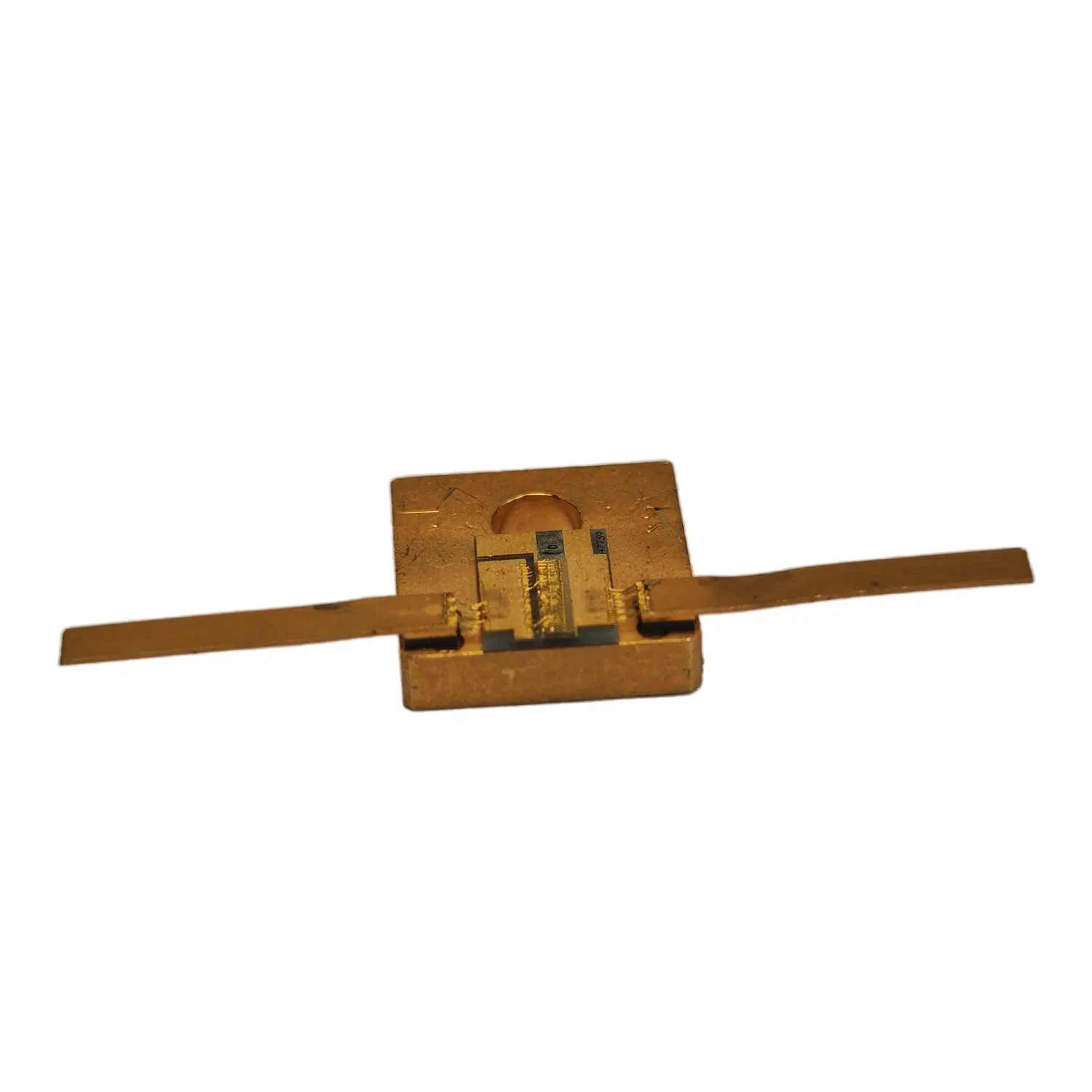

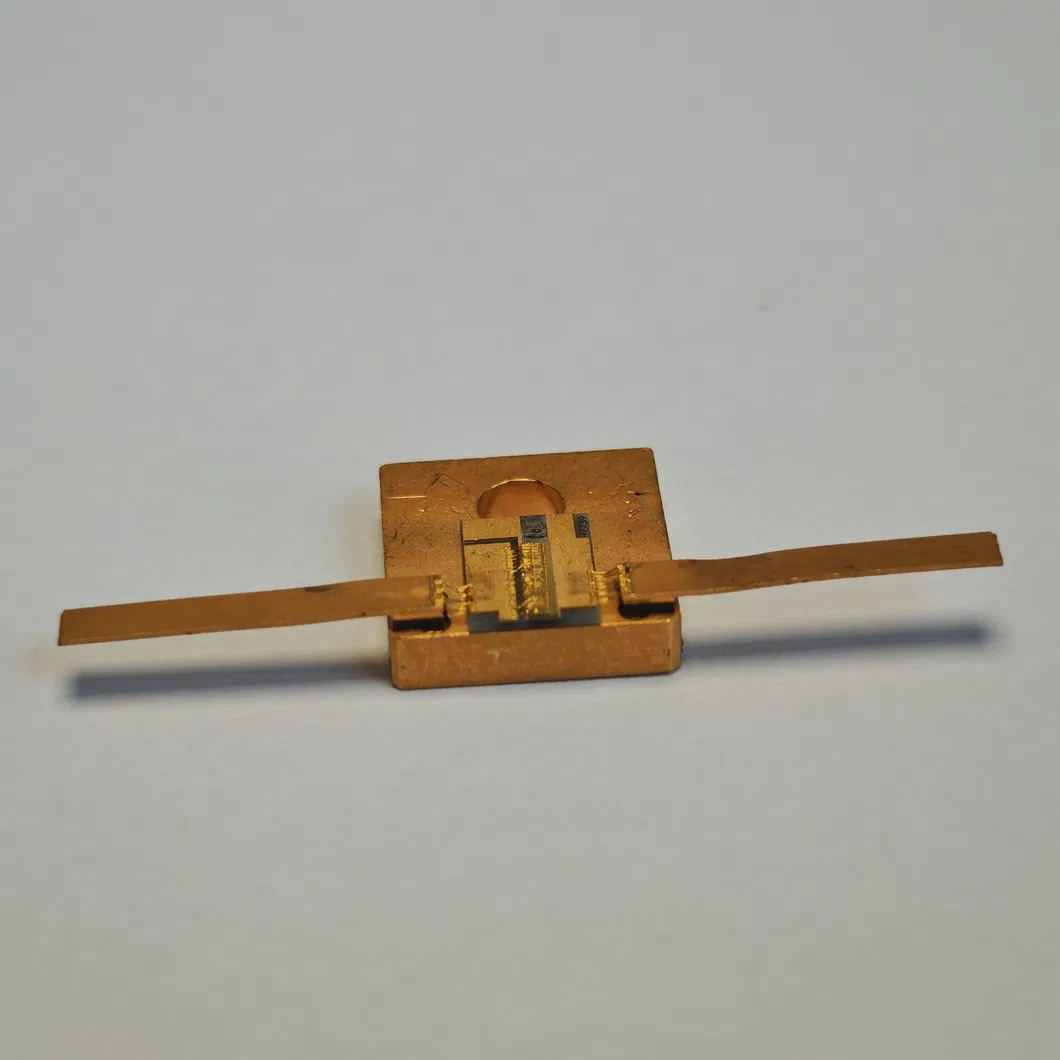

808nm 10W CT-Mount CW Laser Diode
Absolute Maximum Ratings (Tc=25°C)
| Parameter |
Symbol |
Min |
Max |
Unit |
| Operating temperature | Top | -20 | 60 | ºC |
| Storage temperature | Tstg | -40 | 100 | ºC |
| Solder temperature | Ts | - | 260 | ºC |
Characteristics (Tc=25°C)
| Parameter |
Symbol |
Conditions |
MIN. |
TYP. |
MAX. |
Unit |
| Center Wavelength | λ | CW
Iop=2.8A | - | 808 | - | nm |
| Spectral bandwidth | Δλ | - | 4 | - | nm |
| Optical Output Power | Po | - | 10 | - | W |
| Threshold current | Ith | CW | - | 1.5 | - | A |
| Operating current | Iop | CW | - | 10 | 11 | A |
| Operating voltage | Vop | CW
Iop=2.8A | - | 2 | - | V |
| Slope Efficiency | η | - | 1.2 | - | W/A |
| Beam divergence (∥) | θ∥ | - | 10 | - | ° |
| Beam divergence (⊥) | θ⊥ | - | 36 | - | ° |
📦 Packing & Delivery
Products are packed in special boxes, vacuum-sealed anti-static bags and outer cartons. This packaging meets safe express delivery requirements.
Based on inventory and material availability, we can deliver within 1-8 weeks.
We deliver by air express, mainly via FedEx.
🏢 Company Profile
We are a professional trading company specializing in laser diodes, photodiodes, fiber-coupled lasers and optical receiver assemblies.
Benefiting from China's mature and reliable supply chain, we have established stable partnerships with leading optoelectronic manufacturers. We provide long-term, stable supplies of high-quality standard products and customized solutions.
Most of our products are in stock and can meet the demand for fast delivery. We welcome small orders to verify product quality and build basic mutual trust, and we accept factory audits before bulk orders.
❓ FAQ
Does the quotation include freight, customs duties or VAT?
Freight, customs duties and VAT are not included. The price is based on FCA / FOB terms.
Do you support product customization?
We support customization and can also provide neutral packaging to meet your specific requirements.
What payment terms do you accept?
We only accept T/T (Telegraphic Transfer). Production starts upon receipt of 30% deposit, and shipment will be made after the full balance is received.
What is the typical delivery time for orders?
Based on inventory and material availability, we can generally deliver within a timeframe of 1 to 8 weeks.
How are the products shipped?
We deliver by air express to ensure safety and speed, primarily utilizing FedEx for international shipments.
Can I place a small order first?
Yes, we welcome small orders to verify product quality and build mutual trust before moving to bulk purchases.
