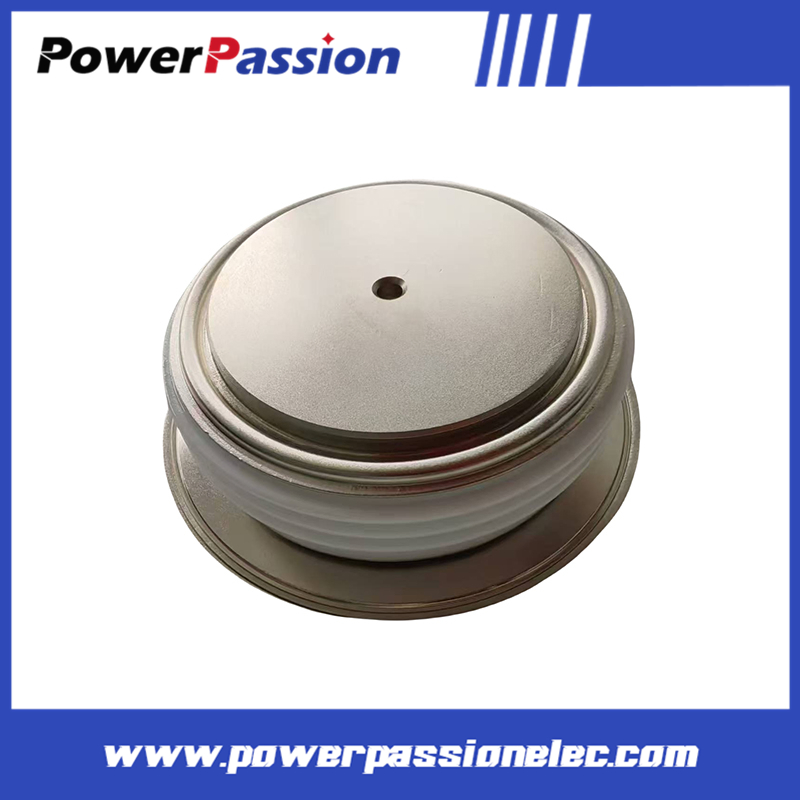

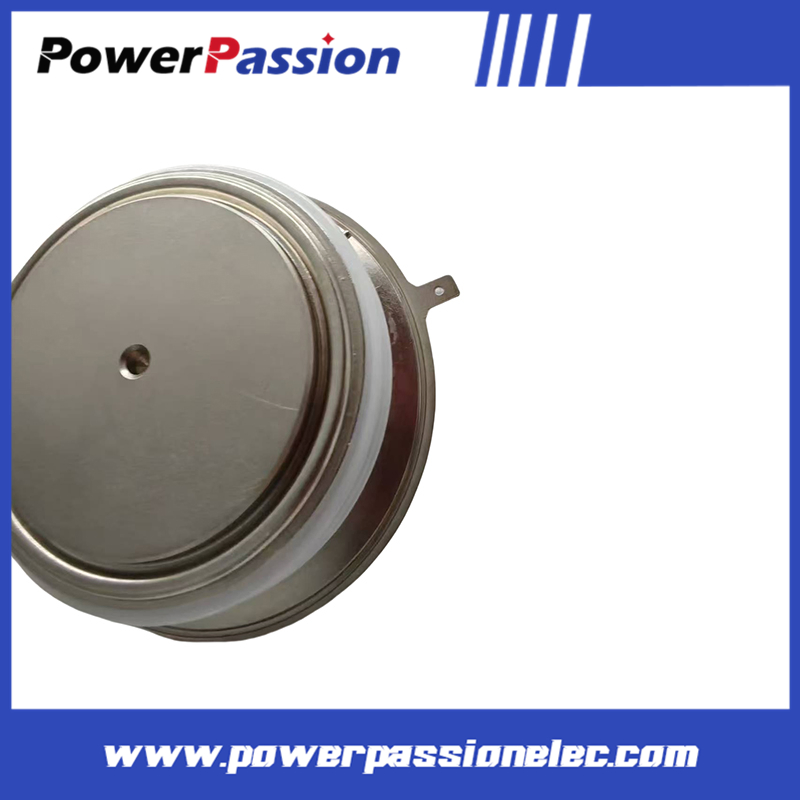

High-Performance SCR Thyristor Power Device with IGBT and Diode Fast Turn off Fast Switching Silicon-Controlled Thyristors Controlled Rectifier Tyristor to-92

1 / 5

High-Performance SCR Thyristor Power Device with IGBT and Diode Fast Turn off Fast Switching Silicon-Controlled Thyristors Controlled Rectifier Tyristor to-92

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Product Information

Model NO.

KP Series

Certification

Technology

Discrete Device

Material

Compound Semiconductor

Type

SCR (Silicon Controlled Rectifier)

Cooling

Double-Side Cooling

Package

Surface Mount/Through Hole

HS Code

854310

💎

Phase Control Thyristor Features

High-Temperature Resistance Exceptional ability to function flawlessly across a broad temperature spectrum from -40°C to 150°C. This ensures unparalleled reliability across applications including welders, converters, and motor controls.
High Current Capacity Boasting an impressive maximum current capability of 5338A (rms) and a remarkable 46800A for non-repetitive surges at 50/60Hz, engineered for high-power demands.
Customizable Options Empowers you with customizable options for the number of SCRs and diodes, enabling precision tailoring to your unique specifications.
Professional Quality Sourced directly from the original manufacturer, guaranteeing authentic quality and reliability for your critical electronic components.

Attribute	Details

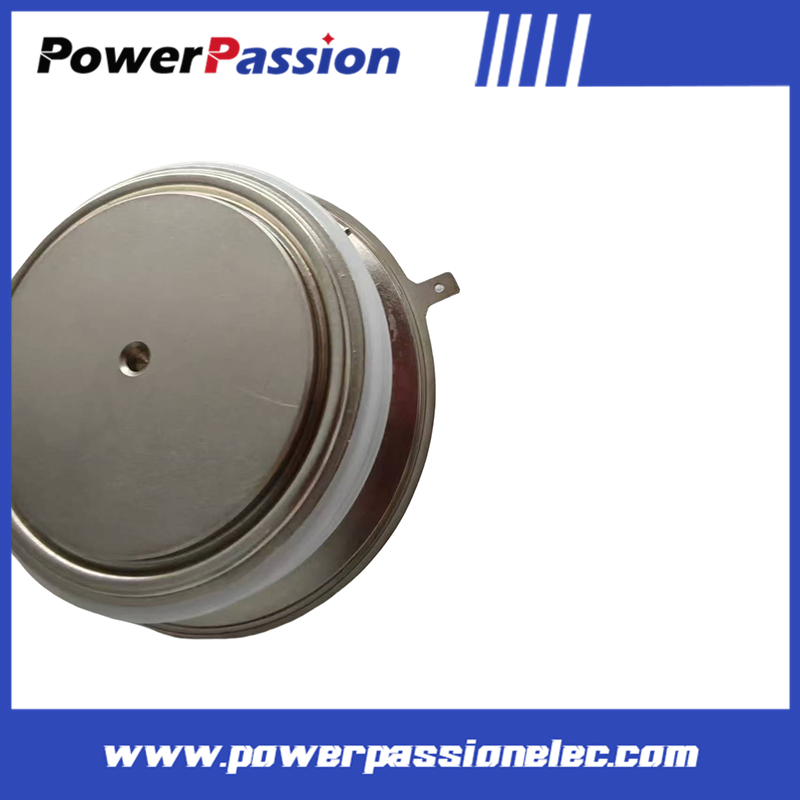

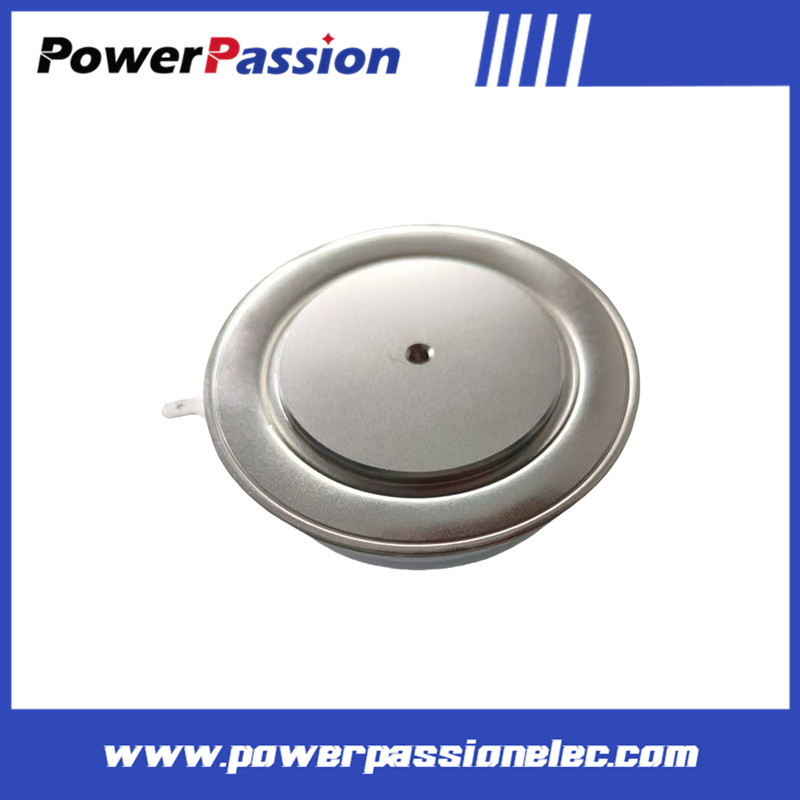

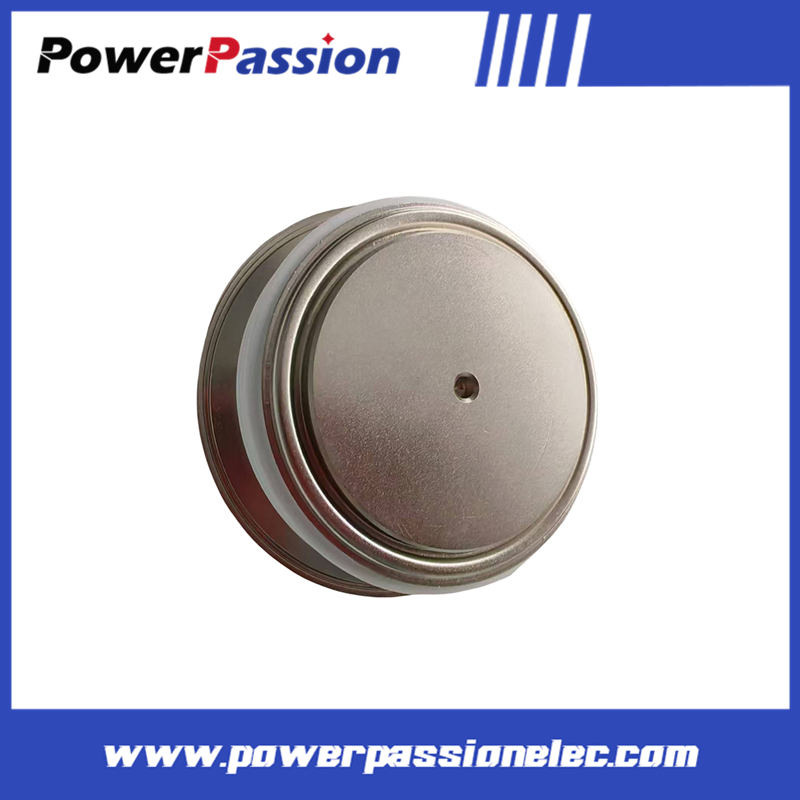

Product Name	KP500a KP1000a KP2500a Triac Capsule SCR Thyristor
Available Colors	Silver
Primary Usage	HVDC transmission, reactive power compensation, motor excitation, induction heating, locomotive traction
Service Commitment	24 hours professional support

📊

Technical Parameters

Type	It(AV) (A)	TC (ºC)	Itsm (A)	I²t (A²s)	Vtm (V)	Itm (A)	Tjm (ºC)
KP1000A/1800V	1000	70	12000	7.20E+05	1.45	1500	125
KP1200A/1800V	1200	70	14400	1.00E+06	1.60	3000	125
KP2500A/1800V	2500	70	30000	4.50E+06	1.45	3000	125
KP4000A/1800V	4000	65	48000	1.15E+07	1.35	3000	125
KP6000A/1800V	6000	65	72000	2.60E+07	1.30	5000	125

📸

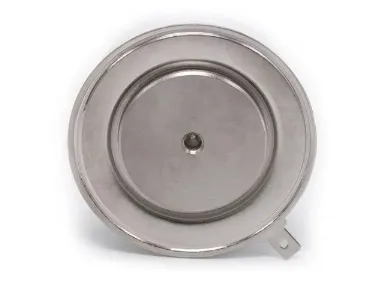

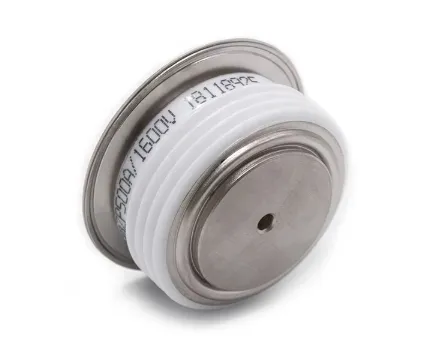

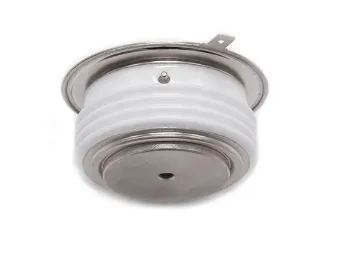

Detailed Product Showcase

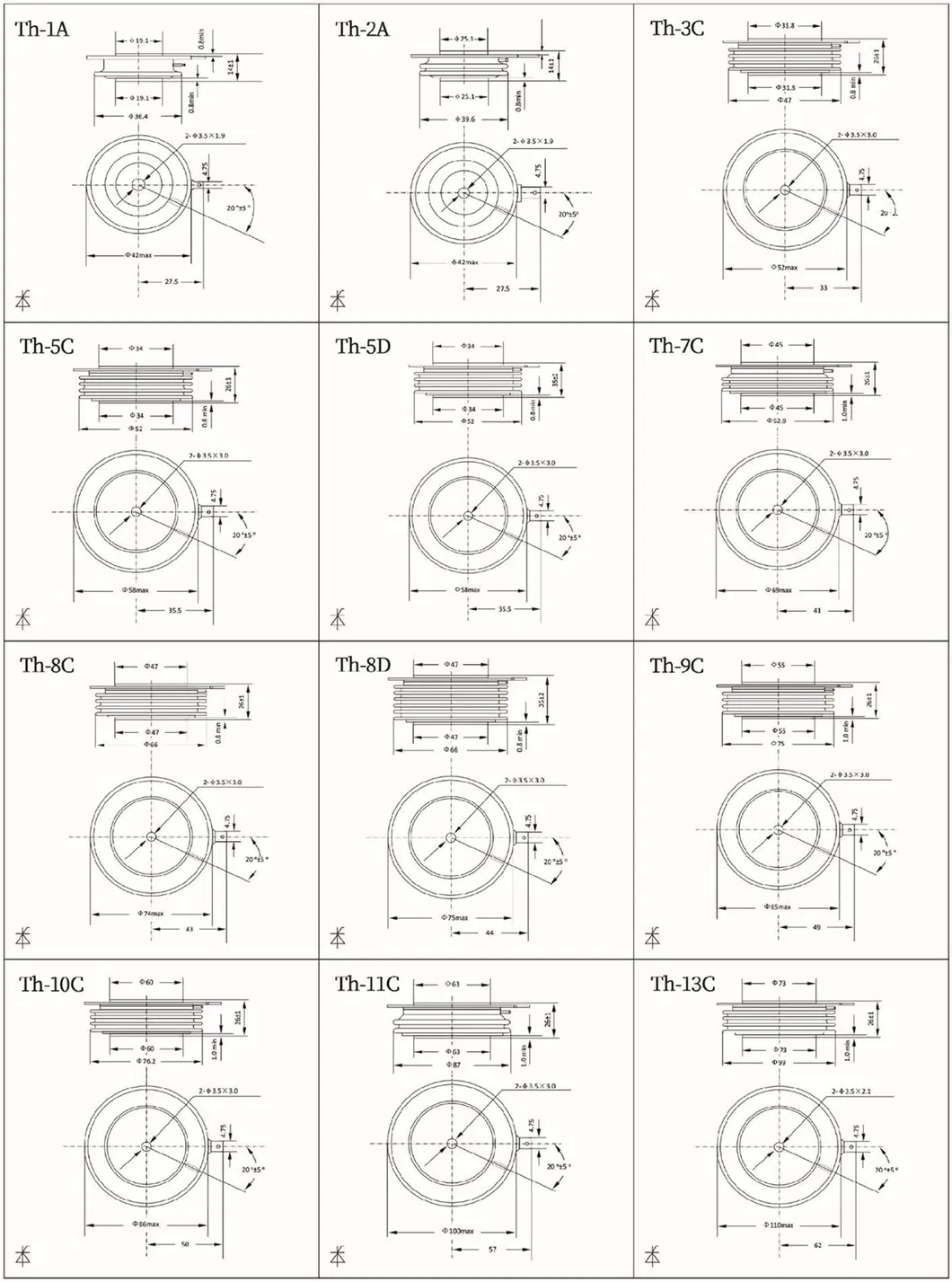

Enclosed is a drawing showcasing our standard dimensions. We also offer flexible ODM and OEM services to tailor exactly to your needs.

⚙️

Main Applications

Traction & Transmission: Engineered for unmatched power management in locomotives and grid systems.

HVDC & SVC: Guaranteed stable, efficient conversion and reactive power compensation for high-voltage direct current.

High Current Power: Command high-current applications confidently with superior thermal stability.

Soft-starters: Smooth start-up and optimized operational efficiency for industrial machinery.

Induction Heating: Precise and efficient energy transfer for industrial metal heating processes.

🔗

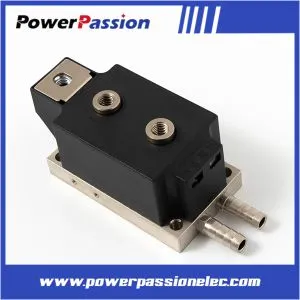

Related Components

🏢

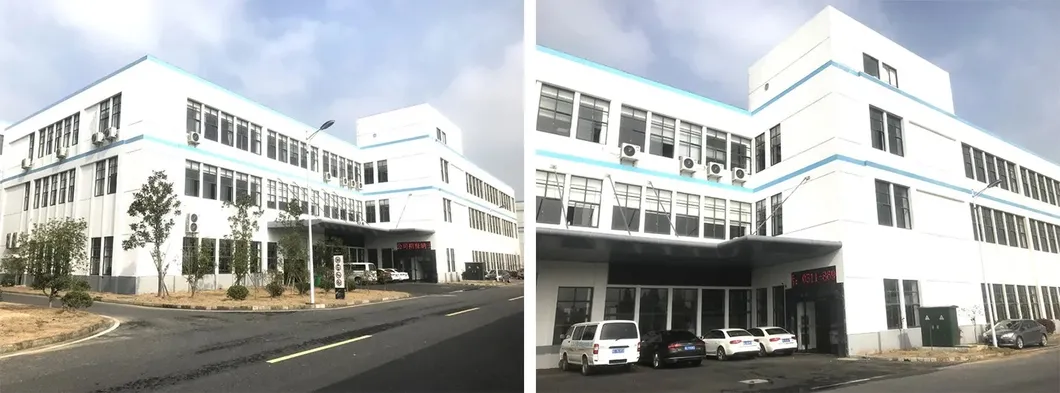

Manufacturing Excellence

As a distinguished manufacturer of thyristor chips, evolved from a historical enterprise, we lead the charge in both innovation and quality. Since 1978, we have consistently dedicated ourselves to the design, production, and R&D of advanced thyristors, solid state relays, and rectifier modules. Our unwavering dedication ensures competitively priced, premium quality products for global industries.

📜

Certifications & Shipping

Frequently Asked Questions

Do you provide after-sales service?

Of course, we offer comprehensive after-sales service. If you encounter any issues with our products during use, please contact us. Within the warranty period, we provide free replacement or repair for quality-related issues.

How can I place an order for your thyristor products?

You can place an order by consulting our sales staff online, sending a purchase order via email, or calling our order hotline directly for immediate assistance.

Do you provide samples, and how is the charging handled?

For low-value standard products, we provide free samples for testing, with customers covering shipping costs. High-value samples are available at a discounted rate.

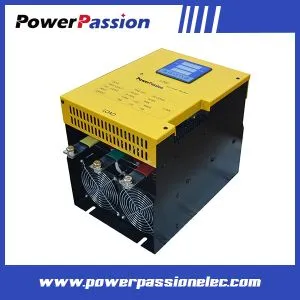

Do you have SCR Power Regulators in stock?

We maintain stock for conventional models. For non-stock items or specialized requirements, our typical delivery time is between 15 to 30 days.

What is the advantage of capsule-type SCRs?

Capsule or disk-type SCRs offer superior double-sided cooling, allowing for much higher current ratings and better thermal management in heavy-duty industrial applications compared to standard modules.

Are your products compliant with international standards?

Yes, all our thyristor products are manufactured under strict quality control systems and carry CE certification, ensuring they meet global safety and performance standards.
