Product Description

📋 Basic Information

Model NO.

RTP-S-SSR

Electricity Type

DC

Number of Pole

2

Load

Medium Power Relay

Protective Characteristics

Sealed Relay

Action Principle

Electromagnetic Type

Size

Ultrathin

Rated Input Voltage

220V DC

Output Voltage Range

30...230V AC/48...300V DC

Input Current

Less Than 4mA

Flame Retardant Rating

V0 UL94

Dimensions

72mm*6.2mm*87.2mm

📦 Packaging & Delivery

Package Size

30.00cm * 40.00cm * 40.00cm

Gross Weight

6.000kg

Package Type

PE Film + Carton

Production Capacity

200,000 pieces/Month

💻 Product Description

High-Performance DC Relay

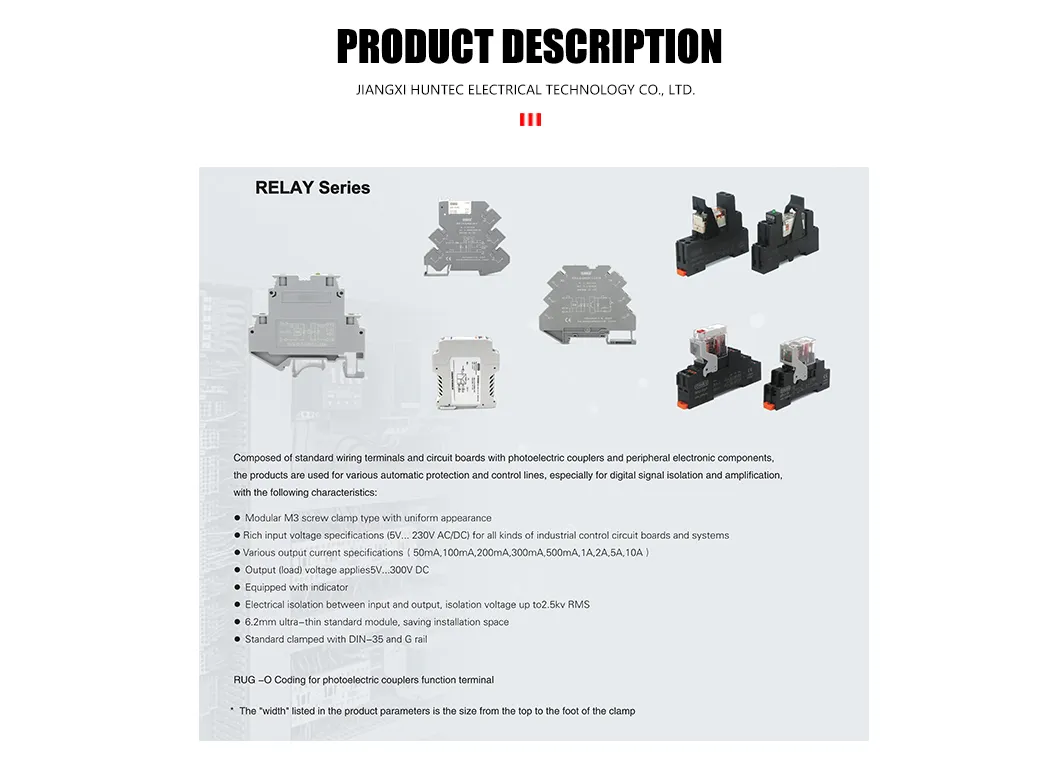

Relay Detail 1

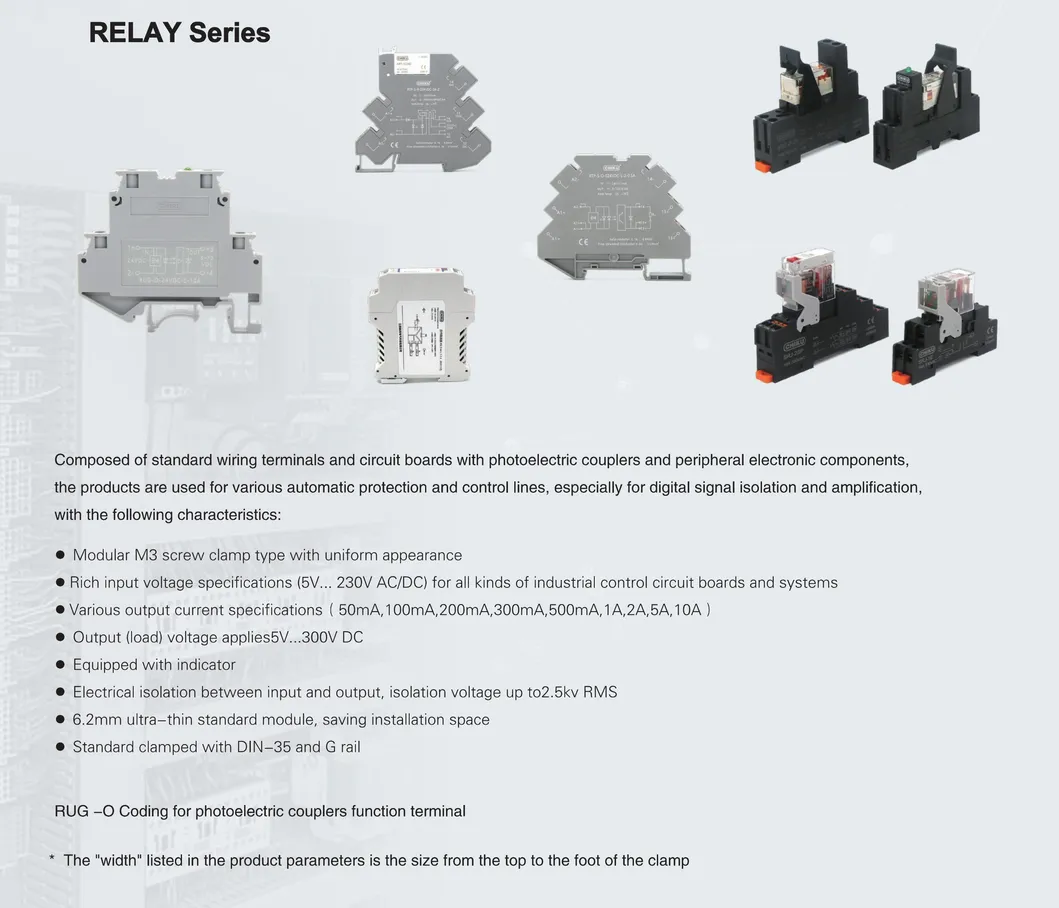

Relay Detail 2

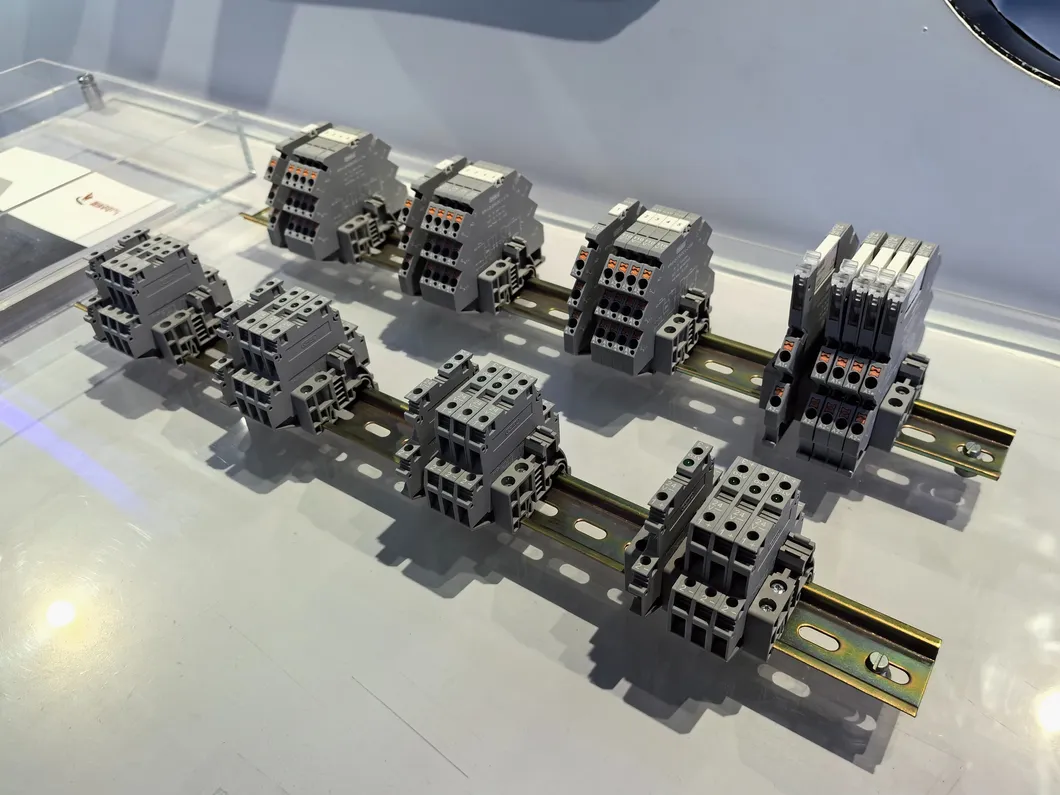

Relay Components 1

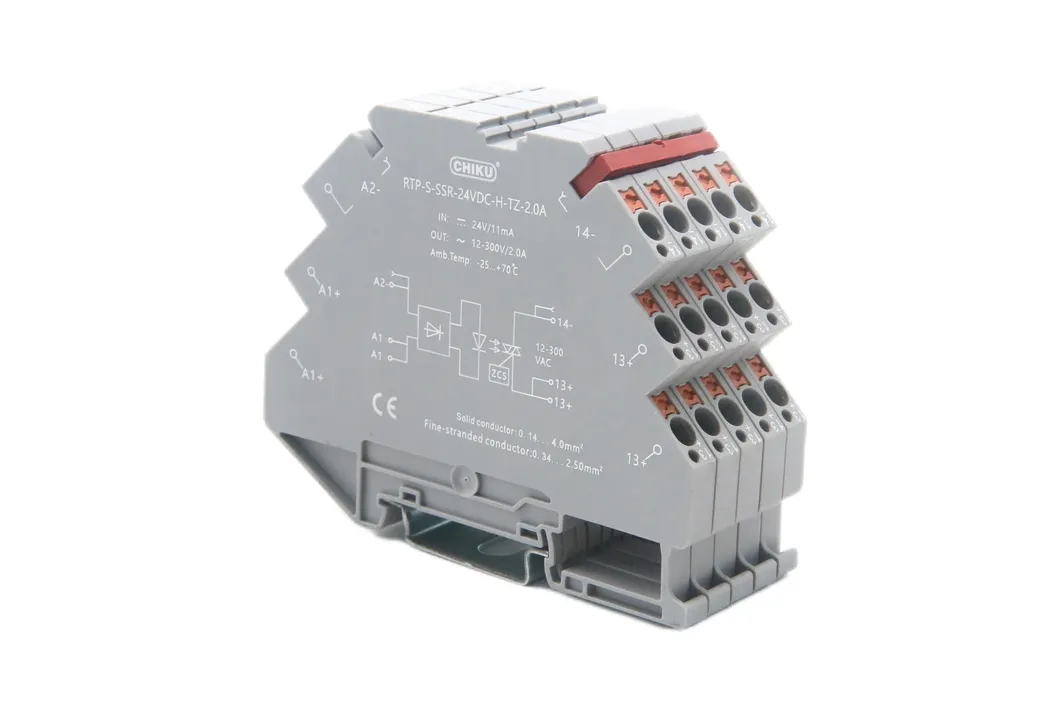

Relay Components 2

Product Type	Ultrathin Solid State Relay	Rigid conductor	0.14 ... 4mm²	Flexible conductors	0.34...2.5mm²
Wiring method	Inline plug-in	Connection AWG	26-12	Stripping length	9...10mm
Width	72mm	Rated Input	220V DC	Output Range	30...230V AC / 48...300V DC
Thickness	6.2mm	Input Range	176...264V DC	Output Current	0.1A
Height	87.2mm	Input Current	<4mA	Leakage Current	≤1μA

Technical Specs

Performance Chart

Dimension Diagram

Application Guide

Wiring Setup

Installation

Quality Assurance

❓ Frequently Asked Questions

What quality certificates do you maintain?

We are verified by ISO9001, ISO14001, OHSAS 18001, CE, UL, ROHS, CQC, and EX. We also hold over 200 technical patents.

What are the standard payment terms?

Our standard terms are T/T 30% as a deposit, with the remaining 70% due before delivery.

What is the typical delivery timeframe?

Generally, delivery takes between 3 to 7 days after receiving advance payment, depending on the specific items and order quantity.

Do you provide samples for testing?

Yes, we can supply most samples free of charge if they are in stock. Customers cover the courier cost, which is refunded upon placing a formal order.

Are all products tested before shipment?

Yes, we conduct 100% functional testing on all goods before they are delivered to ensure maximum reliability.

Can you manufacture products based on specific samples?

Yes, we have in-house workshops and can produce items according to your samples or technical drawings.
