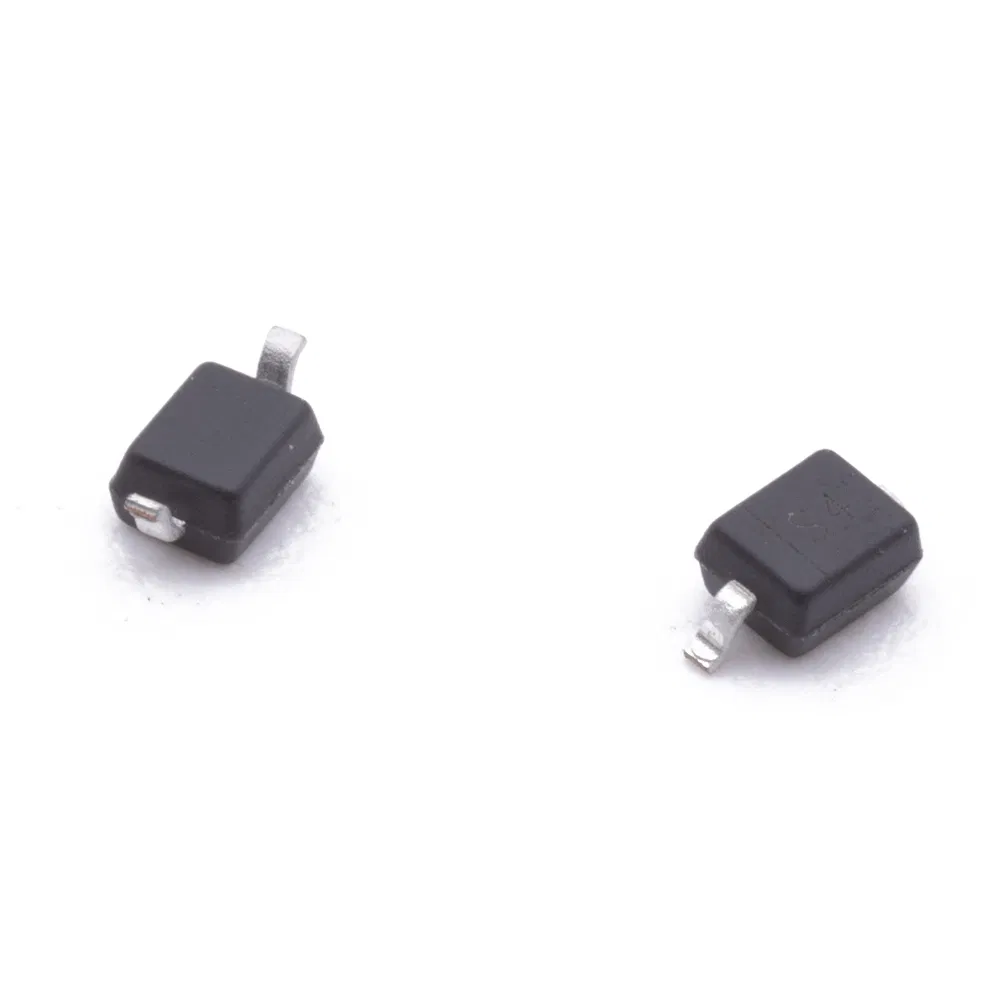

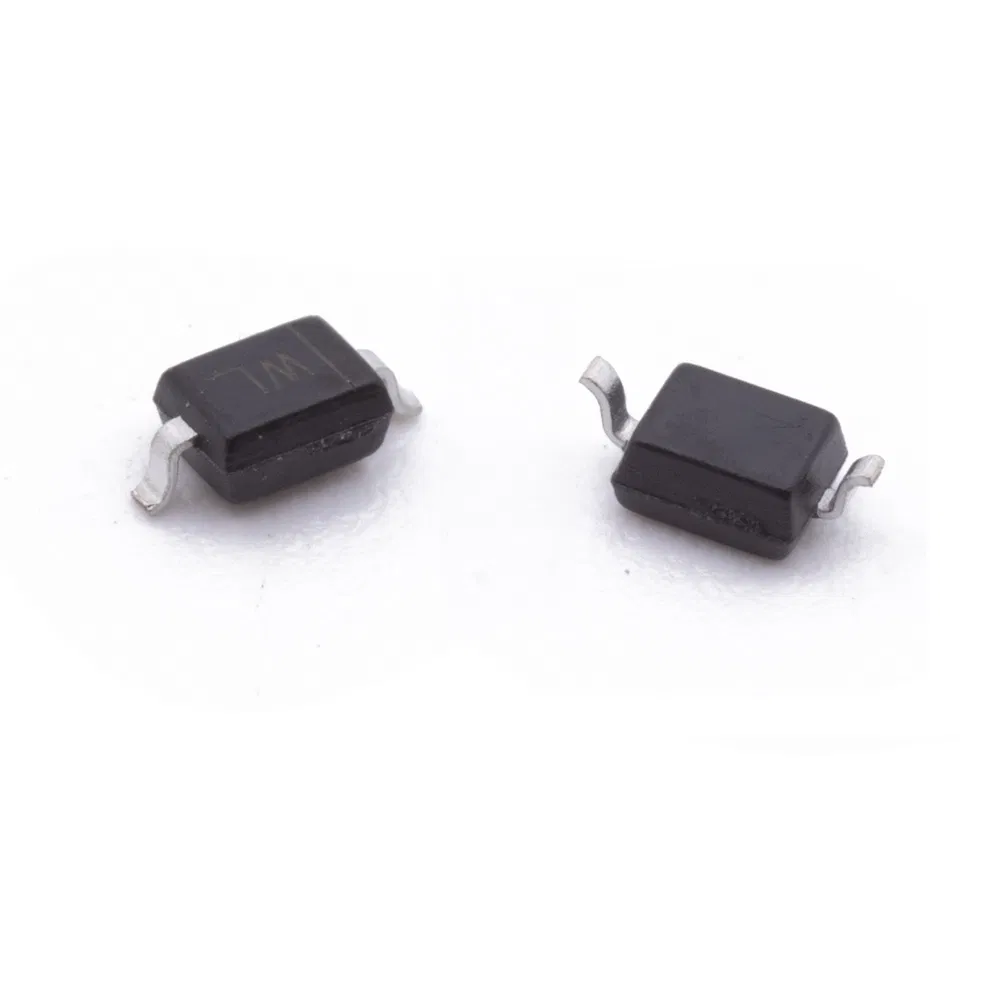

High-Performance Bzt52c2V0s & Bzt52c75s Small Signal Zener Diodes

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

Diode

Voltage

2.0V-75V

Tolerance

MOQ

20000PCS

Lead Time

2 Weeks

Case

SOD-323

Terminals

Solderable Per Mil-Std-750,Method 2026

Polarity

Polarity Symbol Marking on Body

Mounting Position

Any

Weight

0.00019 Ounce, 0.00548 Grams

Specification

BZT52C2V0S THRU BZT52C75S

Origin

China

Production Capacity

50000000

Product Description

Small signal Zener diodes: BZT52C2V0S THRU BZT52C75S

The BZT52CxxS series represents a family of small signal Zener diodes designed for voltage regulation and stabilization in low-power electronic circuits. These surface-mount devices (SMD) are part of the BZT52C product line, which is widely used in applications requiring precise voltage reference points, overvoltage protection, and signal conditioning. The series spans a broad voltage range, with part numbers denoted by their nominal Zener voltage (e.g., "2V0" = 2.0V, "75" = 75V), making them versatile for various circuit designs.

Features

Planar die construction.
Total power dissipation: Max. 300mW.
Zener reverse voltage range 2.0V to 75V.
General purpose, medium current.
Small plastic package suitable for surface mounted design.
Tolerance approximately ±5%.

Marking

XX = Device code, see table on page 2 the marking code.
The marking bar indicates the cathode.

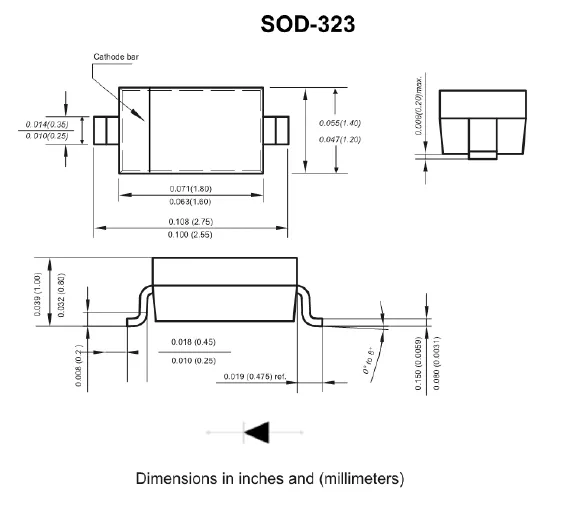

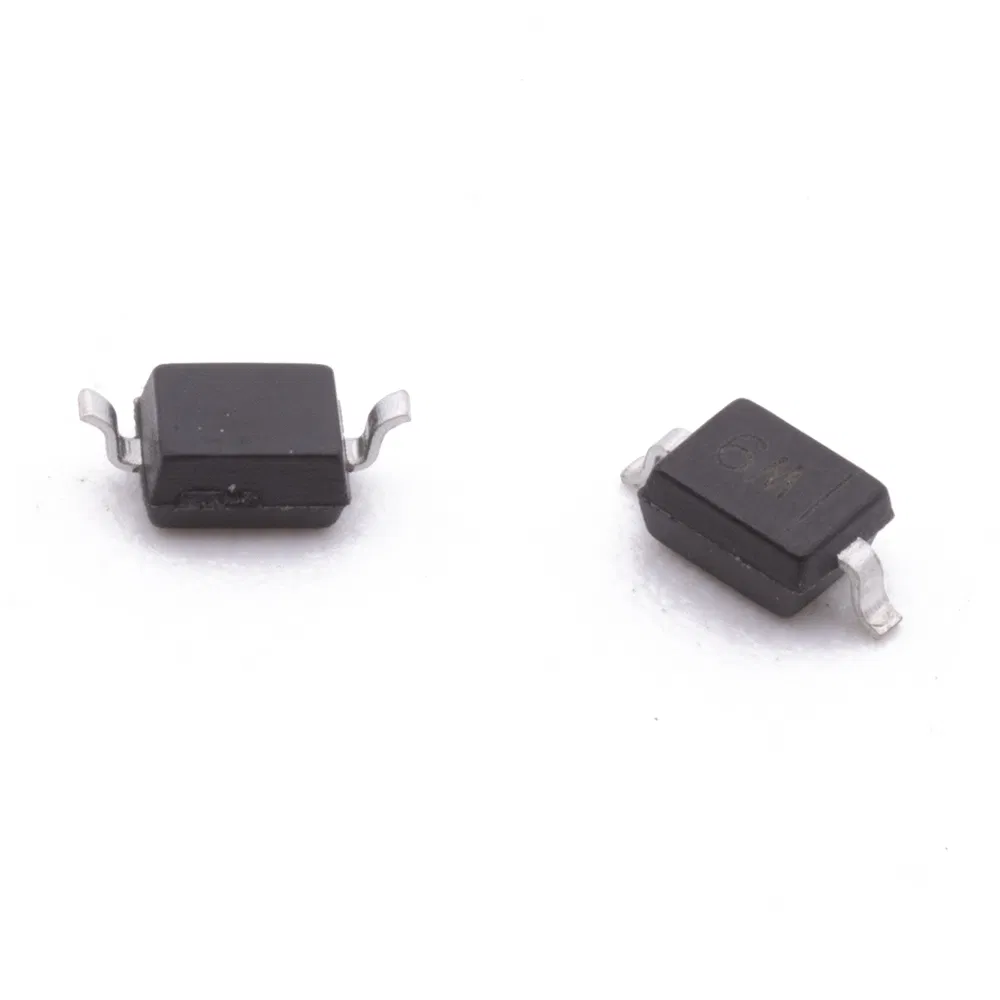

Mechanical Data

Case

SOD-323

Terminals

Solderable per MIL-STD-750, Method 2026

Polarity

Polarity symbol marking on body

Mounting Position

Any

Weight

0.00019 ounce, 0.00548 grams

Maximum Ratings (Ta=25ºC)

Characteristic	Symbol	Value	Unit
Forward voltage at IF=10mA	VF	0.9	V
Power dissipation	Pd	200	mW
Typical thermal resistance from junction to ambient	RθJA	417	ºC/W
Junction temperature	Tj	150	ºC
Storage temperature	Tstg	-55~+150	ºC

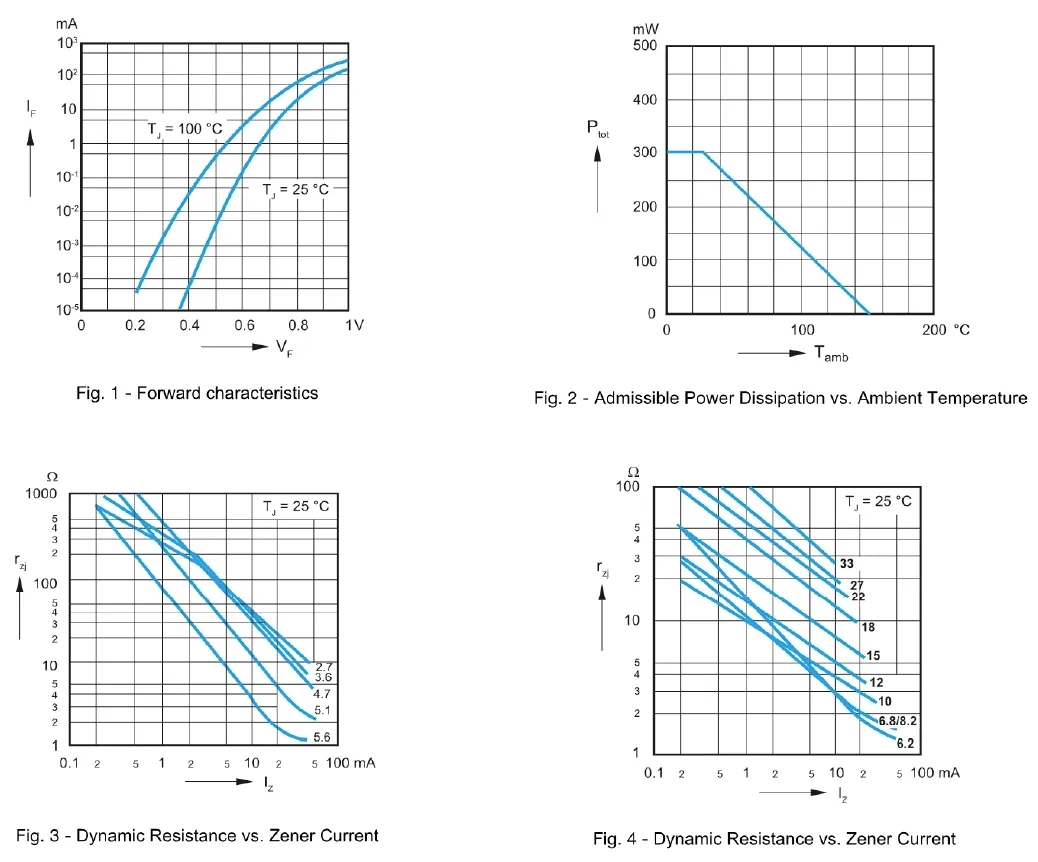

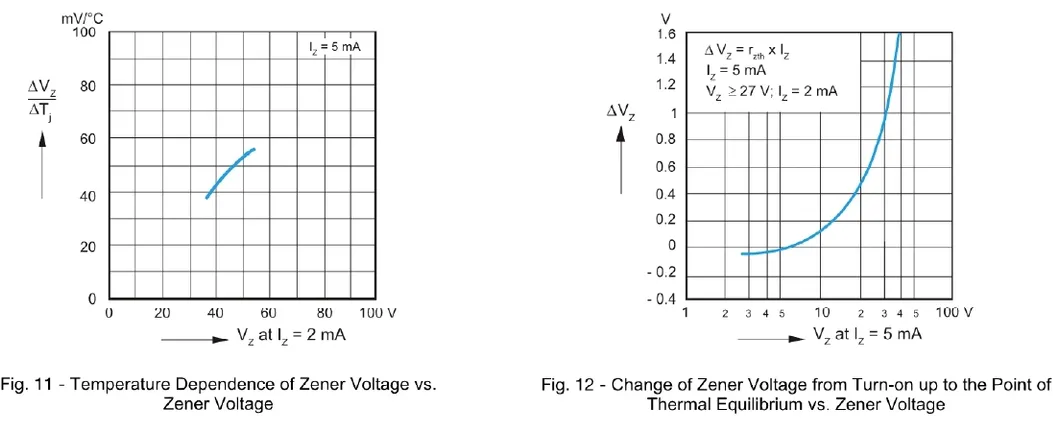

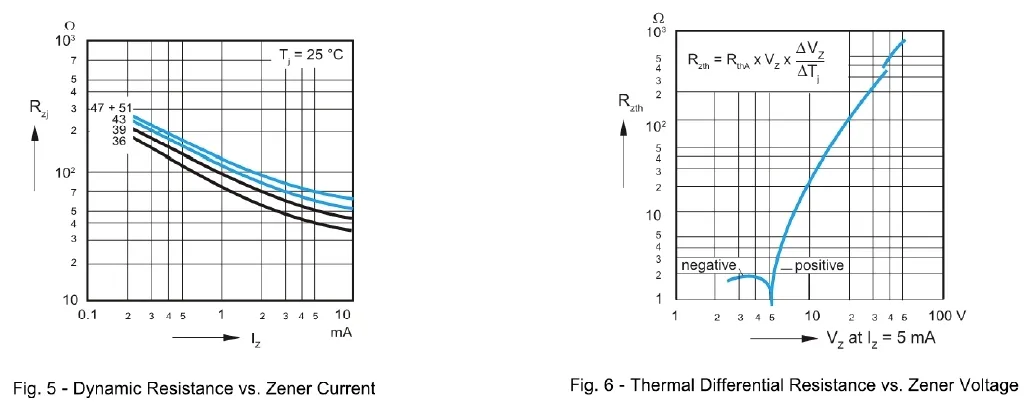

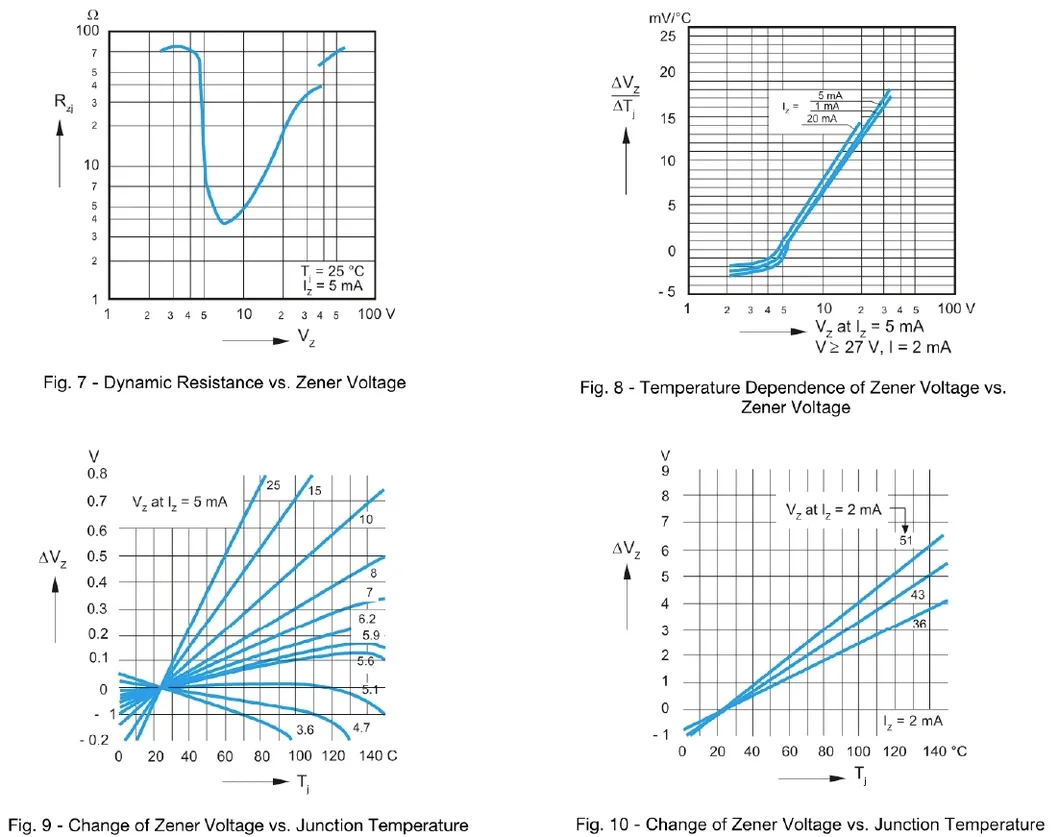

Electrical Characteristics (@ Ta=25°C)

Type	Marking	Zener voltage range VZT (V)			IZT (mA)	ZZT (Ω)	Reverse current IR
Type	Marking	Min	Norm	Max	-	Max	Max(μA)	at VR(V)
BZT52C2V0S	WY	1.8	2	2.15	5	100	120	0.5
BZT52C2V2S	WZ	2.08	2.2	2.33	5	100	120	0.7
BZT52C5V1S	W8	4.8	5.1	5.4	5	130	2	1.5
BZT52C10S	WF	9.4	10	10.6	5	30	0.1	7
BZT52C20S	WM	18.8	20	21.2	5	50	0.1	15
BZT52C75S	6H	70	75	79	2	265	0.1	56
