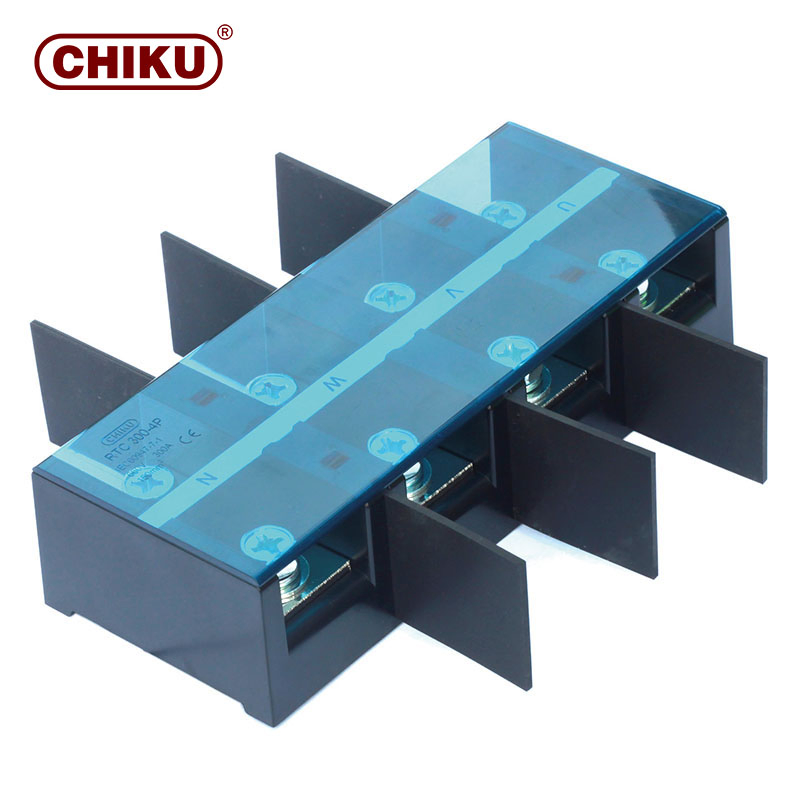

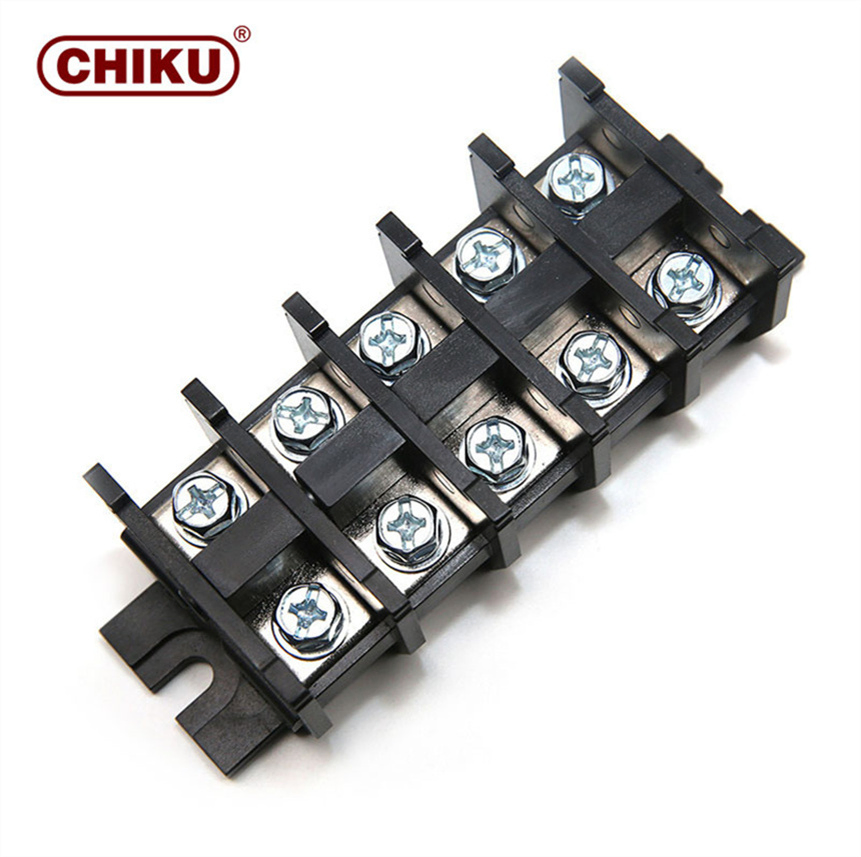

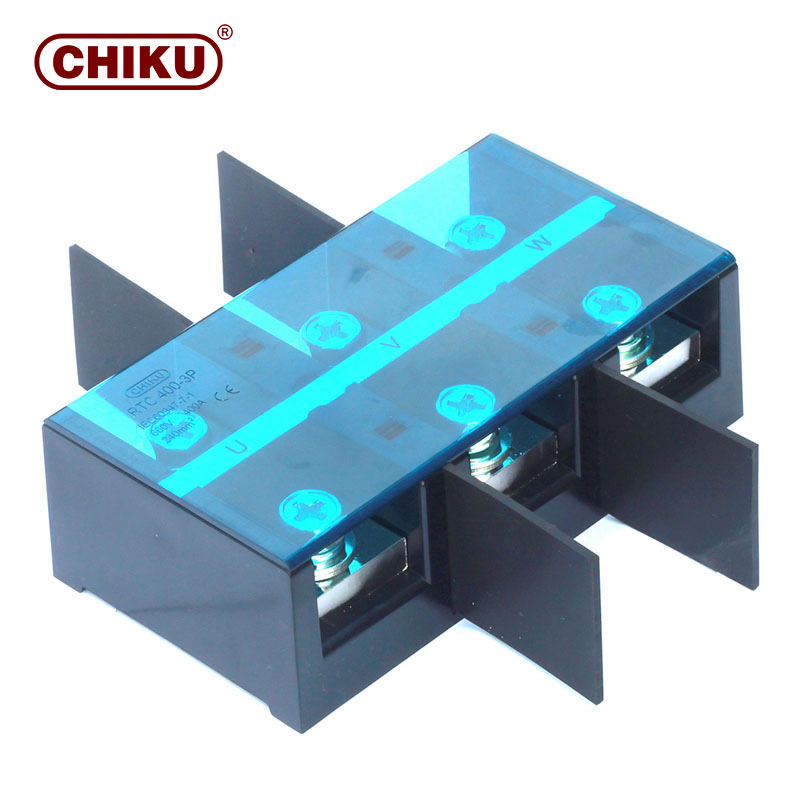

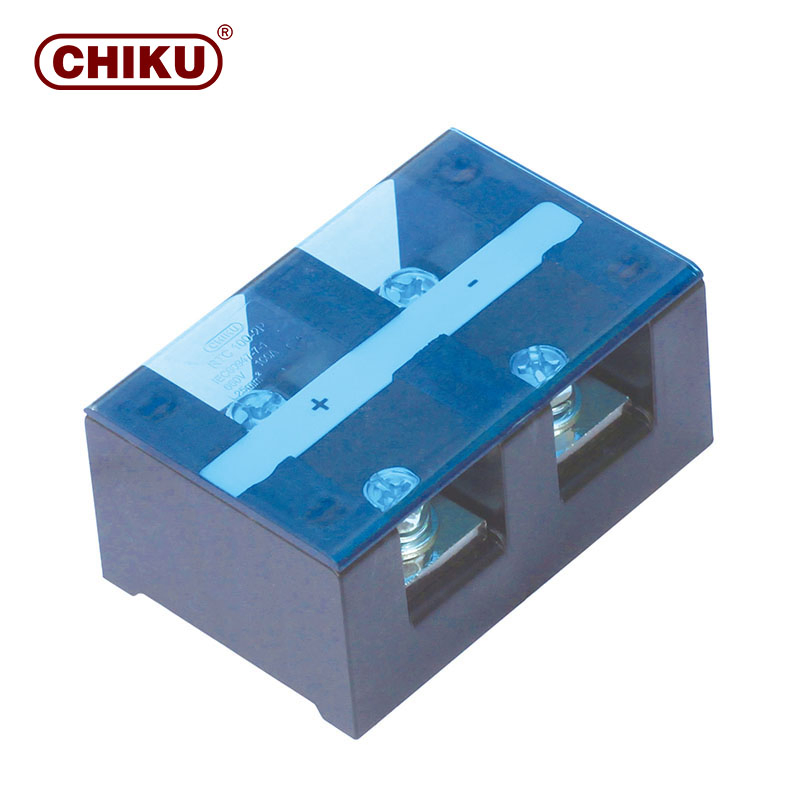

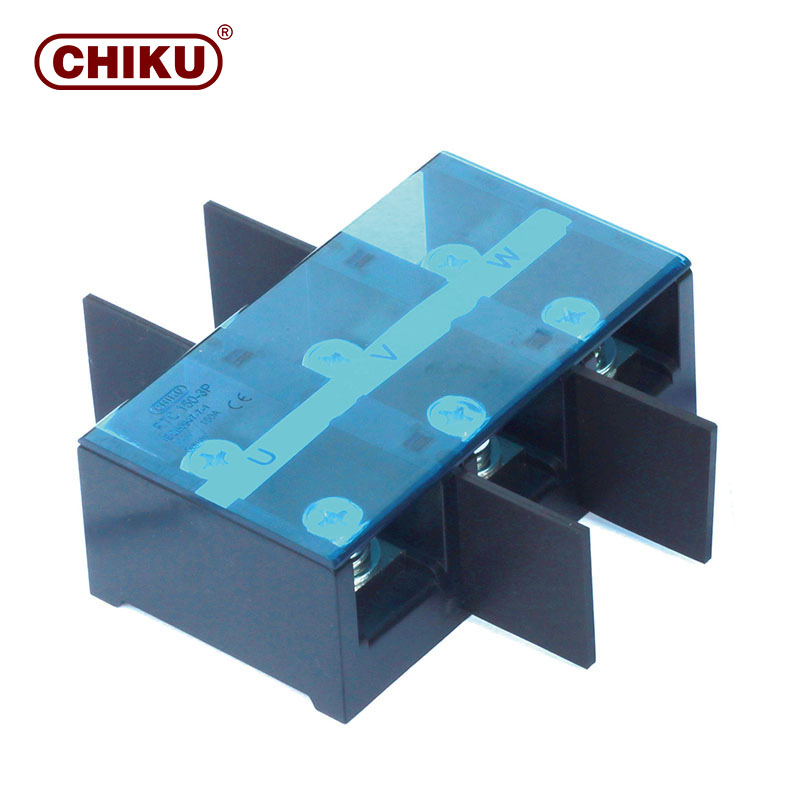

High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block
High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block
High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block
High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block
High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block
1 / 5
High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block
High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block
High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block
High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block
High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block

High Current Terminal Barrier Connectors 2p 3p 4p Electrical Fixed Screw Type Wire Terminal Block

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.RTC100-3P
ApplicationElectrical Signals
CharacterEnvironmental Protection
SpeciesTerminal
ProcessInjection Molding
Rated Current60-600A
Rated Voltage660V
ConnectionScrew Type
Cable Range2.5-300mm
Screw SizeM6/8/10/12
Product Description
High Current Terminal Barrier Connectors

High Current Terminals Key Features

Color: Gray, Black

Flammability Rating: V0

Material: PA Insulating Material

Configuration: 3P or 4P combination terminal tailored to requirements.

Design: Twin stud terminal clamps the crimped OT terminal to the threaded stud with a hex nut for secure connection. Includes an optional hinge protection cover for enhanced safety.

Simple design, easy installation, and visual connection reliability.

Banner

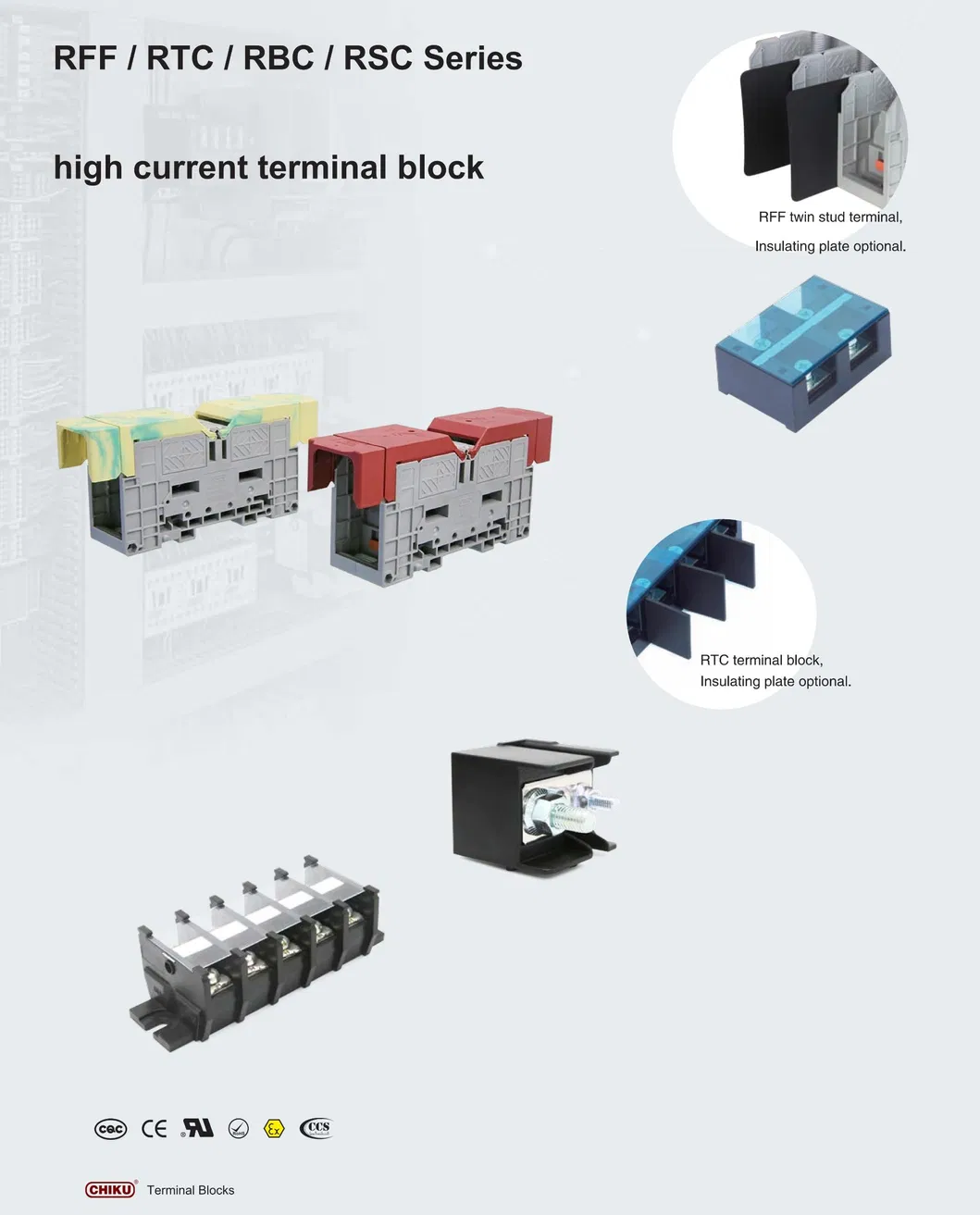

Technical Details
Technical Data Table
Parameter Specifications
NameRTC High Current Terminals
ModelRTC Series
Screw SizeM6/8/10/12
Connection MethodScrew type
Rated Current60-400A
Rated Voltage660V
Power Frequency Withstand Voltage2500V/min
Wiring Range (mm2)2.5-10, 6-25, 16-50, 25-70, 50-150, 70-240, 240-300

This product features an integrated IP rating designed to isolate dust and water droplets, protecting internal electronic components effectively within the electrical cabinet.

Product Visuals

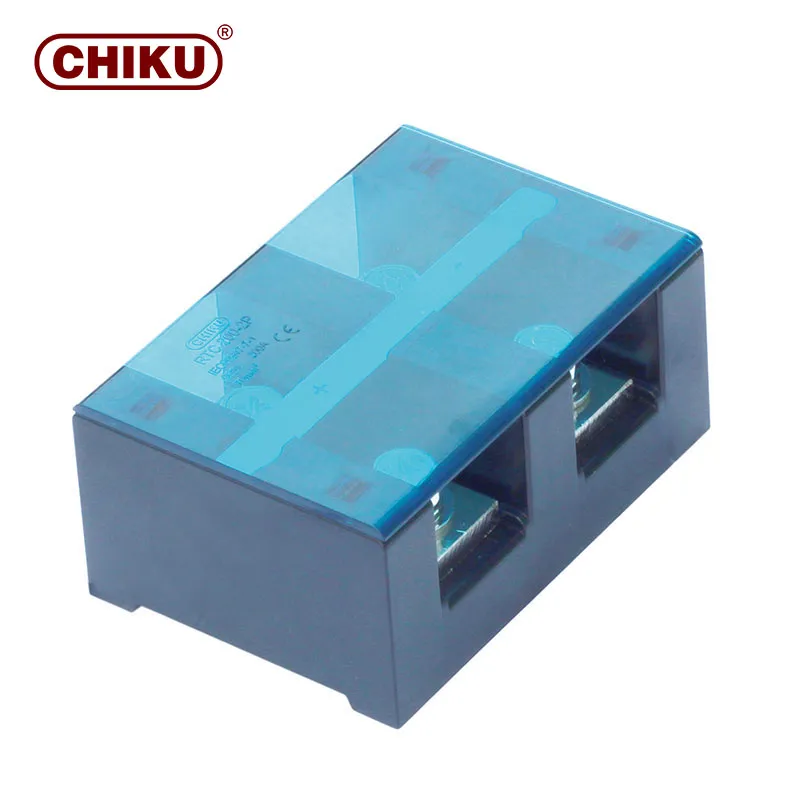

Terminal Block Detail 1
Terminal Block Detail 2
Terminal Block Detail 3

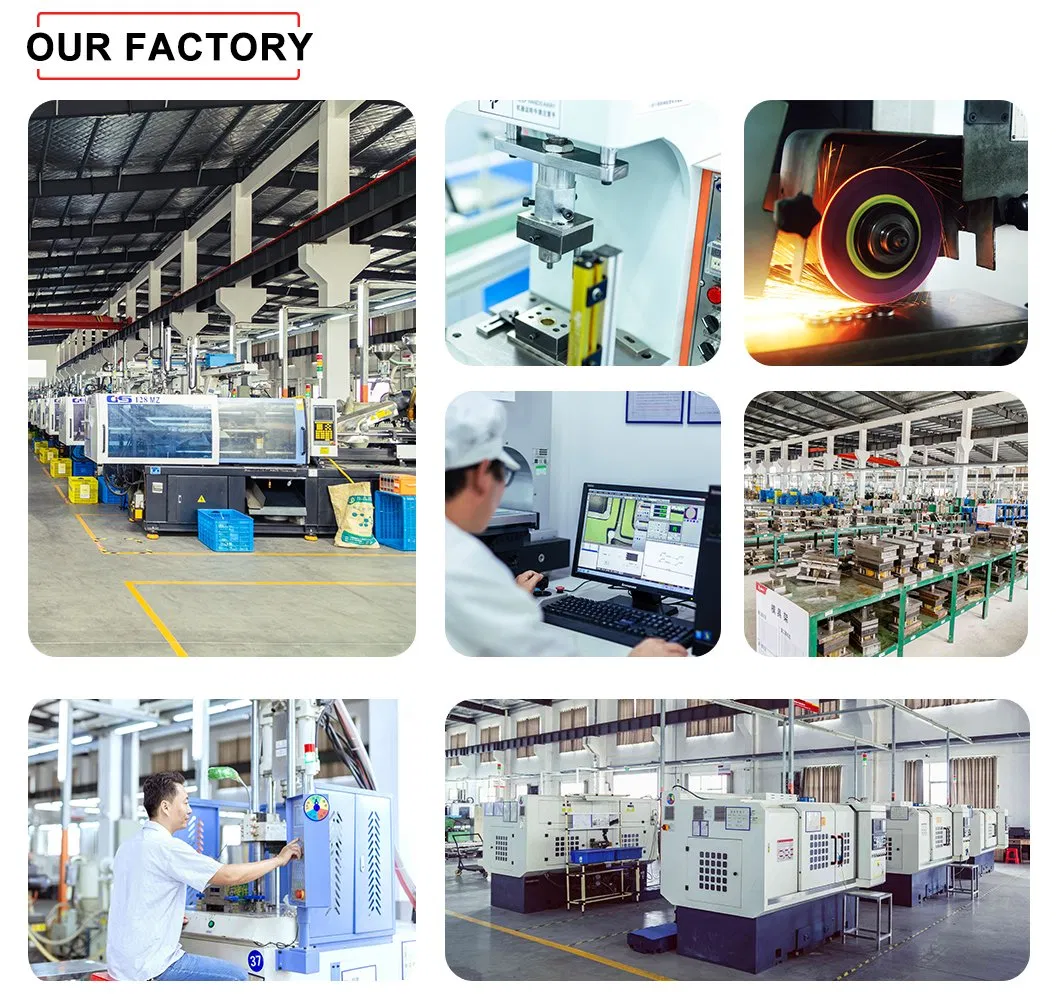

Terminal Block Detail 4
Terminal Block Detail 5
Terminal Block Detail 6
Frequently Asked Questions
What certificates are available for your products?
Our products are verified by ISO9001, ISO14001, OHSAS 18001, CE, UL, ROHS, CQC, and EX standards, backed by more than 200 patents.
What are the standard payment terms?
We typically accept T/T with a 30% deposit and the remaining 70% paid before delivery.
How long is the typical delivery time?
Generally, delivery takes 3 to 7 days after receiving advance payment, depending on the specific items and order quantity.
Can you produce items based on specific samples?
Yes, we can produce according to your physical samples or technical drawings through our in-house workshops.
Do you perform testing on goods before shipment?
Yes, we conduct 100% testing on all goods before delivery to ensure quality.
What is the policy regarding product samples?
We supply most samples free of charge if they are in stock. Customers cover the courier costs, which are typically refunded after an order is placed.
