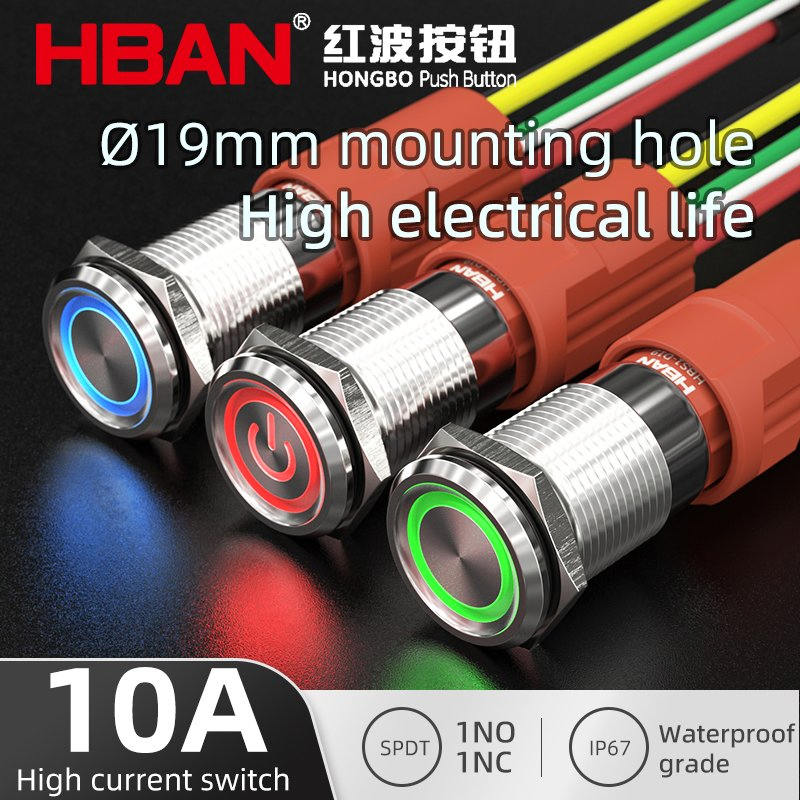

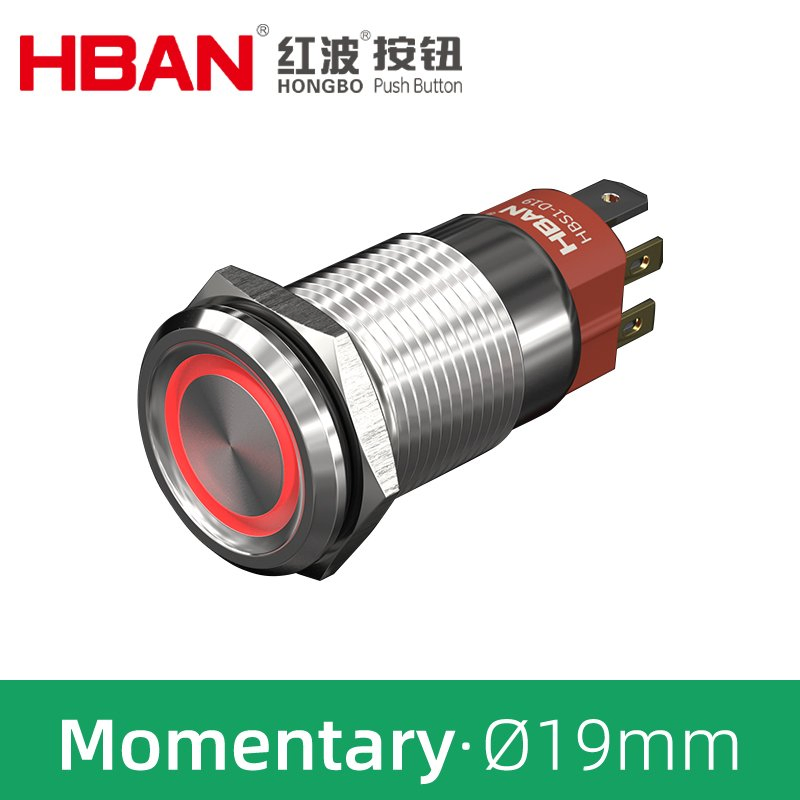

Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67
Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67
Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67
Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67
Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67
1 / 5
Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67
Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67
Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67
Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67
Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67

Hban 19mm High Current Metal Shell High Brightness LED Ring Lighting Pushbutton Switch IP67

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
HBS1-D19C-11E/J/S/LED Voltage/R
Operation Type
Momentary
Contact Configuration
1no1nc
Certificate
CE RoHS Reach
The Crust Material
Stainless Steel
Terminal Type
Pins Terminal
HS Code
8531801090
Production Capacity
500000/Month
⭐

Product Description

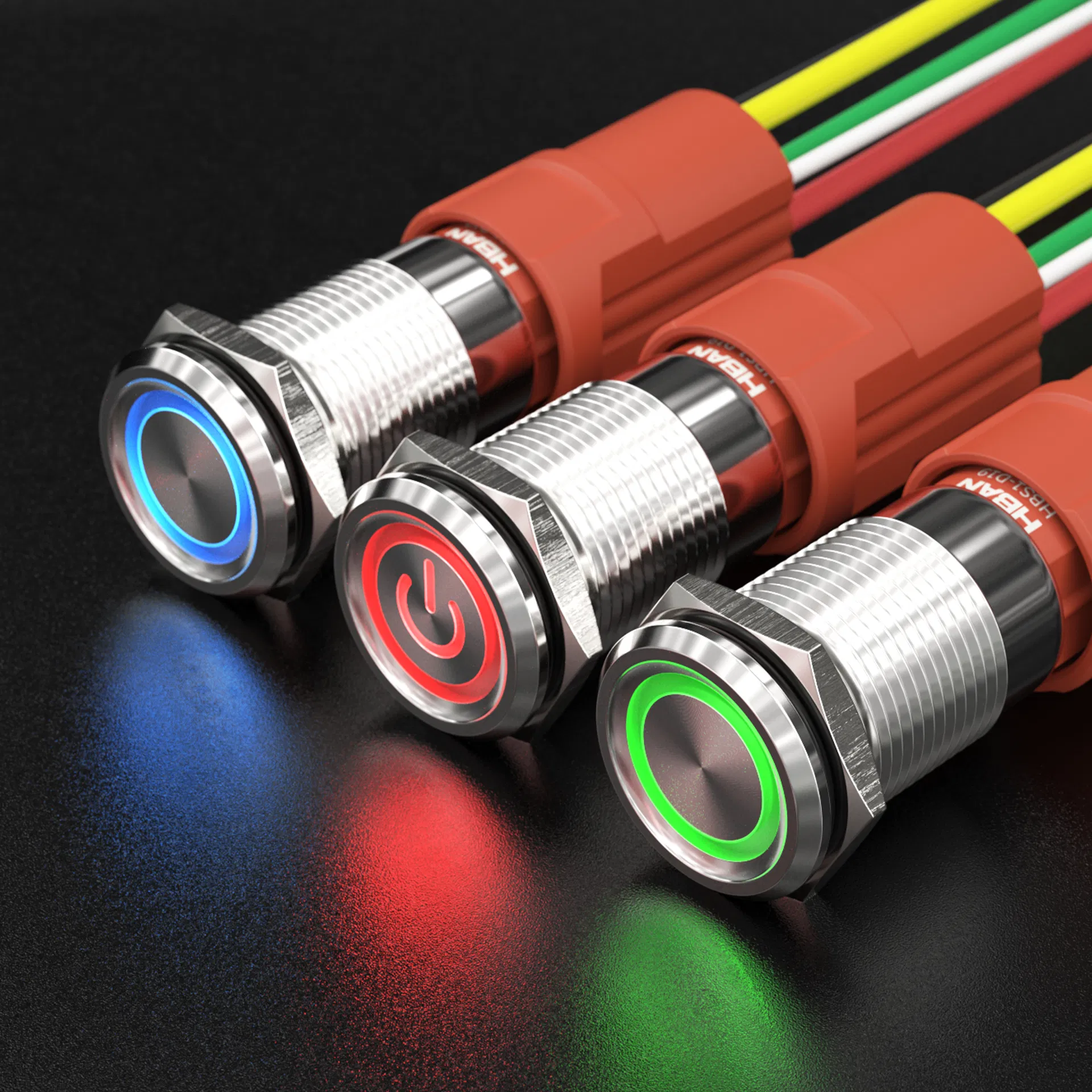

Pushbutton Switch Banner

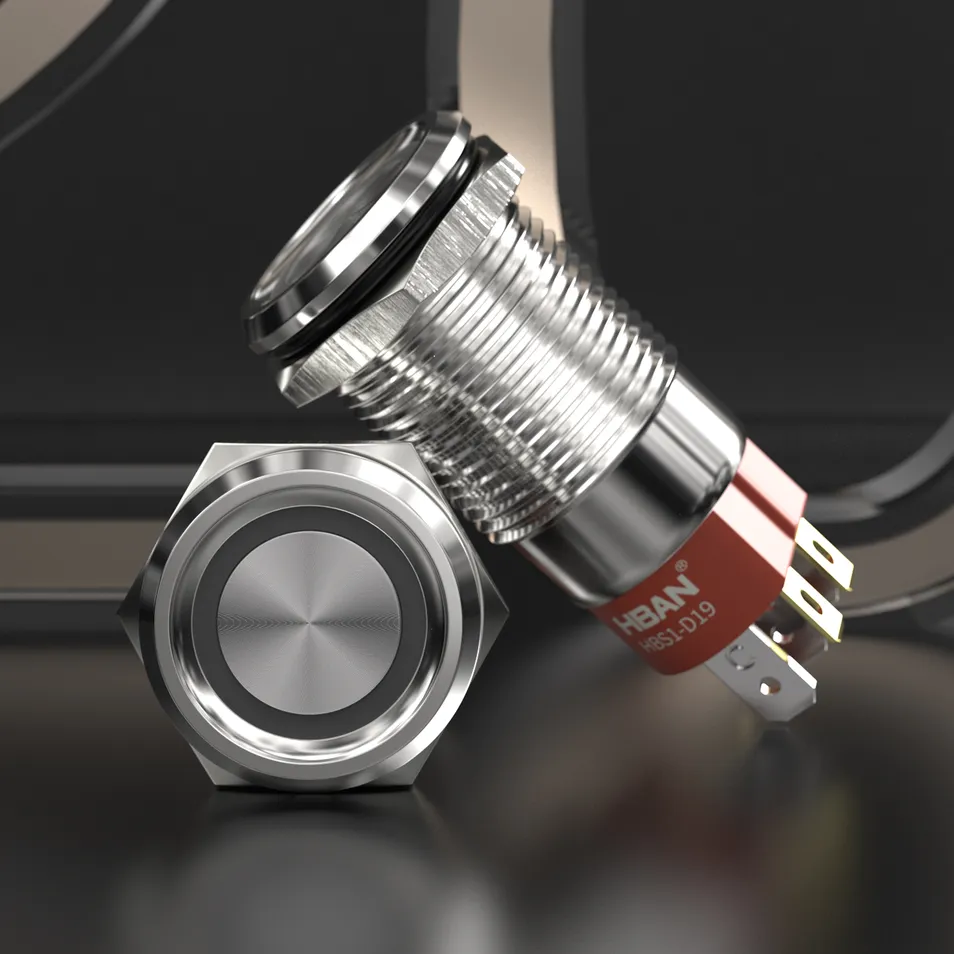

LED Pushbutton Switch
  • High Current Capacity: 10A stable carrying capacity, suitable for high-frequency load operation in CNC tools and distribution boxes.
  • Durable Material: Corrosion-resistant stainless steel shell, ideal for harsh industrial environments.
  • Precision Engineering: Built-in high-precision contacts with excellent conductivity and anti-short circuit design.
  • IP67 Protection: Waterproof and dust-tight, ensuring safety even in environments with water mist or coolant splashes.

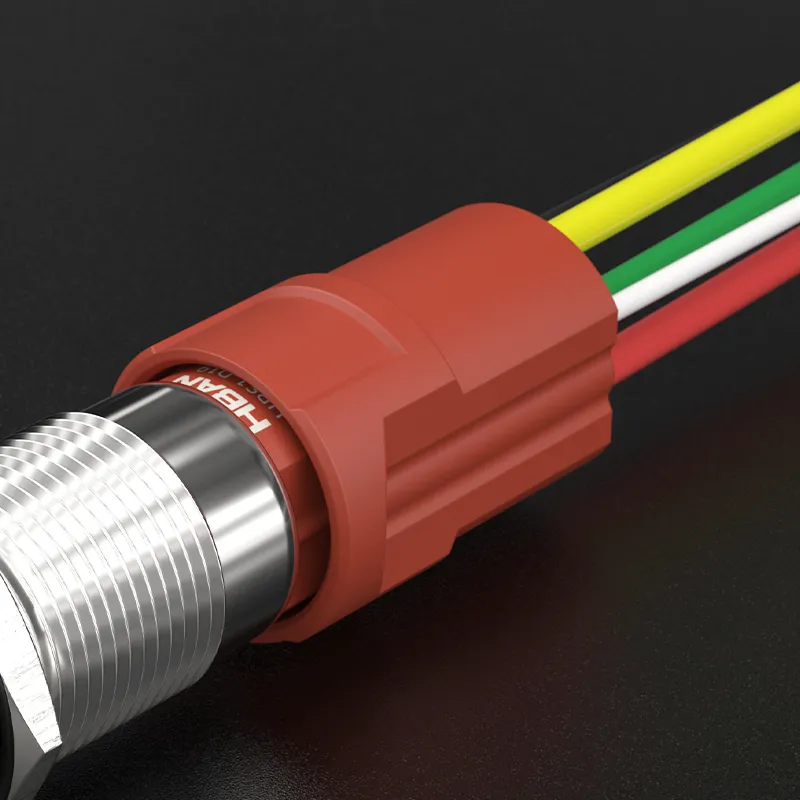

Quick Connector Detail

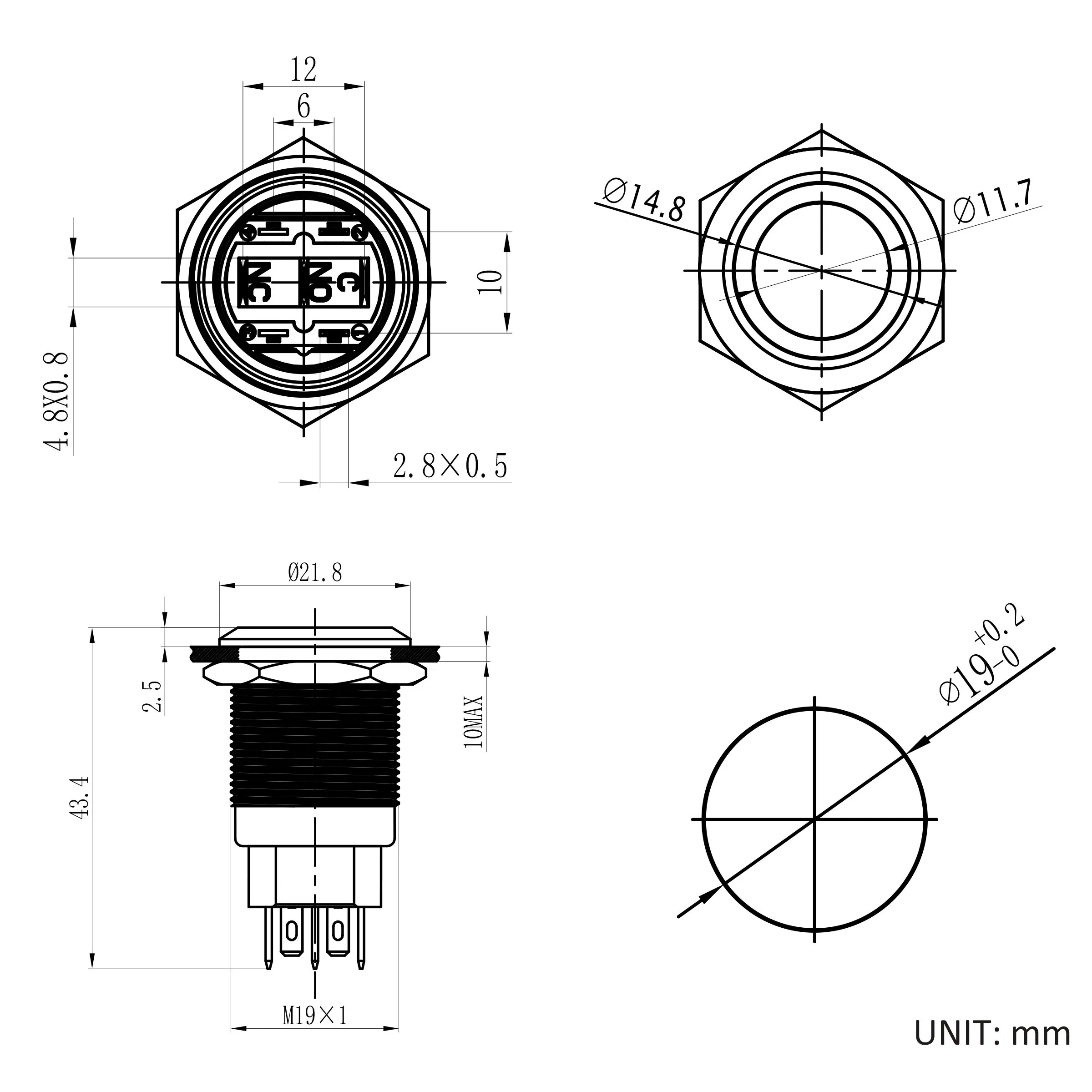

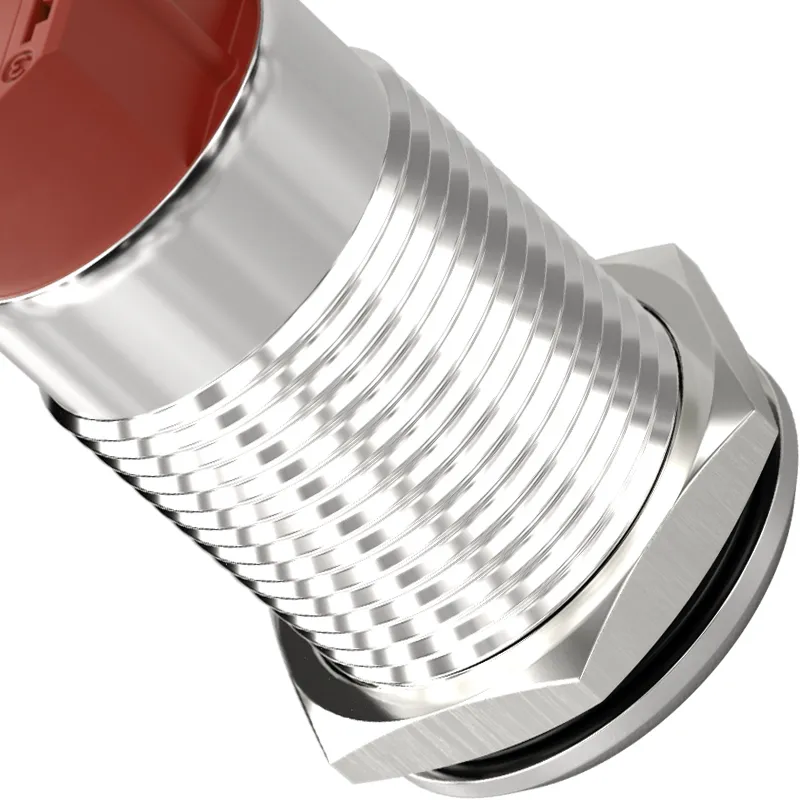

Switch Installation Size

Installation Details: 19mm/0.748in mounting hole size. Matching O-ring and Nuts included. Max panel thickness: 10mm. Movement stroke: Approx 2.0mm.

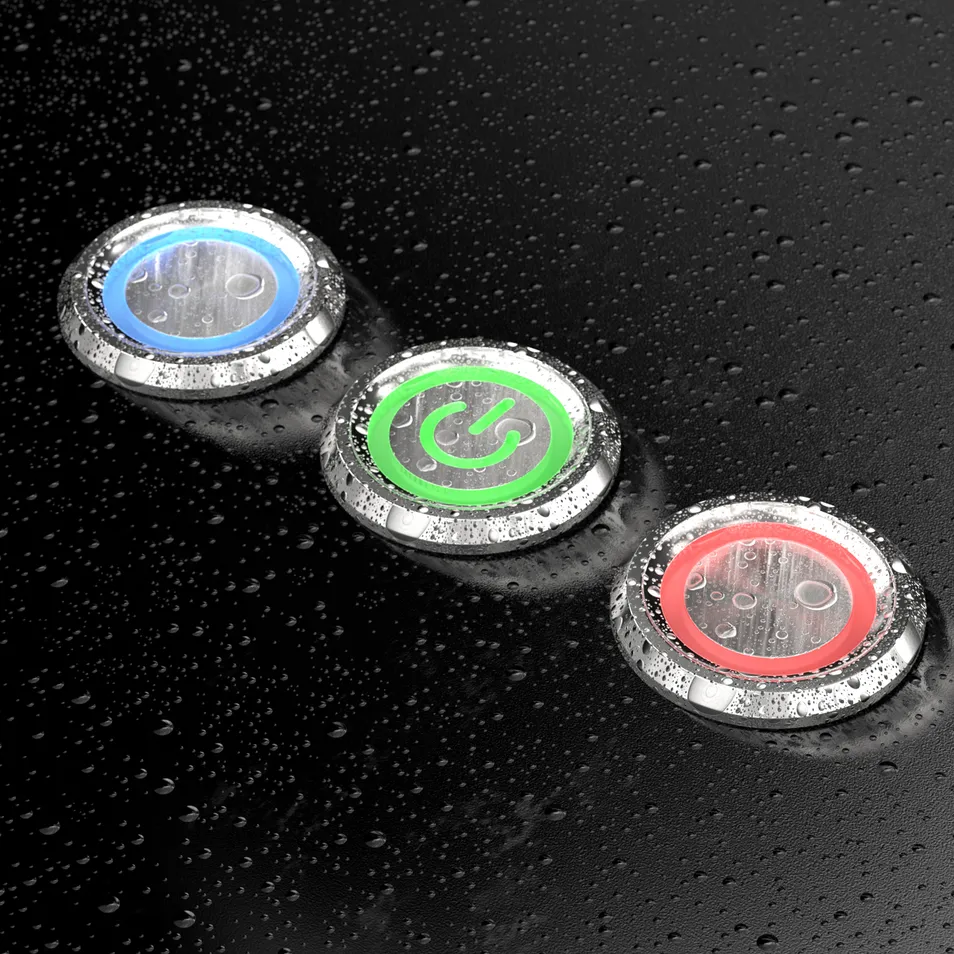

IP67 Waterproof Test

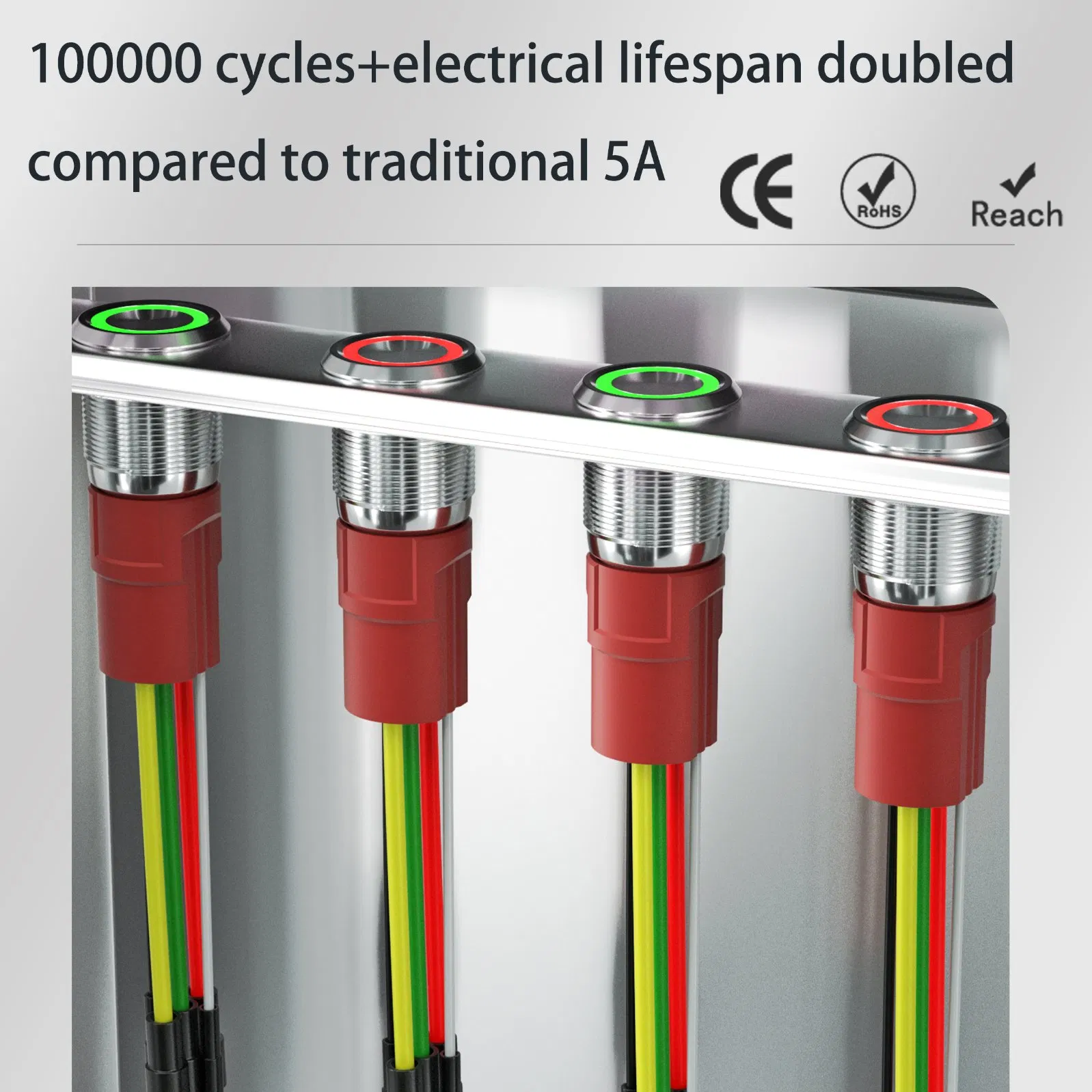

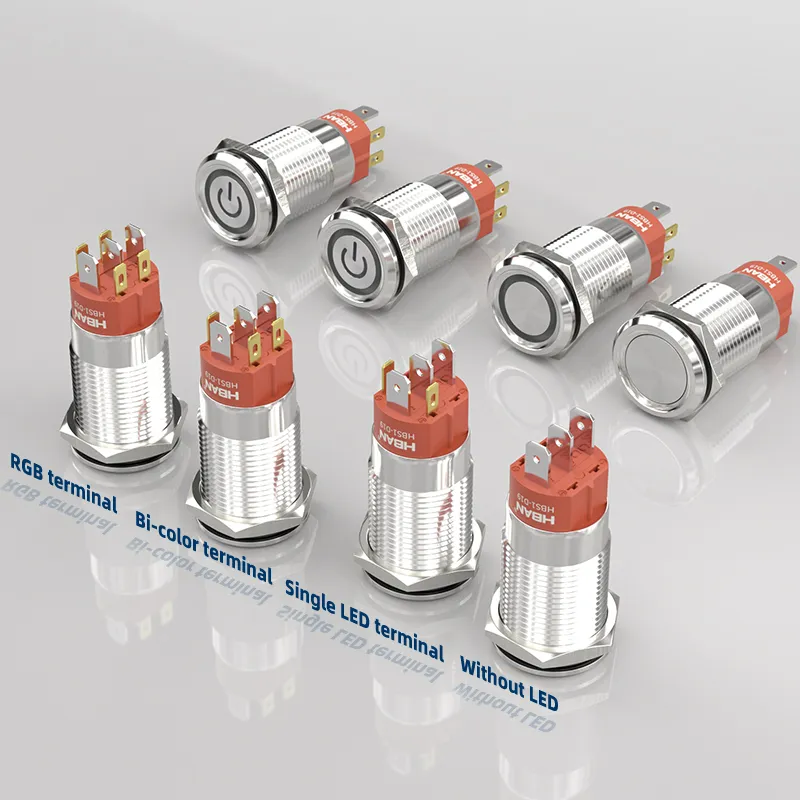

Long Life Switch
📊

Model Specification

Series Number: HBS1-D (High Current Series)
Mounting Hole Size 16mm / 19mm / 22mm
Front Shape Flat round head / Concave head
Contact Configuration 1NO / 1NO1NC
Lamp Type Dot LED, Ring LED, Power Symbol LED
Terminal Type Pin Terminal
Shell Material Stainless steel / Engineering plastic Anti-rotation options available

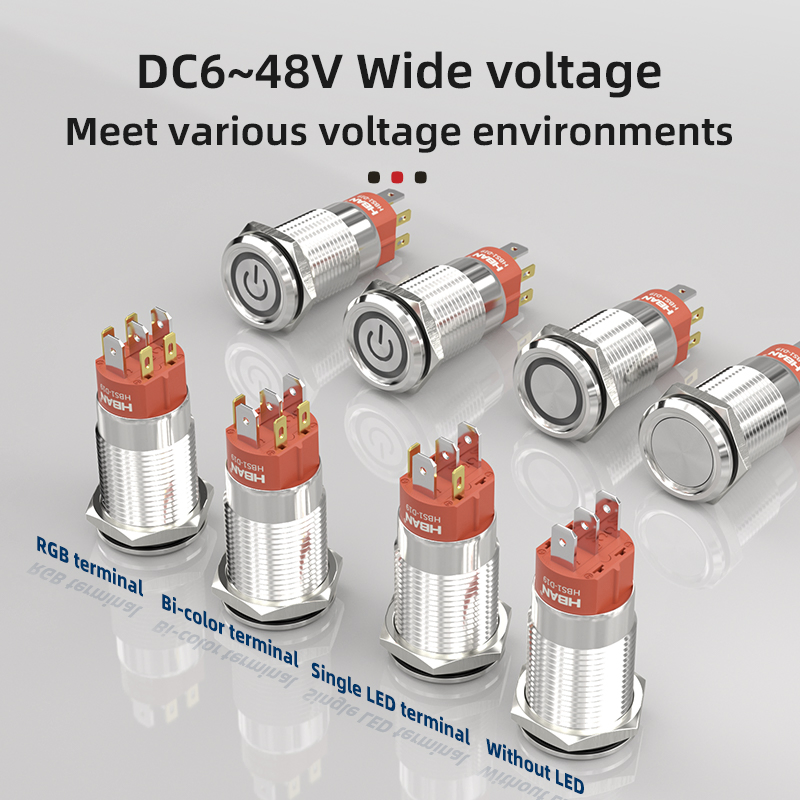

LED Voltage 6V - 220V AC/DC Customizable voltages
LED Color Red, Green, Yellow, Orange, Blue, White
🔌

Wiring & Application

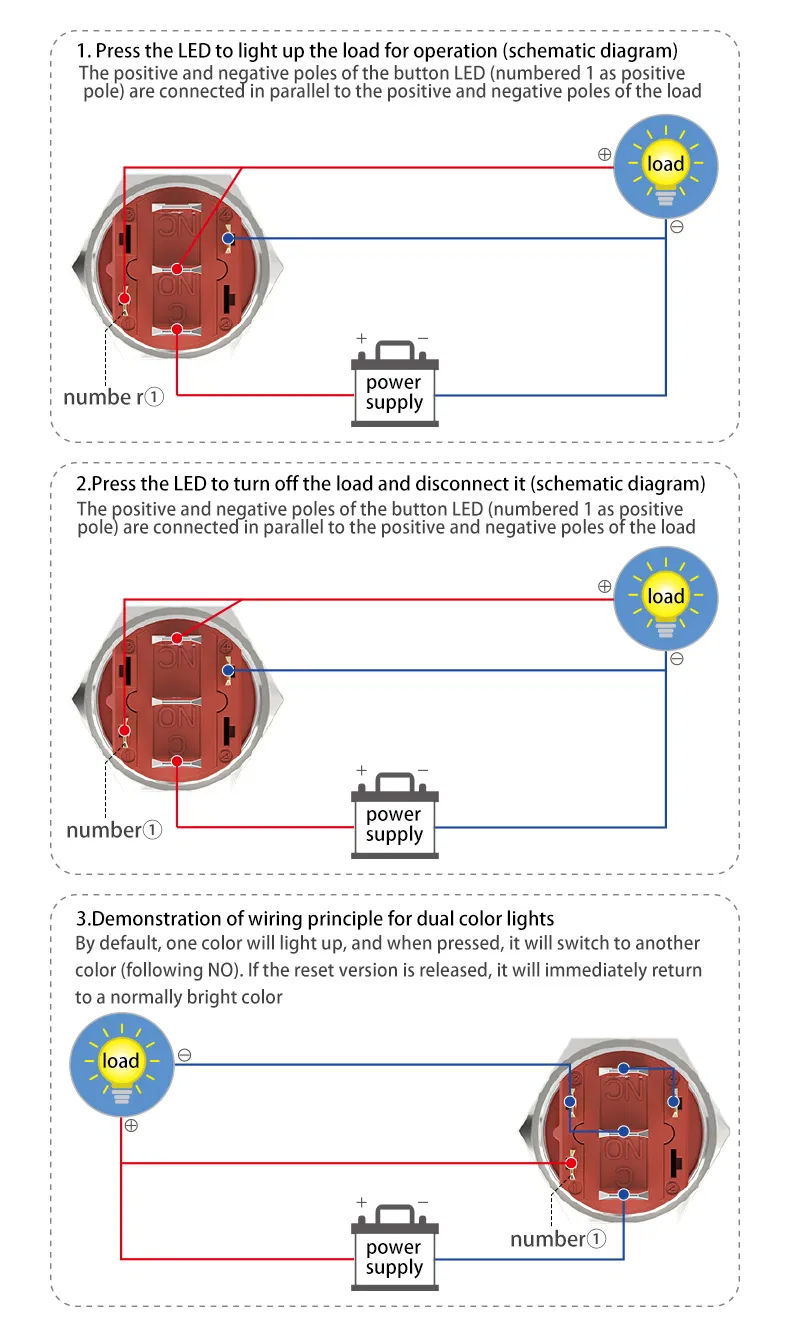

Wiring Example Diagram

Wiring Example: After pressing, the controlled device lights up together with the button.

Industrial Applications

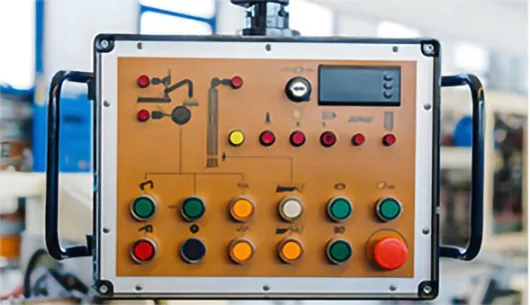

Automation

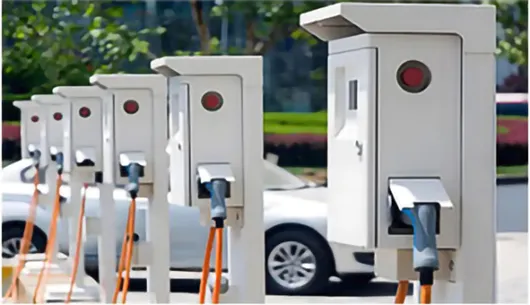

EV Charging

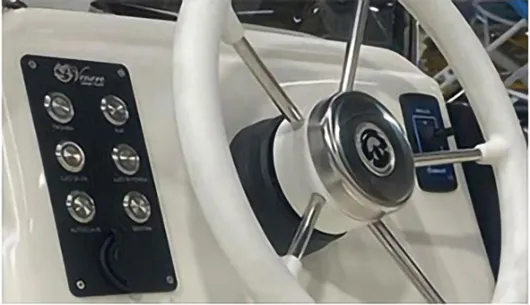

Marine

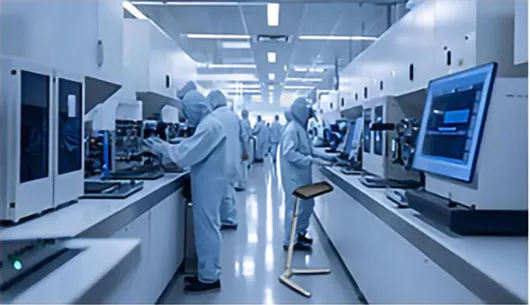

Lab Equipment

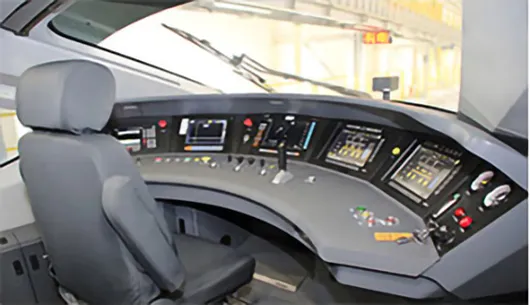

Rail Transit

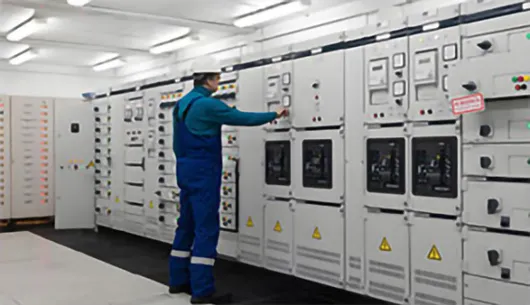

Distribution Systems
📦

Packaging & Shipping

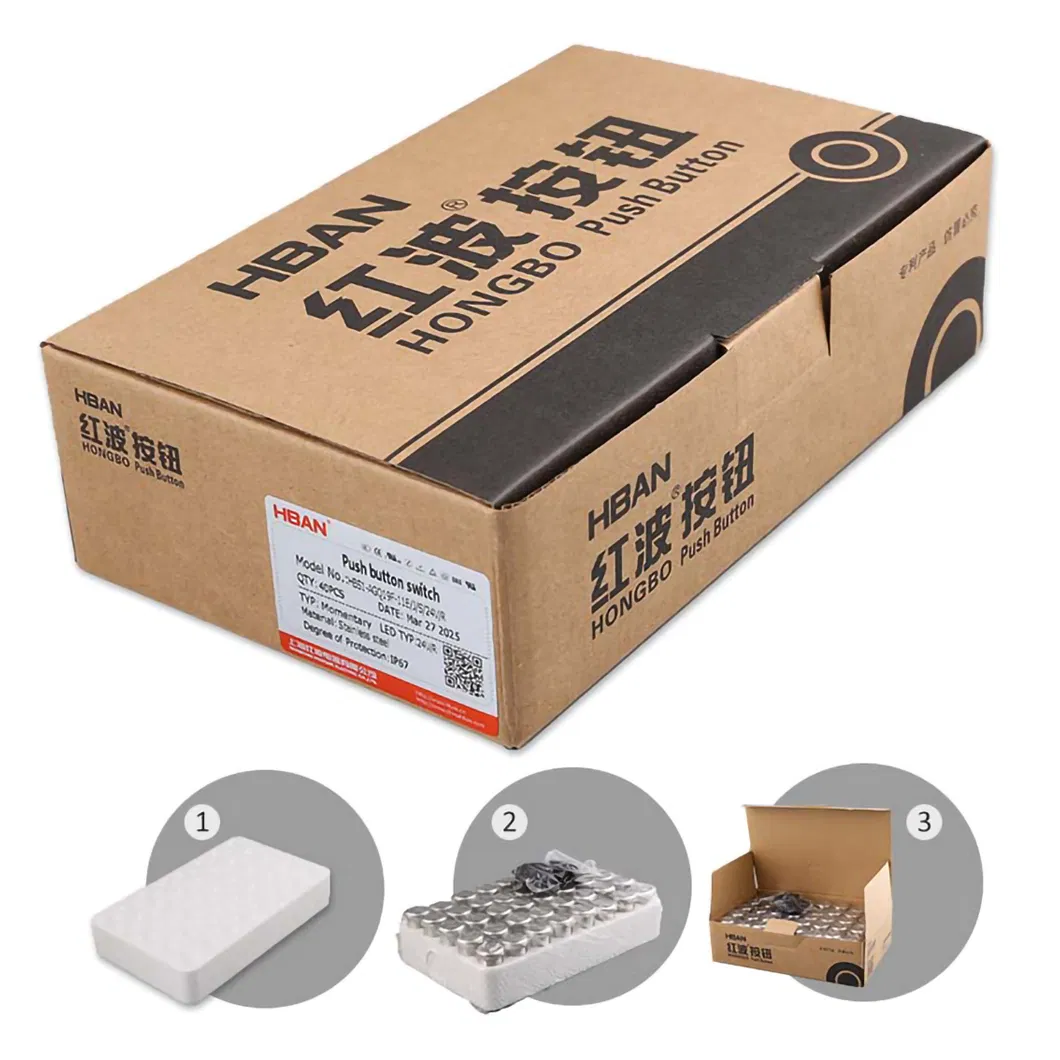

Professional Packaging

Standard Packaging: 40pcs/box (including O-rings). Each product is placed in separate foam compartments to prevent collision during transit. Boxes are reinforced with strapping tape.

Shipping: We ship worldwide via DHL, UPS, and FedEx. Standard delivery time is 3-8 business days depending on destination.

❓

Frequently Asked Questions

Are your products environmentally friendly?
Yes, all products are made from eco-friendly materials and have passed ROHS and REACH certifications.
Do you offer OEM or ODM services?
Yes, we support custom logos and colors through our OEM/ODM services. Minimum order quantities apply.
Can I get technical documents like CAD files?
Absolutely. Technical wiring diagrams and CAD files can be provided upon request within 24 hours.
How do you ensure product safety during shipping?
We use separate foam boxes for each unit and high-quality corrugated outer cartons reinforced with strapping tape.
What is the warranty period for the switches?
All our pushbutton switches come with a 1-year standard warranty period.
What payment methods do you accept?
We support T/T (Wire Transfer), Credit Cards, and Paypal.
