FPC FFC Zif ATX;Btx;Lvds;Pin Female Header;IC Socket;RJ45;USB;1394;DIN;HDMI;Pcie;S ATA;Wtb;Btb;Wtw;RF;D-SUB;DVI;Ngff;M2;SIM;Memory;Battery;Pogo Pin Connector

Customization:	Available
Interface Type:	Pin Header
Operating Frequency:	Low Frequency

Send Inquiry

Product Description

Basic Specifications

Model NO.

WPH-5D01-2XX-2GXB-XR

Material

Brass

Gender

Male

Certification

CE, SGS, RoHS, Hf

Application

Aerospace, Industrial, Railway

Poles

2~80

Brass

Classification

Btb;Wtb

Termination

Surface Mount

Flammability

UL94V-0

Plating Mating

Gold

Pitch

1.00mm

Temperature

-55°c to +105°c

Package Size

35cm * 35cm * 35cm

Product Description

Pin Header Pitch=1.00mm Double Row Vertical SMT Type

P/N: WPH-5D01-2XX-2GXB-XR

Material & Finish
Housing	Thermoplastic, High Temp, 30% G/F, UL 94V-0, Black
Contact	Brass, AU Plating over NI (50m" Min.)
Electrical Characteristics
Contact Resistance	20 mΩ MAX
Insulation Resistance	1000MΩ Min
Dielectric Voltage	500V AC
Current Rating	0.75A
Environmental
Operating Temperature	-25°C to +85°C

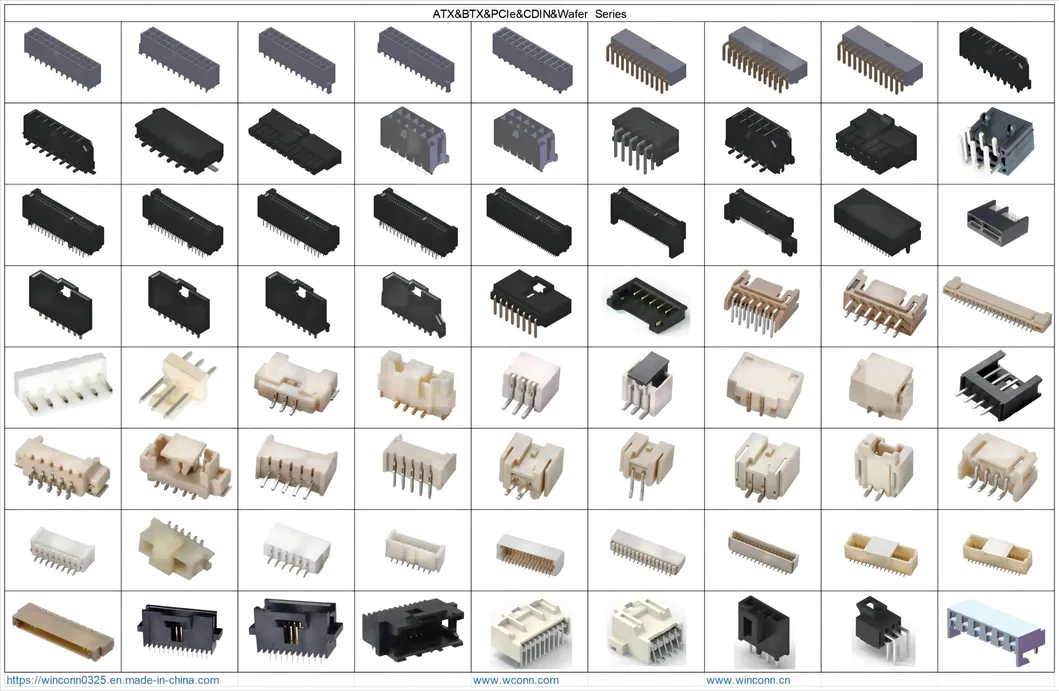

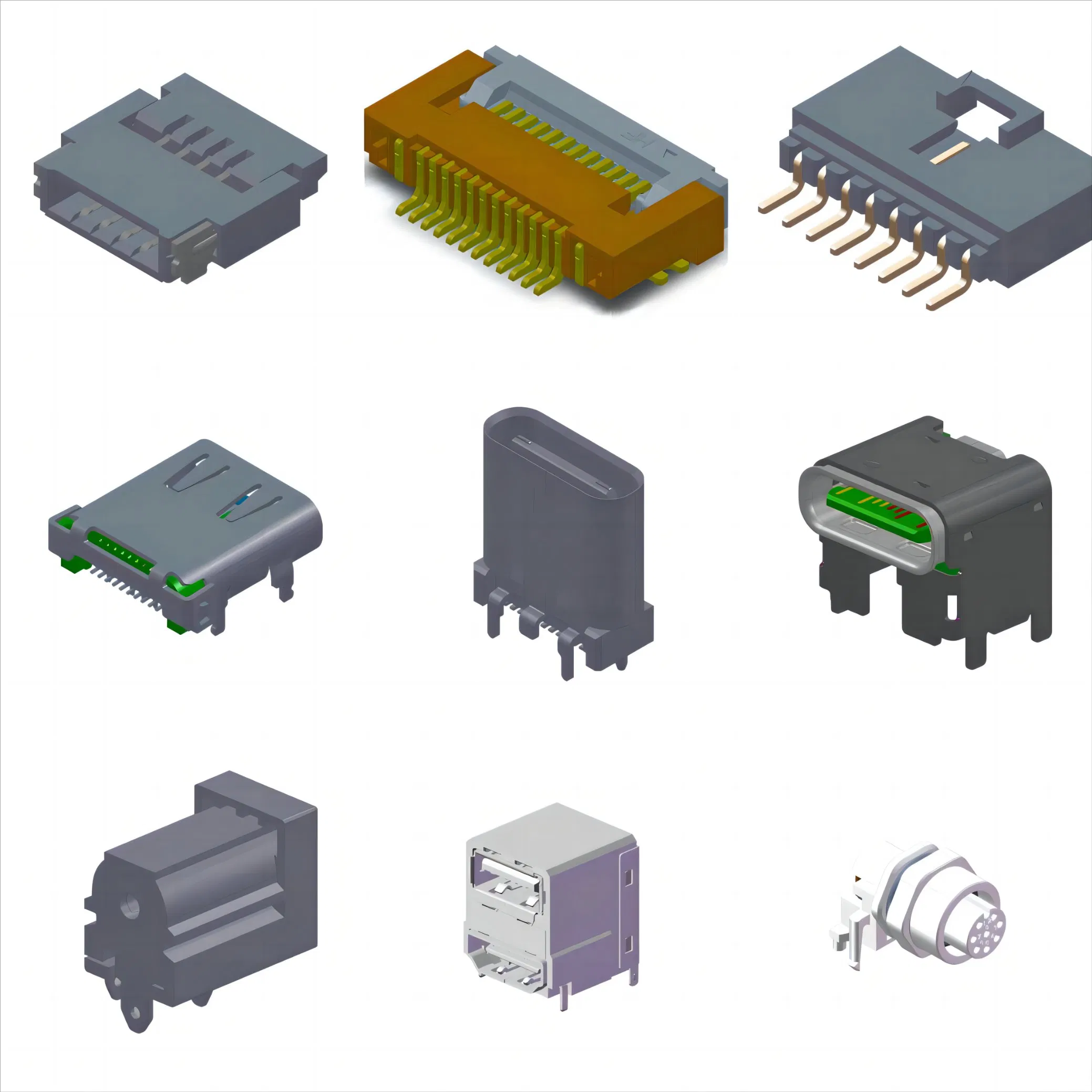

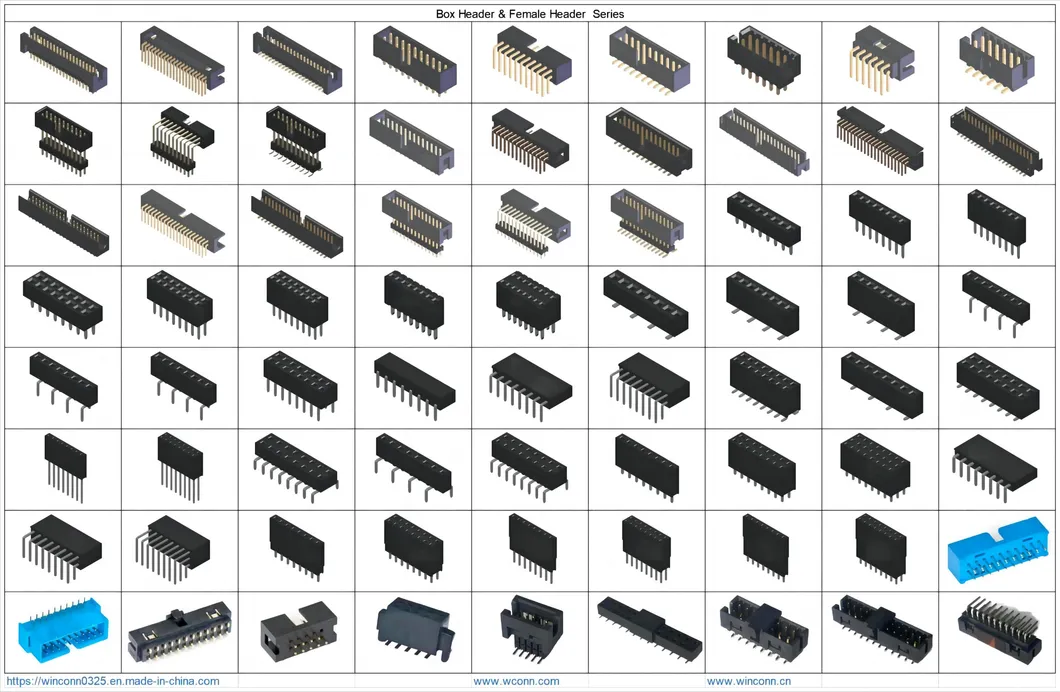

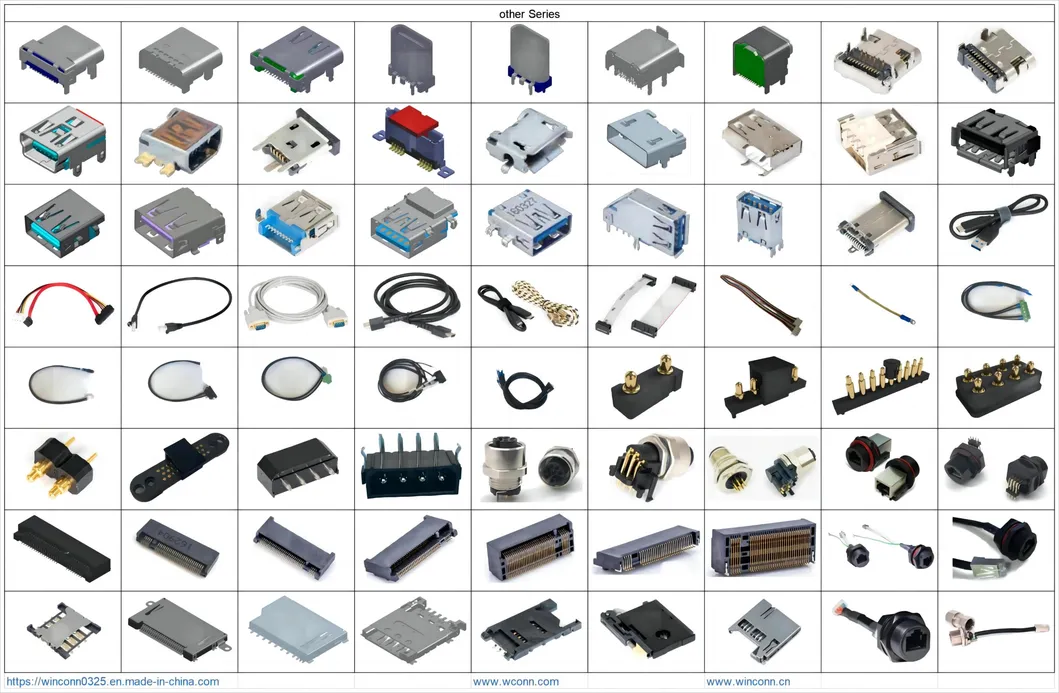

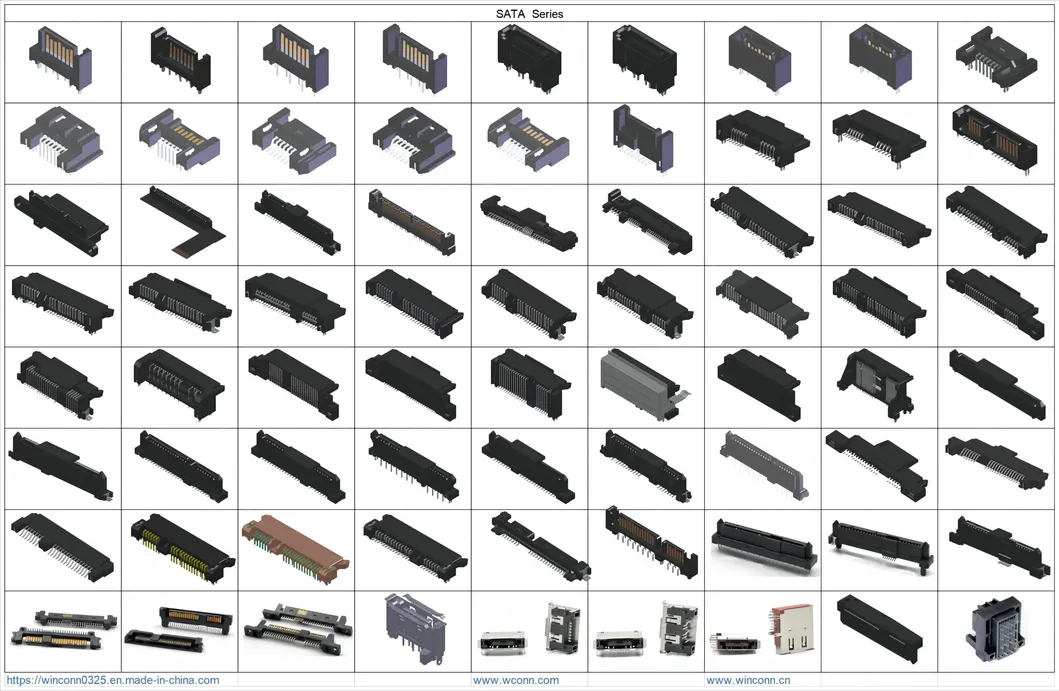

Product Gallery

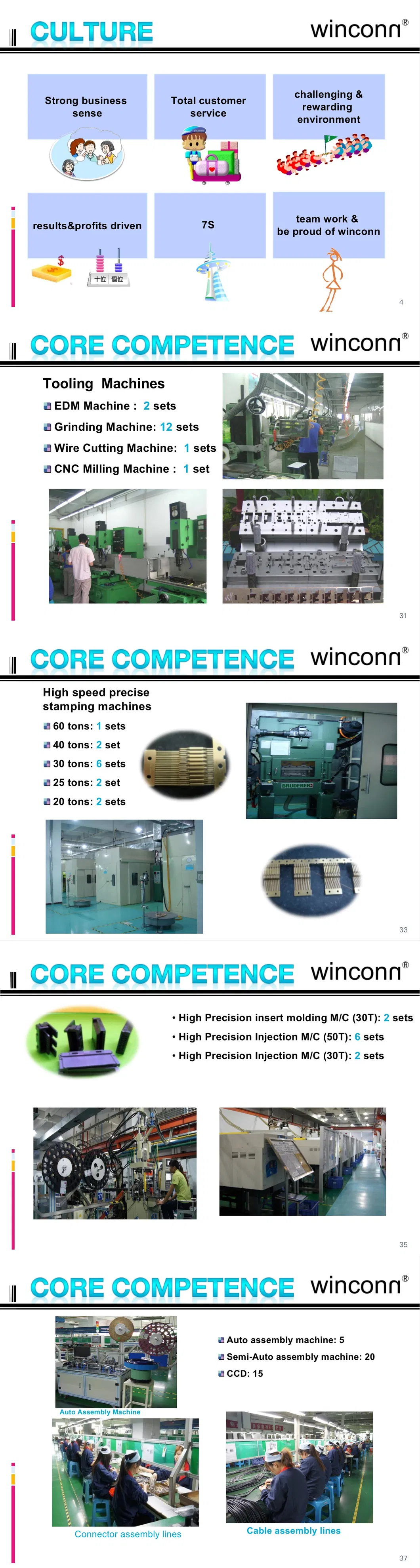

Production & Quality Control

Frequently Asked Questions

1. Can you provide a product catalogue for review?

Yes, you can contact us online or via email to receive our full digital catalogue.

2. I cannot find a specific product; can you develop a custom solution?

Absolutely. We can design and manufacture new molds to produce specific items. Standard mold production typically takes 20-35 days.

3. Are free samples available for testing?

Yes, we provide 5 to 10 pieces as free samples for your testing. Customers are only responsible for the shipping costs.

4. What is the typical delivery timeframe?

Stock items are delivered within 3 days. Customized production orders generally take between 7 and 35 days depending on complexity.

5. What shipping methods do you offer?

Small packages are sent via Express (DHL, FedEx, UPS, TNT). Larger orders can be shipped by Air or Sea using standard export cartons.

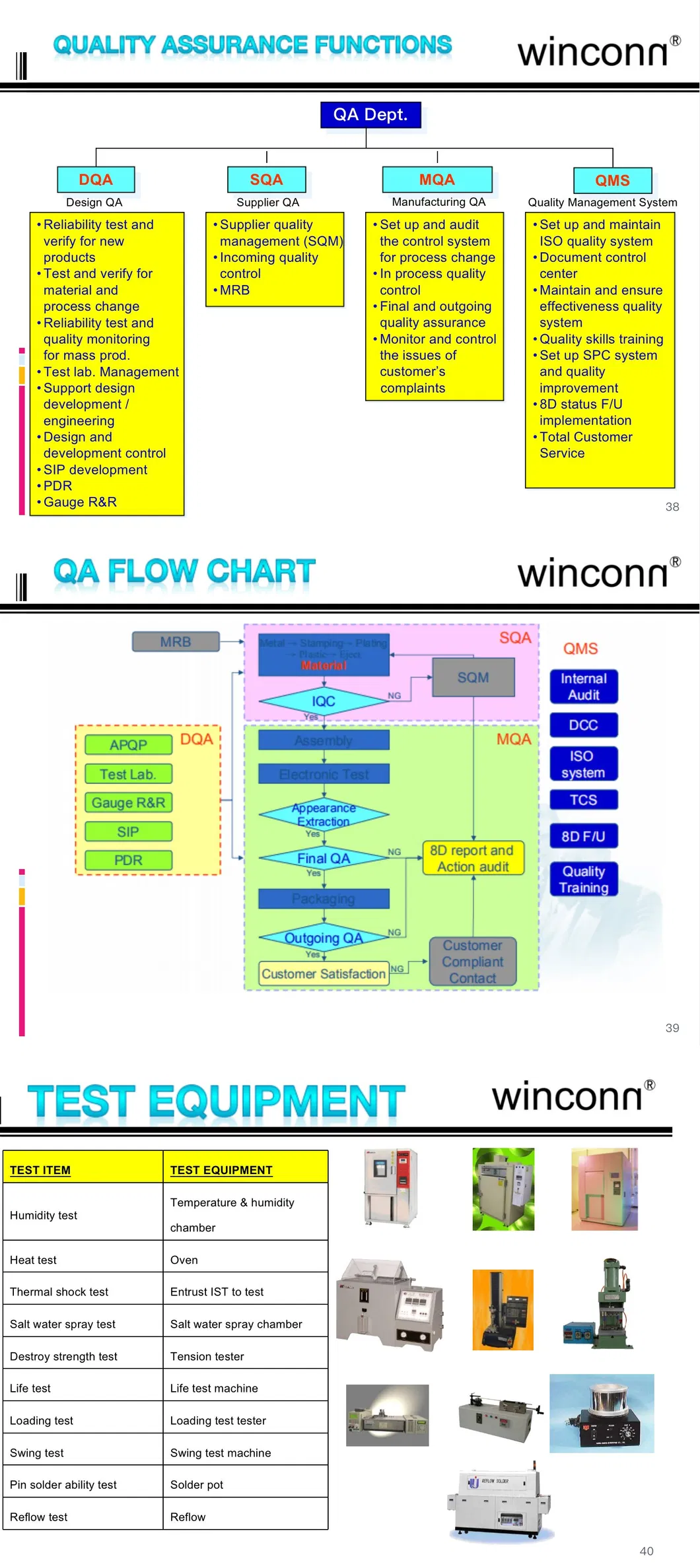

6. What is your quality control process?

We strictly follow ISO9001 standards. Our quality department (QA, IQC, IPQC, OQC) comprises 10% of our staff, and we utilize CCD testing for high precision.
