The product complies with standards IEC60884-1, DIN49445 forms A2 (socket) and DIN49446 (plug). It is in conformity with RoHS and WEEE directives, certified by Semko.

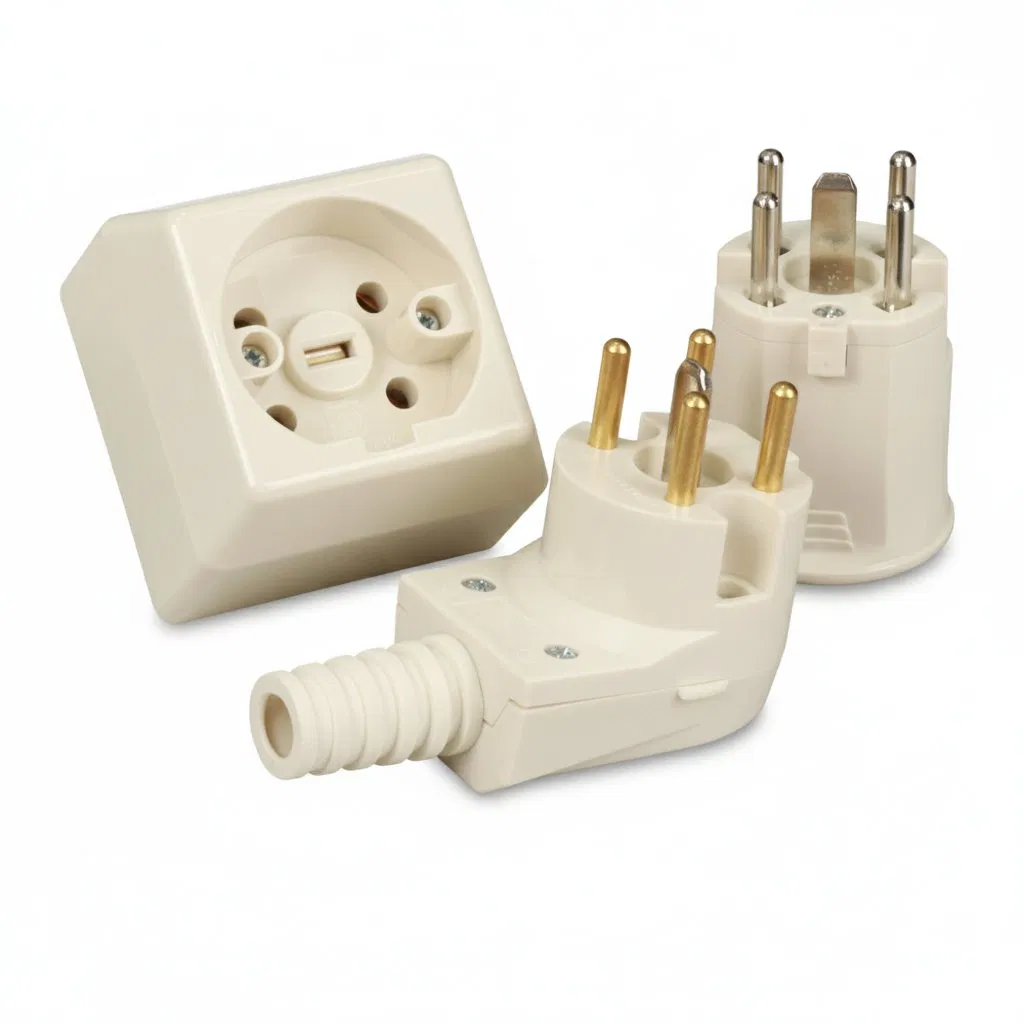

Known as "Perilex" plug and socket, these are equipped with protective earth (PE), a neutral conductor (N), and three phase conductors (L1, L2, L3). Usage is common in small businesses (bakeries, restaurants), medical facilities, and homes for electric stoves due to its compact form factor.

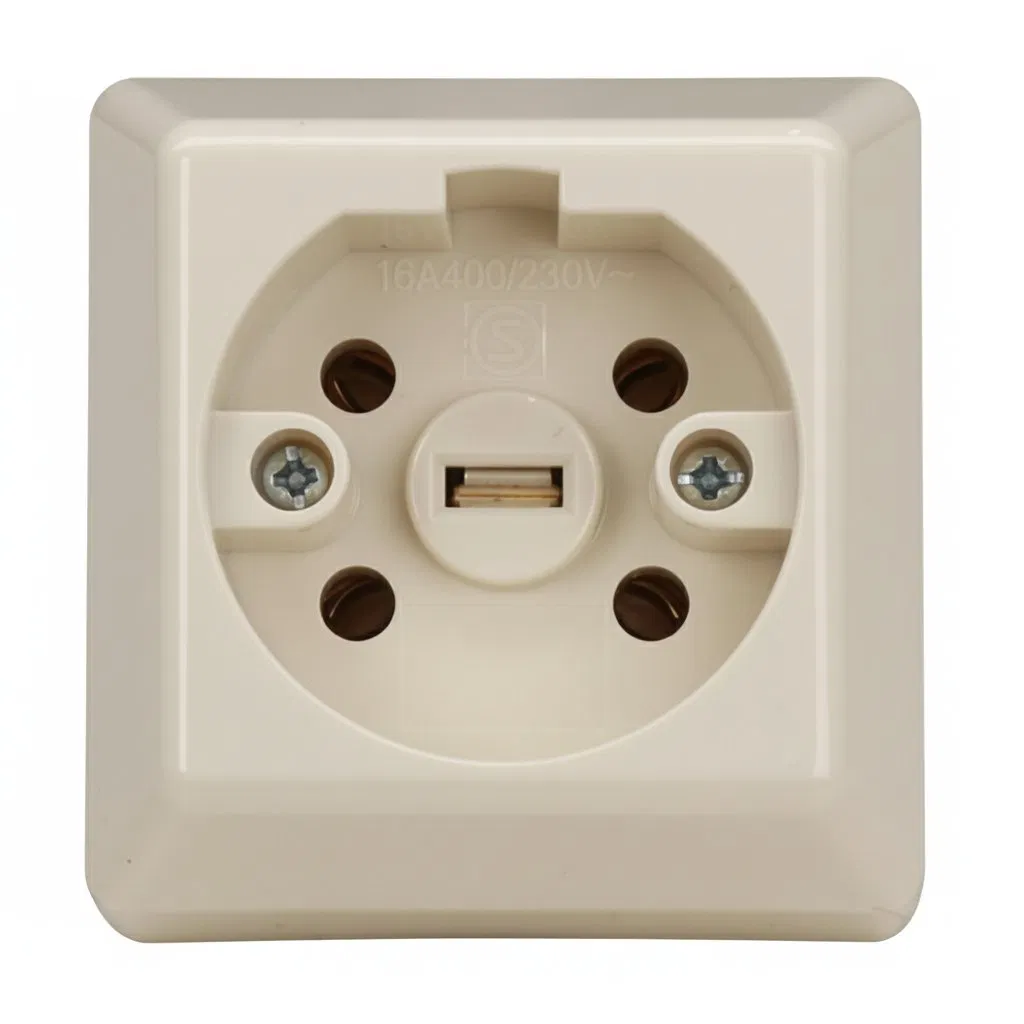

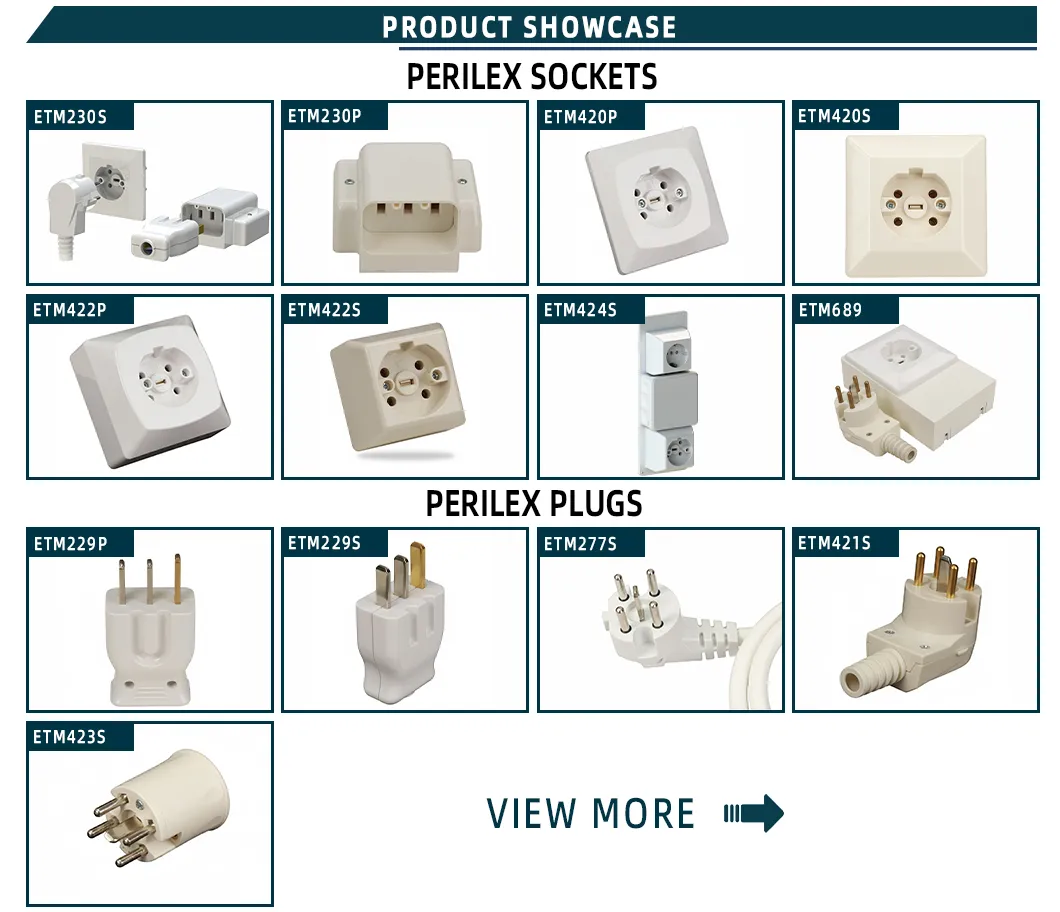

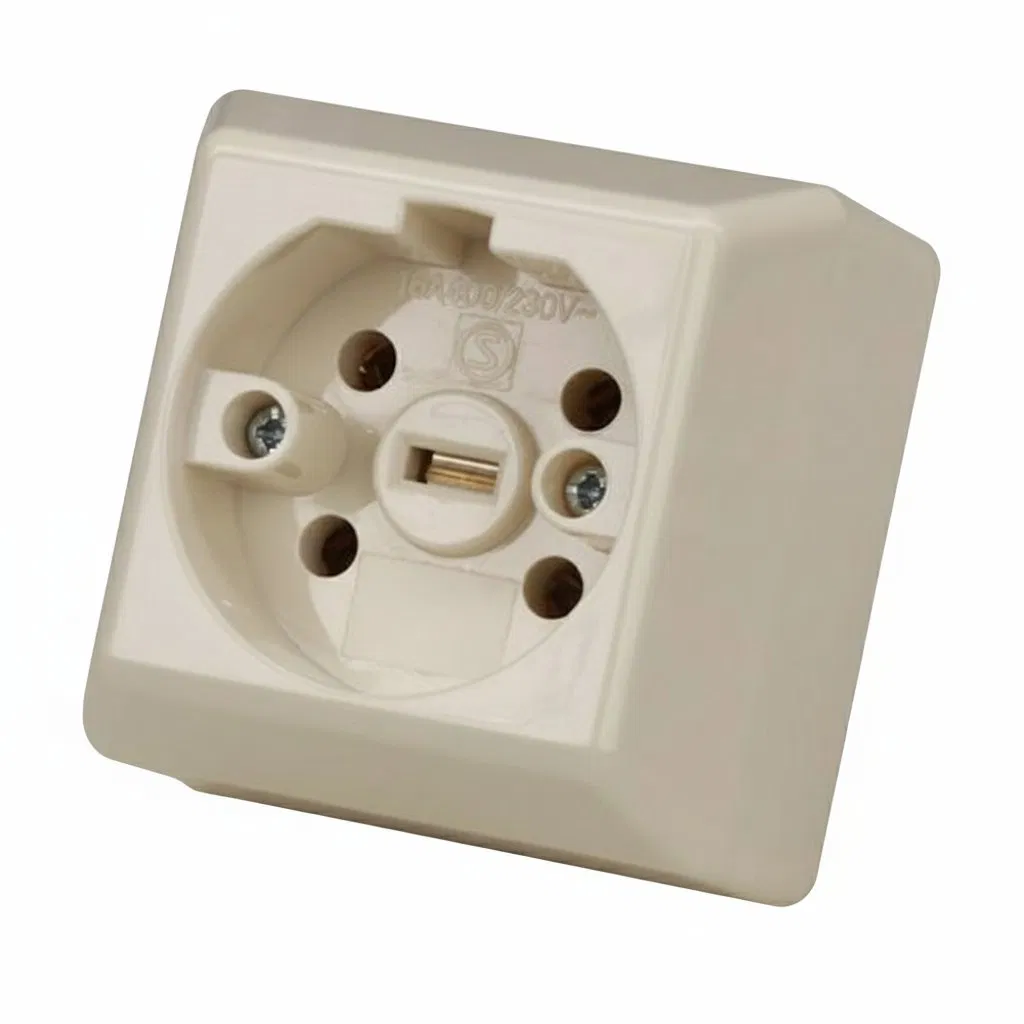

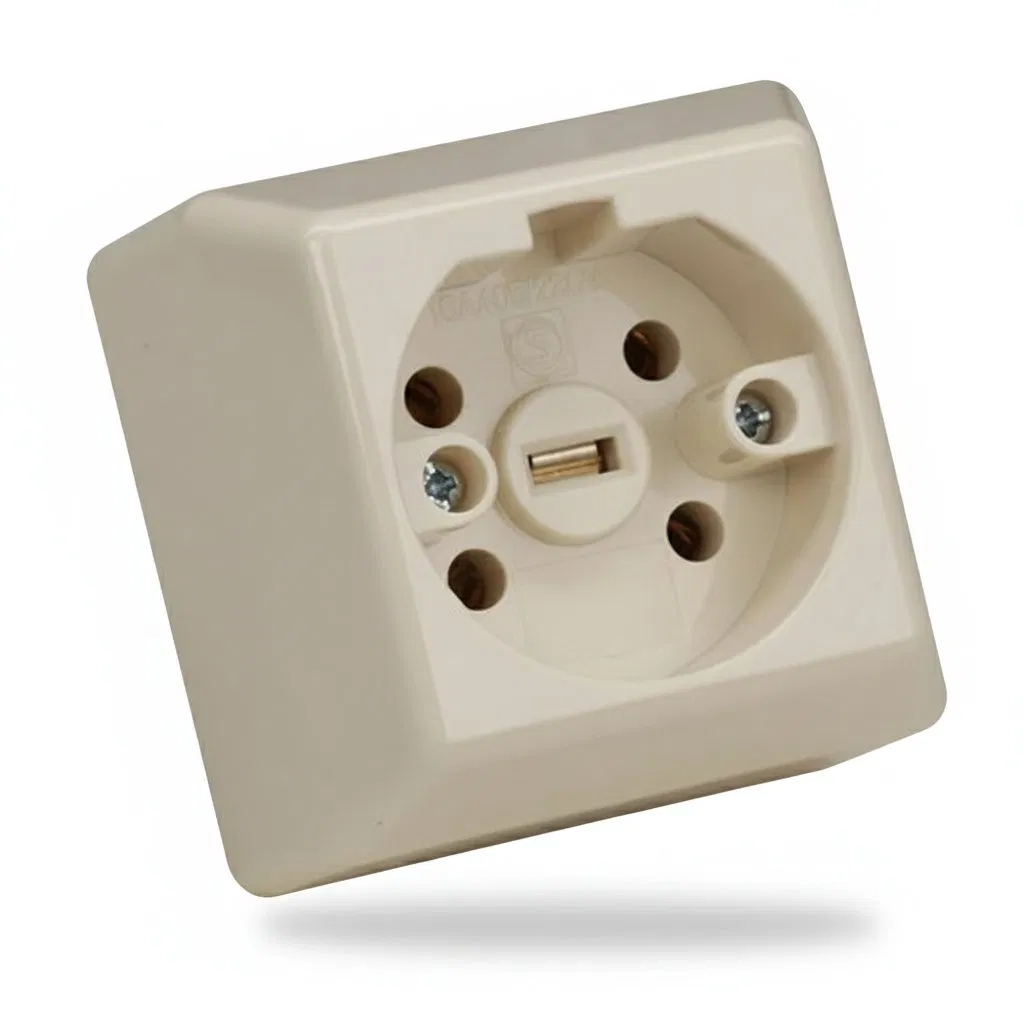

ETM422S/P: Surface type wall socket, thermoplastic cover. Screw terminals for wiring 1.5-2.5mm2.
ETM420S/P: Flush type wall socket. Fits into flush junction boxes, screw distance c-c 67mm.
ETM421S, ETM423: Rewirable plug with pillar type terminals for all wire types.
ETM248S/477S: Molded plugs with H05VV-F/H07RN-F cables.
| ID | Description | Unit | Value |
| EF000010 | Model | A | 422S |
| EF017116 | Protective contact | A | Flat |
| EF000351 | Number of phases | N | 3 |
| EF000124 | Connection type | A | Screwed terminal |
| EF000007 | Colour | A | White (RAL9003) |
| EF000003 | Mounting method | A | Surface-mounted |
| EF000025 | Halogen free | L | YES |
| EF000001 | Nominal current | N | 16A |
| EF000002 | Nominal voltage | N | 400/230V~ |
| EF006755 | IP Protection | A | IP20 |
| EF008808 | Device dimensions | N | 67x67x50mm |
