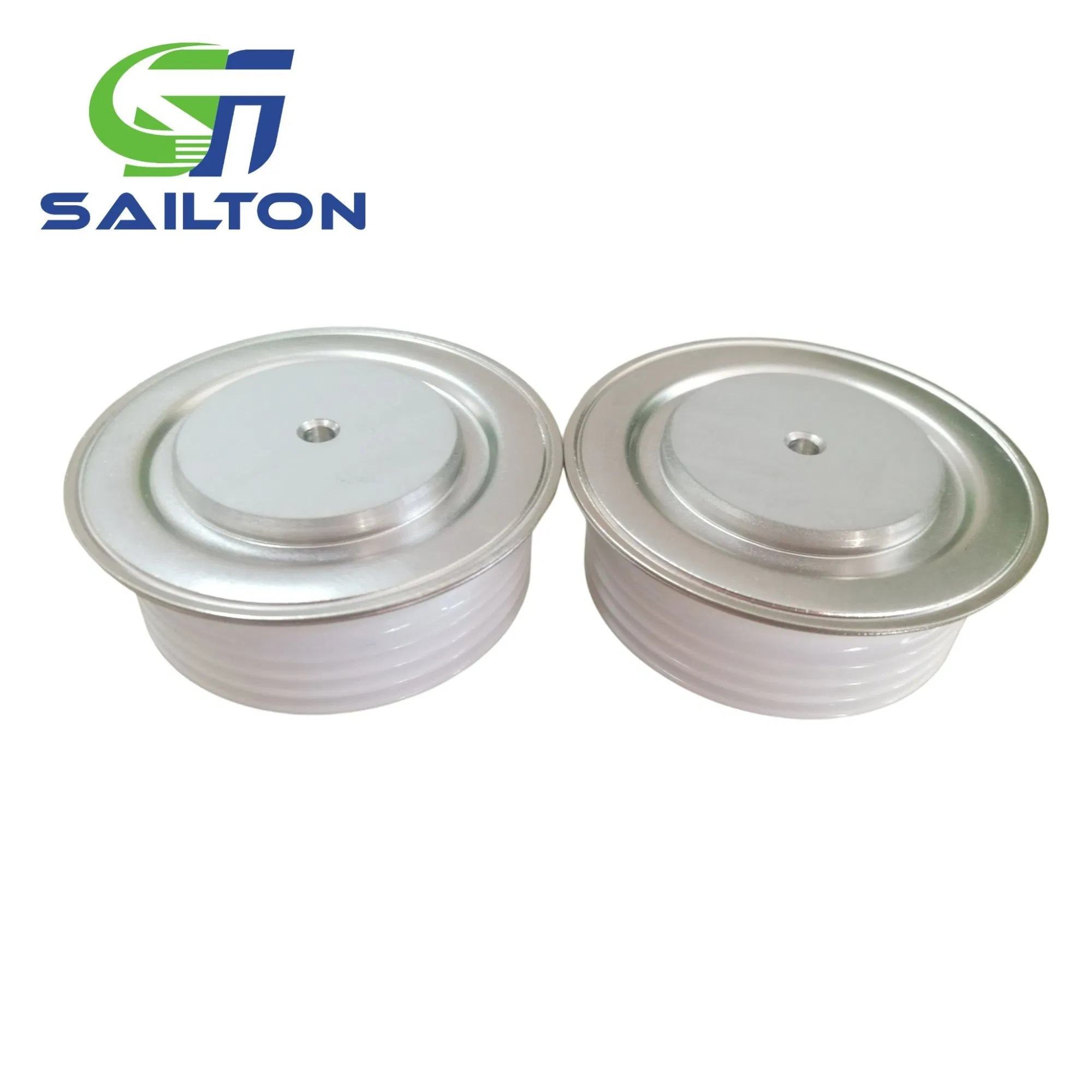

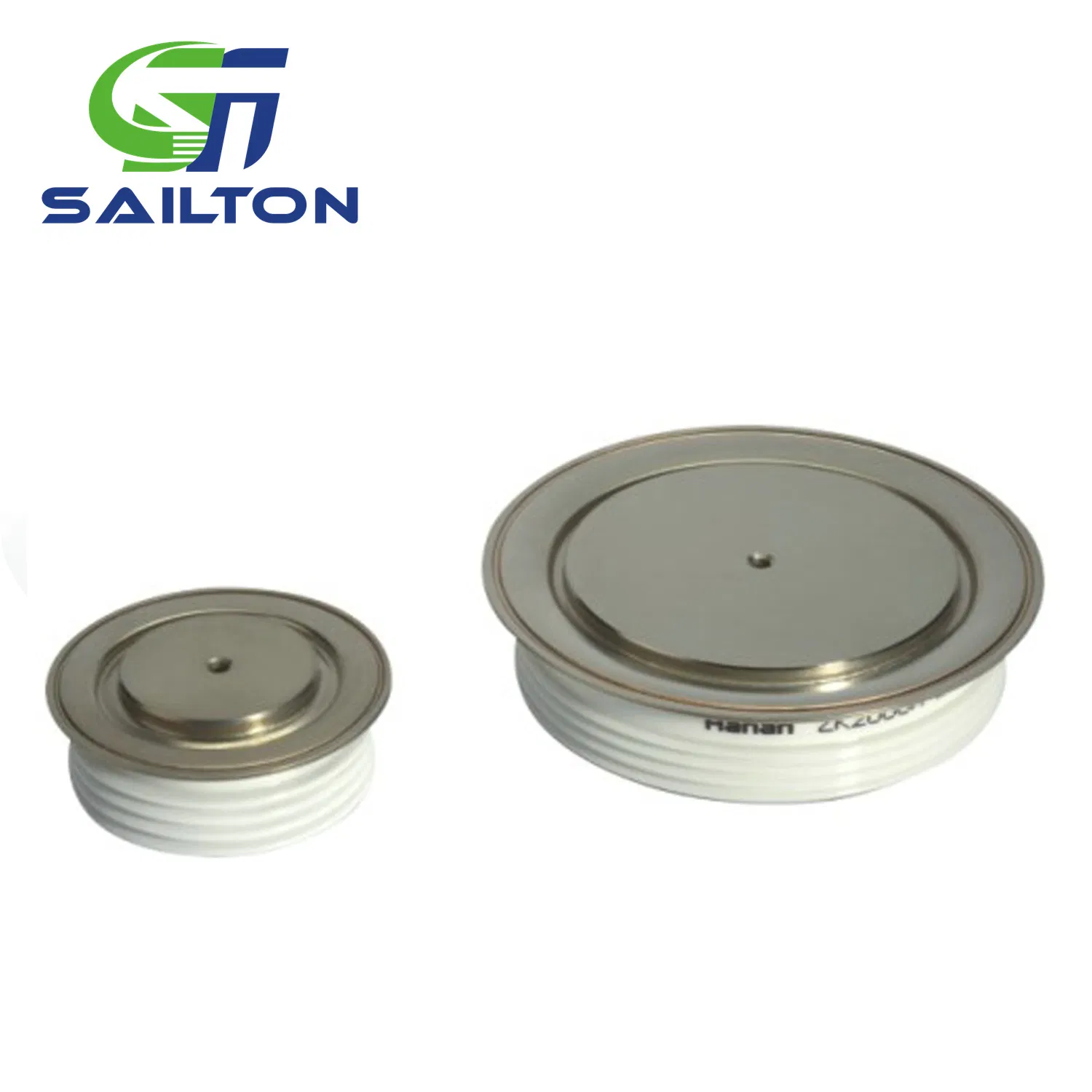

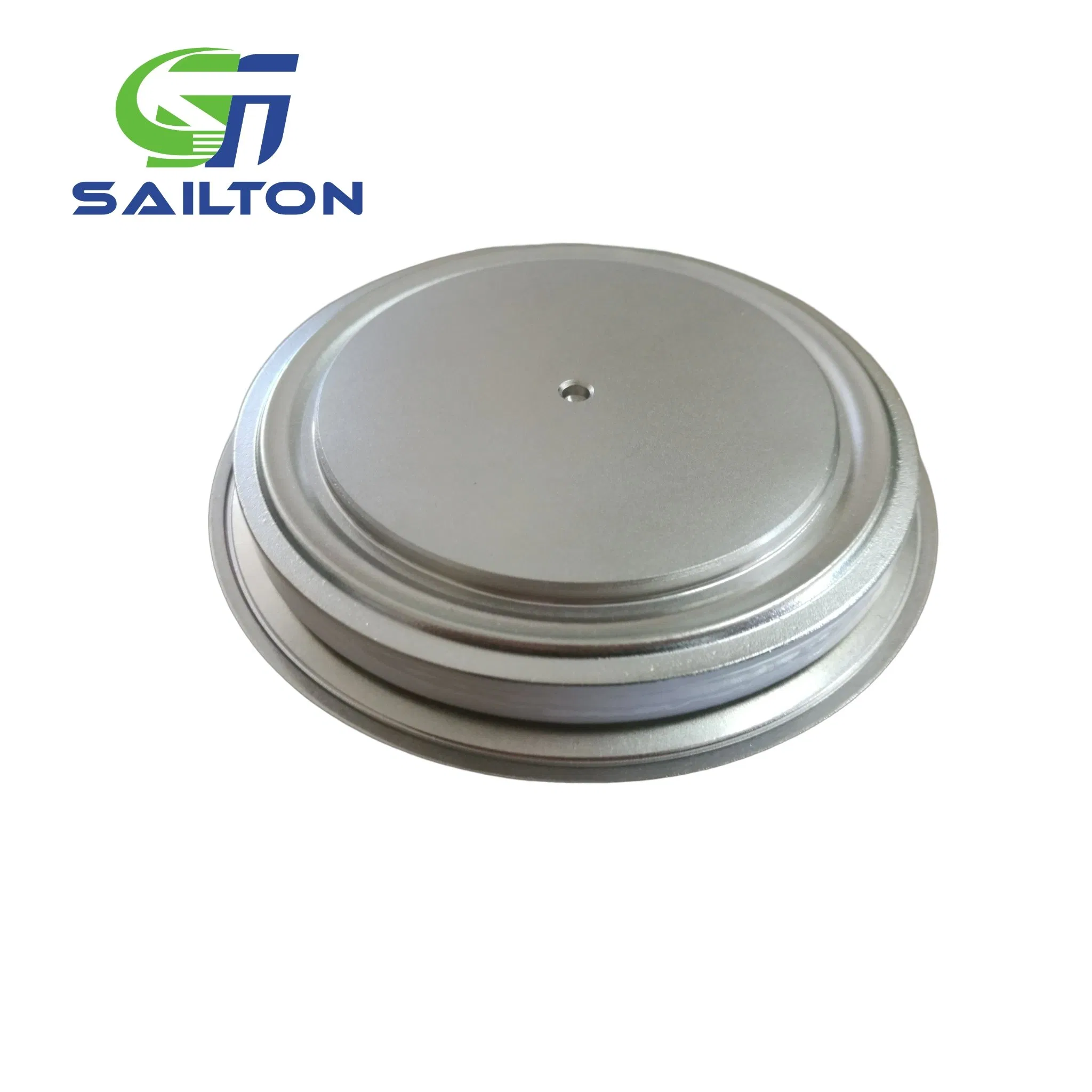

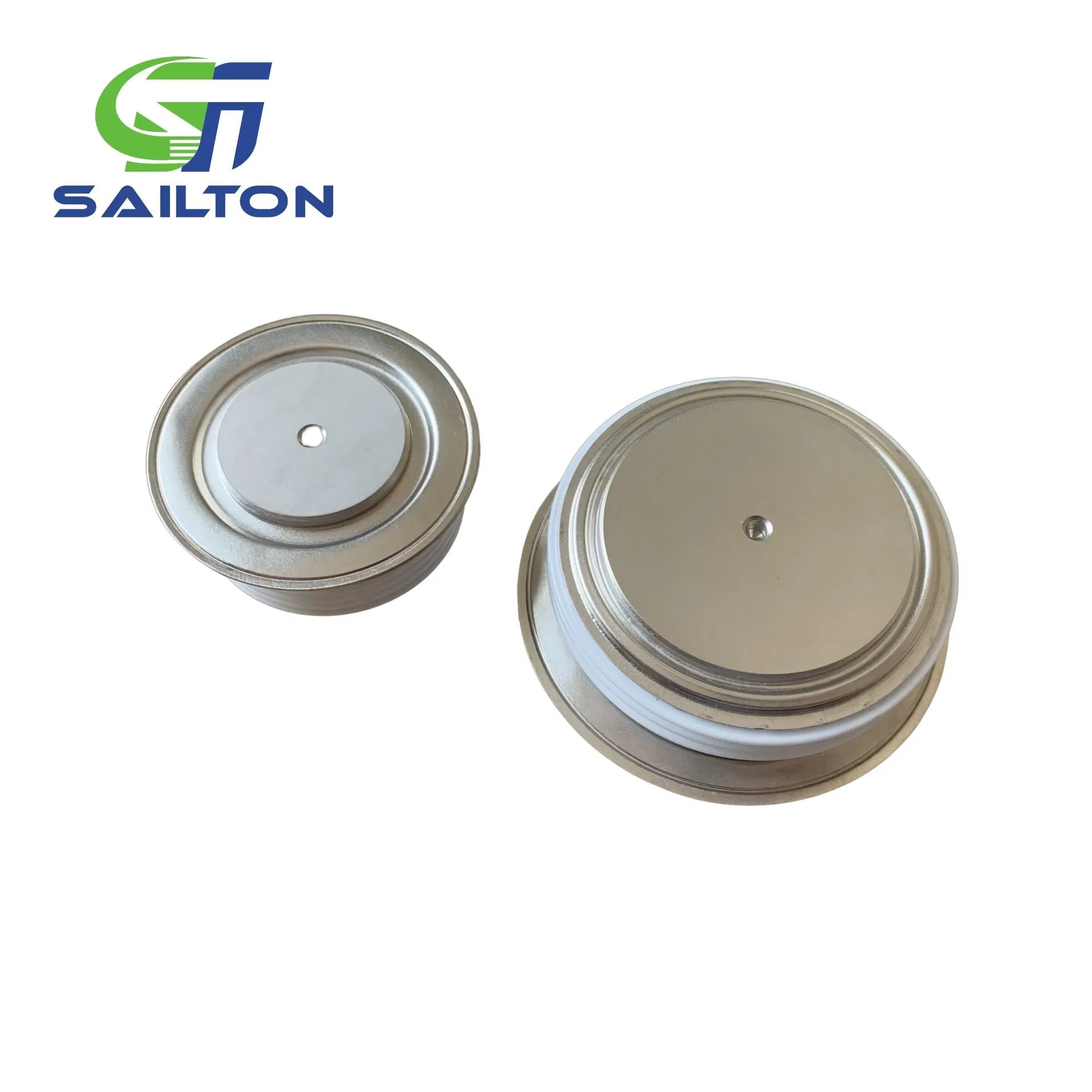

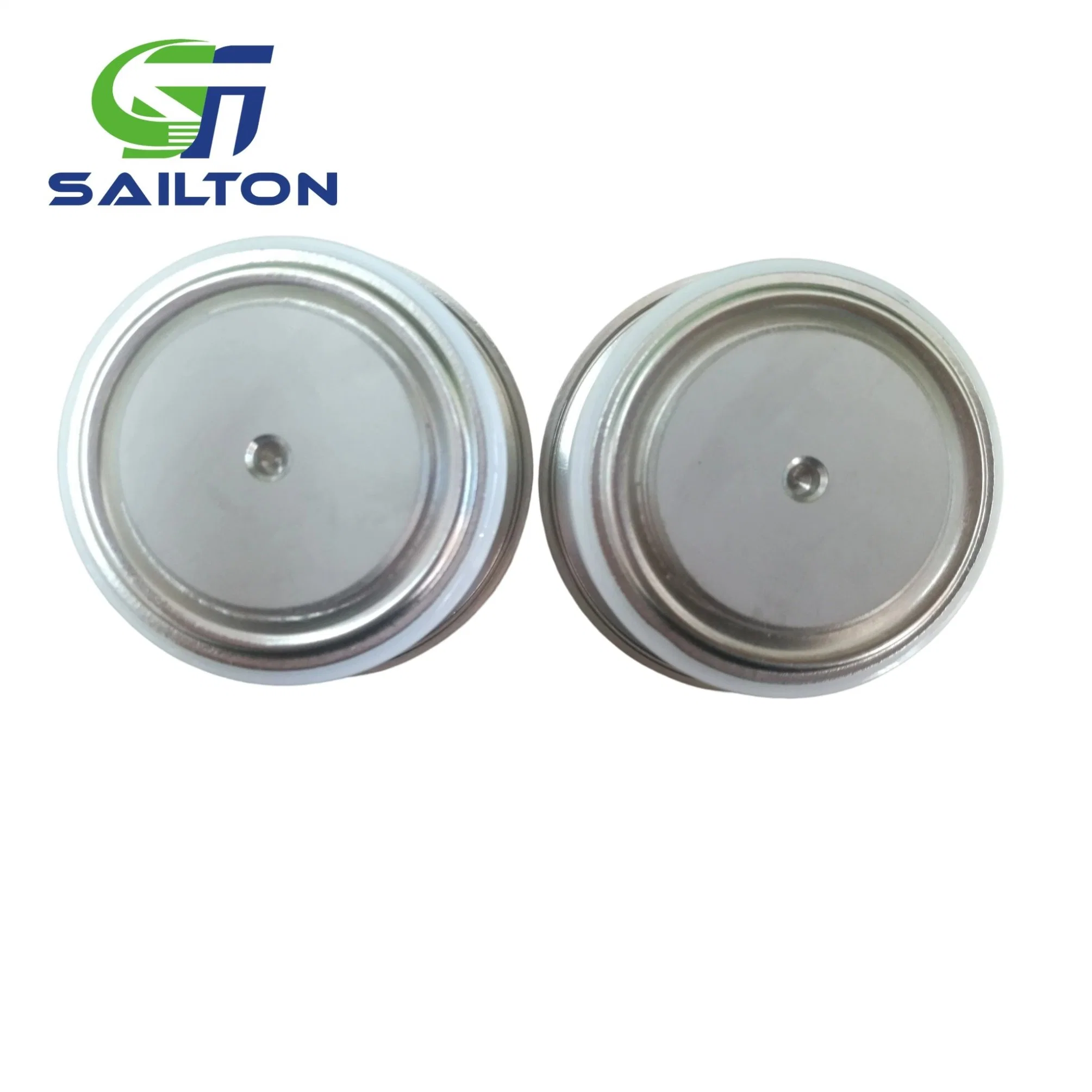

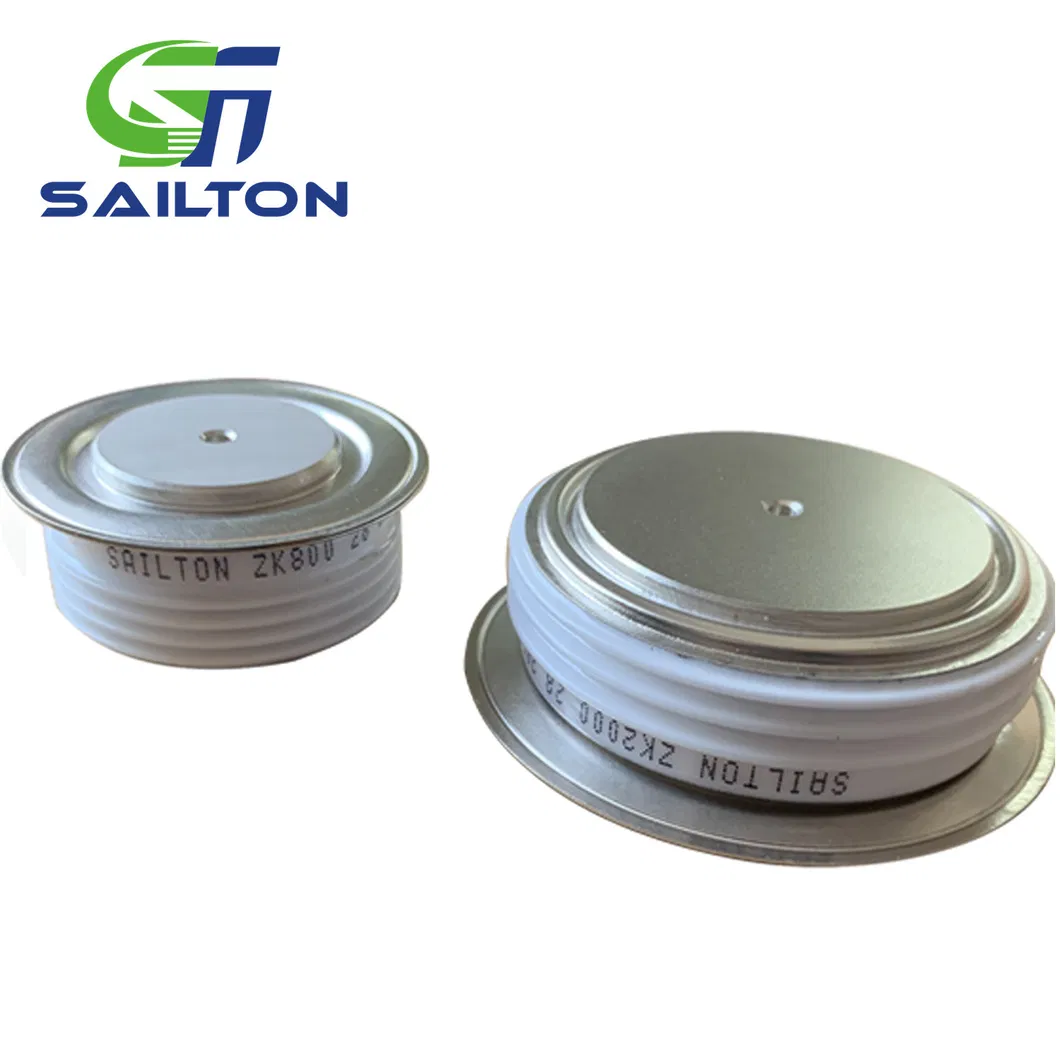

Fast Recovery Diodes Semiconductor Devices Zk500A/3800V Electronic Component
We supply various shapes of fast recovery diodes that have a small reverse recovery time. The maximum voltage is up to 4500V, and the maximum current is 3000A. Our rectifier diode range includes fast recovery, soft recovery, and standard recovery types. These diodes are widely used in induction heating furnaces and power conversion systems worldwide.

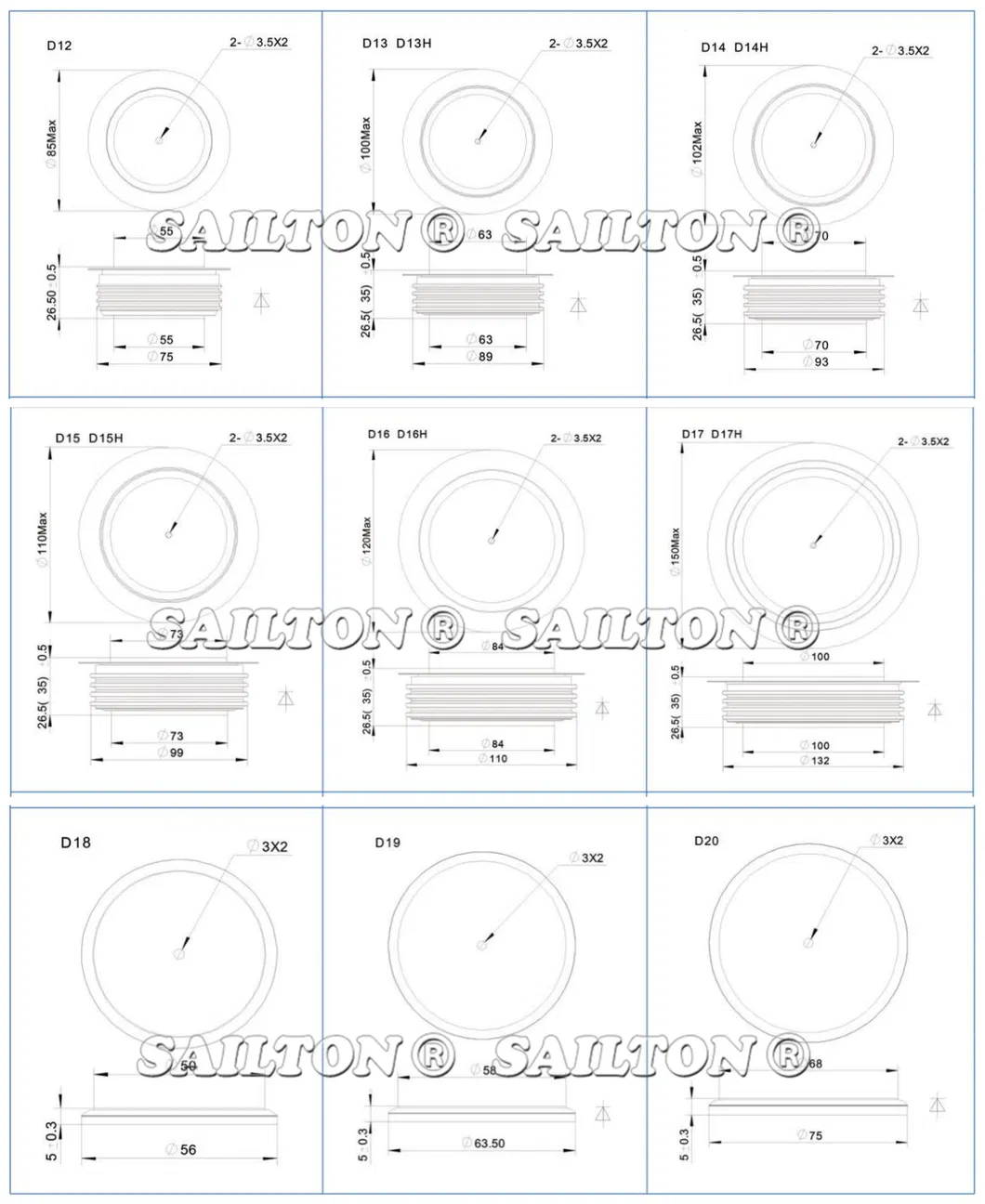

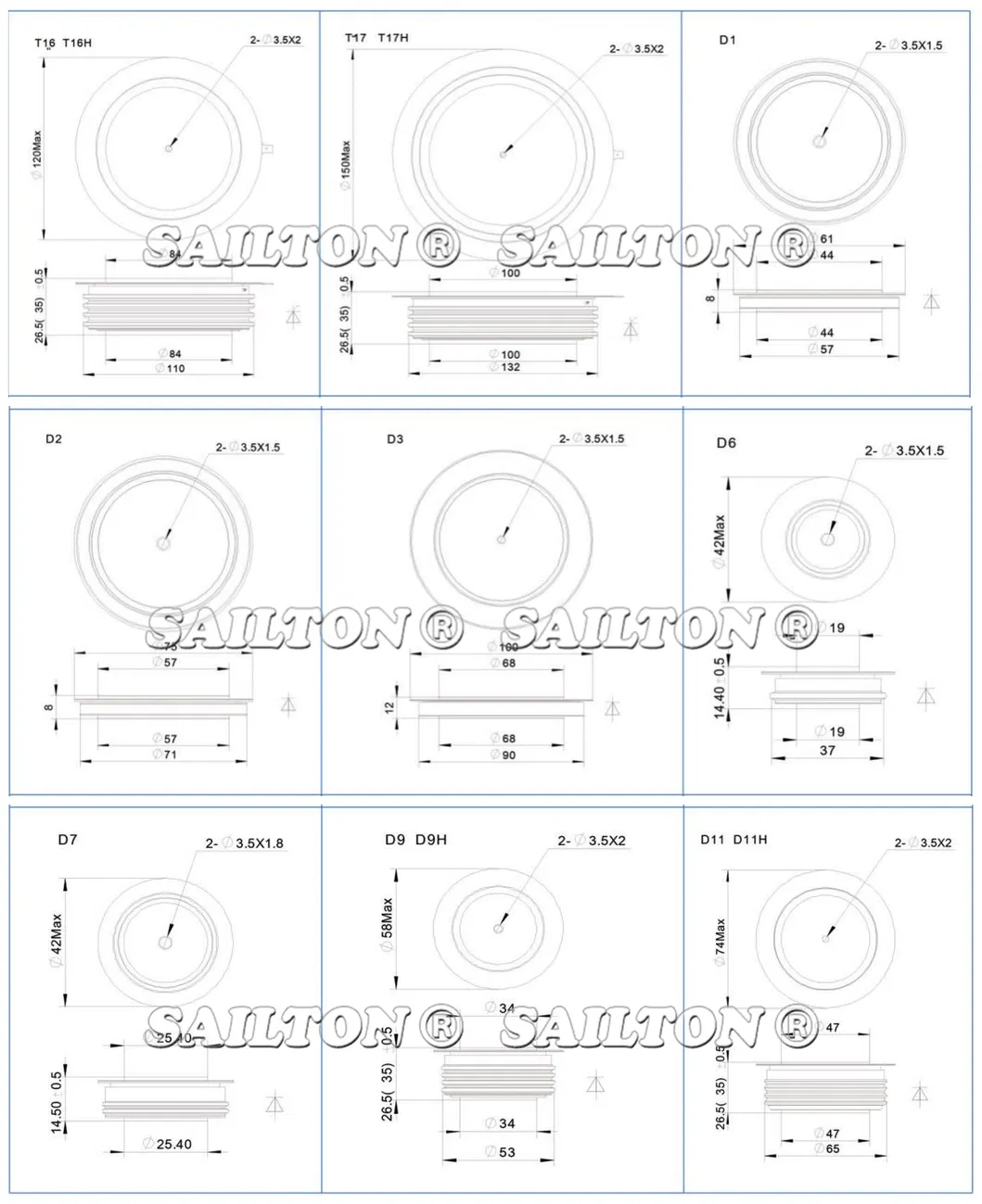

| Part No. | IF(AV) (A) | VRRM (V) | IFSM (A) | I2t (A2S) | VFO (V) | rF (mΩ) | trr (µs) | TVJM (ºC) | Outline |
|---|---|---|---|---|---|---|---|---|---|
| ZK400/10-20 | 400 | 1000-2000 | 4500 | 101 | 1.05 | 0.680 | 2.0 | 150 | D6 |
| ZK600/10-20 | 700 | 1000-2000 | 11000 | 605 | 0.95 | 0.560 | 2.0 | 150 | D9 |
| ZK1000/10-20 | 1200 | 1000-2000 | 20000 | 2000 | 1.00 | 0.350 | 3.0 | 150 | D11 |
| ZK800/25-33 | 800 | 2500-3300 | 6400 | 205 | 1.15 | 0.690 | 4.0 | 150 | D9 |
| ZK1000/25-33 | 1000 | 2500-3300 | 15000 | 1125 | 1.50 | 0.500 | 5.0 | 150 | D11 |
| ZK2000/25-33 | 2000 | 2500-3300 | 30000 | 4500 | 0.90 | 0.350 | 5.0 | 150 | D13 |
| ZK500/36-45 | 500 | 3600-4500 | 8000 | 320 | 1.70 | 1.200 | 5.2 | 150 | D9 |
| ZK1500/36-45 | 1500 | 3600-4500 | 24000 | 2880 | 1.40 | 0.650 | 8.0 | 160 | D13 |
| ZK2000/36-45 | 2000 | 3600-4500 | 26000 | 3380 | 1.30 | 0.500 | 8.5 | 160 | D15 |
