Overviews

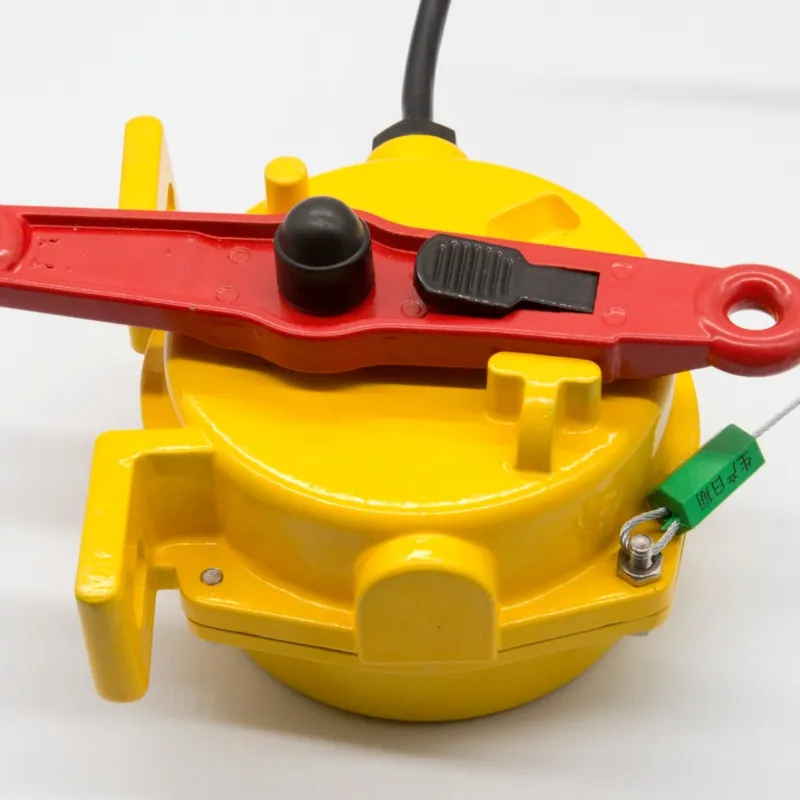

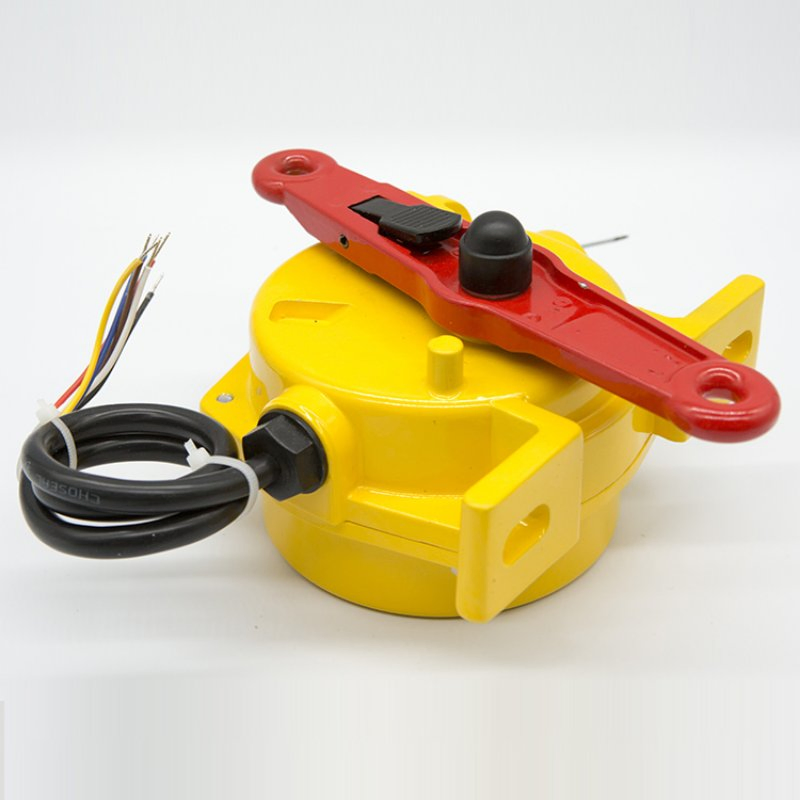

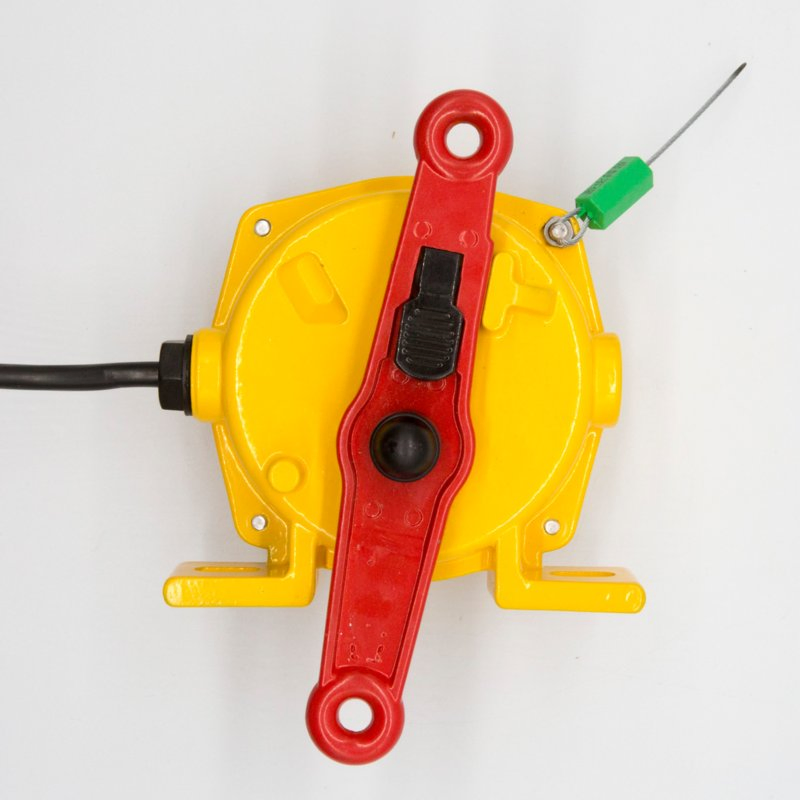

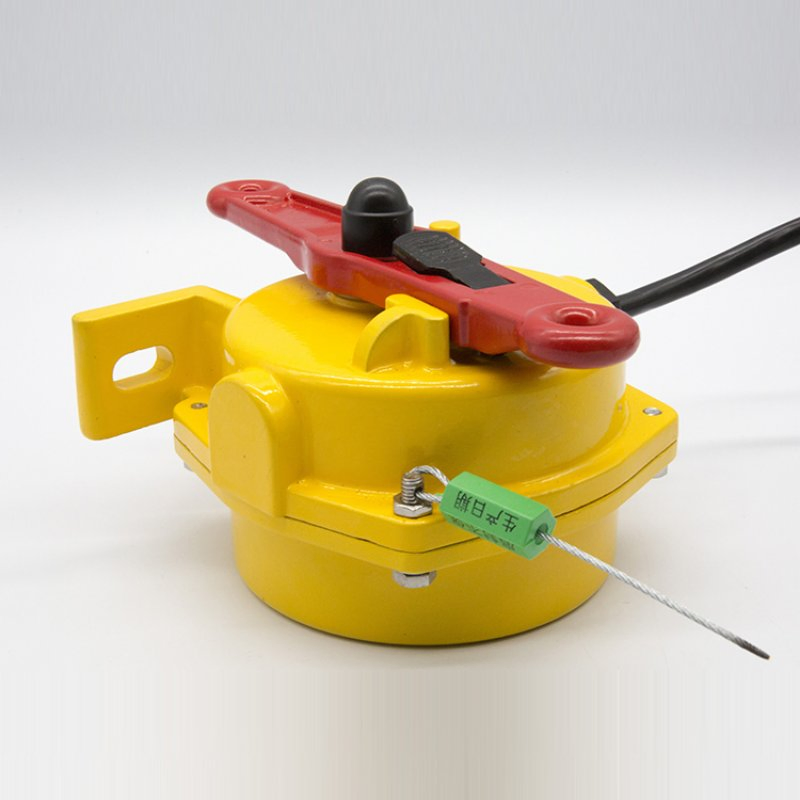

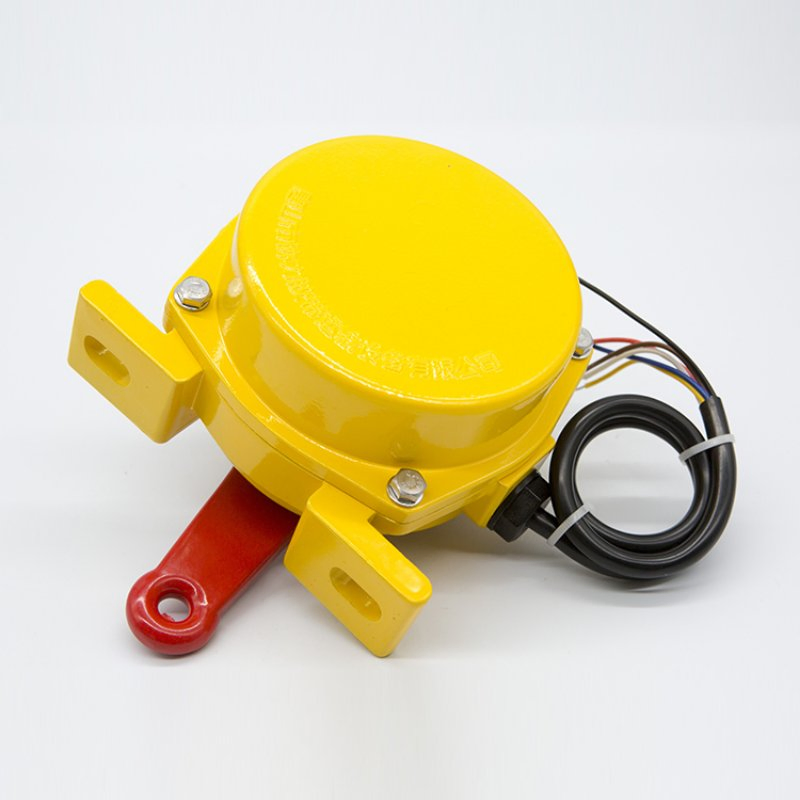

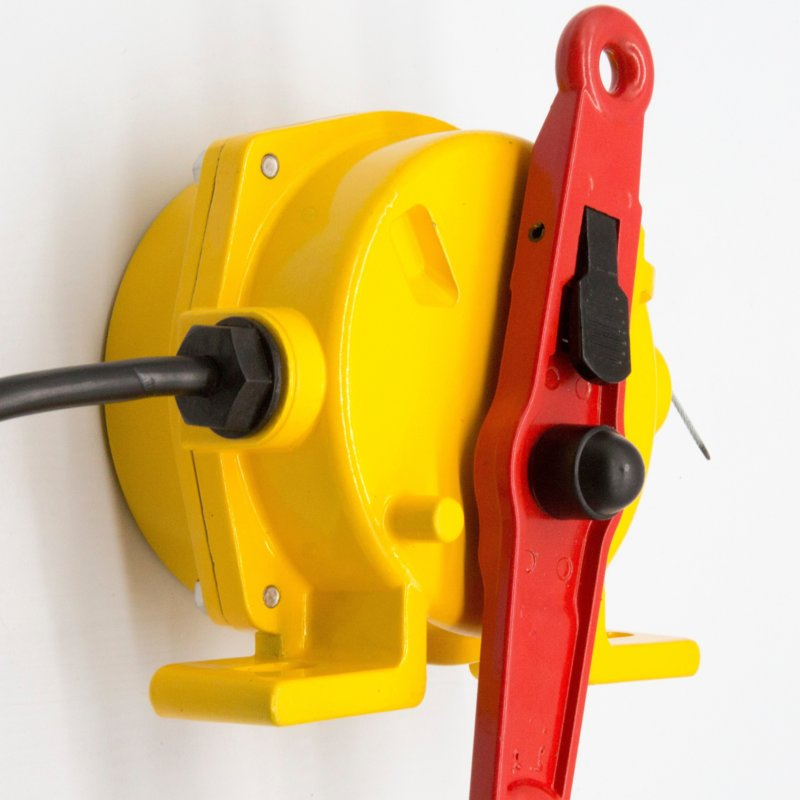

The bidirectional pull cord switch is a protective switch used for emergency shutdown of belt conveyors. When an emergency occurs at the site of the belt conveyor, the on-site personnel can start the pull cord switch at any position along the conveyor to stop it, preventing the accident from escalating. This product is easy to install and has reliable performance.
| Parameter | Value |
|---|---|
| Environmental temperature | -40℃~50℃ |
| Relative humidity | 0~95% |
| Atmospheric pressure | 80~110kPa |
| Electrical lifespan | > 100,000 times |
| Output method and quantity | 2×SPDT |
| Load capacity | AC380V 5A / DC24V 5A |
| Action force | 70~100N |
| Range of movement | 20°~30° |
| Limiting angle | 75° |
| Protection level | IP67 |

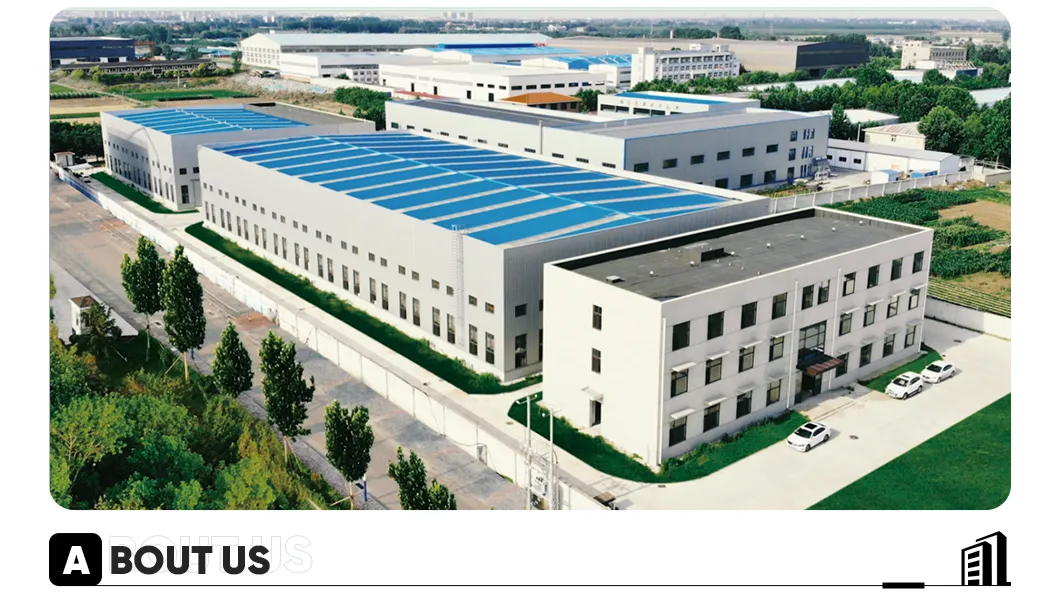

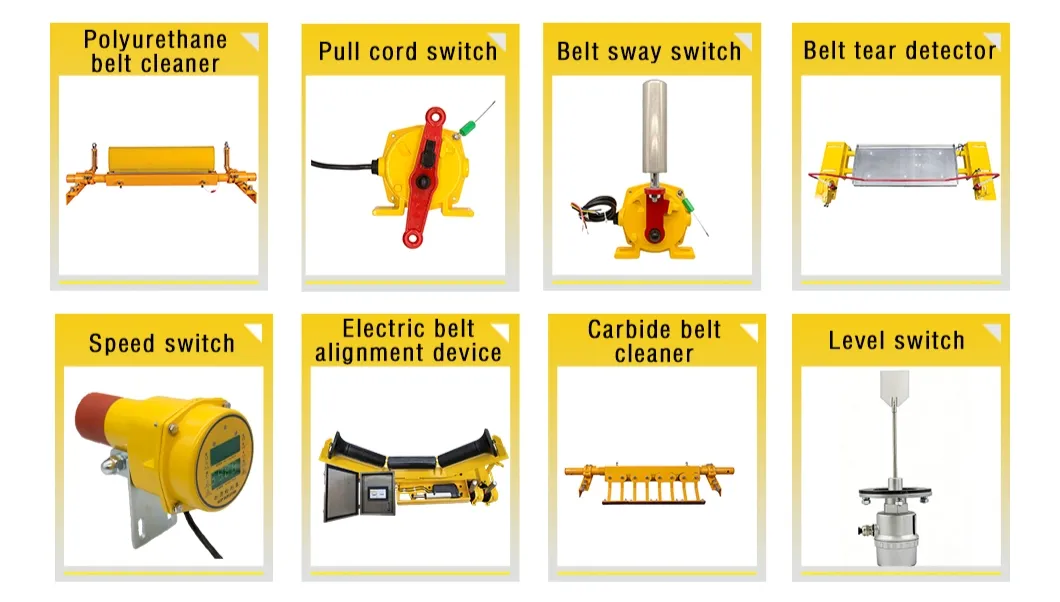

Founded in 2002, our group has grown through 20 years of exploration in the belt conveyor field. We provide complete solutions including emergency protection, unmanned operation, and system engineering renovation across metallurgy, power, cement, chemical industry, ports, and mines. As a high-tech enterprise, we possess over 100 national patents and maintain ISO9001 and CE certifications.
