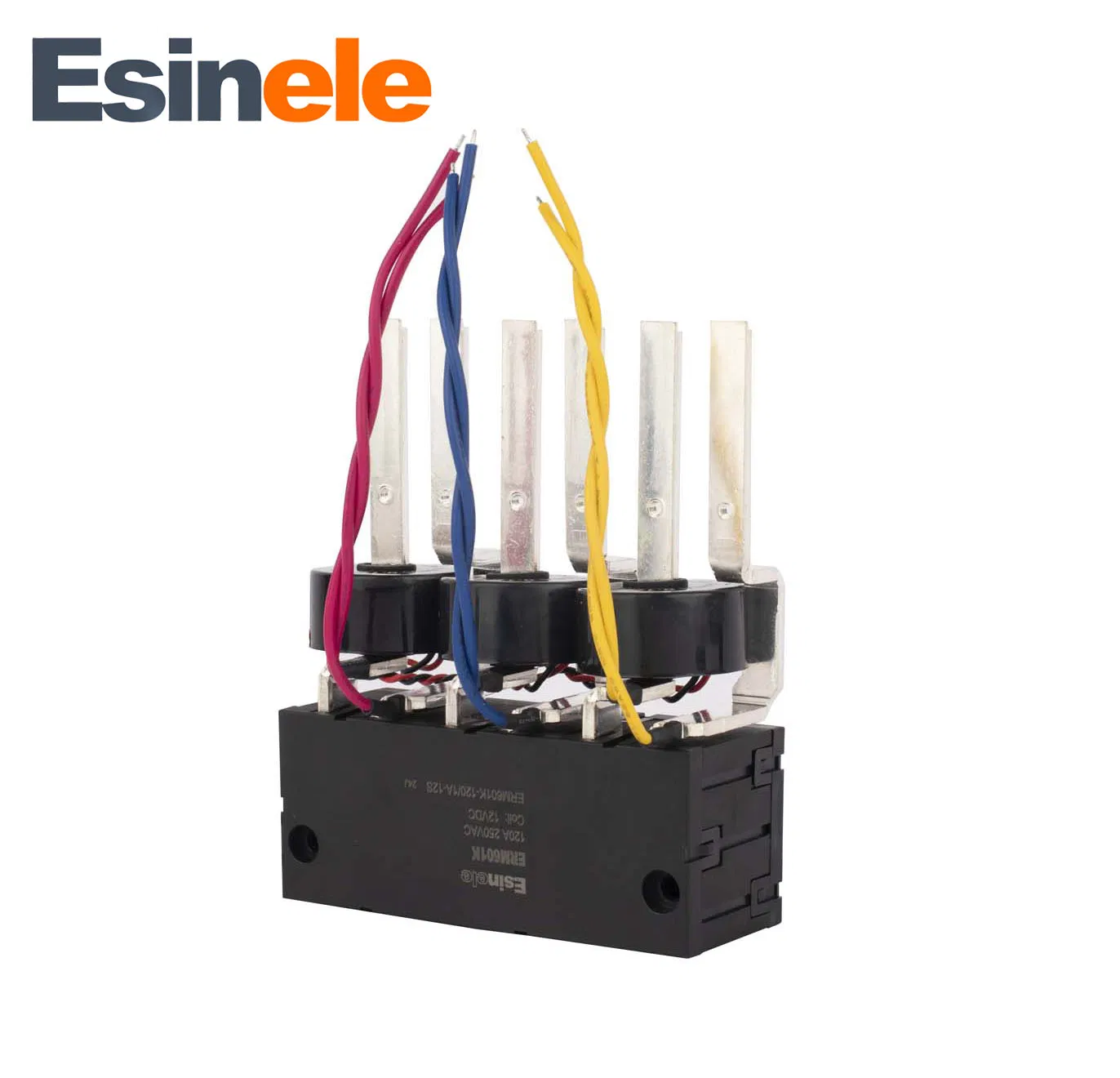

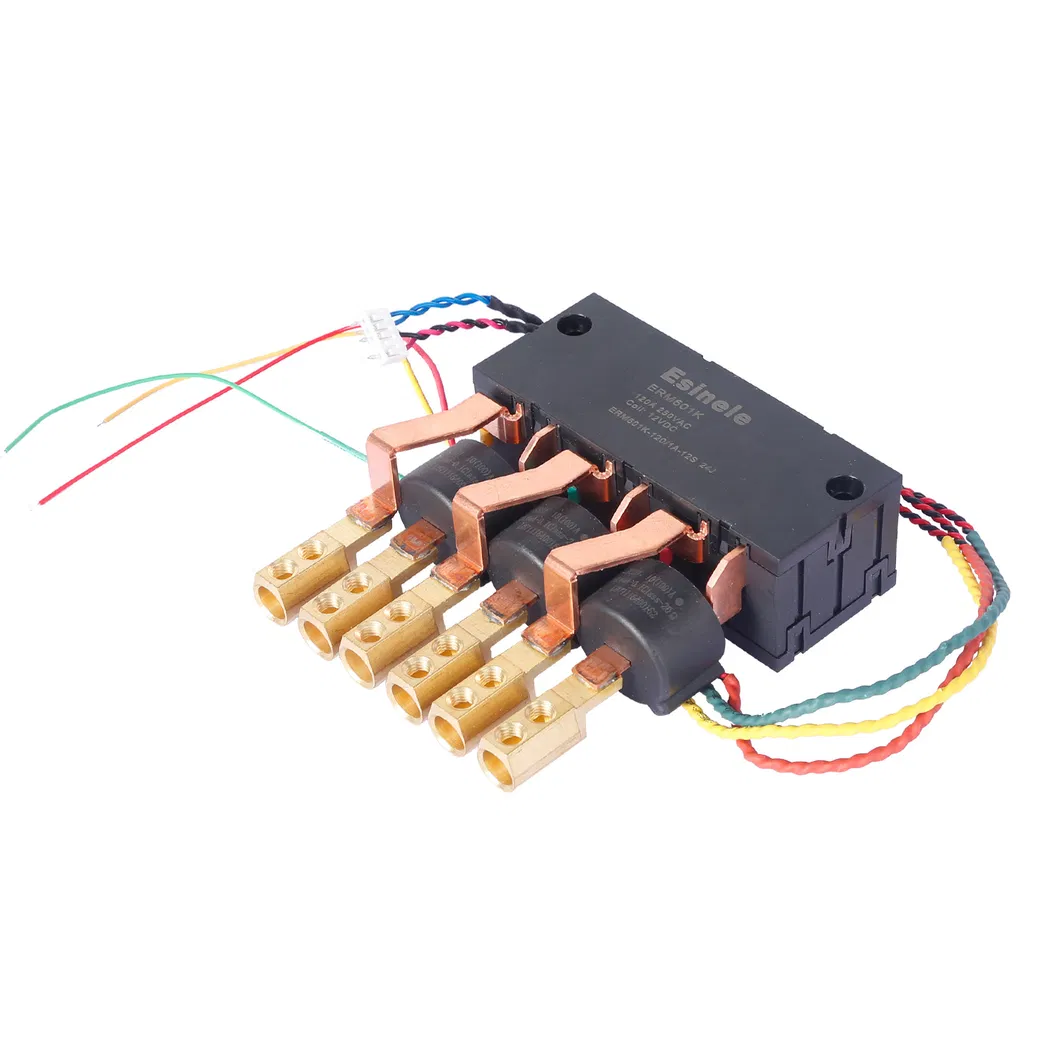

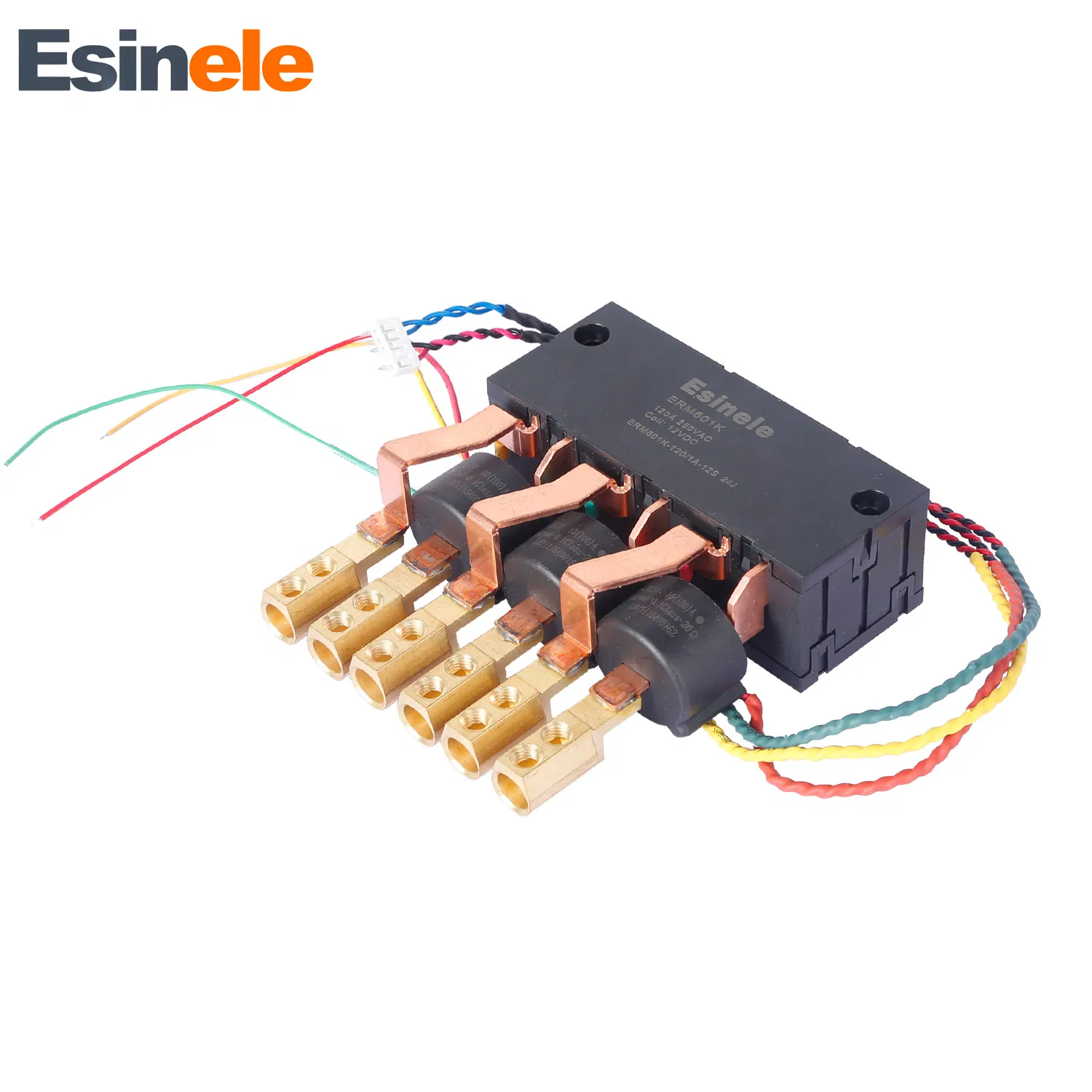

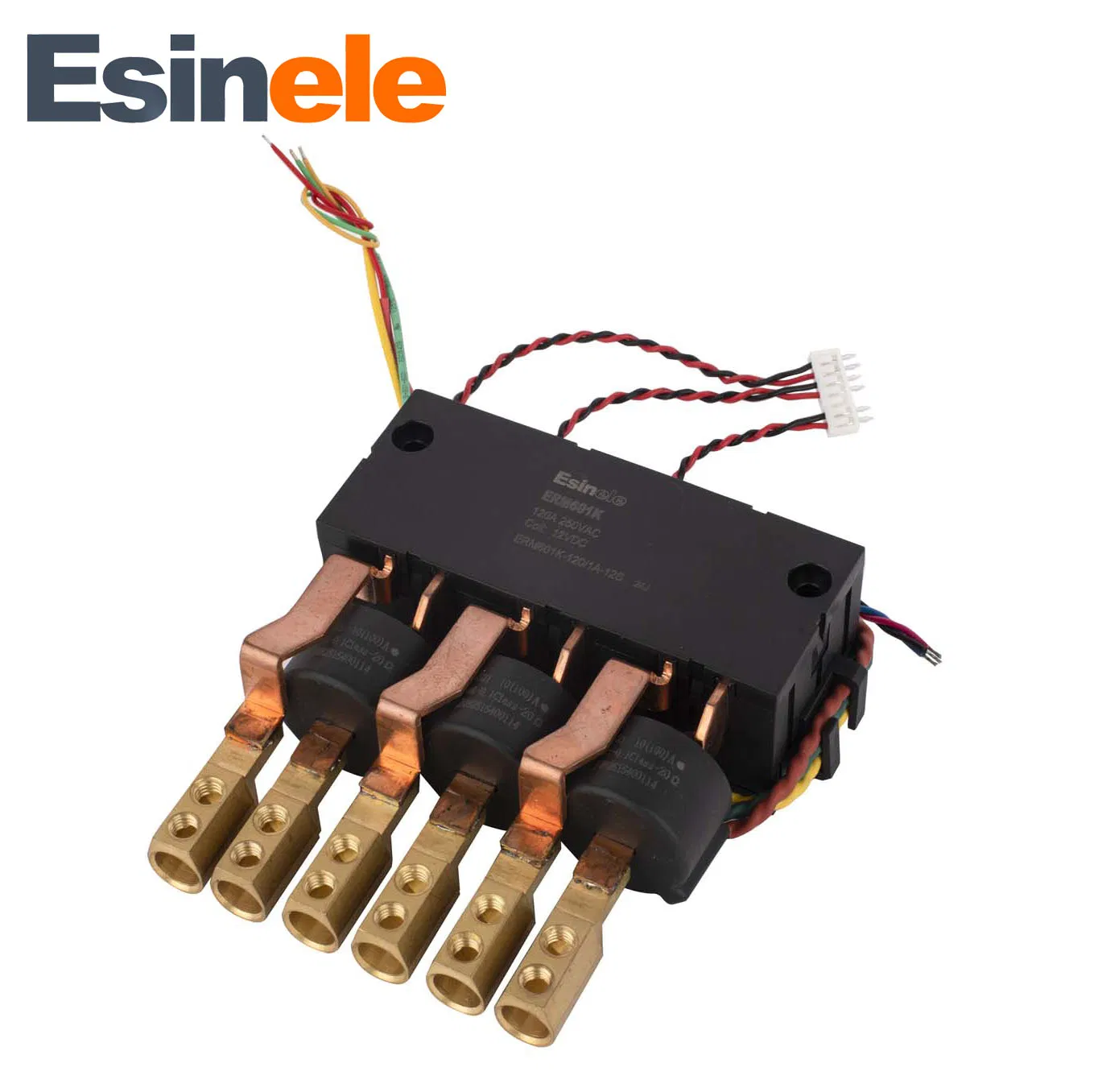

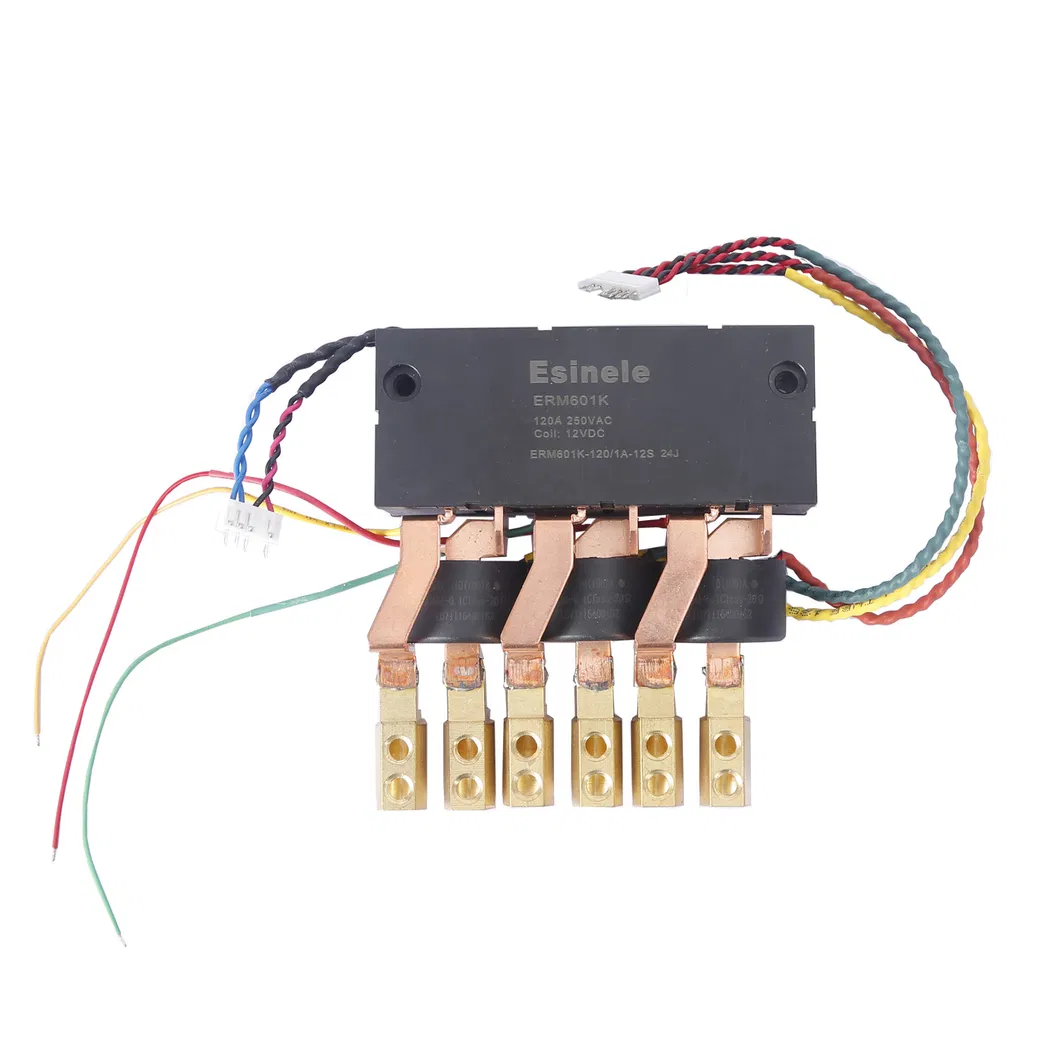

Erm601K-120A Miniature Latching Relay for Smart Meters Ideal for Global B2B Procurement General Purpose Design Reliable and Efficient

📋 Basic Information

Model NO.

ERM601K

Phase

3

Electricity Type

Ac

Number of Pole

2

Load

High Power Relay

Protective Characteristics

Sealed Relay

Action Principle

Electromagnetic Type

Size

Miniature

Type

Electric Parameter Relay

Contact Form

1A

Coil Type

Single Coil and Double Coil Optional

Switching Current

120A

Contact Material

Agsno2

Specification

98*40.8*36 mm

HS Code

8536411090

Production Capacity

1,000,000/Year

🔍 Product Description

General Purpose Miniature Latching Relay

ERM601K Characteristics

✔ 120A/80A three set of contacts switching capability.

✔ Apply to state grid 3-phase meter applications.

✔ Impulse excitation required (single and double coil options).

✔ Low power consumption and compact miniature size.

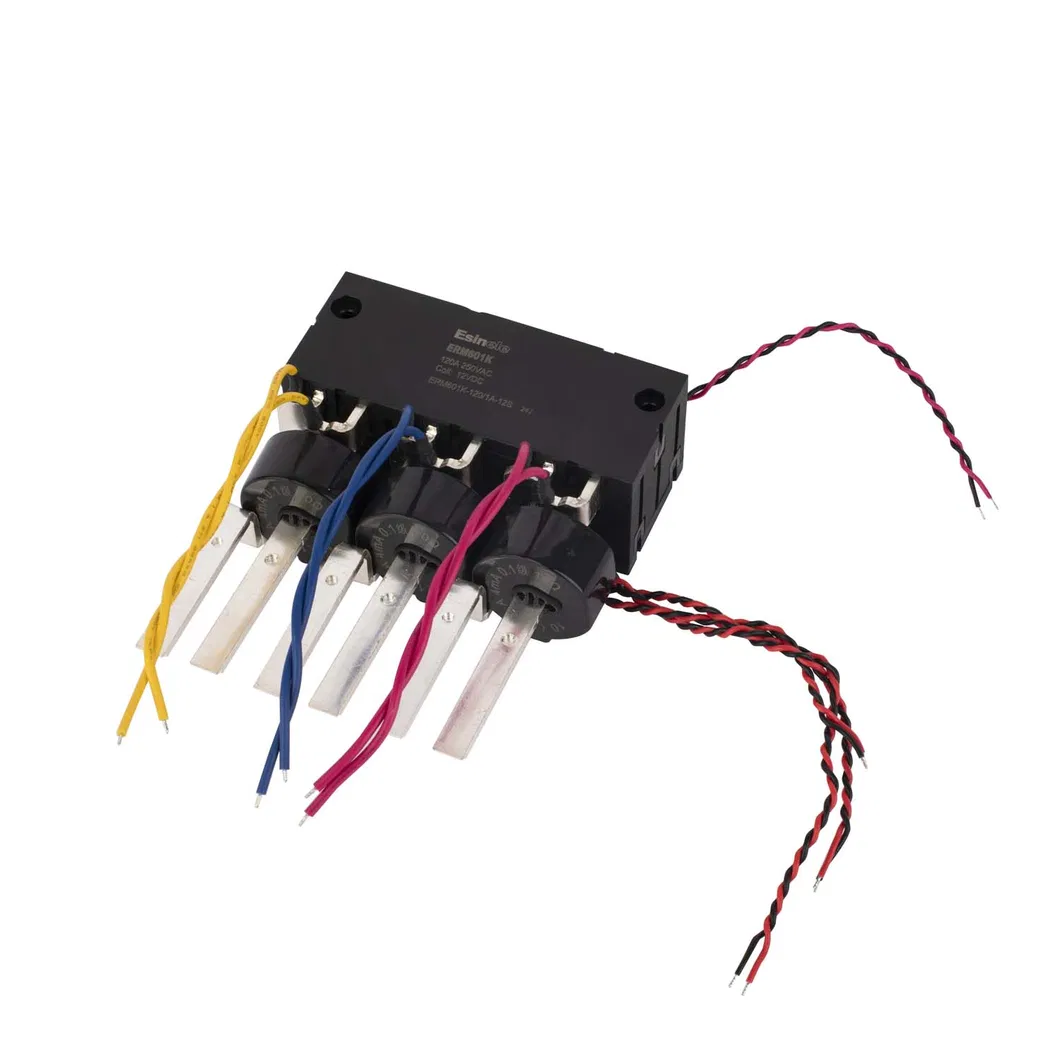

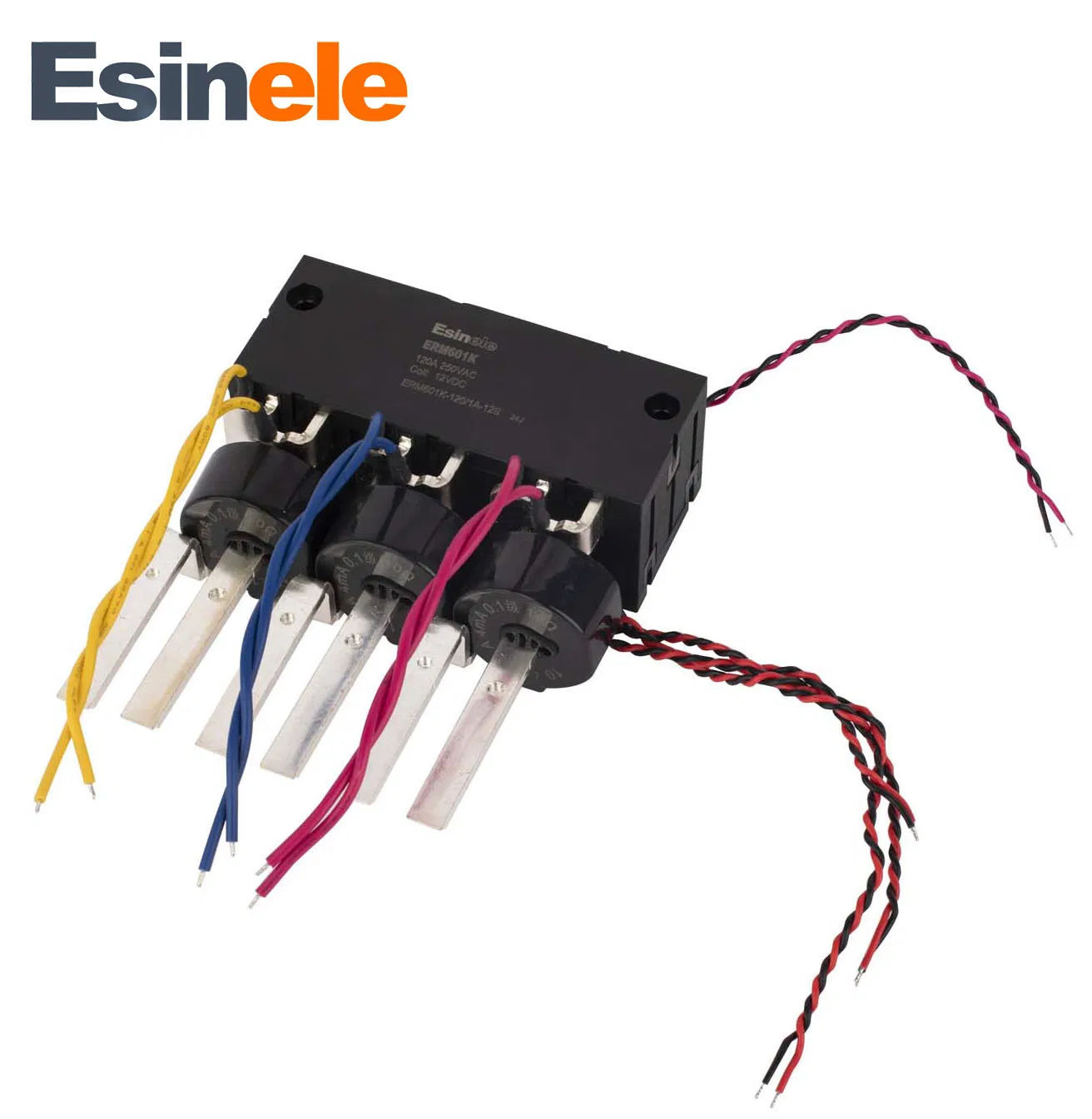

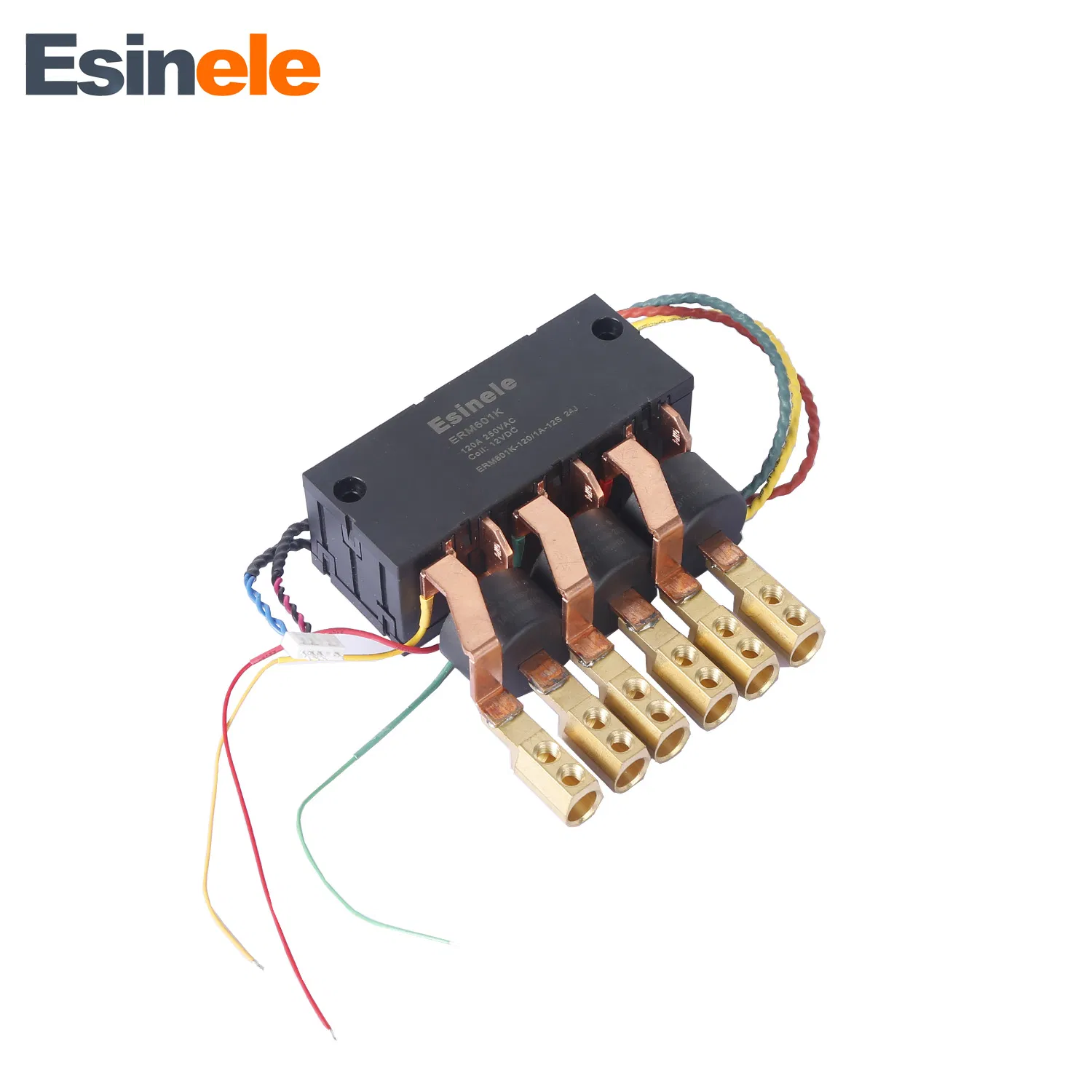

✔ Custom assemblies: flexible wire, copper straps, or integrated shunt.

✔ 4KV dielectric strength between coil and contacts.

✔ RoHS and IEC62055-31 UC2 compliant.

✔ Outline dimensions: (98x 40.8 x36) mm.

📊 Product Parameters

Contact Specification

Dimensions (mm)	117×52×28mm / 98x 40.8 x36mm
Contact Form	3A / 1A
Contact Material	Silver Alloy / AgSnO2
Max Switching Current	120A
Max Switching Voltage	250V AC
Max Switching Power	3000W / 30000VA
Weight	320g

Coil Specification

Rated Coil Voltage	9VDC	12VDC	24VDC	48VDC
Single Coil (±10%Ω)	32	57	230	920
Double Coil (±10%Ω)	16	29	115	460
Power Consumption	Single Coil 2.5W; Double Coil 5W

Technical Characteristics

Ambient Temp	-40 ~ +70ºC
Insulation Resistance	1000MΩ (500VDC)
Dielectric Strength (Contacts)	4000VAC 50/60Hz (1 Minute)
Dielectric Strength (Coil/Contacts)	6000VAC 50/60Hz (1 Minute)
Electrical Life	≥ 1×10⁴ OPS
Mechanical Life	≥ 5×10⁵ OPS

📐 Technical Diagrams

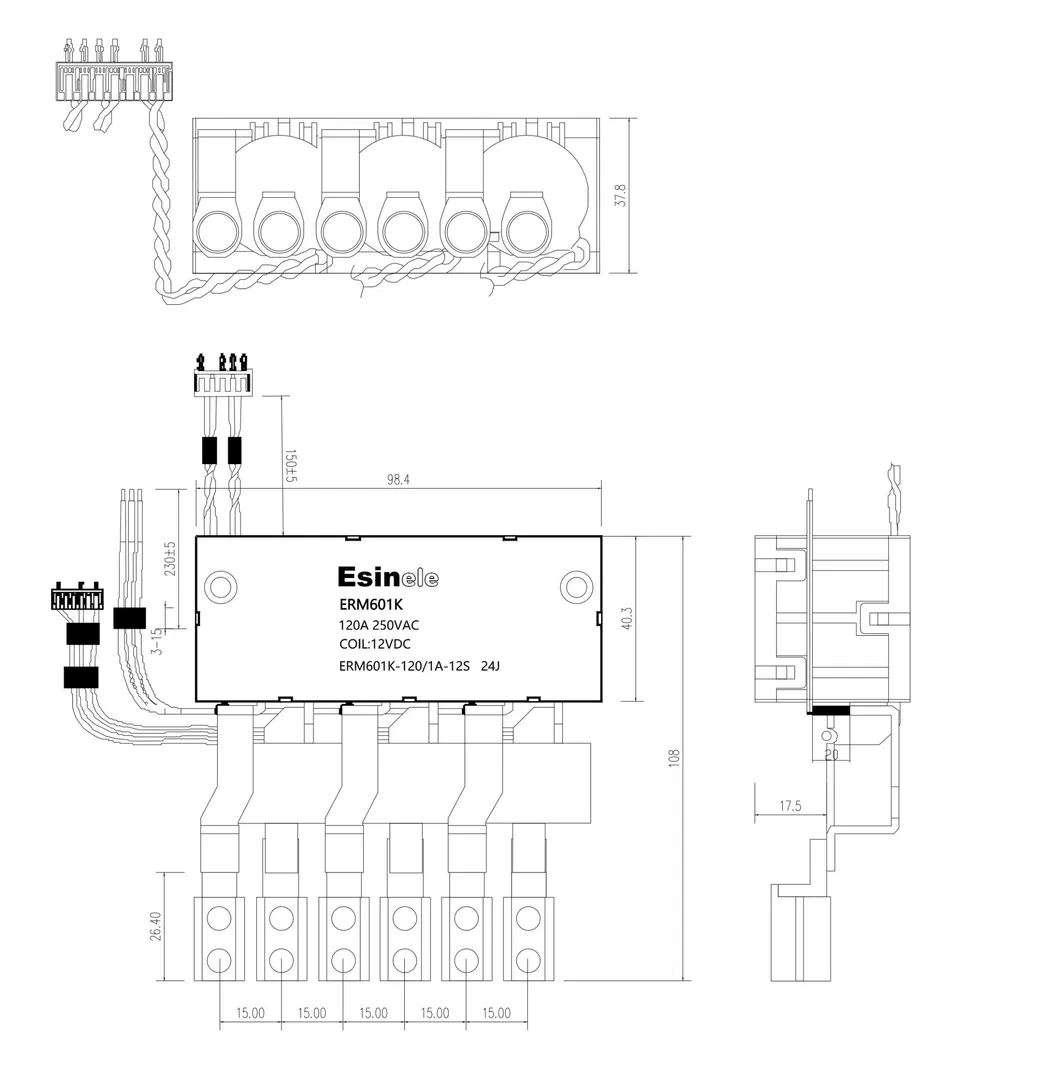

External Diagram

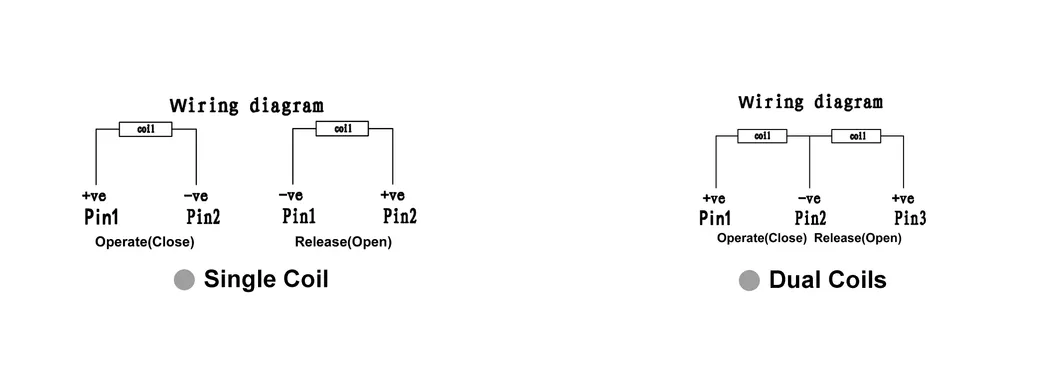

Wiring Diagram

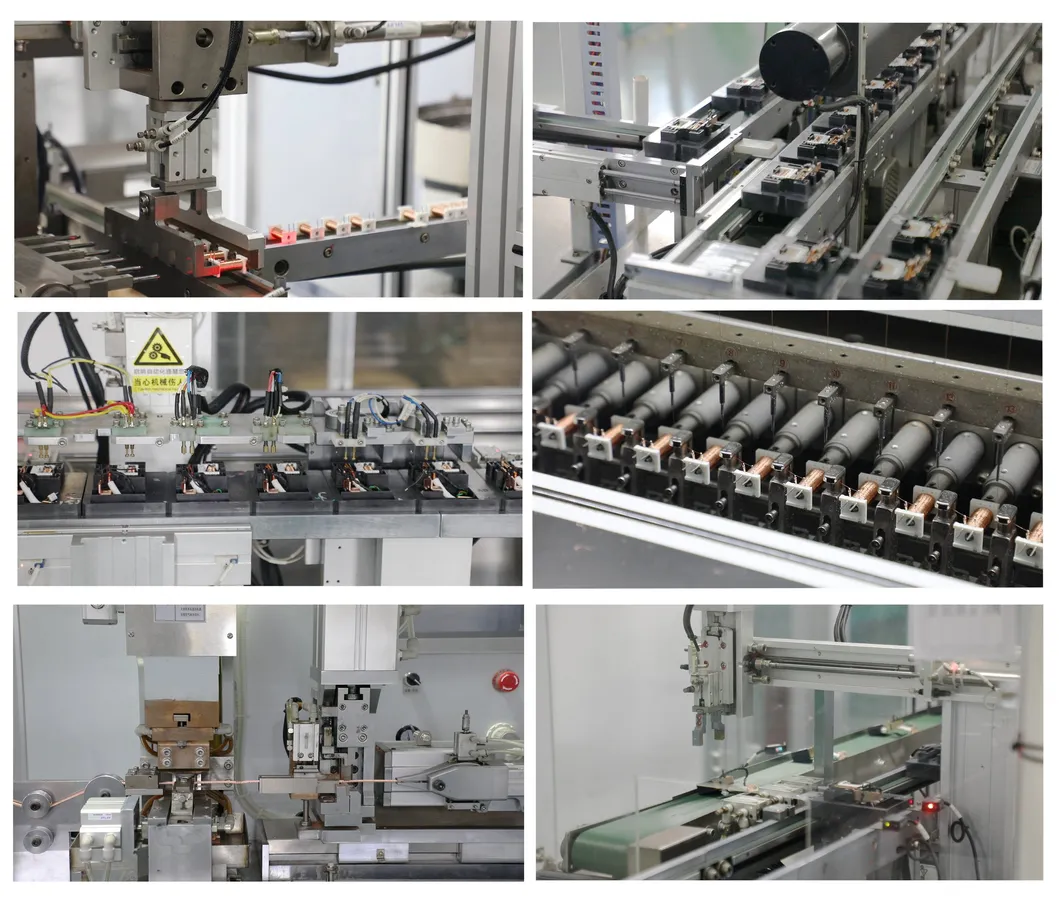

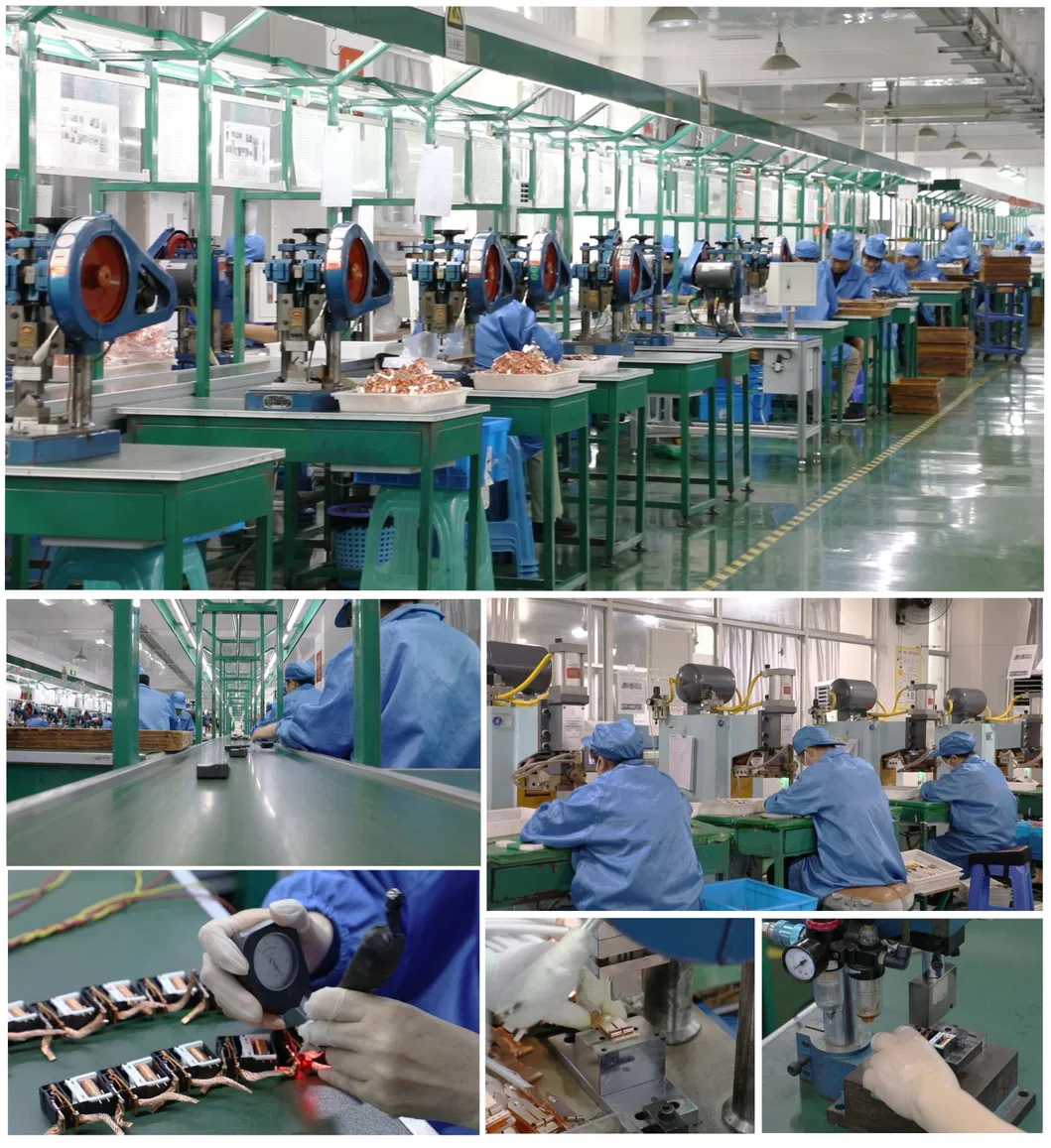

🏭 Production Equipment

❓ Frequently Asked Questions

How about the payment terms?

Normally 30% deposit in advance. Terms can be discussed as we build a long-term cooperation.

How about the Delivery time?

We have a large capacity of 200,000 pcs per month. Standard delivery time is normally within 15 days.

Can I get a sample?

Yes, we are willing to supply samples free of charge for quality checking purposes.

What's the price level?

We offer competitive and reasonable pricing based on high-quality manufacturing standards.

Is the product compliant with international standards?

Yes, the ERM601K series is RoHS compliant and meets IEC62055-31 UC2 standards for smart meters.

Are custom assemblies available?

Absolutely. We can provide custom assemblies with flexible wires, copper straps, or integrated shunts according to your specifications.
