Scope of Application: Mainly suitable for processing in industries such as aviation, aerospace, automotive, military, energy, information, and molds.

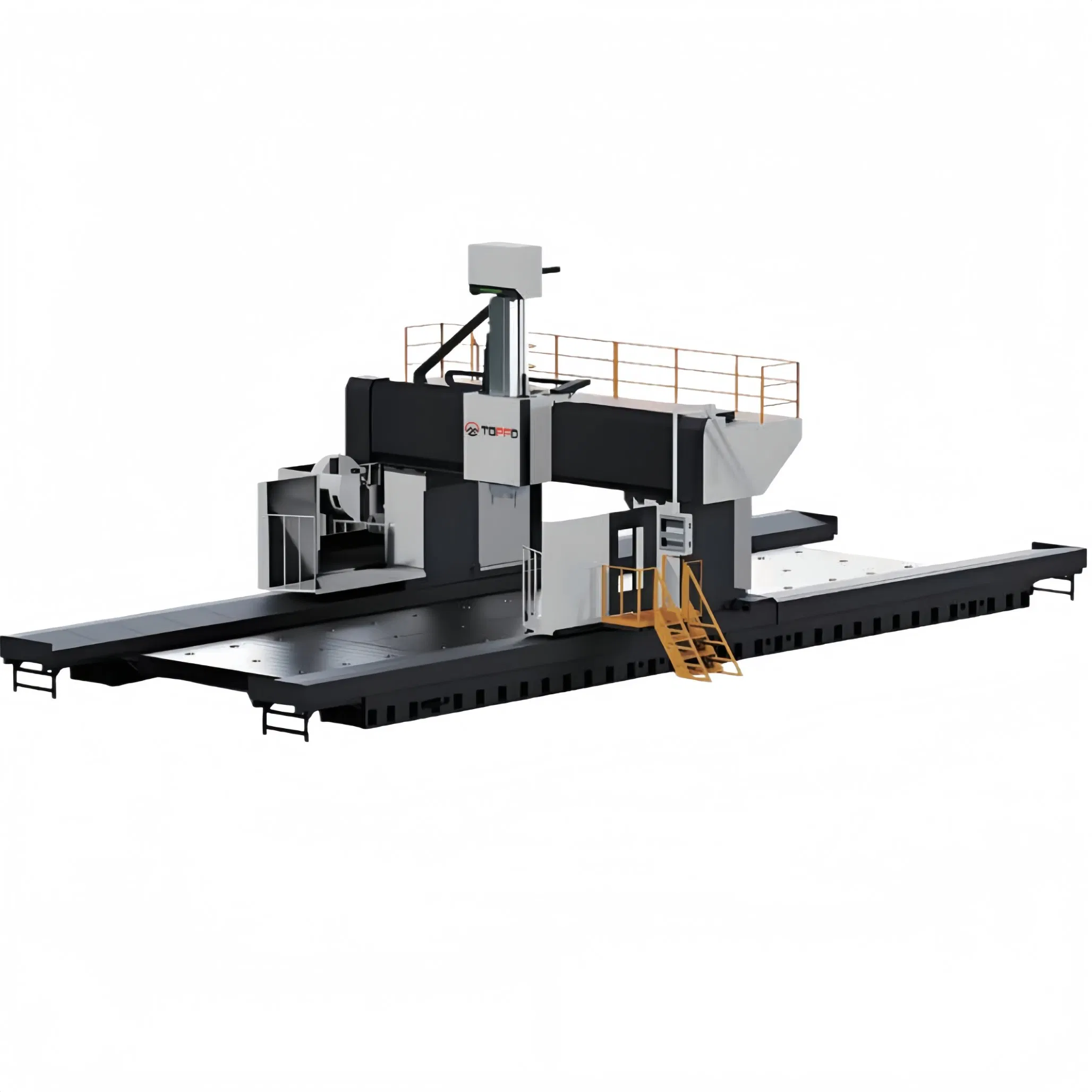

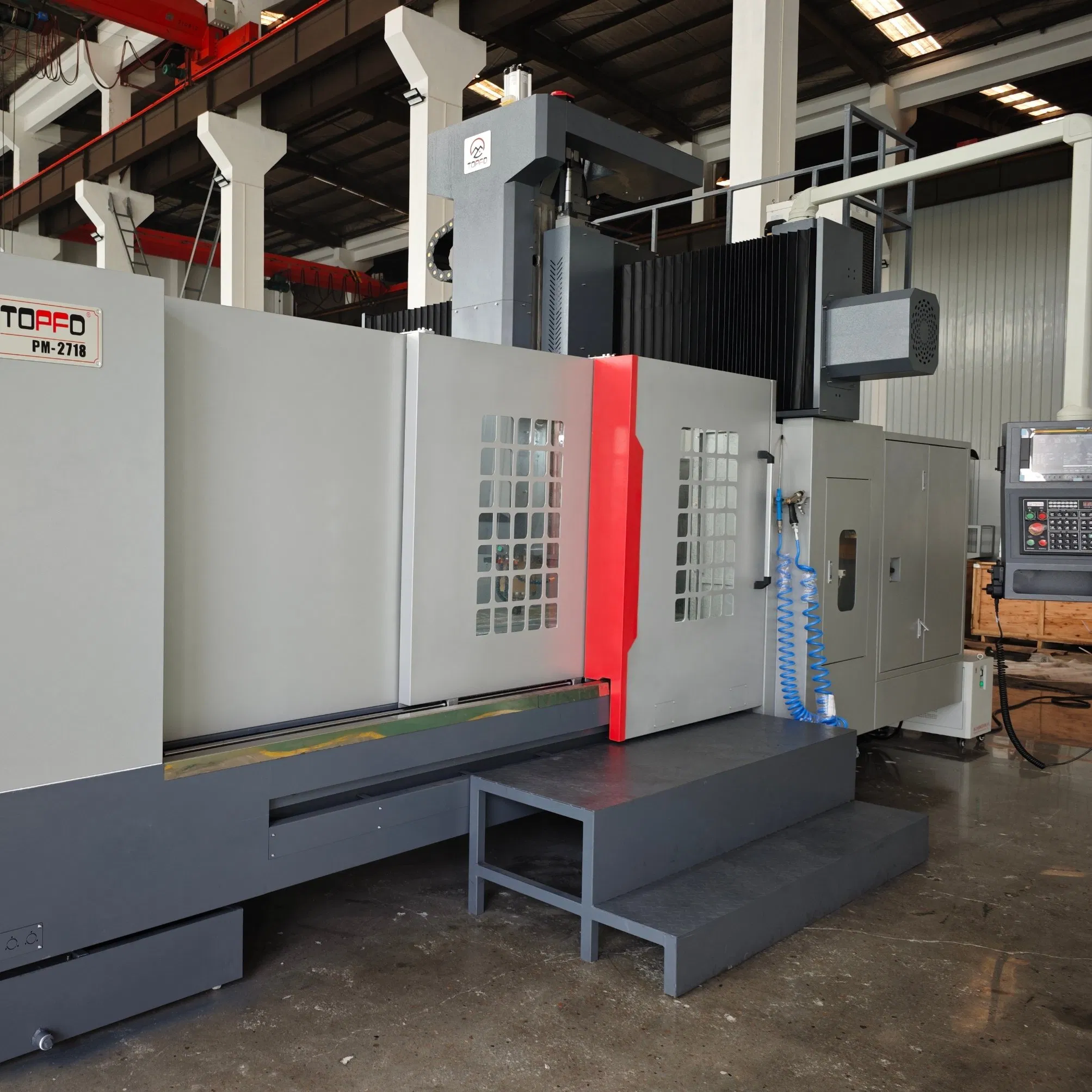

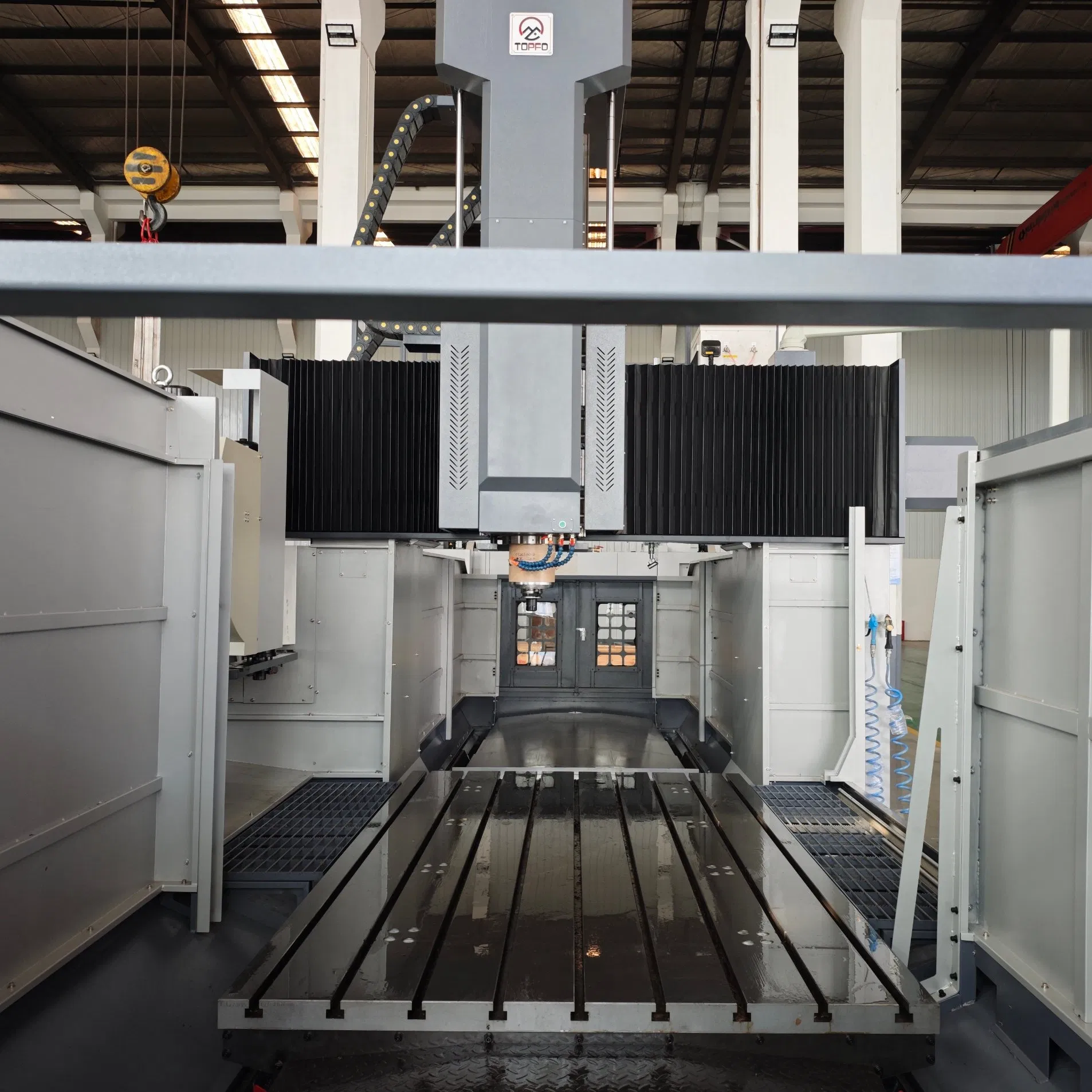

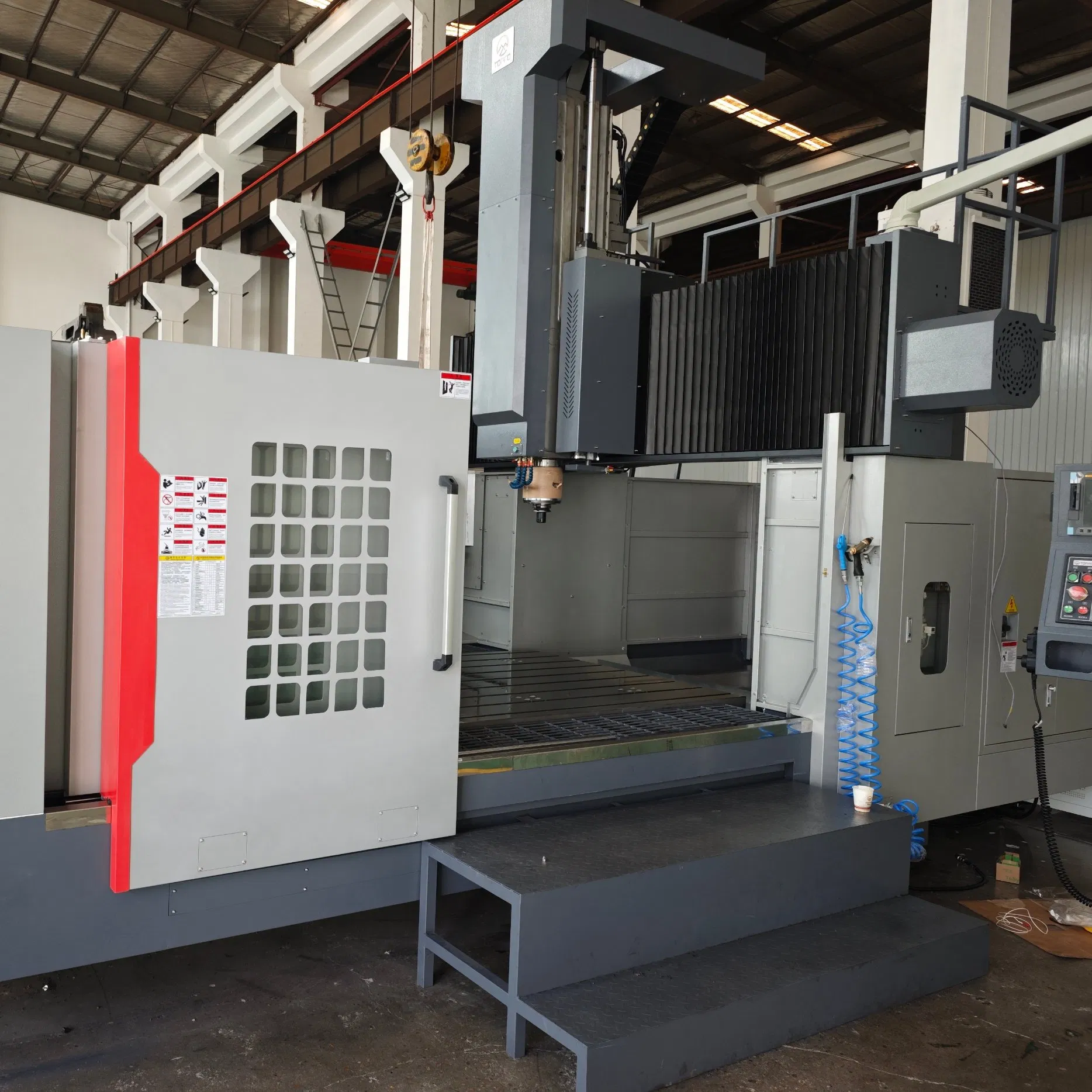

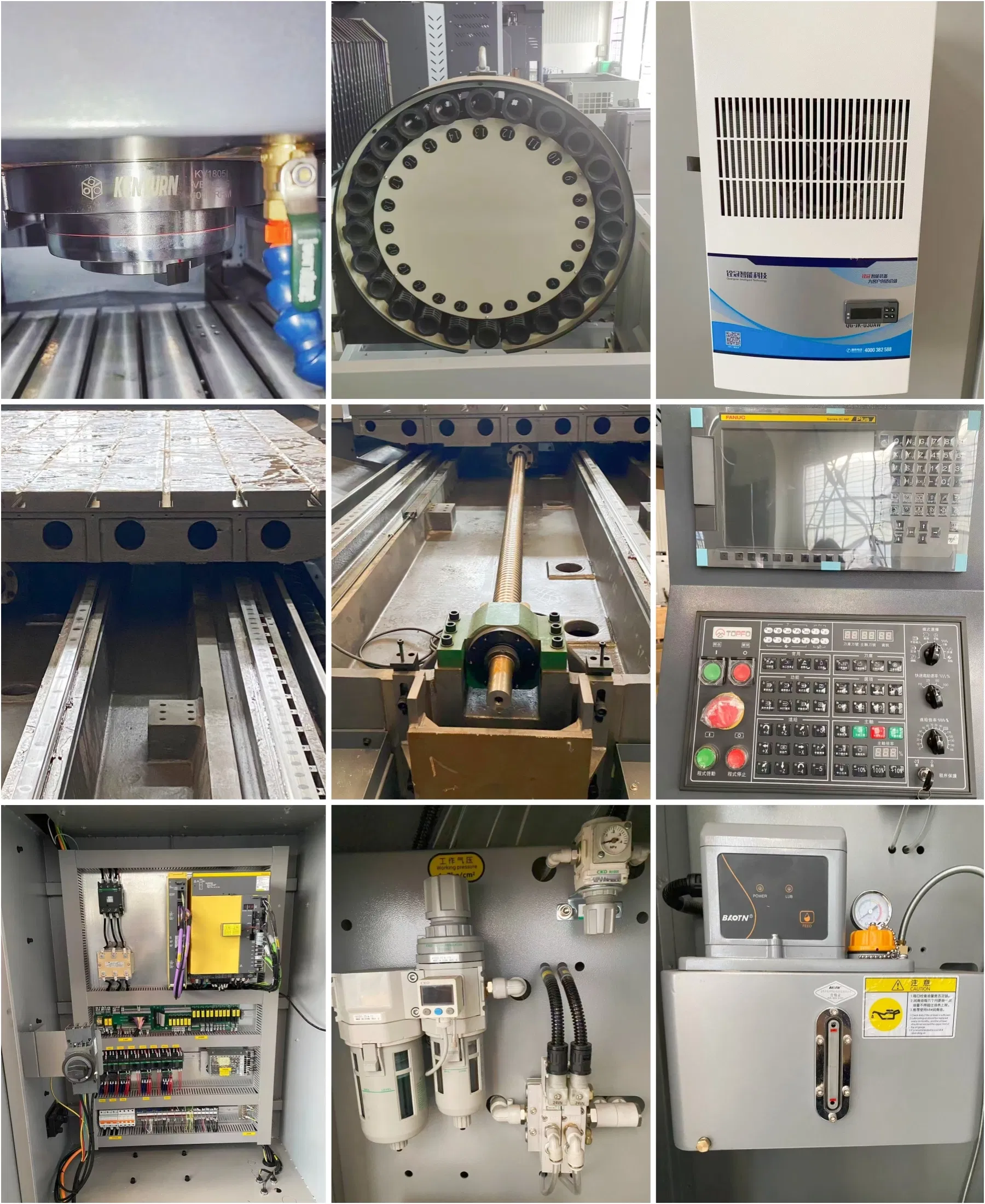

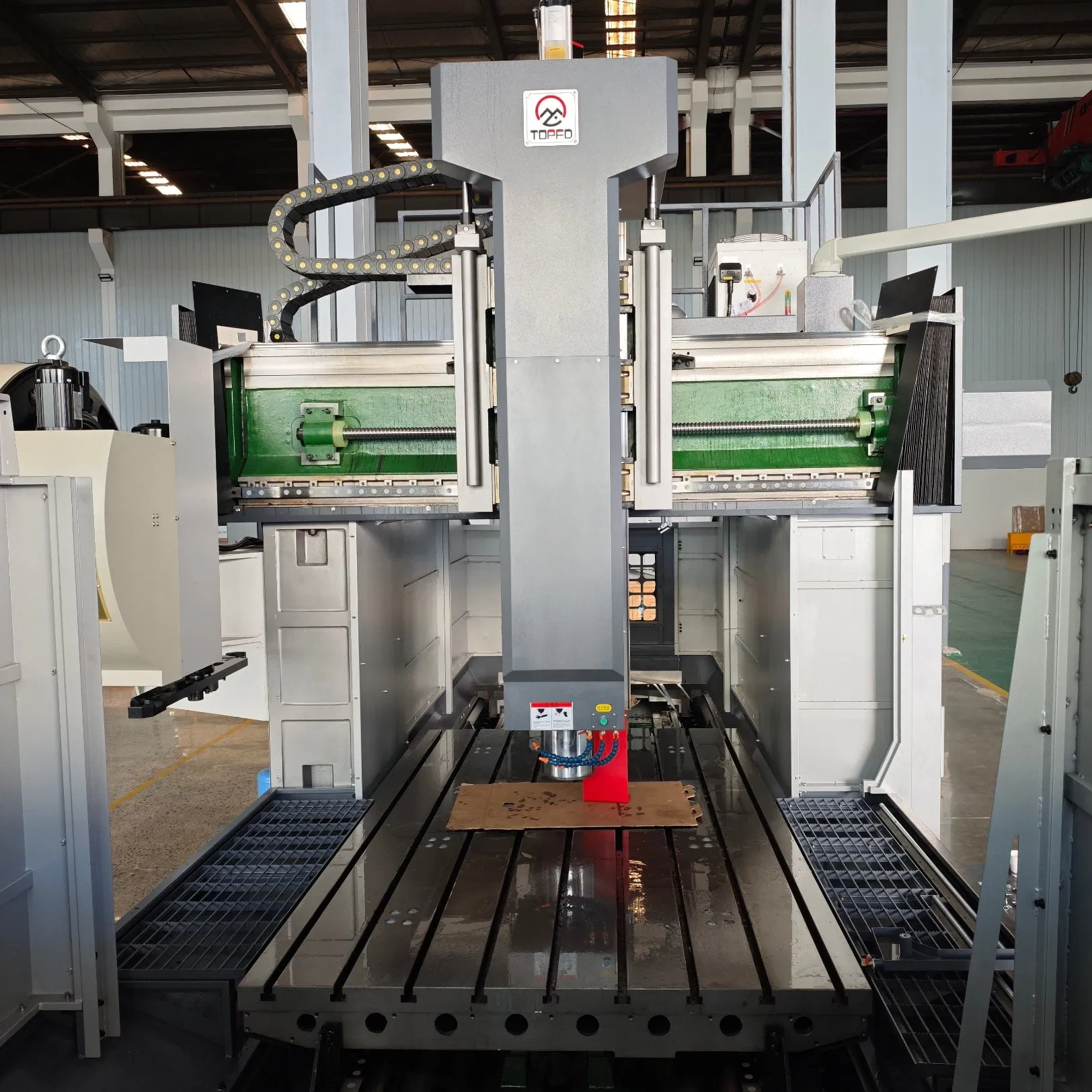

Single column fixed structure, worktable mobile structure, high rigidity of basic components, and lightweight mobile components. Capable of completing milling, boring, drilling, tapping and other processes in one clamping operation.
| Item | PM-4042LQ | PM-5042LQ | PM-6042LQ | PM-8042LQ | PM-10042LQ |
|---|---|---|---|---|---|
| Workbench size (mm) | 3000x4000 | 3000x5000 | 3000x6000 | 3000x8000 | 3000x10000 |
| X-axis Stroke (mm) | 4000 | 5000 | 6000 | 8000 | 10000 |
| Y-axis Stroke (mm) | 4200 (with a side trip of 4700) | ||||
| Z-axis Stroke (mm) | 1250 (optional 1500) | ||||
| Spindle Specifications | BT50/Ø 200 long nose tip | ||||
| Max Spindle Speed | 6000 r/min | ||||
| Workbench Load (t) | 15 | 18 | 21 | 25 | 30 |
Pre-Sales Guidance: Comprehensive technical support, efficient equipment configuration solutions, and factory planning assistance.
After-Sale Service: Free installation and debugging, 24/7 quick response, and lifelong maintenance support.

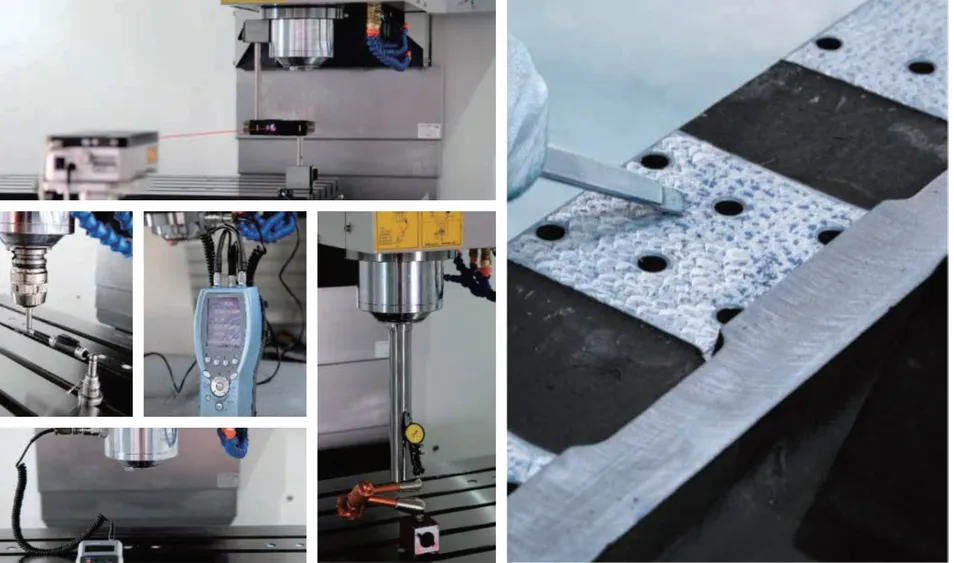

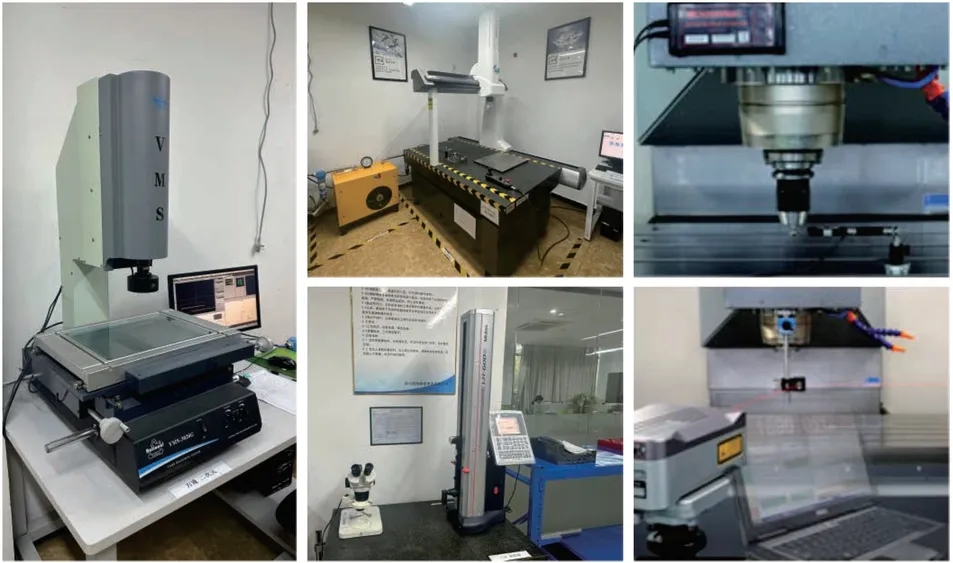

Quality Inspection: Using world-renowned processing equipment and advanced testing instruments (laser interferometers, roundness meters, etc.) to ensure precision and stability.
We are a professional CNC machine tool manufacturer specializing in high-speed drilling and tapping machines, vertical machining centers, and gantry machining centers. Our products are widely used in automotive, shipbuilding, and aerospace industries.
Our operational system encompasses mechanical design, manufacturing, assembly, testing, and quality inspection. We relentlessly pursue perfection, ensuring every component, even a tiny screw, is meticulously crafted to deliver maximum value.
