Product Description

Basic Information
Model NO.
SMD2.0*1.6mm
Material
Quartz crystal
Certification
ISO19000, ISO14001, RoHS, CE
Type
SMD
Frequency Tolerance
+/-2.0ppm
Operating Temp.
-30 to +85 degree
Application
Communication GPS
Size
2.0*1.6mm
Capacity
60,000,000 PCS/Month
HS Code
854160000
Product Parameters
Type DSA211SDN (VC-TCXO)
Frequency Range 12.288 to 52MHz
Standard Frequency 19.2MHz/26MHz/38.4MHz/40MHz/52MHz
Supply Voltage Range +1.68 to +3.5V
Current Consumption 1.5mA max. (f<=26MHz) / 2.0mA max. (26
Output Level 0.8Vp-p min. (Clipped Sinewave)
Frequency Stability Tolerance ±1.5×10-6 max.
vs. Temperature ±1.0×10-6, ±2.5×10-6 max. / -30 to +85ºC
vs. Supply Voltage ±0.2×10-6 max. (VCC ±5%)
vs. Aging ±1.0×10-6 max./year
Phase Noise (Offset 10kHz) -150dBc/Hz [f<=26MHz] -150dBc/Hz [26-40MHz] -145dBc/Hz [40-52MHz]
Product Description

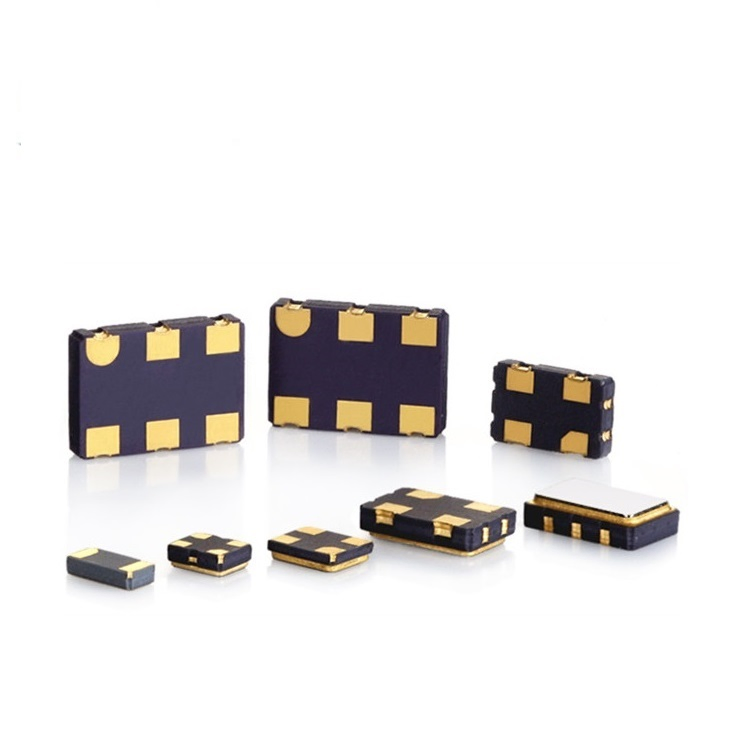

Quartz Crystal Resonator SMD2.0*1.6mm
Electronic Component Specification
Application
Product Application Area
Our Advantages
Production Advantage 1
Production Advantage 2
Certifications
Product Certifications
Facility & Equipment
Manufacturing Facility
Packaging & Shipping
Packaging details
Frequently Asked Questions
What are the primary applications for the SMD 2016 Quartz Crystal?
This resonator is ideal for high-precision communication devices, GPS systems, mobile phones, and wireless networking equipment due to its ultra-small footprint and high stability.
Does this product support lead-free soldering?
Yes, our SMD quartz crystals are RoHS compliant and designed to withstand the thermal profiles of standard lead-free reflow soldering processes.
What is the standard packaging quantity per reel?

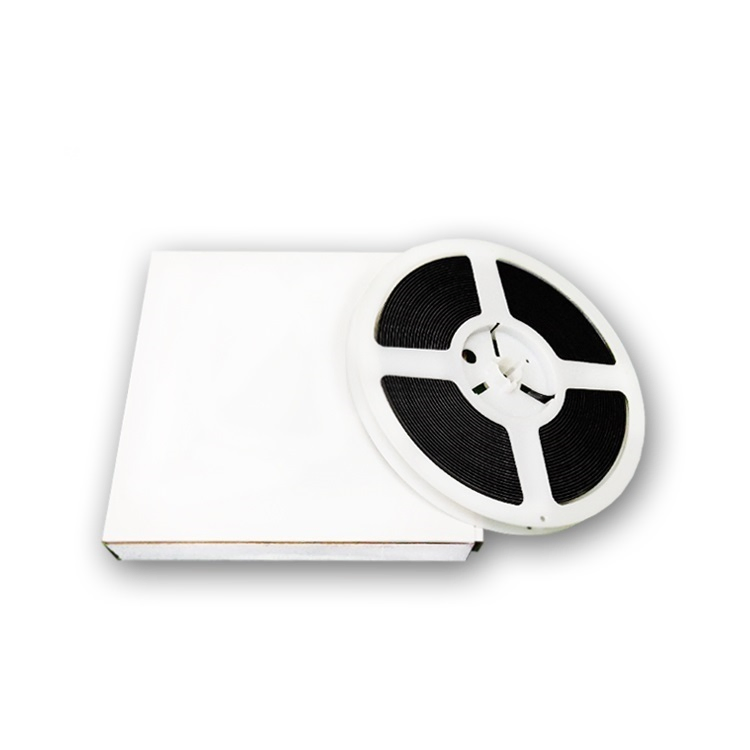

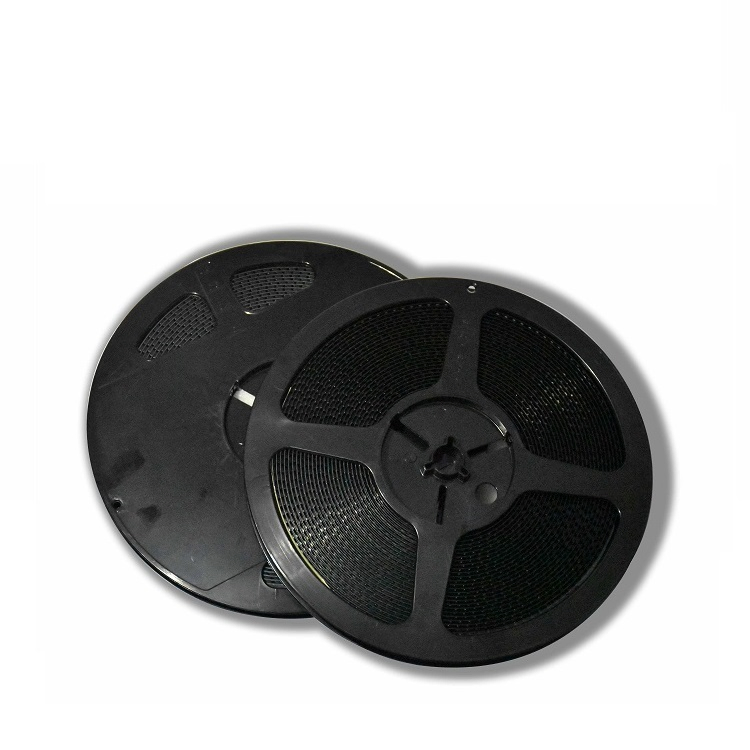

The standard packaging for the 2.0*1.6mm series is 3,000 pieces per reel (Φ180mm), ensuring safe transport and compatibility with automated SMT placement machines.
Can you provide customized frequency tolerances?
While our standard tolerance is +/-2.0ppm, we can offer various stability options depending on your specific operating temperature requirements and application needs.
What is the typical lead time for large production orders?
With a production capacity of 60 million pieces per month, we generally maintain a stable lead time, but please confirm based on your current order volume and specification requirements.
