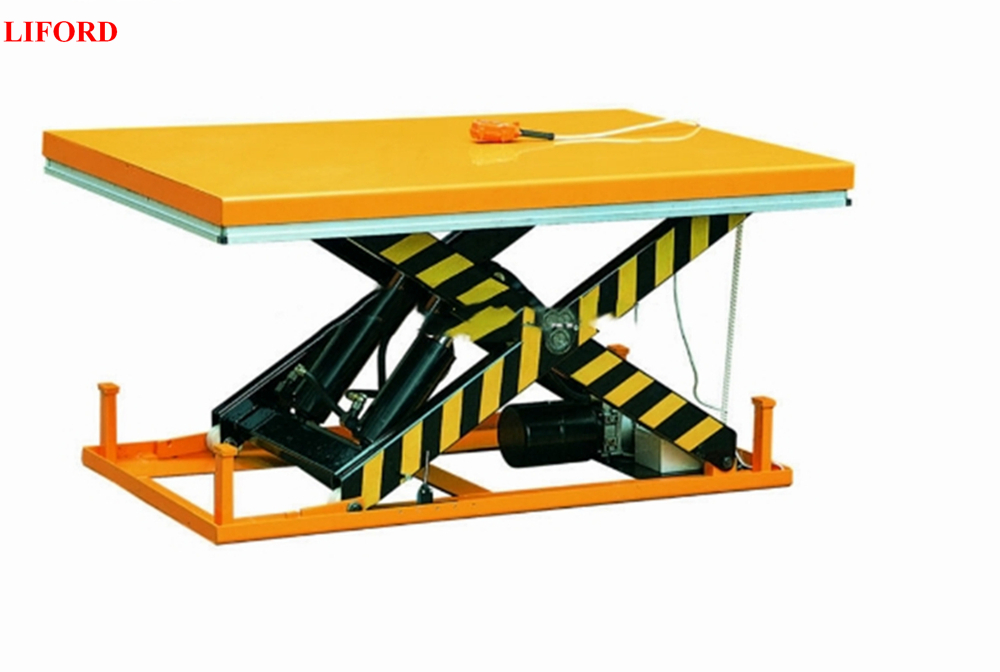

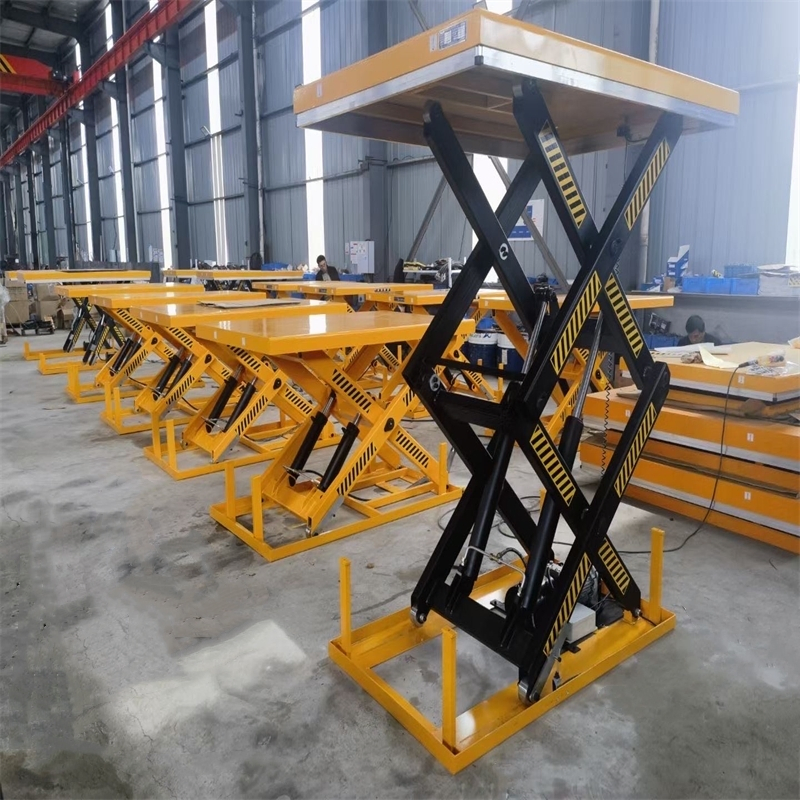

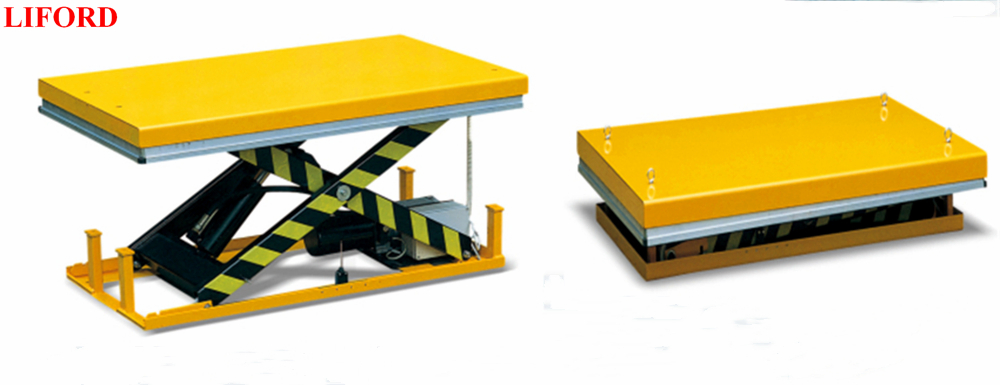

1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulic Lift Table Hw1006

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model Series
HW1001, HW2001, HW4001 series
Lift Mechanism
Scissor Lift
Carrying Capacity
1000kg - 4000kg
Lifting Height
205mm to 1300mm
Driven Type
AC Power (380V/50Hz)
Certification
CE, ISO 9001
Product Overview
Stationary Lift Table
Stationary Electric Scissor Lifting Platform HW series
Electric Scissor Lift

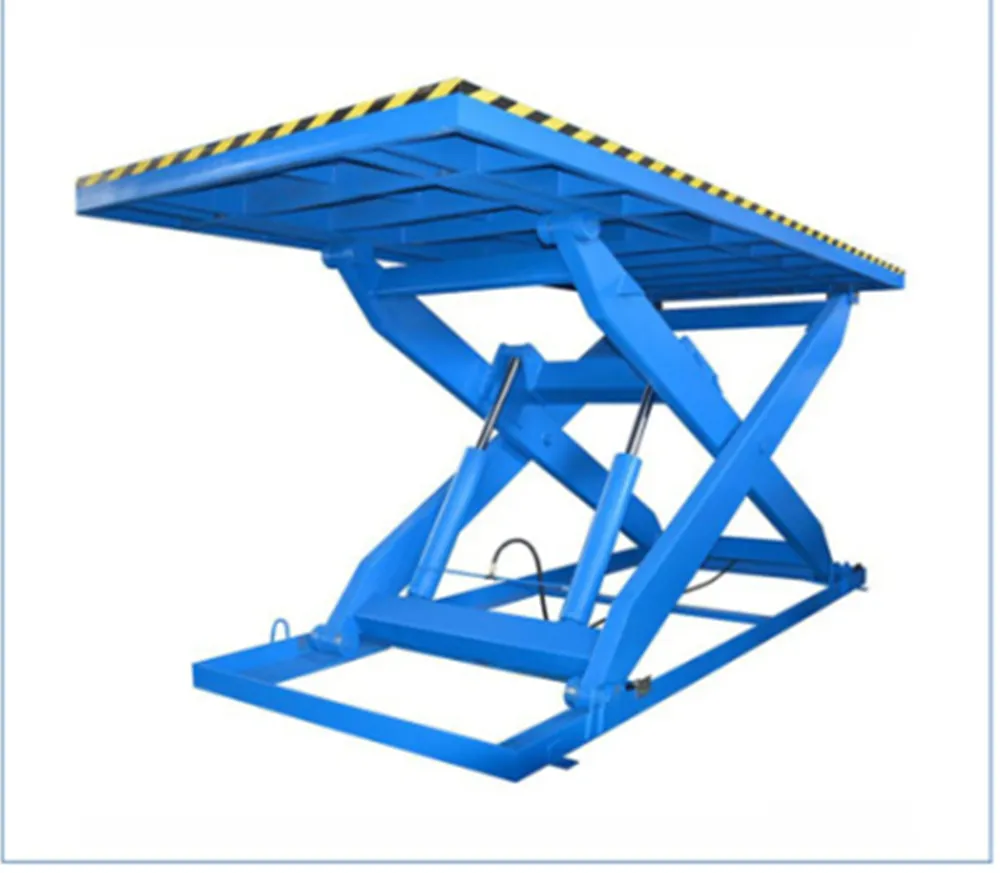

Hydraulic Lift Table
Key Features & Advantages
⚙️
Heavy Duty Design: Capacity ranging from 1000-4000kg with a strong structure for steady performance.
🛡️
Safety First: Equipped with anti-pinch and overload protection functions for operator safety.
💧
High Quality Pump: Features a smooth lifting mechanism and external power pack with relief valves.
🛑
Emergency Stop: Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.

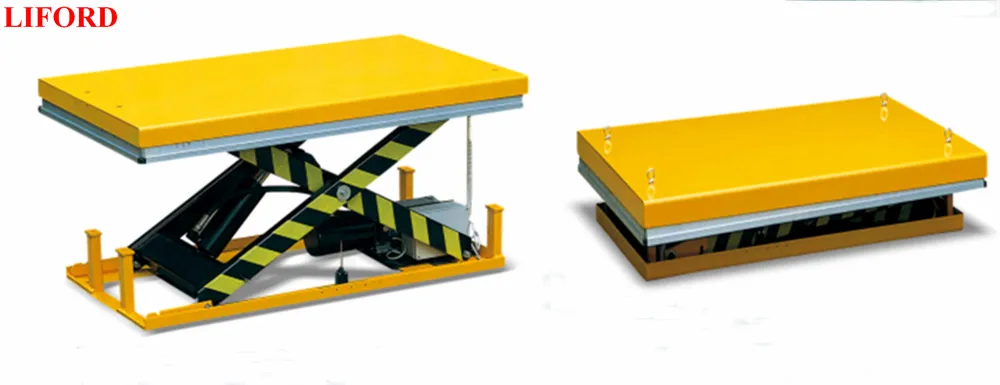

Safety Features
Technical Parameters
Model Capacity (kg) Height Min/Max (mm) Platform Size (mm) Base Size (mm) Lift Time (s) Battery (V/HZ) Net Weight (kg)
HW10011000205/9901300*8201240*64020~25380/50160
HW10061000240/13002000*10001580*64030~35380/50223
HW20012000230/10001300*8501220*78520~25380/50235
HW20062000250/13002000*10001600*78525~35380/50315
HW40014000250/14001700*12001600*90030~40380/50375
HW40084000300/14002200*18001620*140035~45380/50655
Detailed View
Detail 1

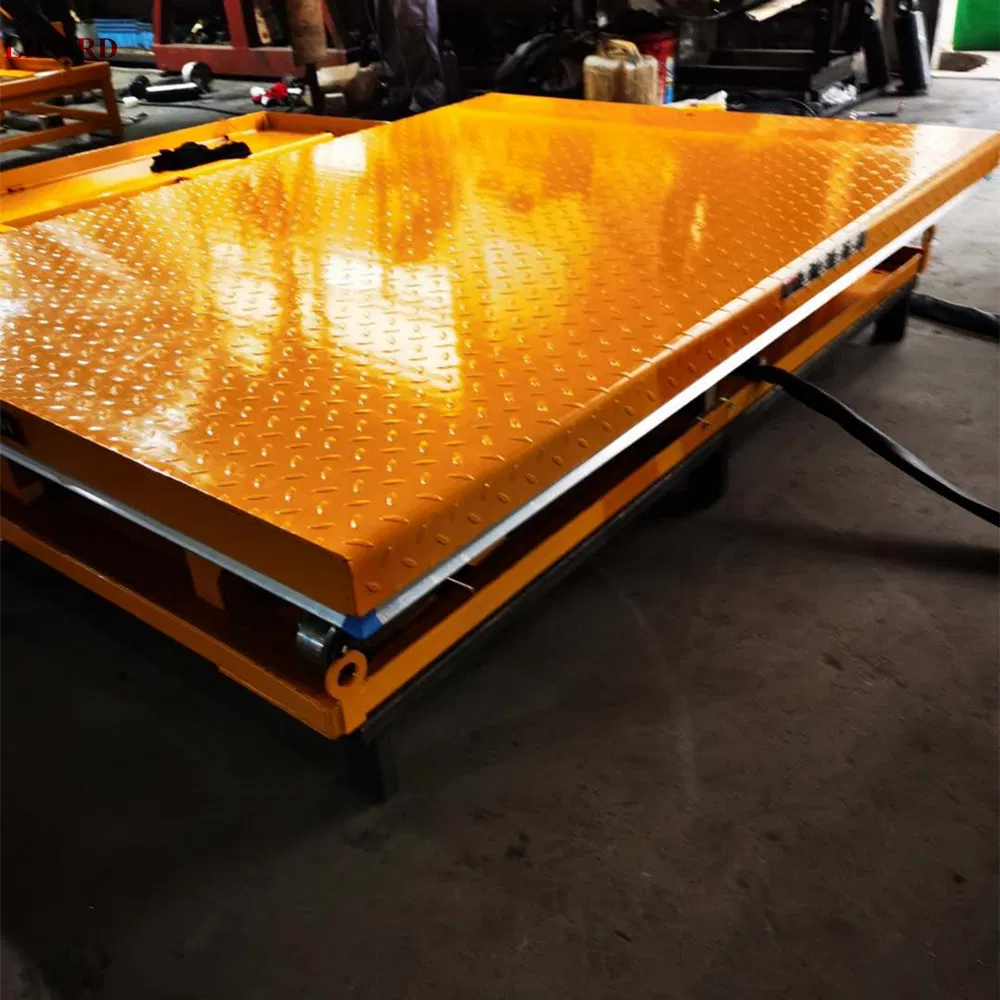

Detail 2

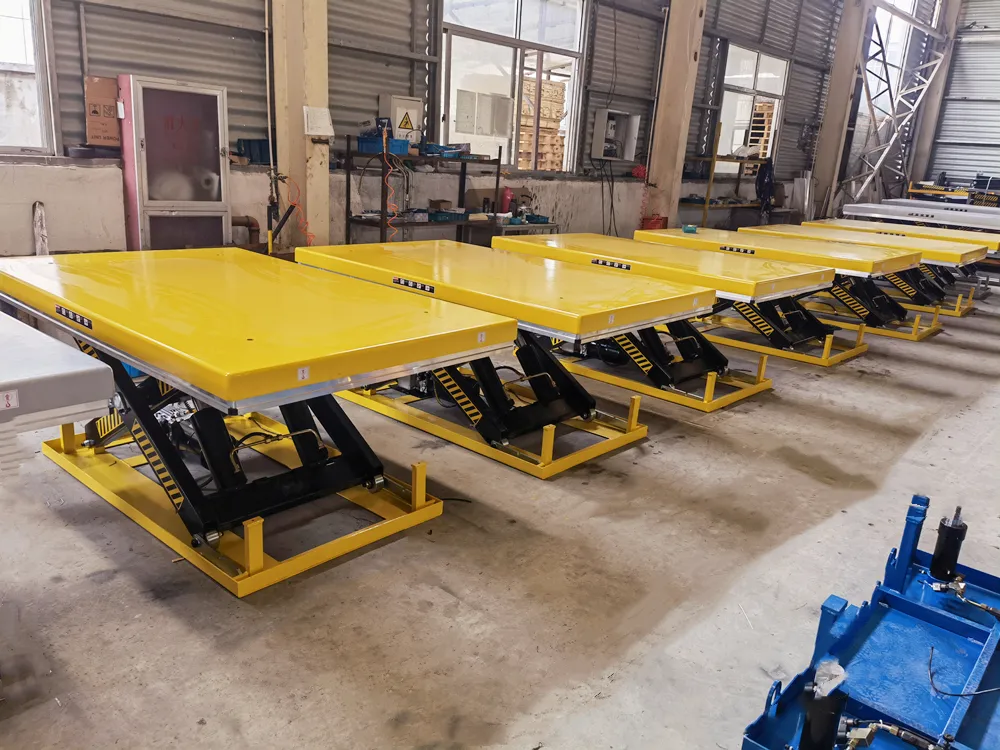

Detail 3
Detail 4

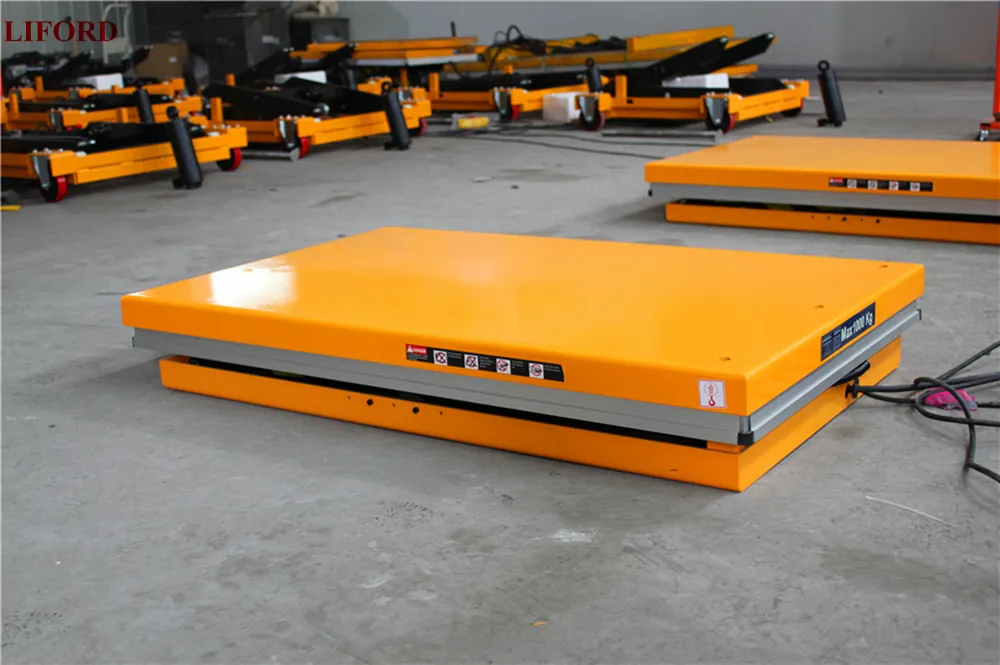

Detail 5

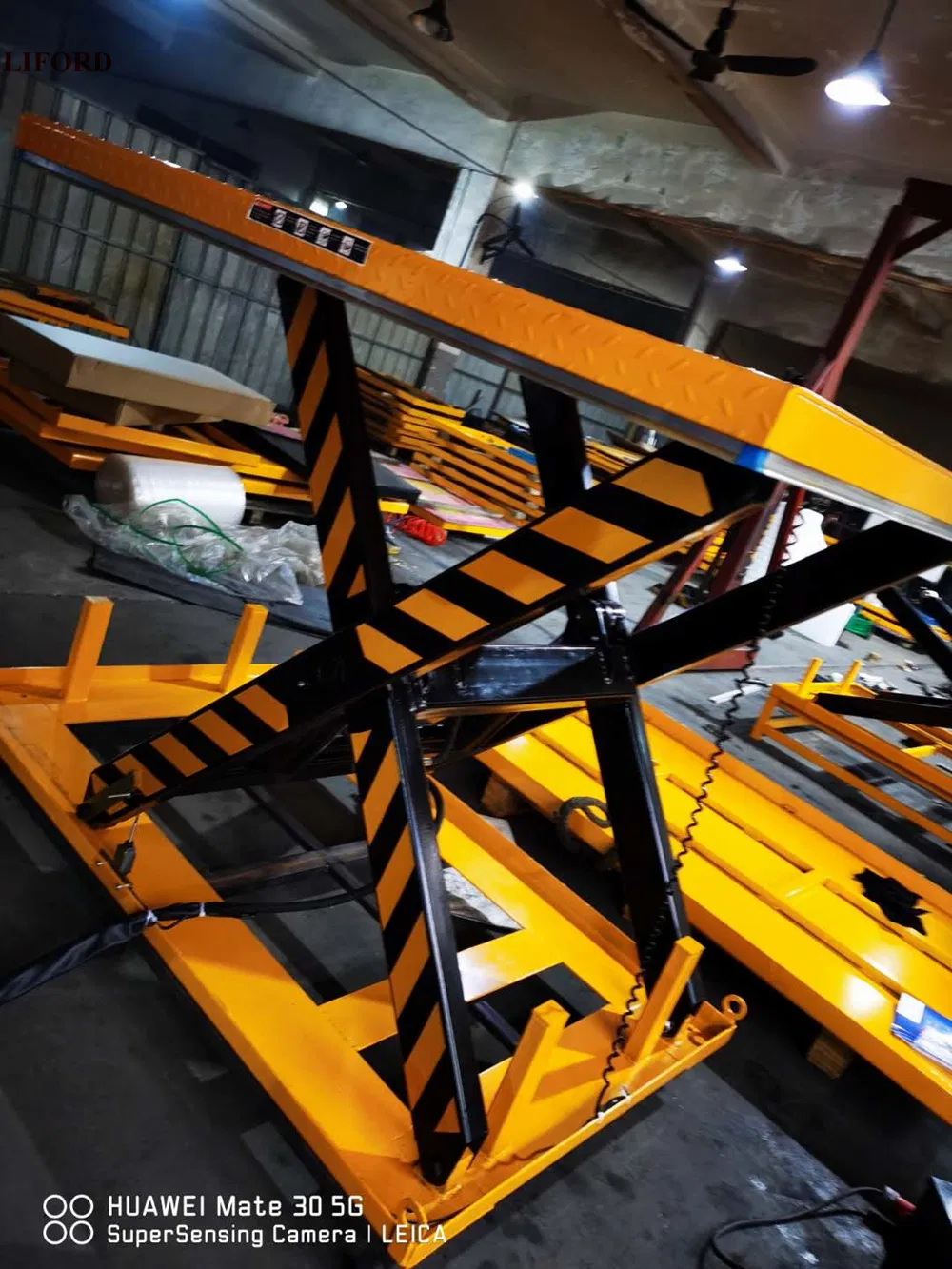

Detail 6
Quality Control & Packaging
📦
Standardized Packaging: For sea delivery, we use strong pallets and stretch film or cartons to ensure goods arrive in perfect condition.
100% Inspection: All finished products undergo strict inspection before shipment to guarantee quality.
Packaging

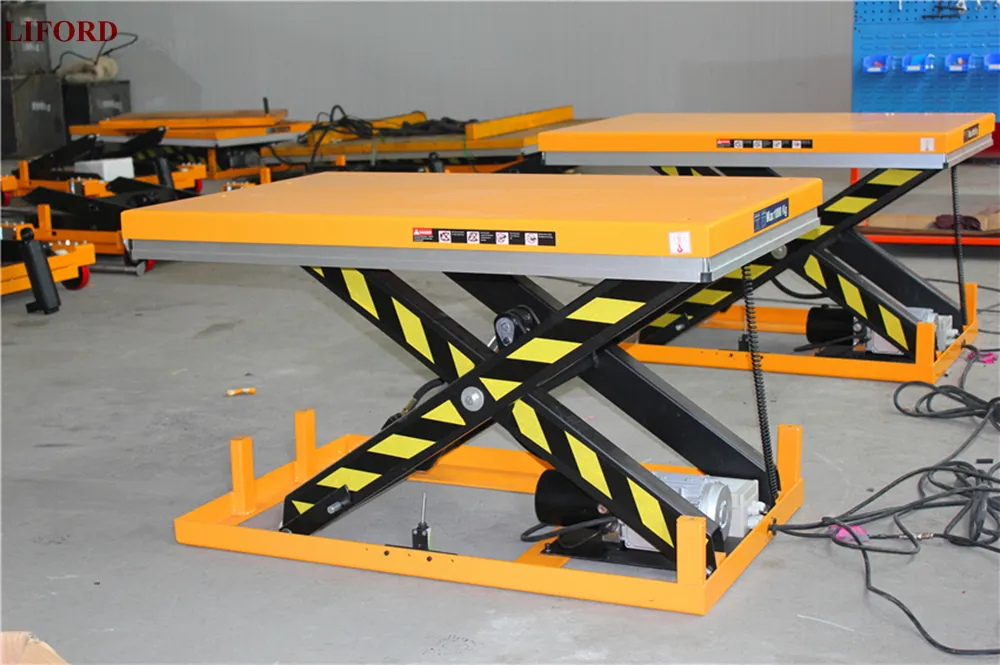

Inspection
Frequently Asked Questions
What is the load capacity of these lift tables?
The HW series stationary lift tables support a carrying capacity ranging from 1000kg up to 4000kg, depending on the specific model selected.
What safety features are included?
The lift tables include an anti-pinch safety perimeter under the platform, overload protection valves, and a compensated flow valve to control the lowering speed safely.
What are the primary applications for this equipment?
These tables are ideal for workshop cranes, shipboard use, warehouse operations, building sites, and general stationary lifting requirements.
What is the required power supply?
The standard driven type is an AC electric system requiring 380V/50Hz power supply.
Are the lift tables certified?
Yes, all products are manufactured to meet CE and ISO 9001 certification standards for quality and safety.
How is the product packaged for international shipping?
For sea delivery, we use strong pallets with stretch film or reinforced carton boxes to prevent any damage during transit.
